DELCON

Relay Bases and Jumpers

Selected variant

Available in several variants
delcon-logo.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Input data
Input voltage ac max 250 V AC
Input voltage dc max 250 V DC

Output data
Load current 6.3 A

General data
Width 12.8 mm
Temperature operational min -40 °C
Temperature operational max 70 °C
Storage temperature min -40 °C
Storage temperature max 70 °C
Colour Black
Material PBT
Weight 22 g
Approvals CE, UL

Downloads

Accessories

Parts Input voltage ac max Input voltage dc max Load current Width Temperature operational min Temperature operational max Storage temperature min Storage temperature max Colour Material Weight Approvals Price

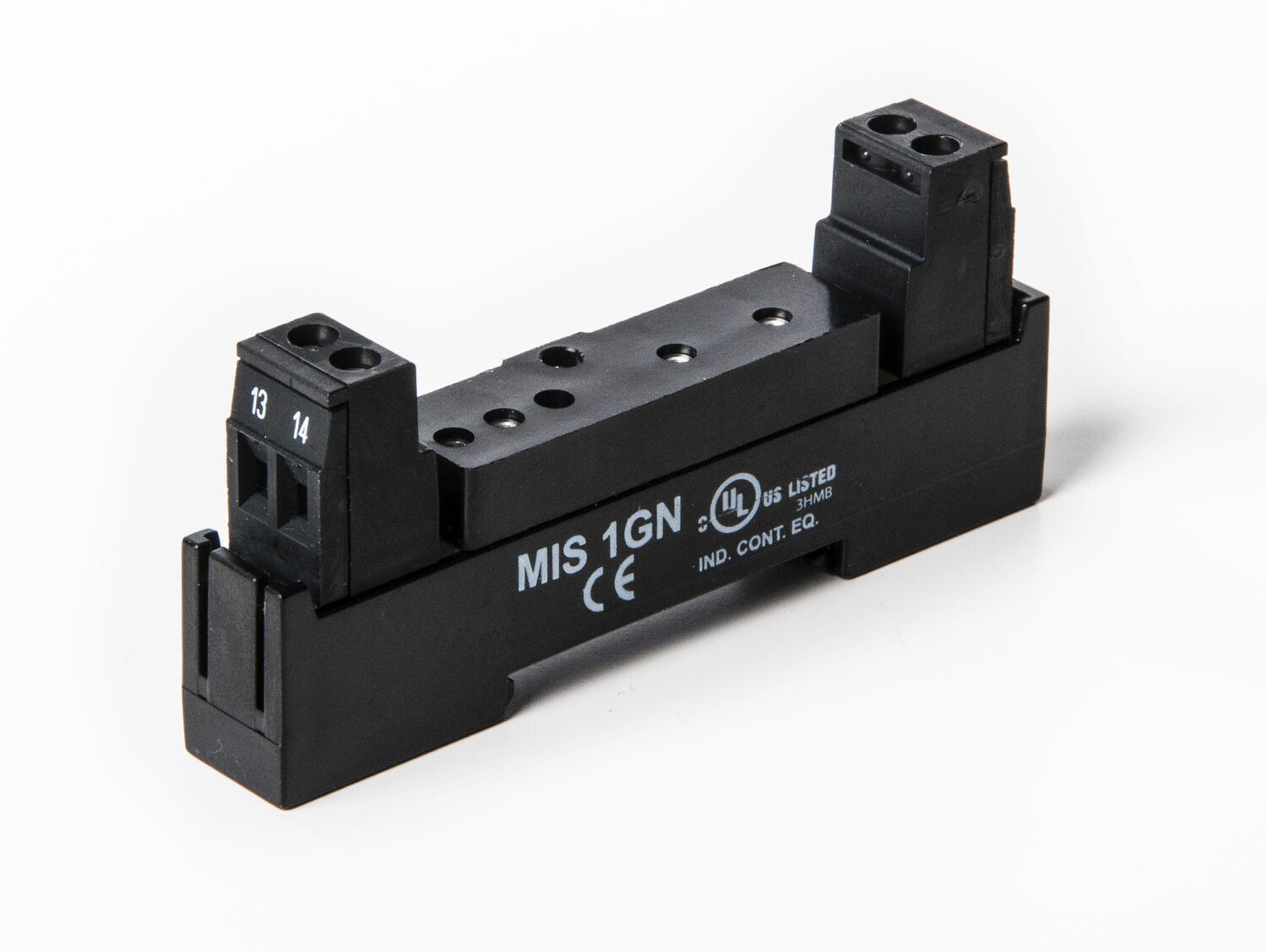

DIN-rail Socket for I/P Relay
Art:
MIS1GN Copied
250 V AC
250 V DC
6.3 A
12.8 mm
-40 °C
70 °C
-40 °C
70 °C
Black
PBT
22 g
CE, UL

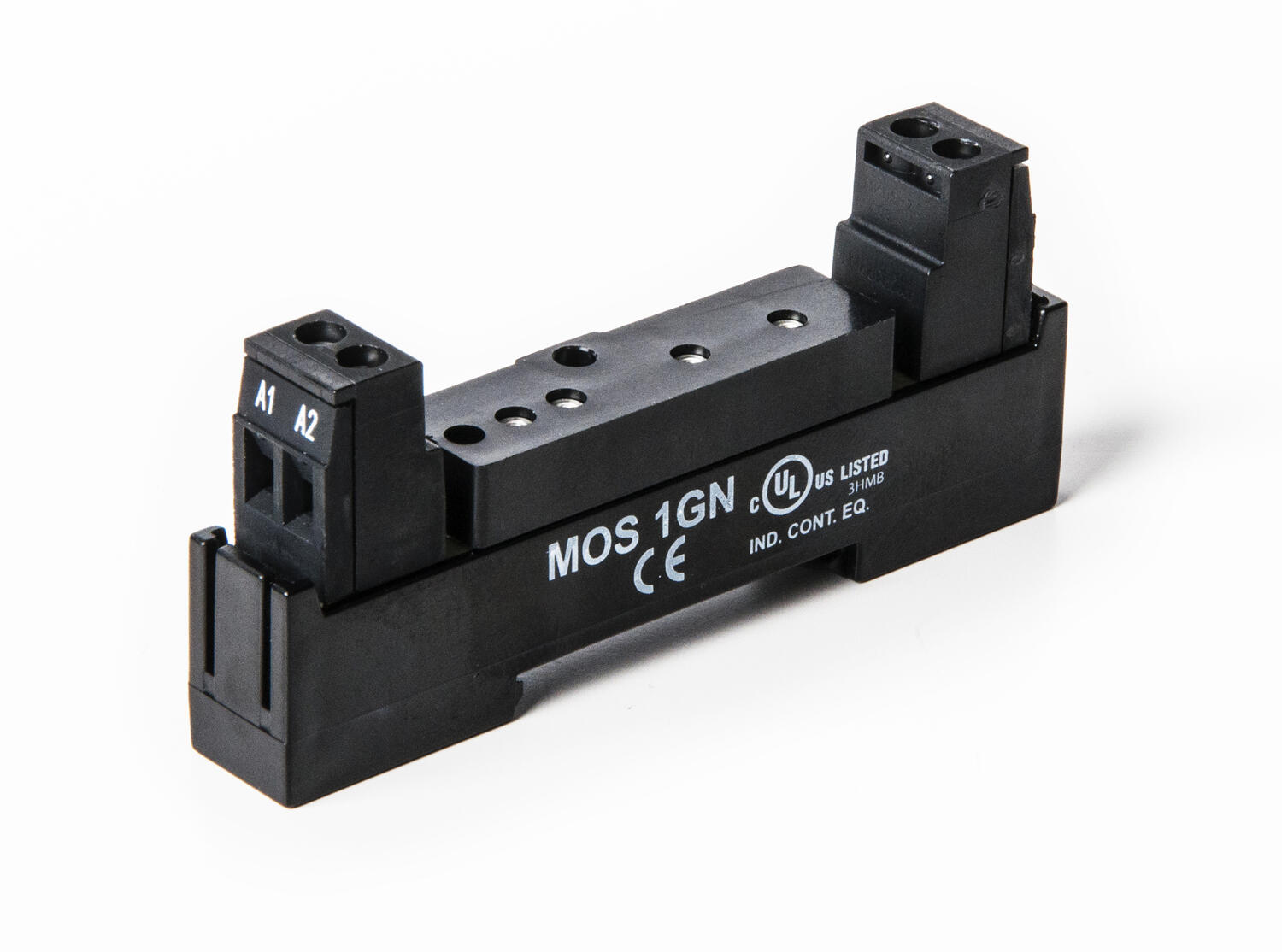

DIN-rail Socket for O/P Relay
Art:
MOS1GN Copied
250 V AC
250 V DC
6.3 A
12.8 mm
-40 °C
70 °C
-40 °C
70 °C
Black
PBT
22 g
CE, UL

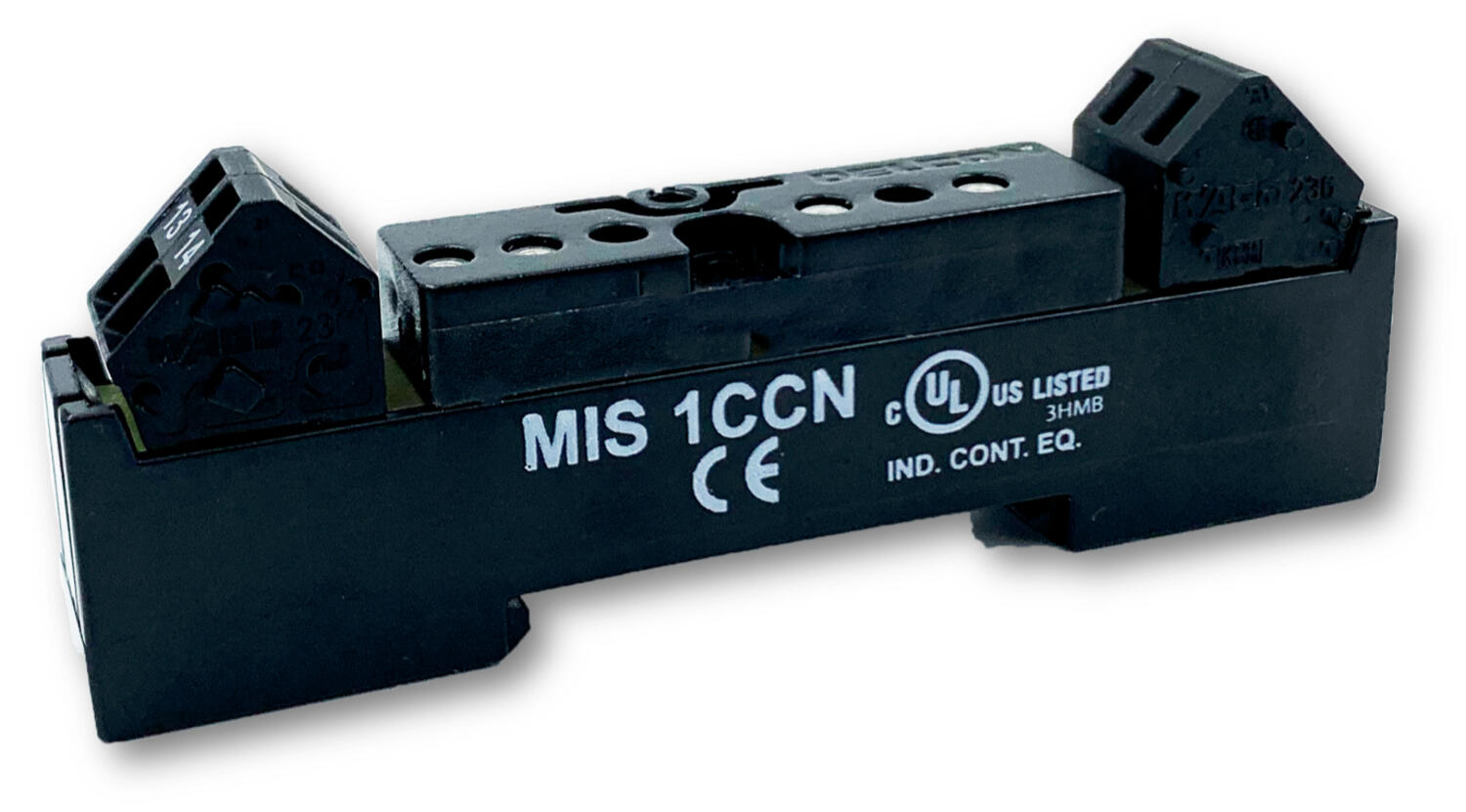

DIN-rail Socket for I/P Relay Cage Clamp
Art:
MIS1CCN Copied
DIN-rail Socket for O/P Relay Cage Clamp
Art:
MOS1CCN Copied

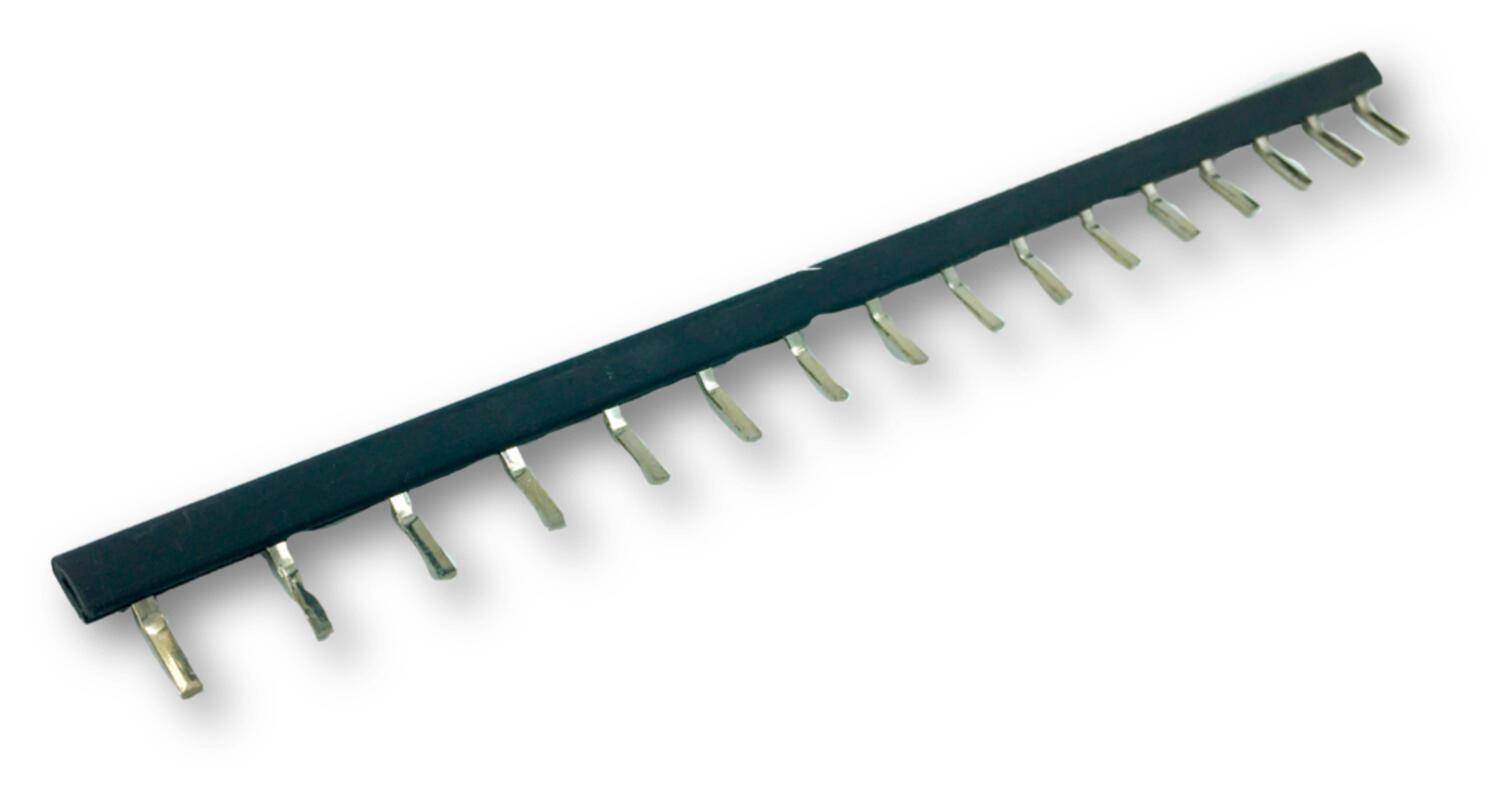

Jumper 16-13.png
Chaining Jumper 16 Pin 13 mm
Art:
JUMPER 16-13 Copied
