SENSATA CRYDOM
Nova22 Series DC Output
The DR22 Series is a family of 22.5mm wide DIN Rail Mount, high performing Solid State Relays with ratings up to 30 Amps at 200 VDC.
These powerful and ready to use SSRs come with an integral heat sink, eliminating the need for complex thermal calculations. DR22 Series models are C-UL-US approved
- DBC substrate for superior thermal performance
- LED input status indicator
- IP20 touch-safe housing
- 1kHz maximum PWM frequency
- 3750 VAC optical isolation
- Output ratings up to 30 Amps at 200 VDC
- Integral heat sink eliminates the need for complex thermal calculations
- C-UL-US approved
- Load current 20 and 30 A
- Operating voltage 1-200 VDC
- Control voltage 4-32 VDC
Selected variant

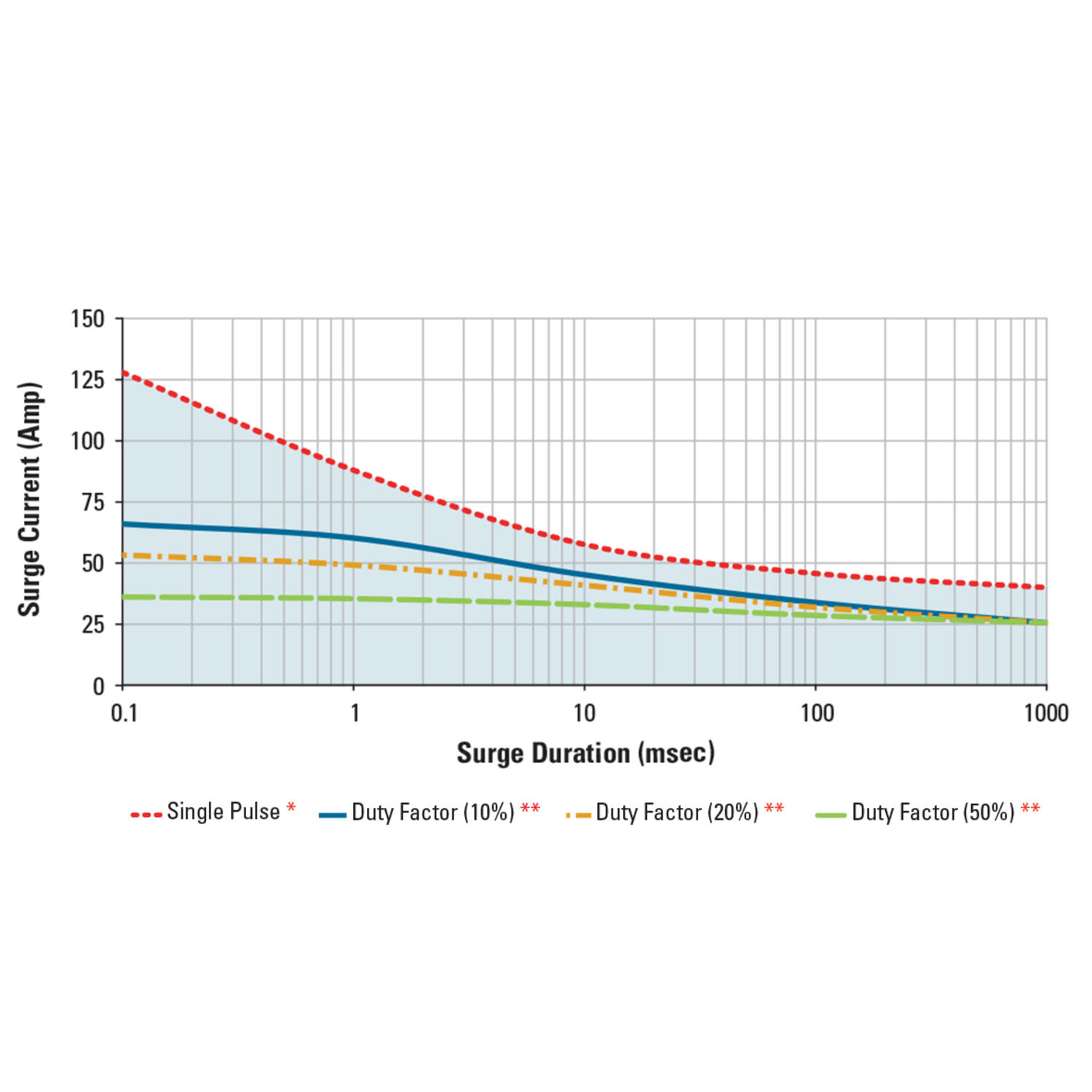

Technical data
Overview |
|
|---|---|
| Output current | 20 A |
| Output voltage | 1-200V dc |
| Control voltage | 4-32V dc |
| Output voltage | 1-200V dc |

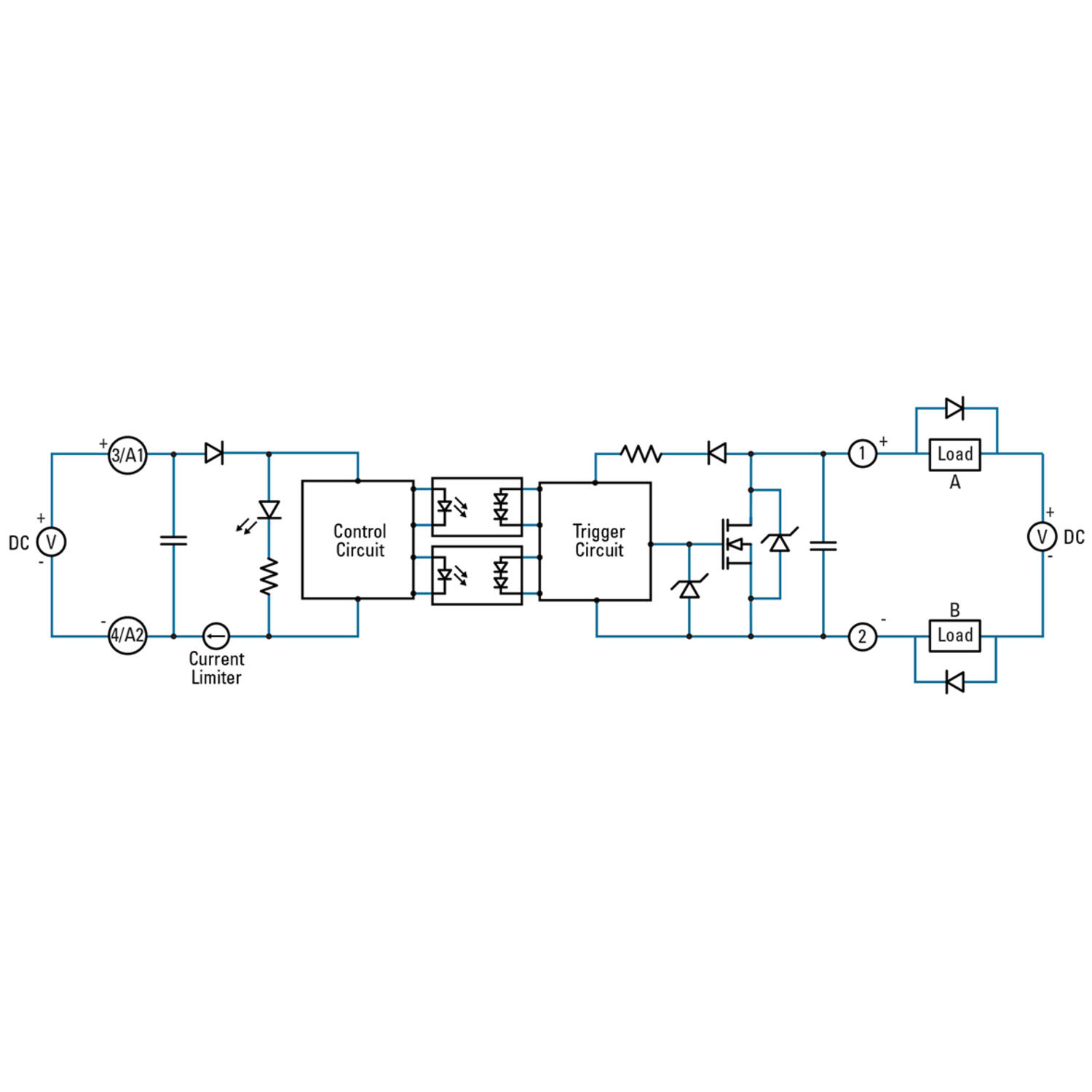

Output Specification |
|
| Number of poles | 1 |
| Control voltage | 4-32V dc |
Input Specification |
|
| Input current min | 11 mA |
| Input current max | 15 mA |

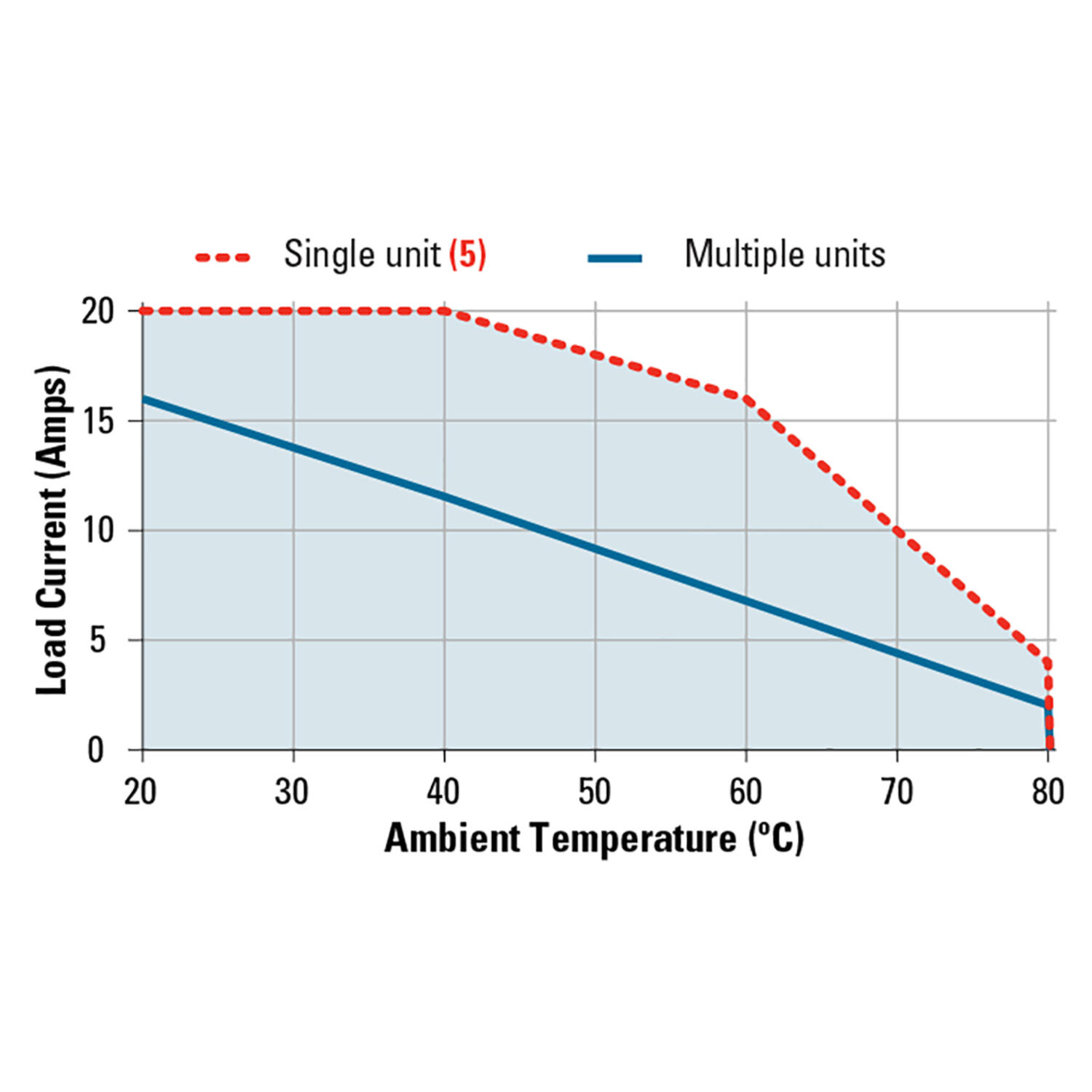

General Specification |
|
|---|---|
| Temperature operational min | -40 °C |
| Temperature operational max | 80 °C |
| Storage temperature max | 100 °C |
| Storage temperature min | -40 °C |
| Weight | 298 g |

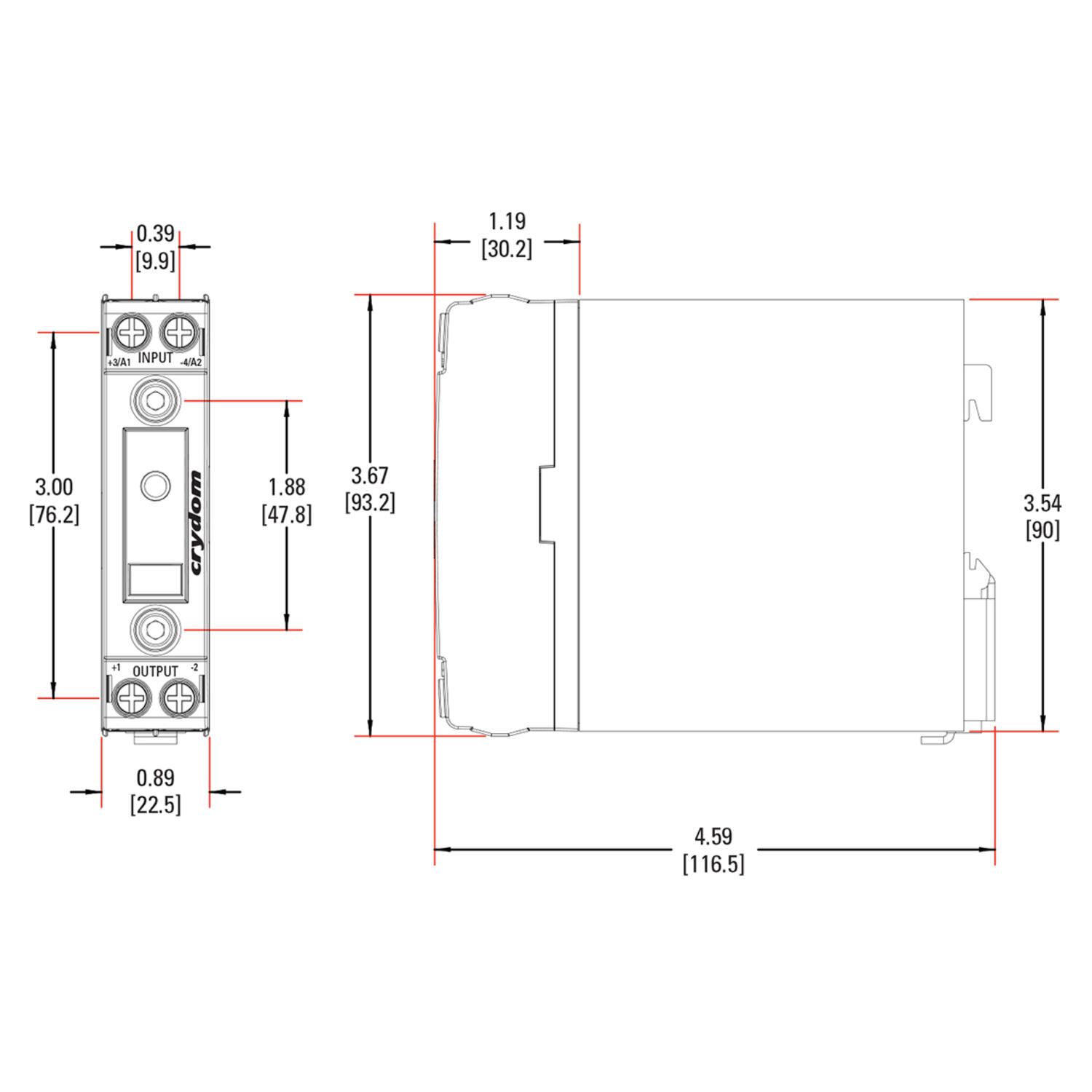

| Height | 93.2 mm |
| Width | 22.5 mm |
| Depth | 116.5 mm |
| LED indication | Input status indication |
| IP class | IP20 |
Product description
The DR22 Series is a family of 22.5mm wide DIN Rail Mount, high performing Solid State Relays with ratings up to 30 Amps at 200 VDC.
These powerful and ready to use SSRs come with an integral heat sink, eliminating the need for complex thermal calculations. DR22 Series models are C-UL-US approved
- DBC substrate for superior thermal performance
- LED input status indicator
- IP20 touch-safe housing
- 1kHz maximum PWM frequency
- 3750 VAC optical isolation
- Output ratings up to 30 Amps at 200 VDC
- Integral heat sink eliminates the need for complex thermal calculations
- C-UL-US approved
