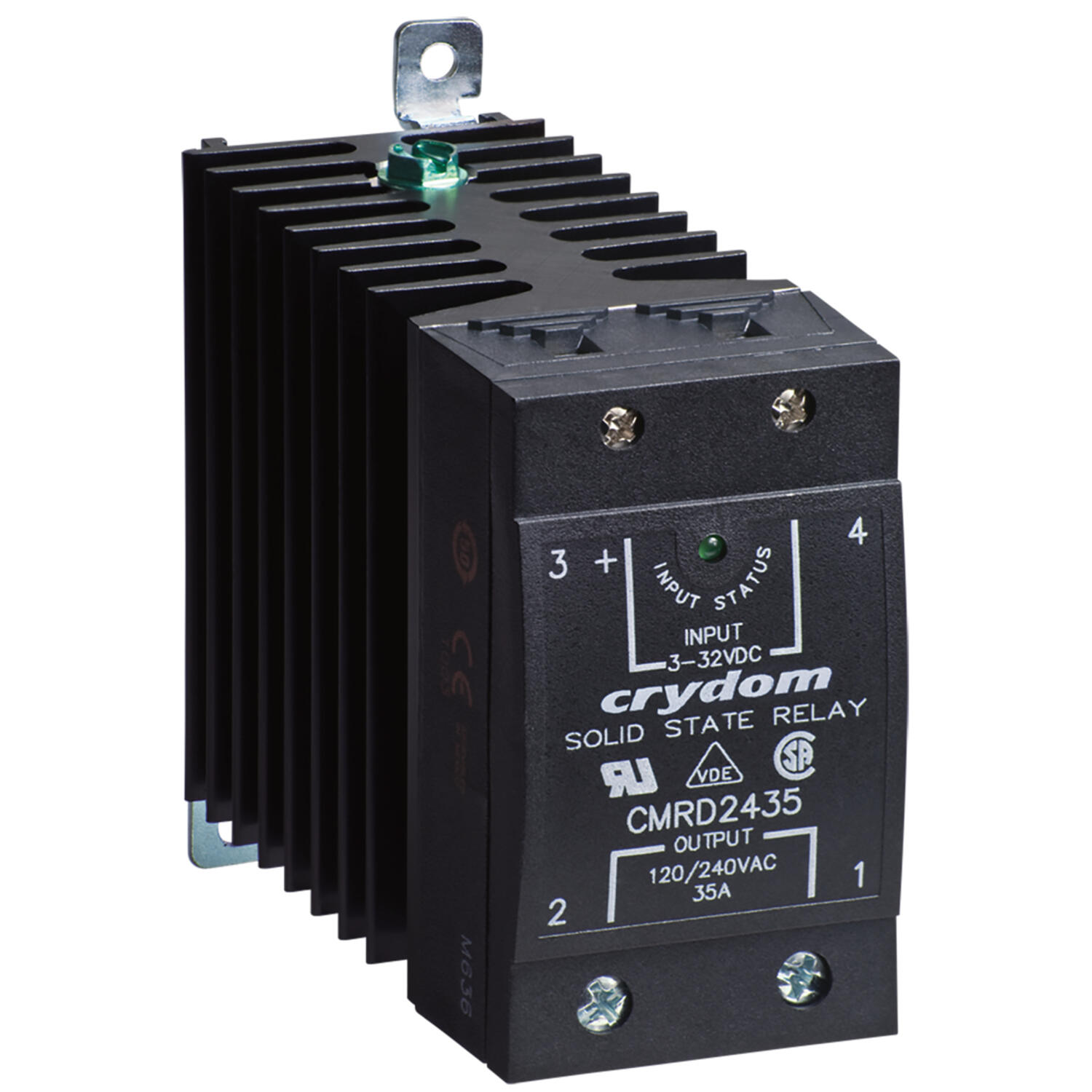

SENSATA CRYDOM
CMR48 Series
Ratings from 35A to 65A @ 530 VAC - 45mm (width) package - SCR output for heavy industrial loads - LED input status indicator - AC or DC control - zero voltage (resistive loads) or instantaneous turn on (inductive loads) output
Â
- Ratings from 35A to 65A @ 530 VAC
- 45mm (width) package
- SCR output for heavy industrial loads
- LED input status indicator
- AC or DC control
- Zero-crossing (resistive loads) or random-fire (inductive loads) outputÂ
- Load current 35, 45, 55 and 65 A
- Operating Voltage 48-530 VAC
- Control voltge 3-32 VDC and 90-140 VAC
- Broad range of load current
Selected variant
Technical data
Overview |
|
|---|---|
| Output current | 45 A |
| Output voltage | 48-530V ac |
| Control voltage | 3-32V dc |
| Connection | Screw connection |
| Type of control | Instantaneous turn on |
| Additional features | N/A |
| Output voltage | 48-530V ac |
Output Specification |
|
| Number of poles | 1 |
| Control voltage | 3-32V dc |
General Specification |
|
|---|---|
| Temperature operational min | -40 °C |
| Temperature operational max | 80 °C |
| Storage temperature max | 125 °C |
| Storage temperature min | -40 °C |
| Weight | 476 g |

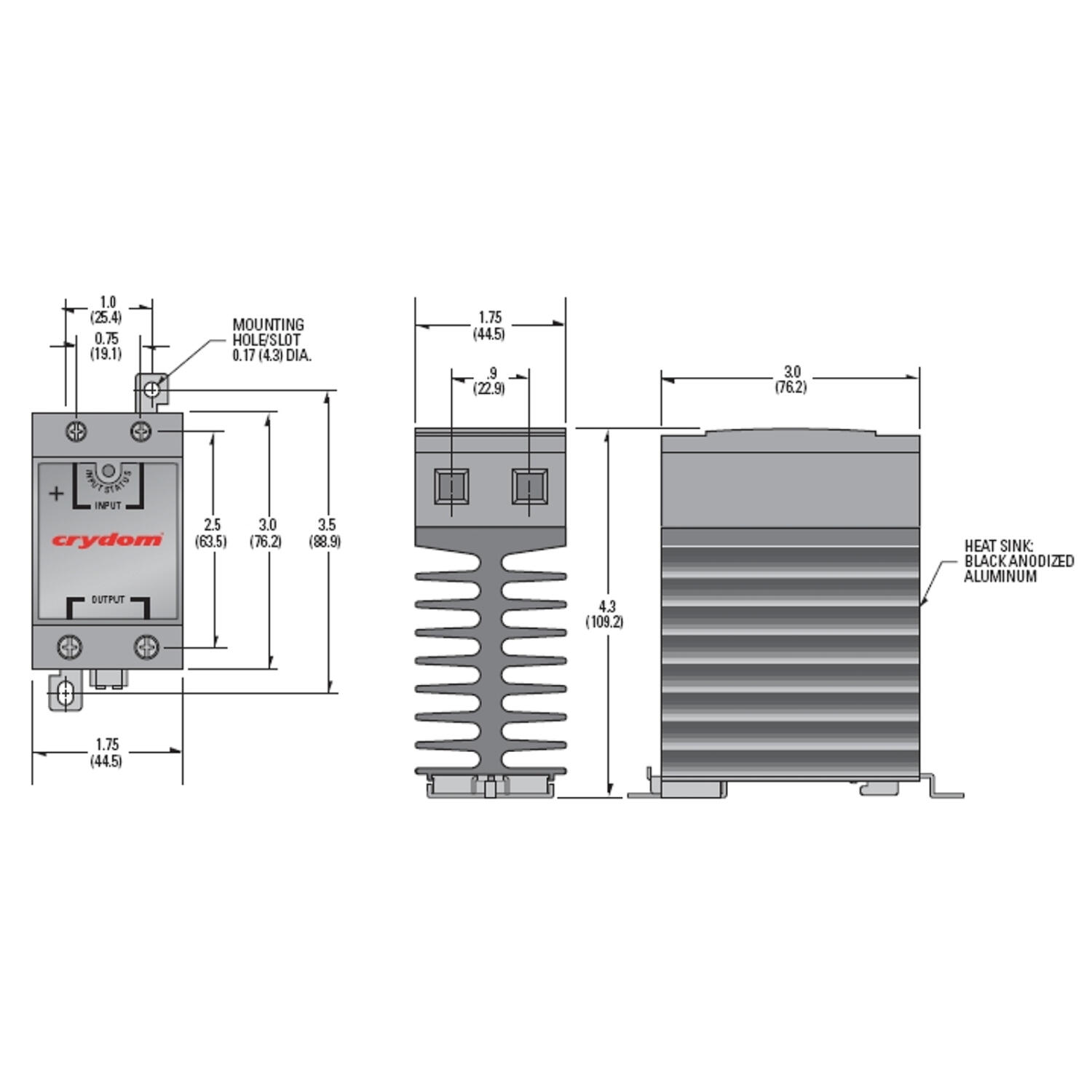

| Height | 76.2 mm |
| Width | 44.5 mm |
| Depth | 109.2 mm |
| LED indication | Input status indication |
Product description
Ratings from 35A to 65A @ 530 VAC - 45mm (width) package - SCR output for heavy industrial loads - LED input status indicator - AC or DC control - zero voltage (resistive loads) or instantaneous turn on (inductive loads) output
Â
- Ratings from 35A to 65A @ 530 VAC
- 45mm (width) package
- SCR output for heavy industrial loads
- LED input status indicator
- AC or DC control
- Zero-crossing (resistive loads) or random-fire (inductive loads) outputÂ
