SENSATA CRYDOM

CKR24 Series

Ratings from 10A to 30A @ 280 VAC - Slim 22.5mm (width) package - SCR output for heavy industrial loads - LED input status indicator - AC or DC control - zero voltage (resistive loads) or instantaneous turn on (inductive loads) output.



  • Rating from 10A to 30A @ 280VAC
  • Slim 22.5mm (width) package
  • SCR output for heavy industrial loads
  • LED input status indicator
  • AC or DC control
  • Zero Voltage (resistive loads) or Instantaneous (inductive loads) turn-on output
Read more
  • Load current 10, 20 and 30A
  • Operating Voltage 24-280 VAC
  • Control Voltage 4-32 VDC, 110-280 VAC, 90-140 VAC, 18-36 VAC
  • Broad range of control voltage

Selected variant

Available in several variants
Sensata Crydom.jpg

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Overview
Output current 10 A
Output voltage 24-280V ac
Control voltage 4-32V dc
Connection Screw connection
Type of control Zero voltage turn on
Additional features N/A
Output voltage 24-280V ac

Output Specification
Number of poles 1
Control voltage 4-32V dc

General Specification
Temperature operational min -40 °C
Temperature operational max 80 °C
Storage temperature max 125 °C
Storage temperature min -40 °C
Weight 280 g
Height 81.9 mm
Width 22.5 mm
Depth 99 mm
LED indication Input status indicator
IP class IP20

Downloads

Measurements and connections

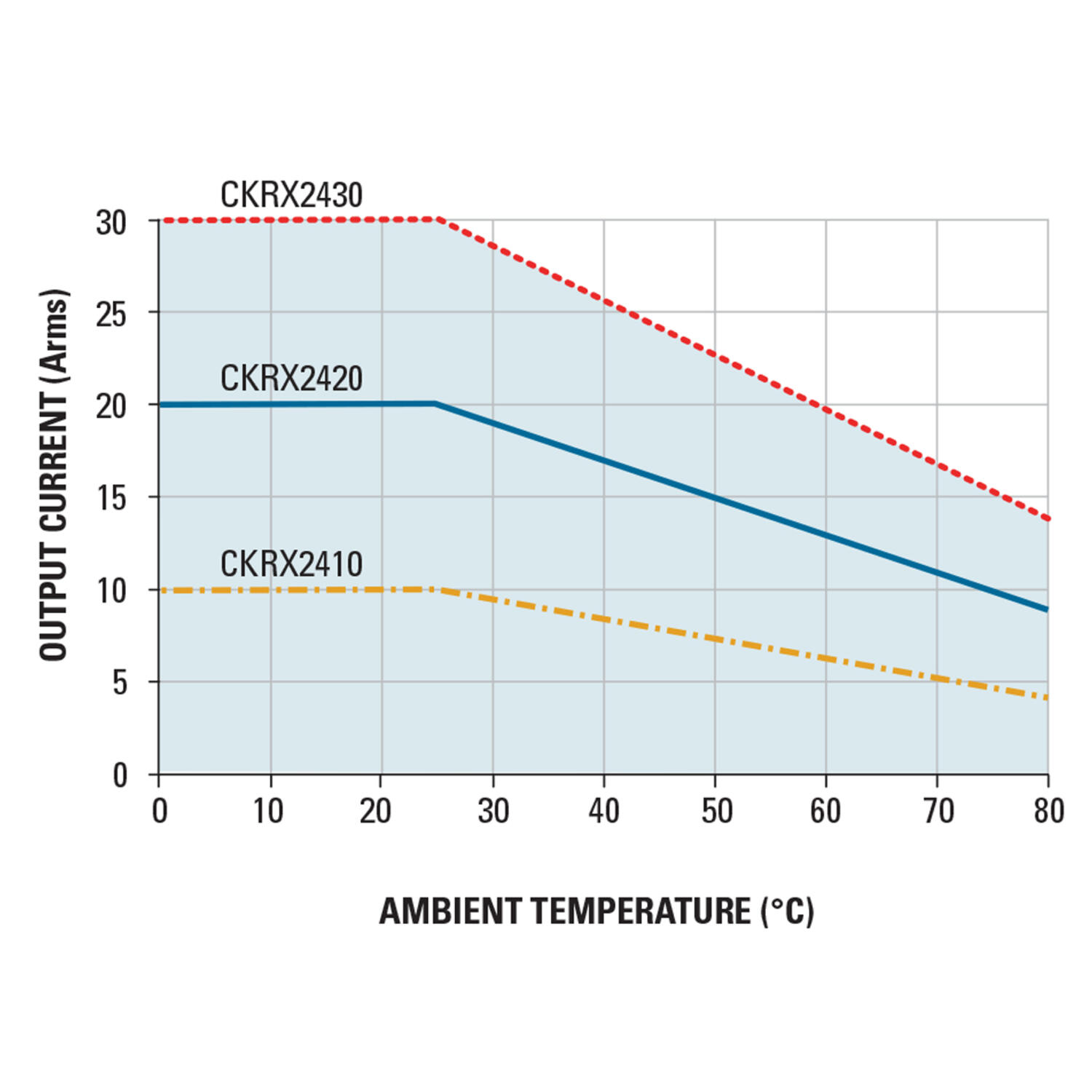

Technical illustrations

Product description

Ratings from 10A to 30A @ 280 VAC - Slim 22.5mm (width) package - SCR output for heavy industrial loads - LED input status indicator - AC or DC control - zero voltage (resistive loads) or instantaneous turn on (inductive loads) output.



  • Rating from 10A to 30A @ 280VAC
  • Slim 22.5mm (width) package
  • SCR output for heavy industrial loads
  • LED input status indicator
  • AC or DC control
  • Zero Voltage (resistive loads) or Instantaneous (inductive loads) turn-on output

Accessories

Parts Output current Type of control Additional features Control voltage Price
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 4.5-32V ac In, ZC
Art:
CKRD2410 Copied
10 A
Zero voltage turn on
N/A
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 4.5-32V dc In, ZC
Art:
CKRD2420 Copied
20 A
Zero voltage turn on
N/A
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 4.5-32V dc In, ZC
Art:
CKRD2430 Copied
30 A
Zero voltage turn on
N/A
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 4.5-32V dc In, Inst.
Art:
CKRD2410-10 Copied
10 A
Instantaneous turn on
N/A
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 4.5-32V dc In, ZC IOP
Art:
CKRD2410P Copied
10 A
Zero voltage turn on
Overvoltage protection included
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 4.5-32V dc In, Inst.
Art:
CKRD2420-10 Copied
20 A
Instantaneous turn on
N/A
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 4.5-32V dc In, ZC IOP
Art:
CKRD2420P Copied
20 A
Zero voltage turn on
Overvoltage protection included
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 4.5-32V dc In, Inst.
Art:
CKRD2430-10 Copied
30 A
Instantaneous turn on
N/A
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 4.5-32V dc In, ZC IOP
Art:
CKRD2430P Copied
30 A
Zero voltage turn on
Overvoltage protection included
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 4.5-32V dc In, Inst. IOP
Art:
CKRD2430P-10 Copied
30 A
Instantaneous turn on
Overvoltage protection included
4-32V dc
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 90-140V ac In, ZC
Art:
CKRB2410 Copied
10 A
Zero voltage turn on
N/A
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 90-140V ac In, Inst.
Art:
CKRB2410-10 Copied
10 A
Instantaneous turn on
N/A
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 90-140V ac In, ZC IOP
Art:
CKRB2410P Copied
10 A
Zero voltage turn on
Overvoltage protection included
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 90-140V ac In, ZC
Art:
CKRB2420 Copied
20 A
Zero voltage turn on
N/A
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 90-140V ac In, Inst.
Art:
CKRB2420-10 Copied
20 A
Instantaneous turn on
N/A
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 90-140V ac In, ZC IOP
Art:
CKRB2420P Copied
20 A
Zero voltage turn on
Overvoltage protection included
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 90-140V ac In, ZC
Art:
CKRB2430 Copied
30 A
Zero voltage turn on
N/A
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 90-140V ac In, Inst.
Art:
CKRB2430-10 Copied
30 A
Instantaneous turn on
N/A
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 90-140V ac In, ZC IOP
Art:
CKRB2430P Copied
30 A
Zero voltage turn on
Overvoltage protection included
90-140V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 110-280V ac In, ZC
Art:
CKRA2420 Copied
20 A
Zero voltage turn on
N/A
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 110-280V ac In, ZC
Art:
CKRA2410 Copied
10 A
Zero voltage turn on
N/A
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 110-280V ac In, Inst.
Art:
CKRA2410-10 Copied
10 A
Instantaneous turn on
N/A
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 18-36V ac In, ZC
Art:
CKRA2410E Copied
10 A
Zero voltage turn on
N/A
18-36V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 18-36V ac In, Inst.
Art:
CKRA2410E-10 Copied
10 A
Instantaneous turn on
N/A
18-36V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 10A, 110-280V ac In, ZC
Art:
CKRA2410P Copied
10 A
Zero voltage turn on
Overvoltage protection included
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 110-280V ac In, Inst.
Art:
CKRA2420-10 Copied
20 A
Instantaneous turn on
N/A
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 18-36V ac In, ZC
Art:
CKRA2420E Copied
20 A
Zero voltage turn on
N/A
18-36V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 20A, 110-280V ac In, ZC IOP
Art:
CKRA2420P Copied
20 A
Zero voltage turn on
Overvoltage protection included
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 110-280V ac In, ZC
Art:
CKRA2430 Copied
30 A
Zero voltage turn on
N/A
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 110-280V ac In, Inst.
Art:
CKRA2430-10 Copied
30 A
Instantaneous turn on
N/A
110-280V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 18-36V ac In, ZC
Art:
CKRA2430E Copied
30 A
Zero voltage turn on
N/A
18-36V ac
CKR24.tif
DIN Rail SSR 22.5mm 280V ac 30A, 110-280V ac In, ZC IOP
Art:
CKRA2430P Copied
30 A
Zero voltage turn on
Overvoltage protection included
110-280V ac
