LUMEL
The P20 transducer converts temperature, resistance, voltage from shunts and standard signals into a constant-current or constant-voltage signal. The output signal is galvanically insulated from the input signal and supply. Additional features of this transducer include eCon software using the PD14 programmer. The P20 transducer is designed to be mounted on a 35mm rail according to EN 60715. Â
Â
Technical data and more information can be found below.
Connection type | Screw |
---|---|
Galvanic isolation | 3-way |
Input | -20-20 mA, -10-10 V, mV, PT sensors, Thermocouples J, K, S, N |
Manual switch | No |
Mounting | DIN-Rail |
Output | 0-20 mA |
Status indication | Green / red diode |
Storage temperature max | 85 °C |
Storage temperature min | -25 °C |
---|---|
Supply voltage | 110-240 V AC/DC |
Temperature operational max | 55 °C |
Temperature operational min | -20 °C |
Type of converter | Analogue & temperature - analogue |
Weight | 125 g |

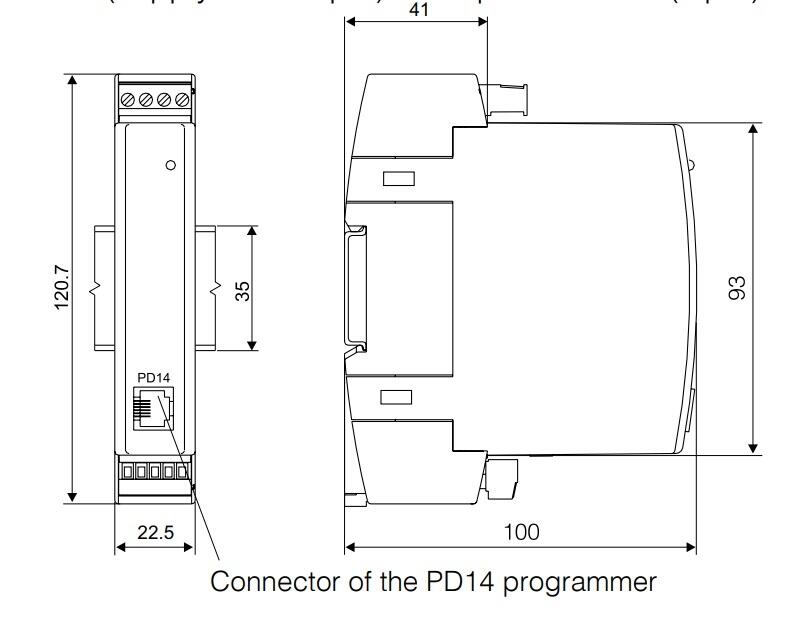

Width | 22.5 mm |
The P20 transducer converts temperature, resistance, voltage from shunts and standard signals into a constant-current or constant-voltage signal. The output signal is galvanically insulated from the input signal and supply. Additional features of this transducer include eCon software using the PD14 programmer. The P20 transducer is designed to be mounted on a 35mm rail according to EN 60715. Â
Â
Technical data and more information can be found below.
Please refer to the data sheet for ordering keys and contact us for more information.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Output | Supply voltage | Price | ||
---|---|---|---|---|---|
![]()
P20 Transducer, 85-253V ac, 0-20mA
Art:
P2011XX
Copied
|
0-20 mA
|
110-240 V AC/DC
|
| ||
![]()
P20 Transducer, 20-85V dc 0-20mA
Art:
P2012XX
Copied
|
0-20 mA
|
24-48 V AC/DC
|
| ||
![]()
P20 Transducer, 85-253V ac, 4-20mA
Art:
P2021XX
Copied
|
4-20 mA
|
110-240 V AC/DC
|
| ||
![]()
P20 Transducer, 20-85V dc 4-20mA
Art:
P2022XX
Copied
|
4-20 mA
|
24-48 V AC/DC
|
| ||
![]()
P20 Transducer, 85-253V ac, 0-10V
Art:
P2031XX
Copied
|
0-10 V
|
110-240 V AC/DC
|
| ||
![]()
P20 Transducer, 20-85V dc 0-10V
Art:
P2032XX
Copied
|
0-10 V
|
24-48 V AC/DC
|
|
Select a variant in the list
