LÜTZE

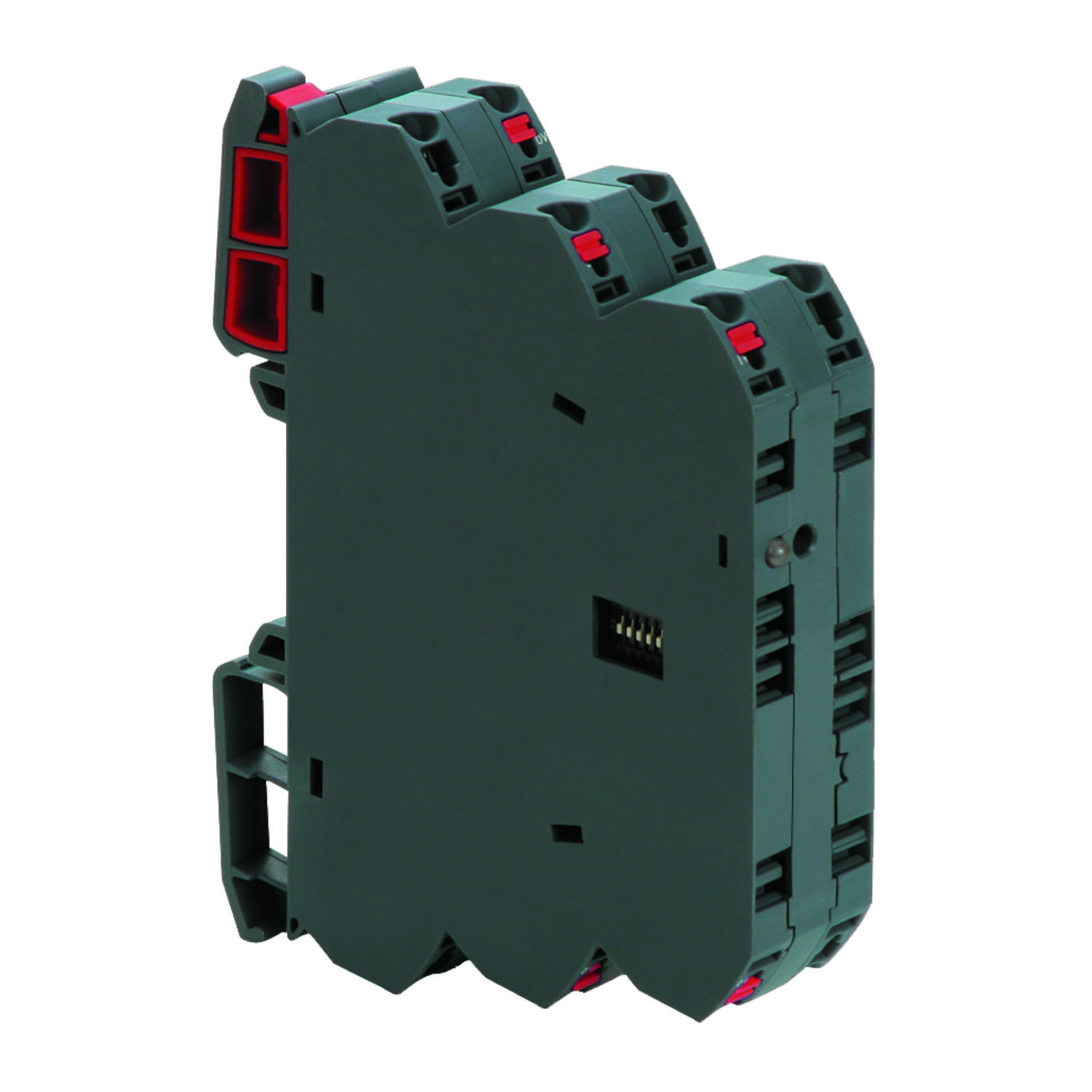

LCIS analogue/analogue converter, mV mA, adjustable

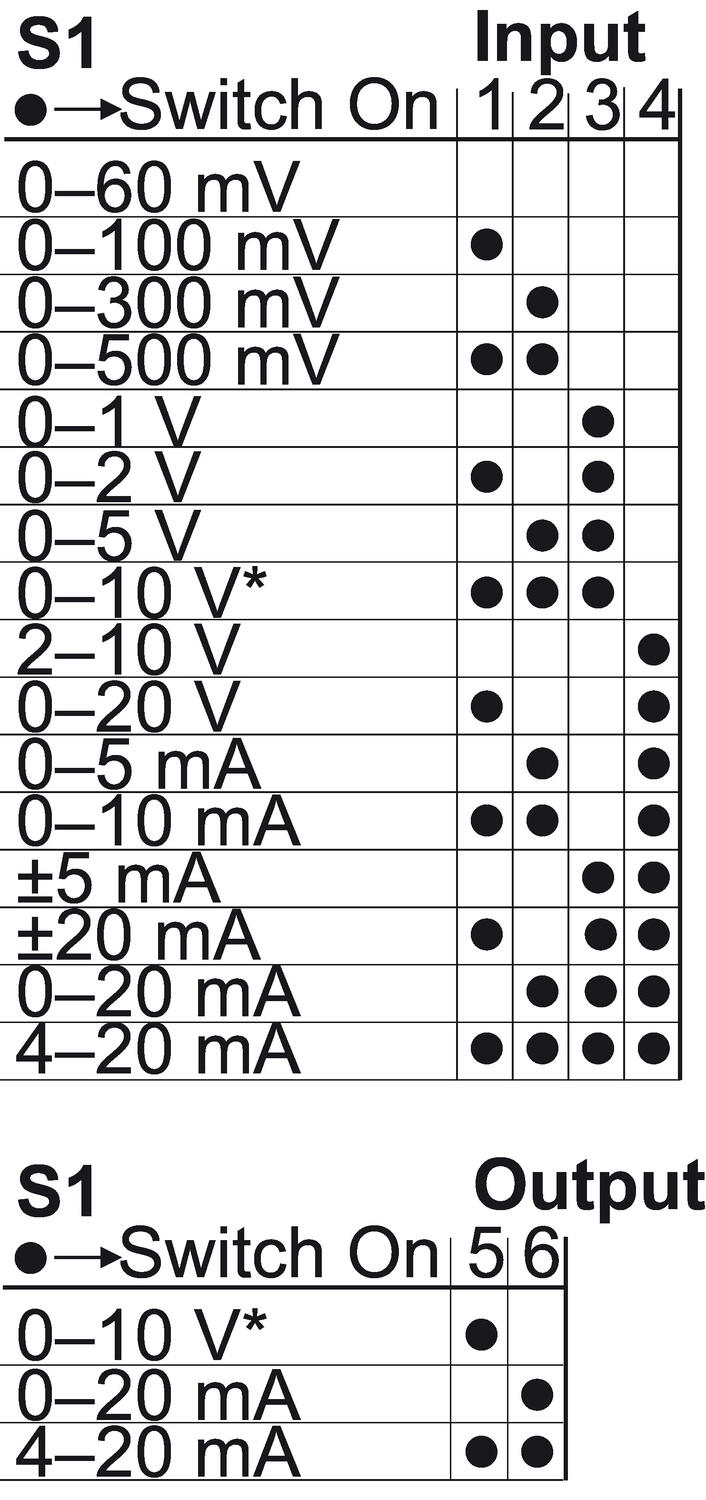

Multi signal converter features common standard signals and a DIP switch for selecting the input and output signal. The converter is self-calibrating which ensures easy installation. The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
- Input and output selectable
- Automatic calibration
- Isolation voltage 4kV
- 24-240 V AC/DC supply voltage
- DNV and GL approved
Selected variant
Technical data
| Accuracy | 0.1 % FSR |
|---|---|
| Approvals | CE, CSA, DNV, GL, RoHS |
| Connection type | Screw |
| Cross section max | 2.5 mm² |
| Cross section min | 0.25 mm² |

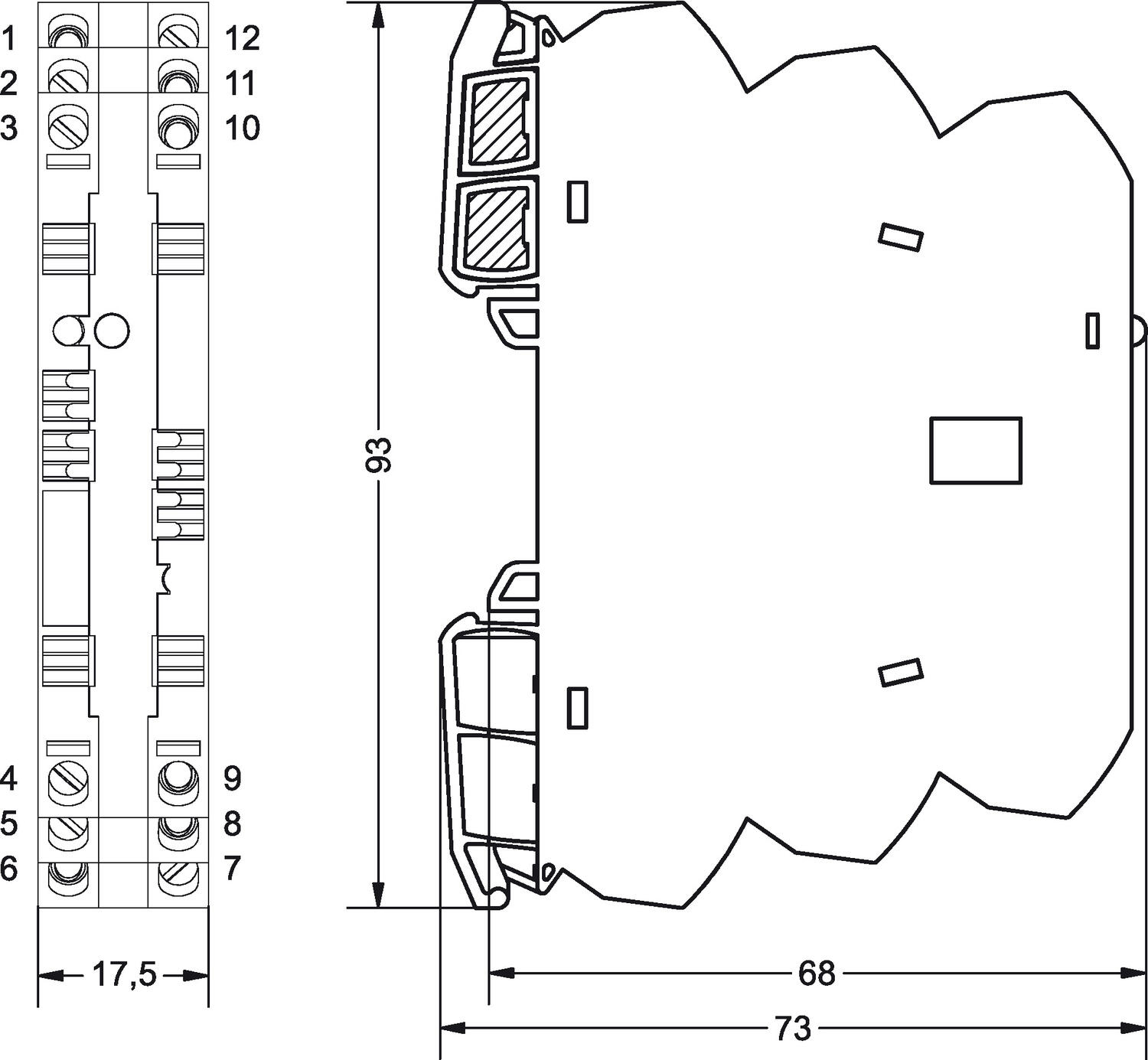

| Depth | 73 mm |

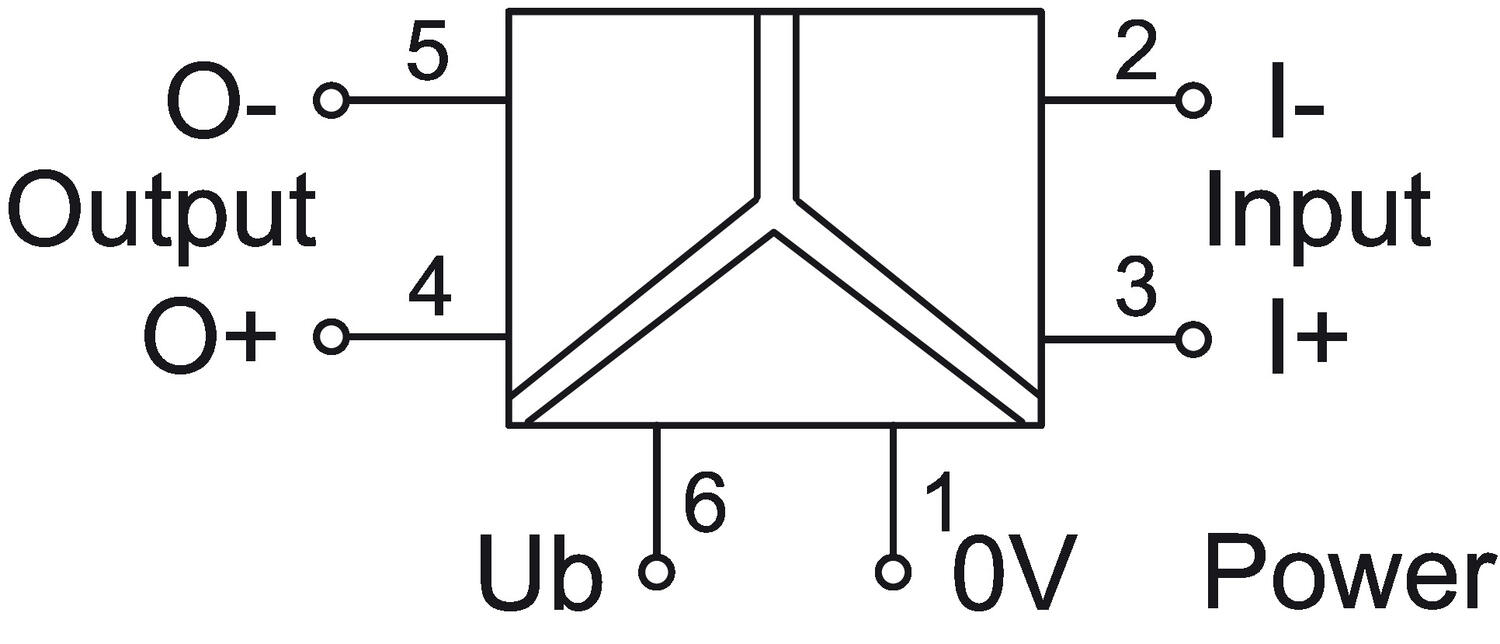

| Galvanic isolation | 3-way |
| Height | 93 mm |
| Input | 16 ranges mV, V, mA |
| Input impedance current mA | 100 Ω |
| Input impedance voltage | 330 kΩ |
| Input/Output protection | Overvoltage, current input PTC fuse, short circuit-proof output |
| Insulation | 4 kV |
| IP class | IP20 |
| Linearity | 0,05 % FSR |
| Linearity | 0.05 % FSR |
| Load impedance power | Max. 500 Ω |
| Load impedance voltage | Min. 2 kΩ |
|---|---|
| Mounting | DIN-Rail |
| Output | 0-10 V, 0-20 mA, 4-20 mA |
| Reaction time | 17 ms |
| Rise time (10 - 90%) | 6 ms |
| Status indication | Green LED |
| Storage temperature max | 80 °C |
| Storage temperature min | -40 °C |
| Supply voltage | 24-240 V AC/DC |
| Switching frequency max | 30 Hz @ 3 dB |
| Temperature coefficient | <150 ppm/° K FSR |
| Temperature operational max | 60 °C |
| Temperature operational min | -25 °C |
| Type of converter | Analogue - analogue |
| Weight | 59 g |
| Width | 17.5 mm |
Product description
Multi signal converter features common standard signals and a DIP switch for selecting the input and output signal. The converter is self-calibrating which ensures easy installation. The converter features 3-way galvanic isolation, each terminal can be connected by jumper comb. Extremely compact design, width of 6,2mm only. Can be installed in any position.
