LÜTZE
LCIS analogue/analogue converter, mV, adjustable
- 0-60 mV input
- 6,2 mm wide
- 24V AC/DC supply input
- 3-way 2.5 kV insulation
Selected variant
Technical data
| Accuracy | 0.1 % FSR |
|---|---|
| Approvals | cULus |
| Connection type | Screw |
| Cross section max | 2.5 mm² |
| Cross section min | 0.25 mm² |
| Depth | 73 mm |

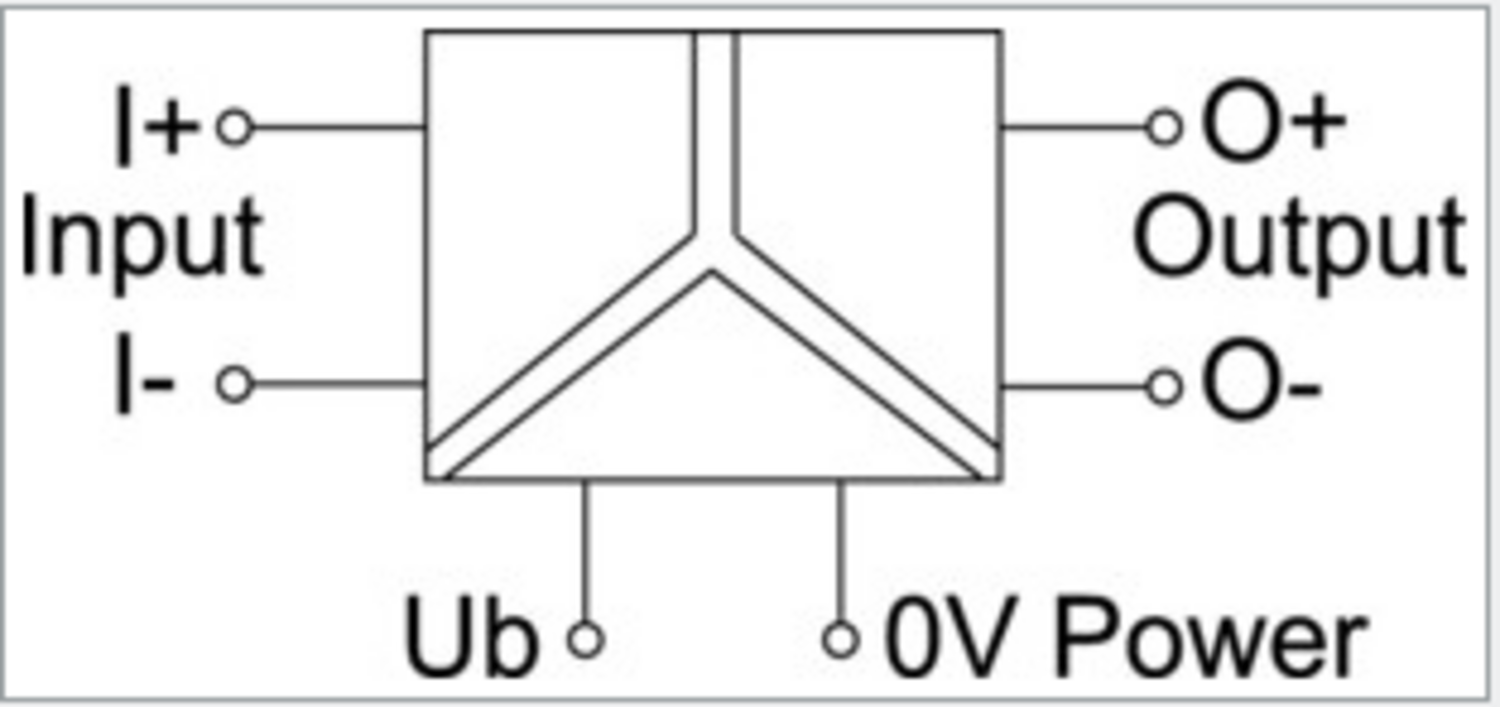

| Galvanic isolation | 3-way |
| Height | 93 mm |
| Input | 0-60 mV |
| Input/Output protection | Overvoltage input, short circuit output |
| Insulation | 2.5 kV |
| Insulation voltage in/out | 2500 V |
| IP class | IP20 |
| Linearity | 0,05 % FSR |
| Load impedance | 500 Ω |
| Load impedance voltage | Min. 2 kΩ |
| Mounting | DIN-Rail |
|---|---|

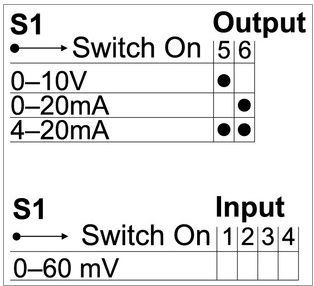

| Output | 0-10 V, 0-20 mA, 4-20 mA |
| Reaction time | 60 ms |
| Status indication | Green LED |
| Storage temperature max | 80 °C |
| Storage temperature min | -40 °C |
| Supply voltage | 24 V AC/DC |
| Switching frequency max | 10 Hz @ 3 dB |
| Temperature coefficient | <150 ppm/° K FSR |
| Temperature operational max | 60 °C |
| Temperature operational min | -25 °C |
| Type of converter | Analogue - analogue |
| Weight | 30 g |
| Width | 6.2 mm |
