LÜTZE
LCIS Passive signal converters 4-20mA/4-20mA
LCIS
Passive signal converters for galvanic isolation of mA signals. Converter requires no external power supply as it receives power via the input signal. Very high amplifier accuracy 0,1% enables the use in low-voltage applications. 1,5kV isolation voltage guarantees a reliable interface between input and output circuits. Green LED light for state indication.
These converters will stay operational despite the output circuit being open. The open-ness of the output circuit has no effect on the input circuit.
- 6,2mm wide
- No need for external power source
- 1500V Isolation
- Open output circuit protection
- Screw or push-in termination
Selected variant
Technical data
| Accuracy | 0.1 % FSR |
|---|---|
| Connection type | Screw |
| Cross section max | 2.5 mm² |
| Cross section min | 0.25 mm² |

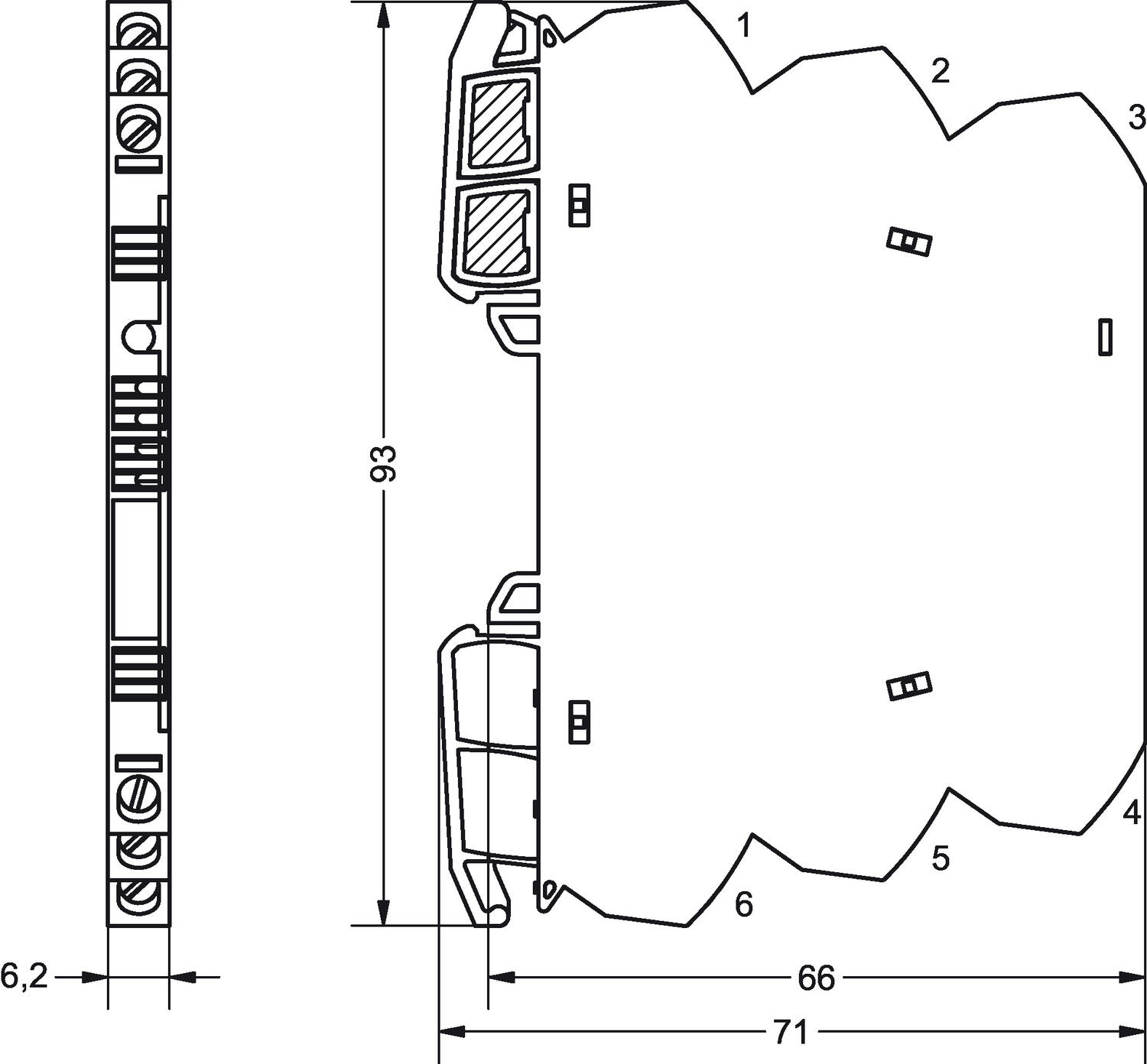

| Depth | 71 mm |
| Galvanic isolation | 2-way |
| Height | 93 mm |
| Impact of load resistance | <0,06 % per 100 Ω |
| Input | 4-20 mA |
| Input/Output protection | Suppressor Diode (33V) |
| Insulation | 1.5 kV |
| Insulation voltage in/out | 1500 V |
| IP class | IP20 |

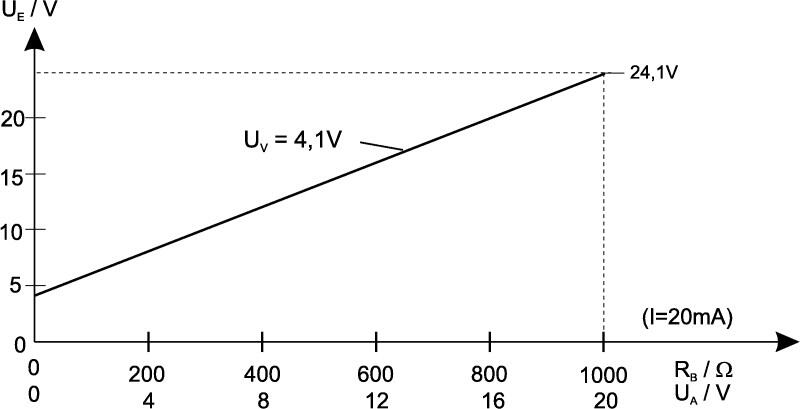

| Load impedance | 1000 Ω |
|---|---|
| Mounting | DIN-Rail |
| Output | 4-20 mA |
| Reaction time | 6 ms |
| Rise time (10 - 90%) | 6 ms |
| Status indication | Green LED |
| Storage temperature max | 80 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 60 °C |
| Temperature operational min | -25 °C |
| Weight | 40 g |
| Width | 6.2 mm |
Product description
Passive signal converters for galvanic isolation of mA signals. Converter requires no external power supply as it receives power via the input signal. Very high amplifier accuracy 0,1% enables the use in low-voltage applications. 1,5kV isolation voltage guarantees a reliable interface between input and output circuits. Green LED light for state indication.
These converters will stay operational despite the output circuit being open. The open-ness of the output circuit has no effect on the input circuit.
