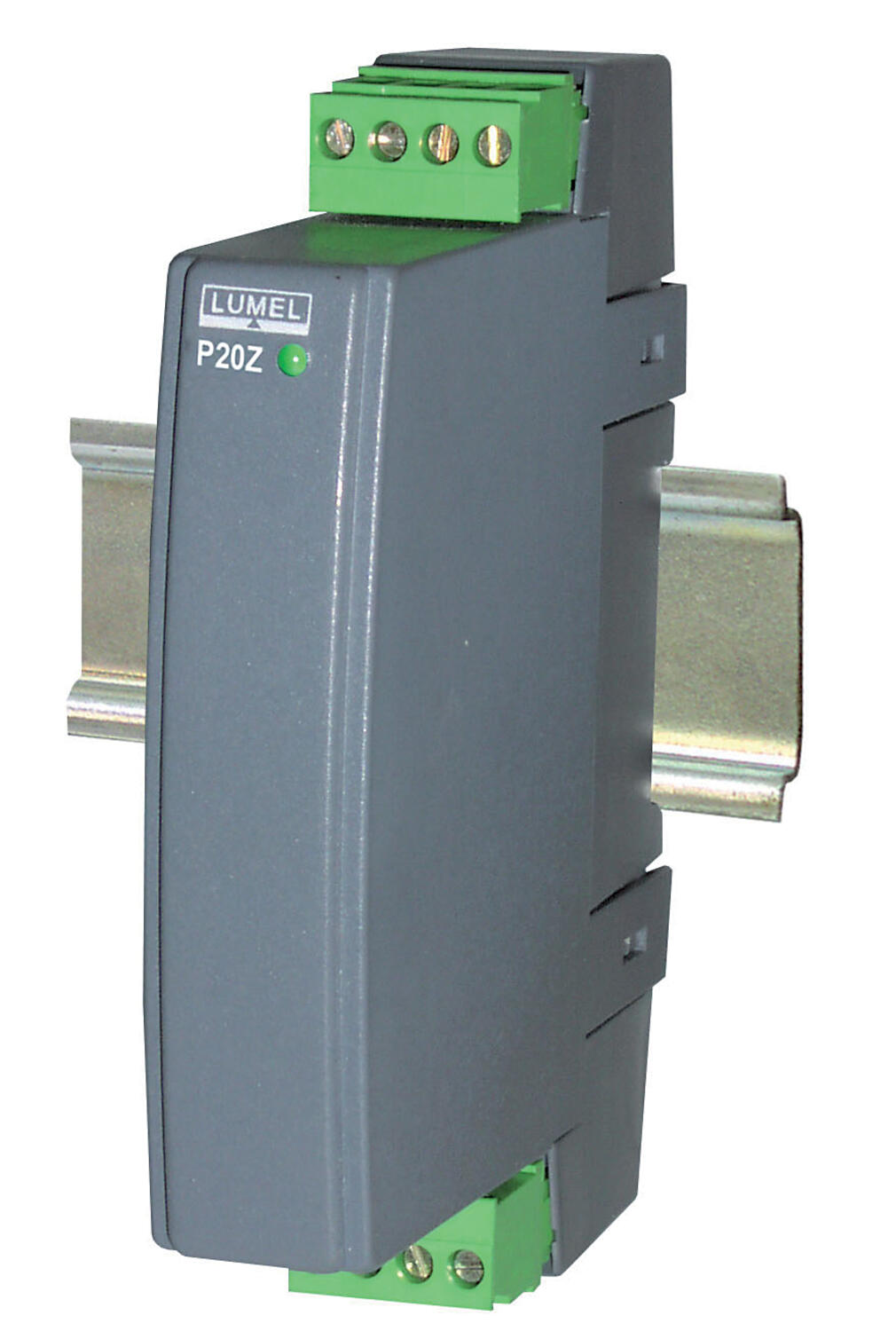

P20Z AC Signal Transducer

AC Current or AC Voltage

  • AC current or voltage input
  • 0>10V or 4>20mA output
  • Wide voltage, AC/DC control

Selected variant

Available in several variants
LUMEL_logo.tif

Save page as PDF

Technical data / Documents

Ordering information

Accessories & Related products

Selected variant

Technical data

Accuracy 0.2 accuracy class
Additional functions Free eCon software (using PD14 programmer)

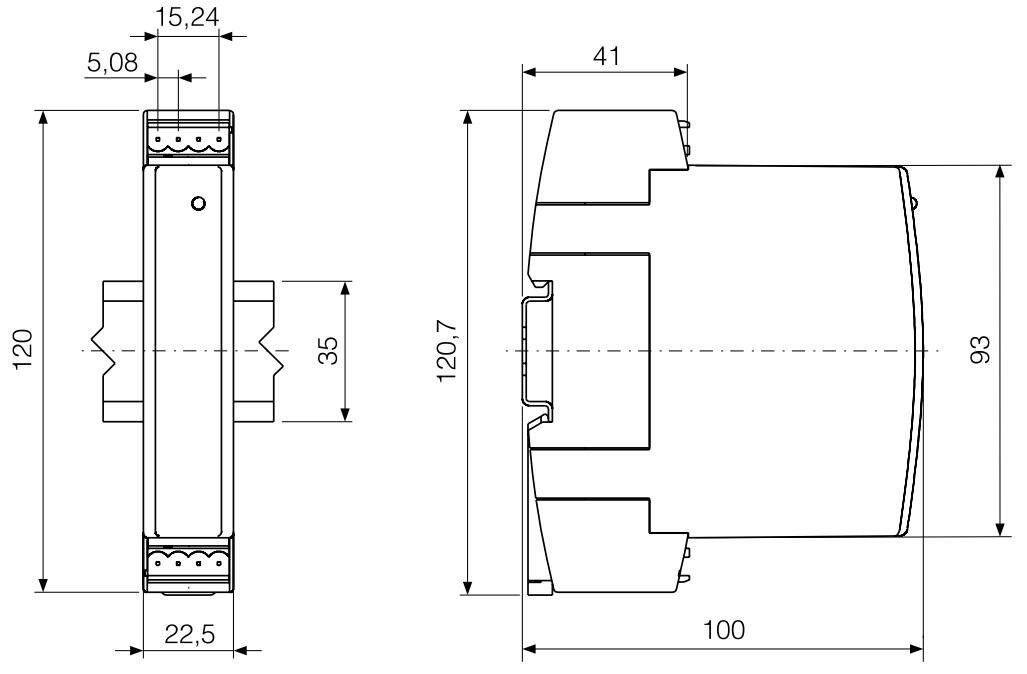

Dimensions 22.5 x 120 x 100 mm
Display No
Input type 0-60V
IP class IP50
Mounting TS 35, DIN rail
Outputs 0-5 mA
Power consumption 4 VA
Supply voltage 85-253 V ac, 90-300 V dc
Weight 0.125 kg

Downloads

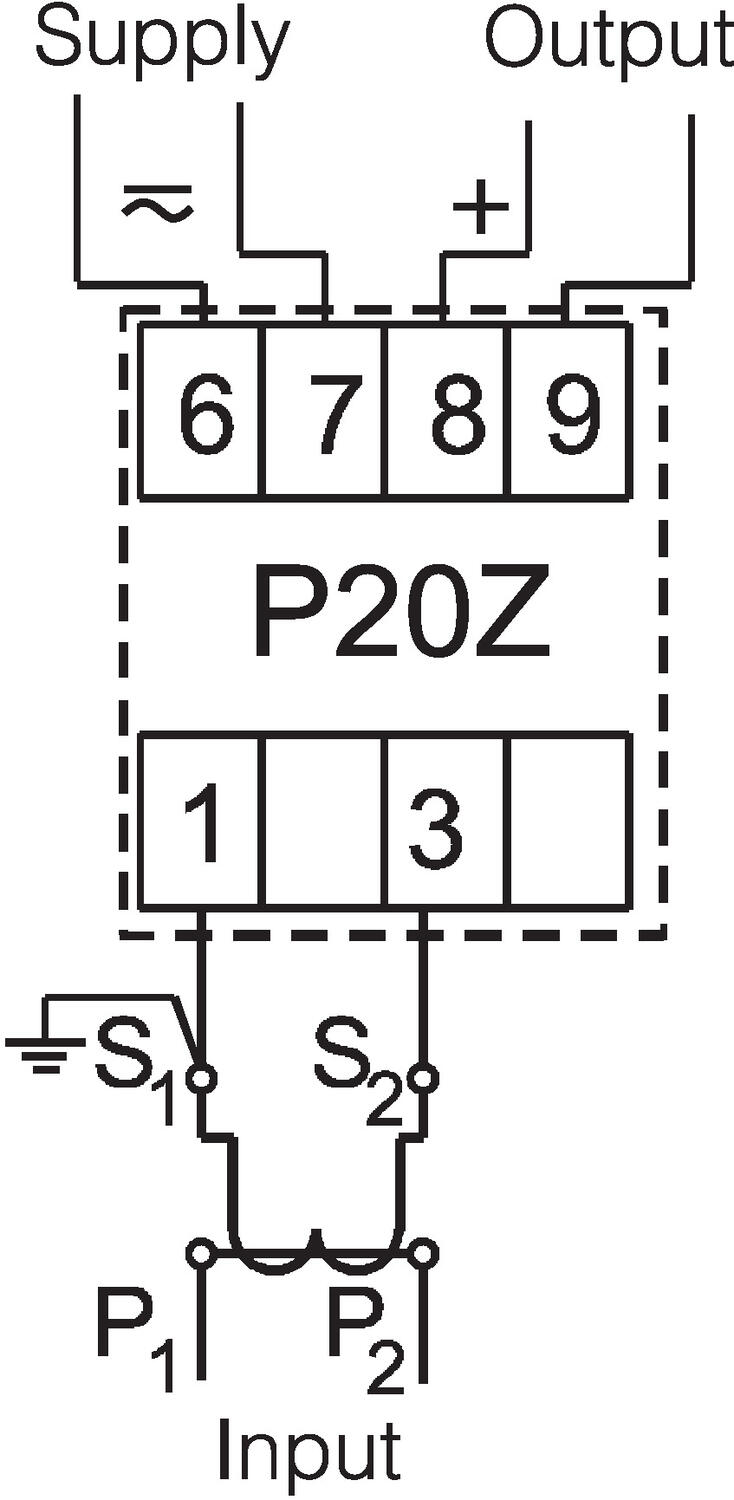

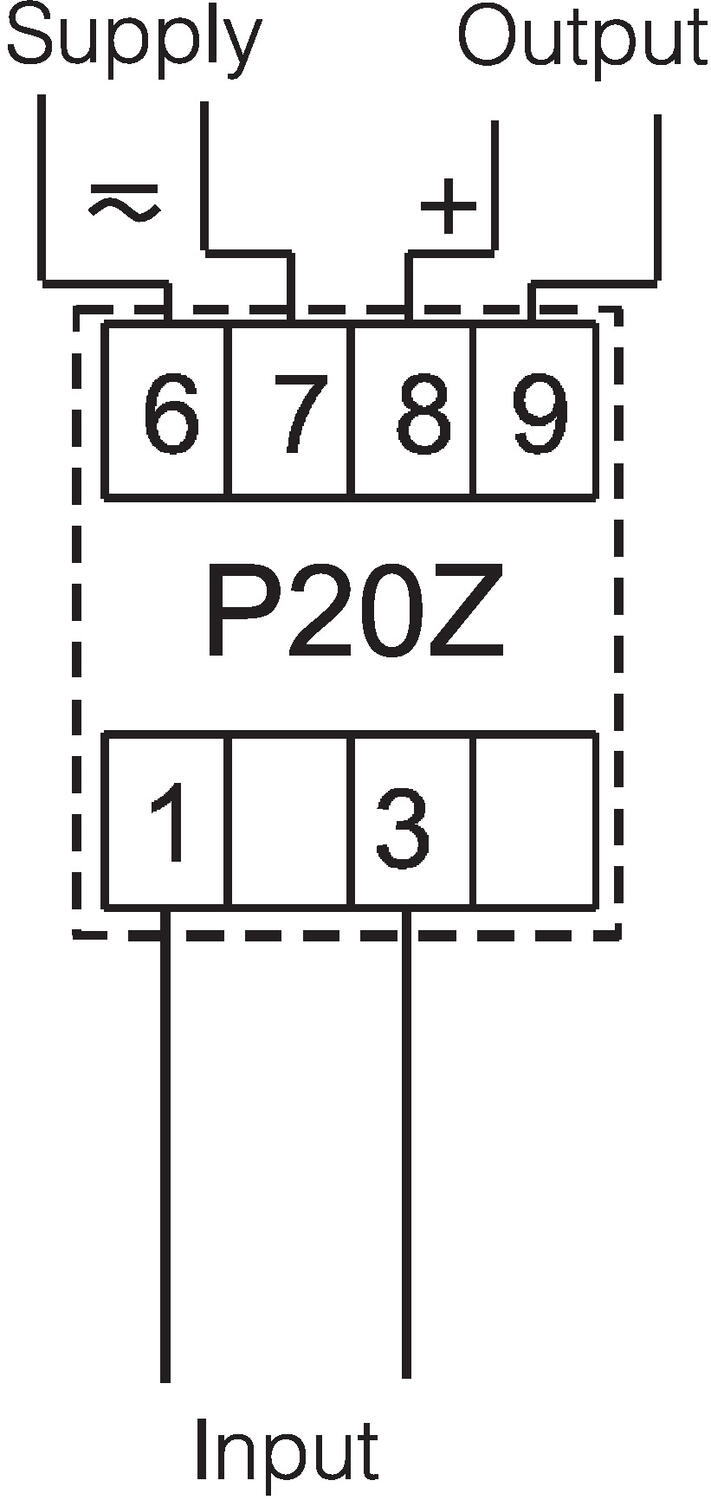

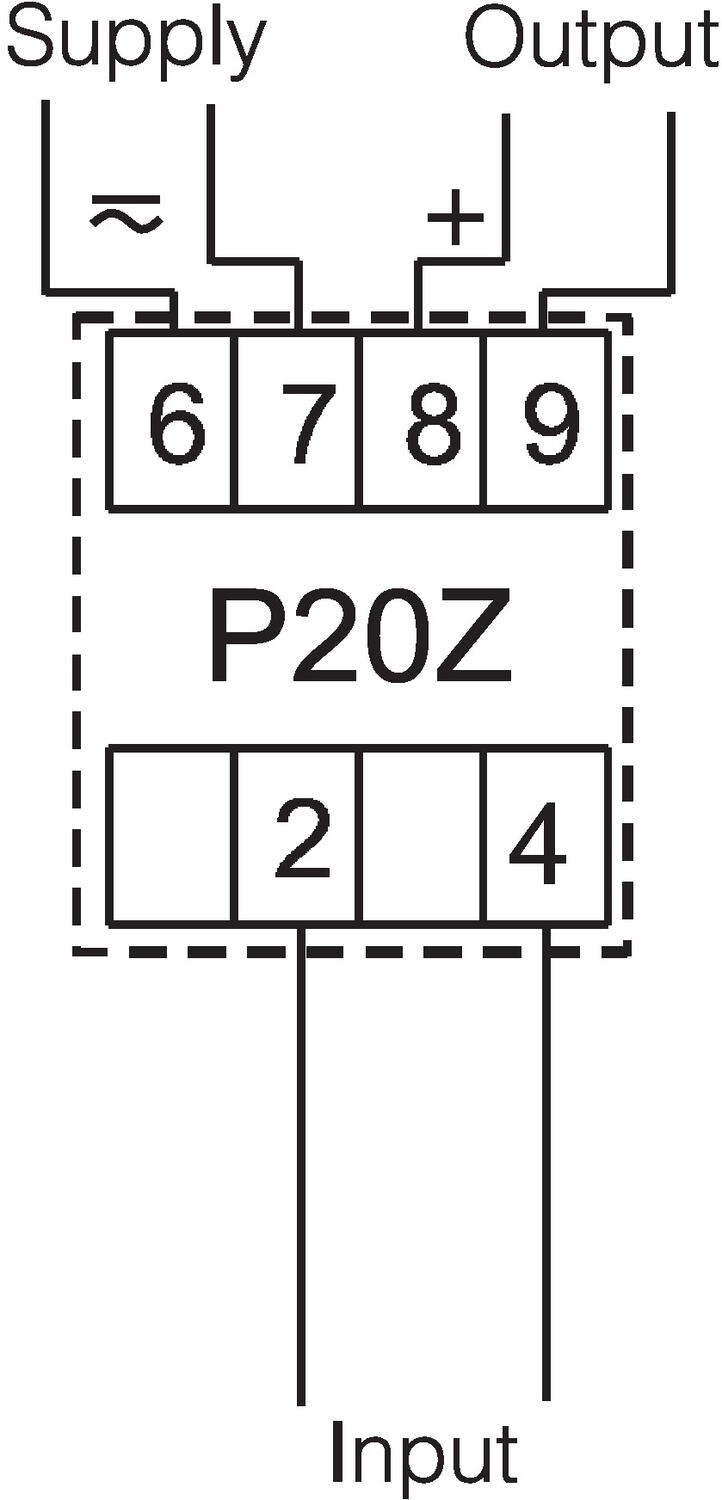

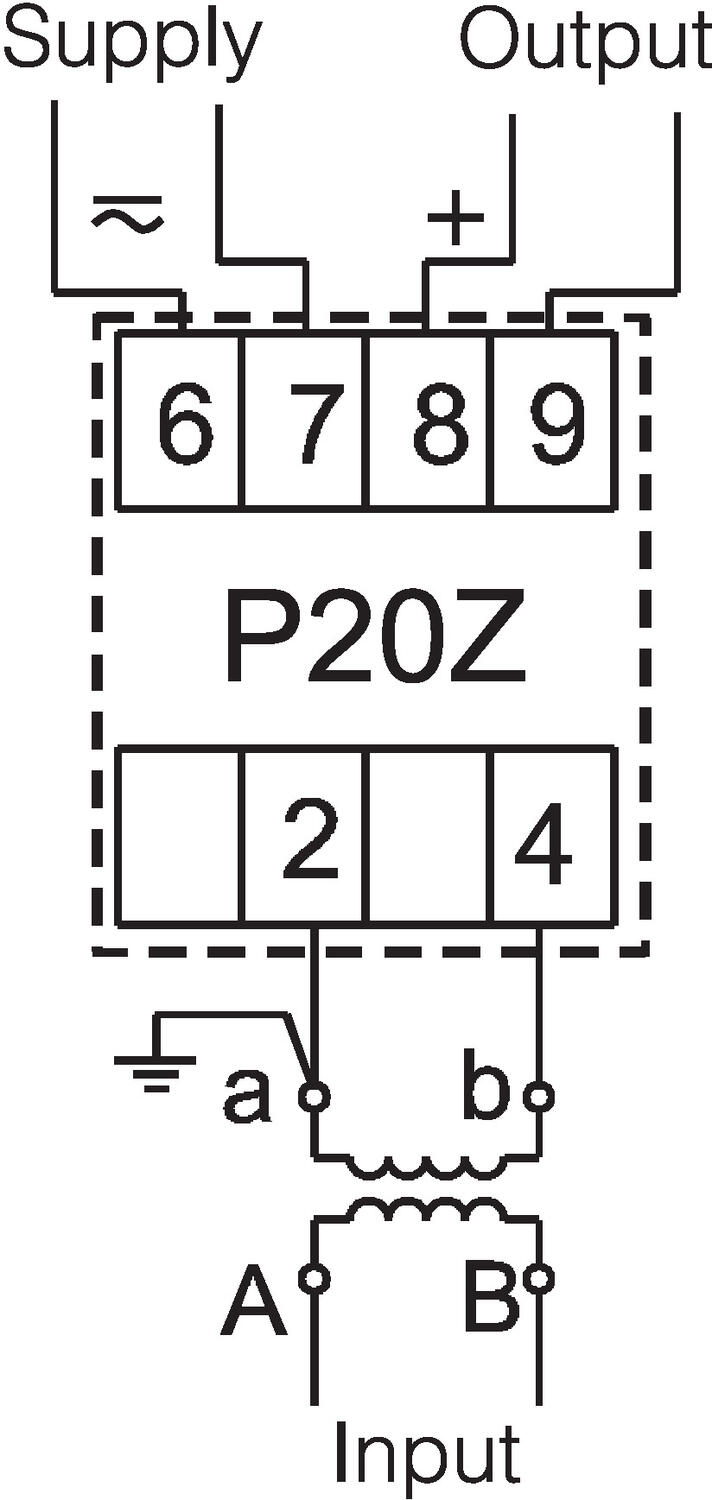

Measurements and connections

Ordering information

Please refer to the data sheet for ordering keys and contact us for more information.

Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Related

Robotics - An OEM Automatic Solution
Blog

Robotics solutions

Robotics has revolutionised industry, enabling efficiency, higher production capacity and increased safety. For a robot solution to function optimally, the right components are required.

Why Colour Brilliance Matters in Industrial Signalling - Auer smart dot 50 beacons illuminated red, yellow and green
Blog

Why Colour Brilliance Matters in Industrial Signalling

Discover why colour brilliance matters in industrial signalling. Improve safety, reduce misinterpretation and ensure clear machine status in any environment.

Advantages of Cable Coils - OEM Automatic & RCT
Learning hub

Advantages of Cable Coils

Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.

cable port
Product news

We now offer cable

What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Parts Input type Outputs Supply voltage Price
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0111100 Copied
0-60V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0111200 Copied
0-60V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0112100 Copied
0-60V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0112200 Copied
0-60V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0121100 Copied
0-60V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0121200 Copied
0-60V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0122100 Copied
0-60V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0122200 Copied
0-60V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0131100 Copied
0-60V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0131200 Copied
0-60V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0132100 Copied
0-60V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0132200 Copied
0-60V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0141100 Copied
0-60V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0141200 Copied
0-60V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0142100 Copied
0-60V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-60V,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0142200 Copied
0-60V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0211100 Copied
0-100V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0211200 Copied
0-100V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0212100 Copied
0-100V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0212200 Copied
0-100V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0221100 Copied
0-100V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0221200 Copied
0-100V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0222100 Copied
0-100V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0222200 Copied
0-100V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0231100 Copied
0-100V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0231200 Copied
0-100V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0232100 Copied
0-100V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0232200 Copied
0-100V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0241100 Copied
0-100V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0241200 Copied
0-100V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0242100 Copied
0-100V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-100V,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0242200 Copied
0-100V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0311100 Copied
0-150V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0311200 Copied
0-150V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0312100 Copied
0-150V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0312200 Copied
0-150V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0321100 Copied
0-150V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0321200 Copied
0-150V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0322100 Copied
0-150V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0322200 Copied
0-150V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0331100 Copied
0-150V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0331200 Copied
0-150V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0332100 Copied
0-150V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0332200 Copied
0-150V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0341100 Copied
0-150V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0341200 Copied
0-150V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0342100 Copied
0-150V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-150V,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0342200 Copied
0-150V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0411100 Copied
0-250V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0411200 Copied
0-250V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0412100 Copied
0-250V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0412200 Copied
0-250V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0421100 Copied
0-250V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0421200 Copied
0-250V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0422100 Copied
0-250V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0422200 Copied
0-250V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0431100 Copied
0-250V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0431200 Copied
0-250V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0432100 Copied
0-250V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0432200 Copied
0-250V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0441100 Copied
0-250V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0441200 Copied
0-250V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0442100 Copied
0-250V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-250,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0442200 Copied
0-250V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0511100 Copied
0-400V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0511200 Copied
0-400V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0512100 Copied
0-400V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0512200 Copied
0-400V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0521100 Copied
0-400V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0521200 Copied
0-400V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0522100 Copied
0-400V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0522200 Copied
0-400V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0531100 Copied
0-400V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0531200 Copied
0-400V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0532100 Copied
0-400V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0532200 Copied
0-400V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0541100 Copied
0-400V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0541200 Copied
0-400V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0542100 Copied
0-400V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-400V,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0542200 Copied
0-400V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0611100 Copied
0-500V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0611200 Copied
0-500V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0612100 Copied
0-500V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0612200 Copied
0-500V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0621100 Copied
0-500V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0621200 Copied
0-500V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0622100 Copied
0-500V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0622200 Copied
0-500V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0631100 Copied
0-500V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0631200 Copied
0-500V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0632100 Copied
0-500V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0632200 Copied
0-500V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0641100 Copied
0-500V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0641200 Copied
0-500V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0642100 Copied
0-500V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-500V,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0642200 Copied
0-500V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0711100 Copied
0-600V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0711200 Copied
0-600V
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0712100 Copied
0-600V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0712200 Copied
0-600V
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0721100 Copied
0-600V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0721200 Copied
0-600V
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0722100 Copied
0-600V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0722200 Copied
0-600V
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0731100 Copied
0-600V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0731200 Copied
0-600V
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0732100 Copied
0-600V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0732200 Copied
0-600V
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,0-10V, 85-253V ac, Insep Screws
Art:
P20Z0741100 Copied
0-600V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0741200 Copied
0-600V
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,0-10V, 20-40V dc, Insep Screws
Art:
P20Z0742100 Copied
0-600V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-600V,0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0742200 Copied
0-600V
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0811100 Copied
0-1A
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0811200 Copied
0-1A
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0812100 Copied
0-1A
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0812200 Copied
0-1A
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0821100 Copied
0-1A
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0821200 Copied
0-1A
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0822100 Copied
0-1A
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0822200 Copied
0-1A
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0831100 Copied
0-1A
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0831200 Copied
0-1A
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0832100 Copied
0-1A
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0832200 Copied
0-1A
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-10V, 85-253V ac, Insep Screws
Art:
P20Z0841100 Copied
0-1A
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0841200 Copied
0-1A
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-10V, 20-40V dc, Insep Screws
Art:
P20Z0842100 Copied
0-1A
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-1A, 0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0842200 Copied
0-1A
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-5 mA, 85-253V ac, Insep Screws
Art:
P20Z0911100 Copied
0-5A
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-5 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0911200 Copied
0-5A
0-5 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-5 mA, 20-40V dc, Insep Screws
Art:
P20Z0912100 Copied
0-5A
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-5 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0912200 Copied
0-5A
0-5 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0921100 Copied
0-5A
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0921200 Copied
0-5A
0-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0922100 Copied
0-5A
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0922200 Copied
0-5A
0-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 4-20 mA, 85-253V ac, Insep Screws
Art:
P20Z0931100 Copied
0-5A
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 4-20 mA, 85-253V ac, Screw Plug-in
Art:
P20Z0931200 Copied
0-5A
4-20 mA
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 4-20 mA, 20-40V dc, Insep Screws
Art:
P20Z0932100 Copied
0-5A
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 4-20 mA, 20-40V dc, Screw Plug-in
Art:
P20Z0932200 Copied
0-5A
4-20 mA
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-10V, 85-253V ac, Insep Screws
Art:
P20Z0941100 Copied
0-5A
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-10V, 85-253V ac, Screw Plug-in
Art:
P20Z0941200 Copied
0-5A
0-10V
85-253 V ac, 90-300 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-10V, 20-40V dc, Insep Screws
Art:
P20Z0942100 Copied
0-5A
0-10V
20-40 V ac, 20-60 V dc
Lumel P20Z AC signal transducer
P20Z Transducer, 0-5A, 0-10V, 20-40V dc, Screw Plug-in
Art:
P20Z0942200 Copied
0-5A
0-10V
20-40 V ac, 20-60 V dc

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
