AUER SIGNAL

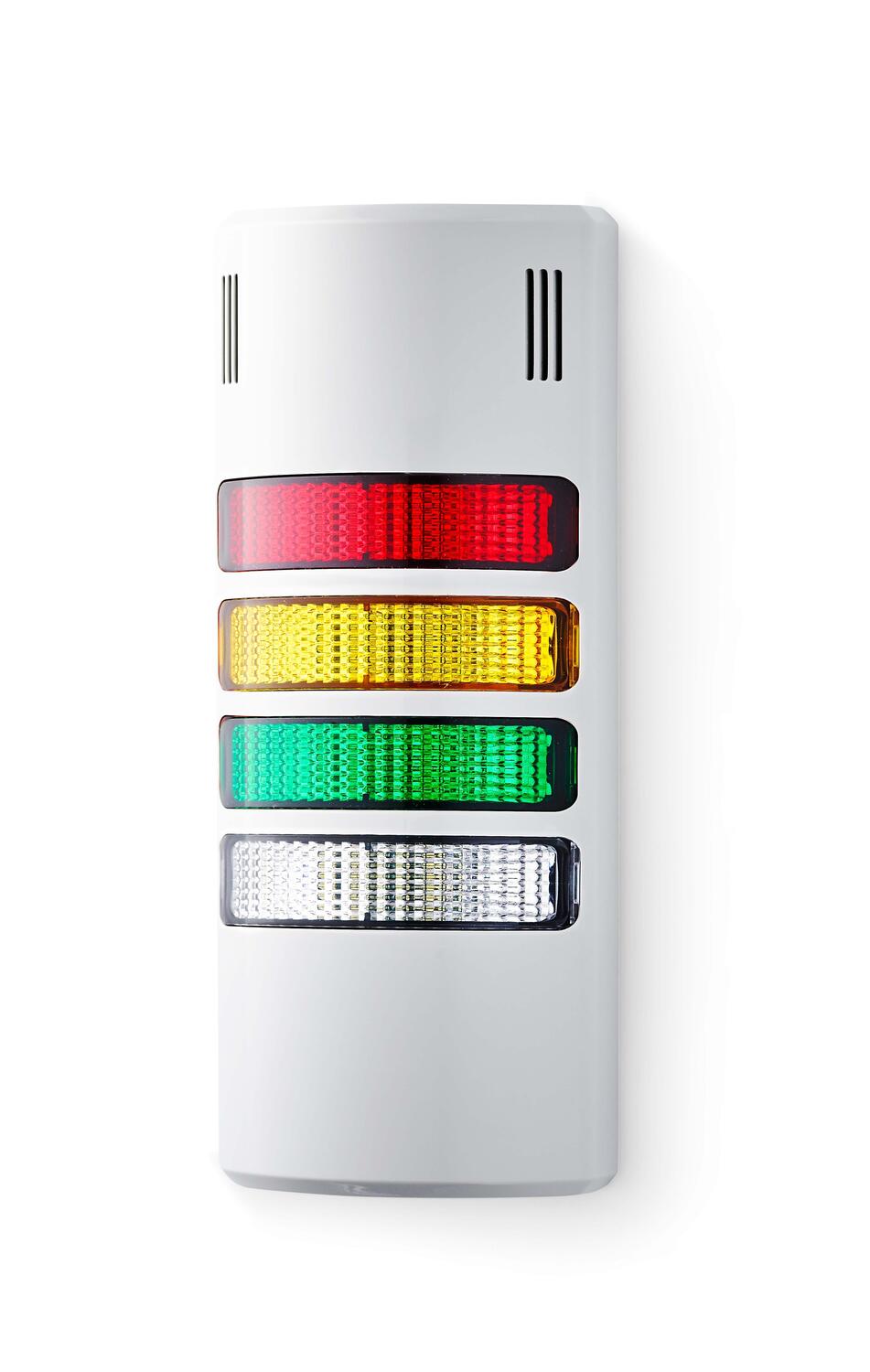

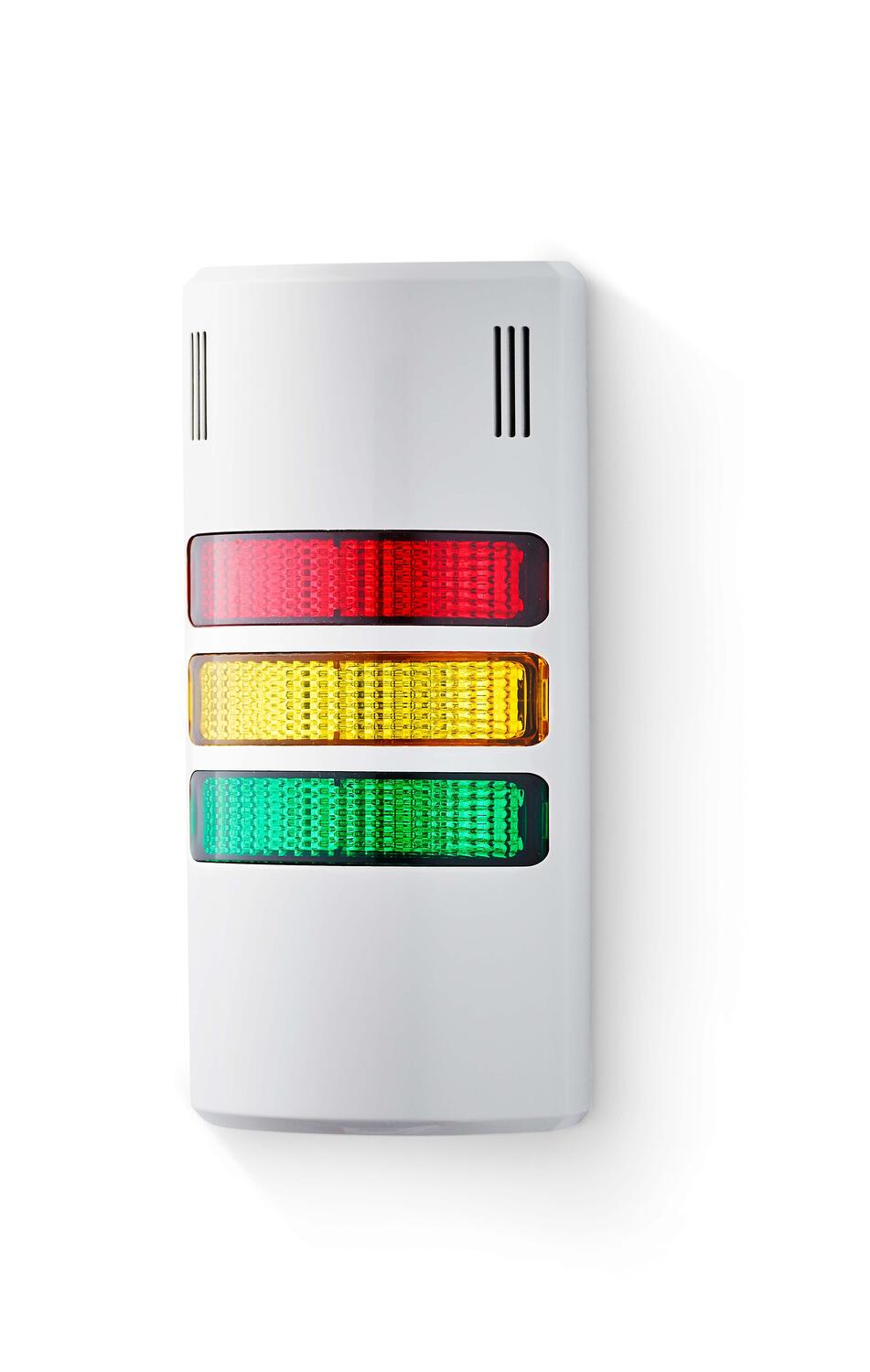

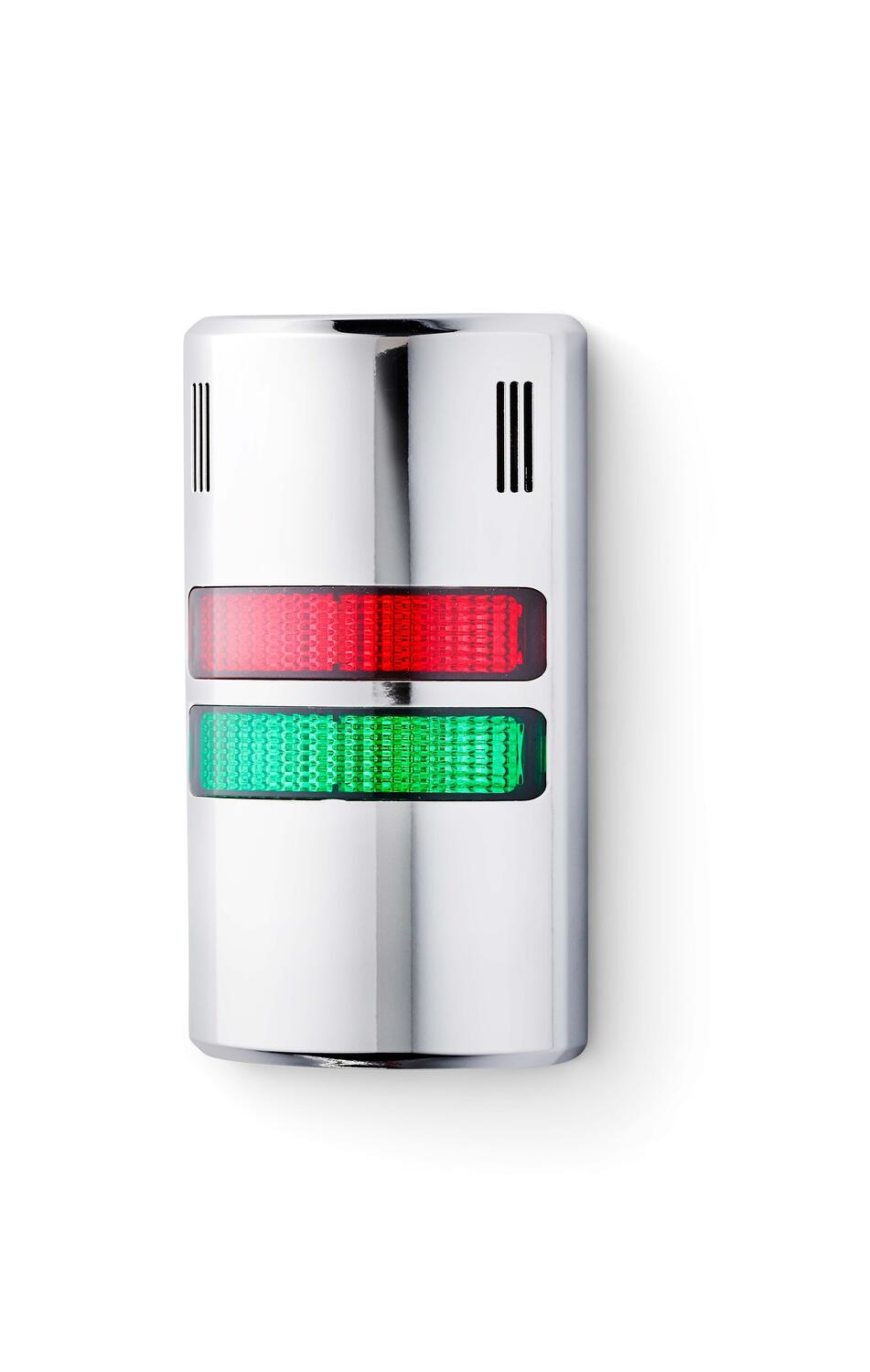

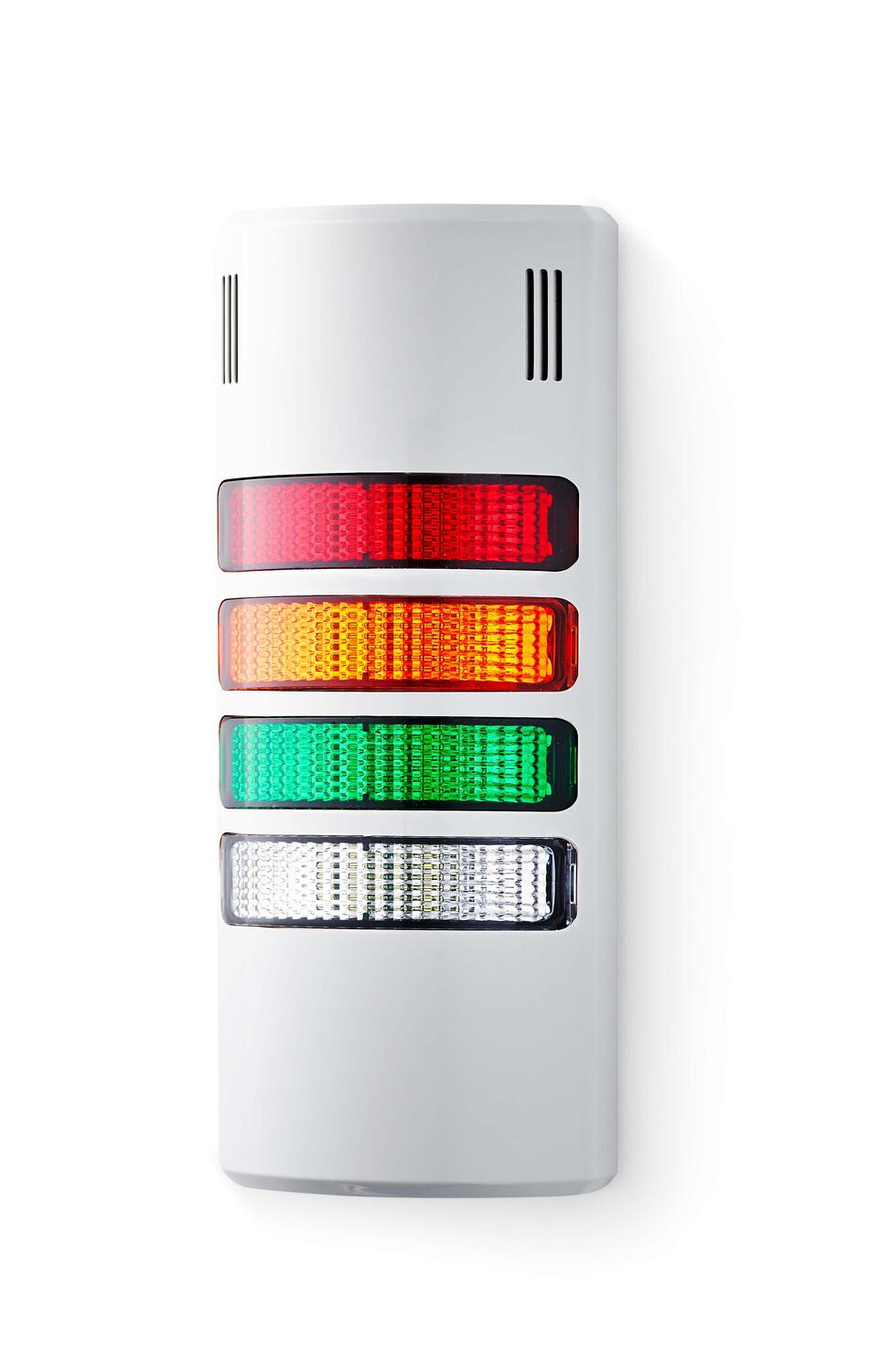

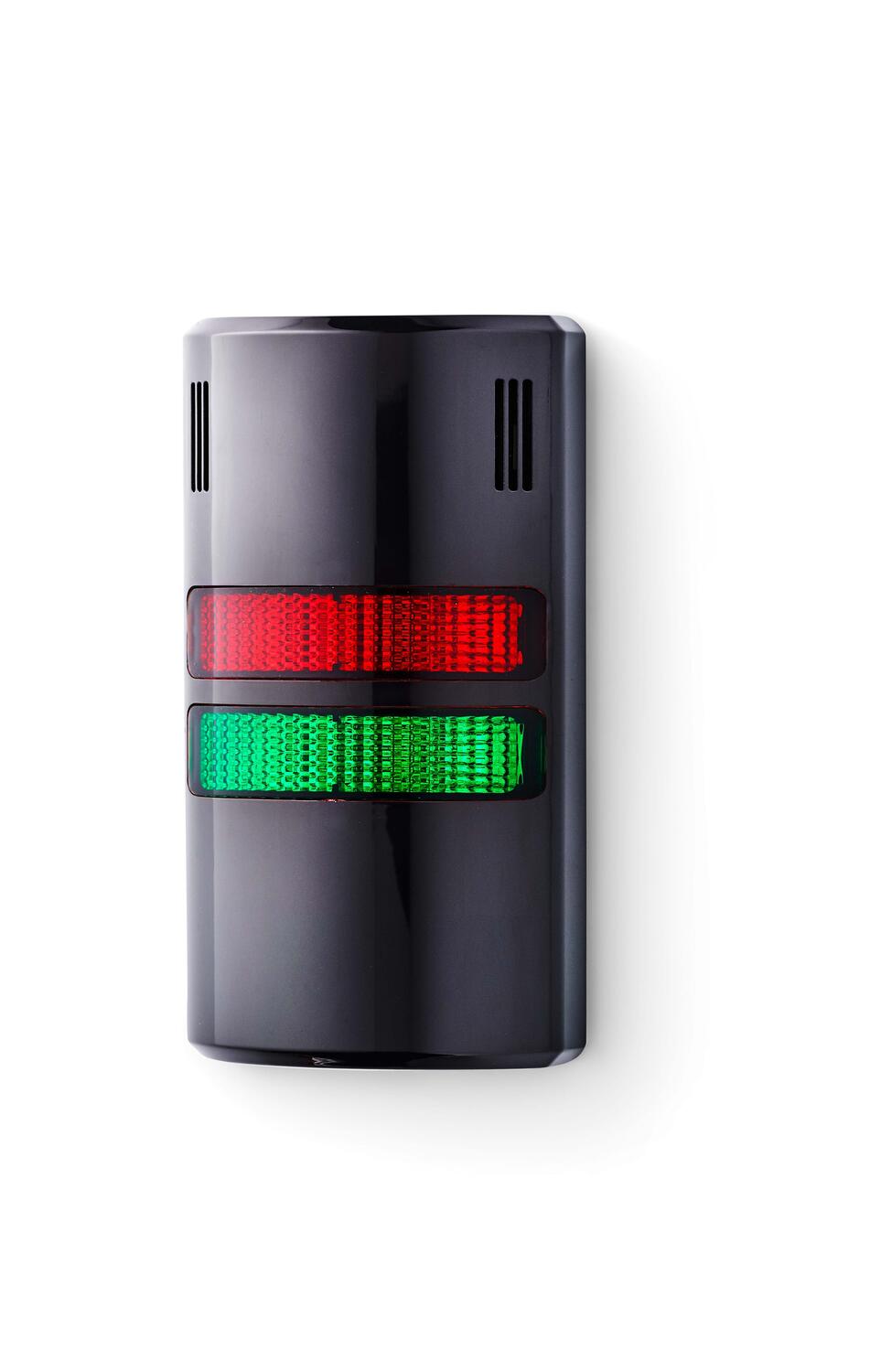

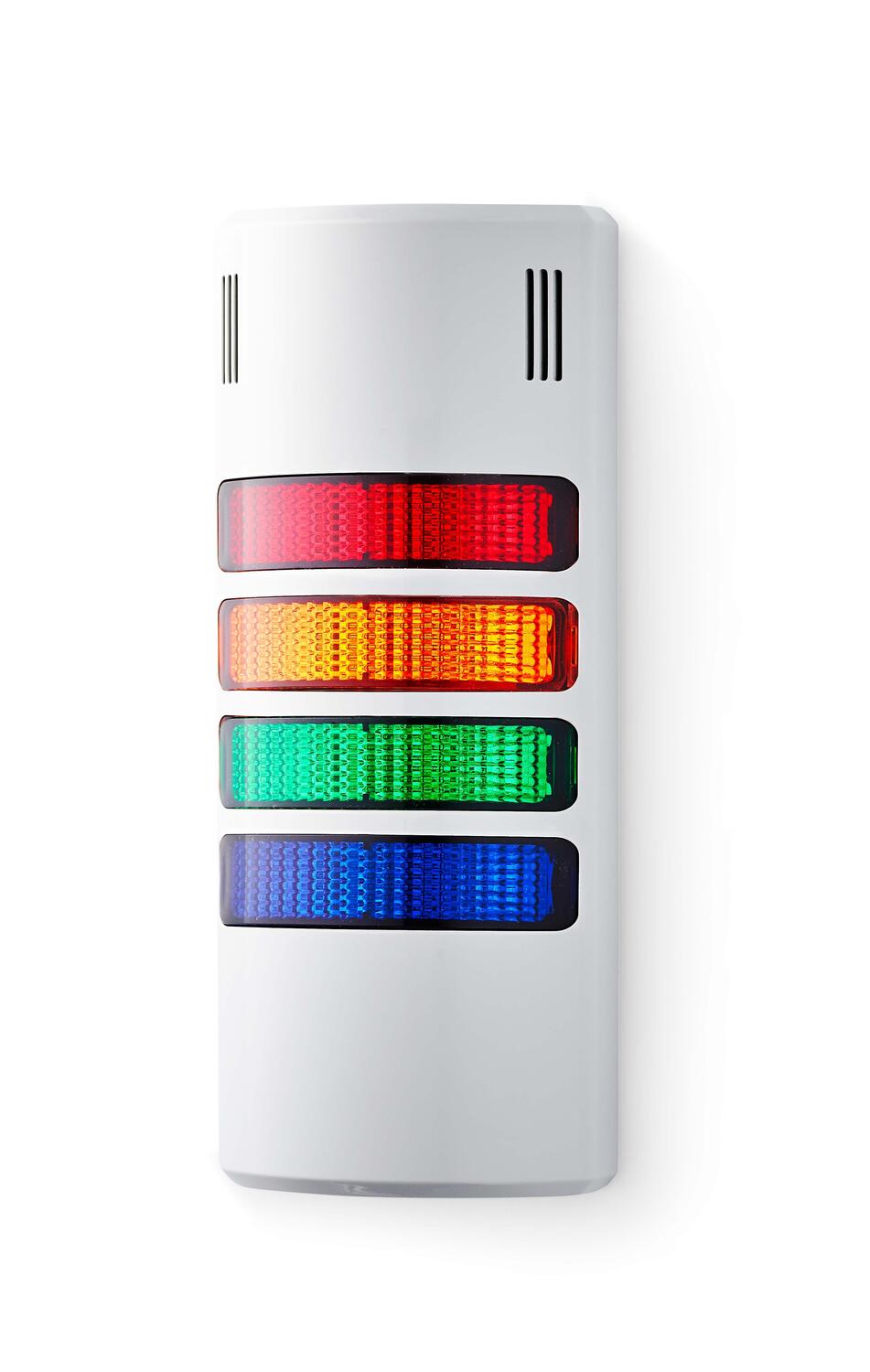

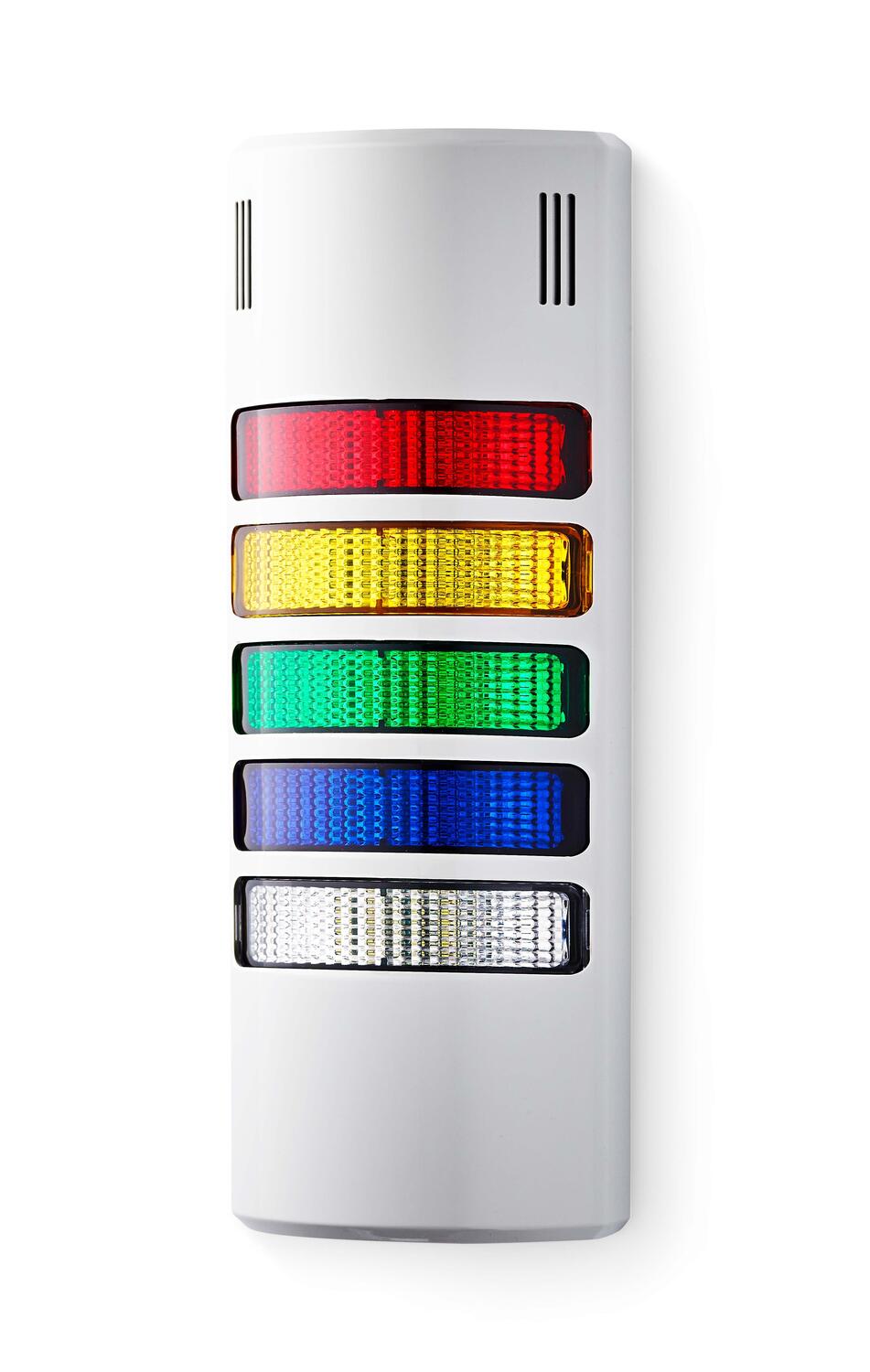

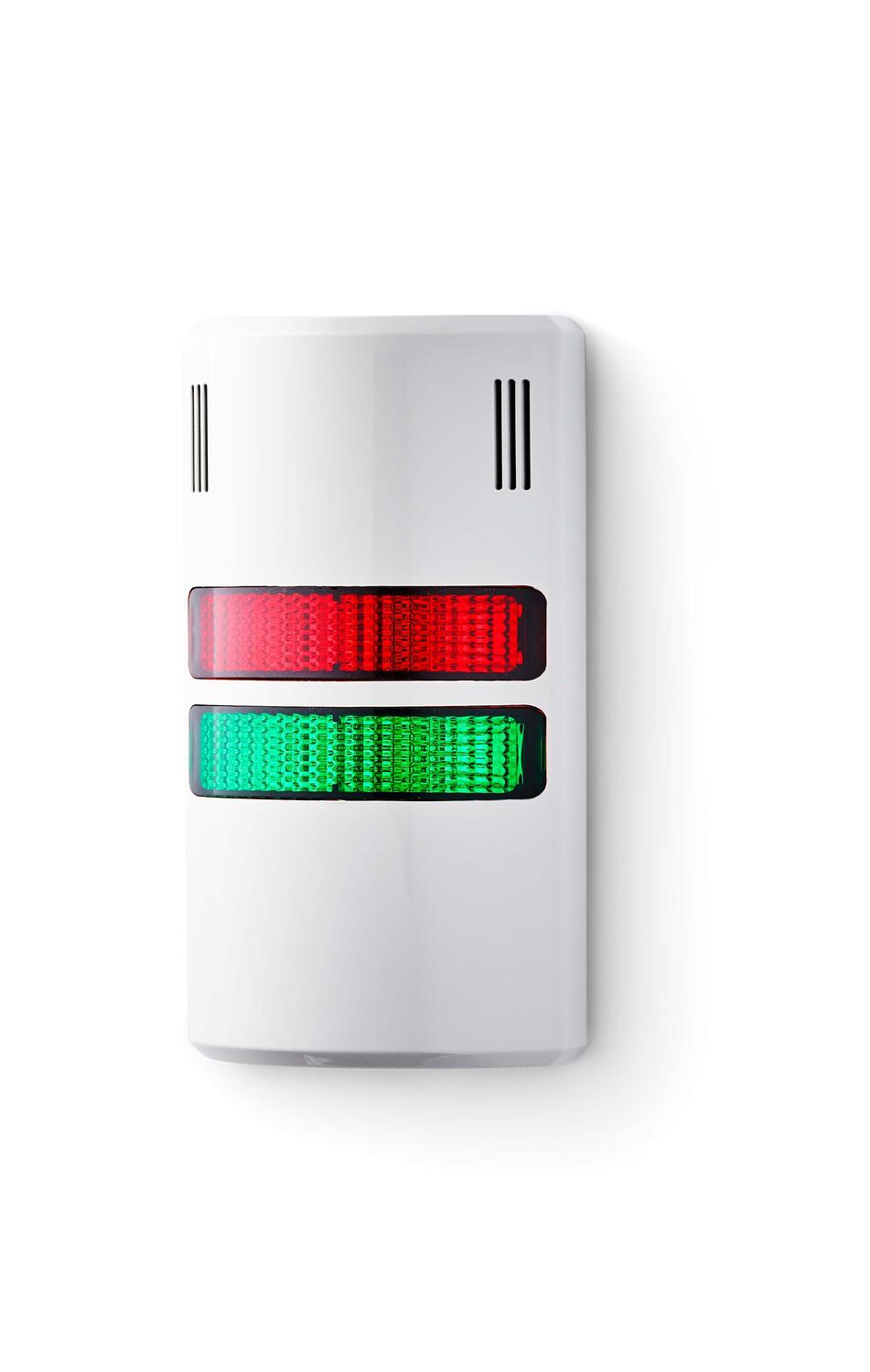

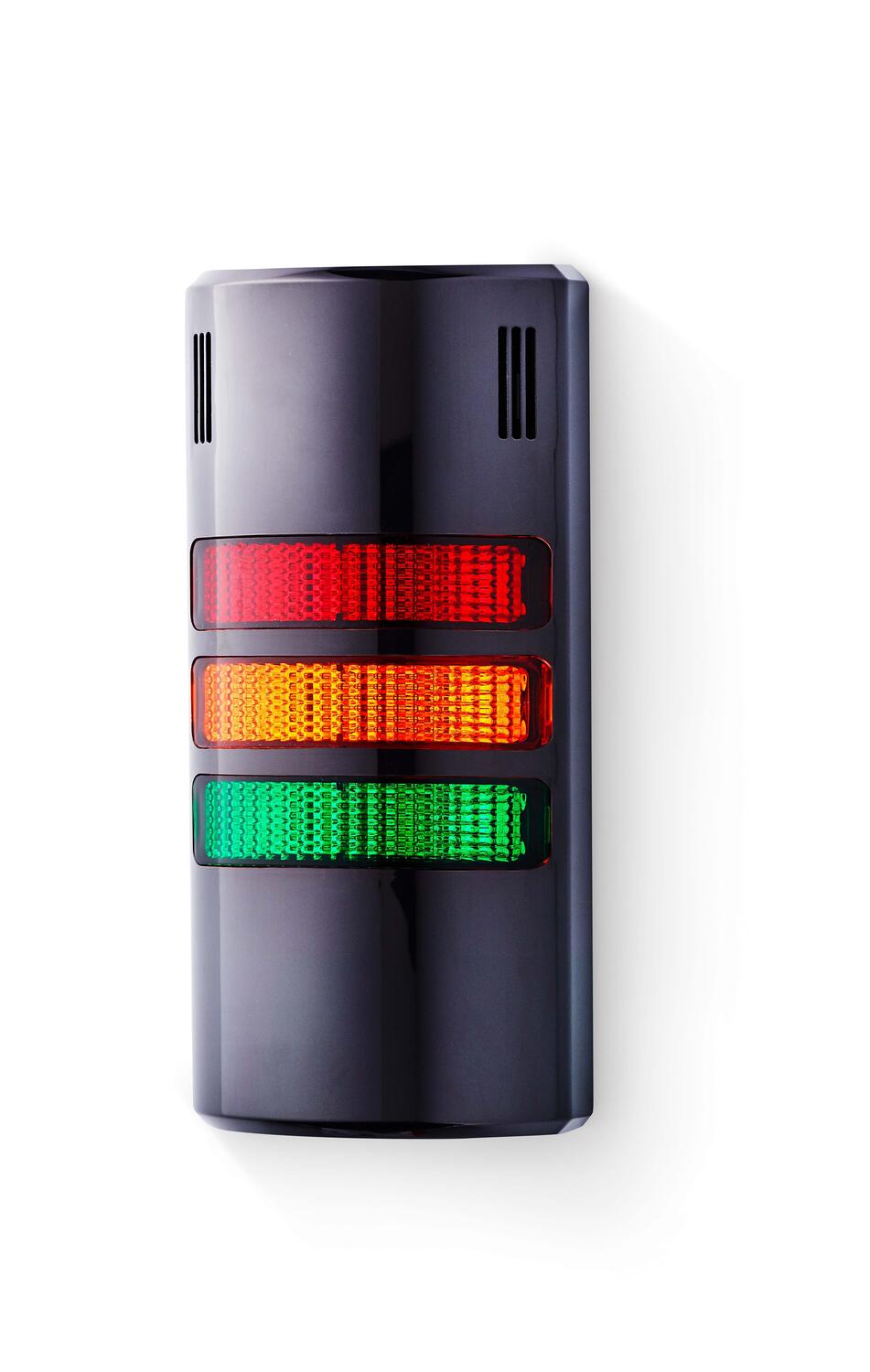

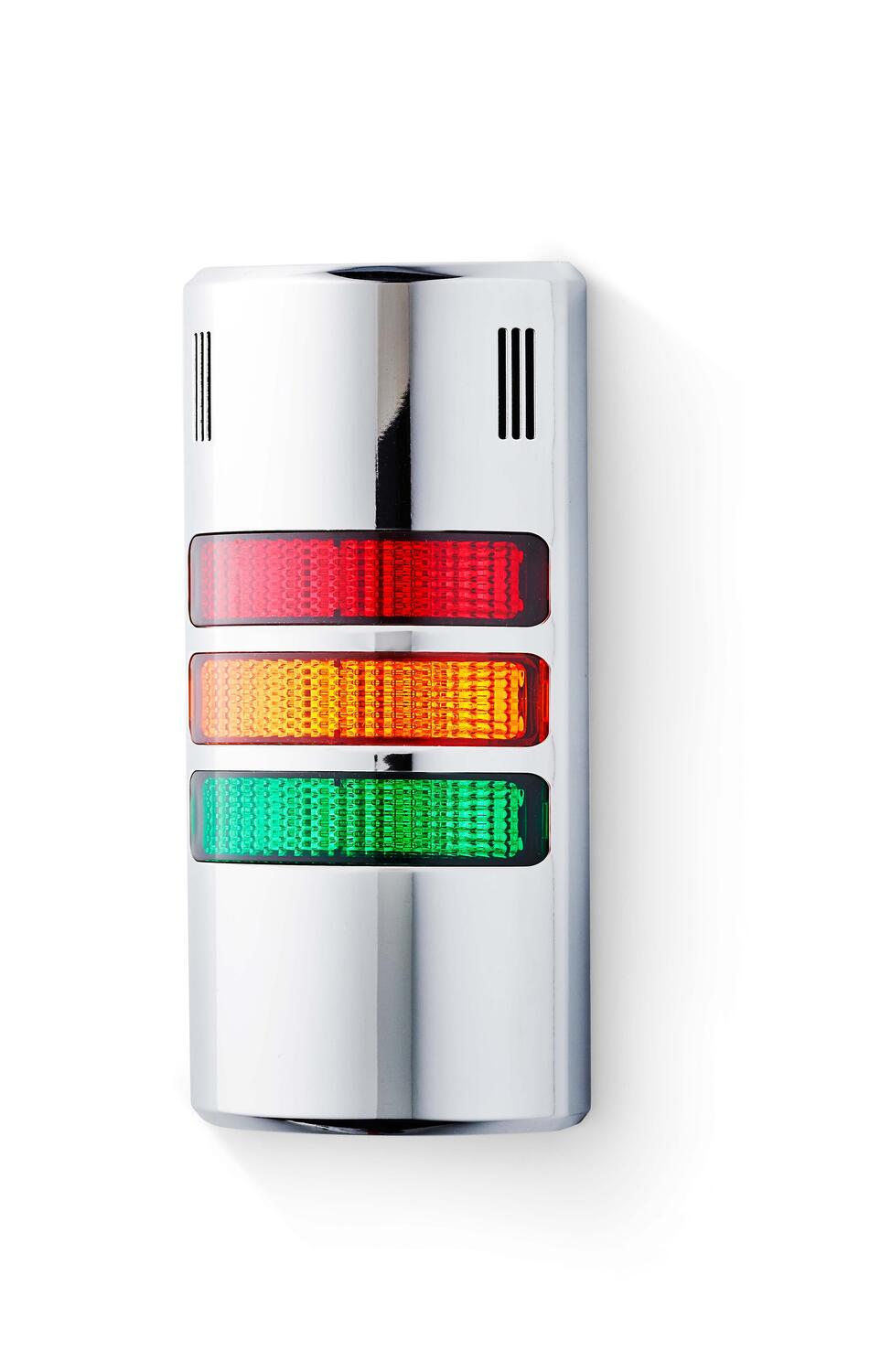

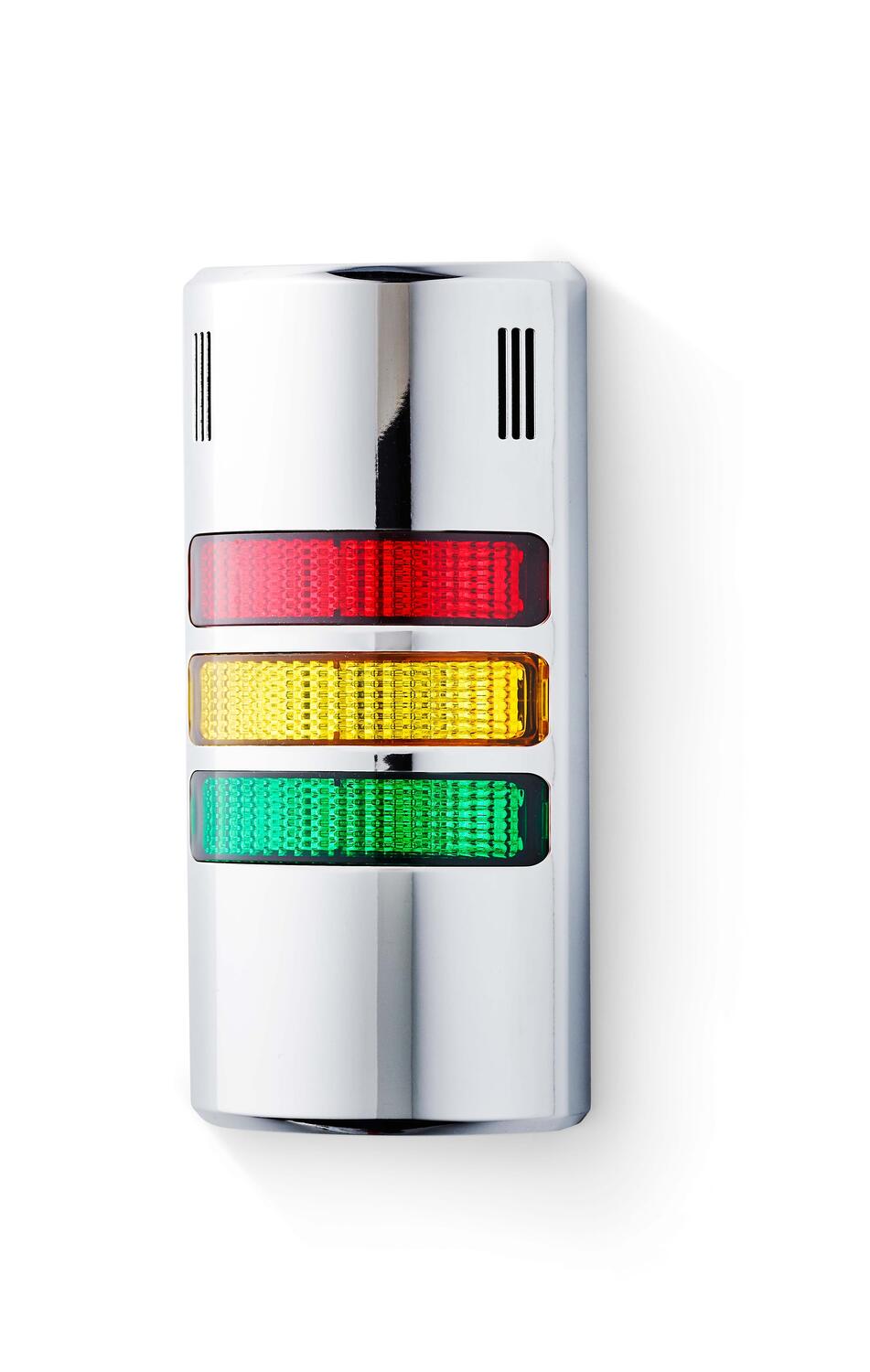

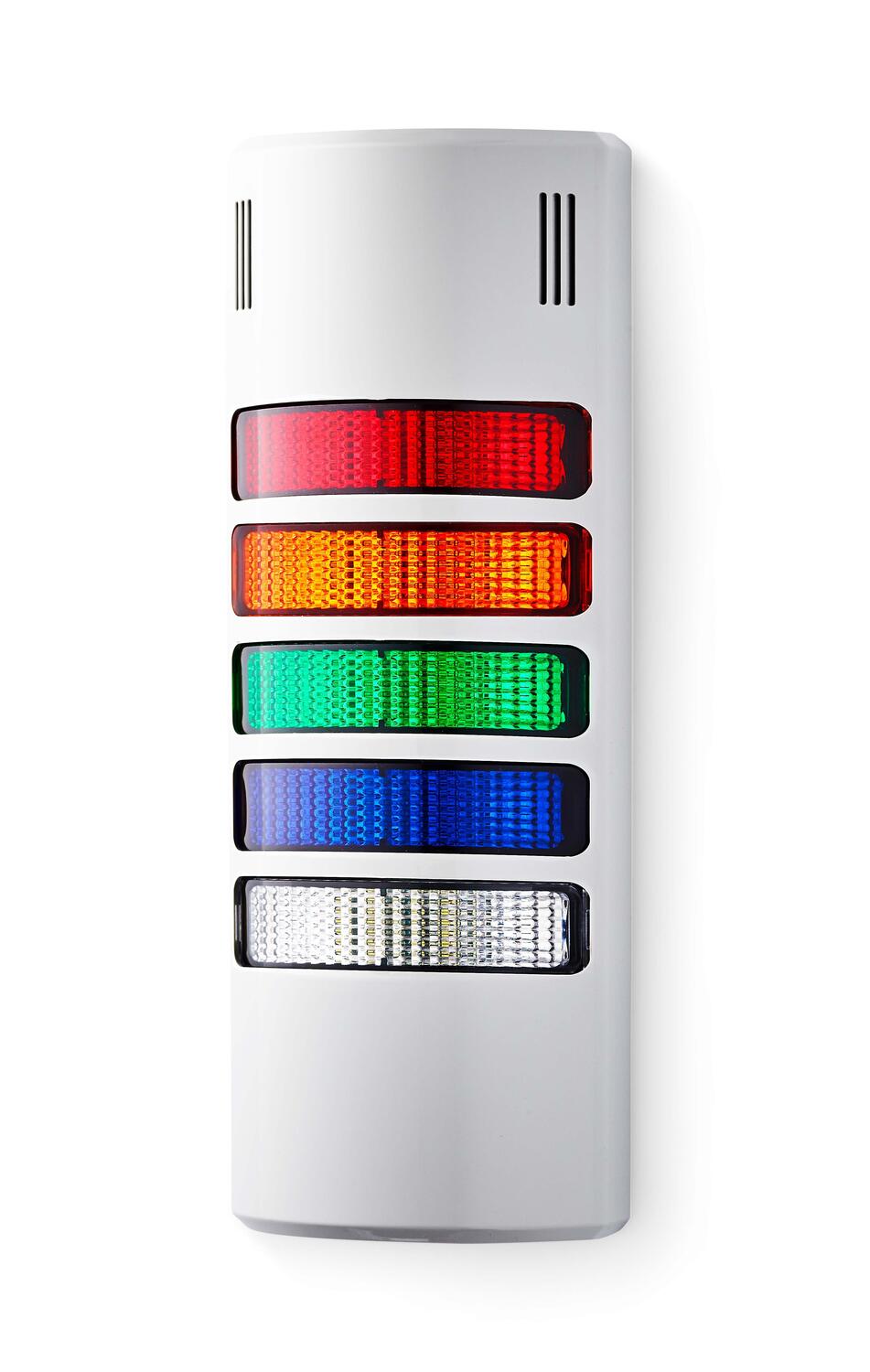

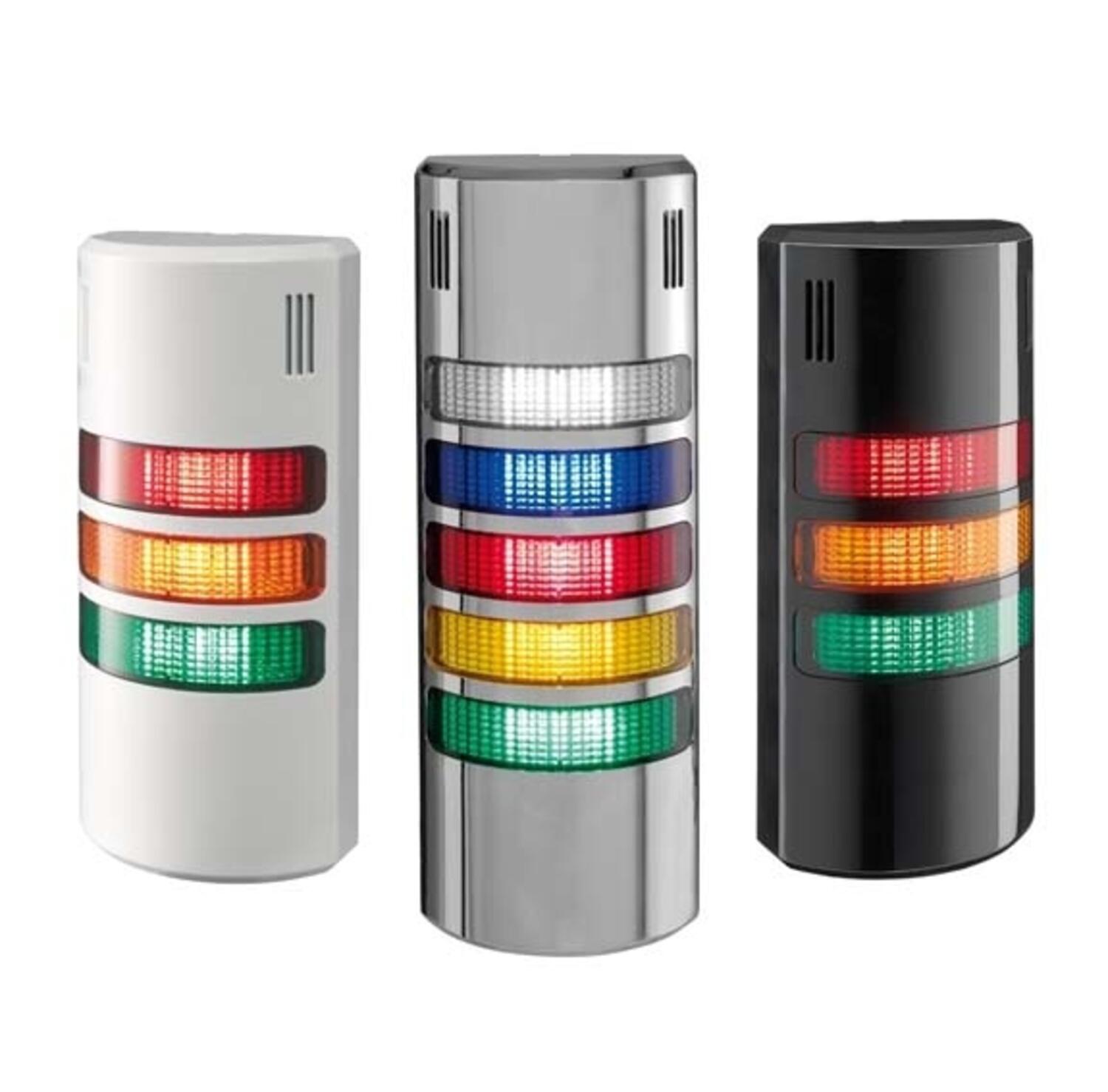

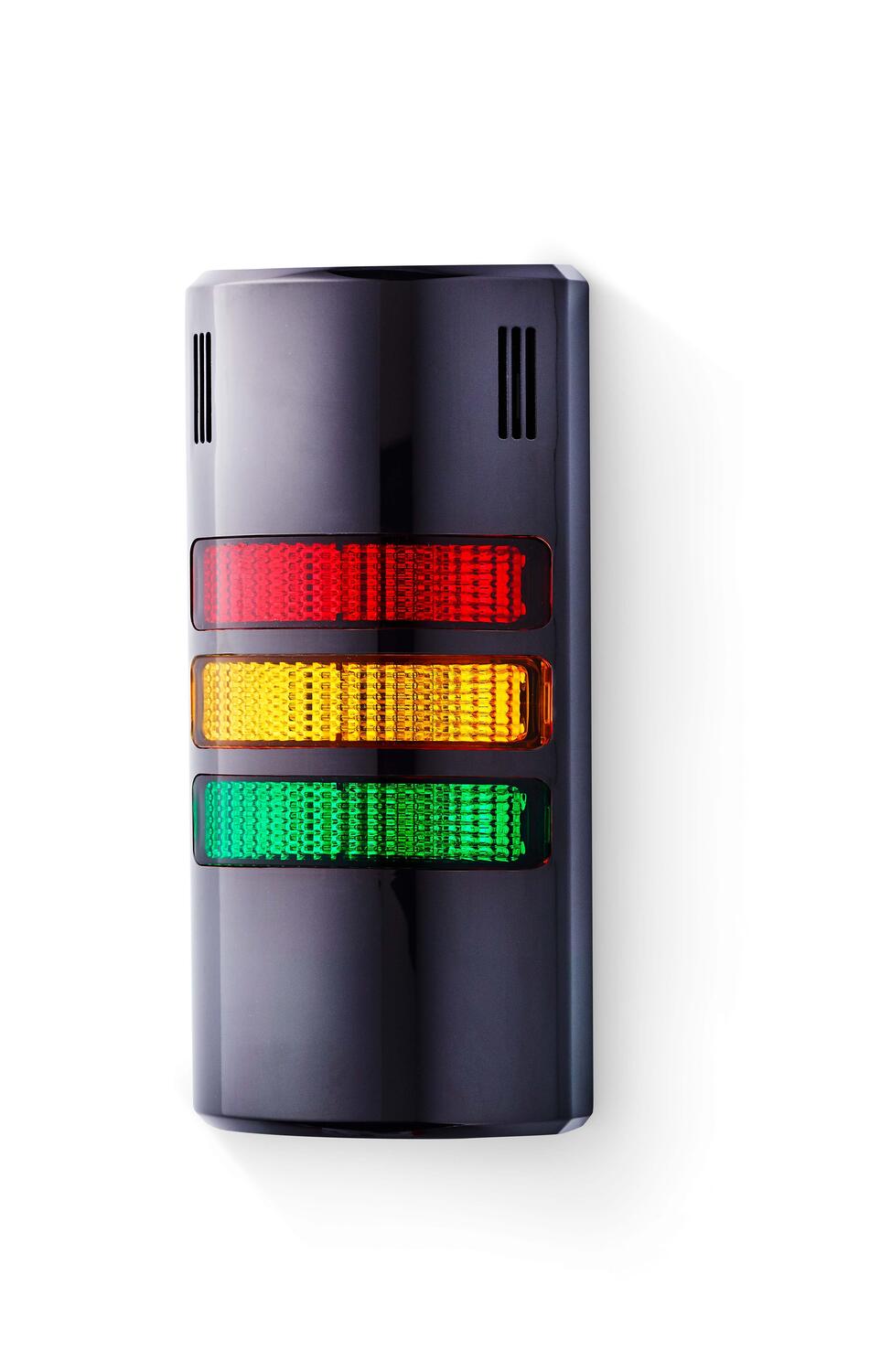

Signal Tower, Half Dome 90

 The Half Dome 90 signal tower is a high quality option for signalling, with a pleasing look and 180° viewing angle the Half Dome is perfect for any high end signalling requirements.



  • Visual-audible LED signal tower in half dome design
  • For universal applications (industrial, building and others)
  • Any colour combination and housing size (2 – 5 positions) available
  • 6 lens colours, 3 housing colours (grey, chrome, black)
  • LED steady light or LED flashing light for each position selectable
  • High protection class IP 65 – suitable for outdoor and indoor
  • For horizontal and vertical mounting
  • Particular lens optics with reflective coating

- optimal signalling and visibility from each viewing angle (180°)

- moving bright LED light

  • Optional piezo buzzer in upper housing area available

- tone types continuous and pulsing

- sound pressure individually adjustable ~70-90 dB (A)at 1M

  • SPS-fit (leakage, inrush current)
  • Available in nominal voltages 12 V ac/dc, 24 V ac/dc, 110/120 V ac and 230/240 V ac
  • Certified to UL type 4/4X/13
Read more
  • Compact (ready to use) LED signal tower in half dome design
  • Tower is built and supplied according to customer‘s requirements
  • Wide control voltage range

Selected variant

Available in several variants

Selected variant

Technical data

Data

Lens colour Green, Orange, Red
Housing Colour Silver
IP class IP65
Light source LED
Light type Green LED, Orange LED, Red LED
Supply voltage 24 V
Mounting Wall

*Invisible Heading*

Nominal current max 0.043 A
Temperature operational min -30 °C
Temperature operational max 50 °C
Terminal connection 2.5 mm²
Diameter 90 mm
Nominal current min 0.043 A

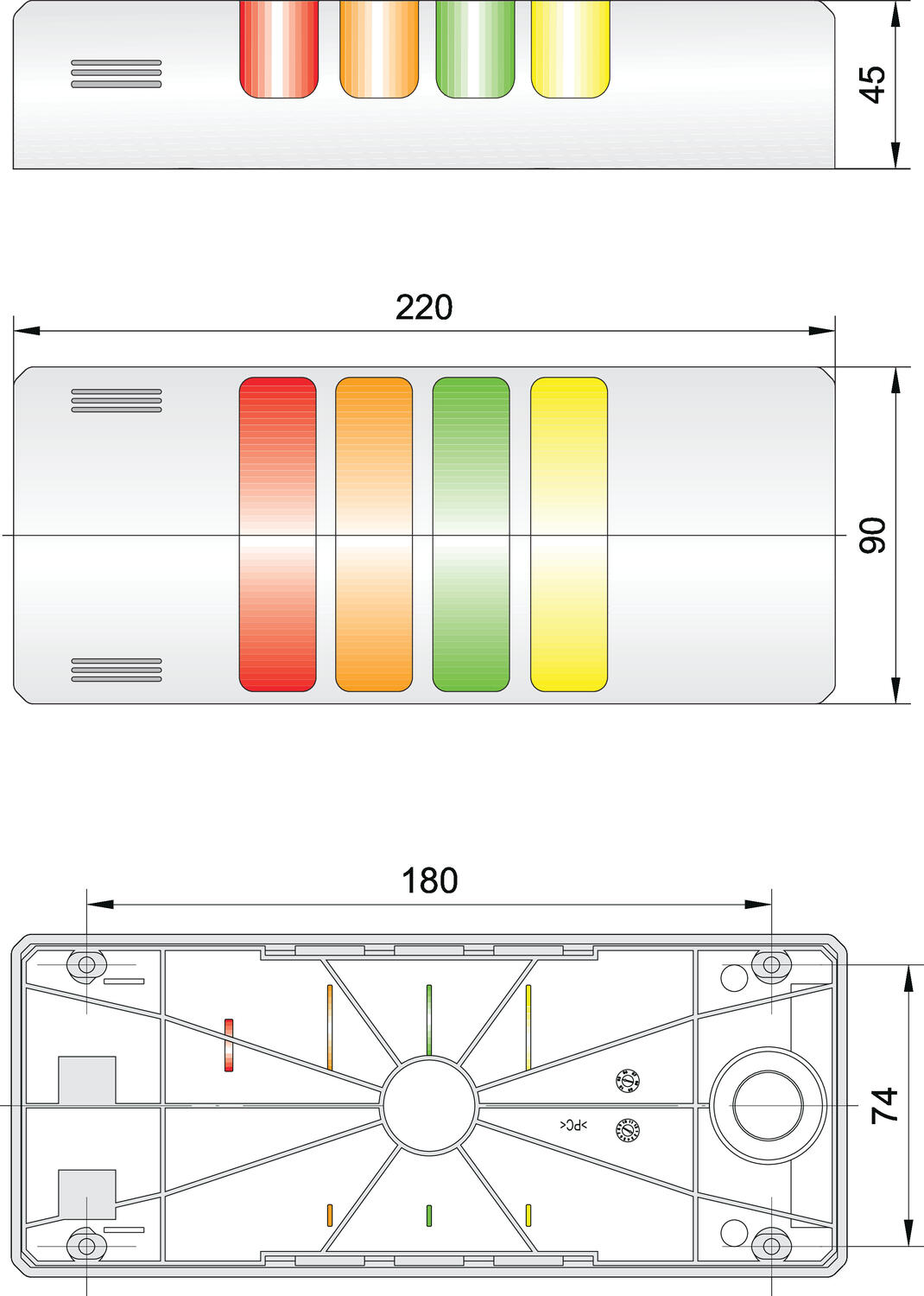

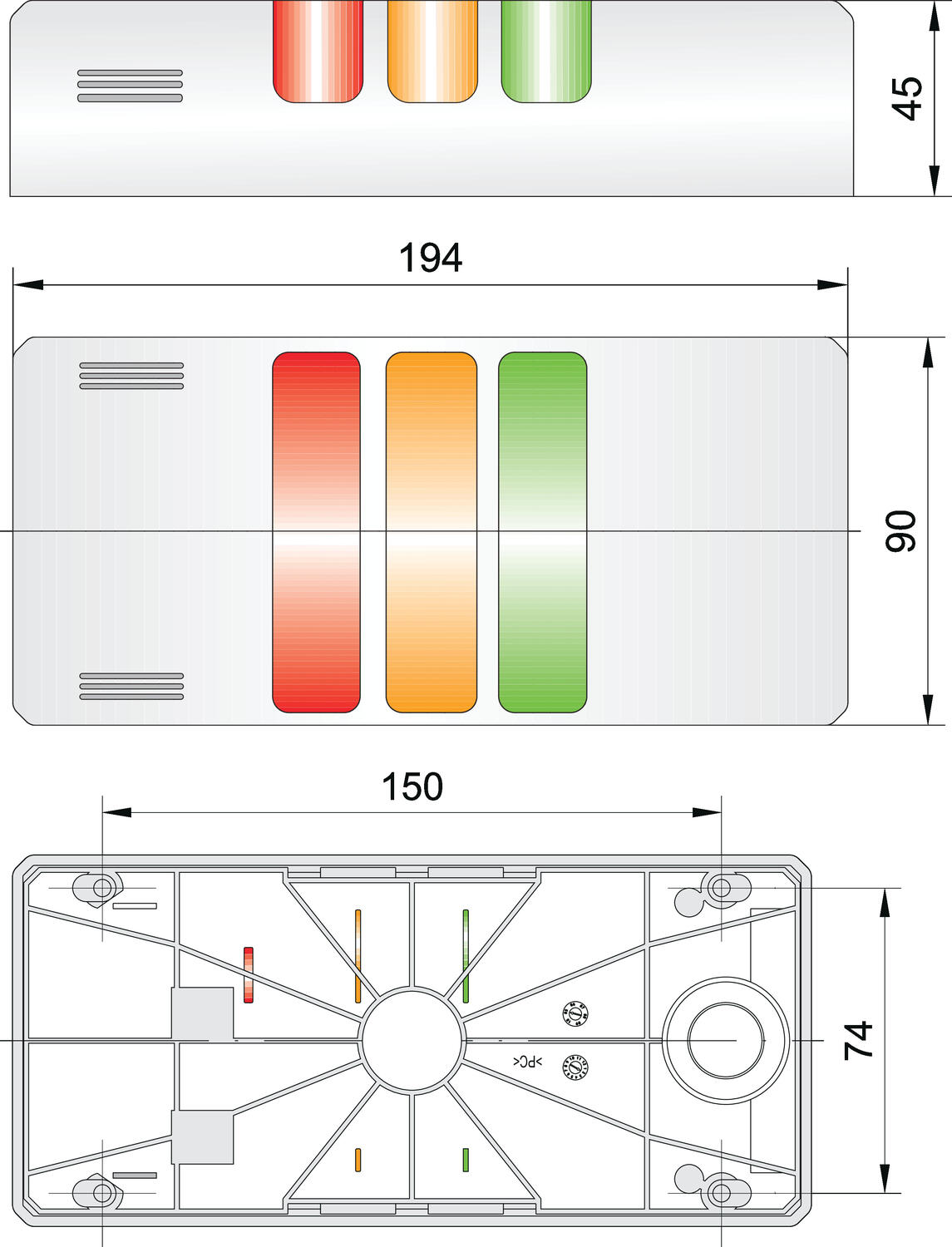

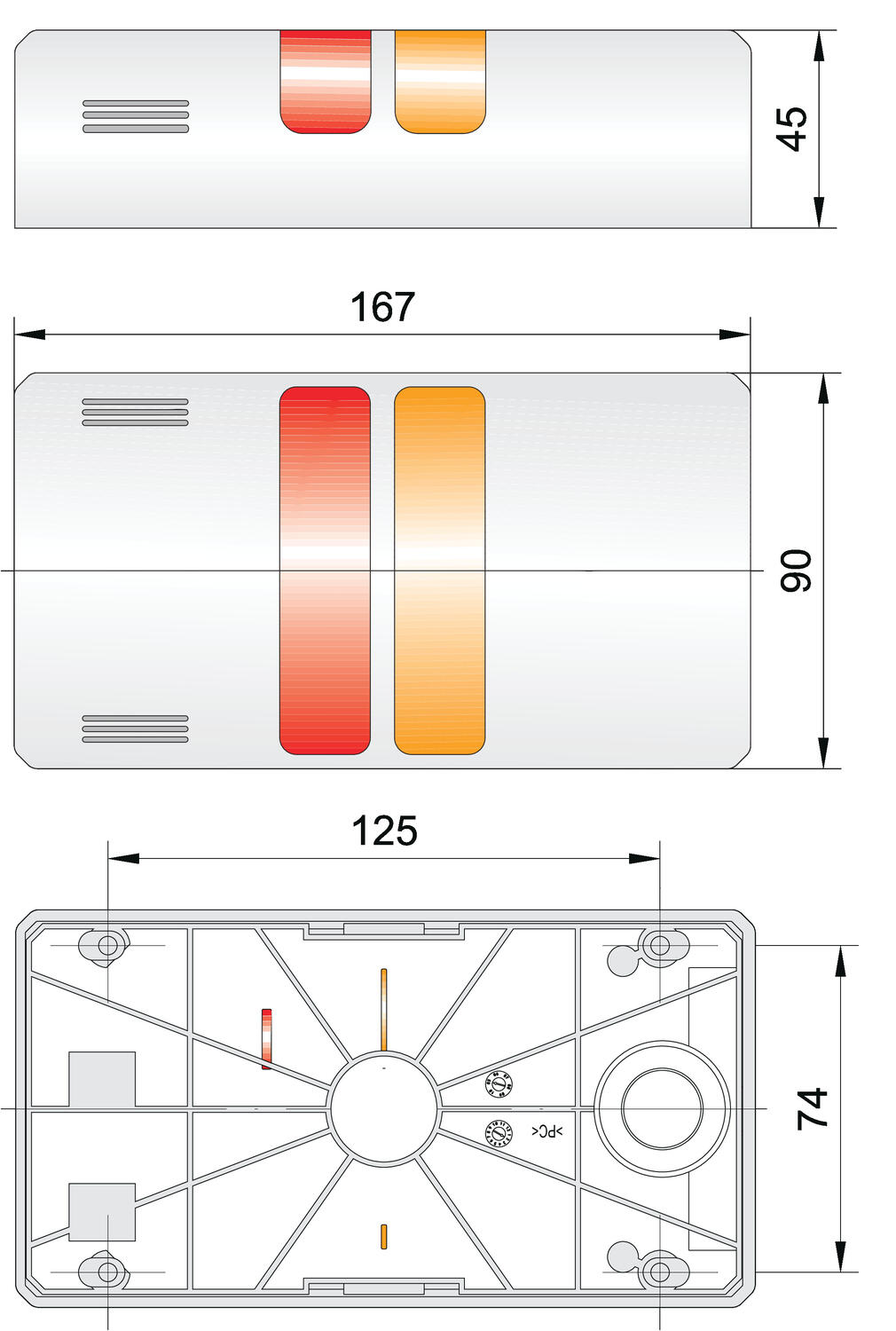

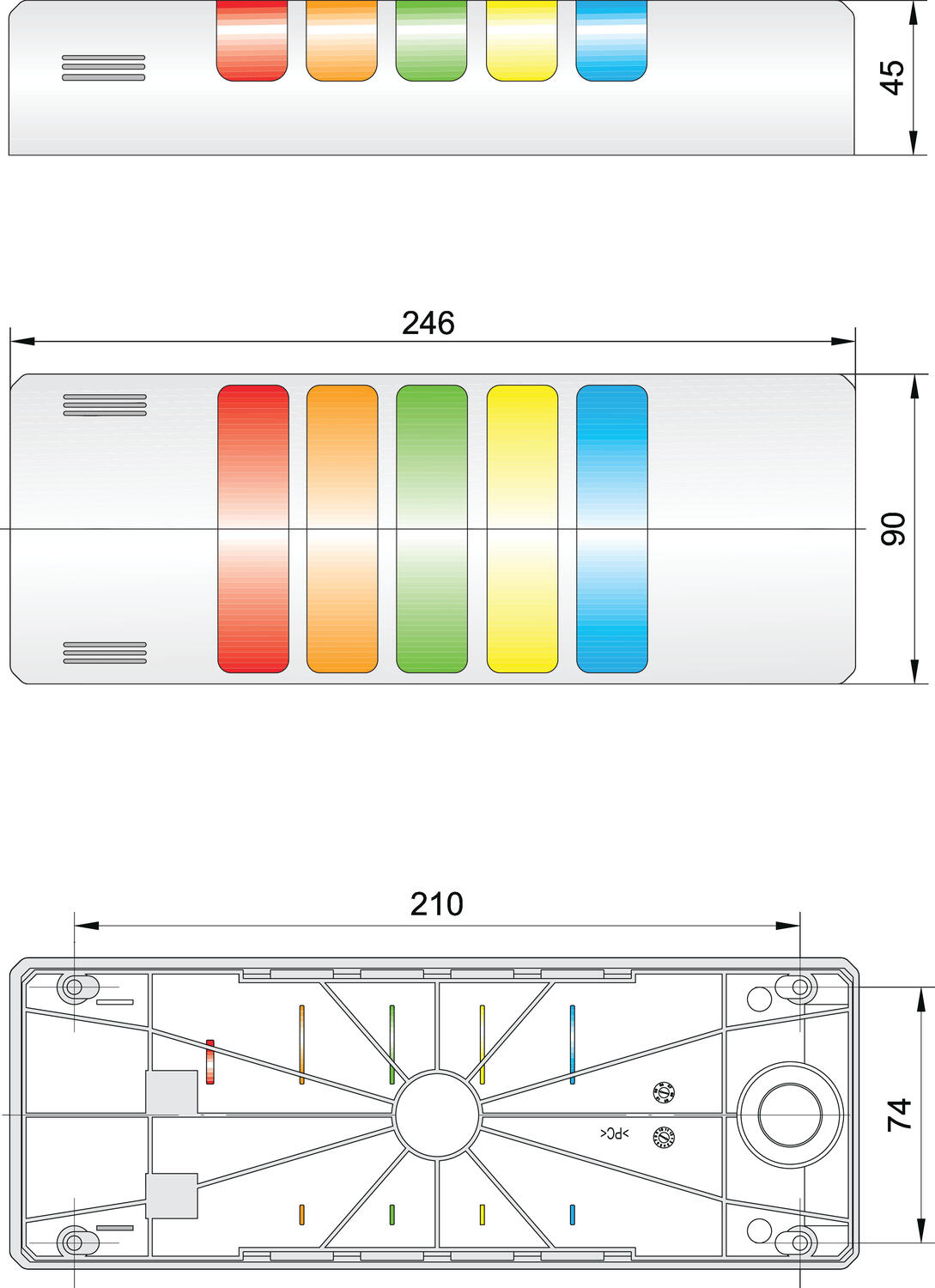

Measurements and connections

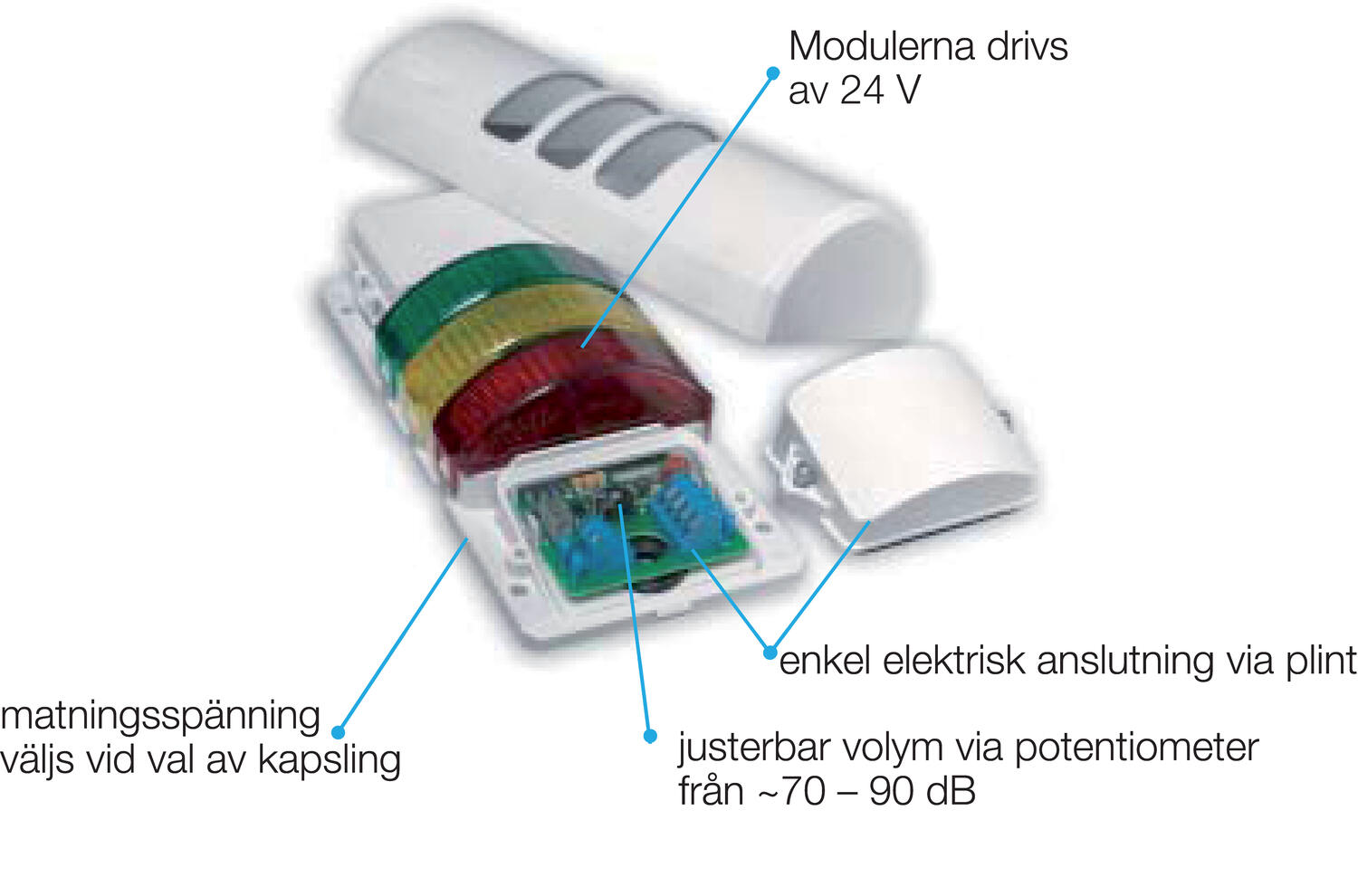

Technical illustrations

Product description

 The Half Dome 90 signal tower is a high quality option for signalling, with a pleasing look and 180° viewing angle the Half Dome is perfect for any high end signalling requirements.



  • Visual-audible LED signal tower in half dome design
  • For universal applications (industrial, building and others)
  • Any colour combination and housing size (2 – 5 positions) available
  • 6 lens colours, 3 housing colours (grey, chrome, black)
  • LED steady light or LED flashing light for each position selectable
  • High protection class IP 65 – suitable for outdoor and indoor
  • For horizontal and vertical mounting
  • Particular lens optics with reflective coating

- optimal signalling and visibility from each viewing angle (180°)

- moving bright LED light

  • Optional piezo buzzer in upper housing area available

- tone types continuous and pulsing

- sound pressure individually adjustable ~70-90 dB (A)at 1M

  • SPS-fit (leakage, inrush current)
  • Available in nominal voltages 12 V ac/dc, 24 V ac/dc, 110/120 V ac and 230/240 V ac
  • Certified to UL type 4/4X/13

Accessories

Related

Parts Supply voltage Nominal current max Nominal current min Flash frequency Price
24 V
0.043 A
0.043 A
230 V
24 V
0.043 A
0.043 A
2 Hz
230 V
2 Hz

Selected variant

Select a variant in the list
