Signal Tower Ø 70mm Eco

The ECO range of modular signal towers uses the highest quality components and the latest technology but at an affordable price,



  • Modular signal tower series in diameters Ø 70 mm, 60 mm and 40 mm for universal applications
  • Modern signal tower concept based on up-to-date LED technique, alternative operation with conventional incandescent bulb technique
  • Excellent cost/performance ratio
  • Complete range of bright LED modules in function modes
  • LED steady light
  • LED flashing light
  • LED strobe light (single flash)
  • LED multi strobe light (multi flash)
  • LED steady/LED strobe and LED multi strobe modules
  • Very long lifetime due to maintenance free LED technique, vibration proof and significantly reduced nominal current
  • Piezo buzzer and multi tone siren modules
  • Easy to wire connections
  • Comprehensive range of mounting options including quick mount solutions
  • Plc fit (leakage and inrush current)
  • High ingress protection IP 66 certified to UL type 4/4X/13
Read more
  • Modular signal tower
  • Integrated LED or filament bulb
  • Wide control voltage range

Selected variant

Available in several variants
AuerSignal Logo_RGB.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Data
Lens colour Orange
IP class IP66
Light source LED
Light type Orange LED
Supply voltage 24 V
Mounting Bayonet
Nominal current max 0.054 A
Temperature operational min -30 °C

*Invisible Heading*
Temperature operational max 60 °C
Weight 100 g
Number of optional modules 2
Supply voltage ac/dc max 26.4 V
Supply voltage ac/dc min 21.6 V
Diameter 70 mm
Nominal current min 0.049 A

Downloads

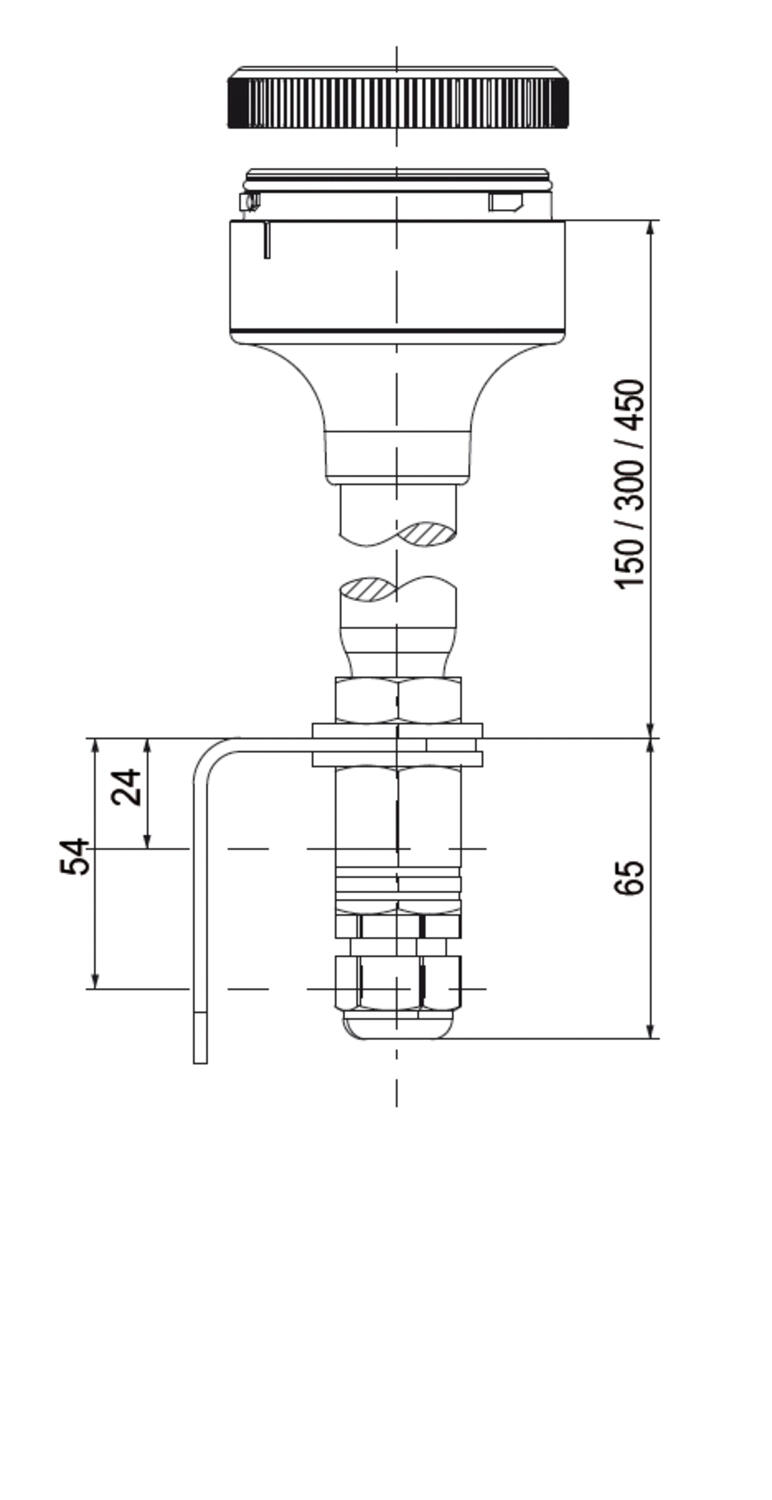

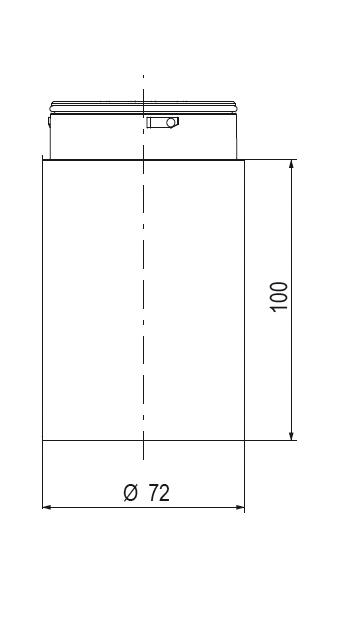

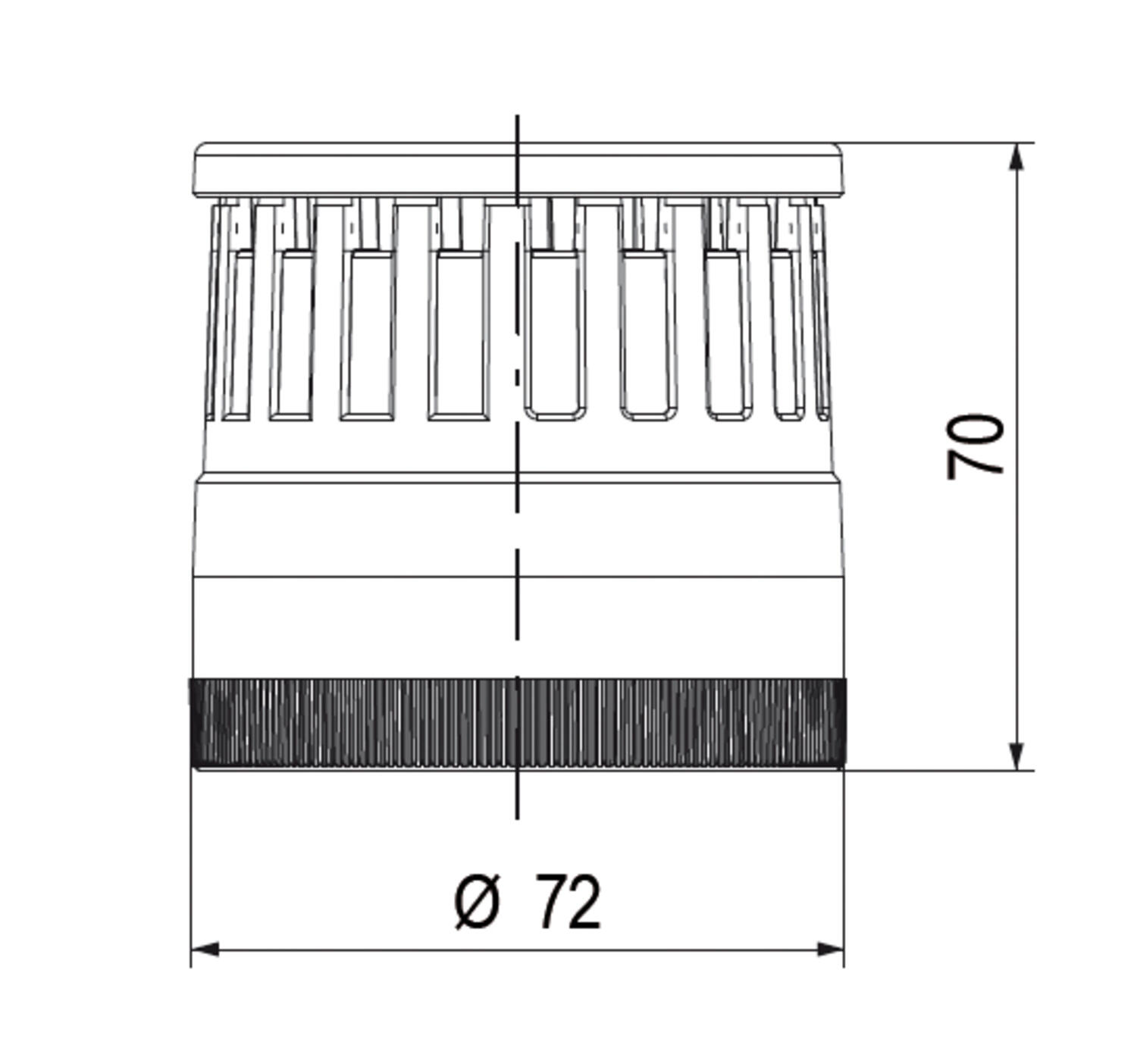

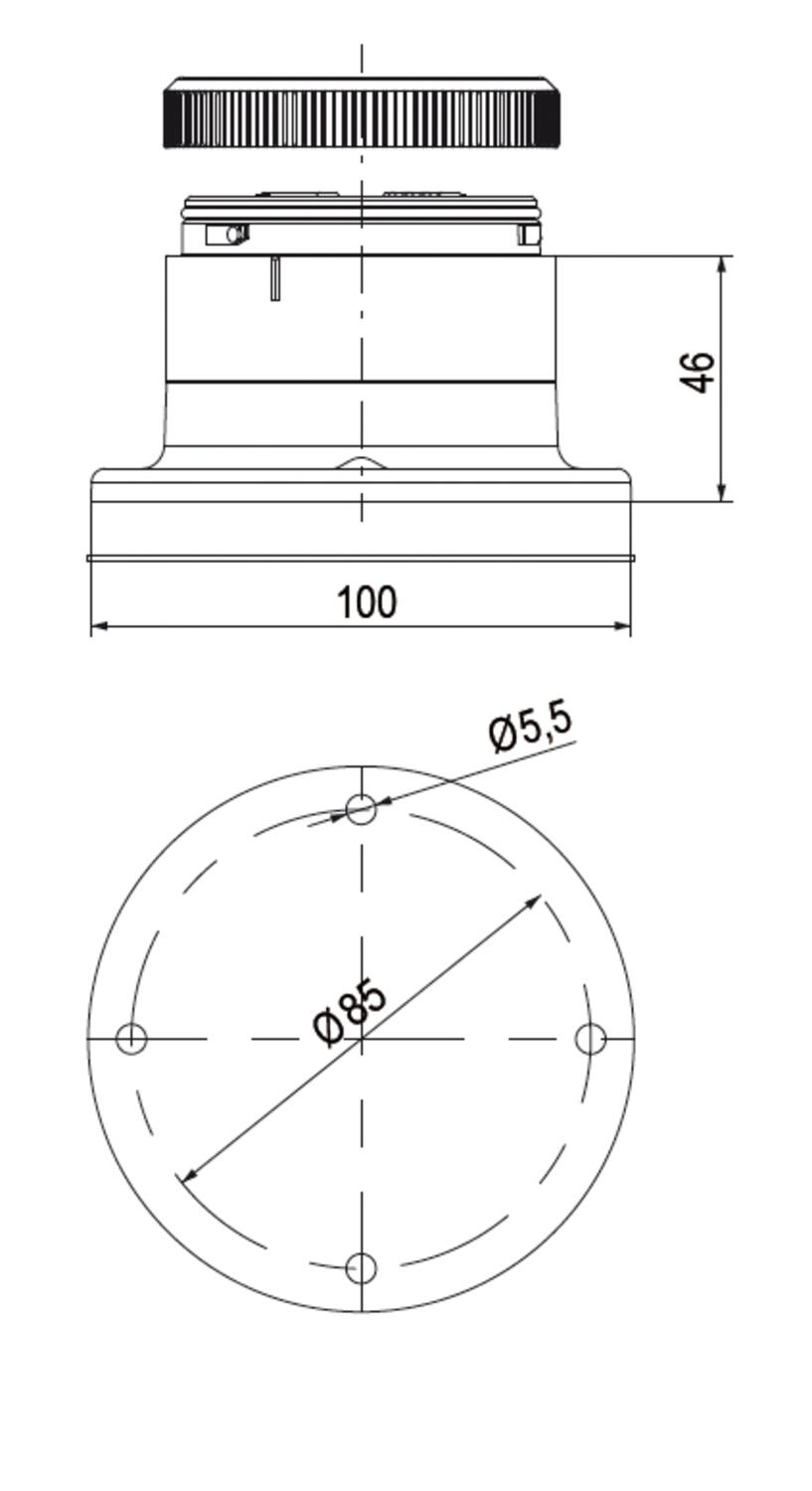

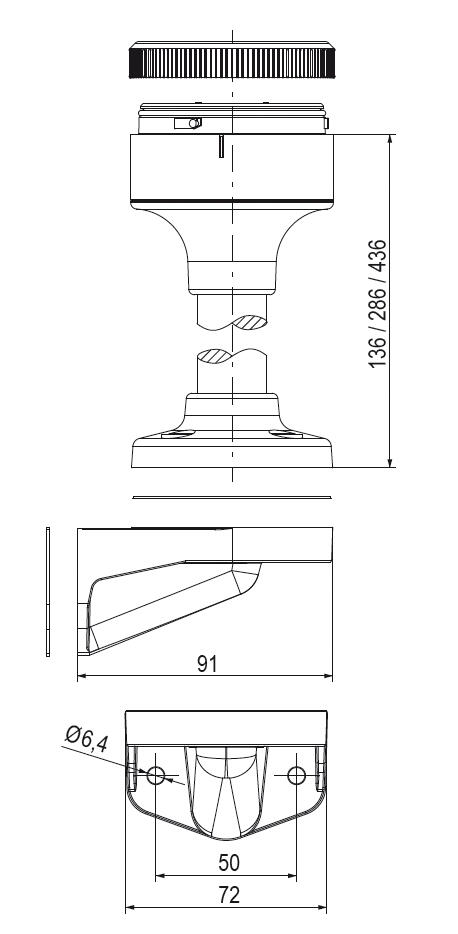

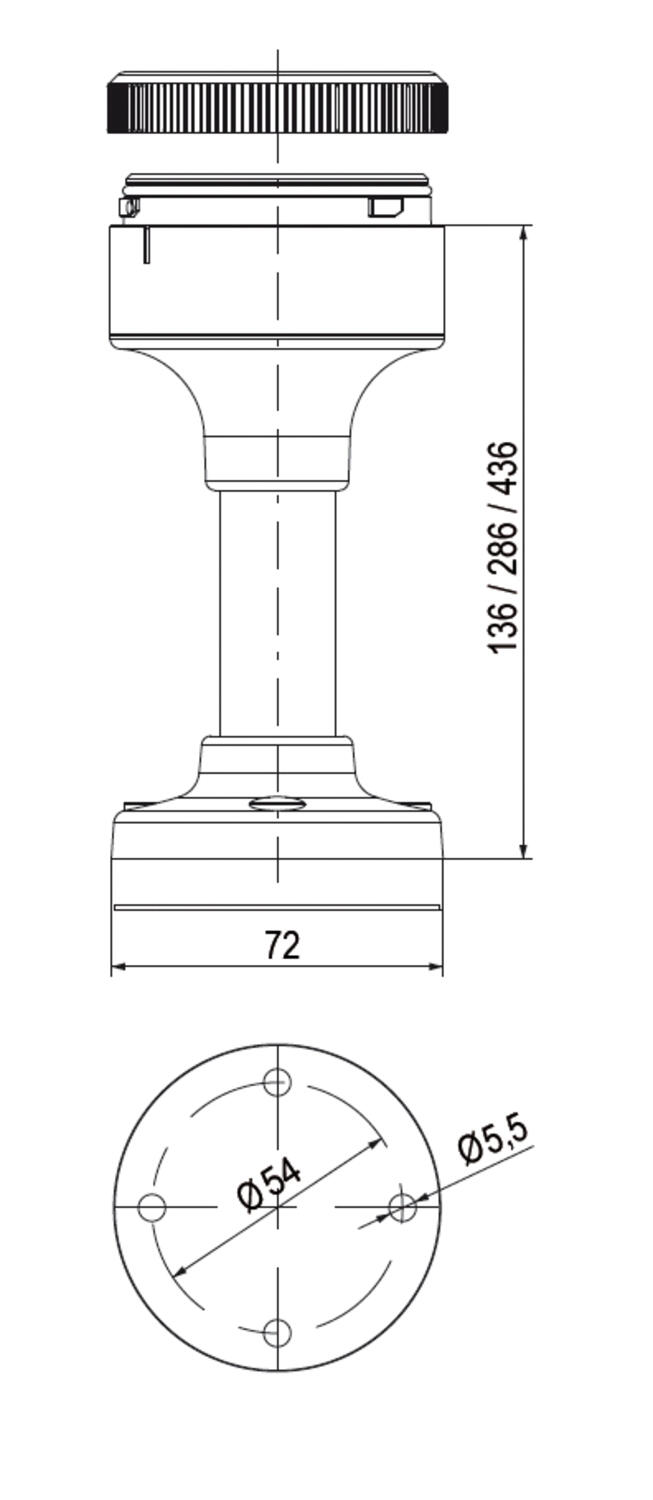

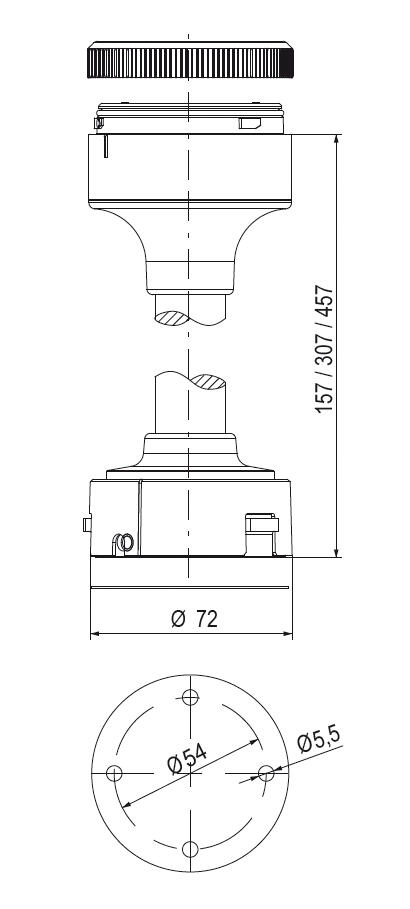

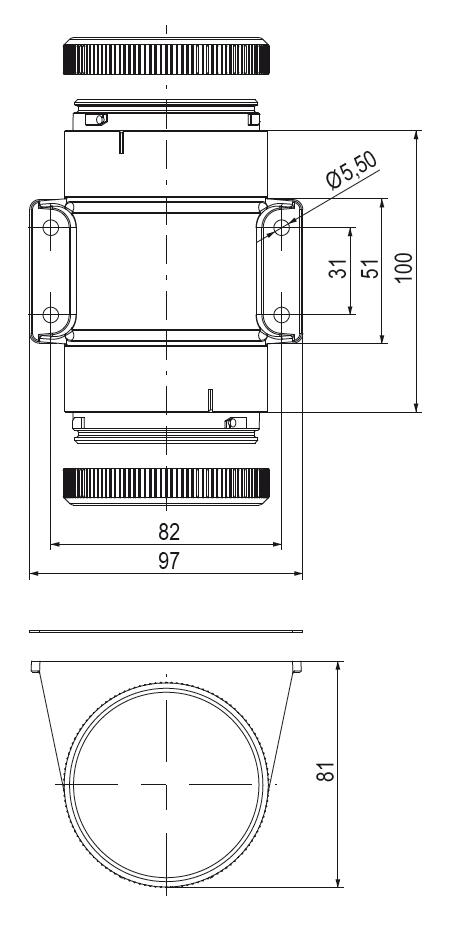

Measurements and connections

Product description

The ECO range of modular signal towers uses the highest quality components and the latest technology but at an affordable price,



  • Modular signal tower series in diameters Ø 70 mm, 60 mm and 40 mm for universal applications
  • Modern signal tower concept based on up-to-date LED technique, alternative operation with conventional incandescent bulb technique
  • Excellent cost/performance ratio
  • Complete range of bright LED modules in function modes
  • LED steady light
  • LED flashing light
  • LED strobe light (single flash)
  • LED multi strobe light (multi flash)
  • LED steady/LED strobe and LED multi strobe modules
  • Very long lifetime due to maintenance free LED technique, vibration proof and significantly reduced nominal current
  • Piezo buzzer and multi tone siren modules
  • Easy to wire connections
  • Comprehensive range of mounting options including quick mount solutions
  • Plc fit (leakage and inrush current)
  • High ingress protection IP 66 certified to UL type 4/4X/13

Accessories

Parts Lens colour IP class Light source Light type Supply voltage Supply voltage ac max Supply voltage ac min Mounting Nominal current max Temperature operational min Temperature operational max Weight Number of optional modules Supply voltage ac/dc max Supply voltage ac/dc min Diameter Nominal current min Lamp power Lamp socket Flash frequency Price
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Steady, Amber, 24 V ac/dc, XDC
Art:
900011405 Copied
Orange
IP66
LED
Orange LED
24 V
Bayonet
0.054 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.049 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Steady, Red, 24 V ac/dc, XDC
Art:
900012405 Copied
Red
IP66
LED
Red LED
24 V
Bayonet
0.054 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.049 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Steady, Clear, 24 V ac/dc, XDC
Art:
900014405 Copied
Clear
IP66
LED
White LED
24 V
Bayonet
0.054 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.049 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Steady, Blue, 24 V ac/dc, XDC
Art:
900015405 Copied
Blue
IP66
LED
Blue LED
24 V
Bayonet
0.054 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.049 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Steady, Green, 24 V ac/dc, XDC
Art:
900016405 Copied
Green
IP66
LED
Green LED
24 V
Bayonet
0.054 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.049 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Steady, Yellow, 24 V ac/dc, XDC
Art:
900017405 Copied
Yellow
IP66
LED
Yellow LED
24 V
Bayonet
0.054 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.049 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Steady, Clear, 110-120 V ac, XDC
Art:
900014310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Steady, Amber, 230-240 V ac, XDC
Art:
900011313 Copied
Orange
IP66
LED
Orange LED
230 V
253 V AC
207 V AC
Bayonet
0.028 A
-30 °C
60 °C
100 g
2
70 mm
0.027 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Steady, Blue, 110-120 V ac, XDC
Art:
900015310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Steady, Red, 230-240 V ac, XDC
Art:
900012313 Copied
Red
IP66
LED
Red LED
230 V
253 V AC
207 V AC
Bayonet
0.028 A
-30 °C
60 °C
100 g
2
70 mm
0.027 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Steady, Green, 110-120 V ac, XDC
Art:
900016310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Steady, Clear, 230-240 V ac, XDC
Art:
900014313 Copied
Clear
IP66
LED
White LED
230 V
253 V AC
207 V AC
Bayonet
0.028 A
-30 °C
60 °C
100 g
2
70 mm
0.027 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Steady, Yellow, 110-120 V ac, XDC
Art:
900017310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Steady, Blue, 230-240 V ac, XDC
Art:
900015313 Copied
Blue
IP66
LED
Blue LED
230 V
253 V AC
207 V AC
Bayonet
0.028 A
-30 °C
60 °C
100 g
2
70 mm
0.027 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Steady, Amber, 110-120 V ac, XDC
Art:
900011310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Steady, Green, 230-240 V ac, XDC
Art:
900016313 Copied
Green
IP66
LED
Green LED
230 V
253 V AC
207 V AC
Bayonet
0.028 A
-30 °C
60 °C
100 g
2
70 mm
0.027 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Steady, Red, 110-120 V ac, XDC
Art:
900012310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Steady, Yellow, 230-240 V ac, XDC
Art:
900017313 Copied
Yellow
IP66
LED
Yellow LED
230 V
253 V AC
207 V AC
Bayonet
0.028 A
-30 °C
60 °C
100 g
2
70 mm
0.027 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Steady, Amber, 24 V ac/dc, XDC-HP
Art:
900051405 Copied
Orange
IP66
LED
Orange LED
24 V
Bayonet
0.2 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.17 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Steady, Red, 24 V ac/dc, XDC-HP
Art:
900052405 Copied
Red
IP66
LED
Red LED
24 V
Bayonet
0.2 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.17 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Steady, Clear, 24 V ac/dc, XDC-HP
Art:
900054405 Copied
Clear
IP66
LED
White LED
24 V
Bayonet
0.2 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.17 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Steady, Blue, 24 V ac/dc, XDC-HP
Art:
900055405 Copied
Blue
IP66
LED
Blue LED
24 V
Bayonet
0.2 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.17 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Steady, Green, 24 V ac/dc, XDC-HP
Art:
900056405 Copied
Green
IP66
LED
Green LED
24 V
Bayonet
0.2 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.17 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Steady, Yellow, 24 V ac/dc, XDC-HP
Art:
900057405 Copied
Yellow
IP66
LED
Yellow LED
24 V
Bayonet
0.2 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.17 A
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
Steady, Amber, 12-250 V ac/dc, XLL
Art:
900001900 Copied
Orange
IP66
Bulb
Bulb
250 V
Bayonet
-30 °C
60 °C
72 g
2
70 mm
7 W
Ba15d
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
Steady, Red, 12-250 V ac/dc, XLL
Art:
900002900 Copied
Red
IP66
Bulb
Bulb
250 V
Bayonet
-30 °C
60 °C
72 g
2
70 mm
7 W
Ba15d
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
Steady, Clear, 12-250 V ac/dc, XLL
Art:
900004900 Copied
Clear
IP66
Bulb
Bulb
250 V
Bayonet
-30 °C
60 °C
72 g
2
70 mm
7 W
Ba15d
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
Steady, Blue, 12-250 V ac/dc, XLL
Art:
900005900 Copied
Blue
IP66
Bulb
Bulb
250 V
Bayonet
-30 °C
60 °C
72 g
2
70 mm
7 W
Ba15d
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
Steady, Green, 12-250 V ac/dc, XLL
Art:
900006900 Copied
Green
IP66
Bulb
Bulb
250 V
Bayonet
-30 °C
60 °C
72 g
2
70 mm
7 W
Ba15d
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
Steady, Yellow, 12-250 V ac/dc, XLL
Art:
900007900 Copied
Yellow
IP66
Bulb
Bulb
250 V
Bayonet
-30 °C
60 °C
72 g
2
70 mm
7 W
Ba15d
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Flashing, Amber, 24 V ac/dc, XDA
Art:
900021405 Copied
Orange
IP66
LED
Orange LED
24 V
Bayonet
0.058 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.058 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Flashing, Red, 24 V ac/dc, XDA
Art:
900022405 Copied
Red
IP66
LED
Red LED
24 V
Bayonet
0.058 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.058 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Flashing, Clear, 24 V ac/dc, XDA
Art:
900024405 Copied
Clear
IP66
LED
White LED
24 V
Bayonet
0.058 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.058 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Flashing, Blue, 24 V ac/dc, XDA
Art:
900025405 Copied
Blue
IP66
LED
Blue LED
24 V
Bayonet
0.058 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.058 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Flashing, Green, 24 V ac/dc, XDA
Art:
900026405 Copied
Green
IP66
LED
Green LED
24 V
Bayonet
0.058 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.058 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Flashing, Yellow, 24 V ac/dc, XDA
Art:
900027405 Copied
Yellow
IP66
LED
Yellow LED
24 V
Bayonet
0.058 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.058 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Flashing, Amber, 110-120 V ac, XDA
Art:
900021310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Flashing, Red, 110-120 V ac, XDA
Art:
900022310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Flashing, Clear, 110-120 V ac, XDA
Art:
900024310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Flashing, Blue, 110-120 V ac, XDA
Art:
900025310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Flashing, Green, 110-120 V ac, XDA
Art:
900026310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Flashing, Yellow, 110-120 V ac, XDA
Art:
900027310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Flashing, Amber, 230-240 V ac, XDA
Art:
900021313 Copied
Orange
IP66
LED
Orange LED
230 V
253 V AC
207 V AC
Bayonet
0.031 A
-30 °C
60 °C
100 g
2
70 mm
0.03 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Flashing, Red, 230-240 V ac, XDA
Art:
900022313 Copied
Red
IP66
LED
Red LED
230 V
253 V AC
207 V AC
Bayonet
0.031 A
-30 °C
60 °C
100 g
2
70 mm
0.03 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Flashing, Clear, 230-240 V ac, XDA
Art:
900024313 Copied
Clear
IP66
LED
White LED
230 V
253 V AC
207 V AC
Bayonet
0.031 A
-30 °C
60 °C
100 g
2
70 mm
0.03 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Flashing, Blue, 230-240 V ac, XDA
Art:
900025313 Copied
Blue
IP66
LED
Blue LED
230 V
253 V AC
207 V AC
Bayonet
0.031 A
-30 °C
60 °C
100 g
2
70 mm
0.03 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Flashing, Green, 230-240 V ac, XDA
Art:
900026313 Copied
Green
IP66
LED
Green LED
230 V
253 V AC
207 V AC
Bayonet
0.031 A
-30 °C
60 °C
100 g
2
70 mm
0.03 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Flashing, Yellow, 230-240 V ac, XDA
Art:
900027313 Copied
Yellow
IP66
LED
Yellow LED
230 V
253 V AC
207 V AC
Bayonet
0.031 A
-30 °C
60 °C
100 g
2
70 mm
0.03 A
2 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Strobe, Amber, 24 V ac/dc, XDF
Art:
900031405 Copied
Orange
IP66
LED
Orange LED
24 V
Bayonet
0.135 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.13 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Strobe, Red, 24 V ac/dc, XDF
Art:
900032405 Copied
Red
IP66
LED
Red LED
24 V
Bayonet
0.135 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.13 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Strobe, Clear, 24 V ac/dc, XDF
Art:
900034405 Copied
Clear
IP66
LED
White LED
24 V
Bayonet
0.135 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.13 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Strobe, Blue, 24 V ac/dc, XDF
Art:
900035405 Copied
Blue
IP66
LED
Blue LED
24 V
Bayonet
0.135 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.13 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Strobe, Green, 24 V ac/dc, XDF
Art:
900036405 Copied
Green
IP66
LED
Green LED
24 V
Bayonet
0.135 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.13 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Strobe, Yellow, 24 V ac/dc, XDF
Art:
900037405 Copied
Yellow
IP66
LED
Yellow LED
24 V
Bayonet
0.135 A
-30 °C
60 °C
100 g
2
26.4 V
21.6 V
70 mm
0.13 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Strobe, Amber, 110-120 V ac, XDF
Art:
900031310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Strobe, Red, 110-120 V ac, XDF
Art:
900032310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Strobe, Clear, 110-120 V ac, XDF
Art:
900034310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Strobe, Blue, 110-120 V ac, XDF
Art:
900035310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Strobe, Green, 110-120 V ac, XDF
Art:
900036310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Strobe, Yellow, 110-120 V ac, XDF
Art:
900037310 Copied
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Strobe, Amber, 230-240 V ac, XDF
Art:
900031313 Copied
Orange
IP66
LED
Orange LED
230 V
253 V AC
207 V AC
Bayonet
0.01 A
-30 °C
60 °C
100 g
2
70 mm
0.01 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Strobe, Red, 230-240 V ac, XDF
Art:
900032313 Copied
Red
IP66
LED
Red LED
230 V
253 V AC
207 V AC
Bayonet
0.01 A
-30 °C
60 °C
100 g
2
70 mm
0.01 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Strobe, Clear, 230-240 V ac, XDF
Art:
900034313 Copied
Clear
IP66
LED
White LED
230 V
253 V AC
207 V AC
Bayonet
0.01 A
-30 °C
60 °C
100 g
2
70 mm
0.01 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Strobe, Blue, 230-240 V ac, XDF
Art:
900035313 Copied
Blue
IP66
LED
Blue LED
230 V
253 V AC
207 V AC
Bayonet
0.01 A
-30 °C
60 °C
100 g
2
70 mm
0.01 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Strobe, Green, 230-240 V ac, XDF
Art:
900036313 Copied
Green
IP66
LED
Green LED
230 V
253 V AC
207 V AC
Bayonet
0.01 A
-30 °C
60 °C
100 g
2
70 mm
0.01 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Strobe, Yellow, 230-240 V ac, XDF
Art:
900037313 Copied
Yellow
IP66
LED
Yellow LED
230 V
253 V AC
207 V AC
Bayonet
0.01 A
-30 °C
60 °C
100 g
2
70 mm
0.01 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Strobe, Amber, 24 V ac/dc, XDF-HP
Art:
900061405 Copied
Orange
IP66
LED
Orange LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Strobe, Red, 24 V ac/dc, XDF-HP
Art:
900062405 Copied
Red
IP66
LED
Red LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Strobe, Clear, 24 V ac/dc, XDF-HP
Art:
900064405 Copied
Clear
IP66
LED
White LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Strobe, Blue, 24 V ac/dc, XDF-HP
Art:
900065405 Copied
Blue
IP66
LED
Blue LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Strobe, Green, 24 V ac/dc, XDF-HP
Art:
900066405 Copied
Green
IP66
LED
Green LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Strobe, Yellow, 24 V ac/dc, XDF-HP
Art:
900067405 Copied
Yellow
IP66
LED
Yellow LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
1.4 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_orange.jpg
LED Multi-strobe, Amber, 24 V ac/dc, XFF-HP
Art:
900071405 Copied
Orange
IP66
LED
Orange LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
2.6 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_red.jpg
LED Multi-strobe, Red, 24 V ac/dc, XFF-HP
Art:
900072405 Copied
Red
IP66
LED
Red LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
2.6 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_clear.jpg
LED Multi-strobe, Clear, 24 V ac/dc, XFF-HP
Art:
900074405 Copied
Clear
IP66
LED
White LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
2.6 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_blue.jpg
LED Multi-strobe, Blue, 24 V ac/dc, XFF-HP
Art:
900075405 Copied
Blue
IP66
LED
Blue LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
2.6 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_green.jpg
LED Multi-strobe, Green, 24 V ac/dc, XFF-HP
Art:
900076405 Copied
Green
IP66
LED
Green LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
2.6 Hz
XDC,XLL, XDA, XDF, XFF-HP, XDC-HP, XDF-HP, YLL, YDC, YDA, YDF, YFF-HP, YDC-HP_yellow.jpg
LED Multi-strobe, Yellow, 24 V ac/dc, XFF-HP
Art:
900077405 Copied
Yellow
IP66
LED
Yellow LED
24 V
Bayonet
0.265 A
-30 °C
60 °C
100 g
2
30 V
18 V
70 mm
0.26 A
2.6 Hz
LED steady bulb, Amber, 12 V ac/dc, LLL
Art:
893001404 Copied
LED steady bulb, Red, 12 V ac/dc, LLL
Art:
893002404 Copied

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
