C9 miniature relay

Input Data
Working Un	0,8-1,1
Nominal power ac	1.2 VA
Coil voltage ac	24 V AC
Tripping voltage max UN	0.25
Output Data
Number of contacts	4
Contact material	AgNi + 0,2 µ Au
Breaking Voltage	250 V
Breaking capacity current	5 A

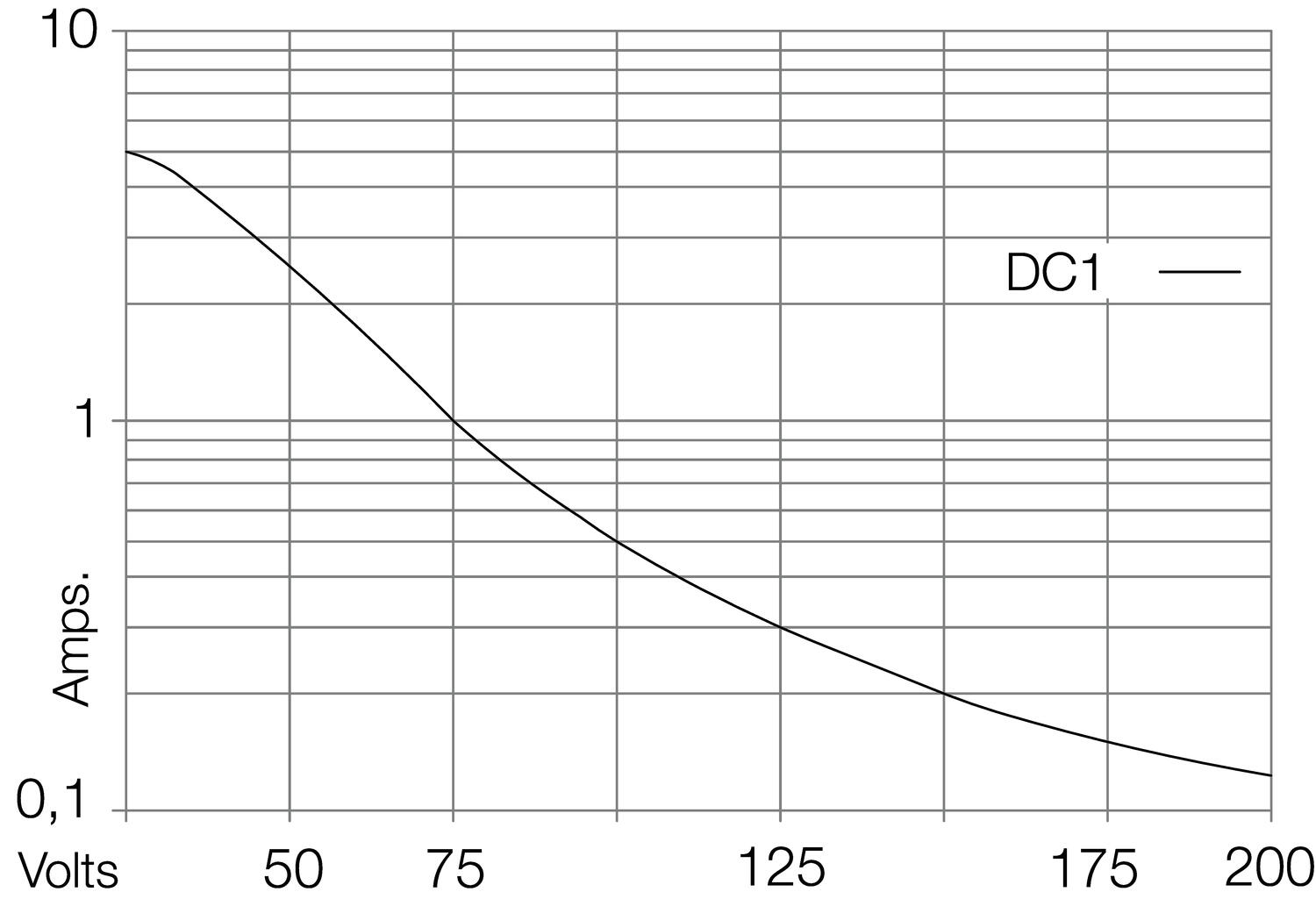

Recommended max load	5 A/250V AC-1; 5 A/30 V DC-1
Recommended min load	10 mA/10 V
Resistive load 110 V dc max	50 W
Resistive load 24 V dc max	100 W
Mechanical life expectancy	AC: 10 Mill./DC: 20 Mill
Surge current (20 ms)	15 A

Invisible Heading
Release time	6 ms
Release time + contact debounce	7 ms
General Data
IP class	IP40
Isolation contact/contact	2500 V
Isolation contact/coil	2000 V
Temperature operational min	-40 °C
Storage temperature min	-40 °C
Storage temperature max	80 °C
Temperature operational max	60 °C
Frequency	50 Hz
Weight	43 g
Approvals	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL

Parts	Working Un	Nominal power ac	Nominal power dc	Coil voltage ac	Coil voltage ac/dc	Coil voltage dc	Tripping voltage max UN	Number of contacts	Contact material	Breaking Voltage	Breaking capacity current	Recommended max load	Recommended min load	Release time	Release time + contact debounce	Isolation contact/contact	Isolation contact/coil	Optional coil	Weight	Approvals
Relay 14 Pin 4 Pole 24V ac Art: C9A4124A Copied	0,8-1,1	1.2 VA		24 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 48V ac Art: C9A4148A Copied	0,8-1,1	1.2 VA		48 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 115V ac Art: C9A41115A Copied	0,8-1,1	1.2 VA		115 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 230V ac Art: C9A41230A Copied	0,8-1,1	1.2 VA		230 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 12V ac Art: C9A41X12A Copied	0,8-1,1	1.2 VA		12 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 24V ac Art: C9A41X24A Copied	0,8-1,1	1.2 VA		24 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 48V ac Art: C9A41X48A Copied	0,8-1,1	1.2 VA		48 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 115V ac Art: C9A41X115A Copied	0,8-1,1	1.2 VA		115 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 230V ac Art: C9A41X230A Copied	0,8-1,1	1.2 VA		230 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 12V dc Art: C9A4112D Copied	0,8-1,1		1 W			12 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 24V dc Art: C9A4124D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 48V dc Art: C9A4148D Copied	0,8-1,1		1 W			48 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 60V dc Art: C9A4160D Copied	0,8-1,1		1 W			60 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 110V dc Art: C9A41110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 125V dc Art: C9A41125D Copied	0,8-1,1		1 W			125 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 220V dc Art: C9A41220D Copied	0,8-1,1		1 W			220 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 200V dc Art: C9A41DX220D Copied	0,8-1,1		1 W			220 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 12V dc Art: C9A41X12D Copied	0,8-1,1		1 W			12 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 24V dc Art: C9A41X24D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 48V dc Art: C9A41X48D Copied	0,8-1,1		1 W			48 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 110V dc Art: C9A41X110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Obsolete *** Use C9A41FX125D as alternative Art: C9A41X125D Copied	0,8-1,1		1 W			125 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Obsolete *** Use C9A41FX12D as alternative Art: C9A41DX12D Copied	0,8-1,1		1 W			12 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 24V dc Art: C9A41DX24D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 48V dc Art: C9A41DX48D Copied	0,8-1,1		1 W			48 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 110V dc Art: C9A41DX110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 12V dc Art: C9A41FX12D Copied	0,8-1,1		1 W			12 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 24V dc Art: C9A41FX24D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 48V dc Art: C9A41FX48D Copied	0,8-1,1		1 W			48 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 110V dc Art: C9A41FX110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole Diode LED 220V dc Art: C9A41FX220D Copied	0,8-1,1		1 W			220 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole LED 24V ac/dc Art: C9A41BX24AD Copied	0,8-1,1		1 W		24 V AC/DC		0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	BX (bridge rectifier)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au 230V ac Art: C9A42230A Copied	0,8-1,1	1.2 VA		230 V AC			0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 24V ac Art: C9A42X24A Copied	0,8-1,1	1.2 VA		24 V AC			0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 115V ac Art: C9A42X115A Copied	0,8-1,1	1.2 VA		115 V AC			0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 230V ac Art: C9A42X230A Copied	0,8-1,1	1.2 VA		230 V AC			0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au Diode LED 24V dc Art: C9A42FX24D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au 24V dc Art: C9A4224D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au 48V dc Art: C9A4248D Copied	0,8-1,1		1 W			48 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Obsolete *** Use C9A42X110D as alternative Art: C9A42110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au 220V dc Art: C9A42220D Copied	0,8-1,1		1 W			220 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 24V dc Art: C9A42X24D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 48V dc Art: C9A42X48D Copied	0,8-1,1		1 W			48 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 110V dc Art: C9A42X110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au LED 220V dc Art: C9A42X220D Copied	0,8-1,1		1 W			220 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	X (LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 4 Pole 5µ Au Diode LED 24V dc Art: C9A42DX24D Copied	0,8-1,1		1 W			24 V DC	0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Obsolete *** Use C9A42FX110D as alternative Art: C9A42DX110D Copied	0,8-1,1		1 W			110 V DC	0.25	4	AgNi + 10 µ Au	250 V		5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g
Relay 14 Pin 4 Pole 5µ Au 24V ac Art: C9A4224A Copied	0,8-1,1	1.2 VA		24 V AC			0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g
Relay 14 Pin 4 Pole 5µ Au 115V ac Art: C9A42115A Copied	0,8-1,1	1.2 VA		115 V AC			0.25	4	AgNi + 10 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	1 mA/1 V	6 ms	7 ms	2500 V	2000 V		43 g
Relay 14 Pin 4 Pole Diode LED 30V dc Art: C9A41FX30D Copied	0,8-1,1		1 W			30 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	FX (pole protection + LED)	43 g
Obsolete *** Use C9A41FX125D as alternative Art: C9A41DX125D Copied	0,8-1,1		1 W			125 V DC	0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V	DX (diode + LED)	43 g
Relay 14 Pin 4 Pole 12V ac Art: C9A4112A Copied	0,8-1,1	1.2 VA		12 V AC			0.25	4	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2000 V		43 g
Relay 14 Pin 2 Pole Latching 230V ac Art: C9R21230A Copied	0,8-1,1			230 V AC				2	AgNi + 0,2 µ Au	120 V	5 A	5 A/120V AC-1; 5 A/30 V DC-1	10 mA/10 V			2000 V	2000 V	Bistable	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 2 Pole Latching 24V dc Art: C9R2124D Copied	0,8-1,1					24 V DC		2	AgNi + 0,2 µ Au	120 V	5 A	5 A/120V AC-1; 5 A/30 V DC-1	10 mA/10 V			2000 V	2000 V	Bistable	43 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL
Relay 14 Pin 2 Pole Latching 24V ac Art: C9R2124A Copied	0,8-1,1			24 V AC				2	AgNi + 0,2 µ Au	120 V	5 A	5 A/120V AC-1; 5 A/30 V DC-1	10 mA/10 V			2000 V	2000 V	Bistable	43 g
Relay 14 Pin 2 Pole Latching 12V dc Art: C9R2112D Copied	0,8-1,1					12 V DC		2	AgNi + 0,2 µ Au	120 V	5 A	5 A/120V AC-1; 5 A/30 V DC-1	10 mA/10 V			2000 V	2000 V	Bistable	43 g
Relay 14 Pin 2 Pole Latching 115V ac Art: C9R21115A Copied	0,8-1,1			115 V AC				2	AgNi + 0,2 µ Au	120 V	5 A	5 A/120V AC-1; 5 A/30 V DC-1	10 mA/10 V			2000 V	2000 V	Bistable	43 g
Relay 14 Pin 2 Pole Sensitive Coil 24V dc Art: C9E2124D Copied	0,8-1,70		0.5 W			24 V DC	0.2	2	AgNi + 0,2 µ Au	250 V	5 A	5 A/250V AC-1; 5 A/30 V DC-1	10 mA/10 V	6 ms	7 ms	2500 V	2500 V		40 g	CE, Gost R, RoHS, CCC, CSA, Lloyd´s, UL

Selected variant

Select a variant in the list

C9 miniature relay

4-pole 5 A - QRC

Selected variant

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Input Data

Output Data

Invisible Heading

General Data

Downloads

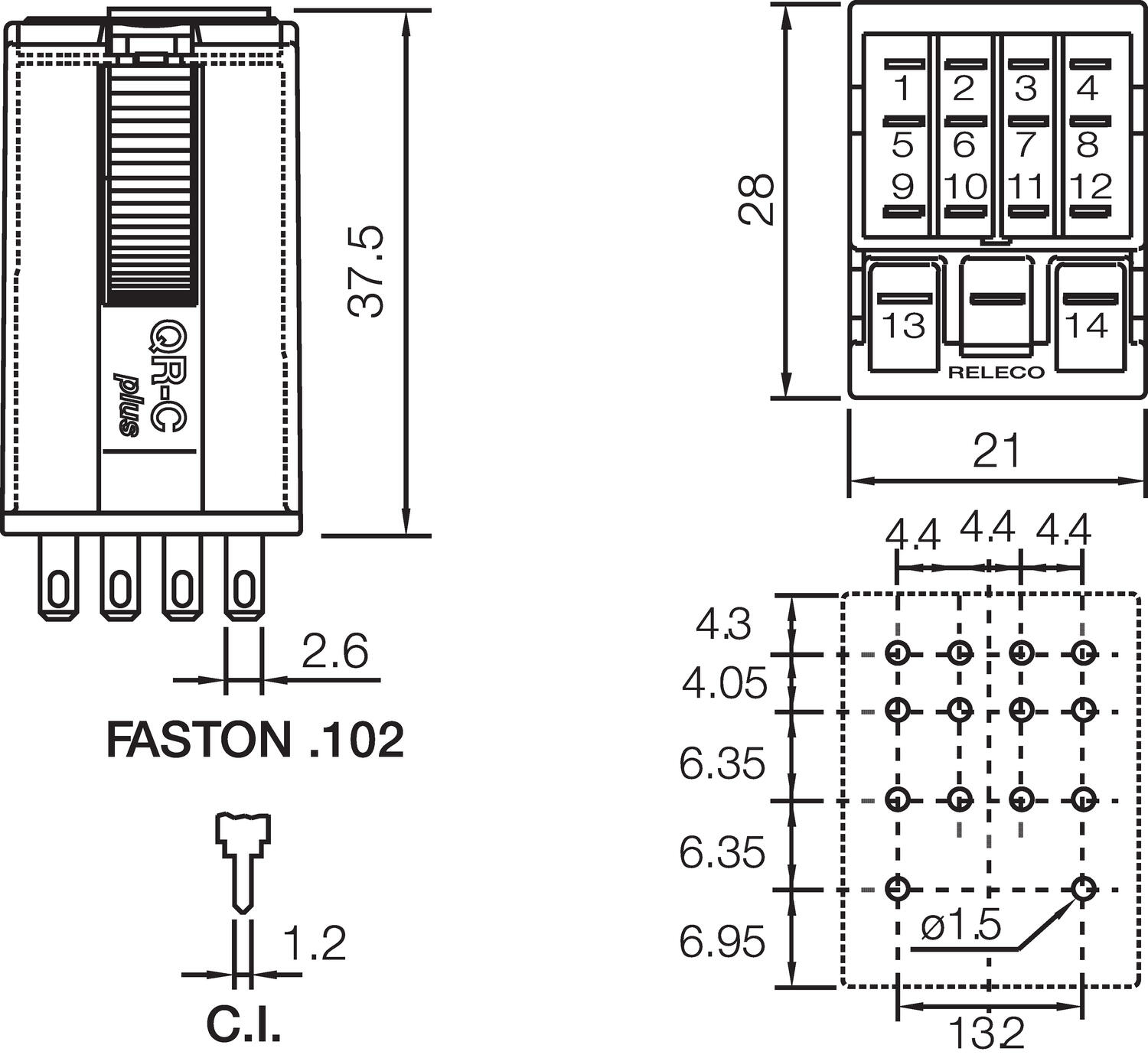

Measurements and connections
