COMATRELECO

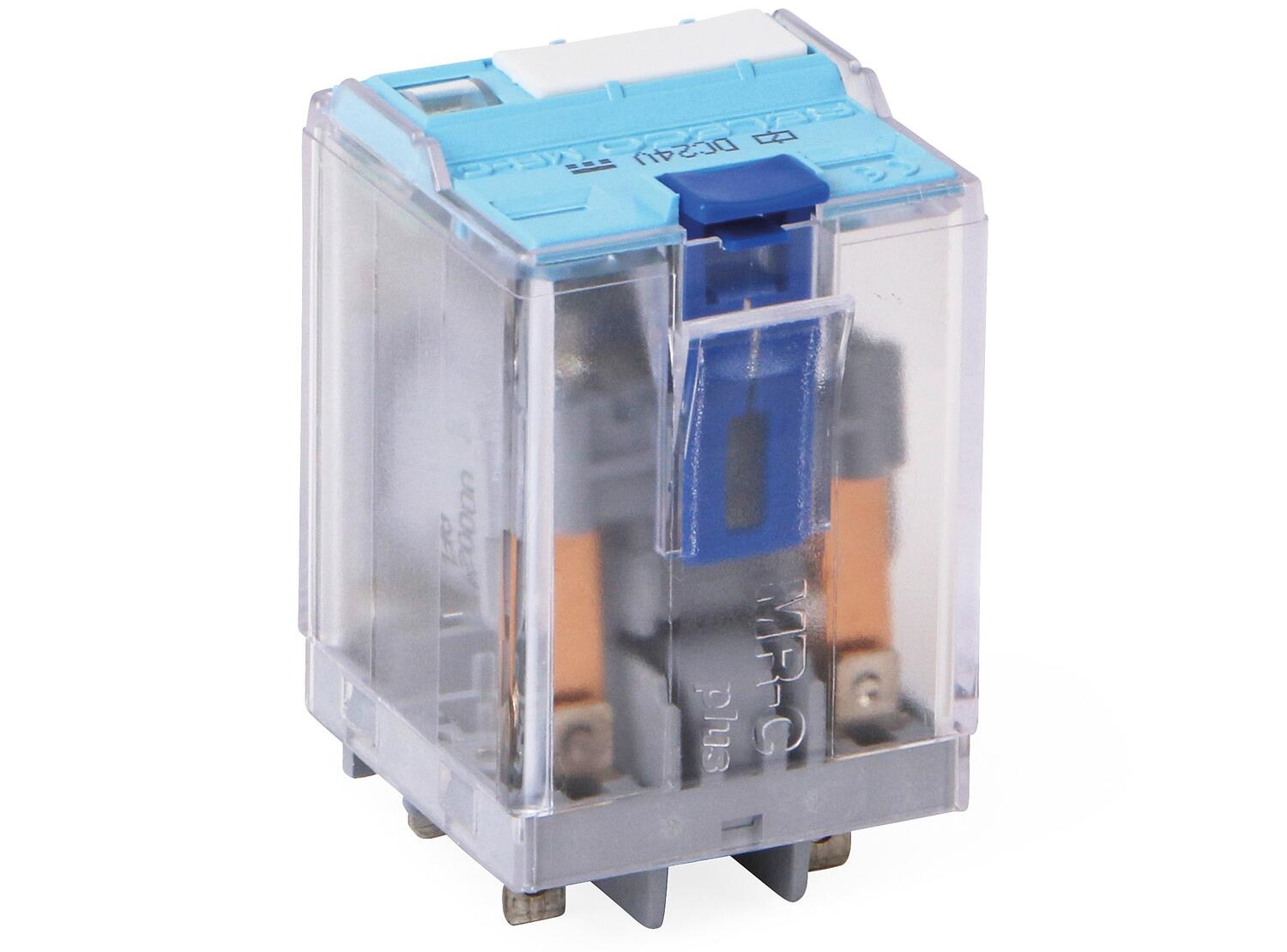

C5 industrial relay

3-pole 16 A - MRC

  • Marking system
  • Colour-coded test button, both lockable and non-lockable
  • Mechanical indication, double windows

Selected variant

Available in several variants
Releco_2019.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Input Data
Working Un 0,80-1,10
Nominal power ac 2.4 VA
Coil voltage ac 24 V AC

Output Data
Number of contacts 3
Contact material AgNi
Nominal current 16 A
Breaking Voltage 400 V
Breaking capacity current 16 A
Recommended max load 16 A/400 V AC-1; 0,5 A/110 V DC-1
Resistive load 110 V dc max 55 W
Resistive load 24 V dc max 360 W
Surge current (20 ms) 40 A
Bounce time 3

*Invisible Heading*
Release time + contact debounce 11 ms

General Data
IP class IP40
Isolation contact/contact 4000 V
Isolation contact/coil 4000 V
Insulation class EN60947 500 V, Pullution 3, Group C
Temperature operational min -40 °C
Storage temperature min -40 °C
Storage temperature max 80 °C
Temperature operational max 60 °C
Frequency 50 Hz
Weight 95 g
Approvals CE, UL, RoHS, CSA, Gost R

Downloads

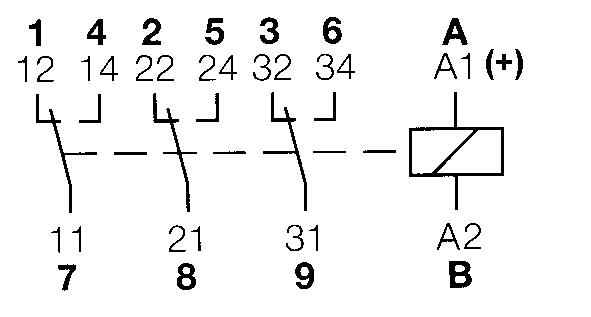

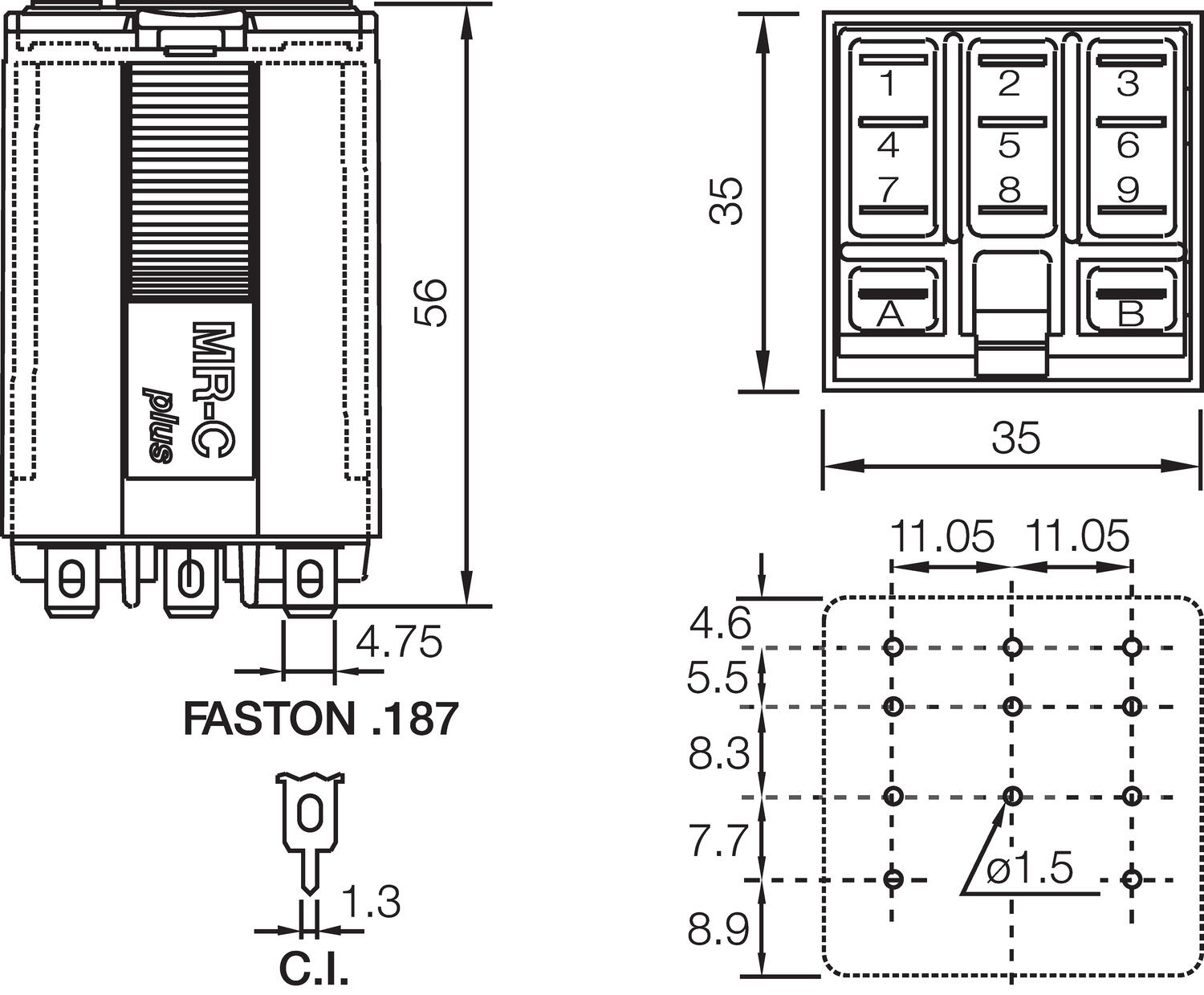

Measurements and connections

Accessories

Related products

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Working Un Nominal power ac Nominal power dc Coil voltage ac Coil voltage dc Number of contacts Nominal current Breaking capacity current Recommended max load Resistive load 110 V dc max Resistive load 24 V dc max Surge current (20 ms) Bounce time Release time + contact debounce Insulation class EN60947 Optional coil Weight Approvals Price
Relay 11 Pin 3 Pole 16A 24V ac
Art:
C5-A3024A Copied
0,80-1,10
2.4 VA
24 V AC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 115V ac
Art:
C5-A30115A Copied
0,80-1,10
2.4 VA
115 V AC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 230V ac
Art:
C5-A30230A Copied
0,80-1,10
2.4 VA
230 V AC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A LED 230V ac
Art:
C5-A30X230A Copied
0,80-1,10
2.4 VA
230 V AC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 12V dc
Art:
C5-A3012D Copied
0,80-1,10
1.4 W
12 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 24V dc
Art:
C5-A3024D Copied
0,80-1,10
1.4 W
24 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 48V dc
Art:
C5-A3048D Copied
0,80-1,10
1.4 W
48 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 110V dc
Art:
C5-A30110D Copied
0,80-1,10
1.4 W
110 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 125V dc
Art:
C5-A30125D Copied
0,80-1,10
1.4 W
125 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A 220V dc
Art:
C5-A30220D Copied
0,80-1,10
1.4 W
220 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A LED 24V dc
Art:
C5-A30X24D Copied
0,80-1,10
1.4 W
24 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A Diode LED 24V dc
Art:
C5-A30DX24D Copied
0,80-1,10
1.4 W
24 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
DX (diode + LED)
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A Diode LED 48V dc
Art:
C5-A30DX48D Copied
0,80-1,10
1.4 W
48 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
DX (diode + LED)
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A Diode LED 24V dc
Art:
C5-A30FX24D Copied
0,80-1,10
1.4 W
24 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
FX (pole protection + LED)
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A LED 24V ac
Art:
C5-A30X24A Copied
0,80-1,10
2.4 VA
24 V AC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
95 g
Relay 11 Pin 3 Pole 16A LED 115V ac
Art:
C5-A30X115A Copied
0,80-1,10
2.4 VA
115 V AC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
95 g
Relay 11 Pin 3 Pole 16A LED 110V dc
Art:
C5-A30X110D Copied
0,80-1,10
1.4 W
110 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
95 g
Relay 11 Pin 3 Pole 16A Diode LED 48V dc
Art:
C5-A30FX48D Copied
0,80-1,10
1.4 W
48 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
FX (pole protection + LED)
95 g
Relay 11 Pin 3 Pole 16A Diode LED 220V dc
Art:
C5-A30FX220D Copied
0,80-1,10
1.4 W
220 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
FX (pole protection + LED)
95 g
Relay 11 Pin 3 Pole 16A Diode LED 12V dc
Art:
C5-A30DX12D Copied
0,80-1,10
1.4 W
12 V DC
3
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
DX (diode + LED)
95 g
Relay 11 Pin 2 Pole 16A LED 230V ac
Art:
C5-A20X230A Copied
0,80-1,10
2.4 VA
230 V AC
2
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
90 g
Relay 11 Pin 2 Pole 16A Diode LED 24V dc
Art:
C5-A20DX24D Copied
0,80-1,10
1.4 W
24 V DC
2
16 A
16 A
16 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
DX (diode + LED)
90 g
Relay 11 Pin 3 Pole 16A N/O 230V ac
Art:
C5-G30230A Copied
0,80-1,10
2.4 VA
230 V AC
3
16 A
16 A
16 A/400 V AC-1; 1,2 A/110 V DC-1
130 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 3 Pole 16A N/O 24V dc
Art:
C5-G3024D Copied
0,80-1,10
1.6 W
24 V DC
3
16 A
16 A
16 A/400 V AC-1; 1,2 A/110 V DC-1
130 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
95 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 1 Pole 16A BM Diode LED 24V dc
Art:
C5-M10FX24D Copied
0,80-1,10
1.3 W
24 V DC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
FX (pole protection + LED)
90 g
Relay 11 Pin 1 Pole 16A BM 24V dc
Art:
C5-M1024D Copied
0,80-1,10
1.3 W
24 V DC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g
Relay 11 Pin 1 Pole 16A BM 115V ac
Art:
C5-M10115A Copied
0,80-1,10
2.4 VA
115 V AC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g
Relay 11 Pin 1 Pole 16A BM 230V ac
Art:
C5-M10230A Copied
0,80-1,10
2.4 VA
230 V AC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 1 Pole 16A BM LED 110V dc
Art:
C5-M10X110D Copied
0,80-1,10
1.3 W
110 V DC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
90 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 1 Pole 16A BM Diode LED 24V dc
Art:
C5-M10DX24D Copied
0,80-1,10
1.3 W
24 V DC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
DX (diode + LED)
90 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 1 Pole 16A BM Diode LED 220V dc
Art:
C5-M10DX220D Copied
0,80-1,10
1.3 W
220 V DC
1
16 A
16 A
16 A/400 V AC-1; 3,6 A/110 V DC-13
40 A
3
11 ms
500 V, Pullution 3, Group C
DX (diode + LED)
90 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 2 Pole 16A Latching 24V dc
Art:
C5-R2024D Copied
24 V DC
2
10 A
10 A
10 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
240 W
30 A
250 V, Pollution 3, Group C
Bistable
95 g
CCC, CE, Gost R, RoHS
Relay 11 Pin 2 Pole 16A Latching 48V dc
Art:
C5-R2048D Copied
48 V DC
2
10 A
10 A
10 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
240 W
30 A
500 V, Pullution 3, Group C
Bistable
95 g
Relay 11 Pin 2 Pole 16A Latching 230V ac
Art:
C5-R20230A Copied
230 V AC
2
10 A
10 A
10 A/400 V AC-1; 0,5 A/110 V DC-1
55 W
240 W
30 A
500 V, Pullution 3, Group C
Bistable
95 g
Relay 11 Pin 1 Pole 16A N/O 3mm GAP 48V dc
Art:
C5-X1048D Copied
0,80-1,10
1.3 W
48 V DC
1
16 A
16 A
16 A/400 V AC-1; 7 A/110 V DC-1
770 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g
RoHS
Relay 11 Pin 1 Pole 16A N/O 3mm GAP LED 110V dc
Art:
C5-X10X110D Copied
0,80-1,10
1.3 W
110 V DC
1
16 A
16 A
16 A/400 V AC-1; 7 A/110 V DC-1
770 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
X (LED)
90 g
RoHS
Relay 11 Pin 1 Pole 16A N/O 3mm GAP 24V ac
Art:
C5-X1024A Copied
0,80-1,10
2.4 VA
24 V AC
1
16 A
16 A
16 A/400 V AC-1; 7 A/110 V DC-1
770 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g
Relay 11 Pin 1 Pole 16A N/O 3mm GAP 230V ac
Art:
C5-X10230A Copied
0,80-1,10
2.4 VA
230 V AC
1
16 A
16 A
16 A/400 V AC-1; 7 A/110 V DC-1
770 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g
CE, UL, RoHS, CSA, Gost R
Relay 11 Pin 1 Pole 16A N/O 3mm GAP 12V dc
Art:
C5-X1012D Copied
0,80-1,10
1.3 W
12 V DC
1
16 A
16 A
16 A/400 V AC-1; 7 A/110 V DC-1
770 W
360 W
40 A
3
11 ms
500 V, Pullution 3, Group C
90 g

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
