COMATRELECO

C4 industrial relay

4-pole 10 A - MRC

  • Marking system that can be custom-marked at factory
  • Colour-coded test button, both lockable and spring-loaded
  • Mechanical indication, double windows

Selected variant

Available in several variants
Releco_2019.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Input Data
Nominal power ac 2.4 VA
Coil voltage ac 24 V AC
Tripping voltage max UN 0.15

Output Data
Number of contacts 4
Contact material AgNi
Breaking Voltage 250 V
Breaking capacity current 10 A
Recommended max load 10 A/250 V AC-1; 0,5 A/110 V DC-1
Recommended min load 10 mA/5 V
Resistive load 110 V dc max 55 W
Resistive load 24 V dc max 240 W
Surge current (20 ms) 30 A
Bounce time 3
Release time 8 ms

*Invisible Heading*
Release time + contact debounce 9 ms

General Data
IP class IP40
Isolation contact/contact 2500 V
Isolation contact/coil 2500 V
Insulation class EN60947 250 V Pollution 3, Group C
Temperature operational min -40 °C
Storage temperature min -40 °C
Storage temperature max 80 °C
Temperature operational max 60 °C
Frequency 50 Hz
Weight 90 g
Approvals CCC, Gost R, Lloyd´s, CE, RoHS

Downloads

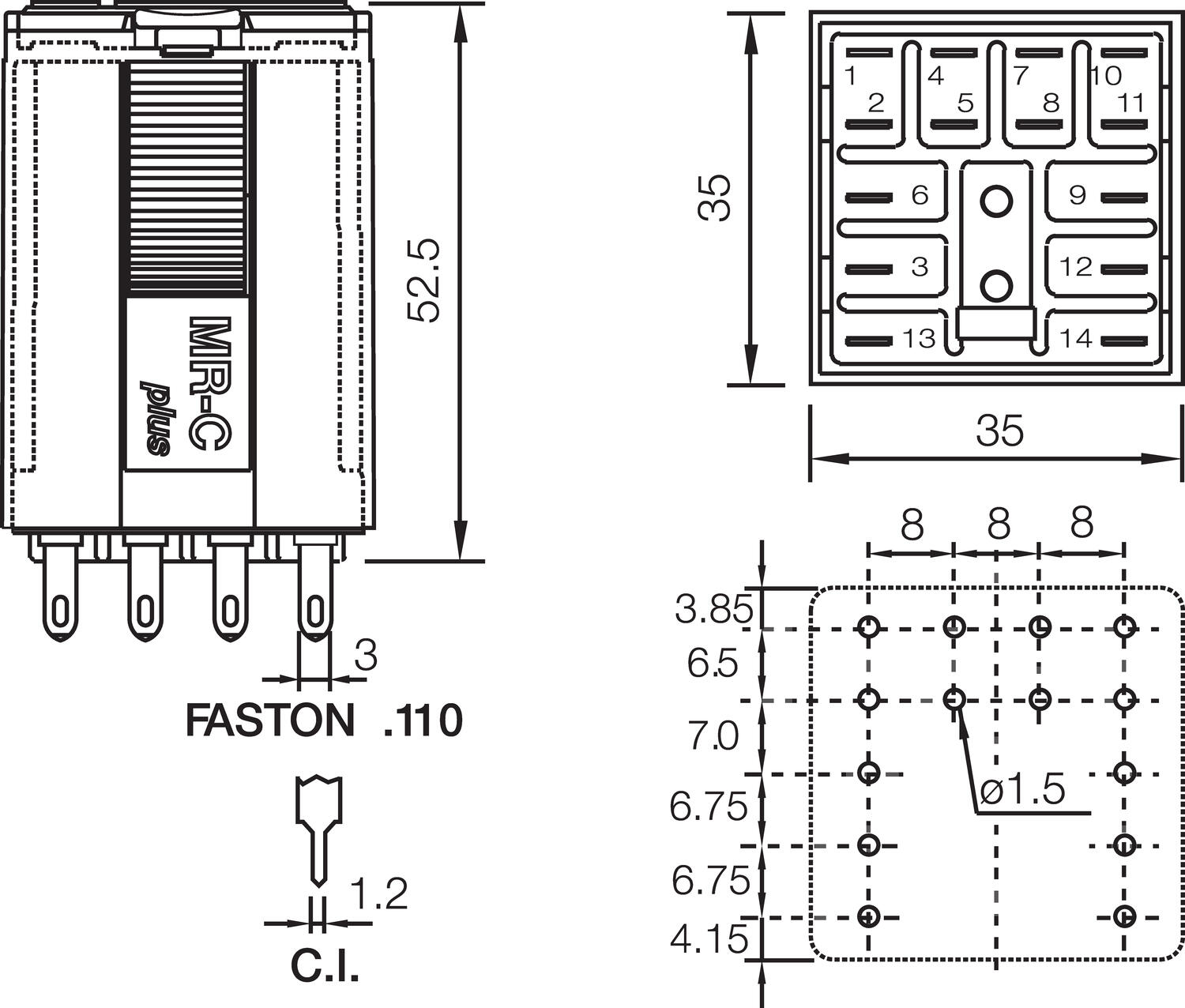

Measurements and connections

Accessories

Parts Nominal power ac Coil output ac Nominal power dc Coil voltage ac Coil voltage dc Tripping voltage max UN Number of contacts Contact material Recommended max load Recommended min load Resistive load 110 V dc max Resistive load 24 V dc max Bounce time Release time Release time + contact debounce Insulation class EN60947 Optional coil Weight Approvals Price
Relay 14 Pin 4 Pole 24V ac
Art:
C4-A4024A Copied
2.4 VA
24 V AC
0.15
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 115V ac
Art:
C4-A40115A Copied
2.4 VA
115 V AC
0.15
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 230V ac
Art:
C4-A40230A Copied
2.4 VA
230 V AC
0.15
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 24V ac
Art:
C4-A40X24A Copied
2.4 VA
24 V AC
0.15
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 115V ac
Art:
C4-A40X115A Copied
2.4 VA
115 V AC
0.15
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 230V ac
Art:
C4-A40X230A Copied
2.4 VA
230 V AC
0.15
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 12V dc
Art:
C4-A4012D Copied
1.4 W
12 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 24V dc
Art:
C4-A4024D Copied
1.4 W
24 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 48V dc
Art:
C4-A4048D Copied
1.4 W
48 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 60V dc
Art:
C4-A4060D Copied
1.4 W
60 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 110V dc
Art:
C4-A40110D Copied
1.4 W
110 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 125V dc
Art:
C4-A40125D Copied
1.4 W
125 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole 220V dc
Art:
C4-A40220D Copied
1.4 W
220 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 24V dc
Art:
C4-A40X24D Copied
1.4 W
24 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 110V dc
Art:
C4-A40X110D Copied
1.4 W
110 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 125V dc
Art:
C4-A40X125D Copied
1.4 W
125 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole LED 220V dc
Art:
C4-A40X220D Copied
1.4 W
220 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 24V dc
Art:
C4-A40DX24D Copied
1.4 W
24 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 48V dc
Art:
C4-A40DX48D Copied
1.4 W
48 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 110V dc
Art:
C4-A40DX110D Copied
1.4 W
110 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 220V dc
Art:
C4-A40DX220D Copied
1.4 W
220 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 220V dc
Art:
C4-A40FX220D Copied
1.4 W
220 V DC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 4 Pole Diode LED 24V dc
Art:
C4-A40FX24D Copied
1.4 W
24 V DC
0.1
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
CCC, Gost R, Lloyd´s, CE, RoHS
Relay 14 Pin 4 Pole Diode LED 125V dc
Art:
C4-A40FX125D Copied
1.4 W
125 V DC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 4 Pole 5µ Au LED 24V dc
Art:
C4-A48X24D Copied
1.4 W
24 V DC
4
AgNi + 5 µ Au
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
Relay 14 Pin 4 Pole 5µ Au Diode LED 24V dc
Art:
C4-A48FX24D Copied
1.4 W
24 V DC
4
AgNi + 5 µ Au
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 4 Pole 5µ Au Diode LED 110V dc
Art:
C4-A48FX110D Copied
1.4 W
110 V DC
4
AgNi + 5 µ Au
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 4 Pole 5µ Au Diode LED 24V dc
Art:
C4-A48DX24D Copied
1.4 W
24 V DC
4
AgNi + 5 µ Au
10 A/250 V AC-1; 0,5 A/110 V DC-1
5 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
Relay 14 Pin 4 Pole LED 48V dc
Art:
C4-A40X48D Copied
1.4 W
48 V DC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
Relay 14 Pin 4 Pole LED 48V ac
Art:
C4-A40X48A Copied
2.4 VA
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
X (LED)
90 g
Relay 14 Pin 4 Pole Diode LED 48V dc
Art:
C4-A40FX48D Copied
1.4 W
48 V DC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 4 Pole Diode LED 110V dc
Art:
C4-A40FX110D Copied
1.4 W
110 V DC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 4 Pole Diode LED 125V dc
Art:
C4-A40DX125D Copied
1.4 W
125 V DC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
Relay 14 Pin 4 Pole 48V ac
Art:
C4-A4048A Copied
2.4 VA
48 V AC
4
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/5 V
55 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
90 g
Relay 14 Pin 3 Pole Latching 230V ac
Art:
C4-R30230A Copied
2.4 VA
230 V AC
3
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V; 5 mA/5 V
55 W
240 W
250 V Pollution 3, Group C
Bistable
95 g
CCC, Gost R, CE, RoHS
Relay 14 Pin 3 Pole Latching 24V dc
Art:
C4-R3024D Copied
1.5 W
24 V DC
3
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V; 5 mA/5 V
55 W
240 W
250 V Pollution 3, Group C
Bistable
95 g
CCC, Gost R, CE, RoHS
Relay 14 Pin 3 Pole Latching 110V dc
Art:
C4-R30110D Copied
110 V DC
3
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
72 W
50 ms
50 ms
250 V Pollution 3, Group C
Bistable
95 g
CCC, Gost R, CE, RoHS
Relay 14 Pin 3 Pole Latching 48V dc
Art:
C4-R3048D Copied
48 V DC
3
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
72 W
50 ms
50 ms
250 V Pollution 3, Group C
Bistable
95 g
Relay 14 Pin 3 Pole Latching 24V ac
Art:
C4-R3024A Copied
24 V AC
3
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
72 W
50 ms
50 ms
250 V Pollution 3, Group C
Bistable
95 g
Relay 14 Pin 3 Pole Latching 115V ac
Art:
C4-R30115A Copied
115 V AC
3
AgNi
10 A/250 V AC-1; 0,5 A/110 V DC-1
10 mA/10 V
55 W
72 W
50 ms
50 ms
250 V Pollution 3, Group C
Bistable
95 g
Relay 14 Pin 2 Pole N/O 3mm GAP Diode LED 110V dc
Art:
C4-X20FX110D Copied
1.3 W
110 V DC
2
AgNi
10 A/250 V AC-1; 7 A/110 V DC-1
10 mA/10 V
770 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
FX (pole protection + LED)
90 g
Relay 14 Pin 2 Pole N/O 3mm GAP 24V dc
Art:
C4-X2024D Copied
1.3 W
24 V DC
2
AgNi
8 ms
90 g
CCC, CE, RoHS
Relay 14 Pin 2 Pole N/O 3mm GAP Diode LED 48V dc
Art:
C4-X20DX48D Copied
1.3 W
48 V DC
2
AgNi
10 A/250 V AC-1; 7 A/110 V DC-1
10 mA/10 V
770 W
240 W
3
8 ms
9 ms
250 V Pollution 3, Group C
DX (diode + LED)
90 g
Relay 14 Pin 2 Pole N/O 3mm GAP 110V dc
Art:
C4-X20110D Copied
1.3 W
110 V DC
2
AgNi
8 ms
90 g
CCC, CE, RoHS
Relay 14 Pin 2 Pole N/O 3mm GAP LED 24V dc
Art:
C4-X20X24D Copied
1.3 W
24 V DC
2
AgNi
8 ms
X (LED)
90 g
CCC, CE, RoHS
Relay 14 Pin 2 Pole N/O 3mm GAP LED 110V dc
Art:
C4-X20X110D Copied
1.3 W
110 V DC
2
AgNi
8 ms
X (LED)
90 g
CCC, CE, RoHS
Relay 14 Pin 2 Pole N/O 3mm GAP LED 220V dc
Art:
C4-X20X220D Copied
1.3 W
220 V DC
2
AgNi
8 ms
X (LED)
90 g
CCC, CE, RoHS

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
