COMATRELECO

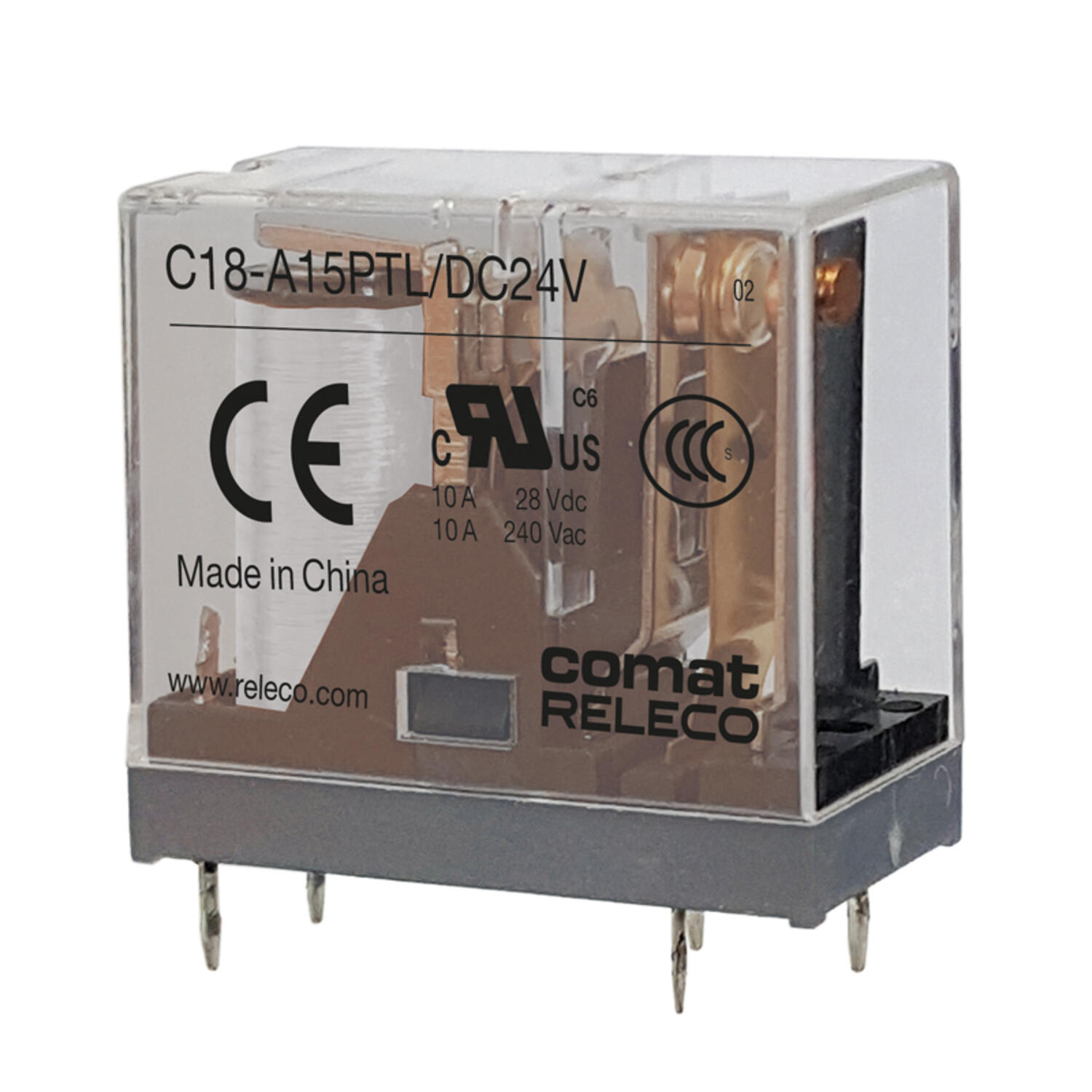

C18 PCB mount relay
  Â
  Â
  Â
  Â
  Â
  Â
Â

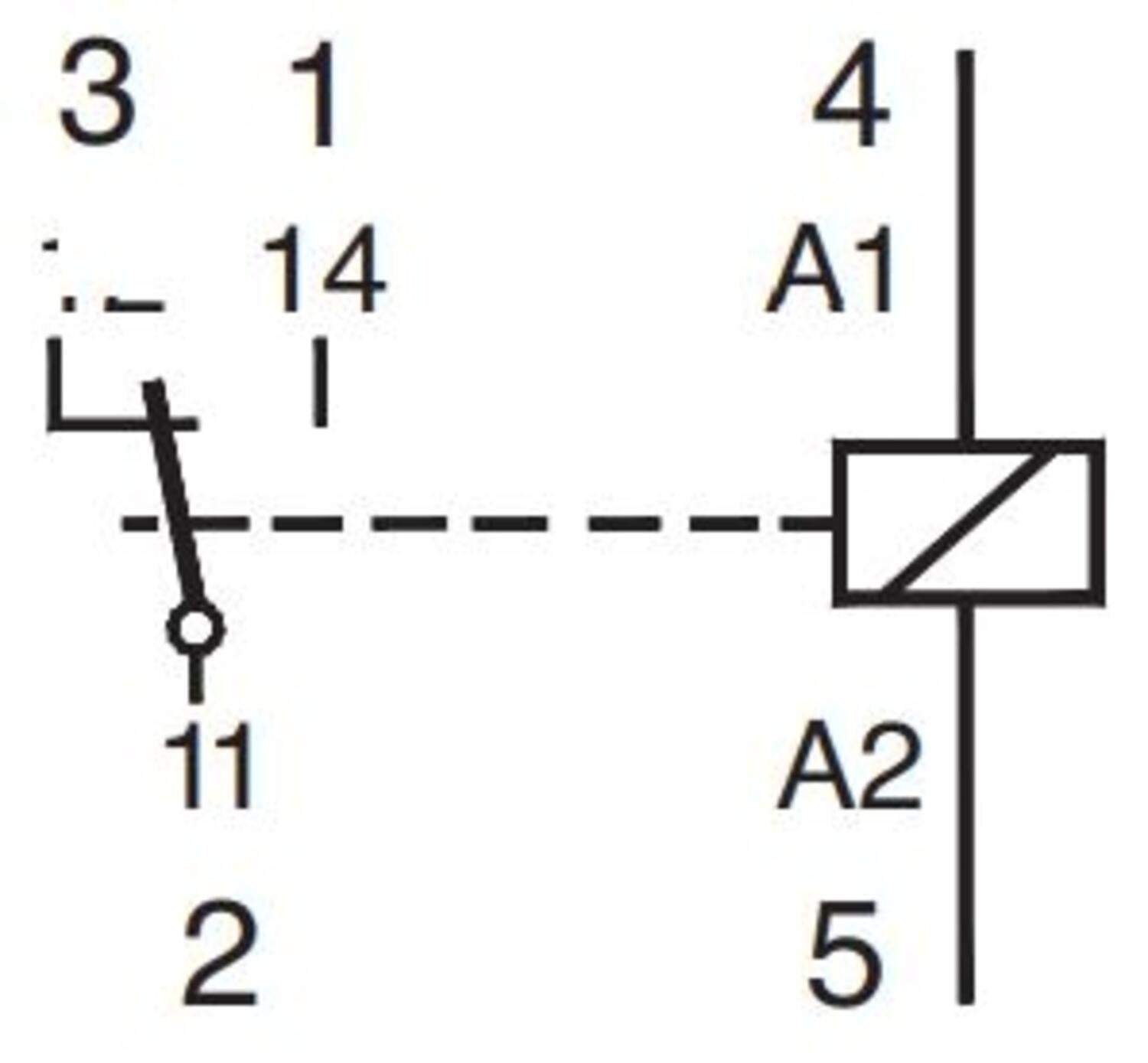

- 1 pole changeover contact
- Rated up to 10A or 16A
- 3.5mm or 5mm grid size
- Available in AC or DC coil voltages
Selected variant
Technical data
Input Data |
|
|---|---|
| Working Un | 0,8 - 1,10 |
| Coil voltage ac | 24 V AC |
Output Data |
|
| Number of contacts | 1 |
| Contact material | AgSnO2 |
| Breaking capacity current | 10 A |
| Inrush max | 25 A |
General Data |
|
|---|---|
| Width | 13 mm |
| Temperature operational min | -55 °C |
| Storage temperature min | -55 °C |
| Storage temperature max | 70 °C |
| Temperature operational max | 70 °C |
| Weight | 17 g |
Downloads
Product description
