Input Data |
|
|---|---|
| Rated voltage Un | 6-12-24 V ac/dc |
| Overvoltage category | III |
| Contamination degree | 3 |
| LED status | Yes |
Output Data |
|
| Contact configuration | 1 CO |
| Rated V ac / switching V ac max | 250 / 400 V ac |
Connection Data |
|
| Cross section single wire from | 0.2 mm² |
| Cross section single wire to | 2.5 mm² |
| Stripping length | 10 mm |
| Torque | 0.5 |
| Connection type | Screw |
General Data |
|
| Approvals | CE |
*Invisible Heading* |
|
|---|---|
| IP class | IP20 |
| Operating temperature from | -40 °C |
| Operating temperature to | 70 °C |
Dimensions & Materials |
|
| Width | 6.2 mm |
| Length | 87 mm |
| Height TS 35 / 7.5 with base | 90.7 mm |
| Flammability class | UL94-V2 |
Additional Data |
|
| Tariff code | 85369010 |
| Country of origin | EEC |
| Weight | 32.7 g |
| Pack size | 10 Â |
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Rated voltage Un | Freewheeling diode | Rated V ac / switching V ac max | AC residual current suppression | Stripping length | Torque | Connection type | Fuse holder | Length | Country of origin | Weight | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRC 6...12...24V AC/DC, Relay base
Art:
16190.2
Copied
|
6-12-24 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
|
87 mm
|
EEC
|
32.7 g
|
|
||
|
IRC 110...125 V AC/DC, Relay base
Art:
16191.2
Copied
|
110-125 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
|
87 mm
|
IT
|
27 g
|
|
||

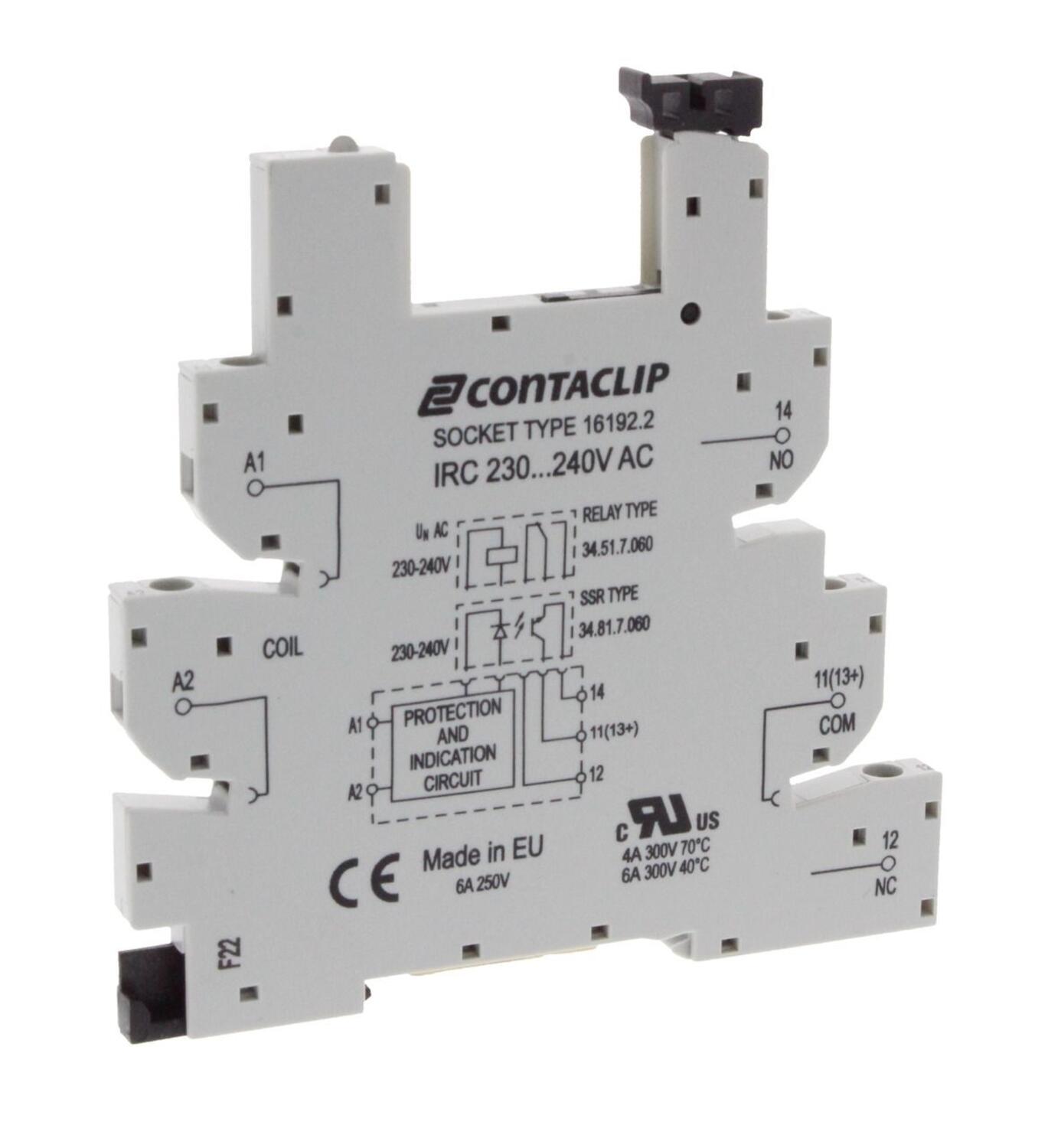

IRC 230...240 V AC, Relay base
Art:
16192.2
Copied
|
230-240 V ac
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
|
87 mm
|
EEC
|
33.2 g
|
|
||

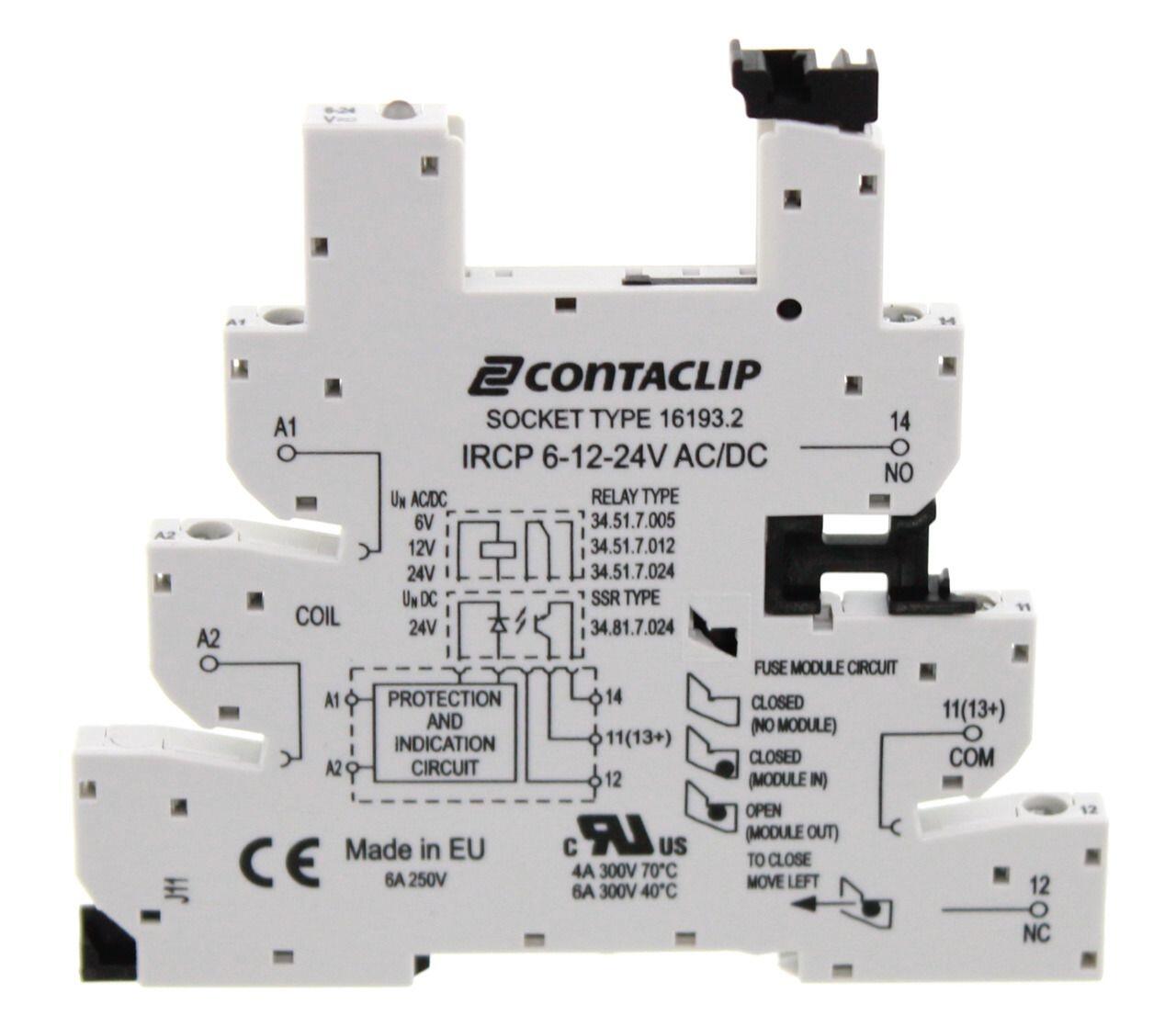

IRCP 6...12...24V AC/DC, Fused relay base
Art:
16193.2
Copied
|
6-12-24 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
EEC
|
35.4 g
|
|
||
|
IRCP 60 V AC/DC, Fused relay base
Art:
16194.2
Copied
|
60 V ac/dc
|
No
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||

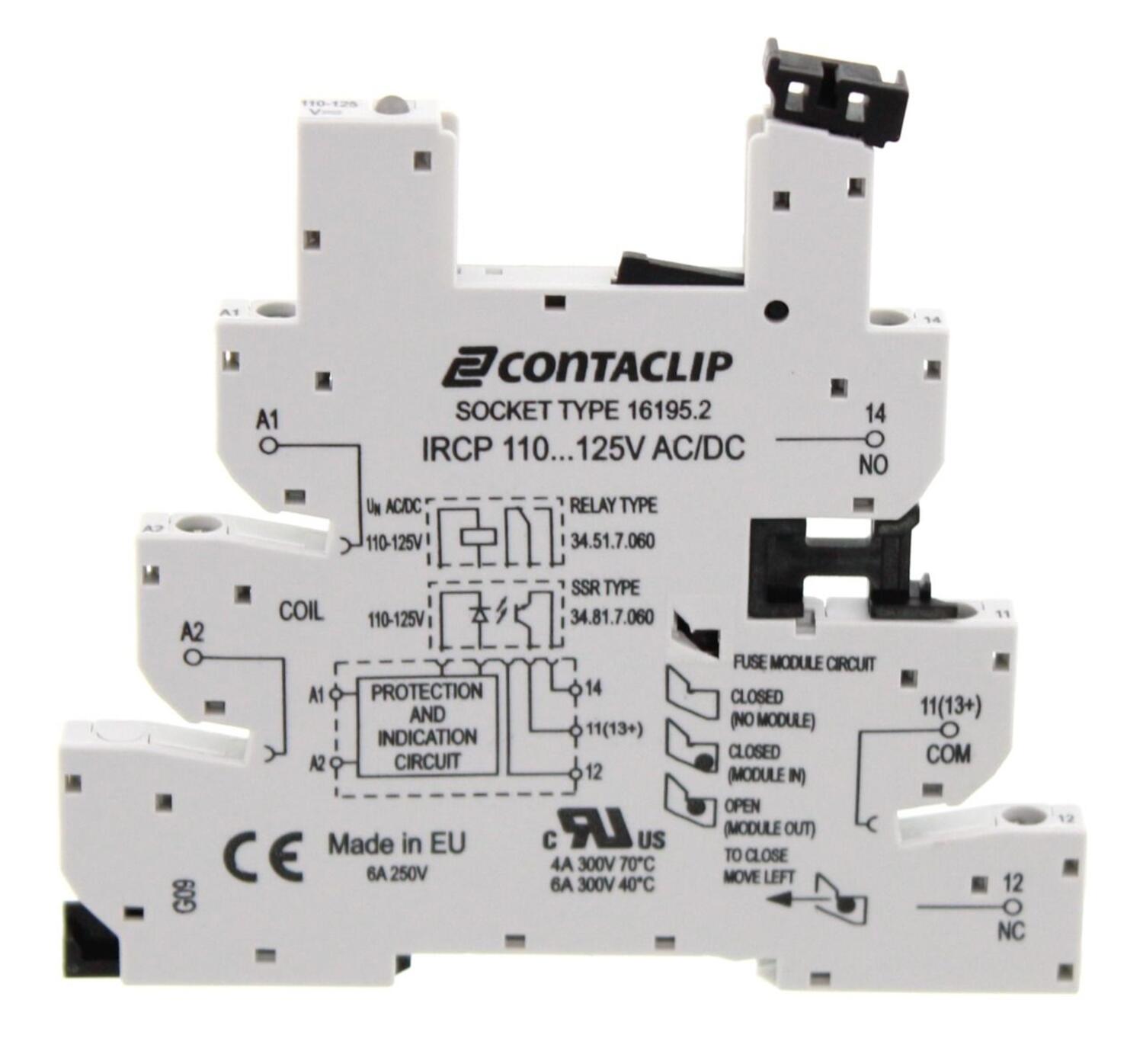

IRCP 110...125 V AC/DC, Fused relay base
Art:
16195.2
Copied
|
110-125 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
EEC
|
35.4 g
|
|
||

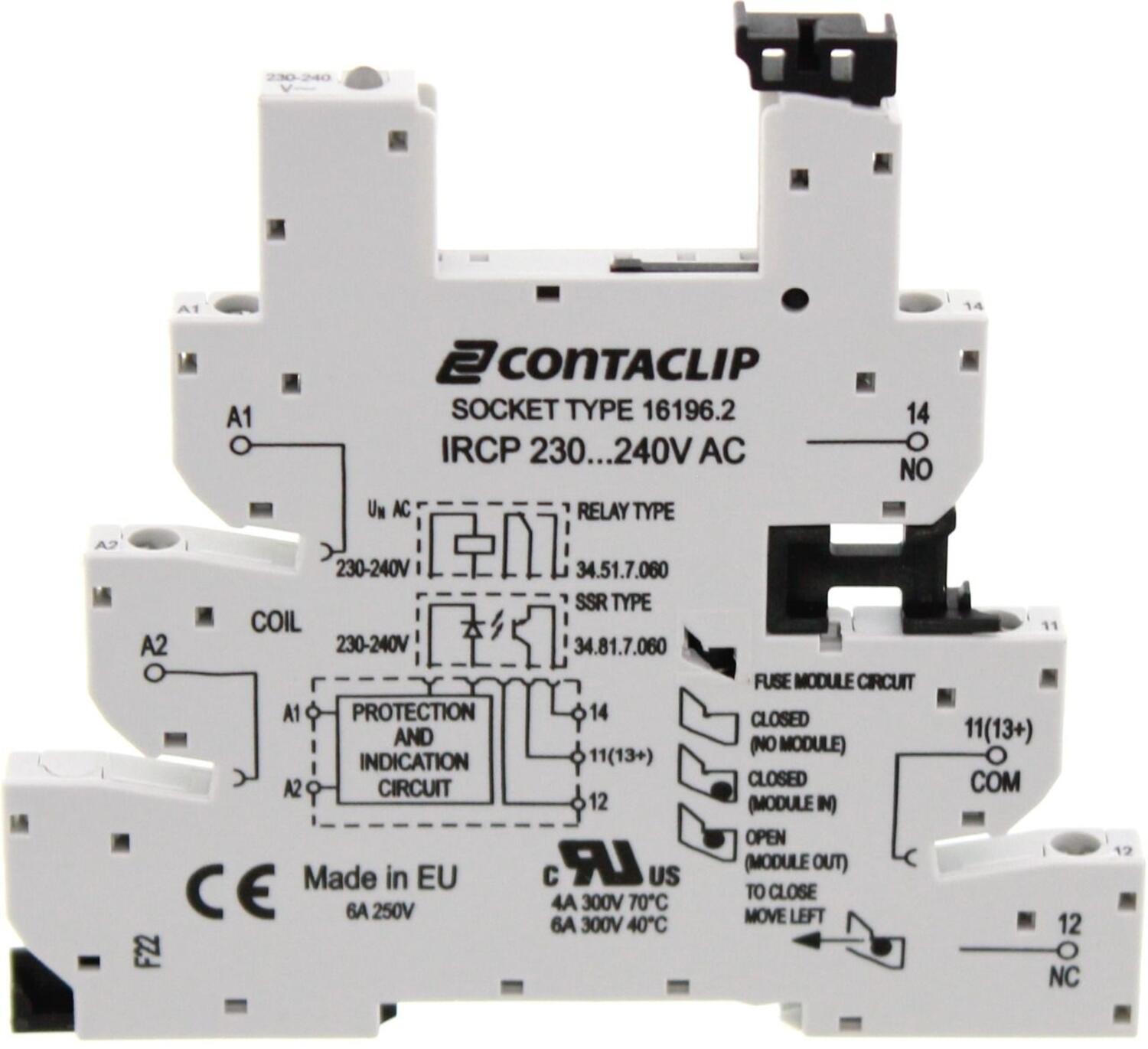

IRCP 230...240 V AC, Fused relay base
Art:
16196.2
Copied
|
230-240 V ac
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
EEC
|
36.1 g
|
|
||
|
IRCP 110...125 V DC, Fused relay base
Art:
16197.2
Copied
|
110-125 V dc
|
Yes
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||
|
IRCP 220 V DC, Fused relay base
Art:
16198.2
Copied
|
220 V dc
|
Yes
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||
|
IRCP LW 110...125 V AC/DC, Fused relay base
Art:
16199.2
Copied
|
110-125 V ac/dc
|
|
250 / 400 V ac
|
Yes
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||
|
IRCP LW 230...240 V AC, Fused relay base
Art:
16200.2
Copied
|
230-240 V ac
|
|
250 / 400 V ac
|
Yes
|
10 mm
|
0.5
|
Screw
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||

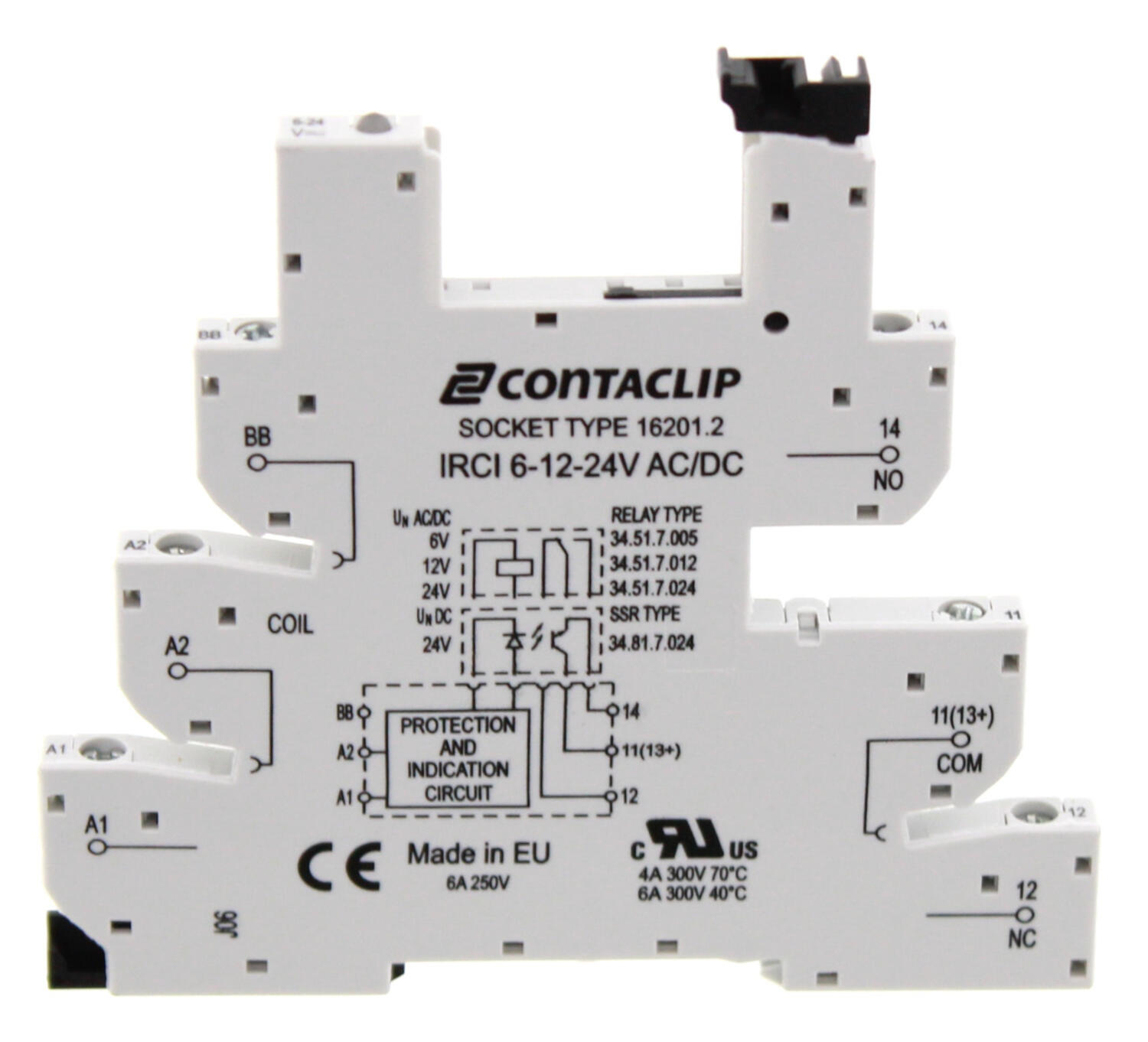

IRCI 6...12...24V AC/DC, Relay base
Art:
16201.2
Copied
|
6-12-24 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
No
|
94.3 mm
|
EEC
|
35.2 g
|
|
||
|
IRCI 110...125 V AC/DC, Relay base
Art:
16202.2
Copied
|
110-125 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
No
|
94.3 mm
|
IT
|
27 g
|
|
||
IRCI 230...240 V AC, Relay base
Art:
16203.2
Copied
|
230-240 V ac
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
No
|
94.3 mm
|
EEC
|
35.2 g
|
|
||

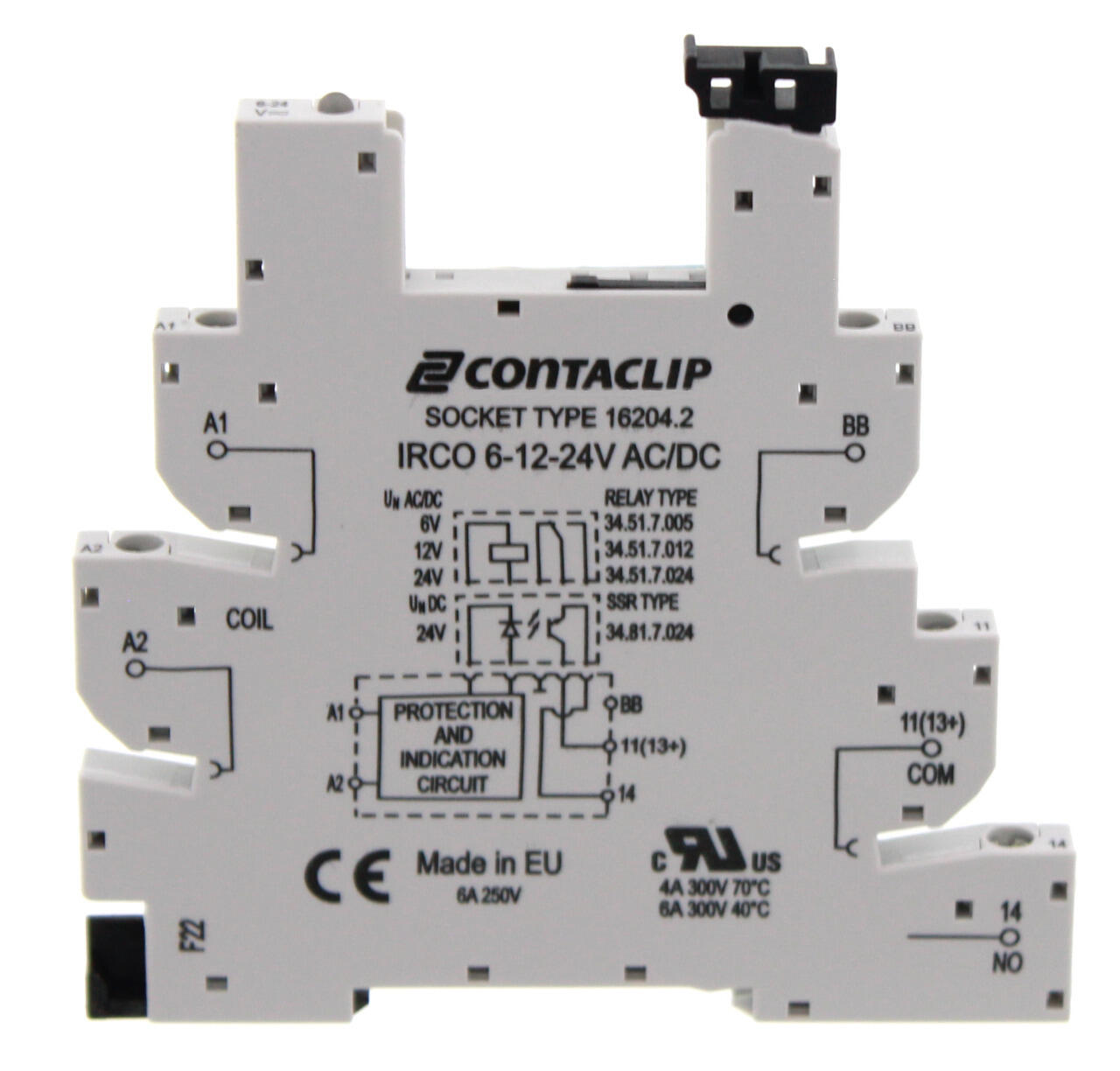

IRCO 6...12...24V AC/DC, Relay base
Art:
16204.2
Copied
|
6-12-24 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
|
87 mm
|
EEC
|
32.6 g
|
|
||
|
IRCO 110...125 V AC/DC, Relay base
Art:
16205.2
Copied
|
110-125 V ac/dc
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
|
87 mm
|
IT
|
27 g
|
|
||

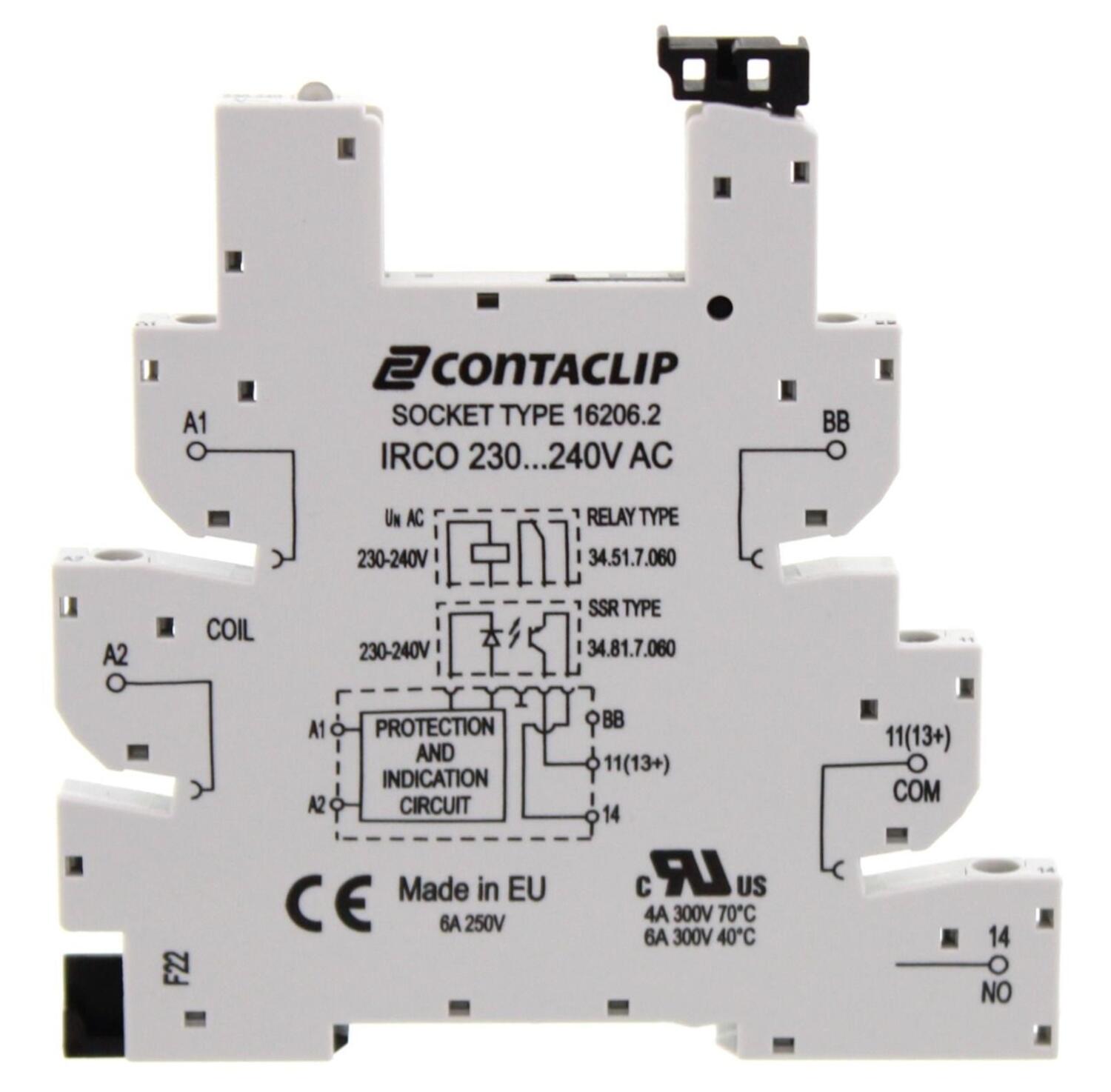

IRCO 230...240 V AC, Relay base
Art:
16206.2
Copied
|
230-240 V ac
|
|
250 / 400 V ac
|
|
10 mm
|
0.5
|
Screw
|
|
87 mm
|
EEC
|
33.8 g
|
|
||

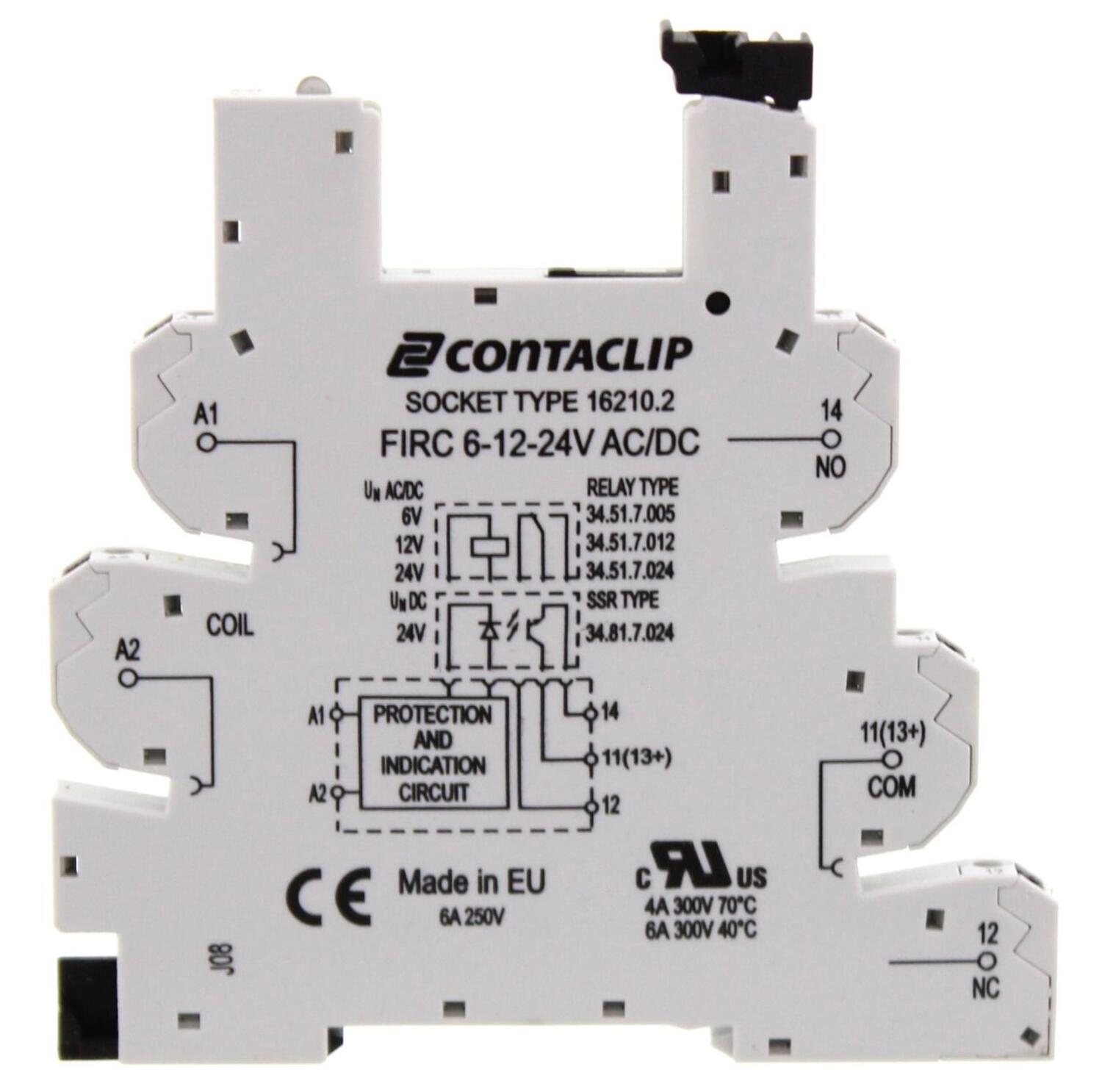

FIRC 6...12...24V AC/DC, Relay base, Push-in
Art:
16210.2
Copied
|
6-12-24 V ac/dc
|
|
250 / 400 V ac
|
|
|
0.5
|
Push-in
|
|
87 mm
|
EEC
|
27.8 g
|
|
||
|
FIRC 110...125 V AC/DC, Relay base, Push-in
Art:
16211.2
Copied
|
110-125 V ac/dc
|
|
250 / 400 V ac
|
|
|
0.5
|
Push-in
|
|
87 mm
|
IT
|
27 g
|
|
||

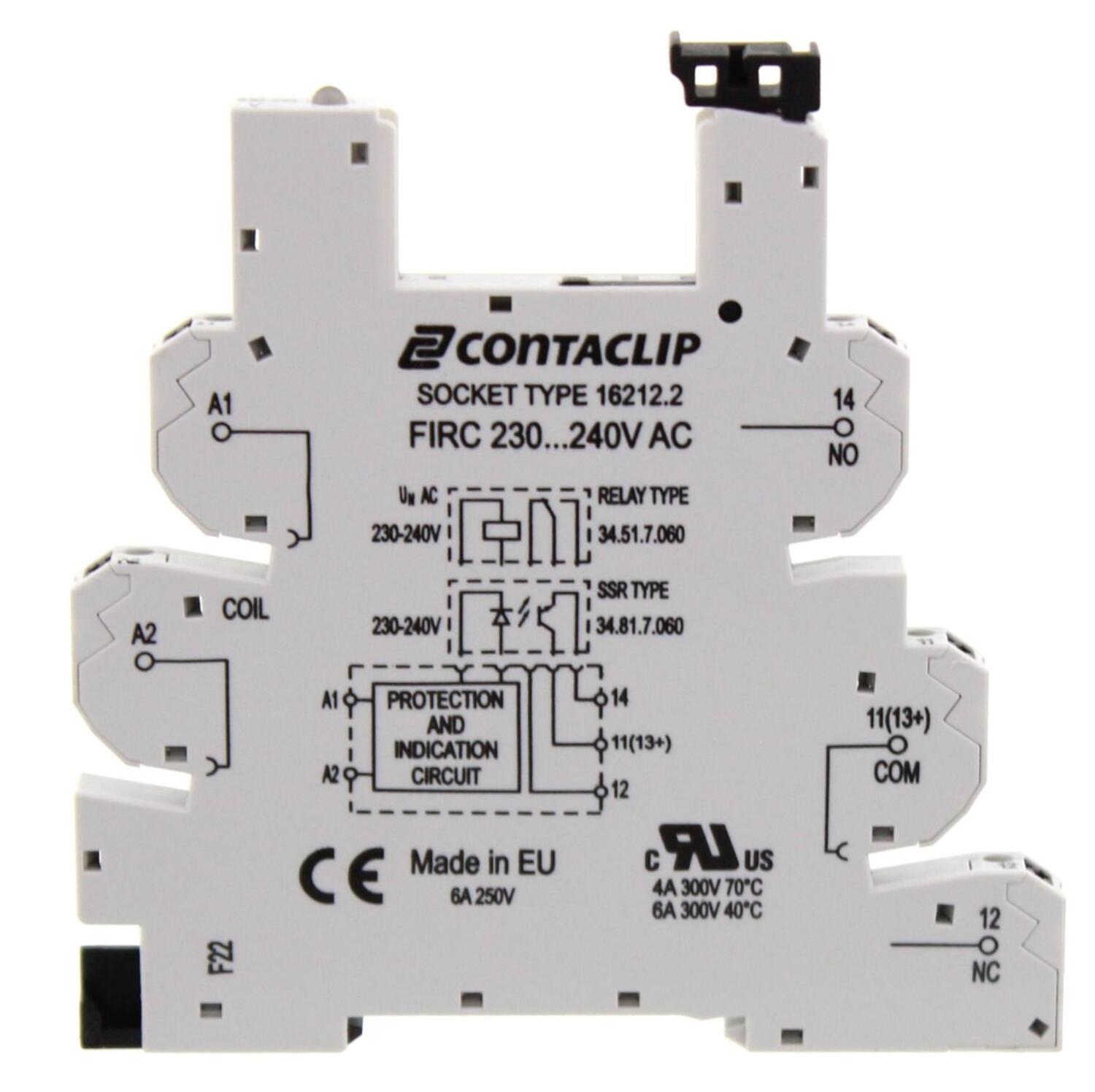

FIRC 230...240 V AC, Relay base, Push-in
Art:
16212.2
Copied
|
230-240 V ac
|
|
250 / 400 V ac
|
|
|
0.5
|
Push-in
|
|
87 mm
|
EEC
|
29.2 g
|
|
||

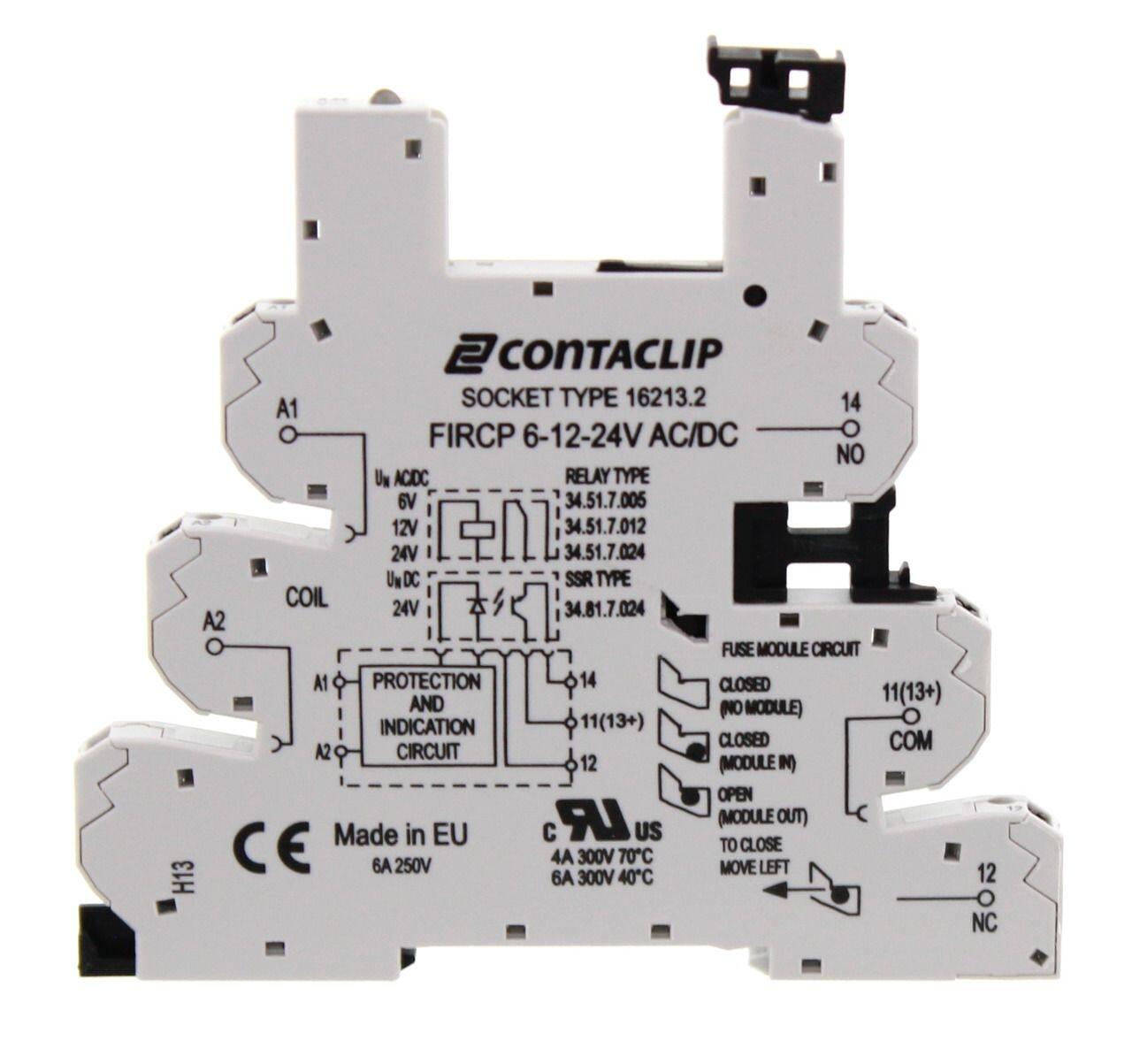

FIRCP 6...12...24V AC/DC, Fused relay base, Push-in
Art:
16213.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
EEC
|
29.8 g
|
|
||
|
FIRCP 60 V AC/DC, Fused relay base, Push-in
Art:
16214.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||

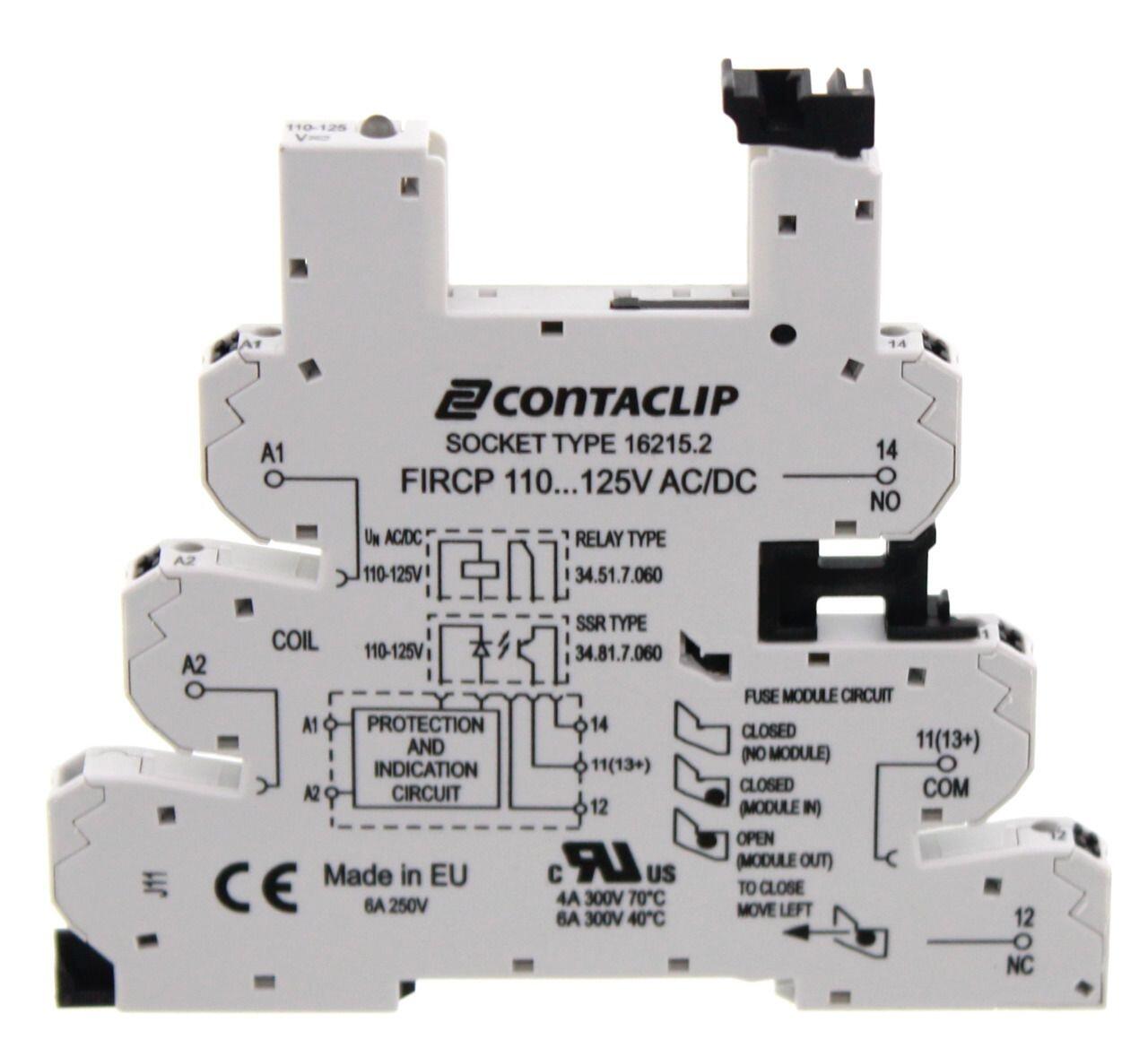

FIRCP 110...125 V AC, Fused relay base, Push-in
Art:
16215.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||

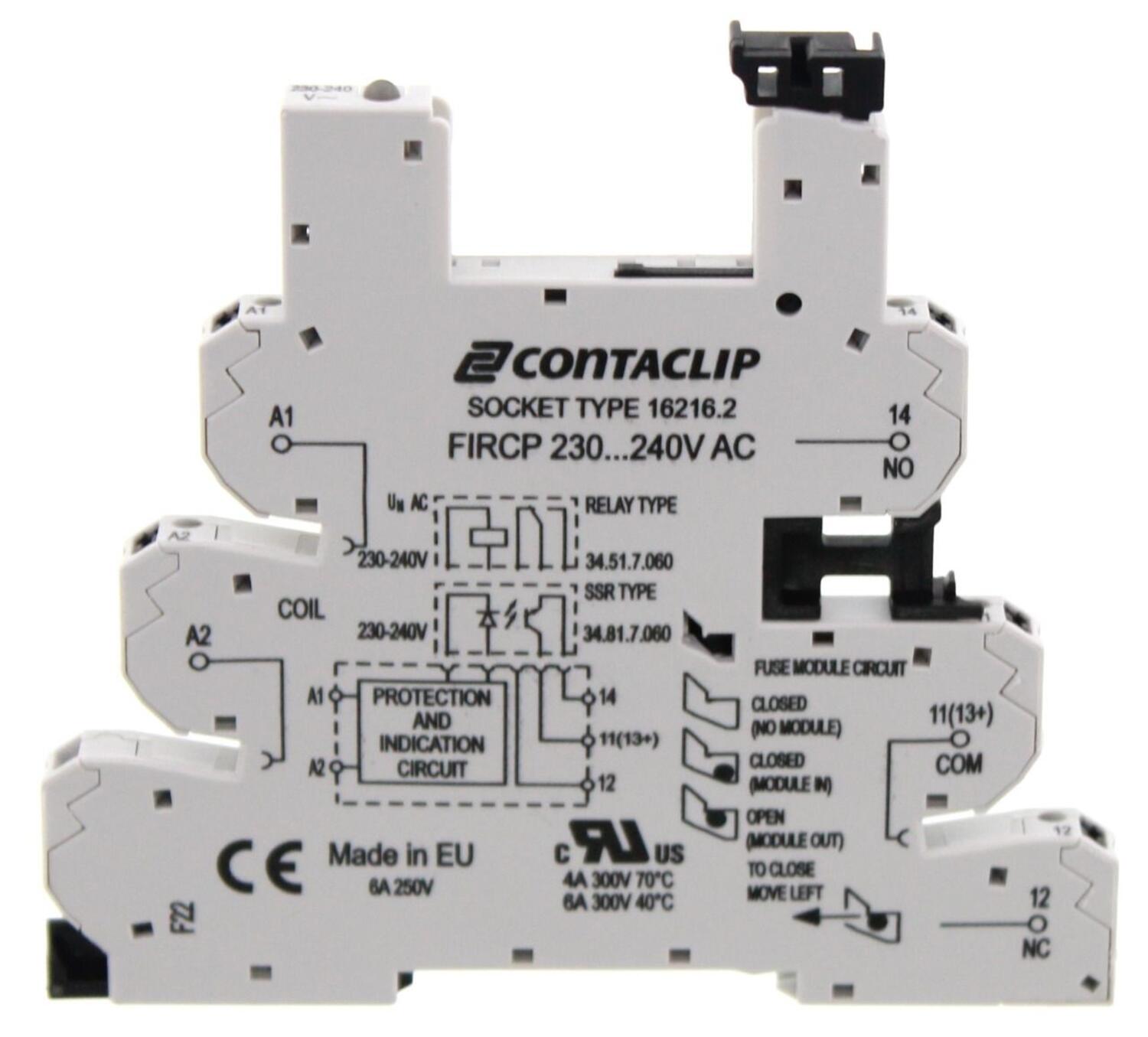

FIRCP 230...240 V AC, Fused relay base, Push-in
Art:
16216.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
EEC
|
31.2 g
|
|
||
|
FIRCP 110...125 V DC, Fused relay base, Push-in
Art:
16217.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||
|
FIRCP 220 V DC, Fused relay base, Push-in
Art:
16218.2
Copied
|
230 / 400 V ac
|
Yes
|
|
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
IT
|
27 g
|
|
||
|
FIRCP LW 110...125 V AC/DC, Fused relay base, Push-in
Art:
16219.2
Copied
|
230 / 400 V ac
|
|
|
Yes
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
EEC
|
27 g
|
|
||

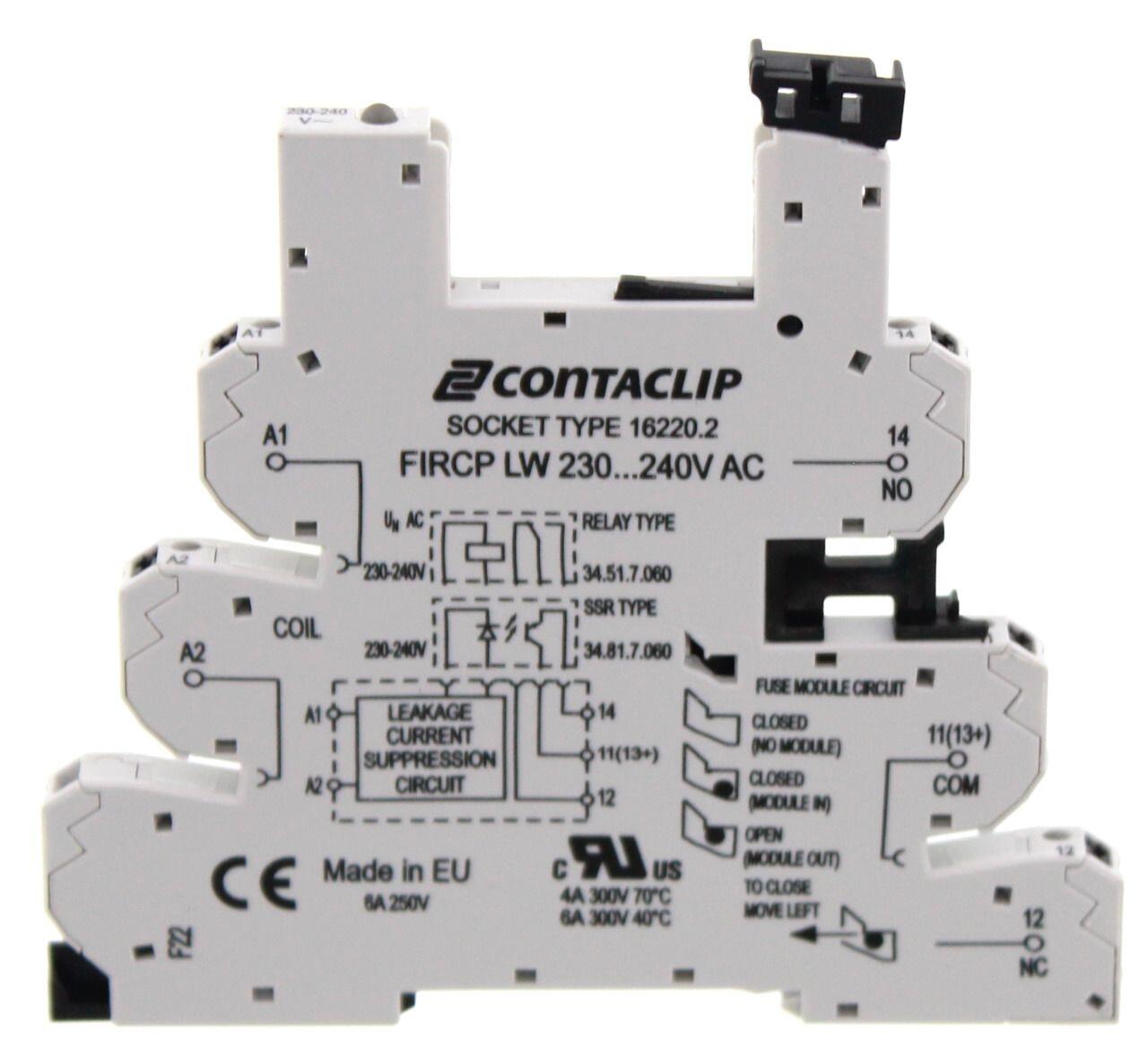

FIRCP LW 230...240 V AC, Fused relay base, Push-in
Art:
16220.2
Copied
|
230 / 400 V ac
|
|
|
Yes
|
10 mm
|
|
Push-in
|
Yes
|
94.3 mm
|
EEC
|
31.2 g
|
|
||
FIRCI 6...12...24V AC/DC, Relay base, Push-in
Art:
16221.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
No
|
94.3 mm
|
EEC
|
29.4 g
|
|
||
|
FIRCI 110...125 V AC/DC, Relay base, Push-in
Art:
16222.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
No
|
94.3 mm
|
IT
|
27 g
|
|
||

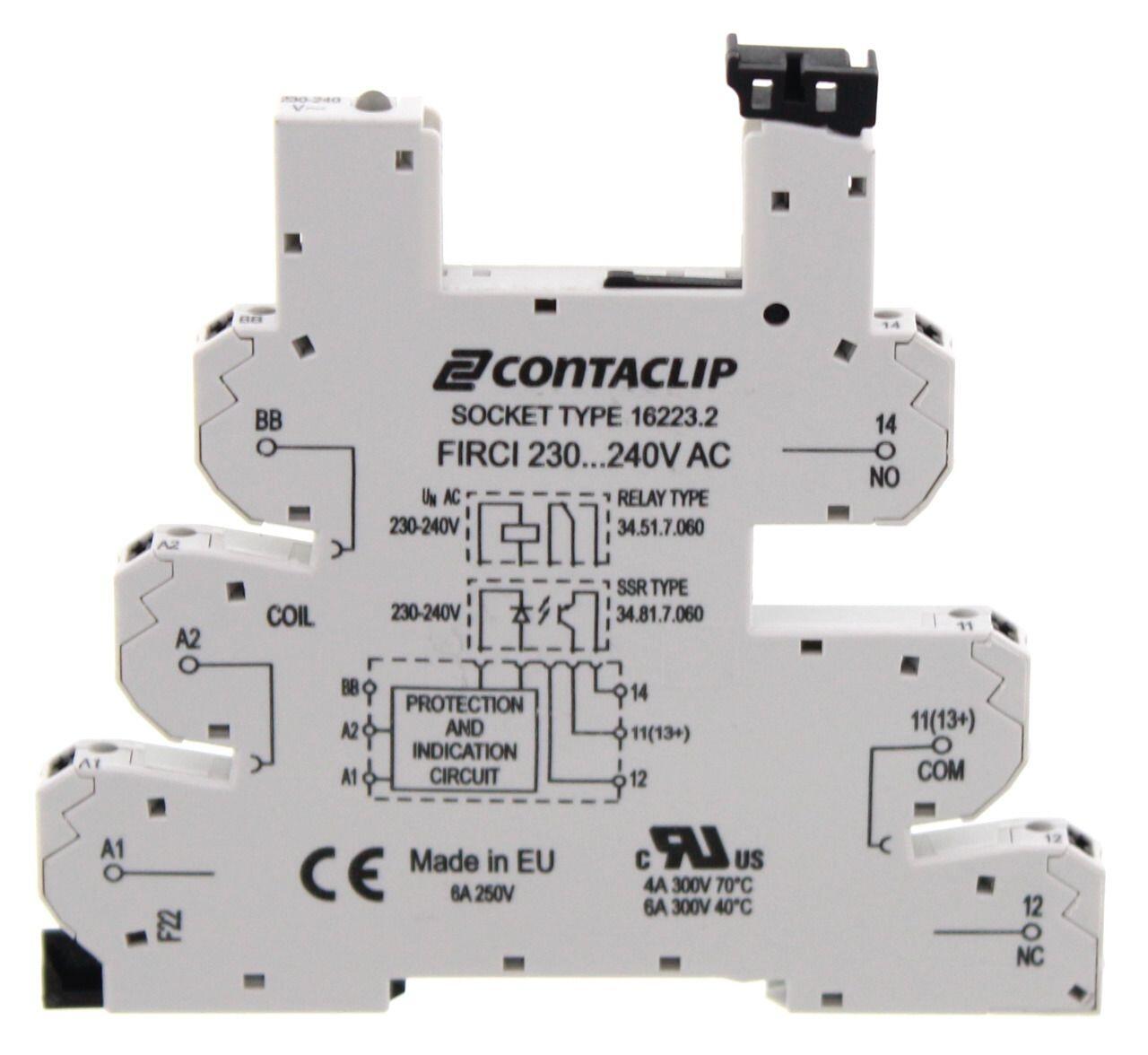

FIRCI 230...240 V AC, Relay base, Push-in
Art:
16223.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
|
94.3 mm
|
EEC
|
30.3 g
|
|
||

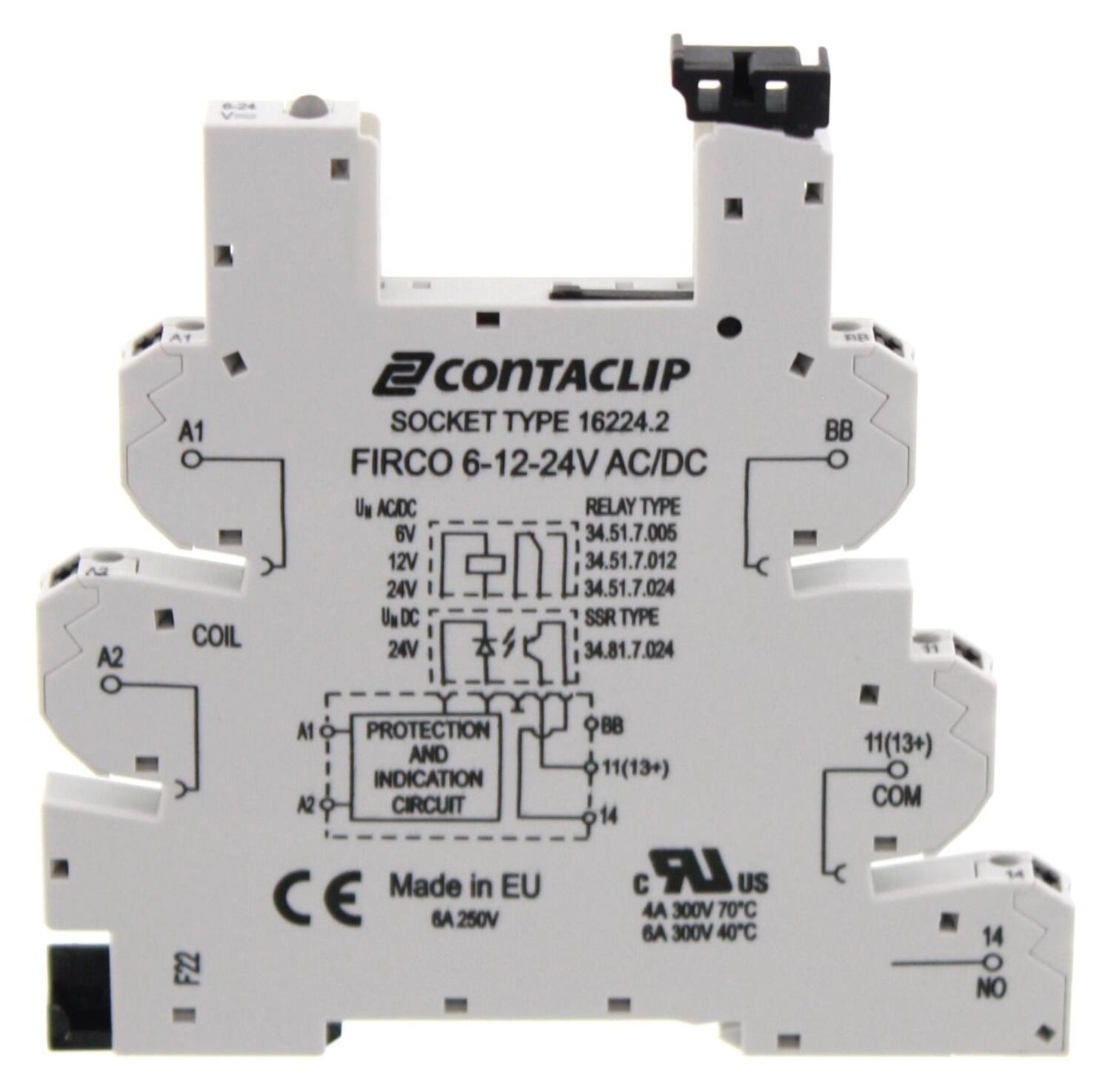

FIRCO 6...12...24V AC/DC, Relay base, Push-in
Art:
16224.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
|
87 mm
|
EEC
|
28.6 g
|
|
||
|
FIRCO 110...125 V AC/DC, Relay base, Push-in
Art:
16225.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
|
87 mm
|
IT
|
27 g
|
|
||

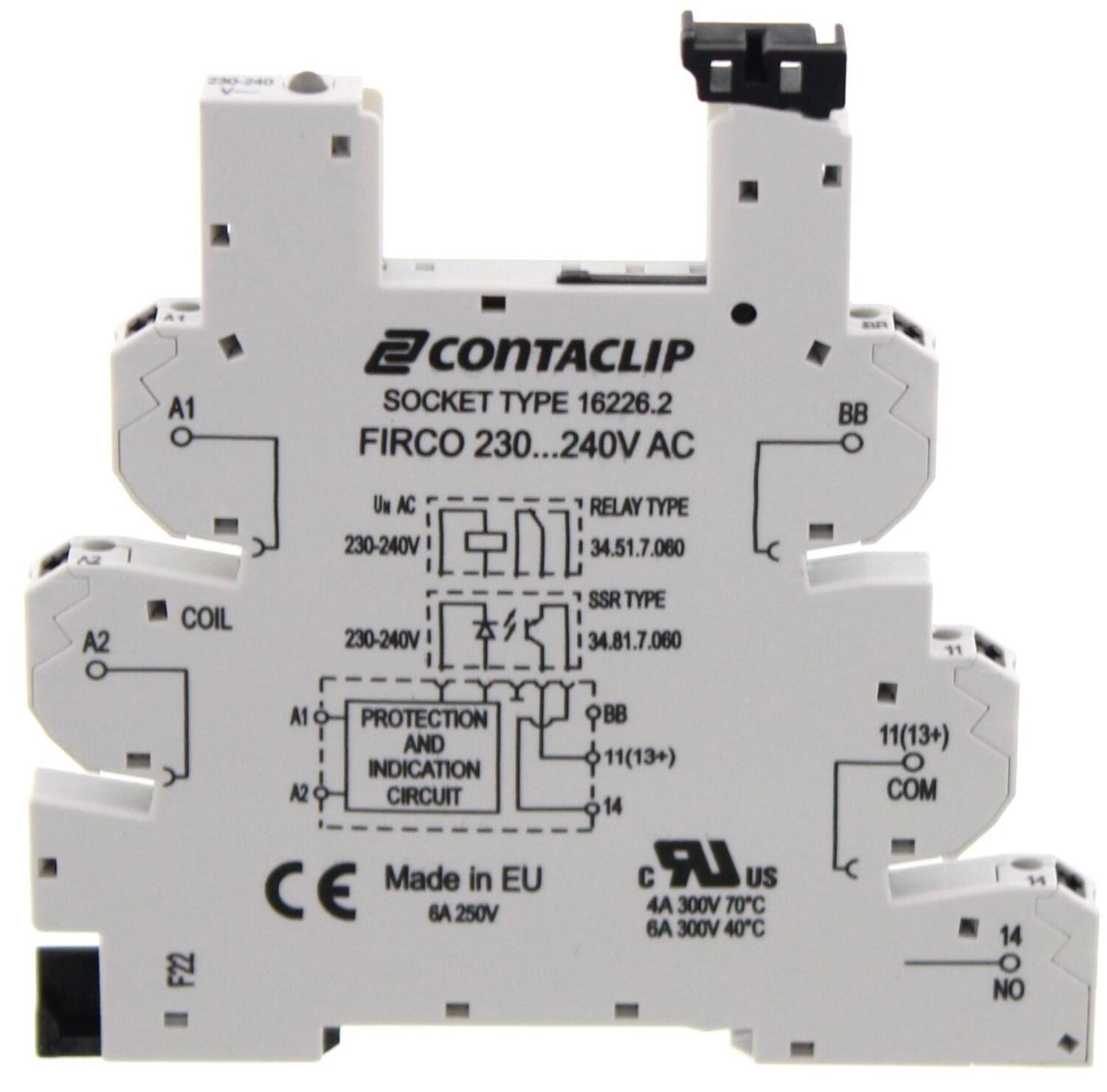

FIRCO 230...240 V AC, Relay base, Push-in
Art:
16226.2
Copied
|
230 / 400 V ac
|
|
|
|
10 mm
|
|
Push-in
|
|
87 mm
|
EEC
|
30 g
|
|
