BACO

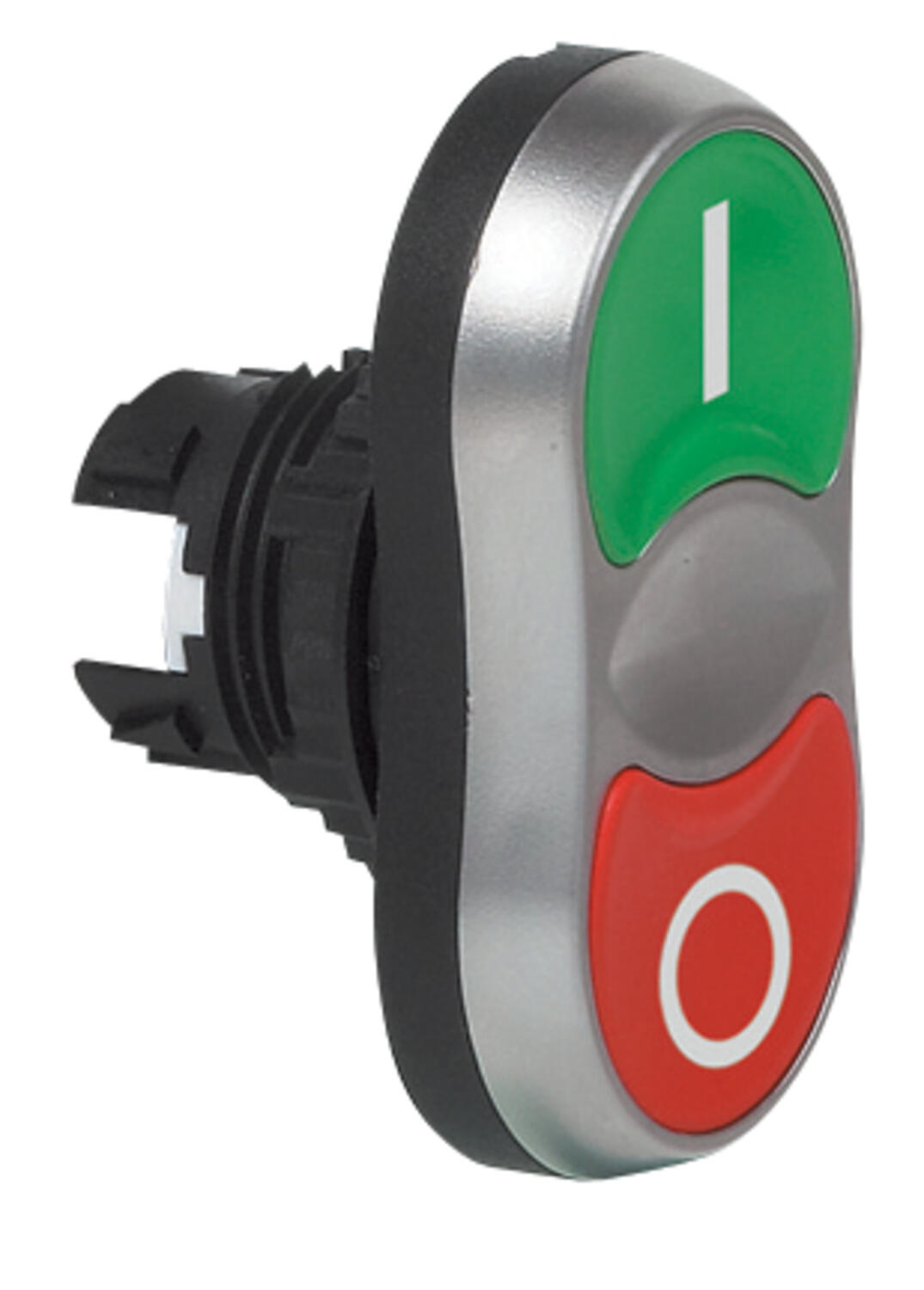

Non-illuminated Twin Touch Flush
Non Illuminated
Non illuminated flush twin touch heads that mount in a 22.5mm hole with protection rating IP66
Â
Combine with separate 333E clip and contact blocks to make complete twin touch assembly.

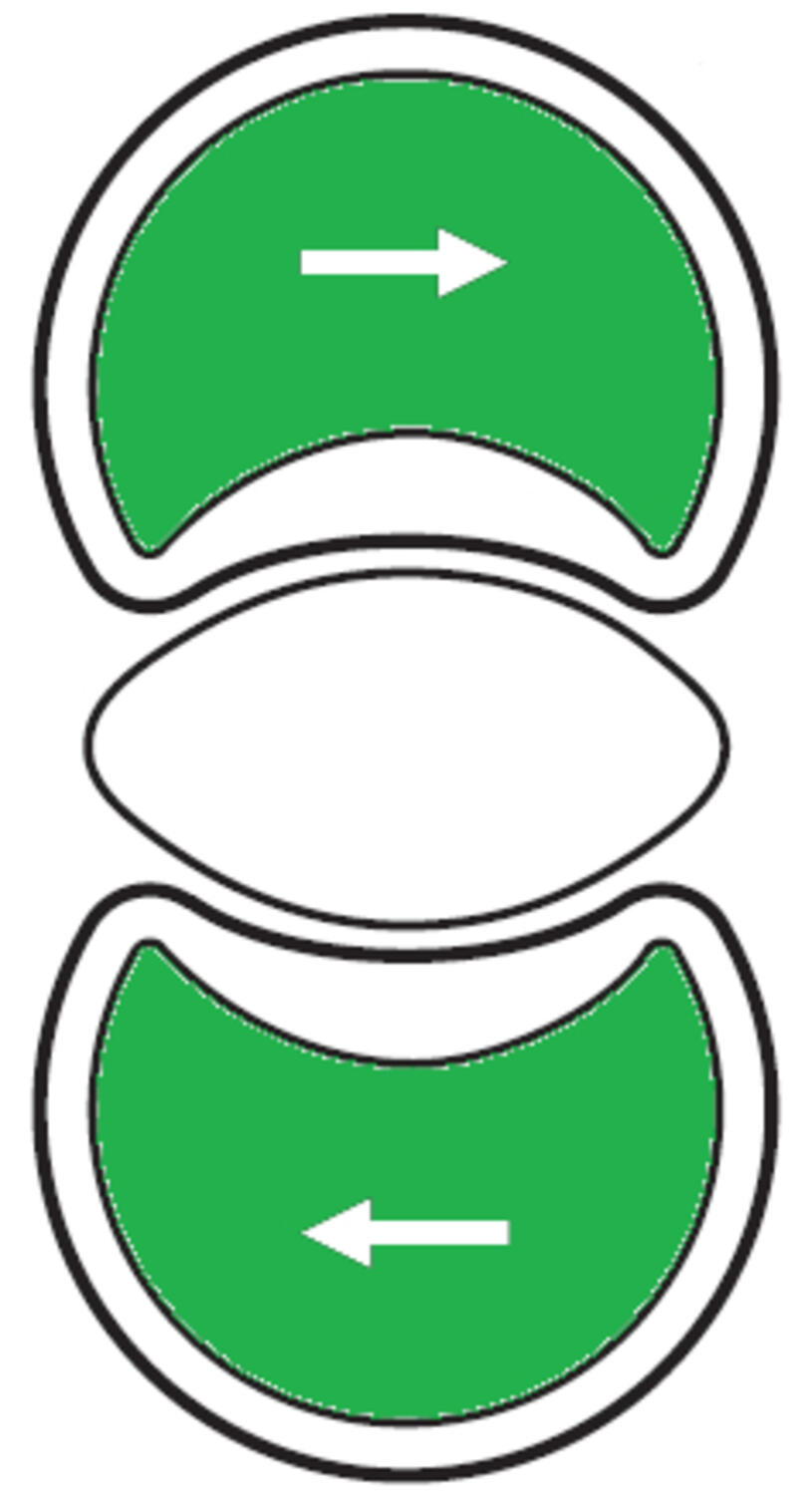

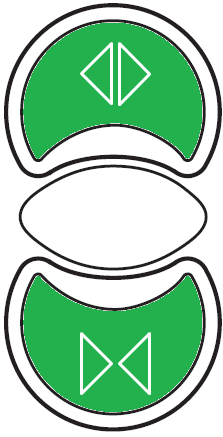

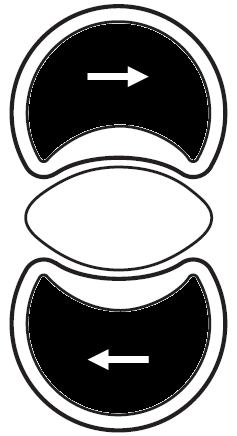

Available in various colour / text / symbol combinations.
All pushbuttons are spring return.
Â
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L61xxxx to L62xxxx.
Â
Other colour / text / symbol combinations are possible please enquire for more details.
Â
- IP66
- Flush pushbuttons
- Spring return
- Various colours & symbols
Selected variant
Technical data
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Green / red |
| Function | Spring return |
| Illuminated | No |
| Impact resistance | IK05 |
| IP class | IP66 |
| Mechanical life expectancy | 5 000 000 cycles |
|---|---|
| Recommended tightening torque | 3 |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
| Type | Twin touch flush |
Product description
Non illuminated flush twin touch heads that mount in a 22.5mm hole with protection rating IP66
Â
Combine with separate 333E clip and contact blocks to make complete twin touch assembly.
Available in various colour / text / symbol combinations.
All pushbuttons are spring return.
Â
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L61xxxx to L62xxxx.
Â
Other colour / text / symbol combinations are possible please enquire for more details.
Â
