Short Handle Non-Illuminated Selector Switch Short Lever Handle L21KA03 | OEM Automatic Ltd

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

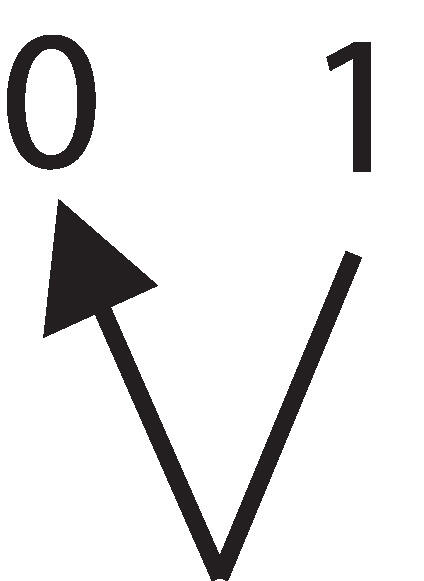

Angle	45°
Approvals	UL 508, CSA 22.2, BV, CB, CE
Climatic resistance - constant humid heat	IEC 60068-2-3
Climatic resistance - cyclic damp heat	IEC 60068-2-30
Climatic resistance - sea air	IEC 60068-2-52
Colour	Black
Function	Stable
Illuminated	No
Impact resistance	IK05
IP class	IP66, IP69, IP69K
Mechanical life expectancy	300 000 cycles

Positions	2
Protection class	II (double insulated)
Recommended tightening torque	3
Storage temperature max	70 °C
Storage temperature min	-40 °C
Temperature operational max	70 °C
Temperature operational min	-25 °C
Type	Short lever
Weight	17.8 g

Downloads

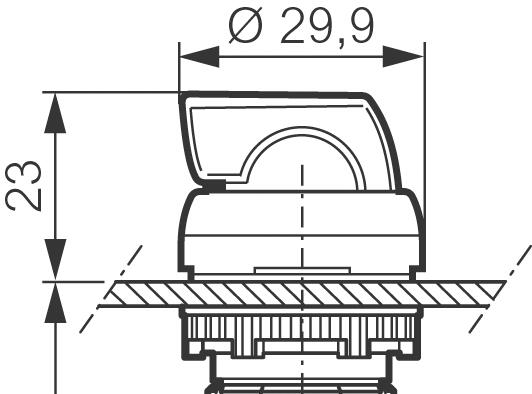

Measurements and connections

Product description

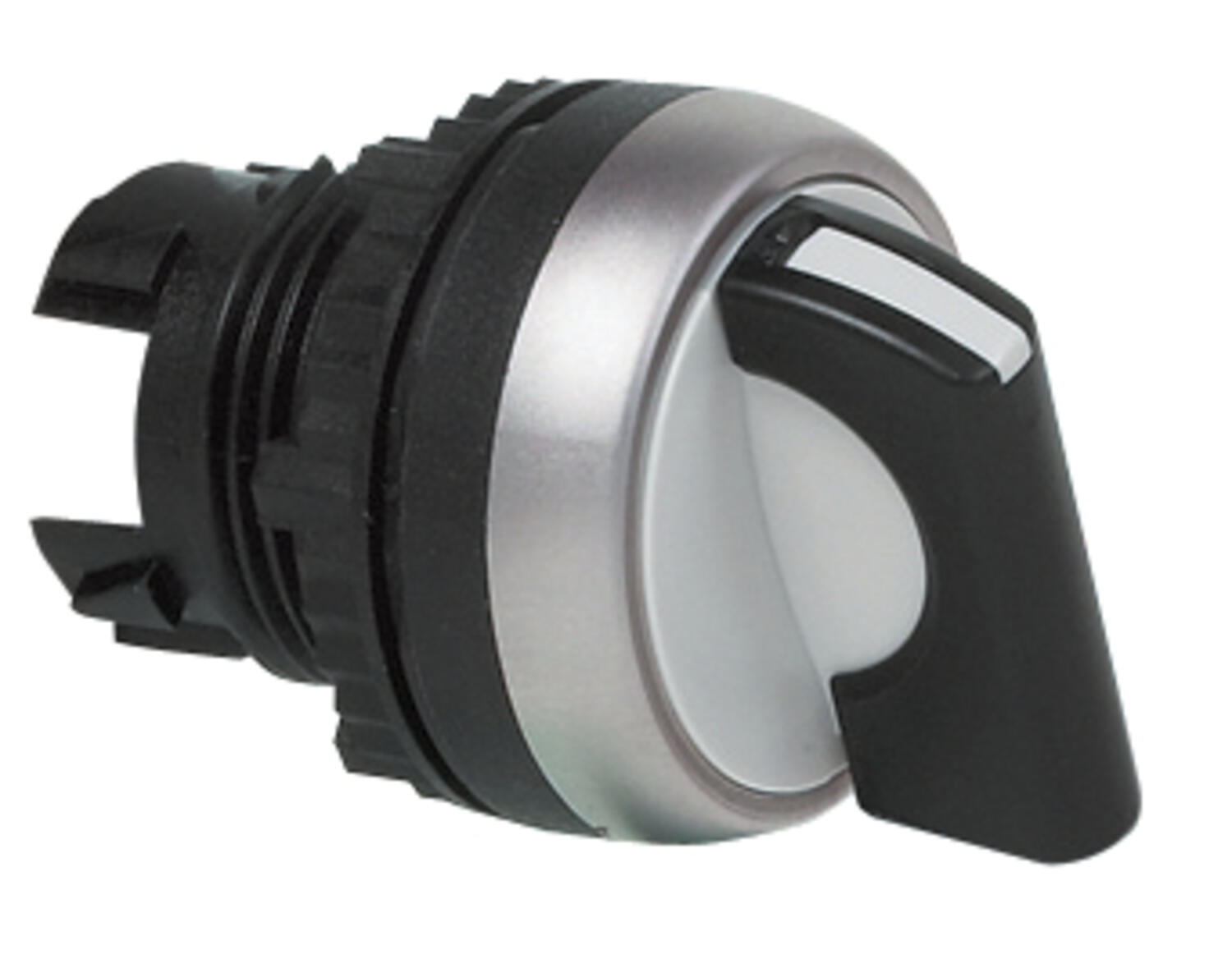

Non illuminated selector switch head with a short lever handle that mount in a 22.5mm hole with protection rating IP66 / IP69K

Combine with separate clip and contact blocks to make complete switch assembly.

Standard body colour is grey with a black lever but also available with red, green & grey lever please enquire for more details.

Available in 2 or 3 position, latching or spring return in various switching angles.

Supplied with a matt chrome bezel as standard.

For black plastic bezel change the part number from L21xxxx to L22xxxx.

Accessories

Related products

Related

Contaclip PRK terminal blocks

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

	Parts	Angle	Function	Positions	Price
	Selector Handle 2 Position Stable 45° Black Art: L21KA03 Copied	45°	Stable	2
	Selector Handle 2 Position Spring Return 45° Black Art: L21KB03 Copied	45°	Spring return	2
	Selector Handle 2 Position Stable 45° Black Art: L21KC03 Copied	45°	Stable	2
	Selector Handle 2 Position Spring Return 45° Black Art: L21KD03 Copied	45°	Spring return	2
	Selector Handle 2 Position Stable 90° Black Art: L21KE03 Copied	90°	Stable	2
	Selector Handle 2 Position Stable 90° Black Art: L21KF03 Copied	90°	Stable	2
	Selector Handle 3 Position Stable 45° Black Art: L21MA03 Copied	45°	Stable	3
	Selector Handle 3 Position Spring Return 45° Black Art: L21MB03 Copied	45°	Spring return	3
	Selector Handle 3 Position Spring Return 45° Black Art: L21MC03 Copied	45°	Spring return	3
	Selector Handle 3 Position Spring Return 45° Black Art: L21MD03 Copied	45°	Spring return	3
	Selector Handle 3 Position Stable 90° Black Art: L21MK03 Copied	90°	Stable	3
