BACO

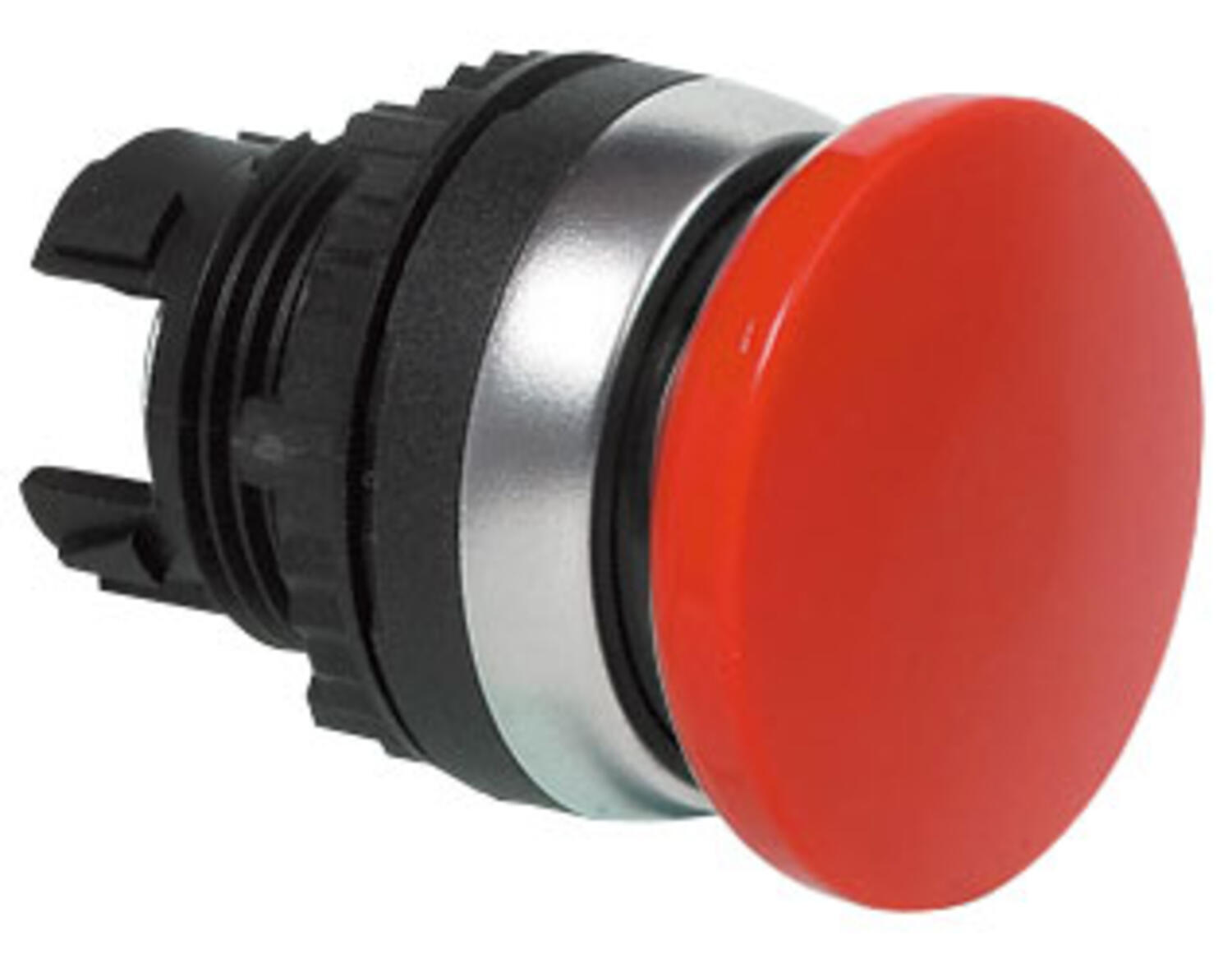

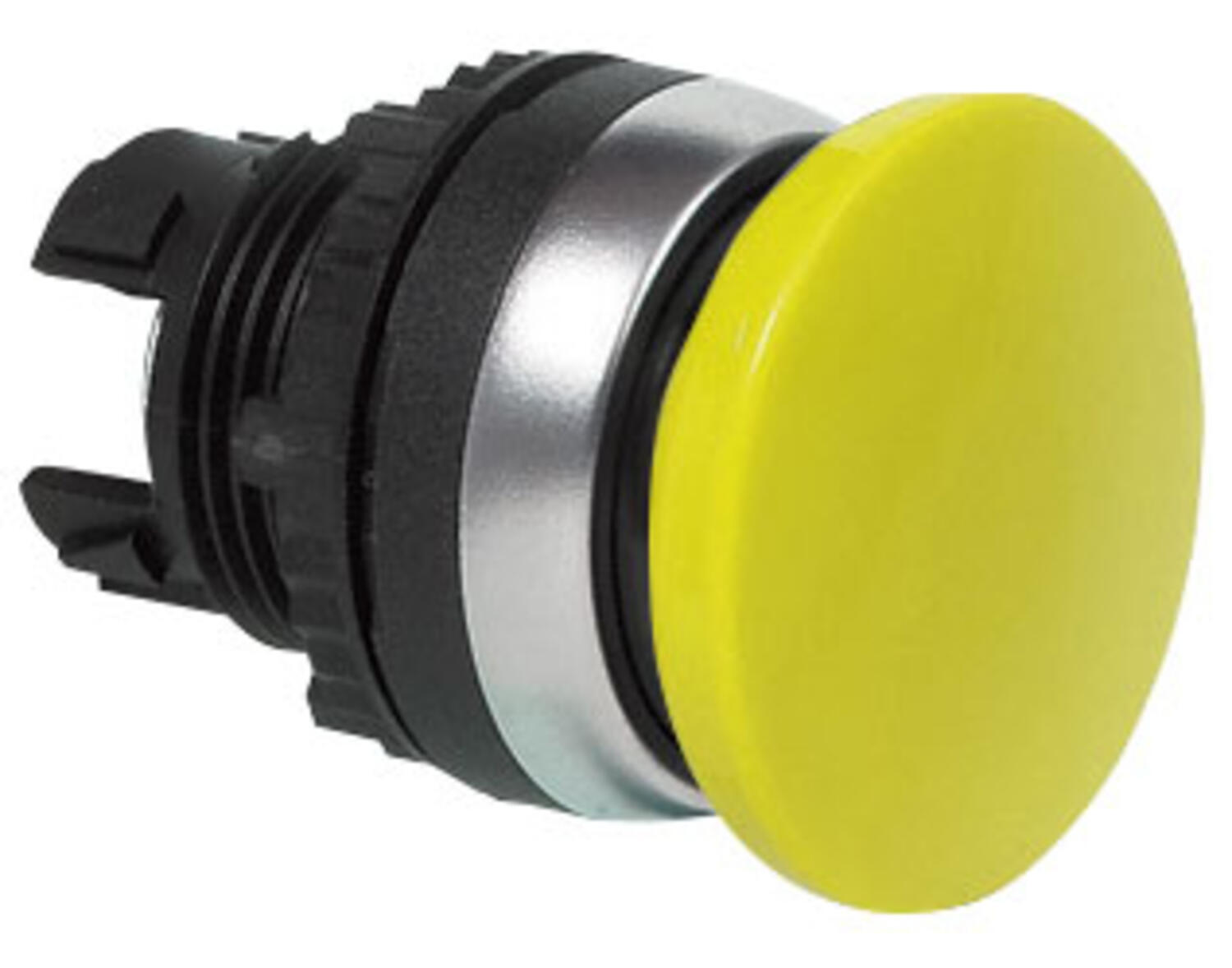

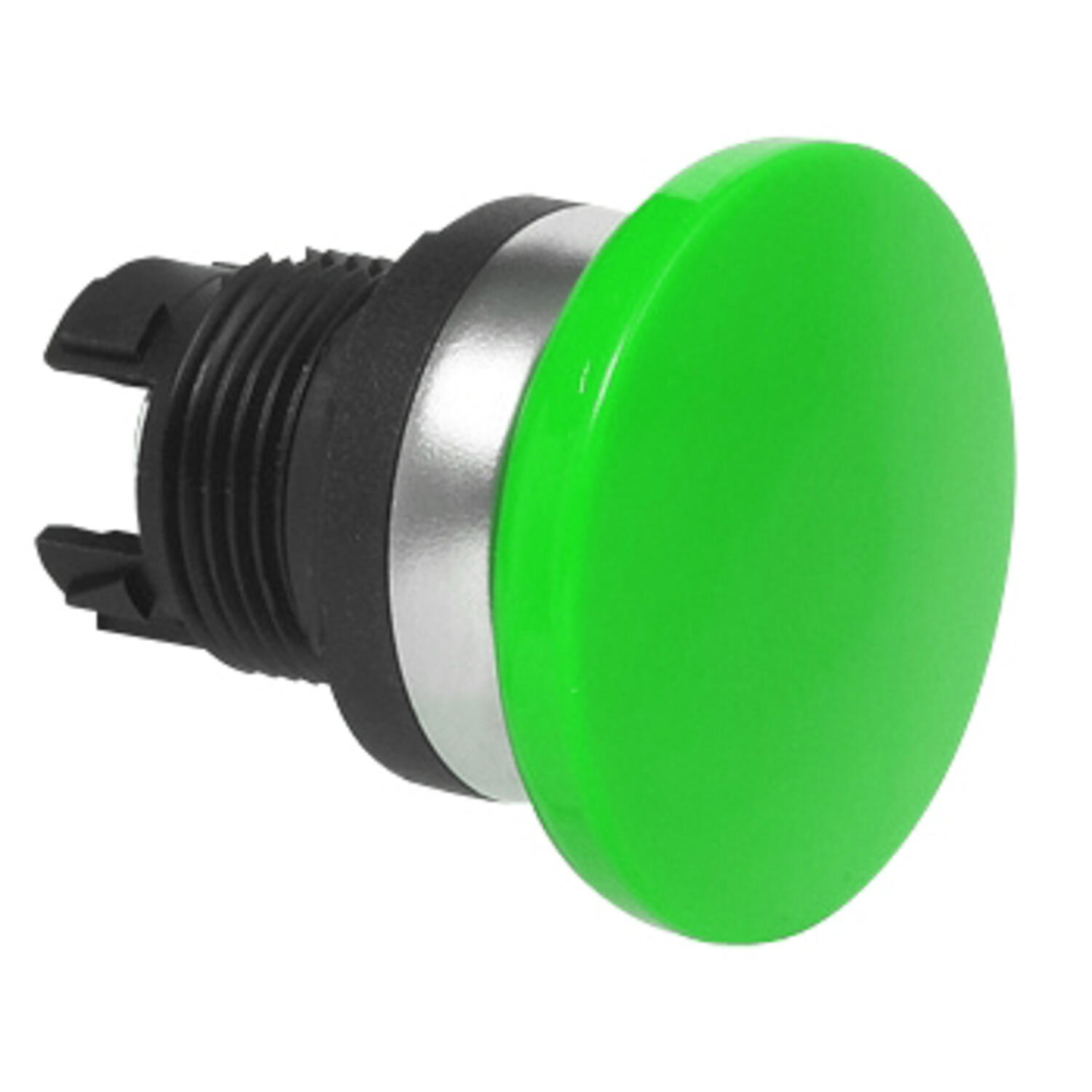

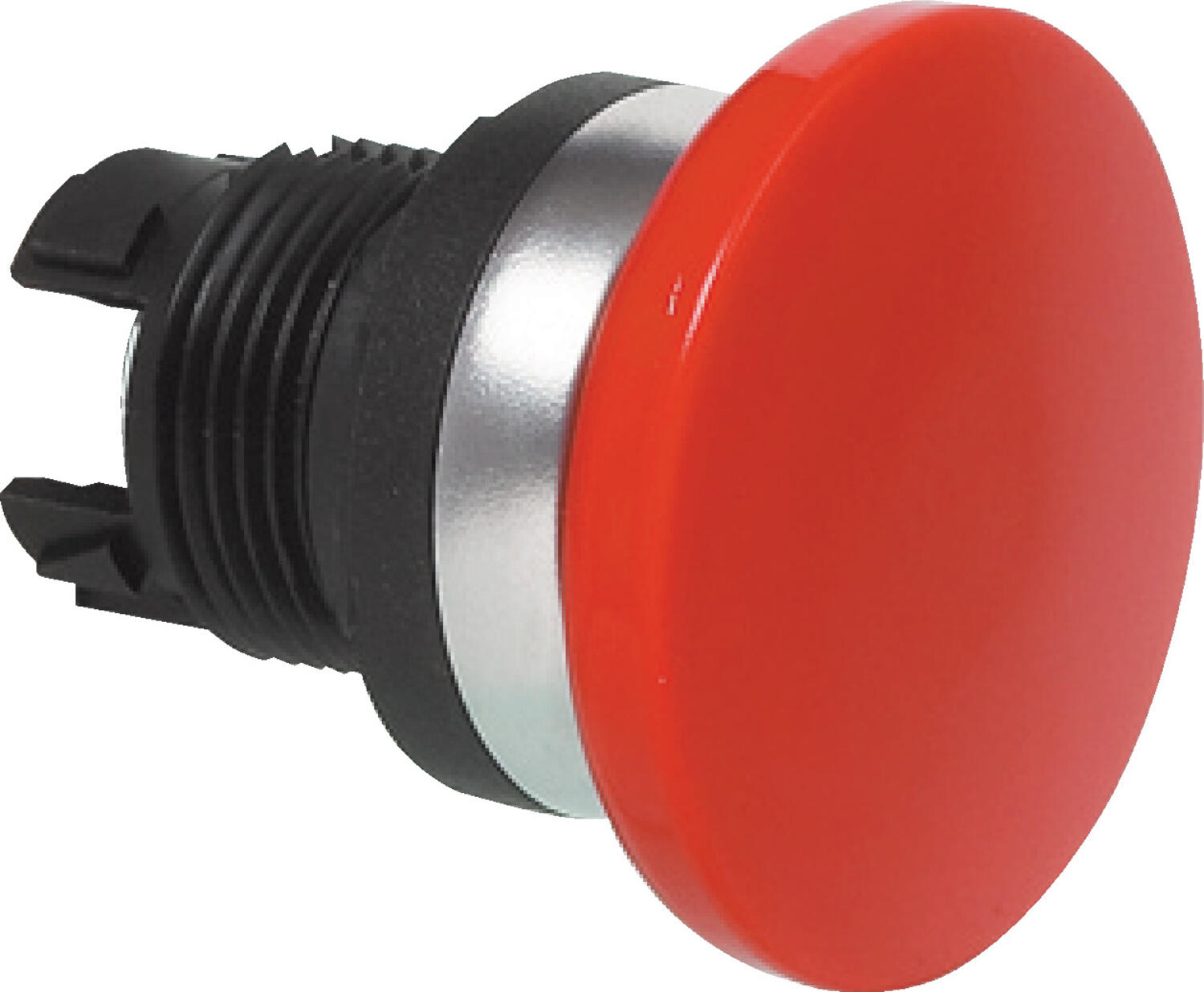

Non Illuminated Mushroom
Mushroom Head
Spring return (non latching) mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Â

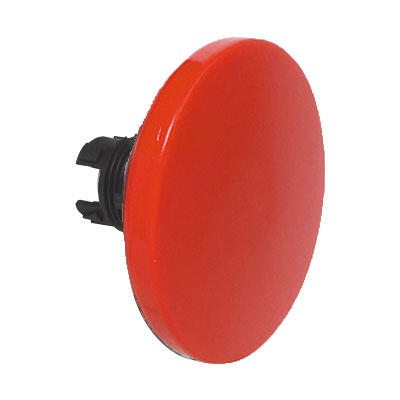

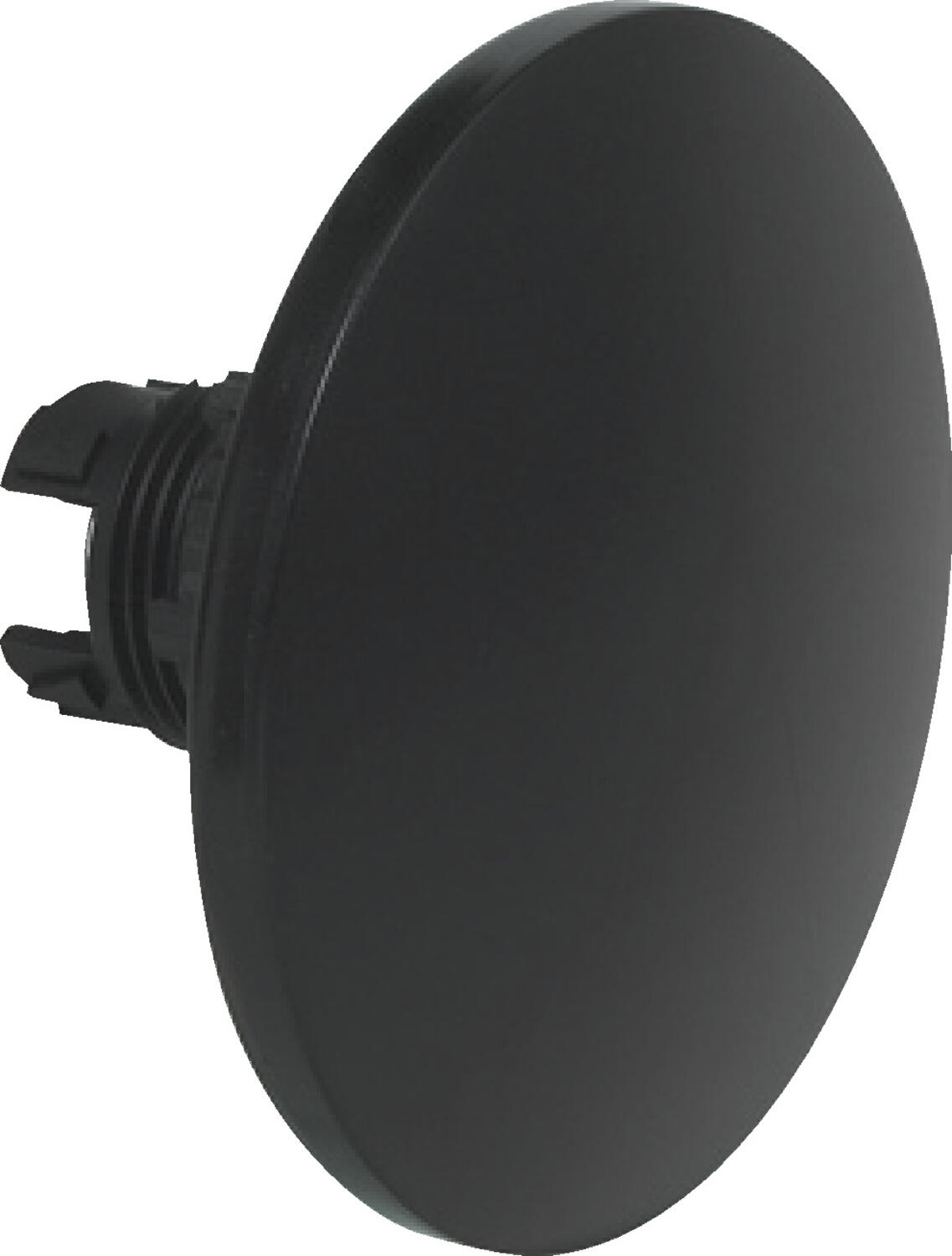

Ideal for applications where repetitive activation is required to help avoid stress or fatigue to the operator. The 40mm heads are well matched to the base of a closed fist and the 70mm heads the flat palm of a hand.
Â
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Supplied with a matt chrome bezel as standard.

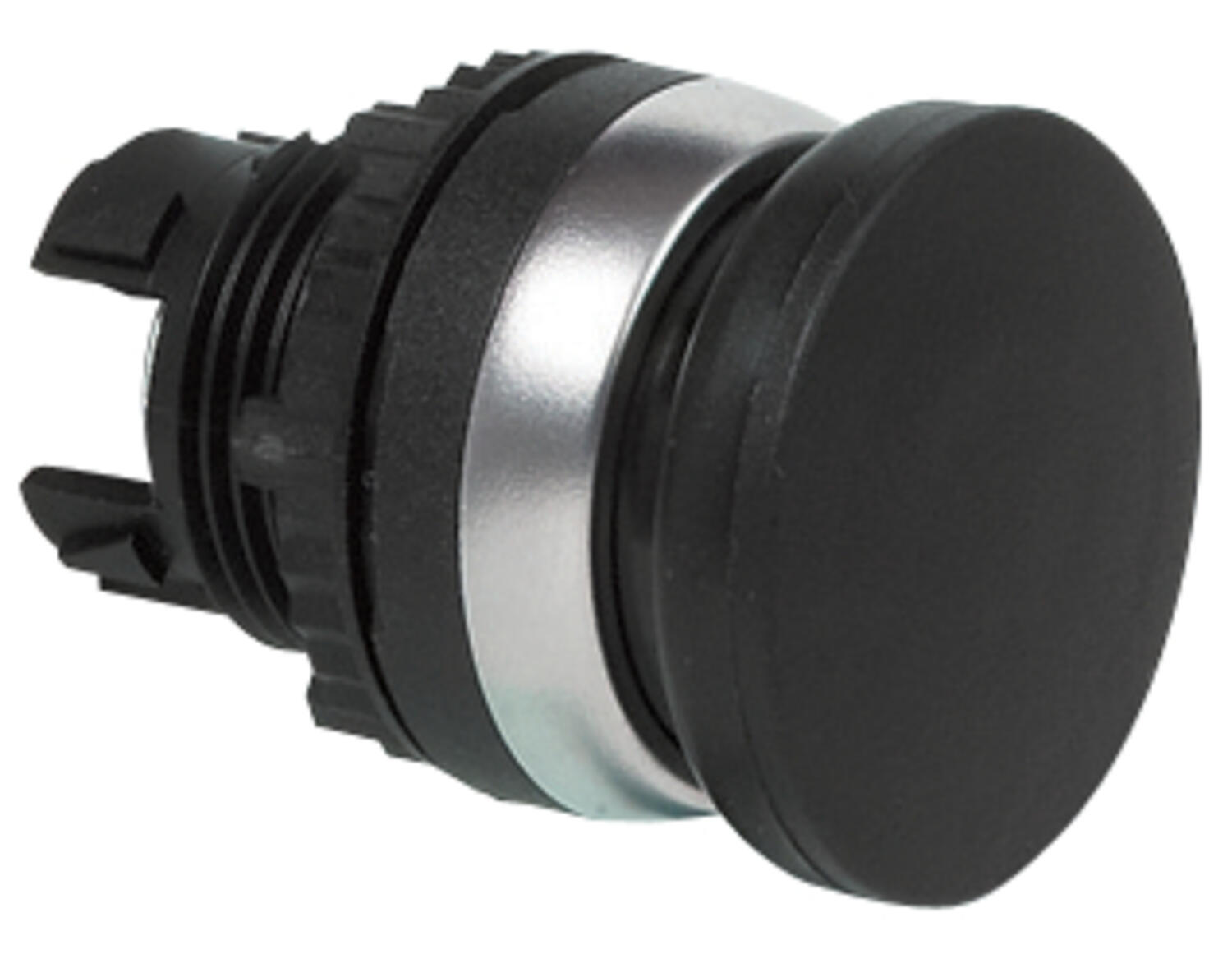

For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
- IP66 / IP69K
- Non latching spring return
- Diameter 32mm, 40mm & 70mm heads
Selected variant
Technical data
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Red |
| Function | Spring return |
| Illuminated | No |
| Impact resistance | IK05 |
| IP class | IP66, IP69, IP69K |
| Mechanical life expectancy | 5 000 000 cycles |
| Protection class | II (double insulated) |
|---|---|
| Recommended tightening torque | 3 |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |

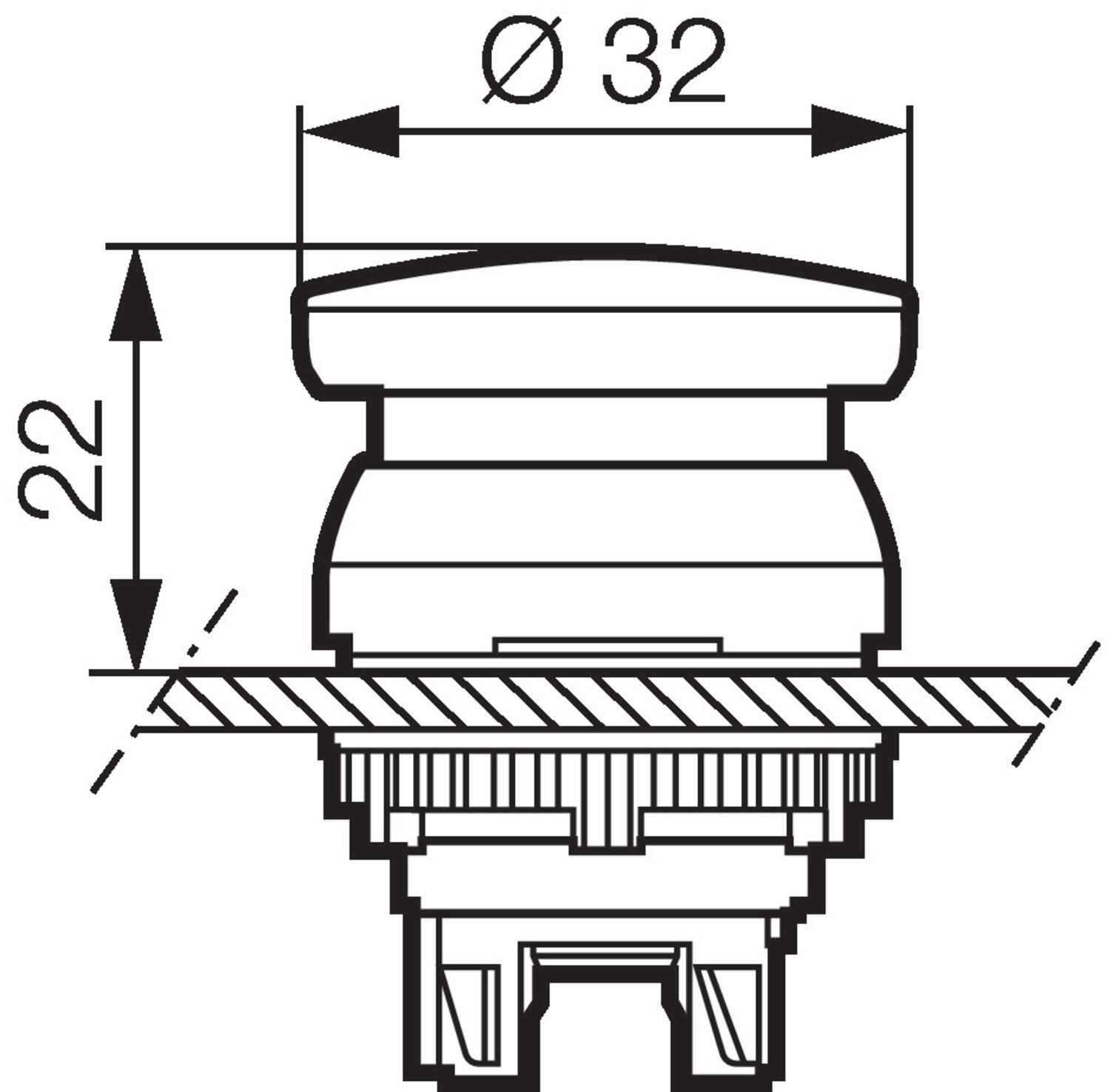

| Type | Mushroom ø32mm |
| Weight | 18.8 g |
Product description
Spring return (non latching) mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Â
Ideal for applications where repetitive activation is required to help avoid stress or fatigue to the operator. The 40mm heads are well matched to the base of a closed fist and the 70mm heads the flat palm of a hand.
Â
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
