BACO

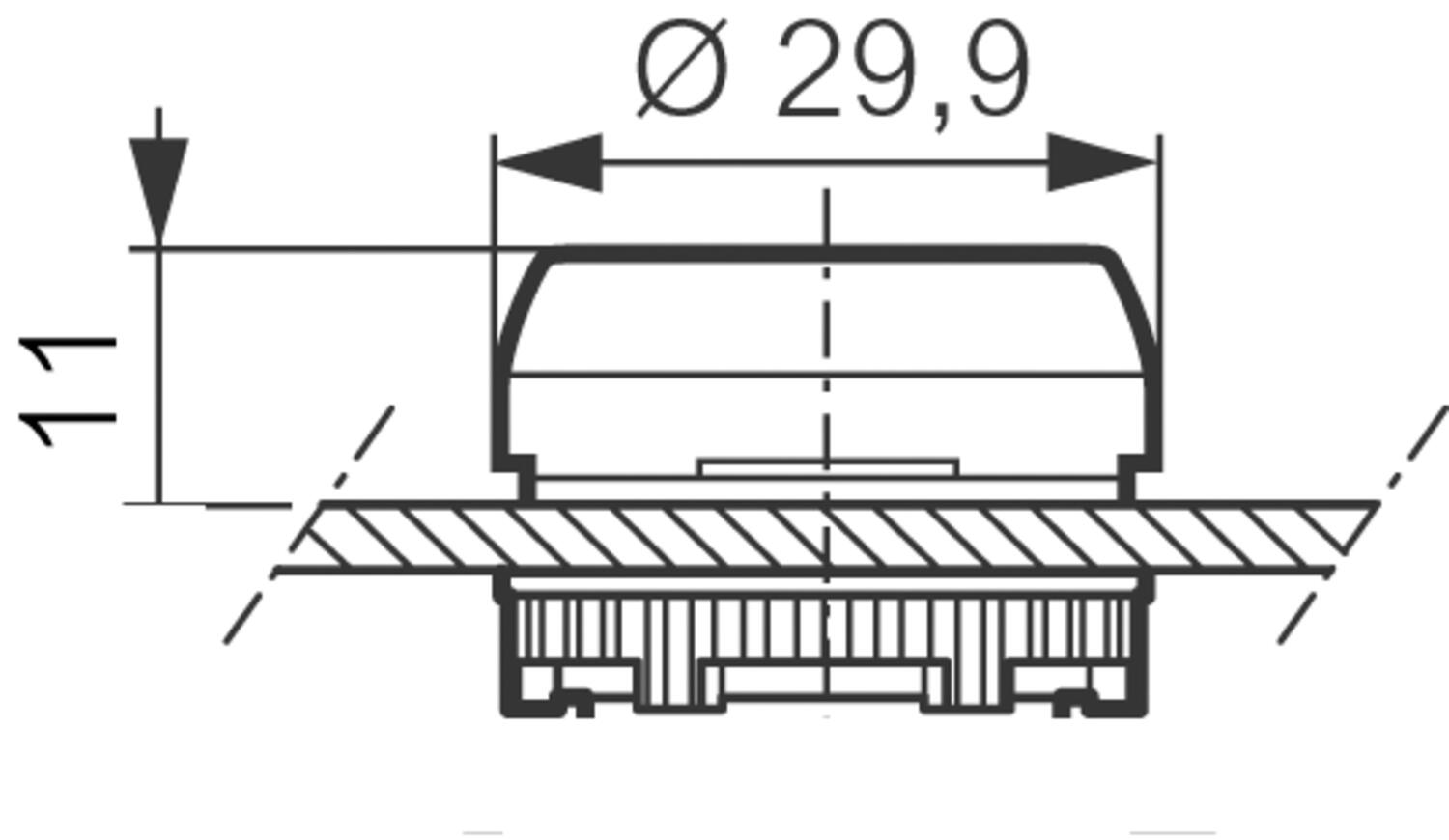

Standard flush pushbutton heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Available in multiple colours in spring return or latching.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
Approvals | UL 508, CSA 22.2, BV, CB, CE |
---|---|
Climatic resistance - constant humid heat | IEC 60068-2-3 |
Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
Climatic resistance - sea air | IEC 60068-2-52 |
Colour | Red |
Function | Spring return |
Illuminated | No |
Impact resistance | IK05 |
IP class | IP66, IP69, IP69K |
Mechanical life expectancy | 5 000 000 cycles |
Protection class | II (double insulated) |
---|---|
Recommended tightening torque | 3 |
Storage temperature max | 70 °C |
Storage temperature min | -40 °C |
Temperature operational max | 70 °C |
Temperature operational min | -25 °C |
Type | Flush pushbutton |
Weight | 15.8 g |
Standard flush pushbutton heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Combine with separate clip and contact blocks to make complete pushbutton assembly.
Available in multiple colours in spring return or latching.
Supplied with a matt chrome bezel as standard.
For black plastic bezel change the part number from L21xxxx to L22xxxx.
Optional text or symbol can be added please enquire for more details.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Approvals | Colour | Function | Lens colour | Mechanical life expectancy | Price | ||
---|---|---|---|---|---|---|---|---|
![]()

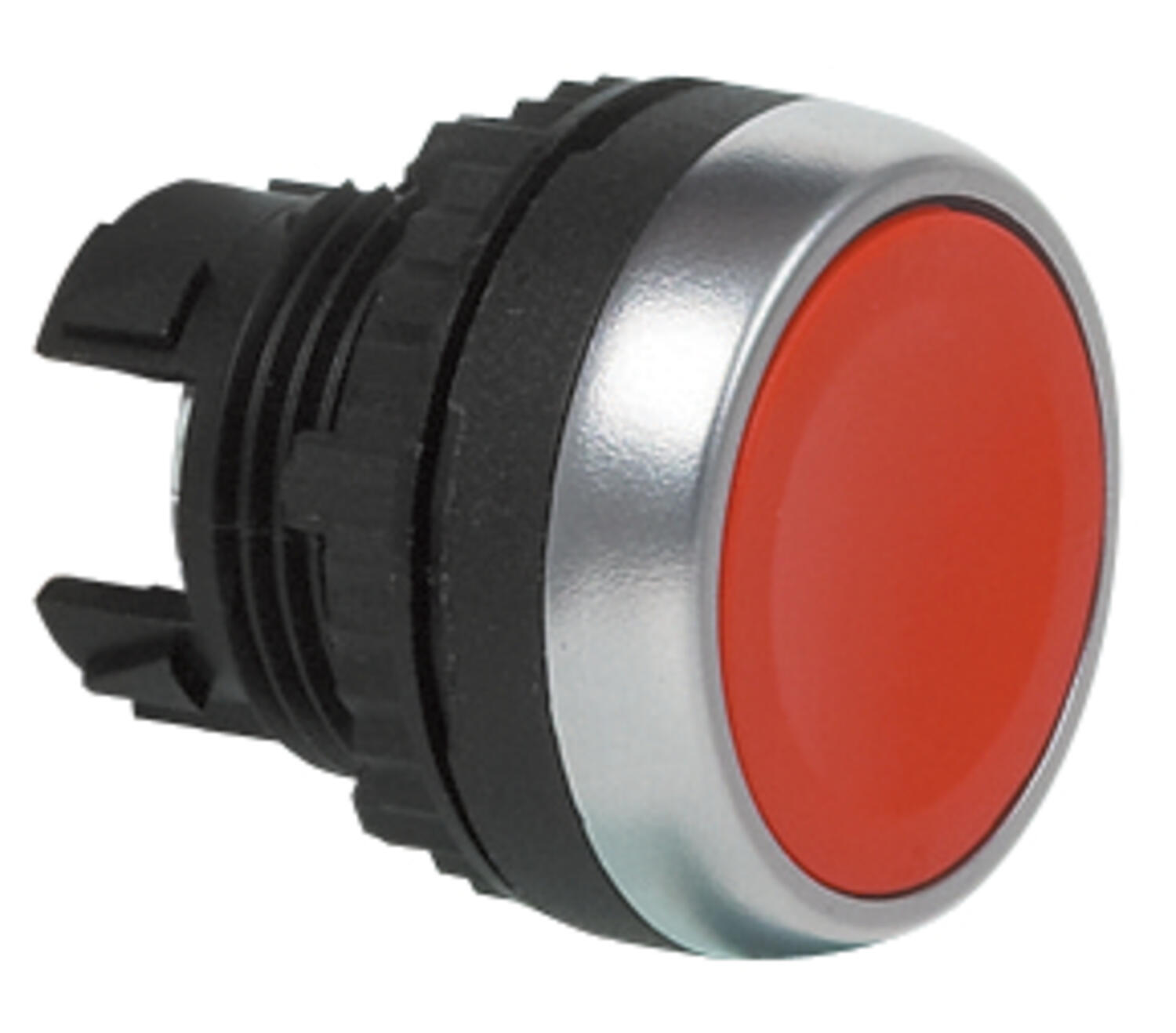

Pushbutton Flush Spring Return Red
Art:
L21AA01
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Red
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()

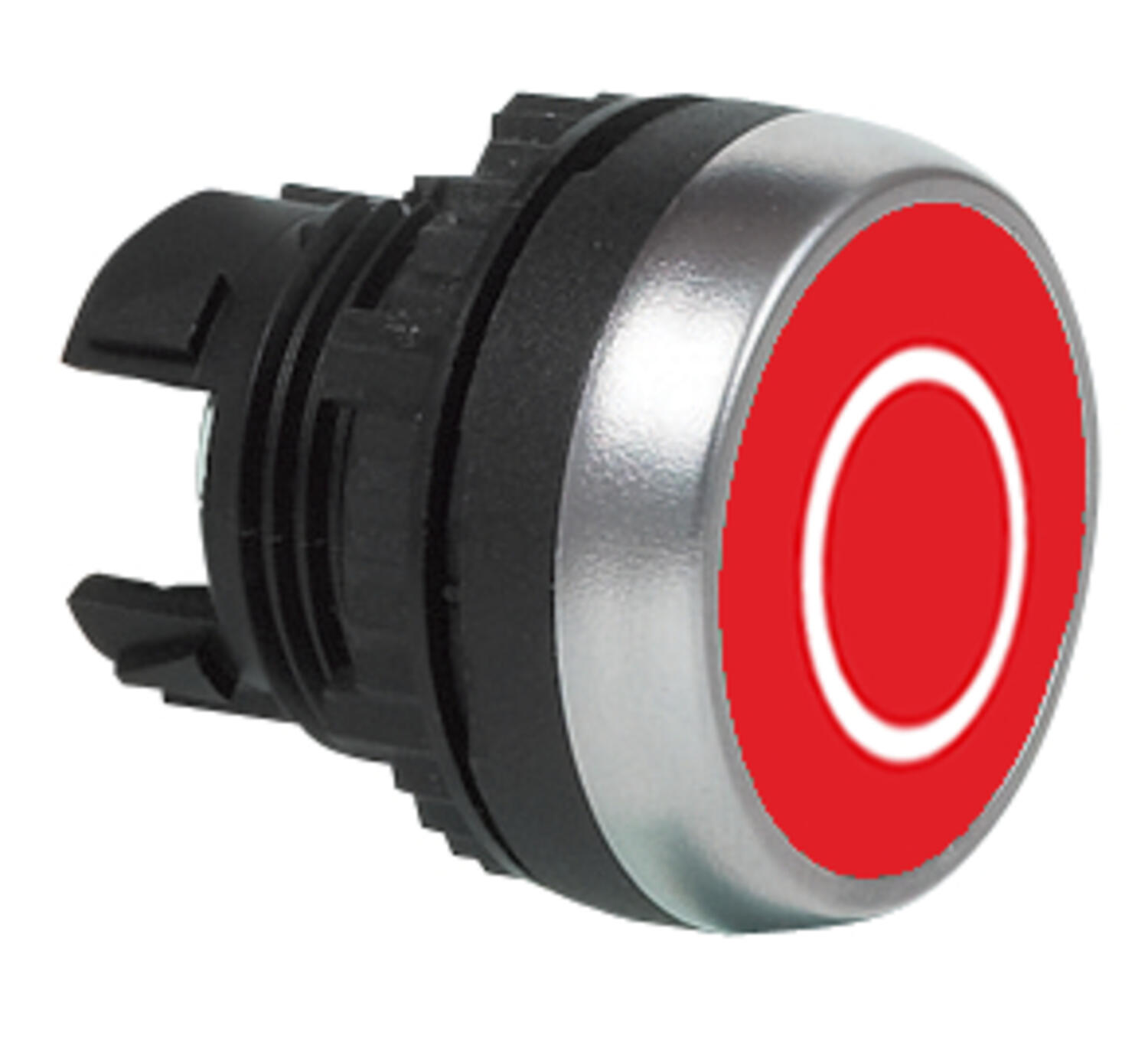

Pushbutton Flush Spring Return Red "O"
Art:
L21AA81
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Red
|
Spring return
|
Red
|
5 000 000 cycles
|
| ||
![]()

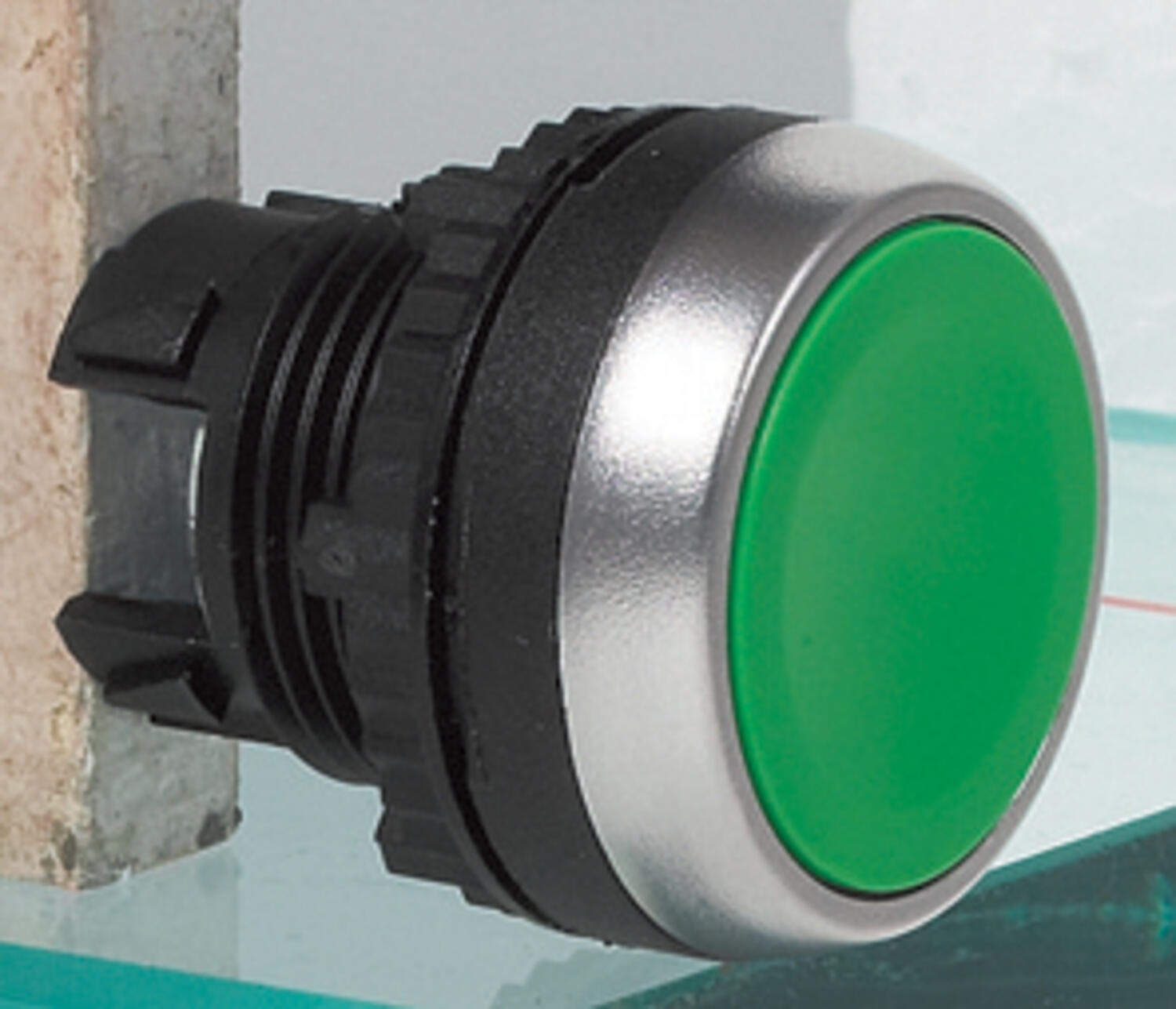

Pushbutton Flush Spring Return Green
Art:
L21AA02
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Green
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()
Pushbutton Flush Spring Return Green "I"
Art:
L21AA82
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Green
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()
Pushbutton Flush Spring Return Black
Art:
L21AA03
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Black
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()

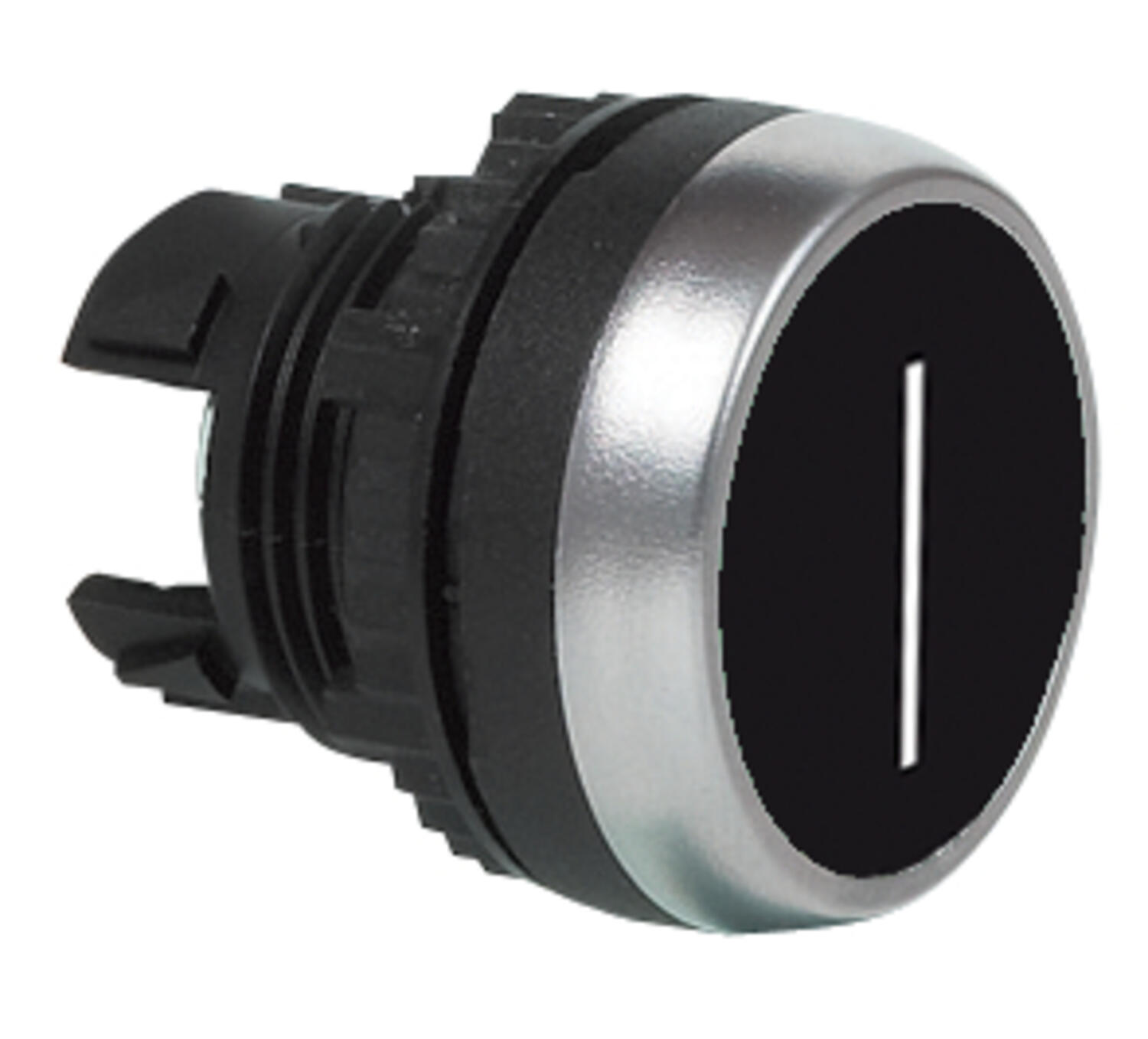

Pushbutton Flush Spring Return Black "I"
Art:
L21AA83
Copied
|
BV, CB, CE, CSA 22.2, UL 508
|
Black
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()

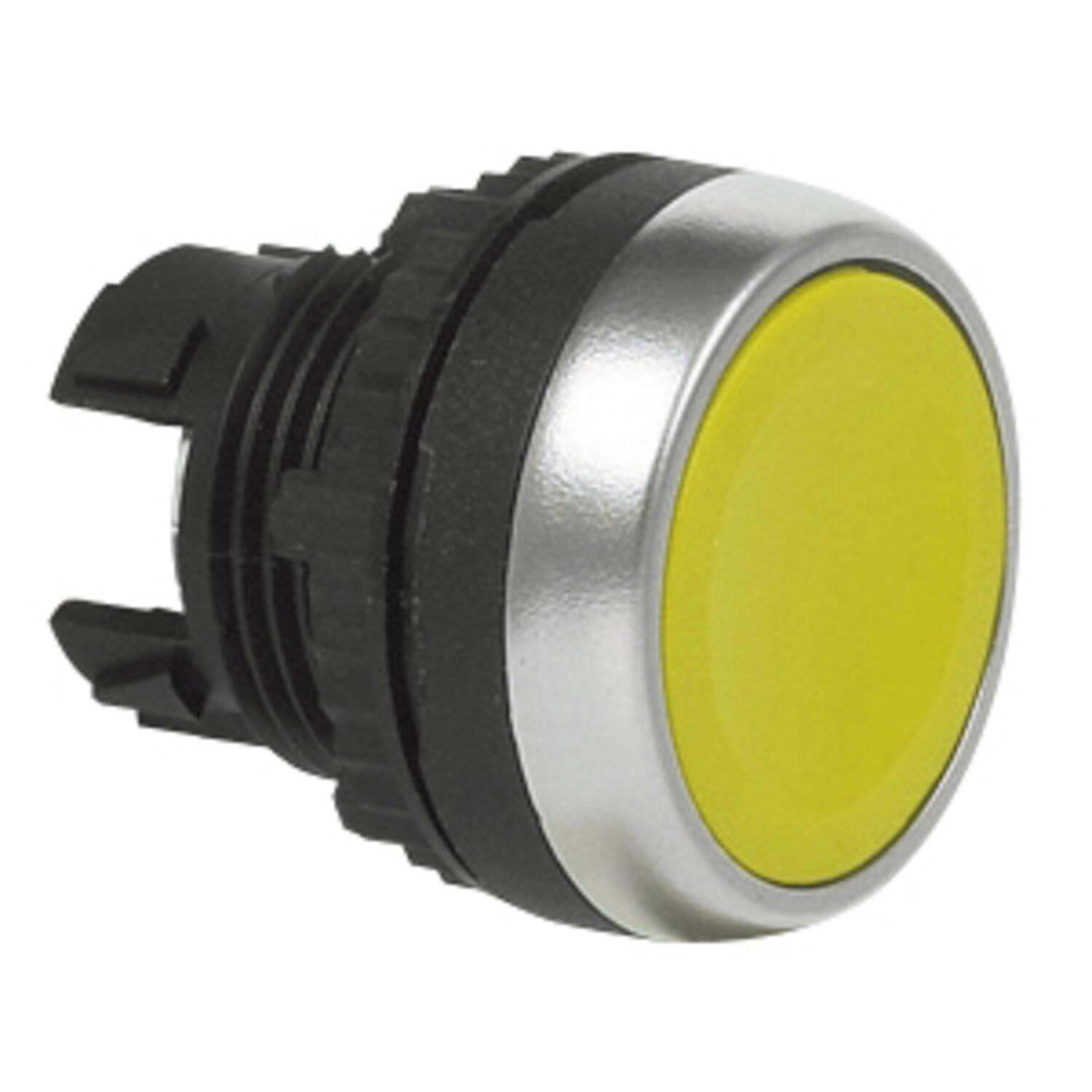

Pushbutton Flush Spring Return Yellow
Art:
L21AA04
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Yellow
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()

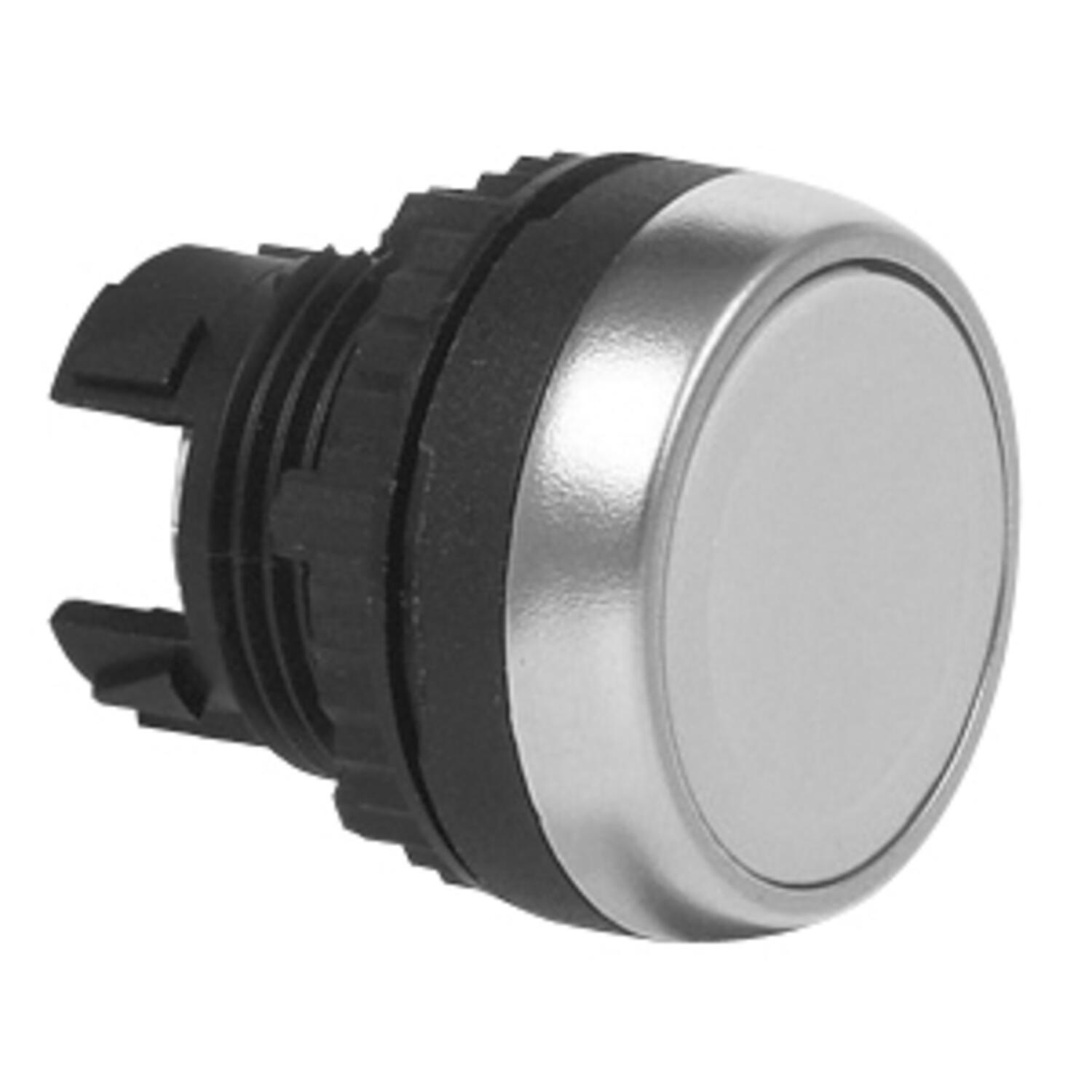

Pushbutton Flush Spring Return White
Art:
L21AA05
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
White
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()

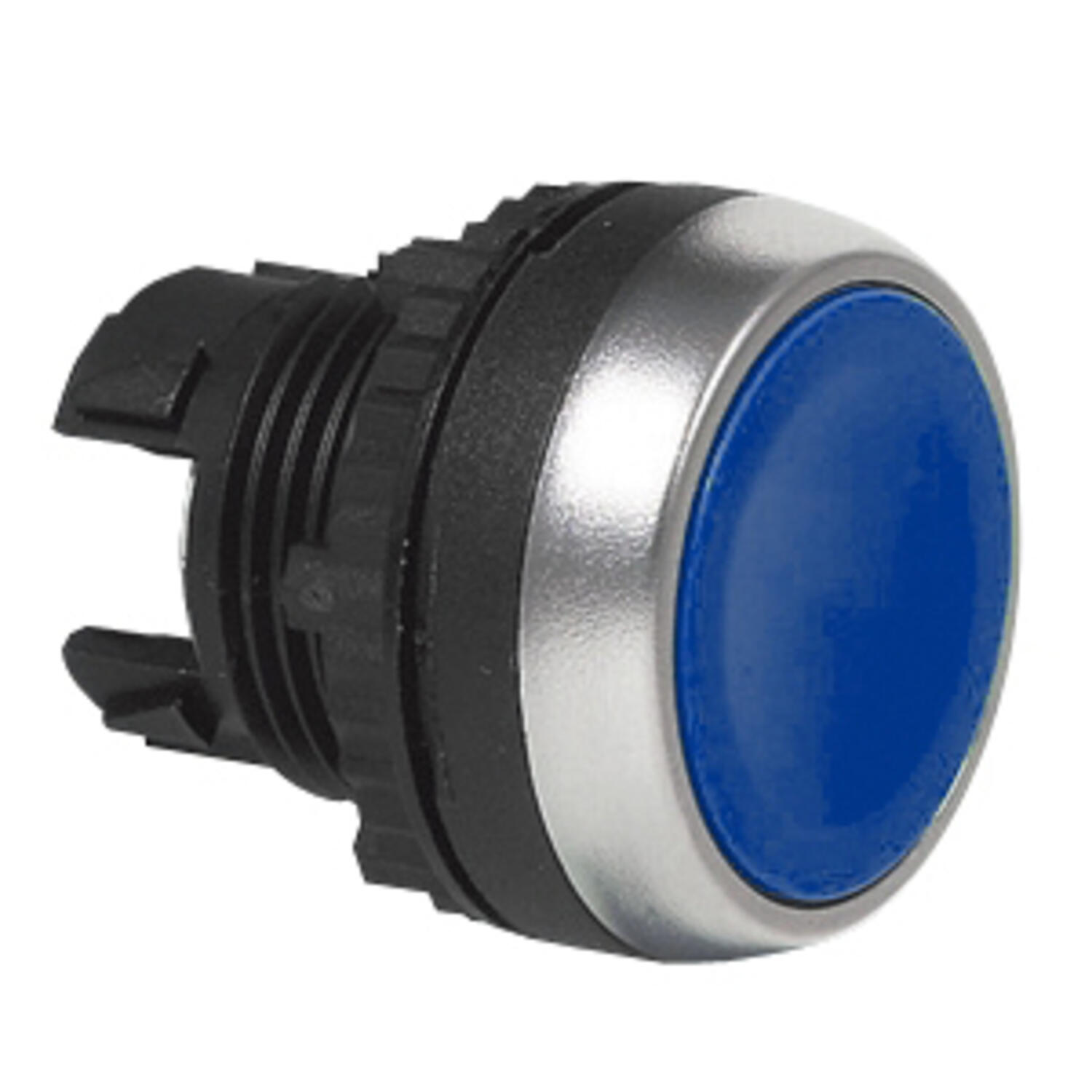

Pushbutton Flush Spring Return Blue
Art:
L21AA06
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Blue
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()

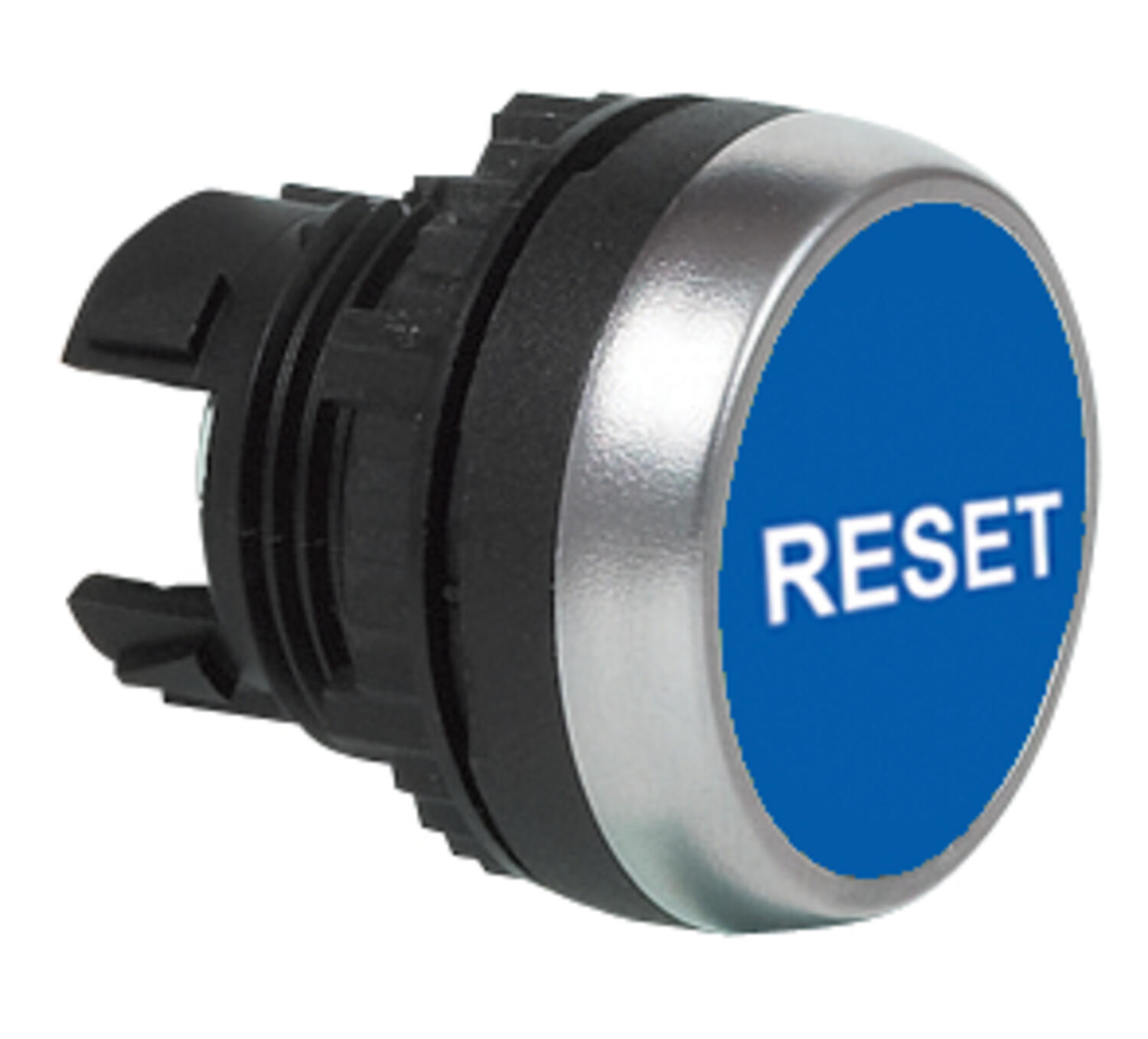

Pushbutton Flush Spring Return Blue "RESET"
Art:
L21AA36315
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Blue
|
Spring return
|
|
5 000 000 cycles
|
| ||
![]()
Pushbutton Flush Latching Red
Art:
L21CA01
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Red
|
Latching
|
Red
|
500 000 cycles
|
| ||
![]()
Pushbutton Flush Latching Green
Art:
L21CA02
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Green
|
Latching
|
|
500 000 cycles
|
| ||
![]()
Pushbutton Flush Latching Black
Art:
L21CA03
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Black
|
Latching
|
|
500 000 cycles
|
| ||
![]()
Pushbutton Flush Latching Yellow
Art:
L21CA04
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Yellow
|
Latching
|
|
500 000 cycles
|
| ||
![]()
Pushbutton Flush Latching White
Art:
L21CA05
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
White
|
Latching
|
|
500 000 cycles
|
| ||
![]()
Pushbutton Flush Latching Blue
Art:
L21CA06
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Blue
|
Latching
|
|
500 000 cycles
|
| ||
![]()

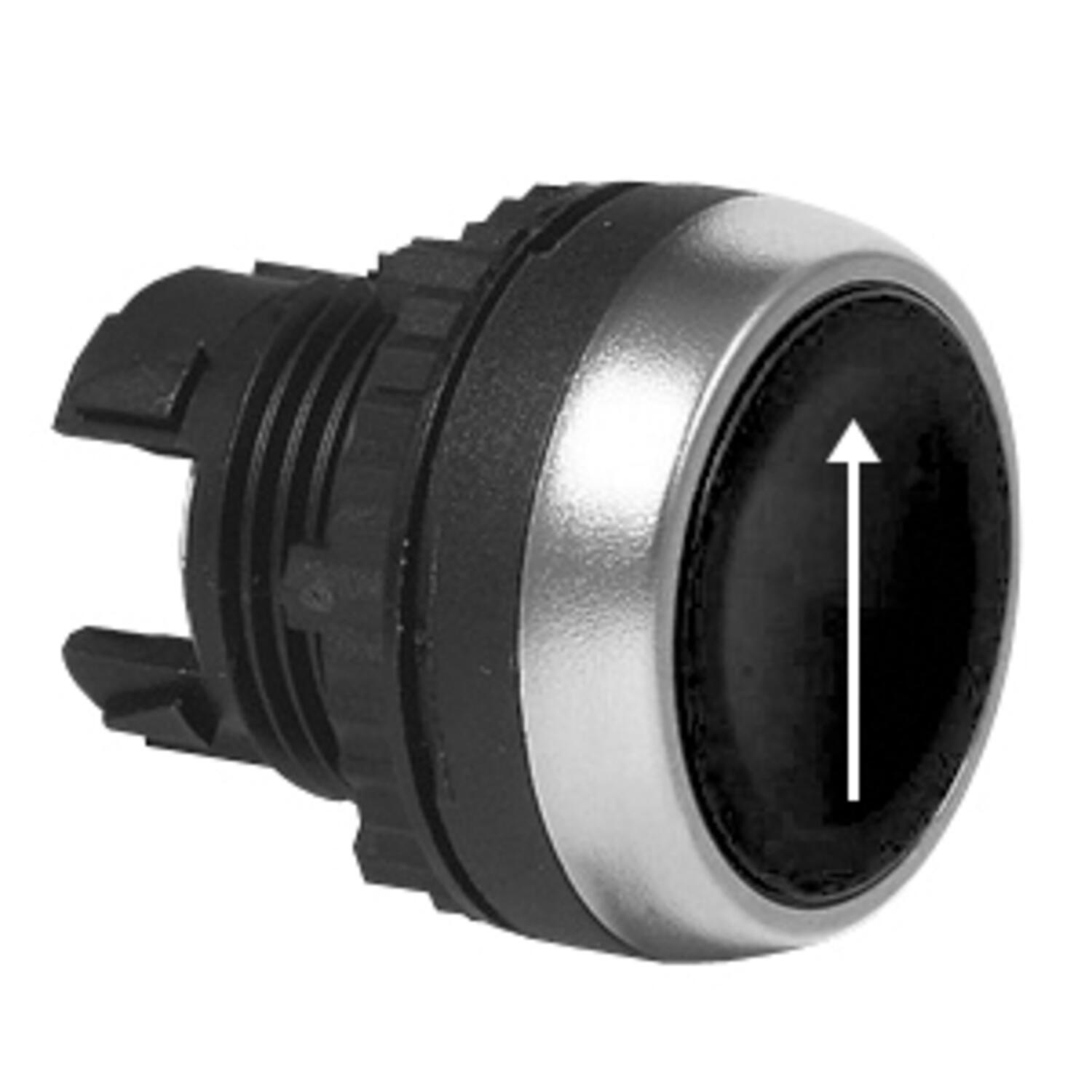

Pushbutton Flush Spring Return Black Arrow Up
Art:
L21AA33E01
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Black
|
Spring return
|
|
|
| ||
![]()
Pushbutton Flush Spring Return Black Arrow Down
Art:
L21AA33F01
Copied
|
UL 508, CSA 22.2, BV, CB, CE
|
Black
|
Spring return
|
|
5 000 000 cycles
|
|
Select a variant in the list
