BACO
Non illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Â
Available in head sizes Ø32mm & Ø40mm with reset options of pull, turn & key release.
Â
Combine with separate clip and contact blocks to make a complete mushroom head assembly.
Approvals | UL 508, CSA 22.2, BV, CB, CE |
---|---|
Climatic resistance - constant humid heat | IEC 60068-2-3 |
Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
Climatic resistance - sea air | IEC 60068-2-52 |
Colour | Red |
Function | Turn to reset |
Illuminated | No |
Impact resistance | IK05 |
IP class | IP66, IP69, IP69K |
Mechanical life expectancy | 150 000 cycles |
---|---|
Recommended tightening torque | 3 |
Storage temperature max | 70 °C |
Storage temperature min | -40 °C |
Temperature operational max | 70 °C |
Temperature operational min | -25 °C |

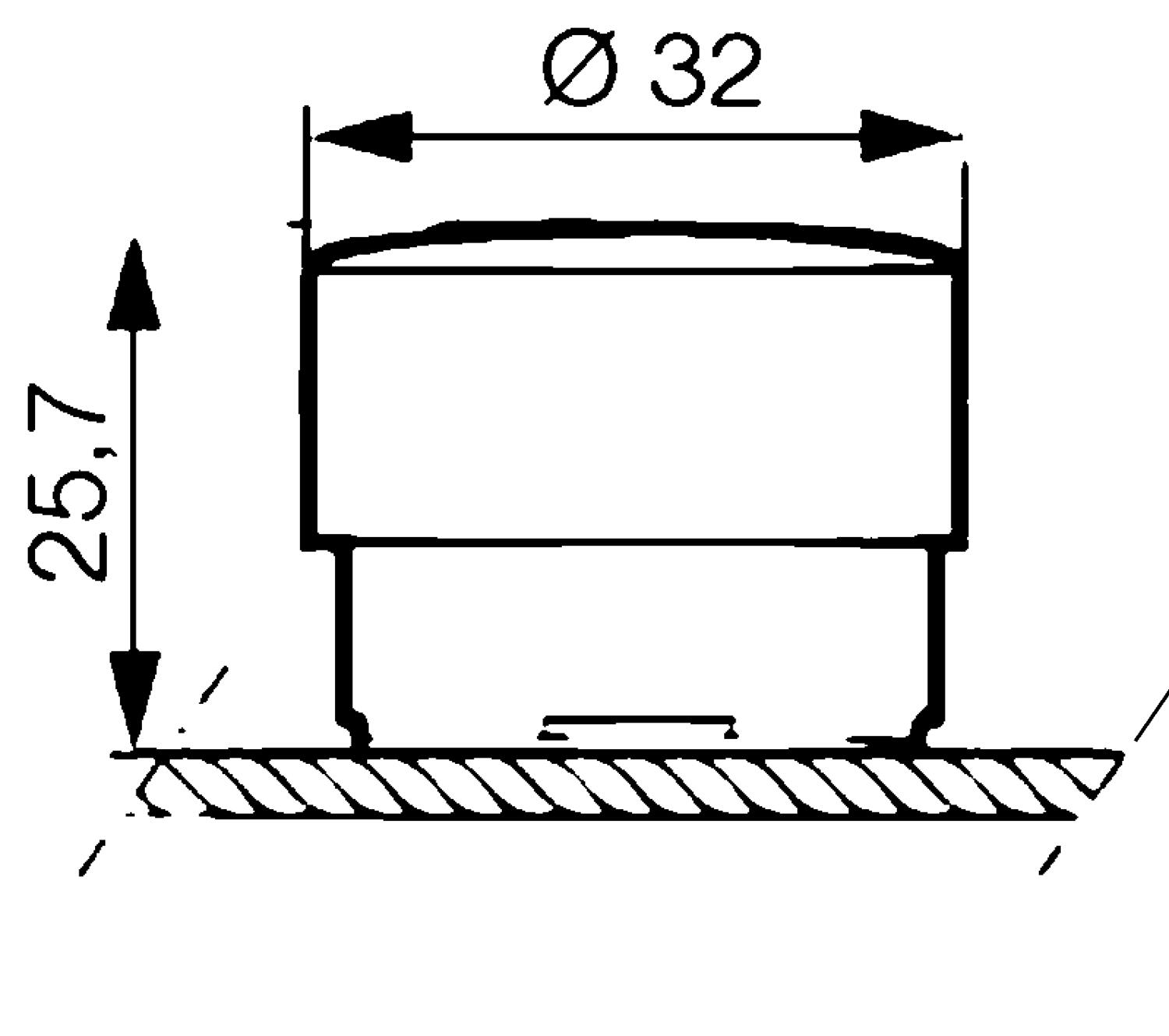

Type | Mushroom ø32mm |
Non illuminated, latching mushroom heads that mount in a 22.5mm hole with protection rating IP66 / IP69K
Â
Available in head sizes Ø32mm & Ø40mm with reset options of pull, turn & key release.
Â
Combine with separate clip and contact blocks to make a complete mushroom head assembly.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Colour | Function | Type | Price | ||
---|---|---|---|---|---|---|
![]()

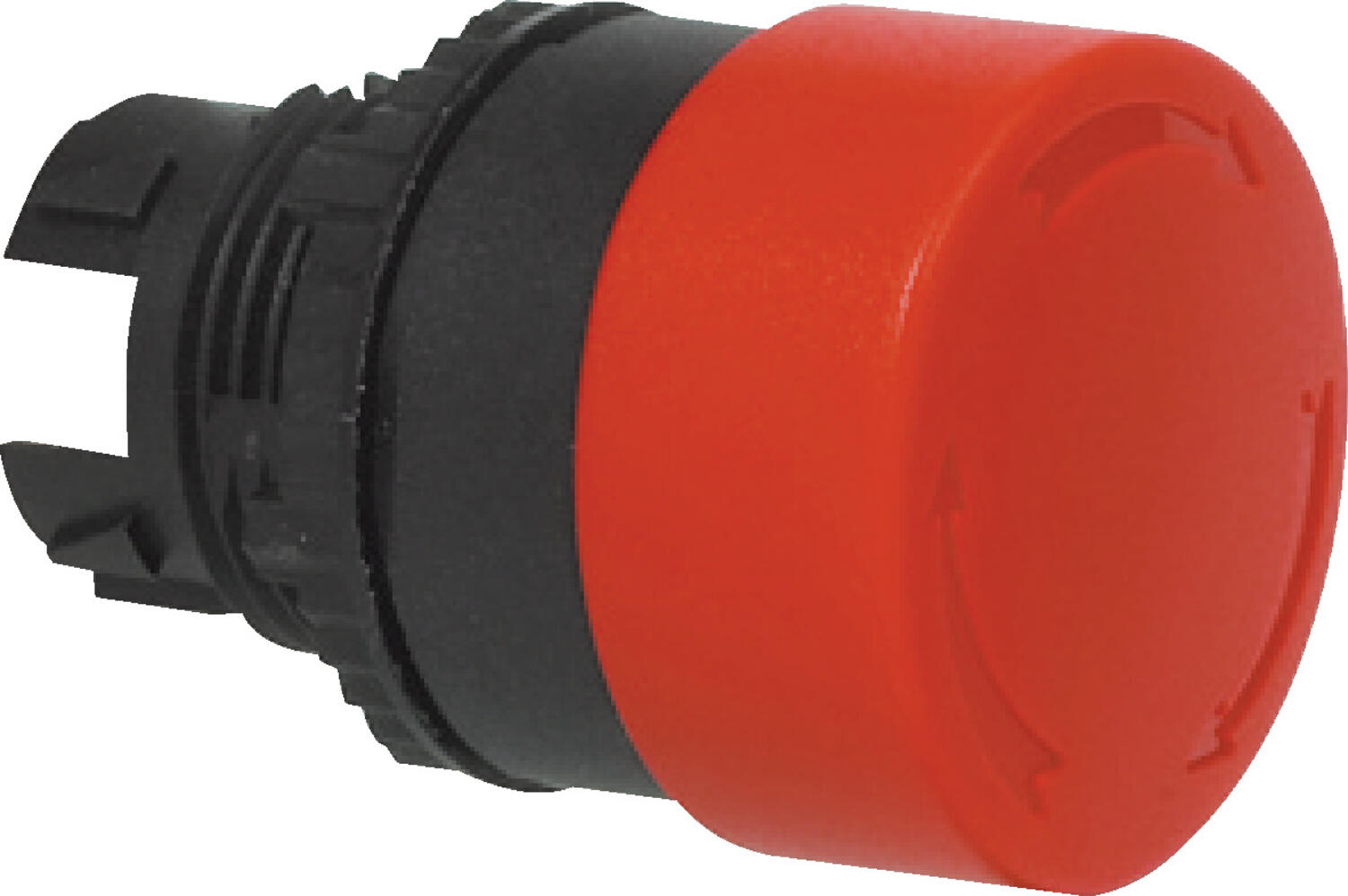

Mushroom Head Dia. 32mm Turn Reset Red
Art:
L22EC01
Copied
|
Red
|
Turn to reset
|
Mushroom ø32mm
|
| ||
![]()

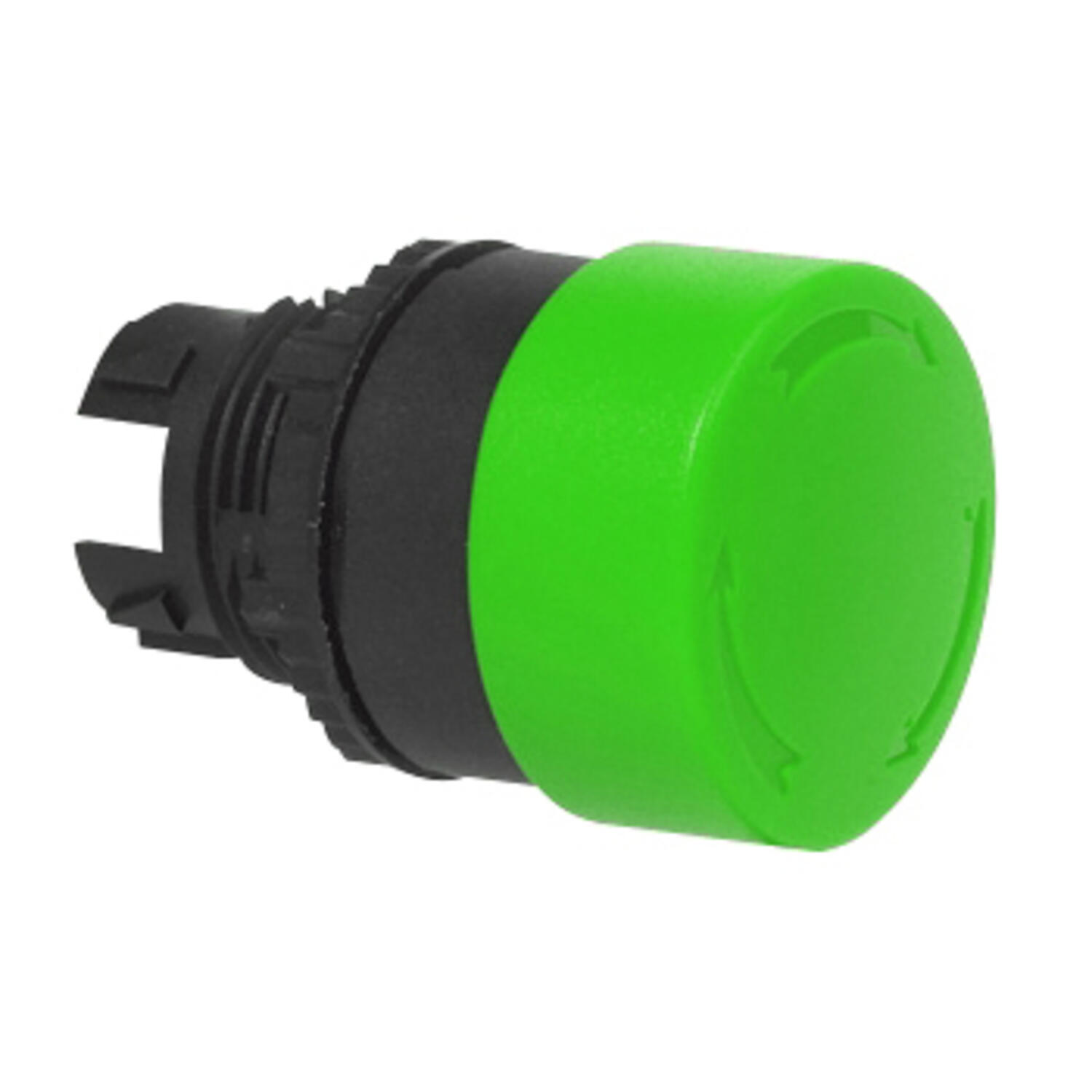

Mushroom Head Dia. 32mm Turn Reset Green
Art:
L22EC02
Copied
|
Green
|
Turn to reset
|
Mushroom ø32mm
|
| ||
![]()

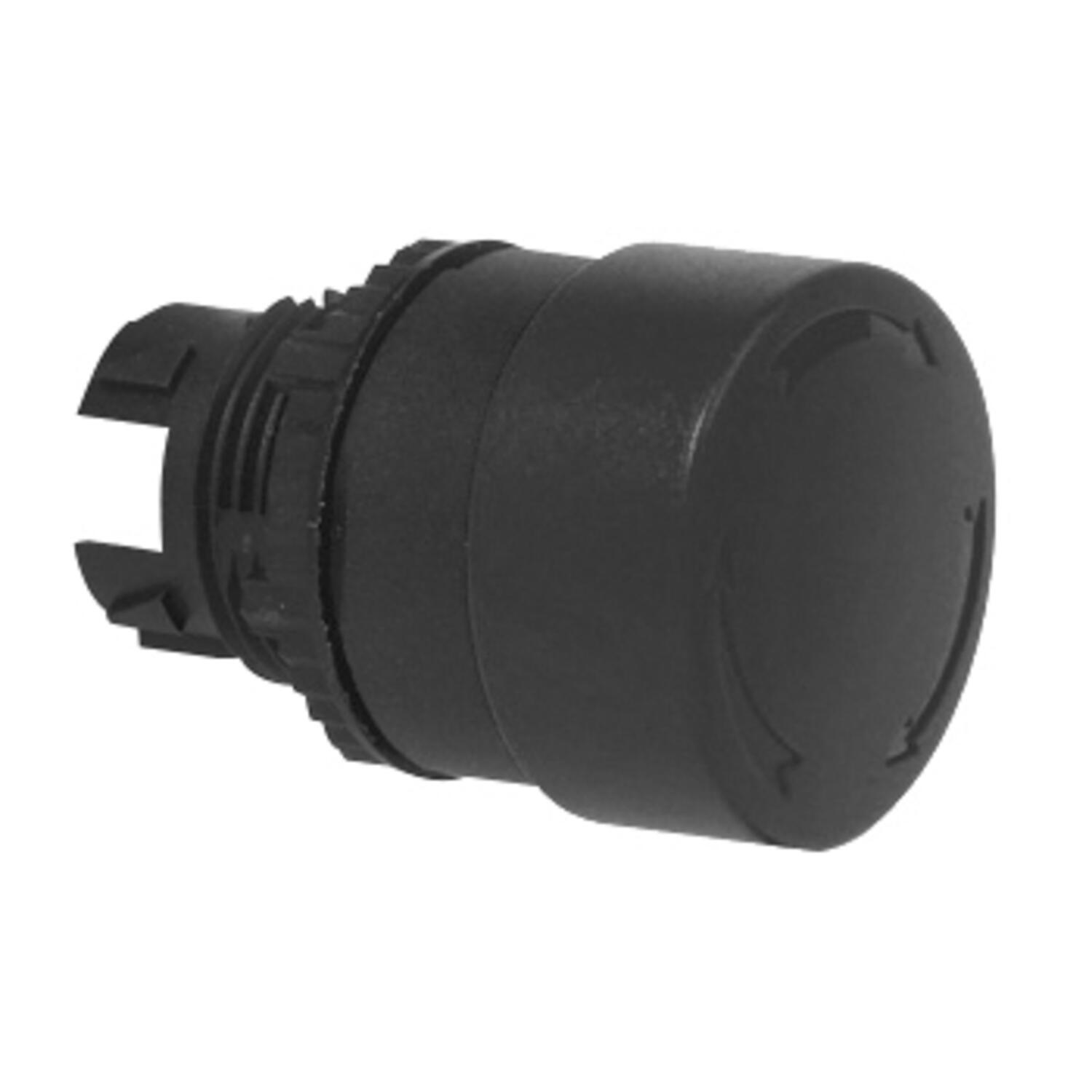

Mushroom Head Dia. 32mm Turn Reset Black
Art:
L22EC03
Copied
|
Black
|
Turn to reset
|
Mushroom ø32mm
|
| ||
![]()

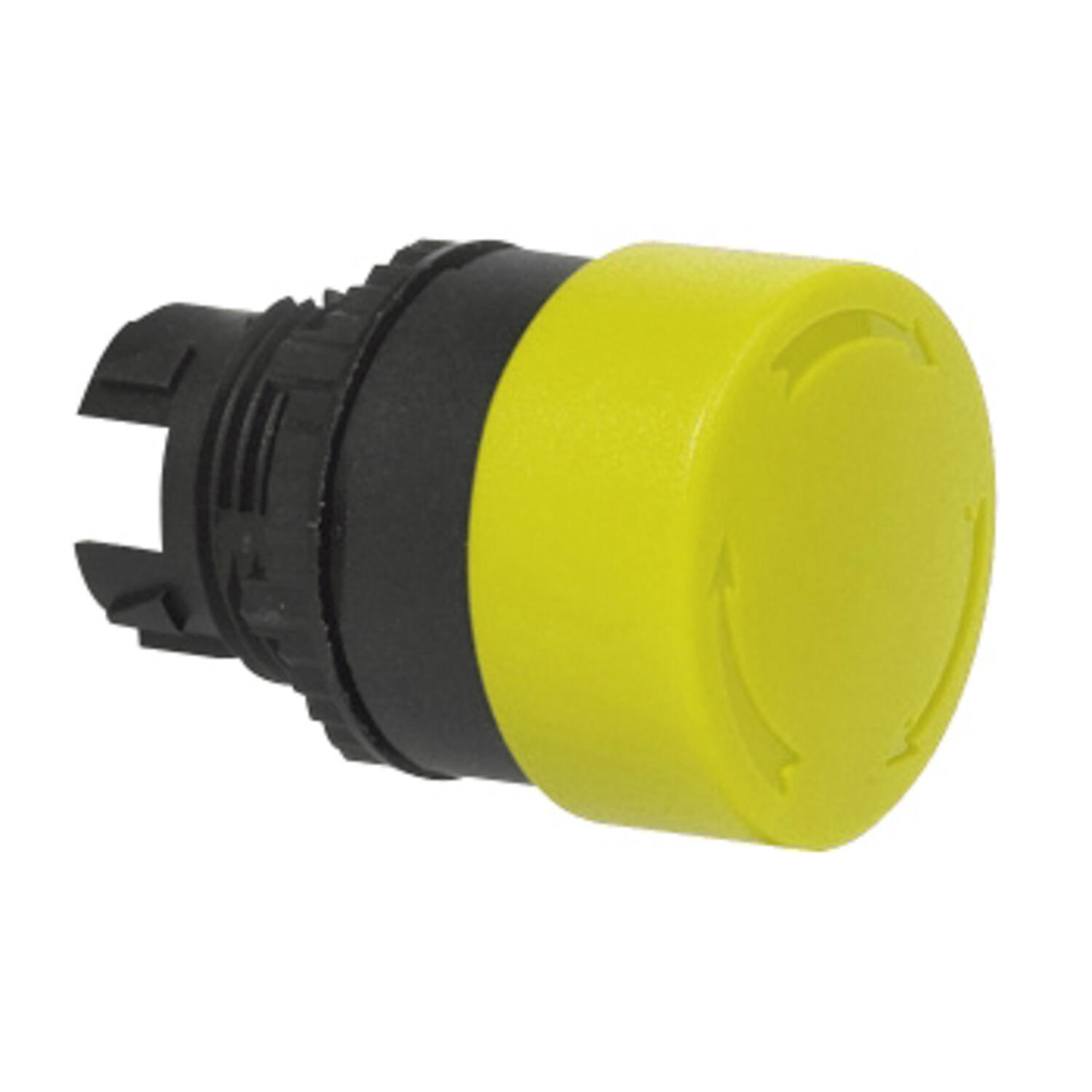

Mushroom Head Dia. 32mm Turn Reset Yellow
Art:
L22EC04
Copied
|
Yellow
|
Turn to reset
|
Mushroom ø32mm
|
| ||
![]()
Mushroom Head Dia. 32mm Pull Reset Red
Art:
L22DC01
Copied
|
Red
|
Pull to reset
|
Mushroom ø32mm
|
| ||
![]()

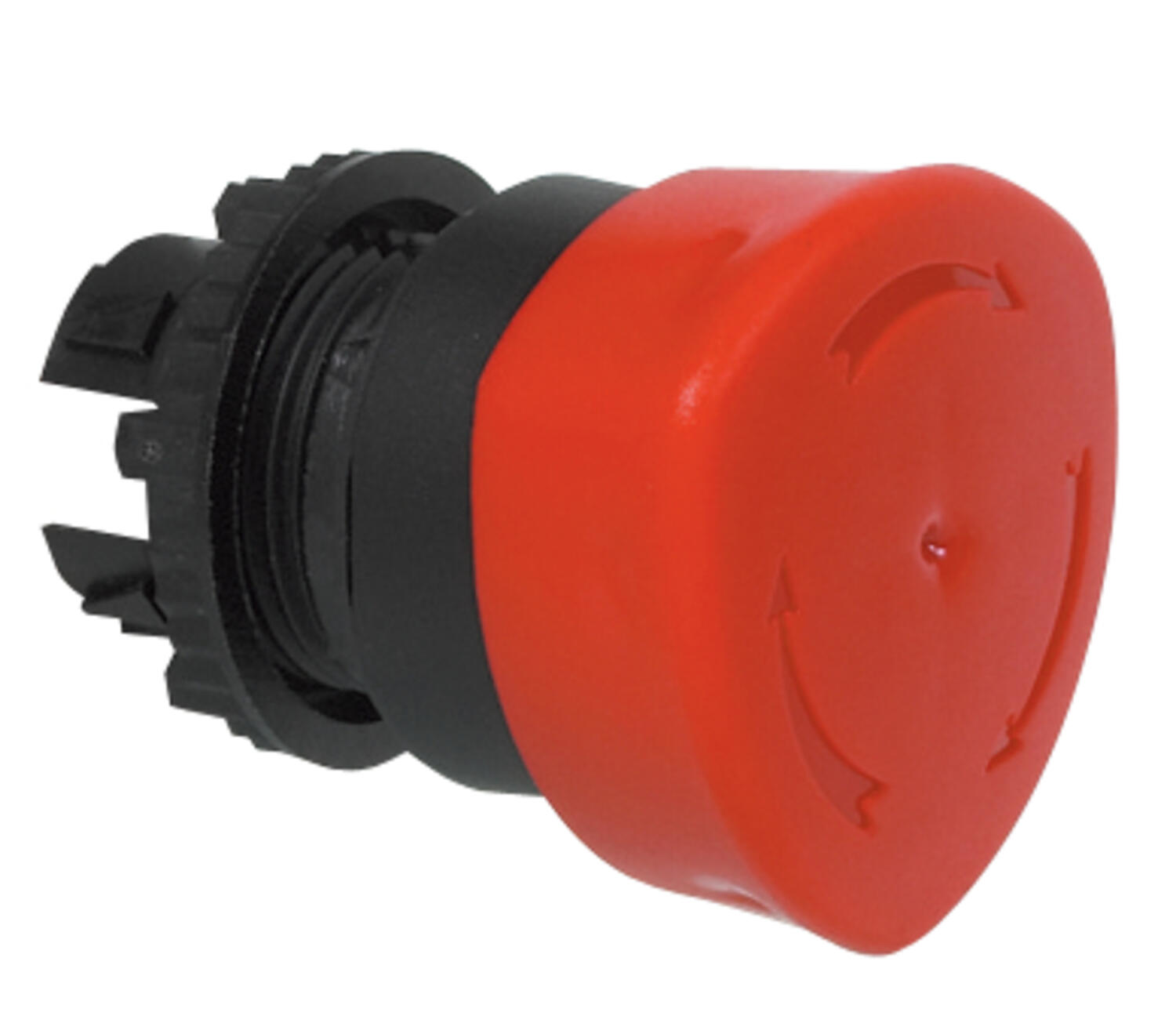

Mushroom Head Dia. 40mm Turn Reset Red
Art:
L22ED01
Copied
|
Red
|
Turn to reset
|
Mushroom ø40mm
|
| ||
![]()

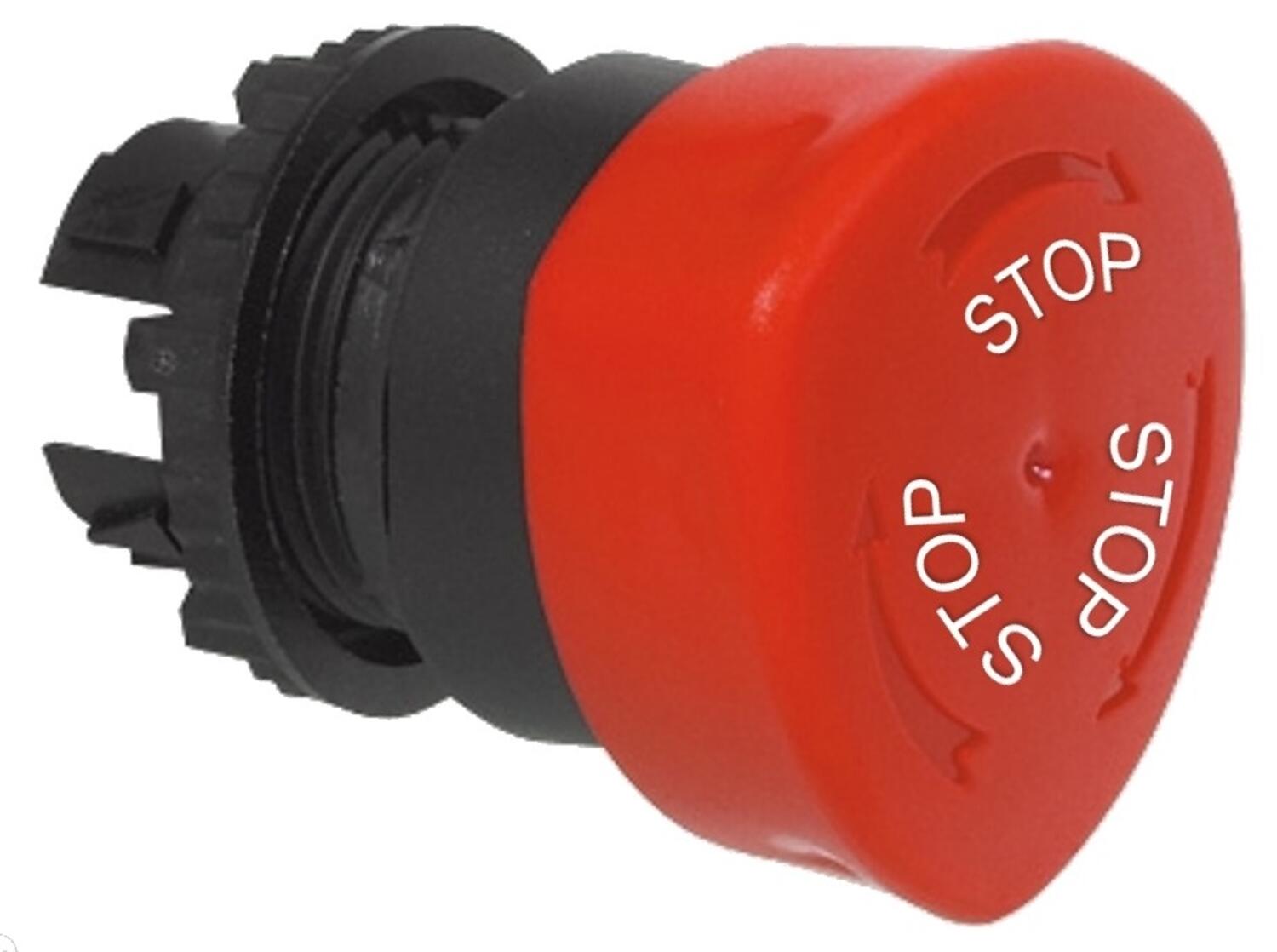

Mushroom Head Dia. 40mm Turn Reset Red "STOP STOP STOP"
Art:
L22ED01B
Copied
|
Red
|
Turn to reset
|
Mushroom ø40mm
|
| ||
![]()

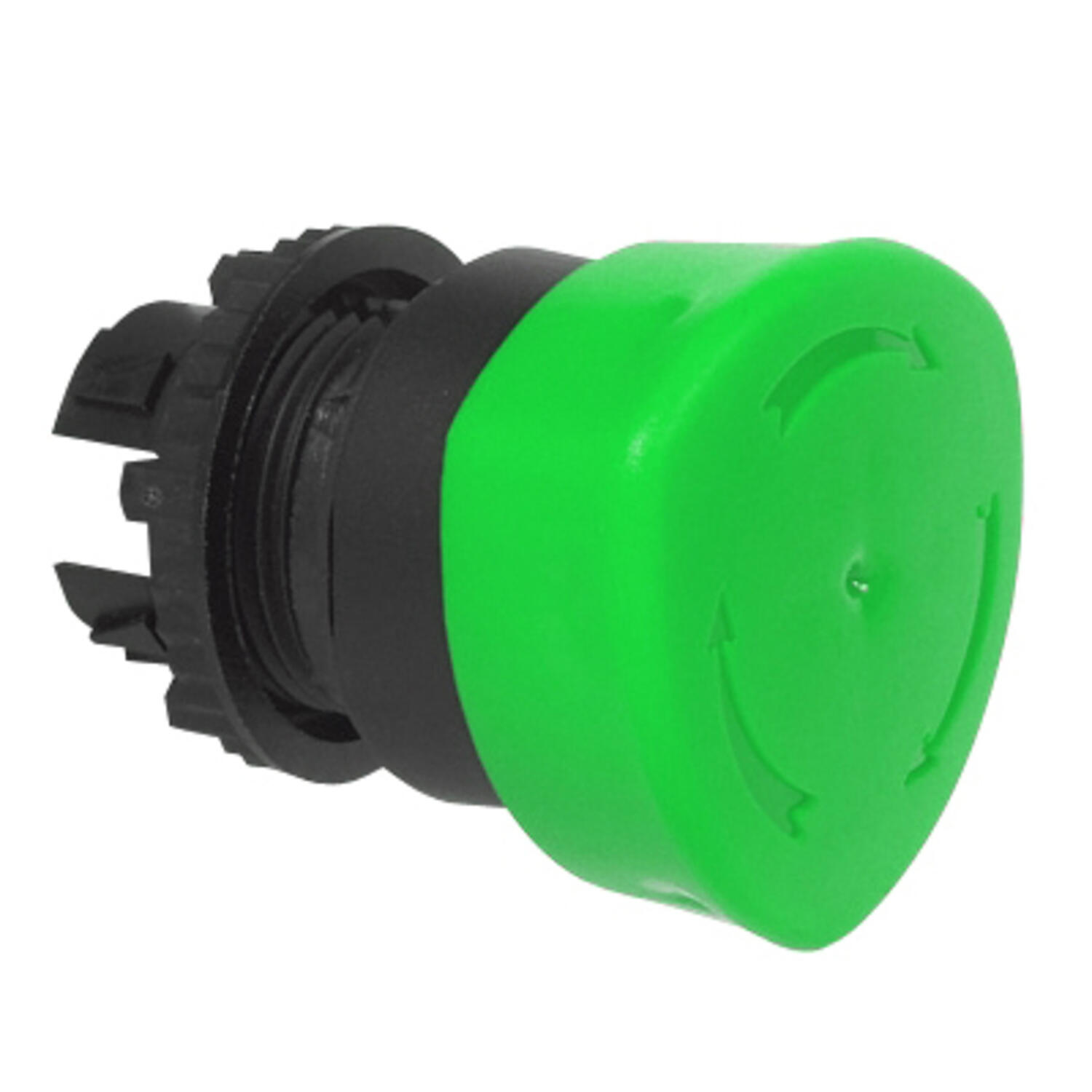

Mushroom Head Dia. 40mm Turn Reset Green
Art:
L22ED02
Copied
|
Green
|
Turn to reset
|
Mushroom ø40mm
|
| ||
![]()

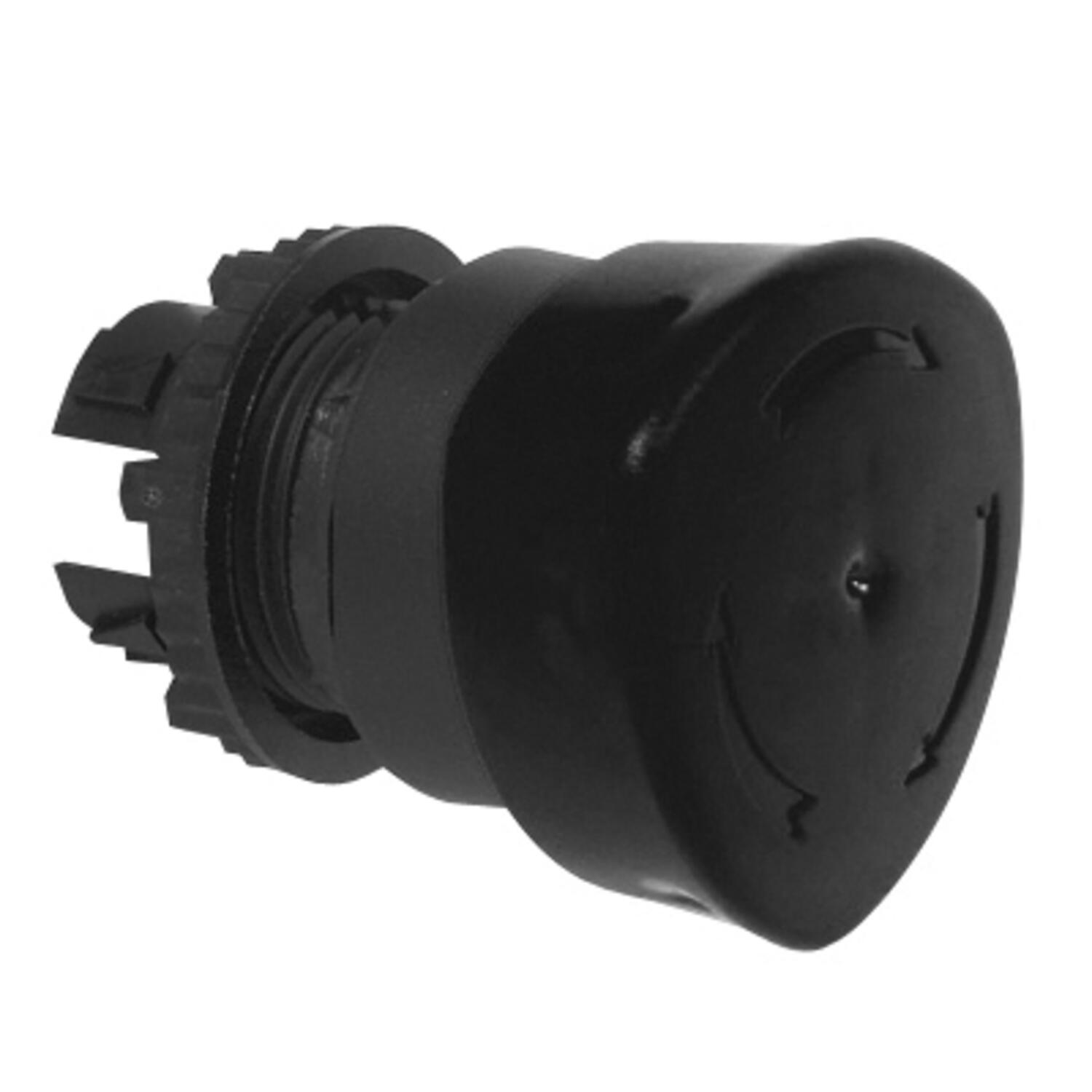

Mushroom Head Dia. 40mm Turn Reset Black
Art:
L22ED03
Copied
|
Black
|
Turn to reset
|
Mushroom ø40mm
|
| ||
![]()

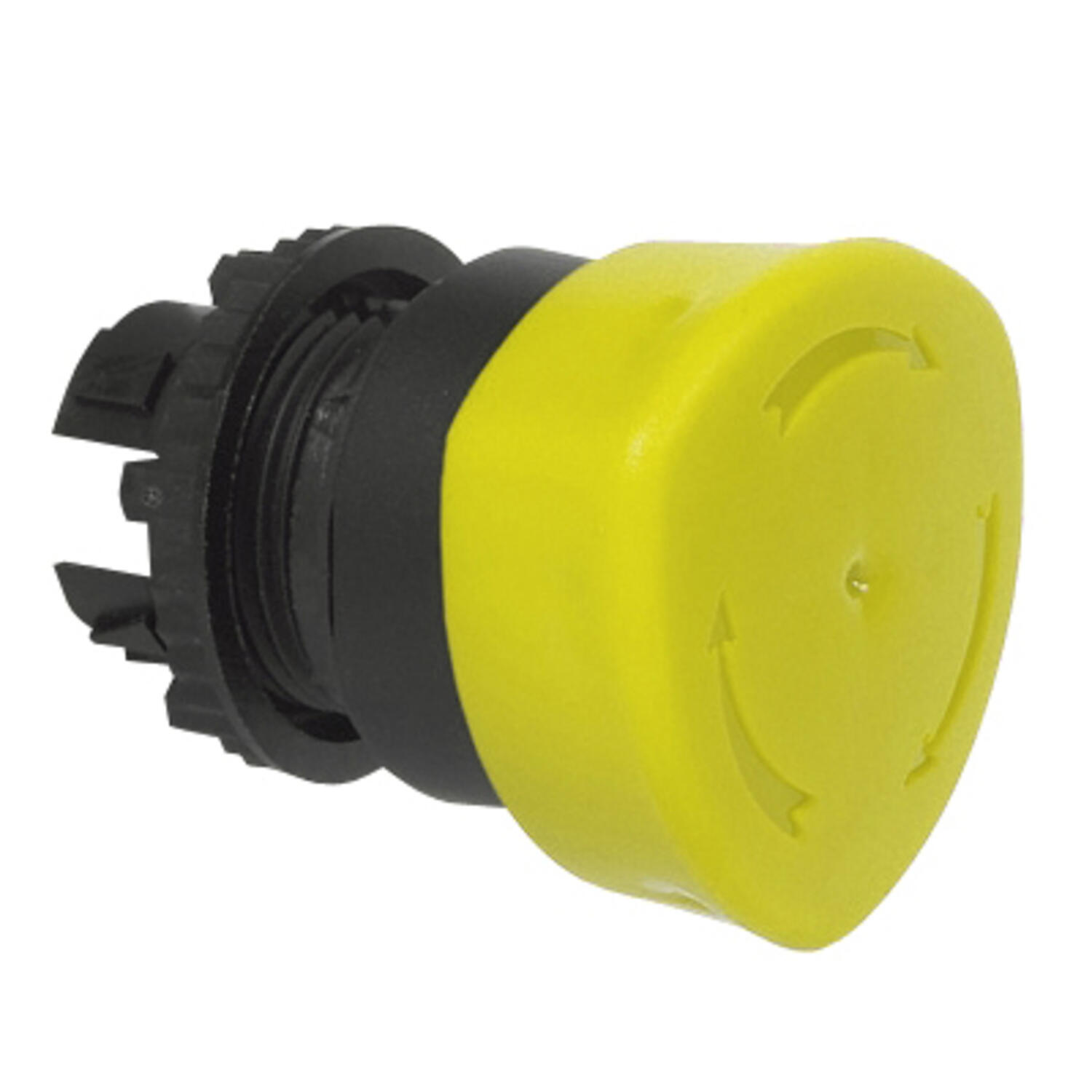

Mushroom Head Dia. 40mm Turn Reset Yellow
Art:
L22ED04
Copied
|
Yellow
|
Turn to reset
|
Mushroom ø40mm
|
| ||
![]()

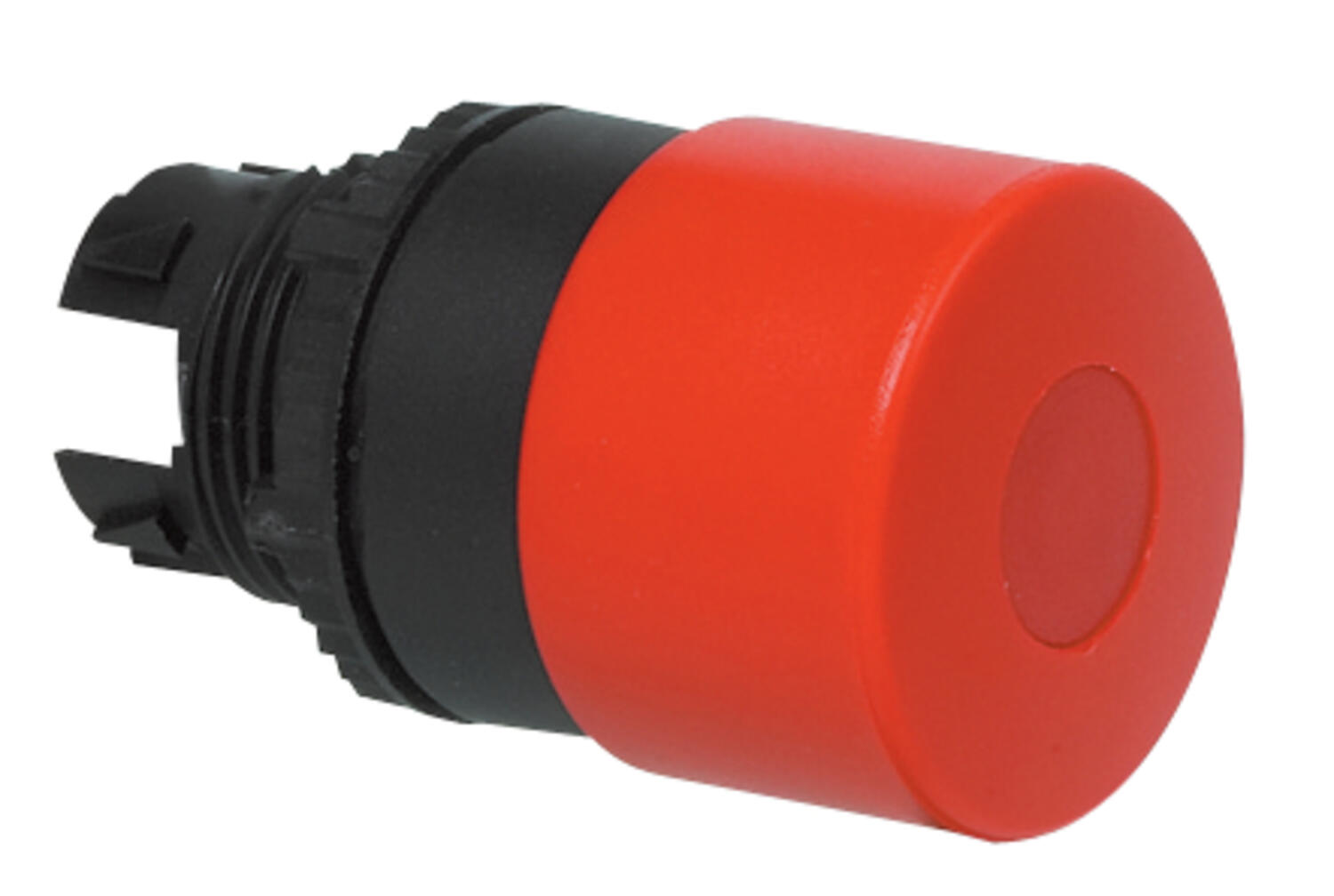

Mushroom Head Dia. 40mm Pull Reset Red
Art:
L22DD01
Copied
|
Red
|
Pull to reset
|
Mushroom ø40mm
|
| ||
![]()
Mushroom Head Dia. 40mm Pull Reset Black
Art:
L22DD03
Copied
|
Black
|
Pull to reset
|
Mushroom ø40mm
|
| ||
![]()

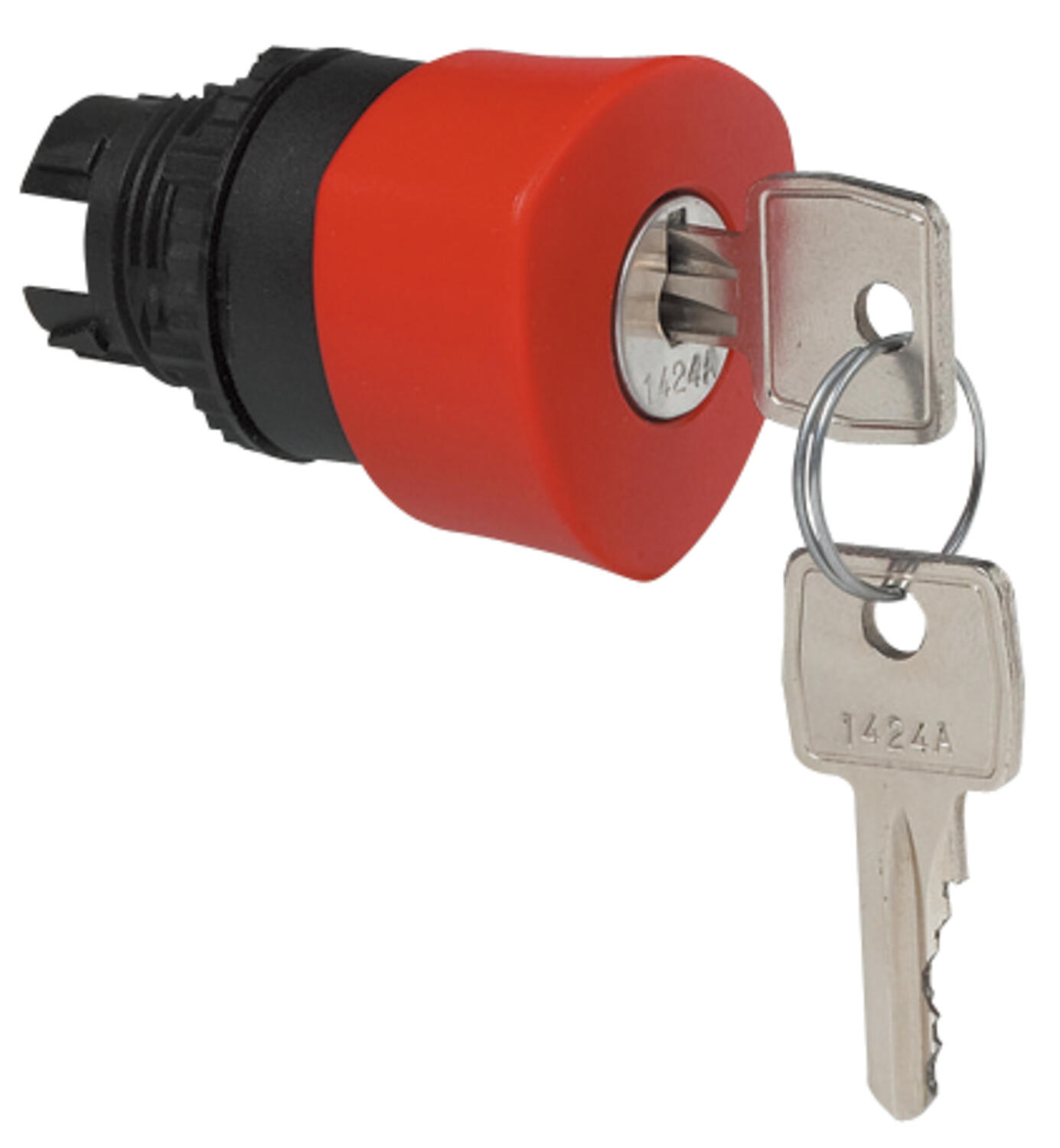

Mushroom Head Dia. 40mm Key Reset Red
Art:
L22GM01
Copied
|
Red
|
Key reset
|
Mushroom ø40mm
|
|
Select a variant in the list
