BACO

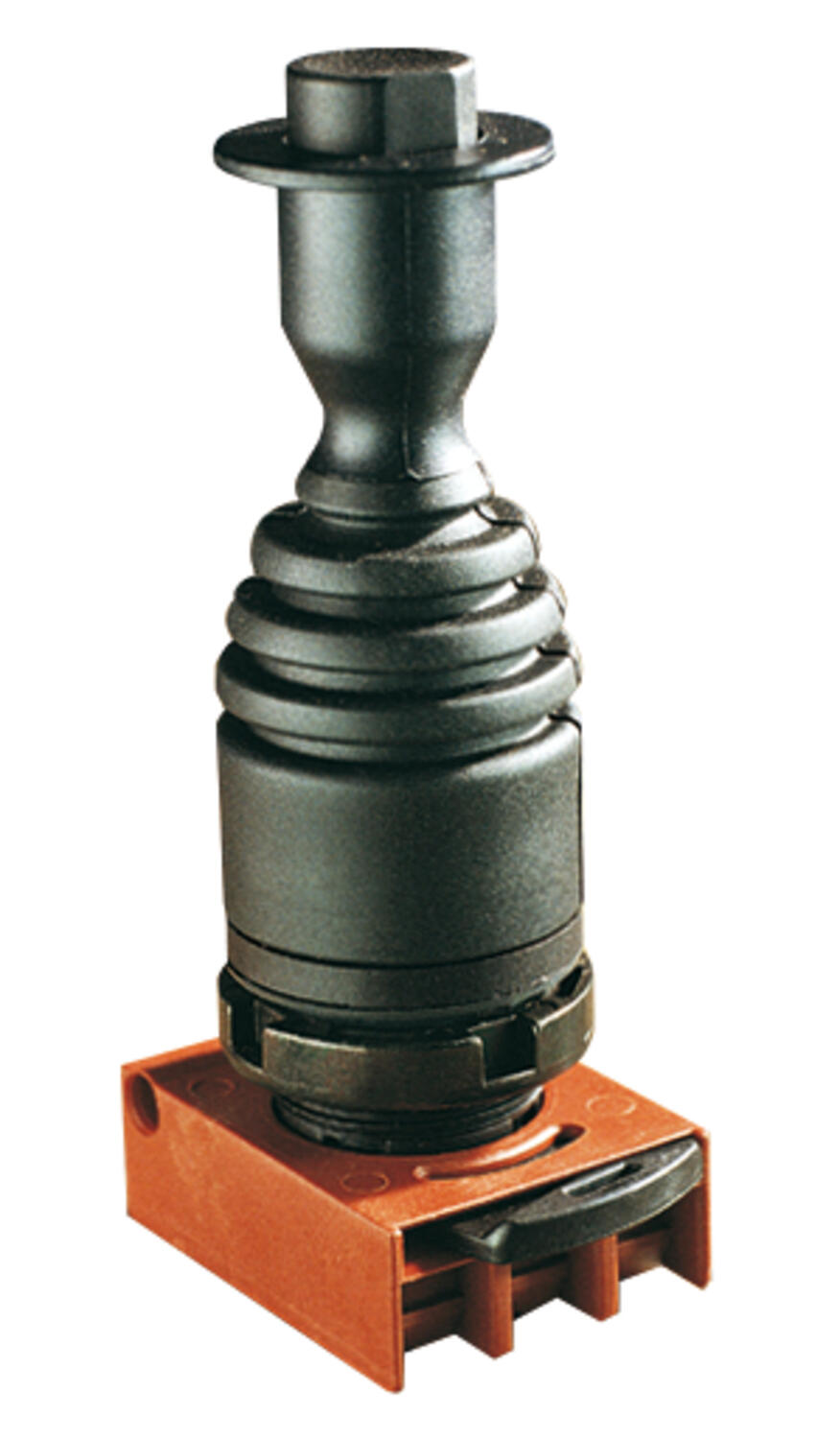

Joystick heads are available in 2 or 4 way, stable or spring return and with latched (button to release) or non latched centre off. All heads come with a 3 position contact holder clip but the M11 contact blocks must be ordered separately.
Â

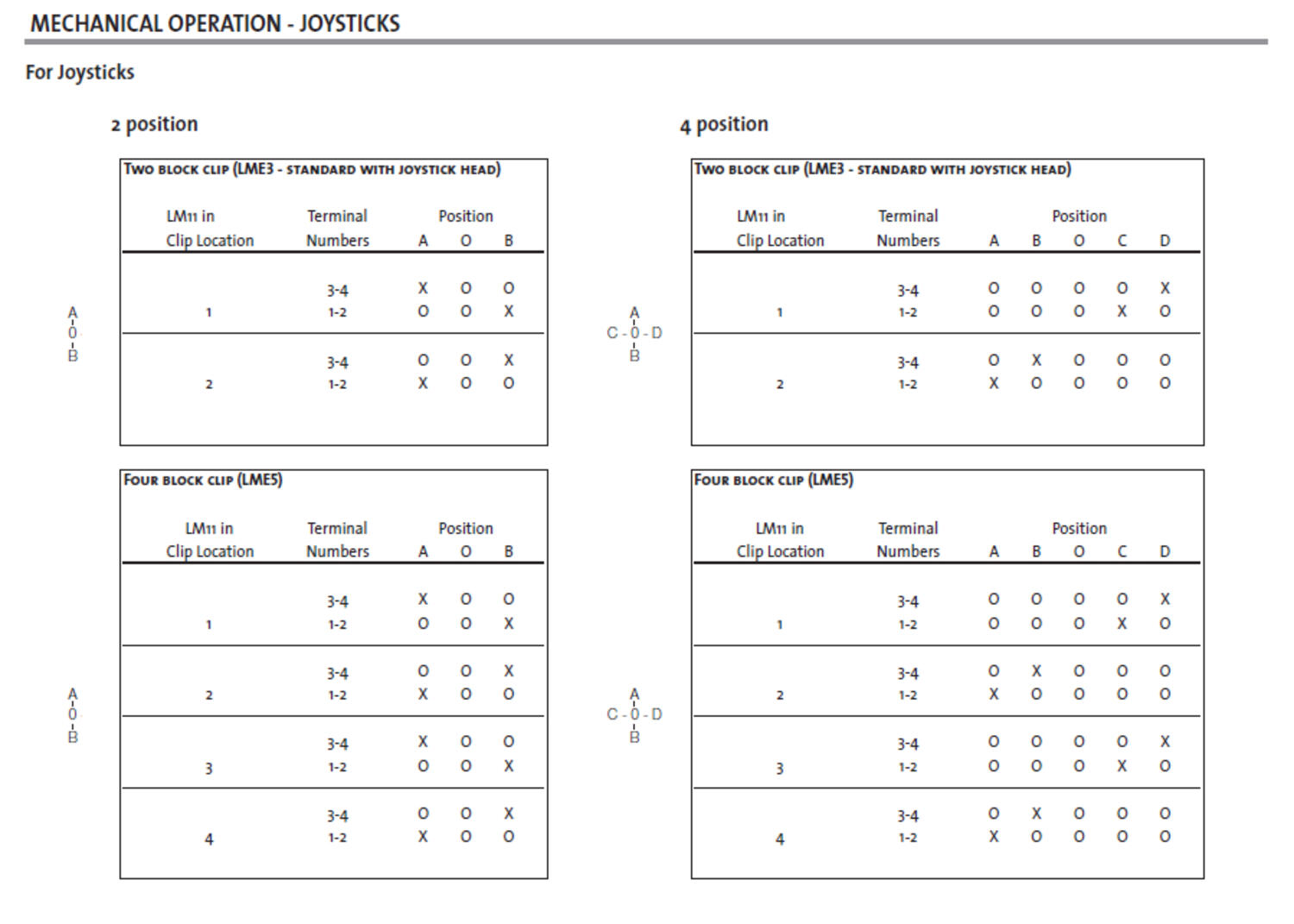

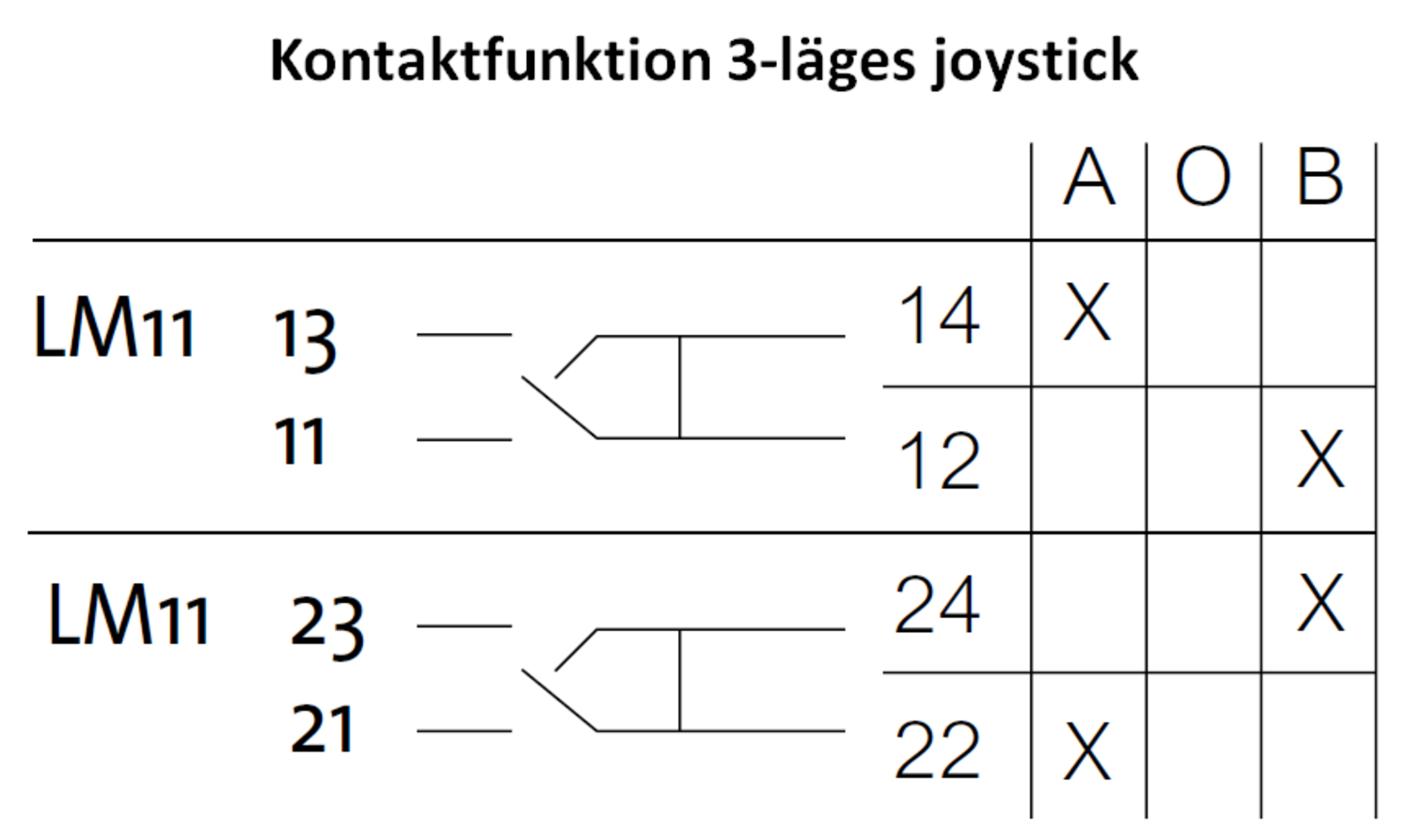

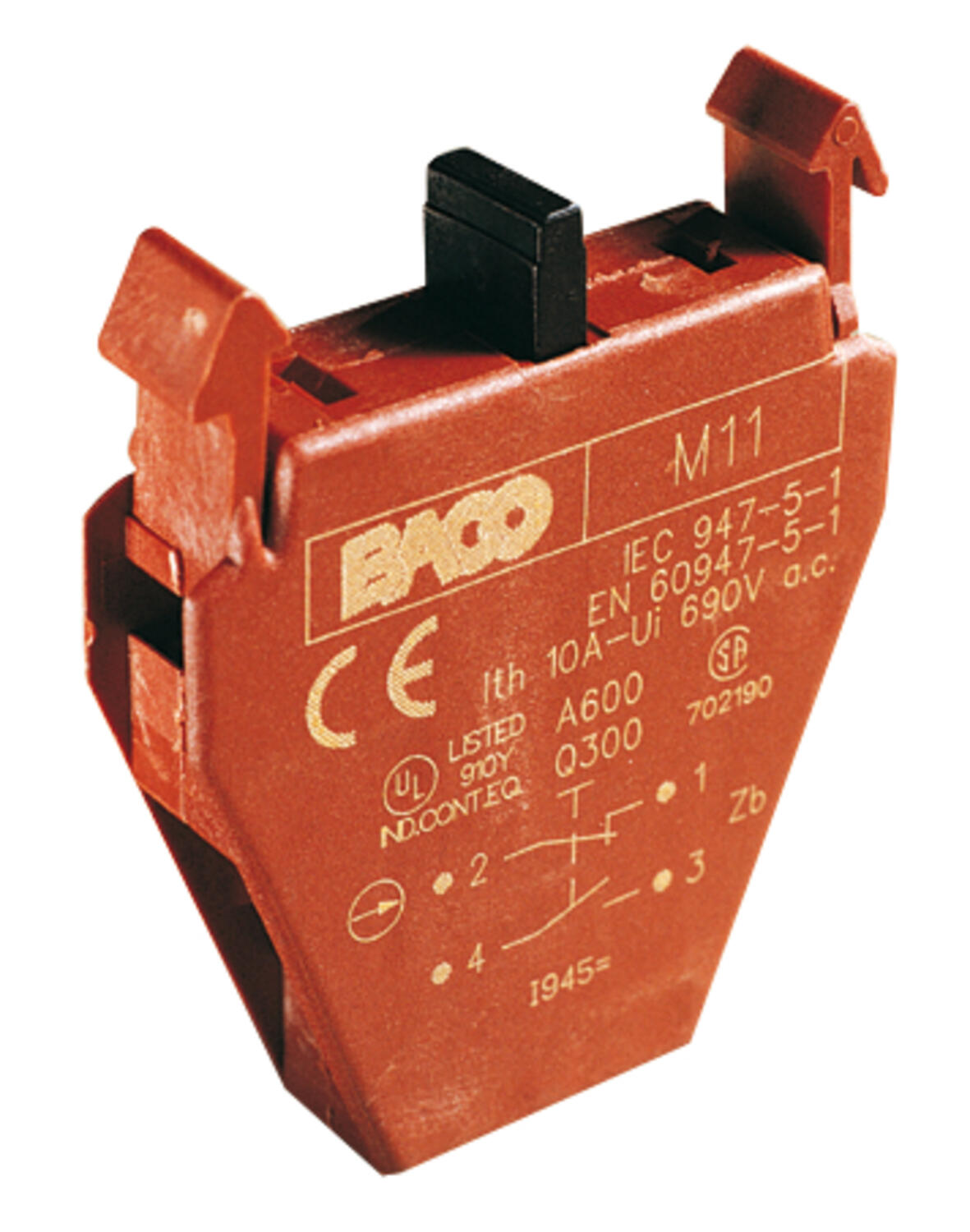

The joystick heads require a special contact block (M11) that has 2 x N/O electrical contacts. The contacts will always be open when the head is in the centre off position and will close respectively in each of 2 positions.
Â
A 2 way joystick can have 1 or 2 x M11 contact blocks to achieve 1 or 2 separate closed contacts in each of the 2 positions respectively excluding the centre off position.
Â
A 4 way joystick requires 2 x M11 contact blocks to achieve a separate closed contact in each of the 4 positions excluding the centre off position.
Â
Climatic resistance - constant humid heat | IEC 60068-2-3 |
---|---|
Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
Climatic resistance - sea air | IEC 60068-2-52 |

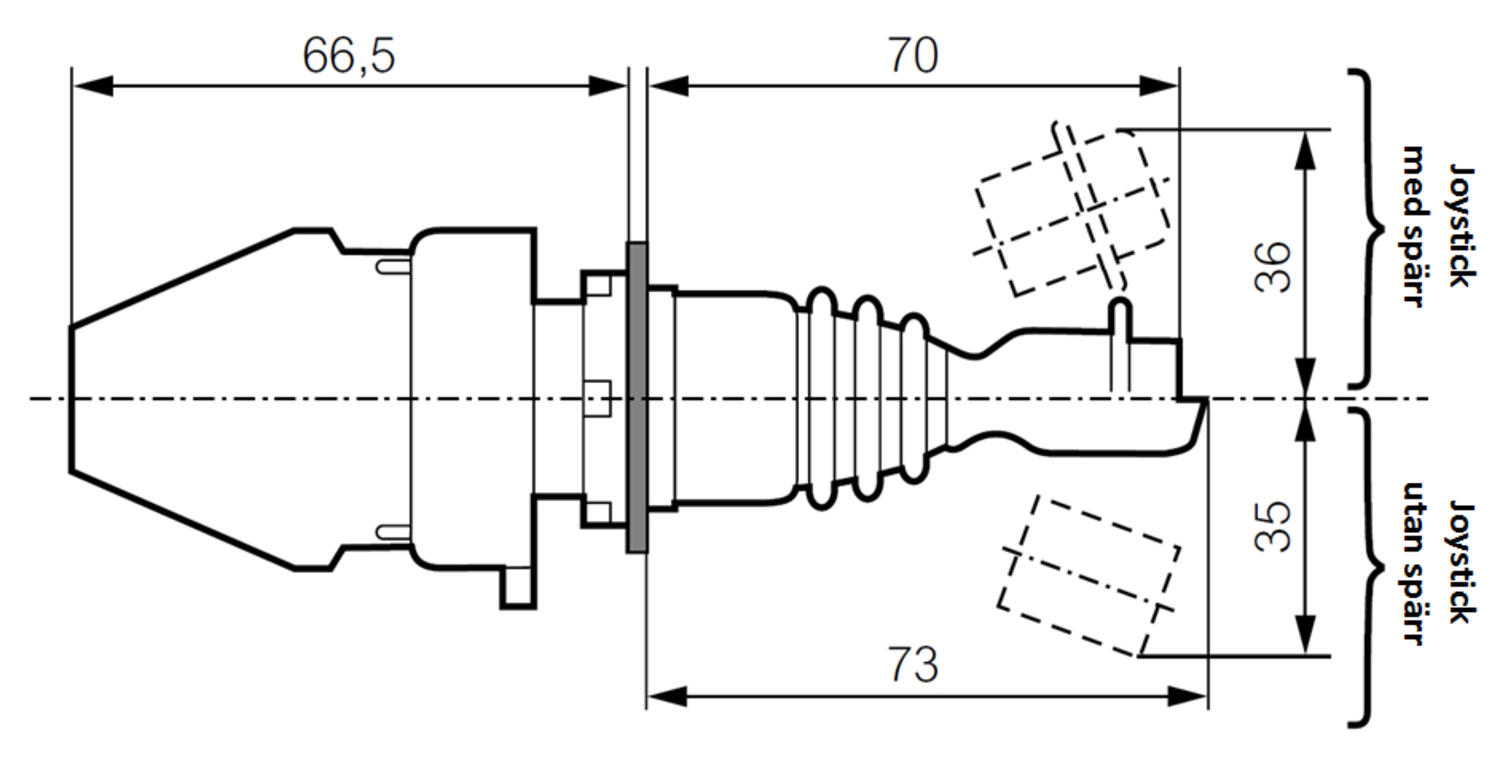

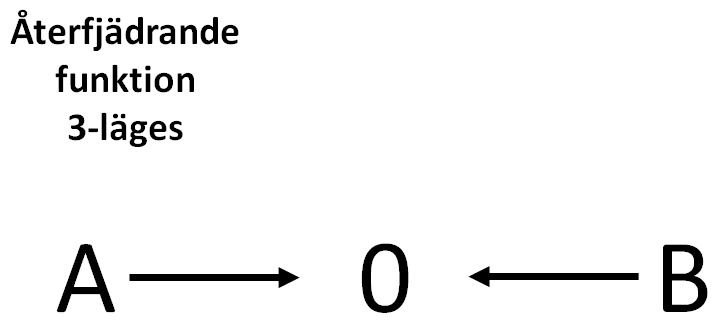

Function | Spring return |
IP class | IP65 |
Positions | 3 |
Protection class | II |
---|---|
Storage temperature max | 70 °C |
Storage temperature min | -40 °C |
Temperature operational max | 70 °C |
Temperature operational min | -25 °C |
Joystick heads are available in 2 or 4 way, stable or spring return and with latched (button to release) or non latched centre off. All heads come with a 3 position contact holder clip but the M11 contact blocks must be ordered separately.
Â
The joystick heads require a special contact block (M11) that has 2 x N/O electrical contacts. The contacts will always be open when the head is in the centre off position and will close respectively in each of 2 positions.
Â
A 2 way joystick can have 1 or 2 x M11 contact blocks to achieve 1 or 2 separate closed contacts in each of the 2 positions respectively excluding the centre off position.
Â
A 4 way joystick requires 2 x M11 contact blocks to achieve a separate closed contact in each of the 4 positions excluding the centre off position.
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Approvals | Contact type | Conventional free air thermal current Ith | Function | IP class | Positions | Protection class | Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | Rated insulation voltage Ui | Rated operating current Ie (AC15/380V) | Rated operating current Ie (AC15/600V) | Recommended tightening torque | Temperature operational min | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Joystick 2 Position Spring Return
Art:
LM2A
Copied
|
|
|
|
Spring return
|
IP65
|
3
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 2 Position Stable
Art:
LM2F
Copied
|
|
|
|
Stable
|
IP65
|
3
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 2 Position Spring Return Lock In 0
Art:
LMV2A
Copied
|
|
|
|
Spring return
|
IP65
|
3
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 2 Position Stable Lock In 0
Art:
LMV2F
Copied
|
|
|
|
Stable
|
IP65
|
3
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 4 Position Spring Return
Art:
LM4A
Copied
|
|
|
|
Spring return
|
IP65
|
5
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 4 Position Stable
Art:
LM4F
Copied
|
|
|
|
Stable
|
IP65
|
5
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 4 Position Spring Return Lock In 0
Art:
LMV4A
Copied
|
|
|
|
Spring return
|
IP65
|
5
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick 4 Position Stable Lock In 0
Art:
LMV4F
Copied
|
|
|
|
Stable
|
IP65
|
5
|
II
|
|
|
|
|
|
-25 °C
|
| ||
![]()
Joystick Contact Block 1 x N/O 1 x N/C
Art:
LM11
Copied
|
BV, CB, CCC, CE, UL
|
2 x N/O
|
10 A
|
|
IP20
|
|
|
4 kV
|
690 V
|
2 A
|
1.2 A
|
0.9
|
-30 °C
|
|
Select a variant in the list
