BACO

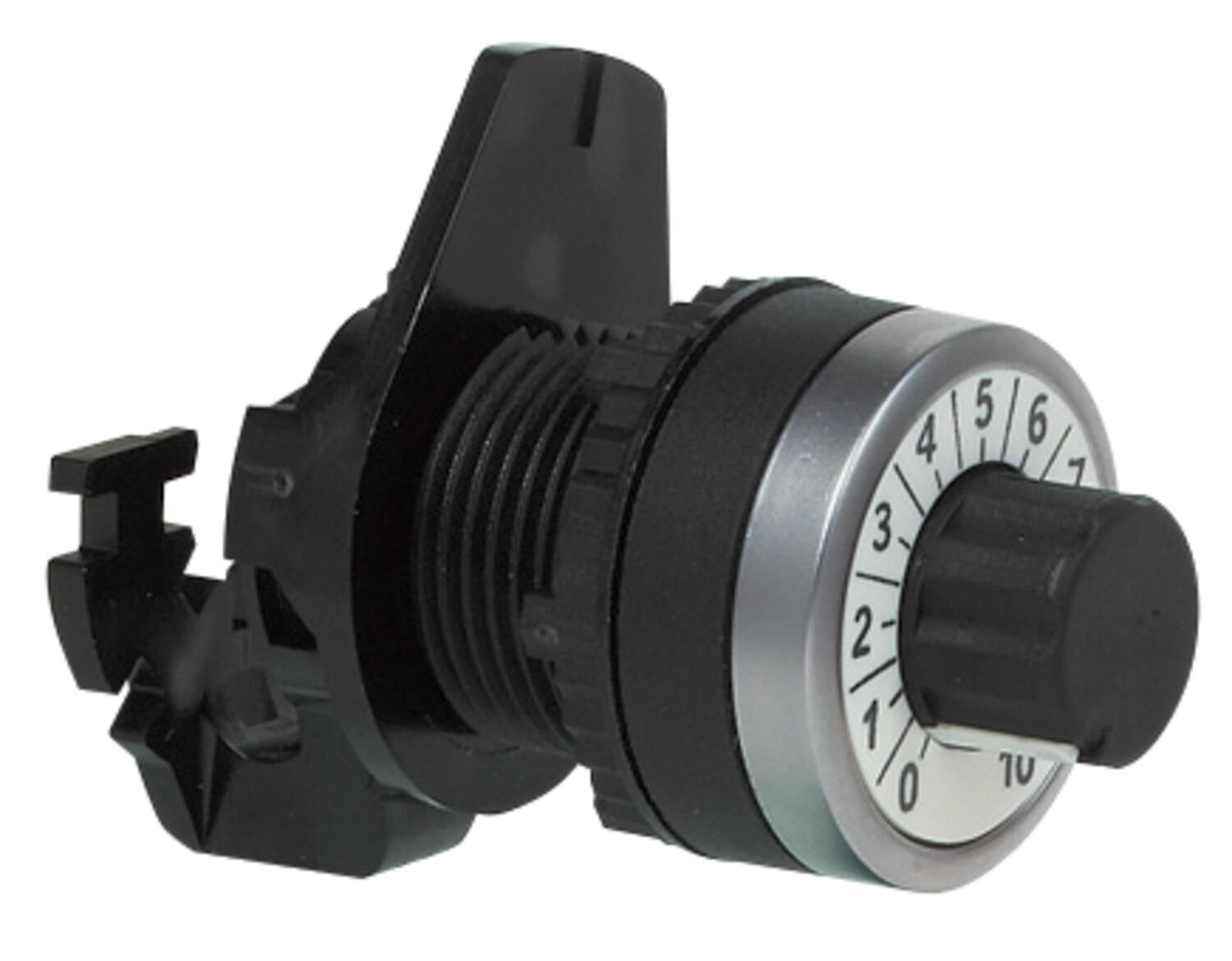

Button For Potentiometer
Head & mounting base for potentiometer
Button & holder for mounting a potentiometer (not included) in a 22.5mm hole.
Accepts potentiometer shaft size Ø6 or 6.35mm and shaft length 46 to 51mm.
- Ø22.5mm potentiometer head
- Shaft Ø6 or 6.35mm
- Potentiometer 46 to 51mm
- IP65
Selected variant
Technical data
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Black |
| Illuminated | No |
| Impact resistance | IK05 |
| IP class | IP65 |
| Mechanical life expectancy | 300 000 cycles |
| Protection class | II (double insulated) |
|---|---|
| Recommended tightening torque | 3 |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
| Weight | 9 g |
Product description
Button & holder for mounting a potentiometer (not included) in a 22.5mm hole.
Accepts potentiometer shaft size Ø6 or 6.35mm and shaft length 46 to 51mm.
