BACO

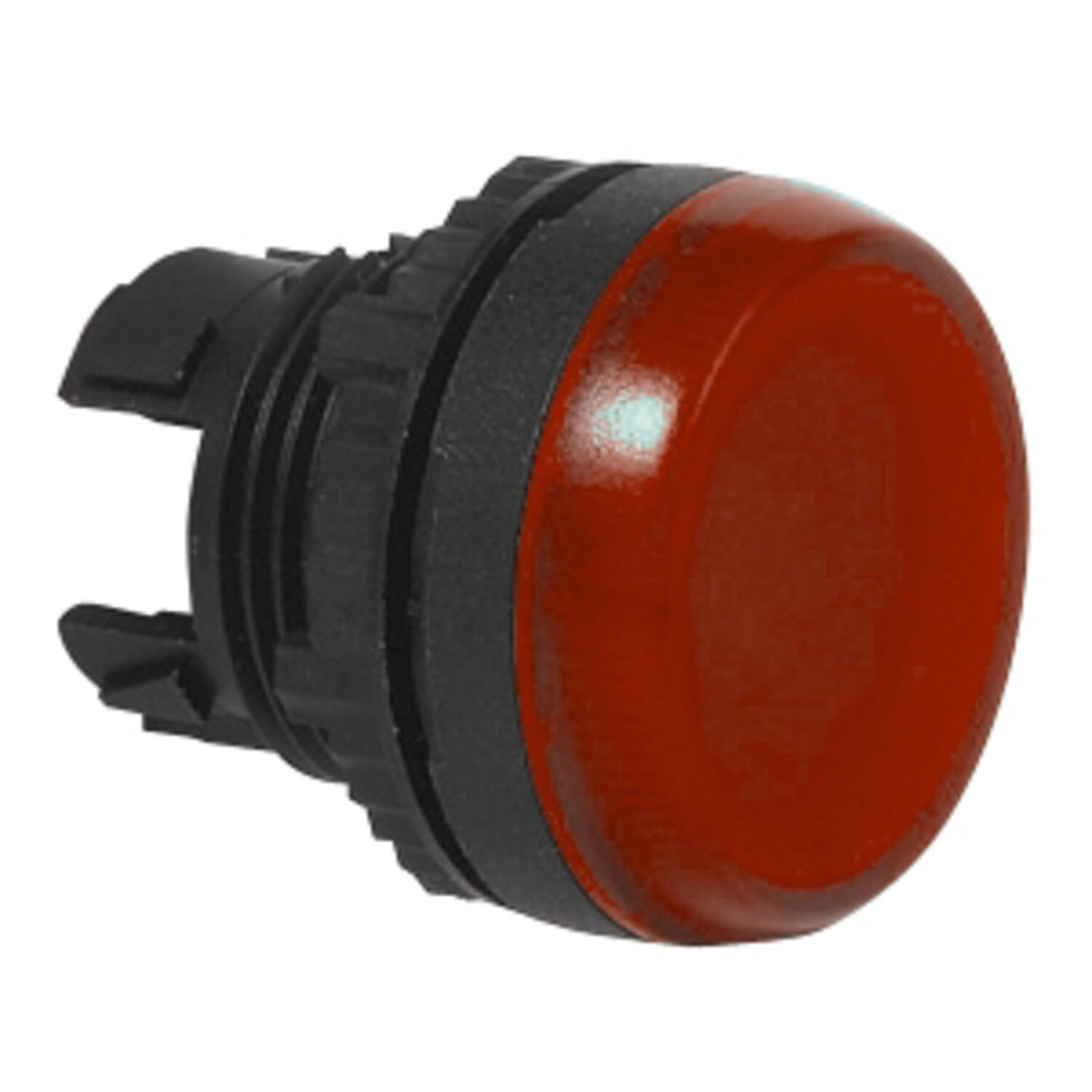

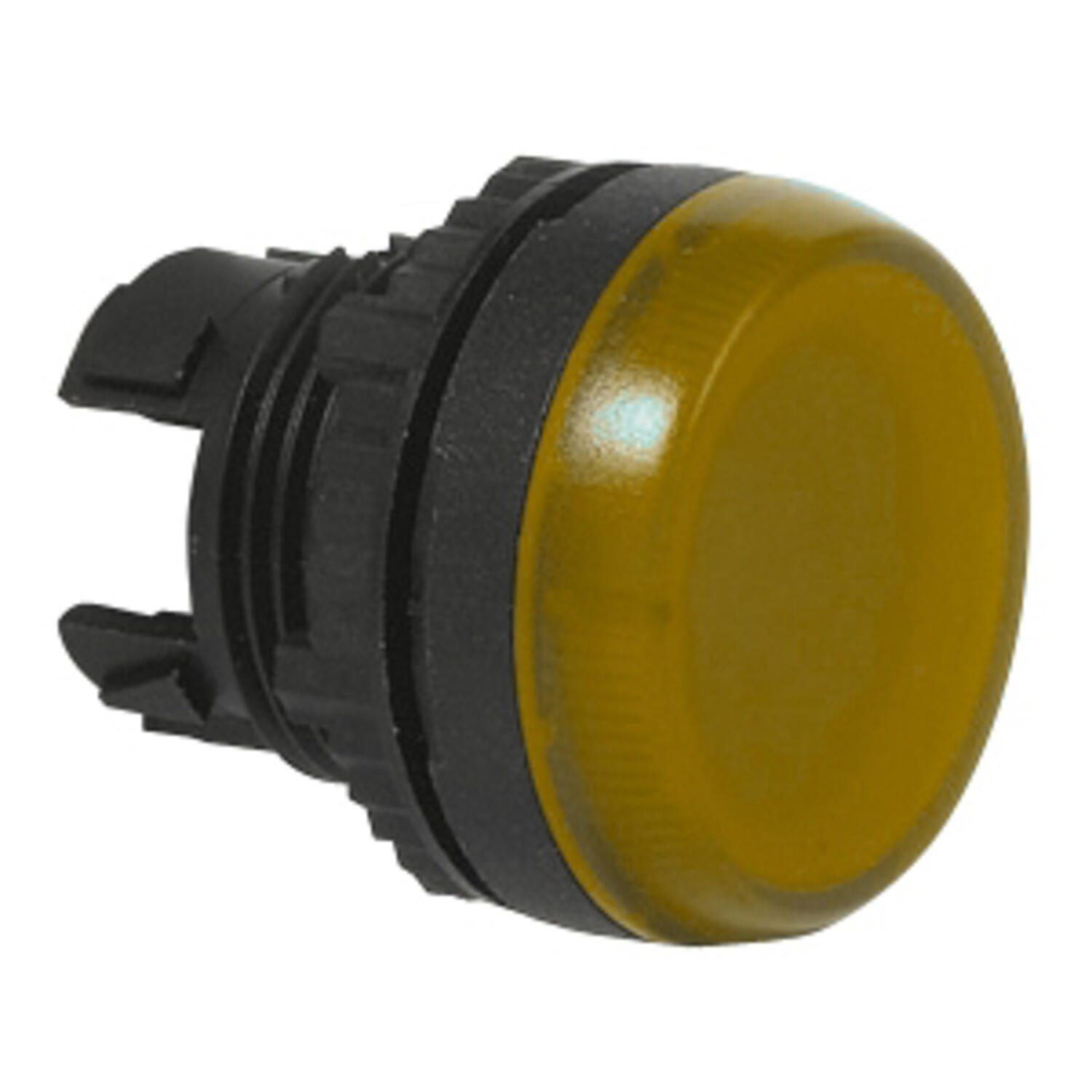

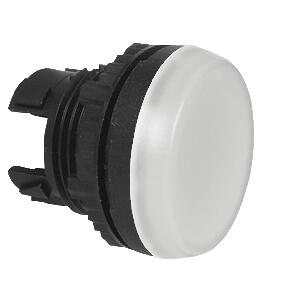

Pilot Light Heads
Combine with separate clip & LED block
Pilot light heads that mount in a 22.5mm hole with IP66 / IP69K protection rating.
Combine with a separate clip & LED module from the standard range to make complete pilot light.
Clips & contacts available separately or as combined units.
Option to have head with text or symbol please enquire for details.
- IP66 / IP69K
- 5 colour options
- Low profile modern design
- Optional text or symbol
Selected variant
Technical data
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Colour | Red |
| Impact resistance | IK05 |
| IP class | IP66, IP69, IP69K |
| Recommended tightening torque | 3 |
|---|---|
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
Product description
Pilot light heads that mount in a 22.5mm hole with IP66 / IP69K protection rating.
Combine with a separate clip & LED module from the standard range to make complete pilot light.
Clips & contacts available separately or as combined units.
Option to have head with text or symbol please enquire for details.
