BACO
LED pilot lights in a robust housing with modern design that are easy to install in a 22.5mm hole.
The one piece body has an integrated LED and easily accessible screw connections at the bottom of the base.
The unit is ideal for harsh industrial environments thanks to a high impact resistance and protection class rating of IP66 / IP69K and therefore suitable for a wide range of applications.
Approvals | BV, CB, CCC, CE, REACH, RoHS, UL |
---|---|

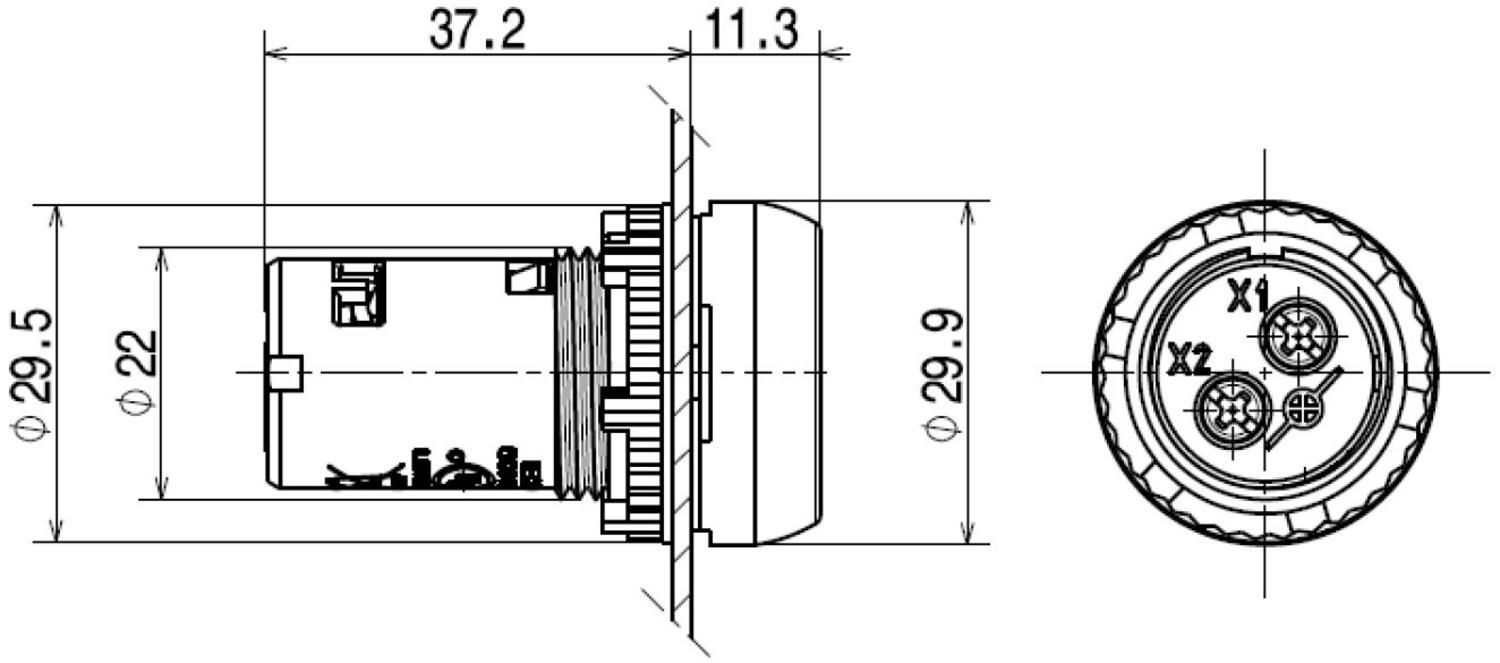

Behind panel depth | 37.2 mm |
Climatic resistance - constant humid heat | IEC 60068-2-3 |
Colour | Red |
Current consumption | 4,6 mA |
Frequency | 50/60 Hz |
Impact resistance | IK05 |
LED supply voltage | 24V ac/dc |
LED voltage tolerance | ±10% |
Lifetime at rated supply voltage (25°C) | 100000 h |
Protection class | II |
Protection rating front of panel | IP69, IP69K, NEMA Type 4X, NEMA Type 12, NEMA Type 13 |
---|---|
Protection rating rear of panel | IP20 |
Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | 4 kV |
Rated insulation voltage Ui | 300 V |
Storage temperature max | 70 °C |
Storage temperature min | -40 °C |
Temperature operational max | 70 °C |
Temperature operational min | -25 °C |
Weight | 19 g |
Width | 30 mm |
LED pilot lights in a robust housing with modern design that are easy to install in a 22.5mm hole.
The one piece body has an integrated LED and easily accessible screw connections at the bottom of the base.
The unit is ideal for harsh industrial environments thanks to a high impact resistance and protection class rating of IP66 / IP69K and therefore suitable for a wide range of applications.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Colour | Current consumption | LED supply voltage | Lifetime at rated supply voltage (25°C) | Price | ||
---|---|---|---|---|---|---|---|
![]()

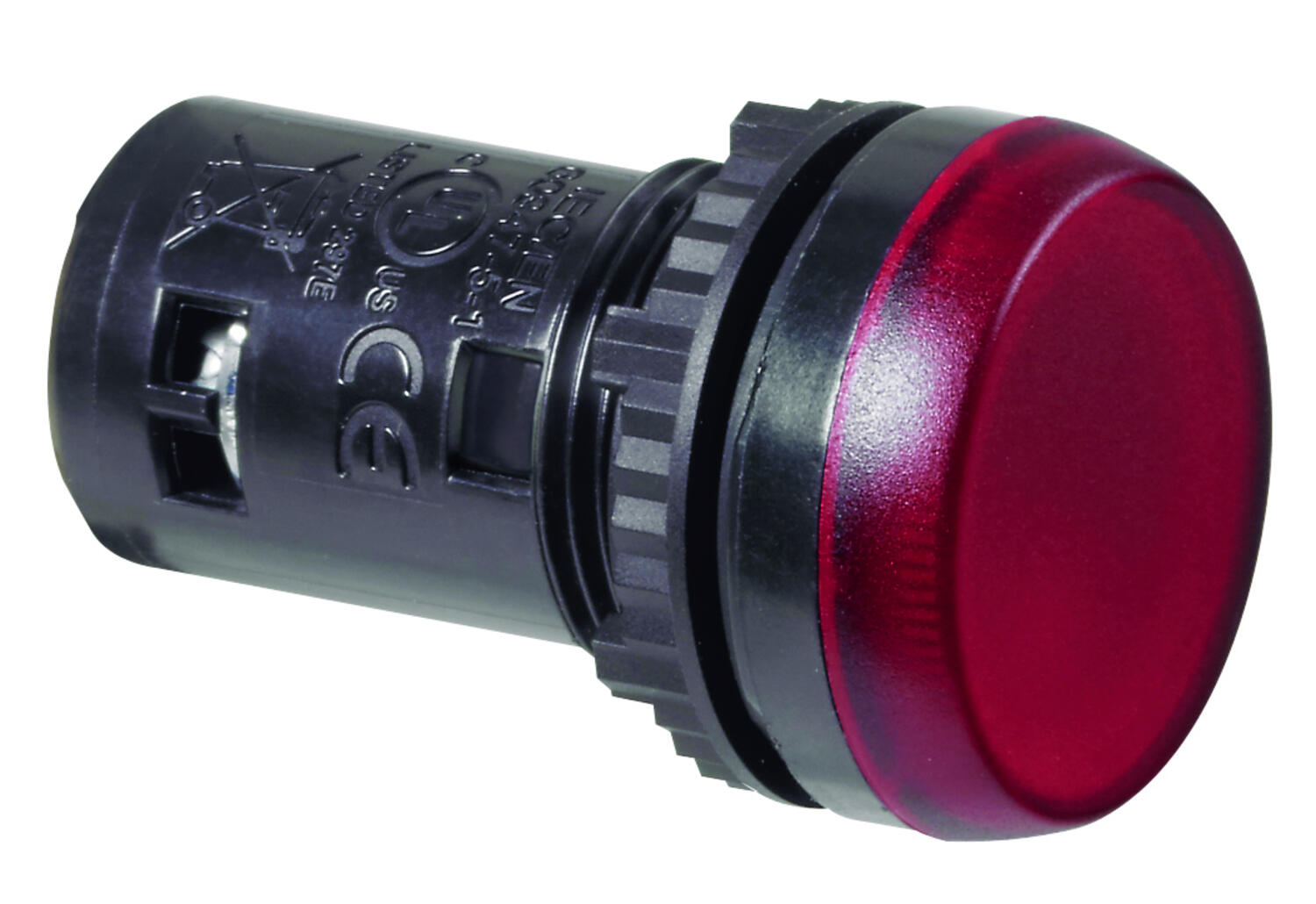

LED One Piece Pilotlight 24V ac/dc Red
Art:
L20SC10L
Copied
|
Red
|
4,6 mA
|
24V ac/dc
|
100000 h
|
| ||
![]()

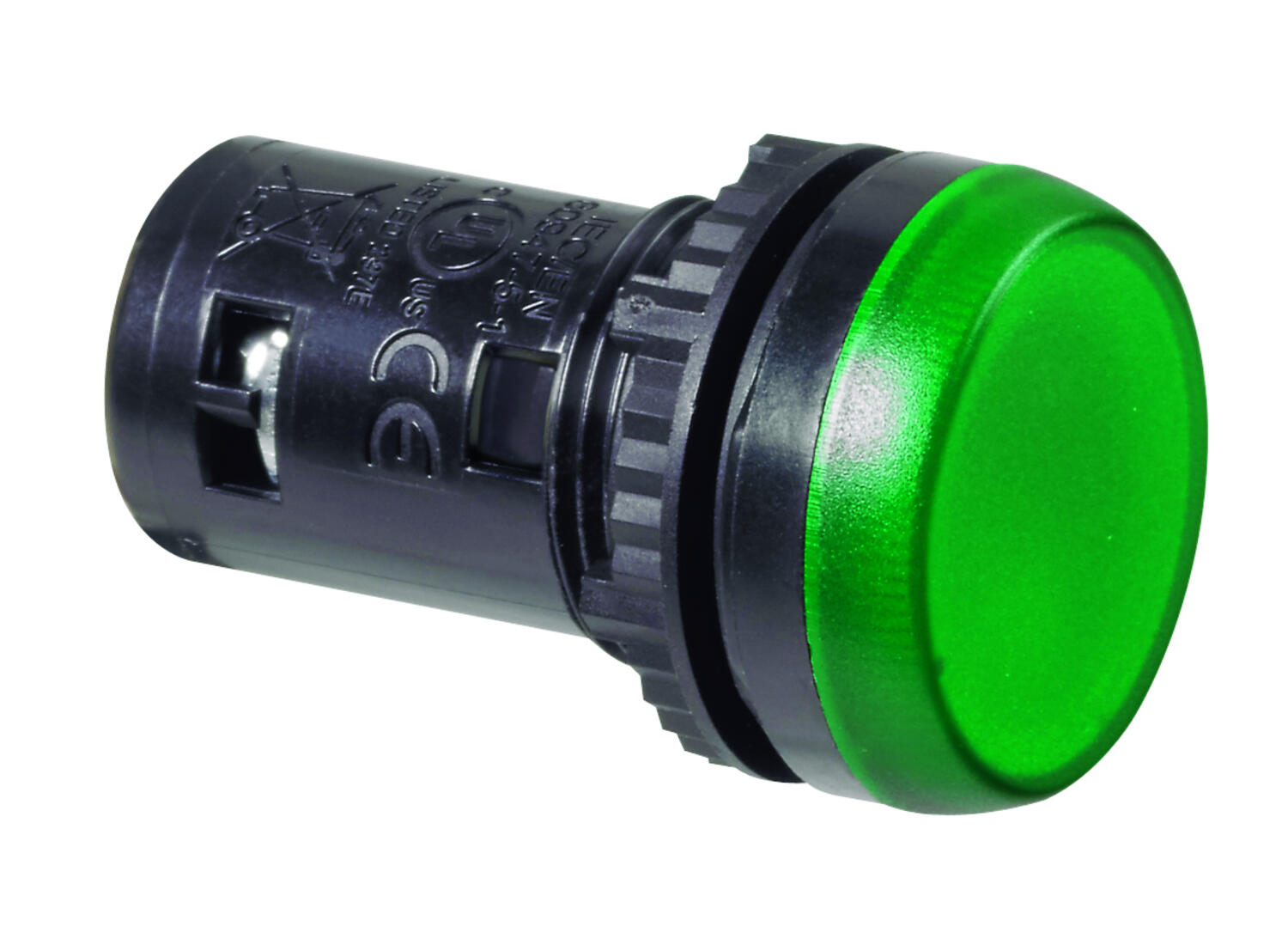

LED One Piece Pilotlight 24V ac/dc Green
Art:
L20SC20L
Copied
|
Green
|
4,6 mA
|
24V ac/dc
|
50000 h
|
| ||
![]()

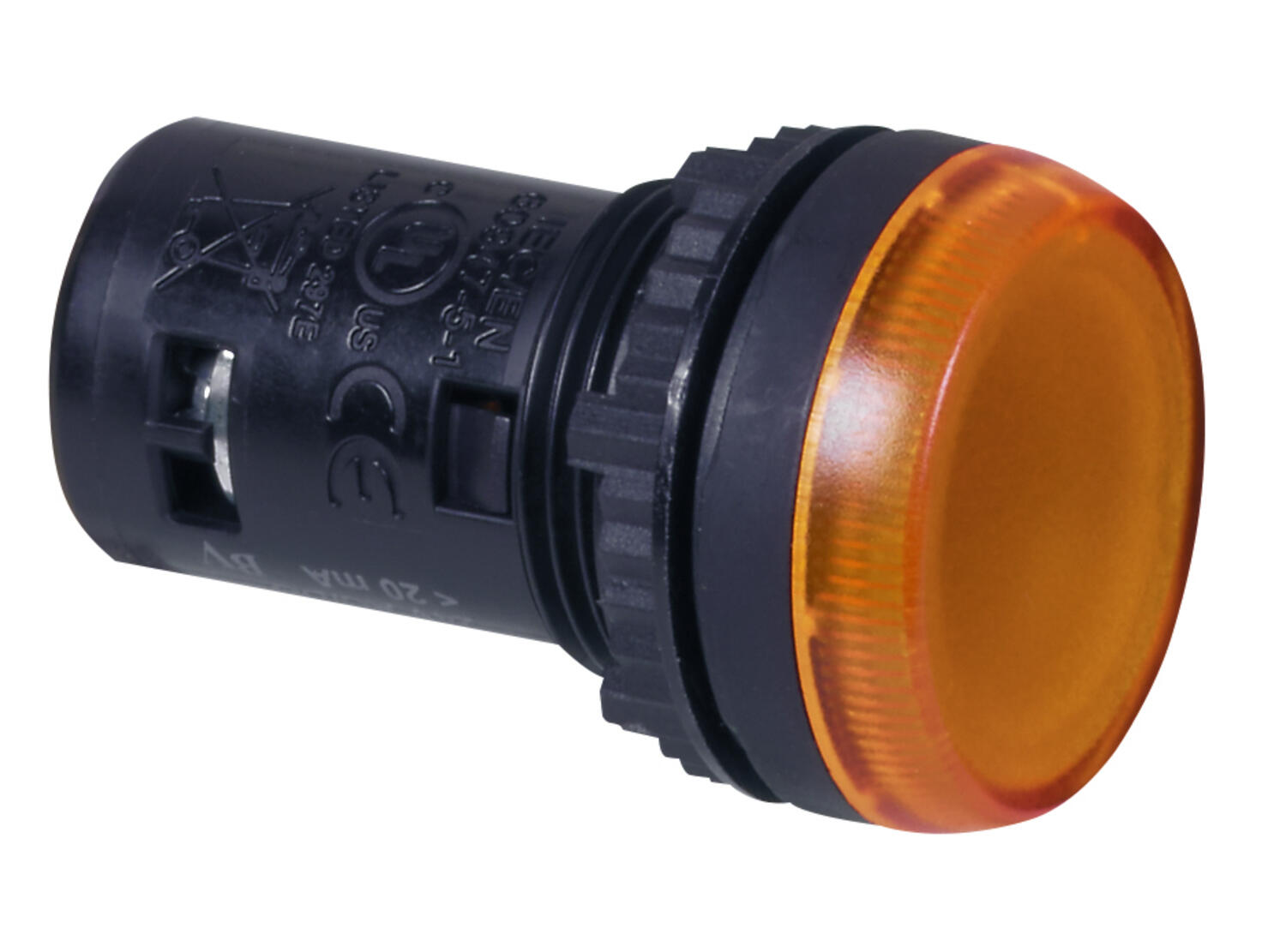

LED One Piece Pilotlight 24V ac/dc Yellow
Art:
L20SC40L
Copied
|
Yellow
|
4,6 mA
|
24V ac/dc
|
50000 h
|
| ||
![]()

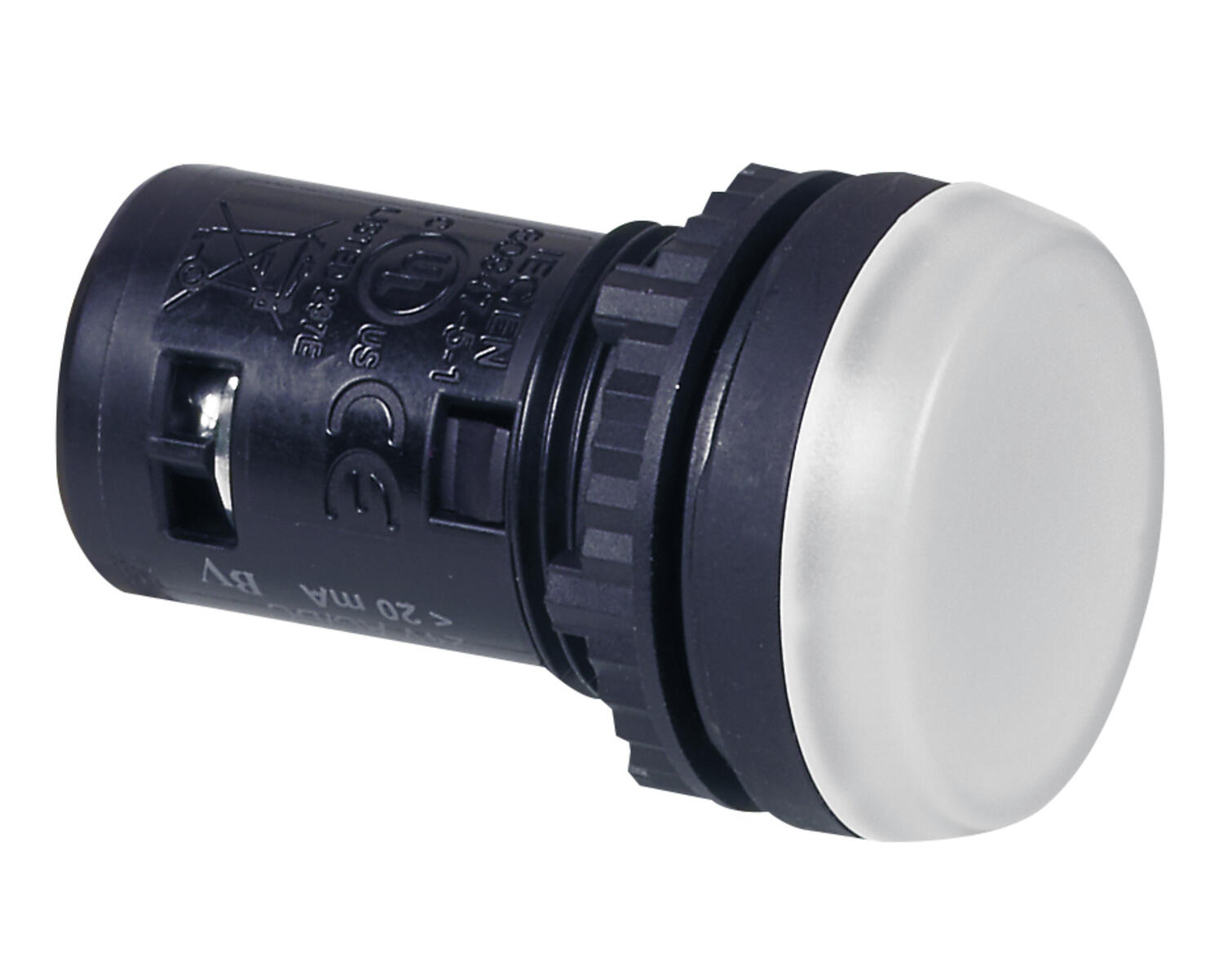

LED One Piece Pilotlight 24V ac/dc White
Art:
L20SC50L
Copied
|
White
|
4,6 mA
|
24V ac/dc
|
50000 h
|
| ||
![]()

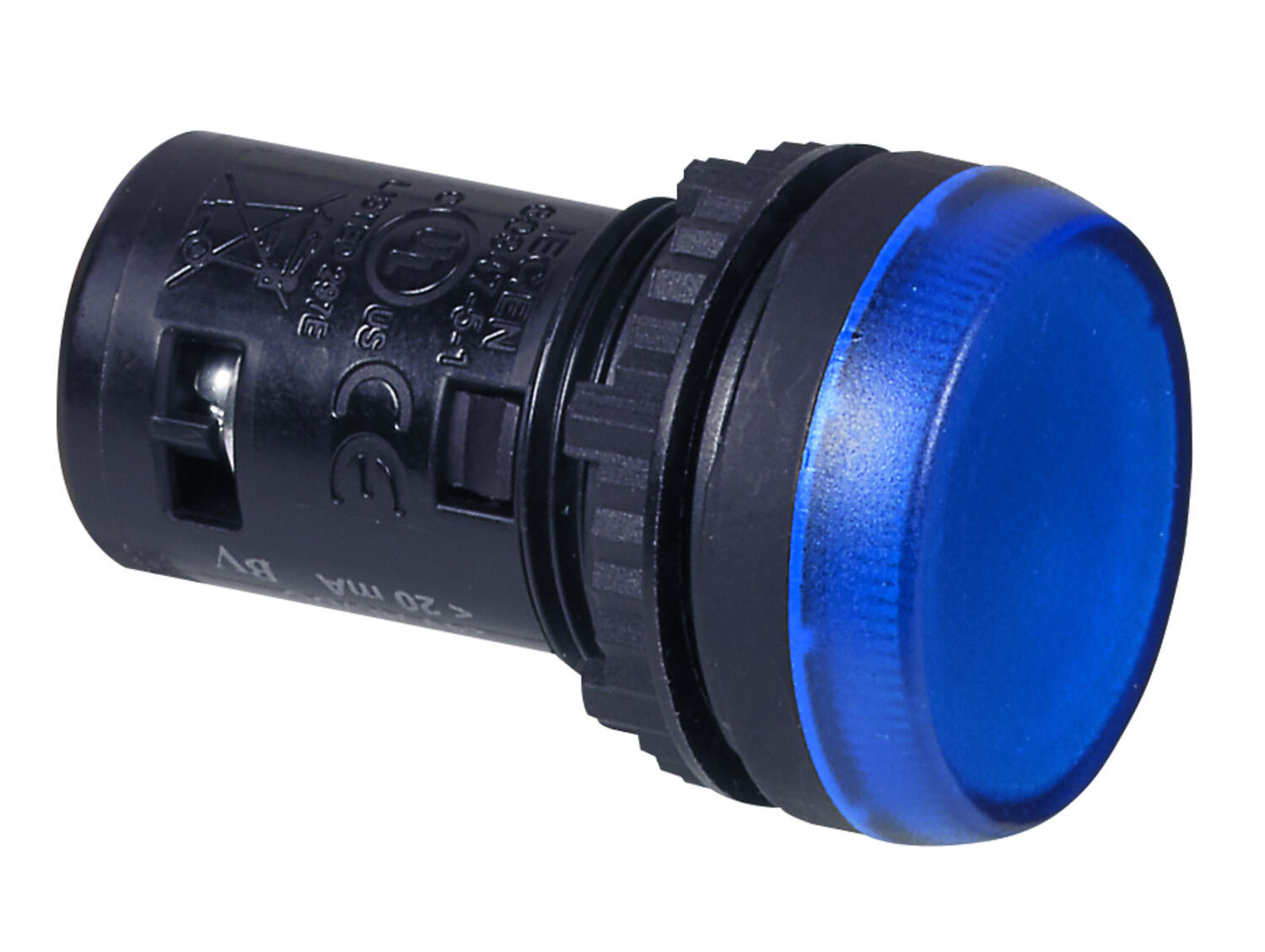

LED One Piece Pilotlight 24V ac/dc Blue
Art:
L20SC60L
Copied
|
Blue
|
4,6 mA
|
24V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 130V ac/dc Red
Art:
L20SC10M
Copied
|
Red
|
5.2 mA
|
130V ac/dc
|
100000 h
|
| ||
![]()
LED One Piece Pilotlight 130V ac/dc Green
Art:
L20SC20M
Copied
|
Green
|
5.2 mA
|
130V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 130V ac/dc Yellow
Art:
L20SC40M
Copied
|
Yellow
|
5.2 mA
|
130V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 130V ac/dc White
Art:
L20SC50M
Copied
|
White
|
5.2 mA
|
130V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 130V ac/dc Blue
Art:
L20SC60M
Copied
|
Blue
|
5.2 mA
|
130V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 230V ac/dc Red
Art:
L20SC10H
Copied
|
Red
|
4.6 mA
|
230V ac/dc
|
100000 h
|
| ||
![]()
LED One Piece Pilotlight 230V ac/dc Green
Art:
L20SC20H
Copied
|
Green
|
4.6 mA
|
230V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 230V ac/dc Yellow
Art:
L20SC40H
Copied
|
Yellow
|
4.6 mA
|
230V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 230V ac/dc White
Art:
L20SC50H
Copied
|
White
|
4.6 mA
|
230V ac/dc
|
50000 h
|
| ||
![]()
LED One Piece Pilotlight 230V ac/dc Blue
Art:
L20SC60H
Copied
|
Blue
|
4.6 mA
|
230V ac/dc
|
50000 h
|
|
Select a variant in the list
