BACO

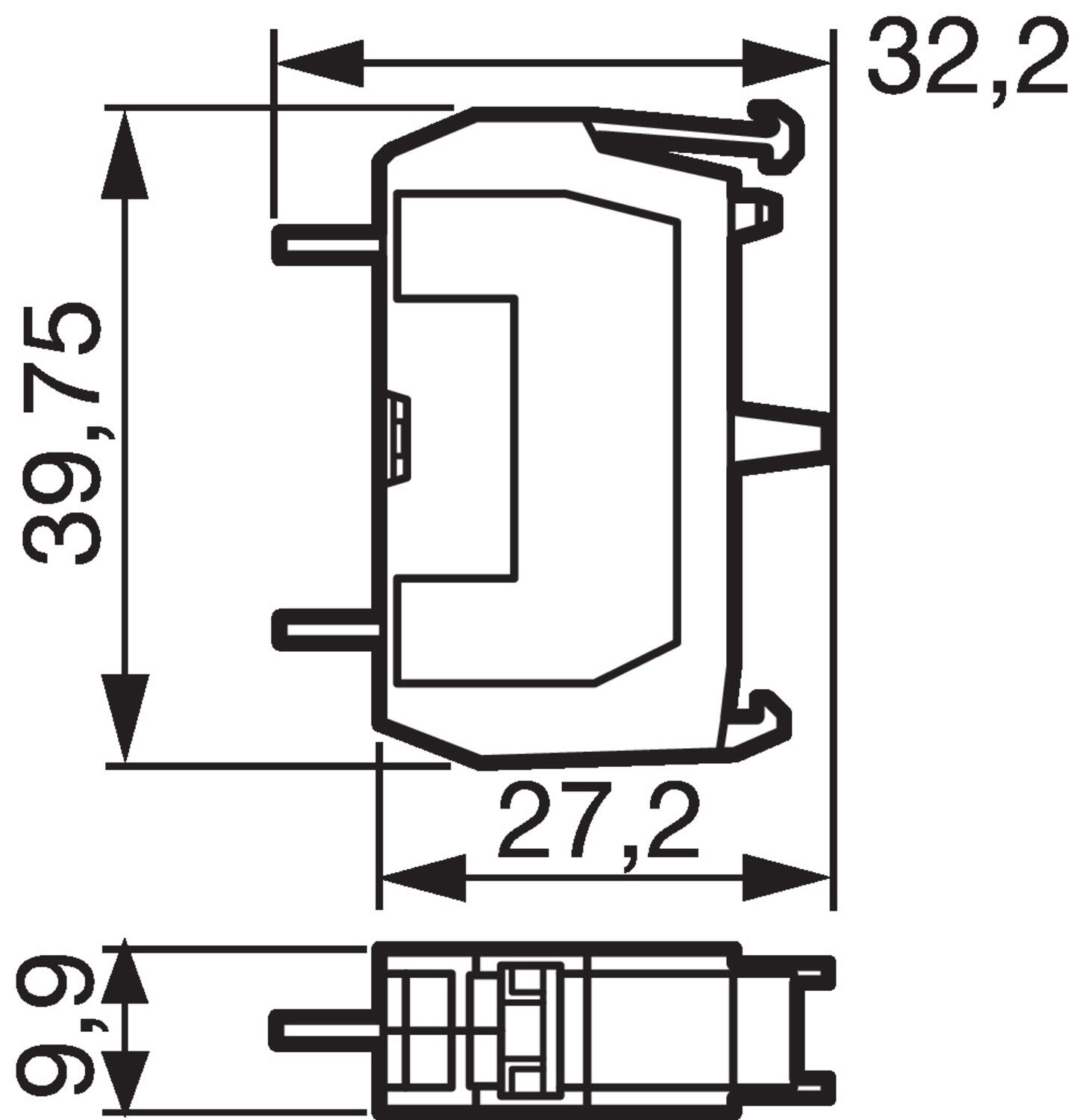

Solder Contact blocks
Solder pin terminals

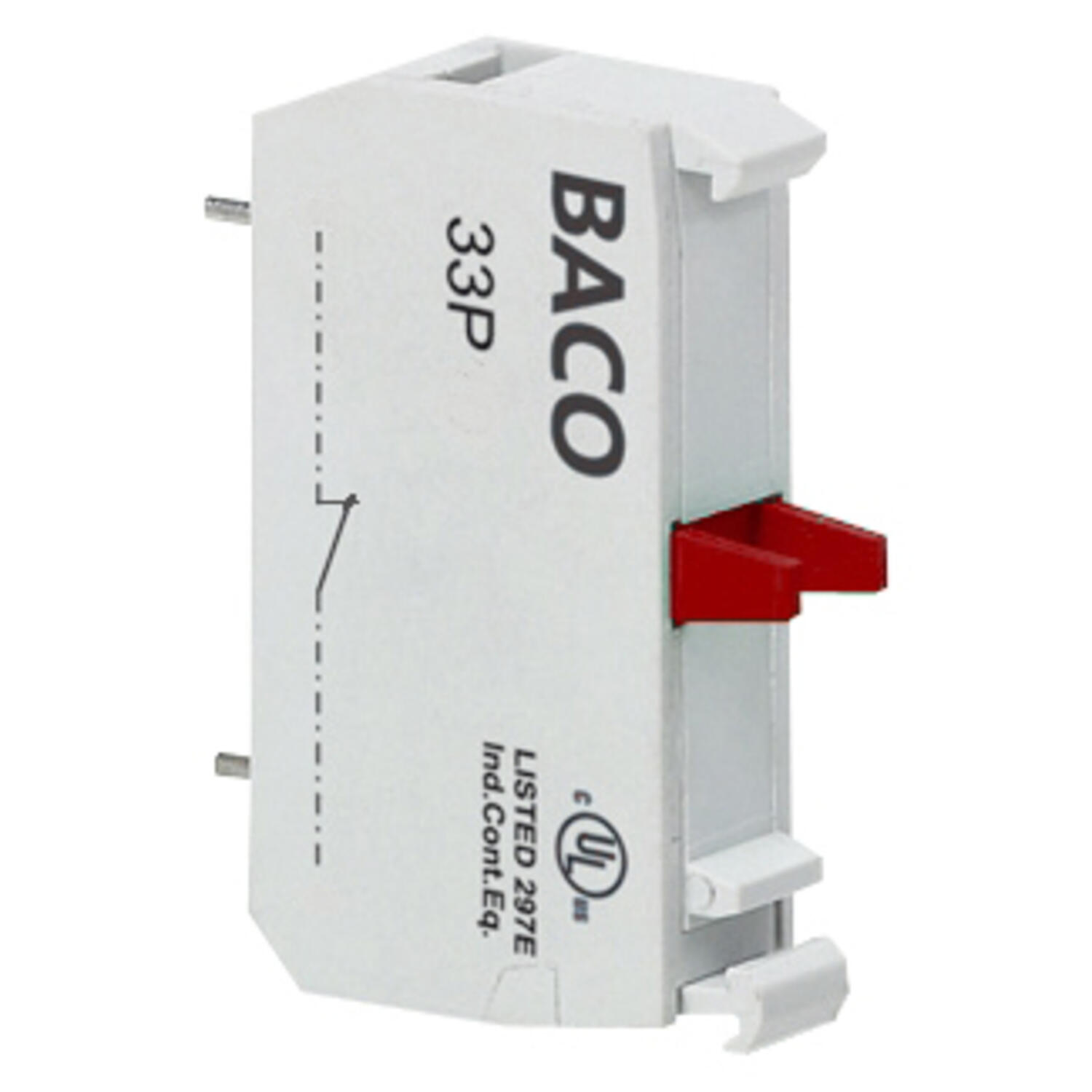

Contact blocks with solder pins for direct PCB connection.
Snap directly onto 1, 3 or 5 position clips.
Gold plated option for low current applications.
Available in N/O or N/C blocks.
Â
- Direct PCB solder connection
- Diameter 1mm pins
- Gold plated option for low current applications
- Use with 1, 3 or 5 position clips
Selected variant
Technical data
| Approvals | UL 508, CSA 22.2, BV, CB, CE |
|---|---|
| Climatic resistance - constant humid heat | IEC 60068-2-3 |
| Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
| Climatic resistance - sea air | IEC 60068-2-52 |
| Connection type | PCB Pin |
| Contact type | 1 x N/C |
| Conventional free air thermal current Ith (AC15) | 5 A |
| Conventional free air thermal current Ith (DC13) | 1 A |
| Electrical lifetime | 1 million cycles @ AC15: 120 V 3 A, 240 V 1,5 A. DC13: 125 V 0,22 A, 250 V 0,1 A. |
| Minimum operating current Ie (24Vdc) | 5 mA |
| Pin diameter | 1 mm |
| Protection rating rear of panel | IP20 |
| Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | 4 kV |
| Rated insulation voltage ac (IEC 60947-1) | 250 V |
|---|---|
| Rated insulation voltage ac (UL 508) | 250 V |
| Rated operating current Ie (AC15/120V) | 3 A |
| Rated operating current Ie (AC15/240V) | 1.5 A |
| Rated operating current Ie (DC13/125V) | 0.22 A |
| Rated operating current Ie (DC13/250V) | 0.1 A |
| Storage temperature max | 70 °C |
| Storage temperature min | -40 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -25 °C |
| Weight | 13 g |
