BACO

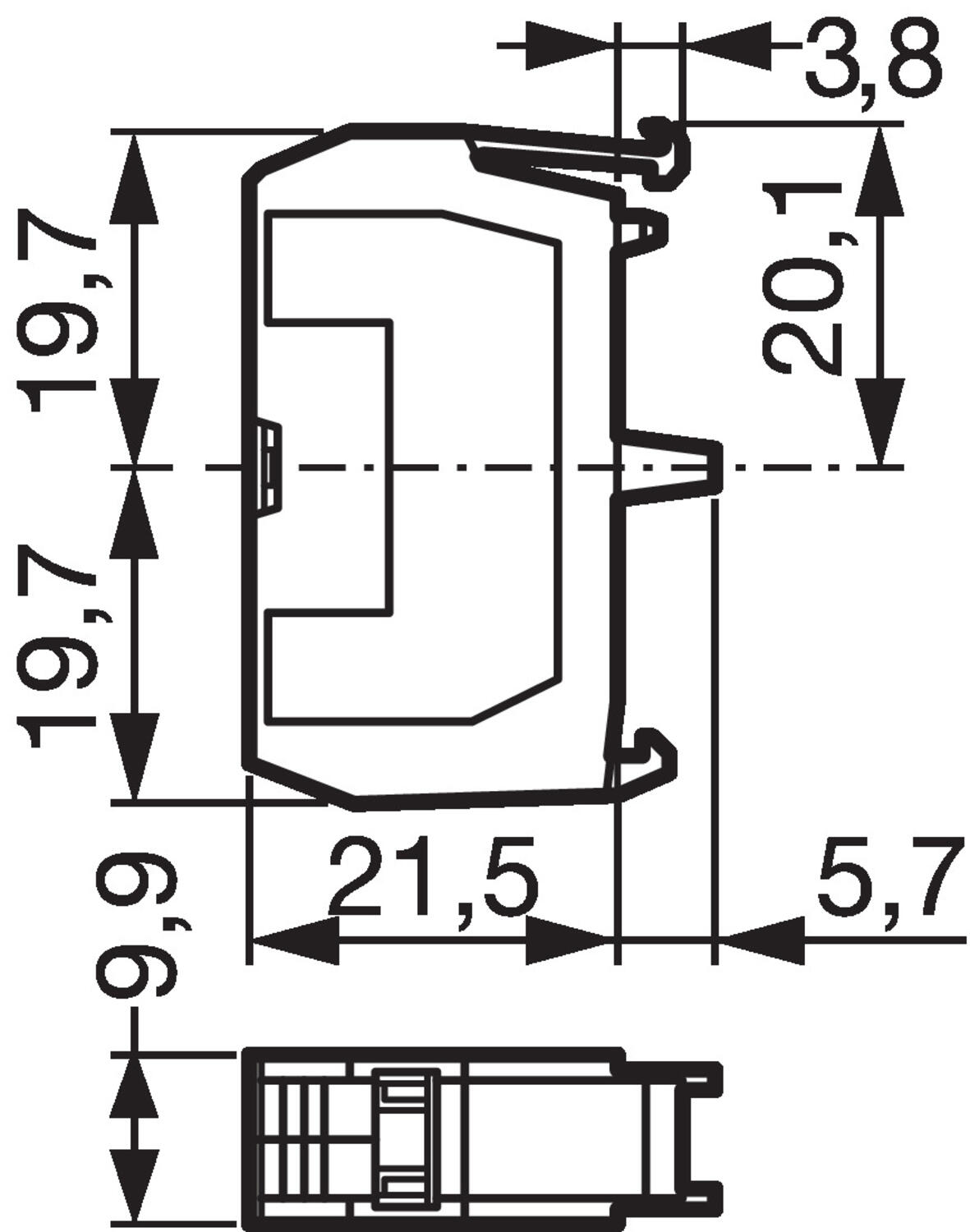

Contact blocks with screw terminal connection that snap directly onto 1, 3 or 5 position clips.
A second row can be stacked directly up to 3 wide to achieve a maximum of 6 contacts.
Available in N/O, N/C or combined N/O & N/C blocks.
Optional gold plated contacts for low level switching applications.
Rear mounting contact blocks need no clip and snap directly into the base of the LBX enclosures.

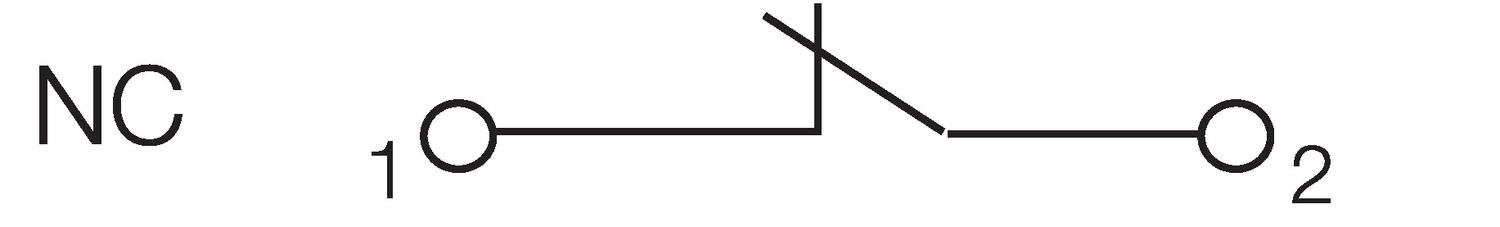

Approvals | UL 508, CSA 22.2, BV, CB, CE |
---|---|
Climatic resistance - constant humid heat | IEC 60068-2-3 |
Climatic resistance - cyclic damp heat | IEC 60068-2-30 |
Climatic resistance - sea air | IEC 60068-2-52 |
Connection solid wire max | 2.5 mm² |
Connection stranded wire with ferrule max | 1.5 mm² |
Connection stranded wire with ferrule min | 0.5 mm² |
Contact type | 1 x N/C |
Conventional free air thermal current Ith (AC15) | 10 A |
Conventional free air thermal current Ith (DC13) | 2.5 A |
Electrical lifetime | 1 million cycles @ AC15: 120 V 3 A, 240 V 1,5 A. DC13: 125 V 0,22 A, 250 V 0,1 A. |
Minimum operating current Ie (24Vdc) | 5 mA |
Protection rating rear of panel | IP20 |
Rated impulse withstand voltage Uimp (Overvoltage cat III - Pollution 3) | 6 kV |
Rated insulation voltage ac (IEC 60947-1) | 690 V |
Rated insulation voltage ac (UL 508) | 600 V |
Rated operating current Ie (AC15/120V) | 6 A |
Rated operating current Ie (AC15/240V) | 3 A |
Rated operating current Ie (AC15/380V) | 1.9 A |
Rated operating current Ie (AC15/480V) | 1.5 A |
Rated operating current Ie (AC15/500V) | 1.4 A |
---|---|
Rated operating current Ie (AC15/600V) | 1.2 A |
Rated operating current Ie (DC13/110V) | 0.3 A |
Rated operating current Ie (DC13/125V) | 0.55 A |
Rated operating current Ie (DC13/230V) | 0.2 A |
Rated operating current Ie (DC13/24V) | 1.5 A |
Rated operating current Ie (DC13/250V) | 0.27 A |
Rated operating current Ie (DC13/400V) | 0.15 A |
Rated operating current Ie (DC13/48V) | 1 A |
Rated operating current Ie (DC13/500V) | 0.13 A |
Rated operating current Ie (DC13/600V) | 0.1 A |
Rated operating current Ie (DC13/60V) | 0.7 A |
Storage temperature max | 70 °C |
Storage temperature min | -40 °C |
Temperature operational max | 70 °C |
Temperature operational min | -25 °C |
Tightening torque max | 1.2 |
Weight | 13 g |
Contact blocks with screw terminal connection that snap directly onto 1, 3 or 5 position clips.
A second row can be stacked directly up to 3 wide to achieve a maximum of 6 contacts.
Available in N/O, N/C or combined N/O & N/C blocks.
Optional gold plated contacts for low level switching applications.
Rear mounting contact blocks need no clip and snap directly into the base of the LBX enclosures.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Contact type | Minimum operating current Ie (24Vdc) | Minimum operating current Ie (5Vdc) | Rated operating current Ie (DC13/110V) | Rated operating current Ie (DC13/230V) | Rated operating current Ie (DC13/24V) | Rated operating current Ie (DC13/48V) | Rated operating current Ie (DC13/60V) | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

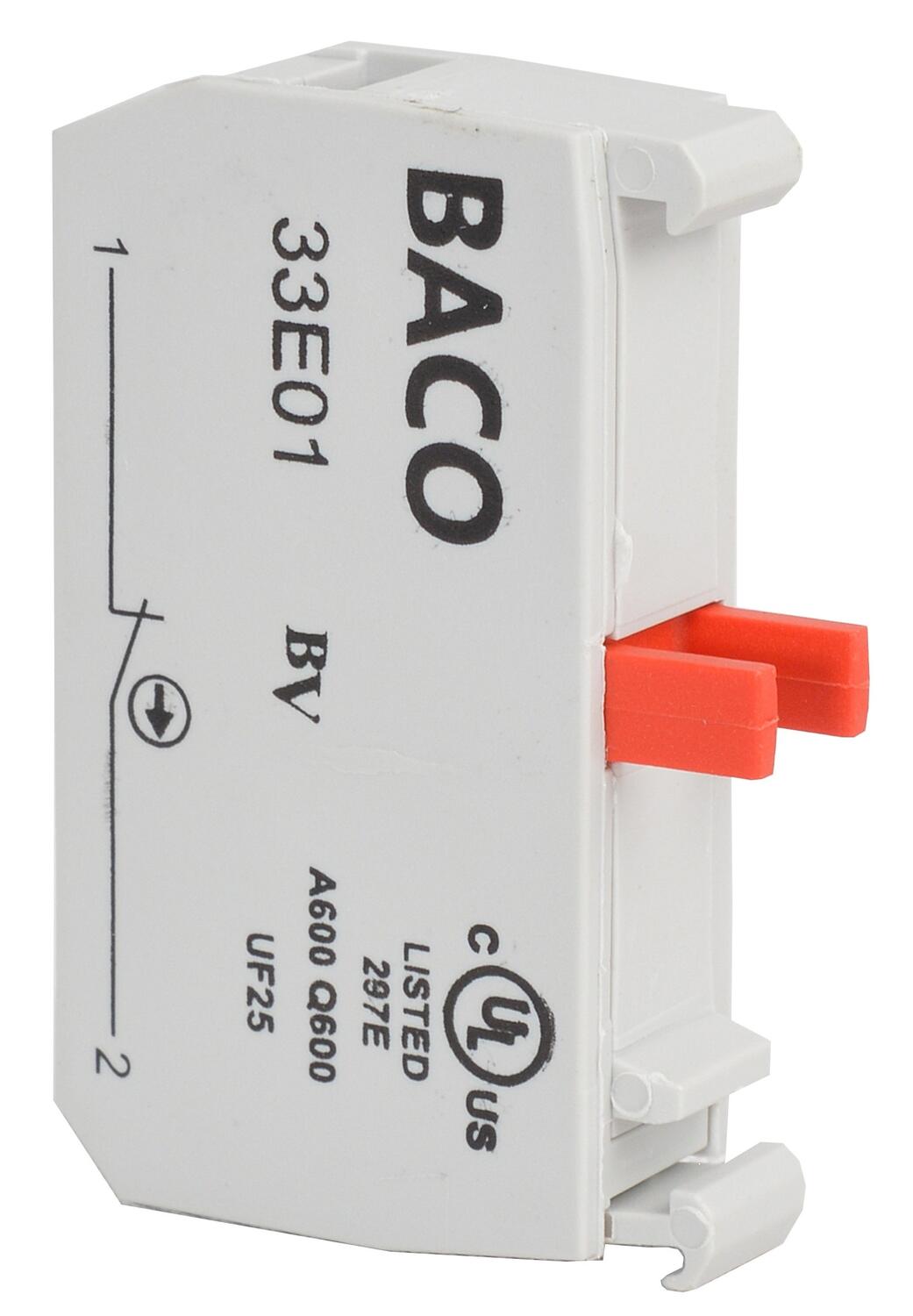

Contact Block Screw N/C
Art:
33E01
Copied
|
1 x N/C
|
5 mA
|
|
0.3 A
|
0.2 A
|
1.5 A
|
1 A
|
0.7 A
|
13 g
|
| ||
![]()
Contact Block Screw N/O
Art:
33E10
Copied
|
1 x N/O
|
5 mA
|
|
0.3 A
|
0.2 A
|
1.5 A
|
1 A
|
0.7 A
|
13 g
|
| ||
![]()

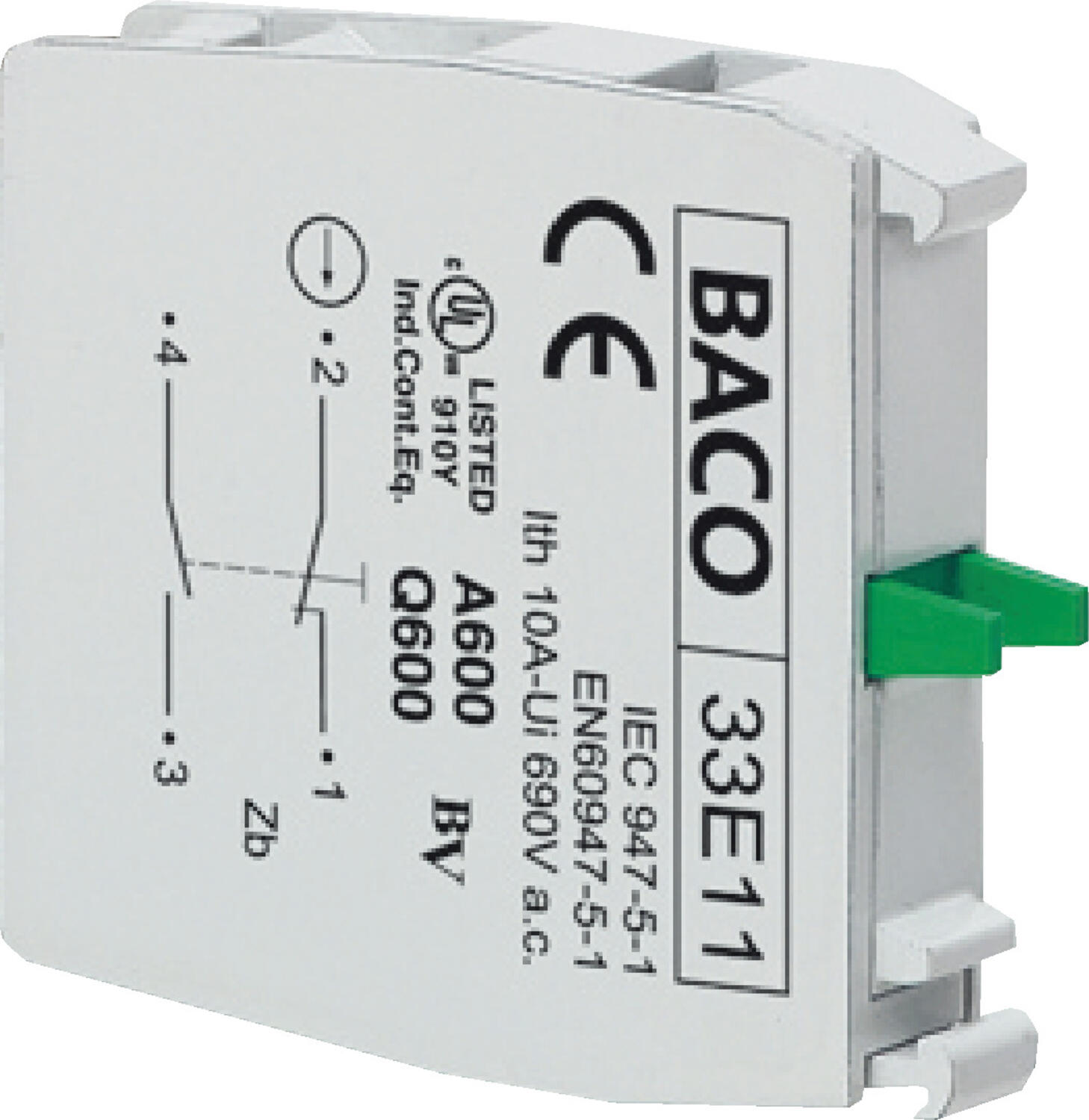

Contact Block Screw N/O & N/C
Art:
33E11
Copied
|
N/O & N/C
|
5 mA
|
|
0.3 A
|
0.2 A
|
1.5 A
|
1 A
|
0.7 A
|
25 g
|
| ||
![]()
Contact Block Screw LBX Rear Mount N/C
Art:
33S01
Copied
|
1 x N/C
|
5 mA
|
|
0.3 A
|
0.2 A
|
1.5 A
|
1 A
|
0.7 A
|
13 g
|
| ||
![]()

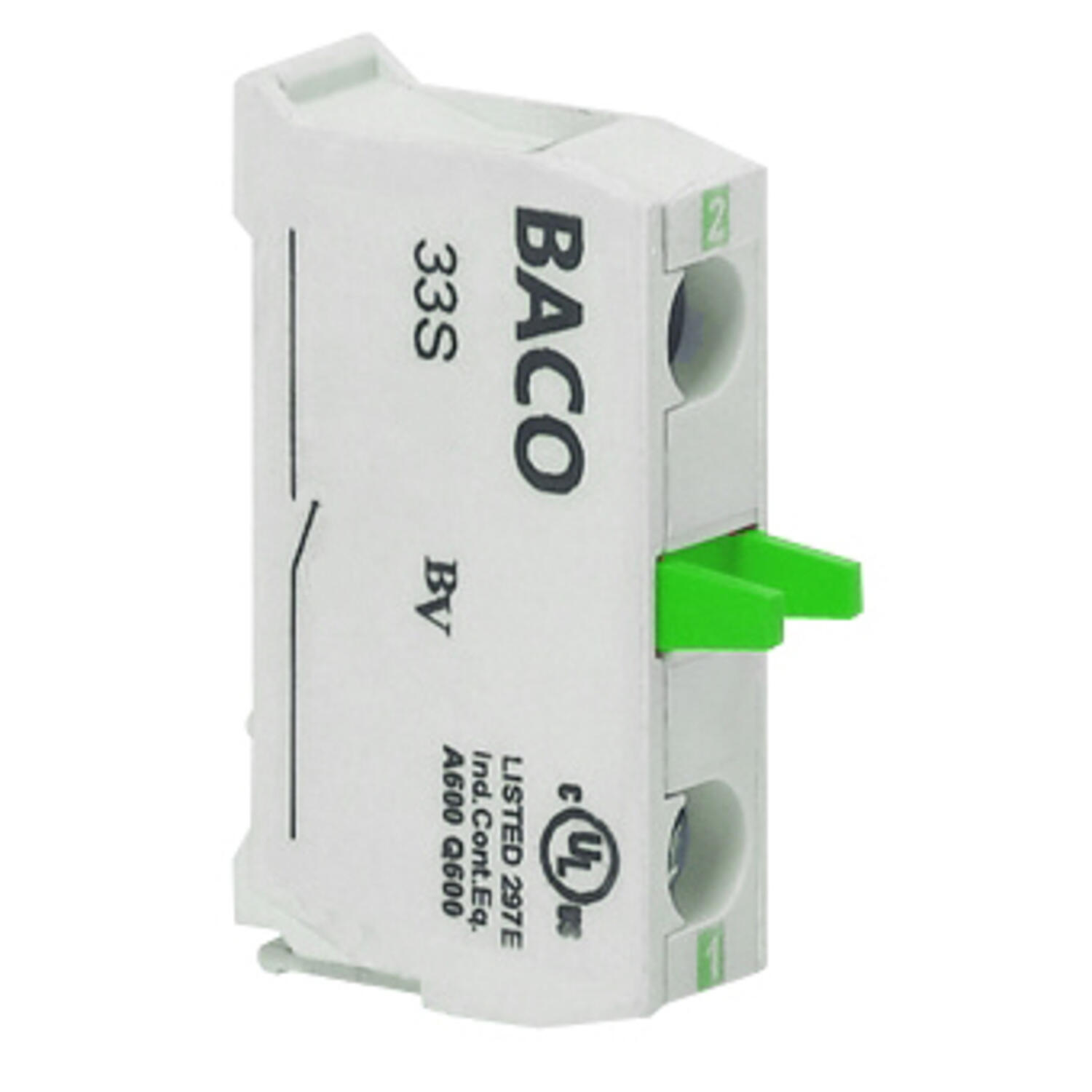

Contact Block Screw LBX Rear Mount N/O
Art:
33S10
Copied
|
1 x N/O
|
5 mA
|
|
0.3 A
|
0.2 A
|
1.5 A
|
1 A
|
0.7 A
|
13 g
|
| ||
![]()

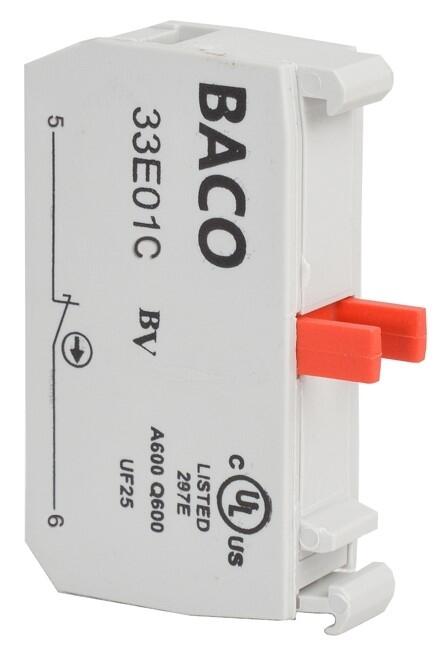

Contact Block Screw N/C Delayed Open
Art:
33E01C
Copied
|
1 x N/C
|
5 mA
|
|
0.3 A
|
0.2 A
|
1.5 A
|
1 A
|
0.7 A
|
13 g
|
| ||
![]()

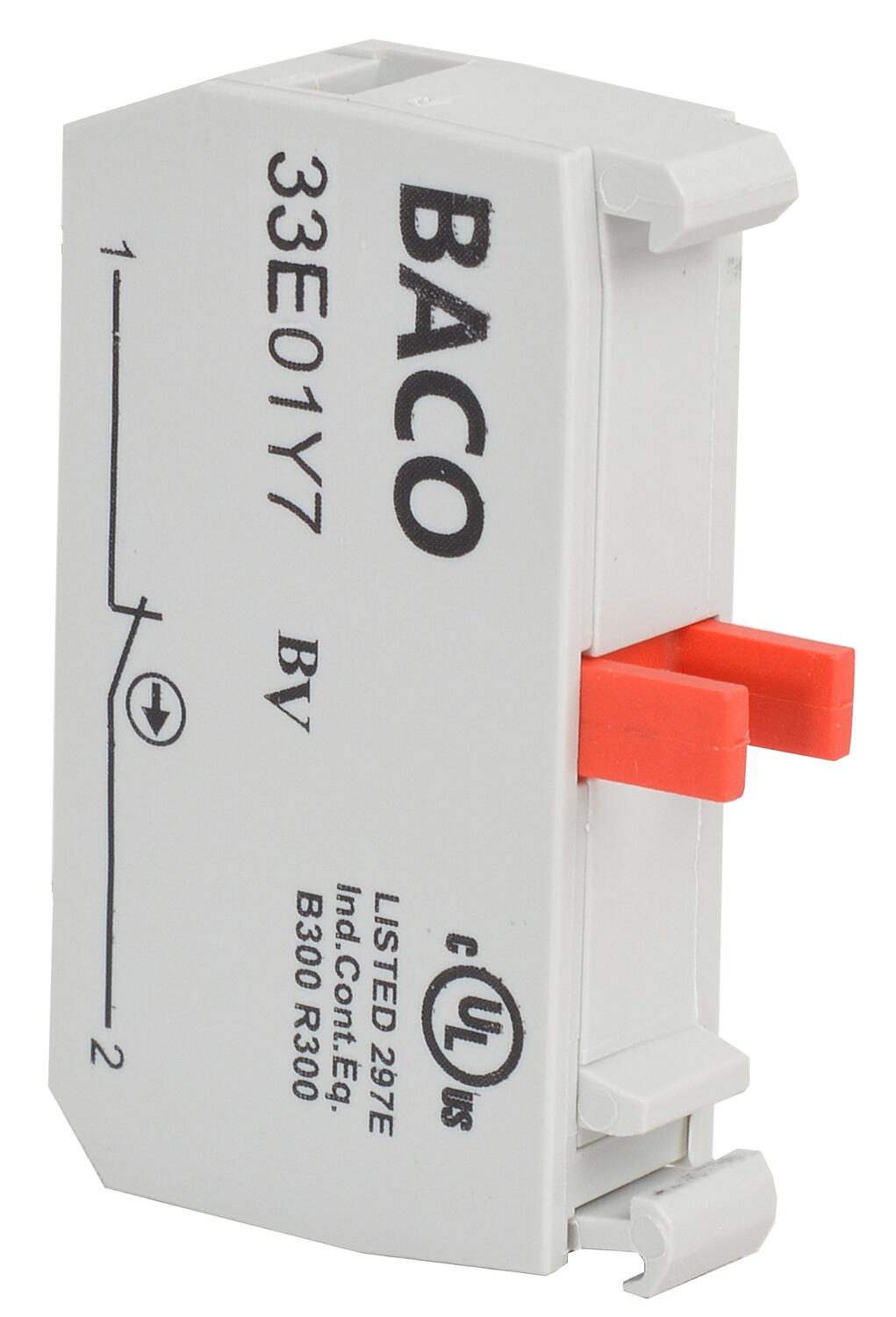

Contact Block Screw N/C Gold Plated
