Power supply 1-Phase with built in redundancy, 24 V DC Dimension C series, Generation 2

Click below link to download the white paper

Efficient redundancy for power supplies



Also visit our page for Redundancy Modules



The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2/-R3 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.

These redundancy power supplies come with three connection terminal options; screw terminals, spring-clamp terminals or plug connector terminals which allows replacement on an active application.

CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.

CP10.242-R2 version feature an enhanced DC input voltage range.

With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.

  • AC 100-240V Wide-range Input
  • Width only 39 or 48 mm

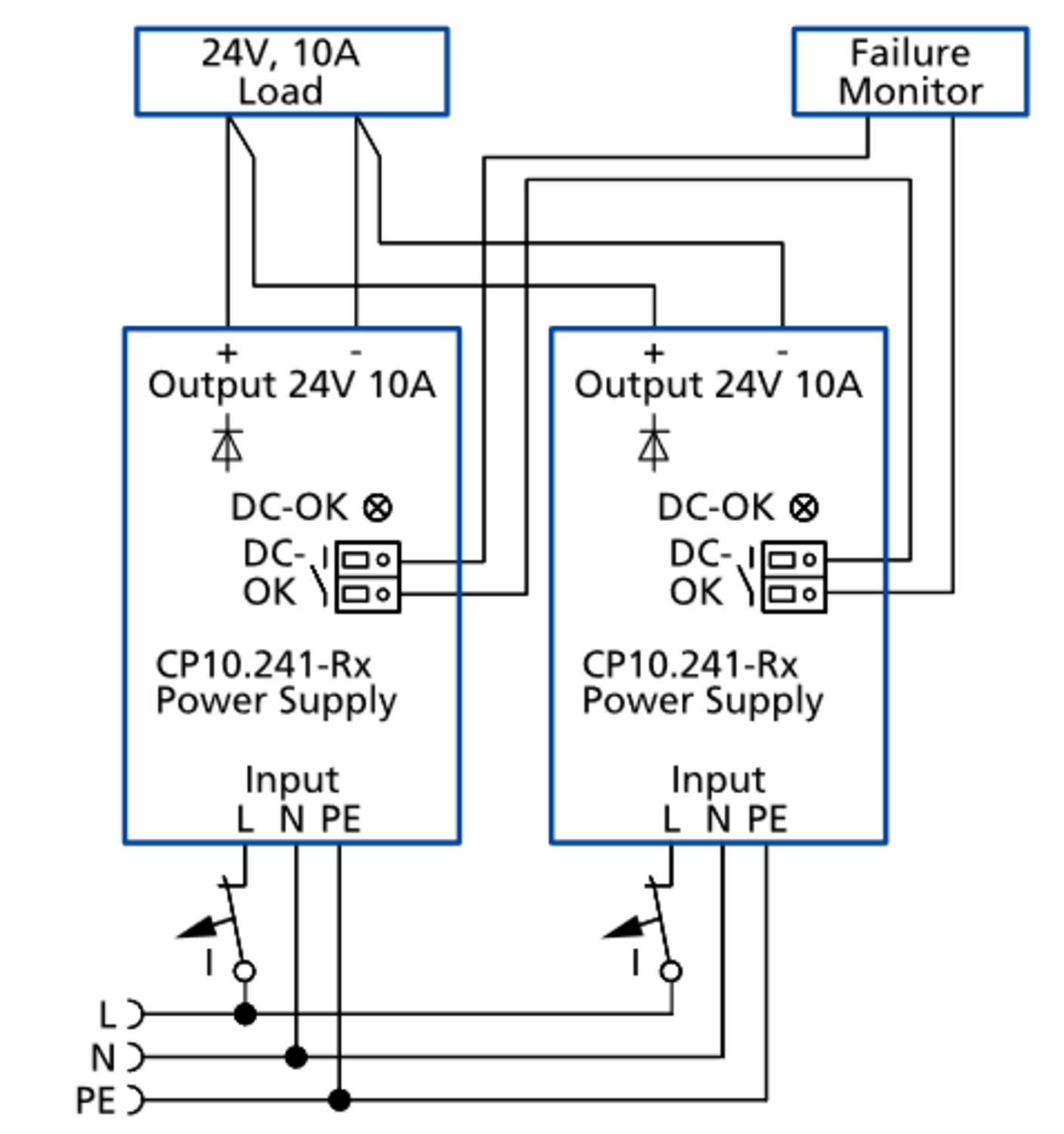

  • Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
  • Efficiency up to 94.7%
  • 20% Output Power Reserves

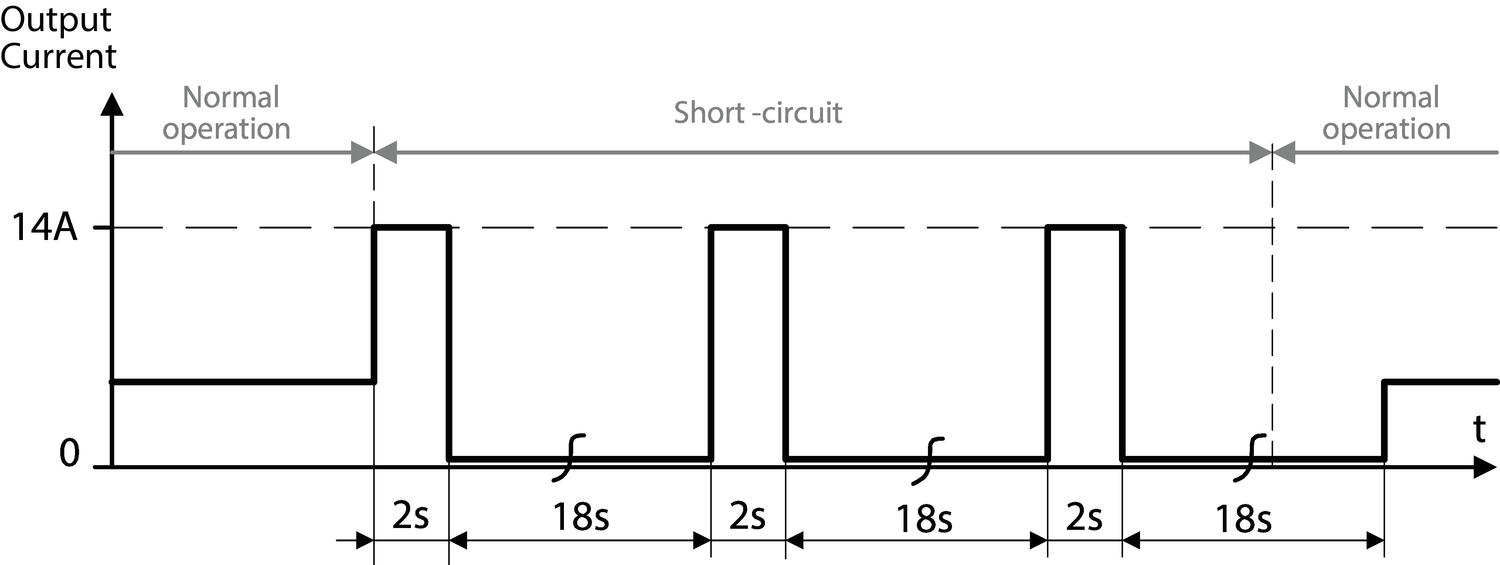

  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking – 3 times nominal current for 12ms
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • DC-OK Relay Contact
  • Current Sharing Feature Included
  • 3 Year Warranty
Read more
  • Output current of 10 or 20 A
  • Efficiency up to 95.2%
  • 20% power reserves
  • Built-in decoupling mosfet for 1+1 and n+1 redundancy
  • Hot-Swap

Selected variant

Available in several variants
PULS_2016.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Input data
Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 264 V AC
Input voltage dc 110-150 V
Input voltage dc min 88 V DC
Input voltage dc max 180 V DC
Inrush current at 120 V ac typical 6 A
Inrush current at 230 V ac typical 9 A
Input voltage range Wide-range
Power factor at 120 V ac, full load. Typical 0.99
Power factor at 230 V ac, full load. Typical 0.97
Number of phases 1

Output data
Output voltage 24 V DC
Output voltage min 24 V DC
Output voltage max 28 V DC
Output current 10 A
Power 240 W

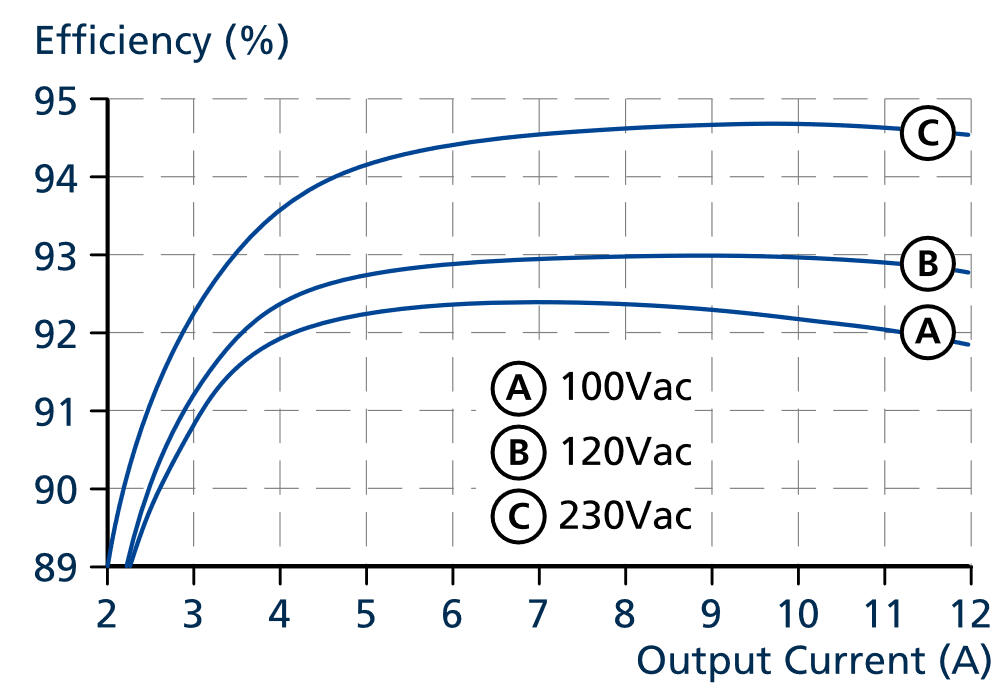

Efficiency / Lifetime / MTBF
Efficiency at 120 V ac, full load, typical 93 %
Efficiency at 230 V ac, typical 93.9 %
Efficiency at 230 V ac, full load, typical 94.7 %
Lifetime at 120 V ac, full load and +40 ° C 78000 h
Lifetime at 230 V ac, full load and +40 ° C 109000 h

*Invisible Heading*
MTBF (IEC 61709) 230 V ac, max load, 40 ° C 641000 h

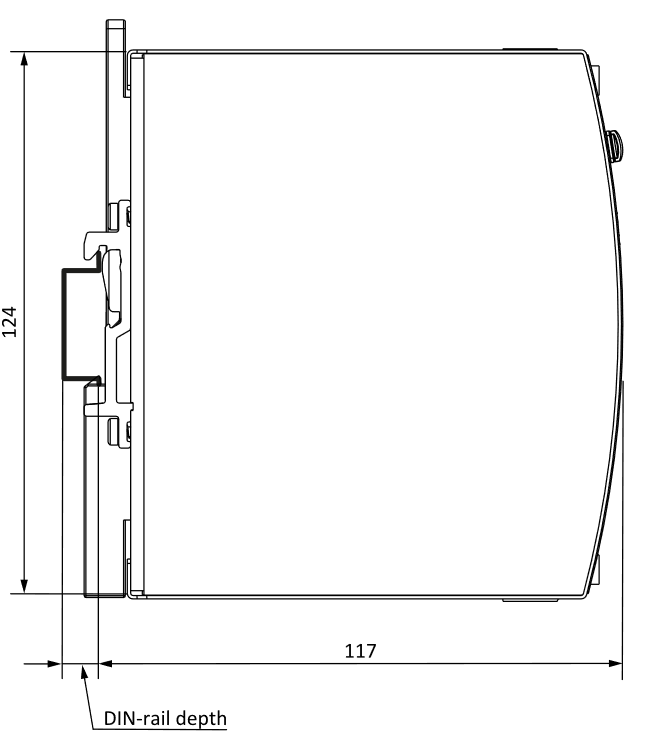

Dimensions
Width 39 mm
Height 124 mm
Depth 117 mm
Weight 0.6 kg

Other
Approvals ATEX, CE, CSA US, cULus, IECEx
Hold time at 120 V ac, typical full load 37 ms
Hold time at 230 V ac, typical full load 37 ms
IP class IP20
Clamp type Spring-clamp
Material protection Aluminium
Supply frequency 50-60 ±6 %
Ripple max 50 mV pp
Series Dimension C
Power consumption 120 V ac 2.17 A
Power consumption 230 V ac 1.14 A
Power drop from +60 °C to + 70 °C 6 W/°C
Temperature min without derating -25 °C
Temperature max without derating 60 °C
Active Transient Yes
DC relay output Yes

Downloads

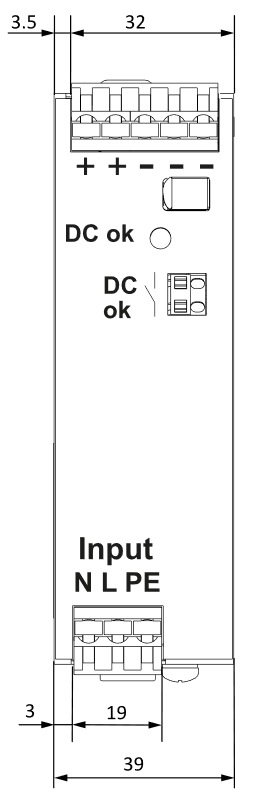

Measurements and connections

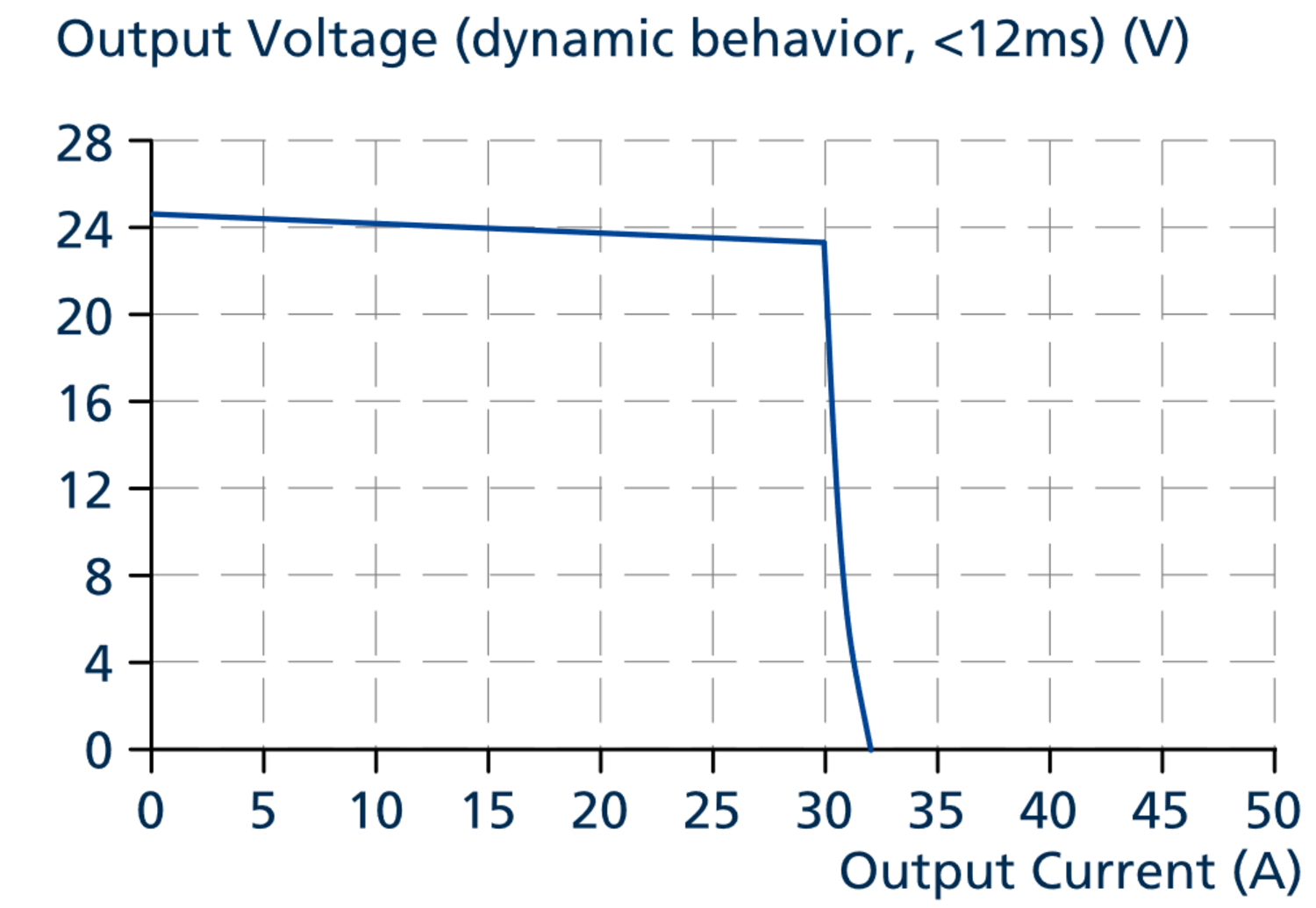

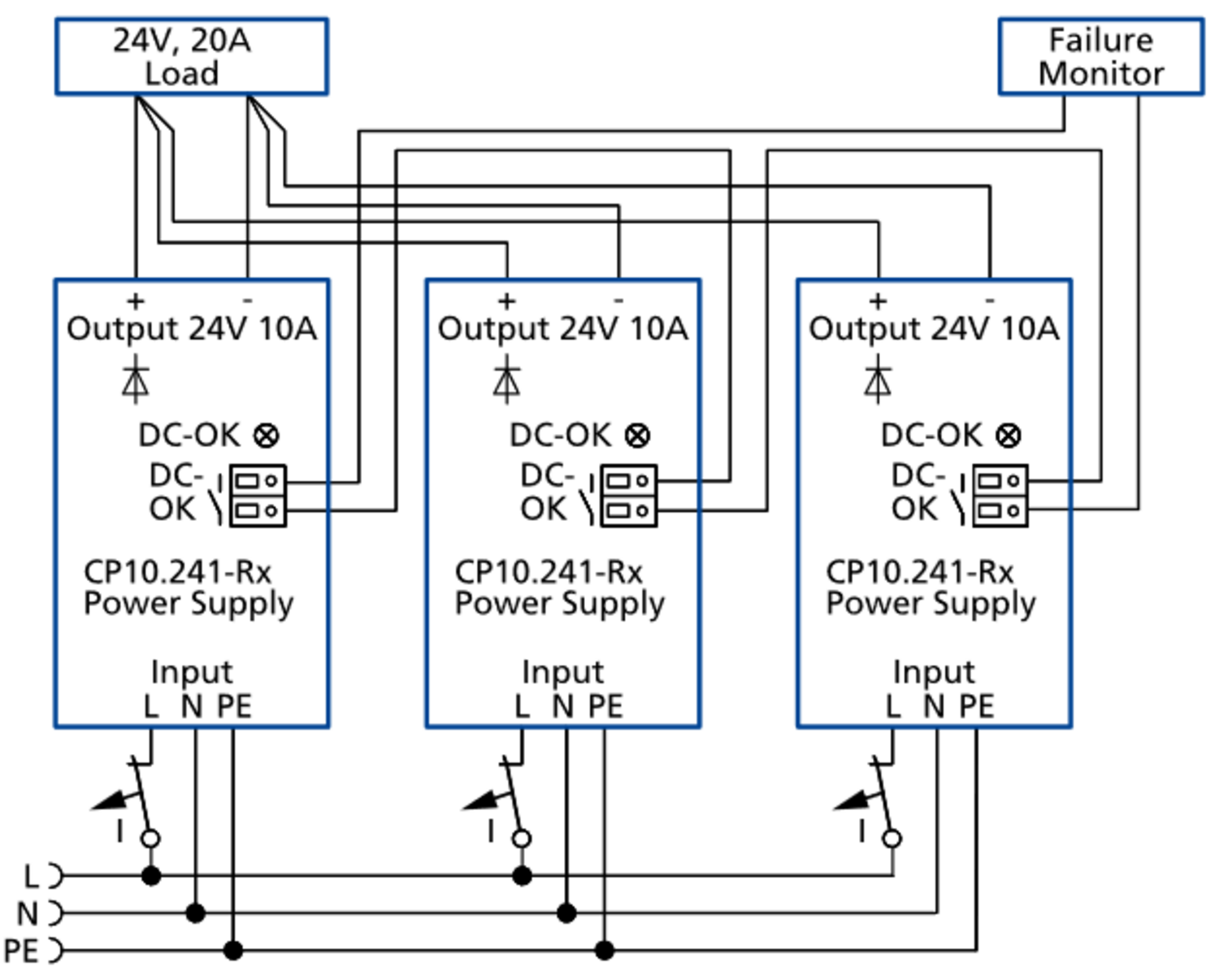

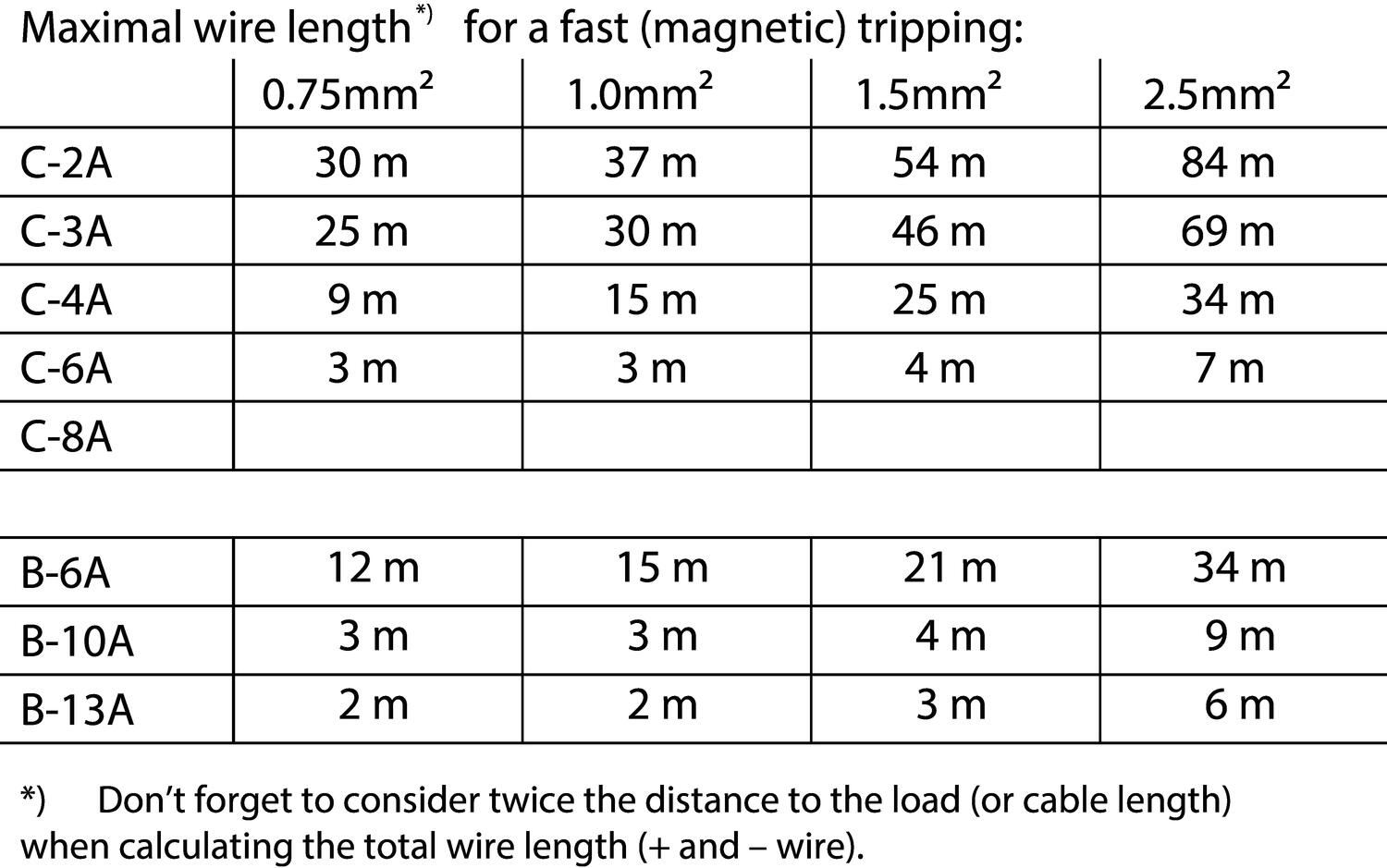

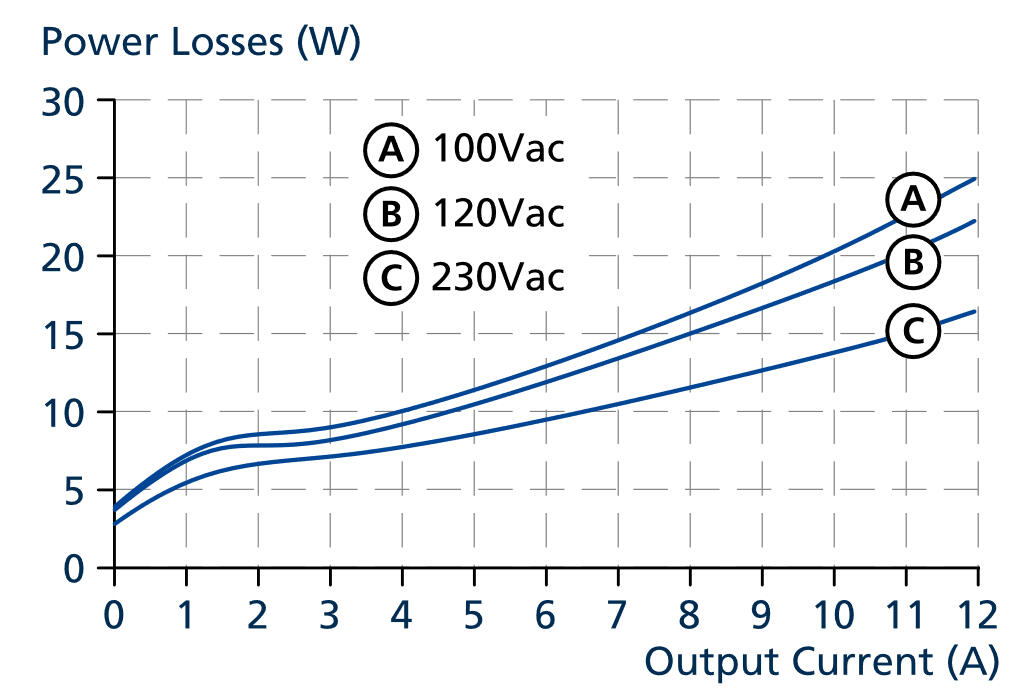

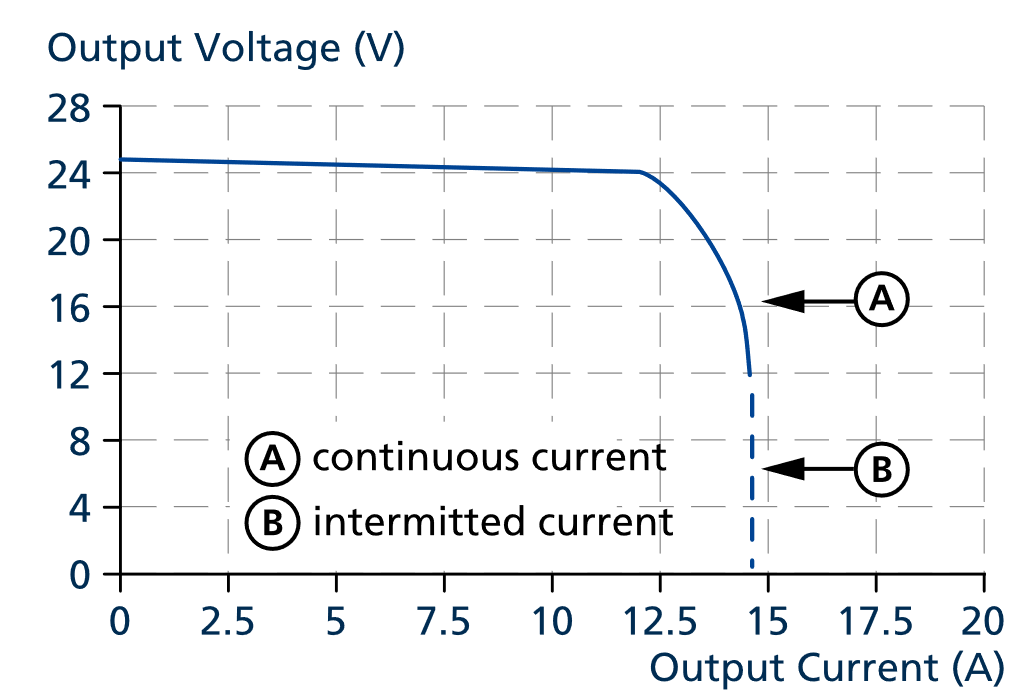

Technical illustrations

Product description

Click below link to download the white paper

Efficient redundancy for power supplies



Also visit our page for Redundancy Modules



The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2/-R3 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.

These redundancy power supplies come with three connection terminal options; screw terminals, spring-clamp terminals or plug connector terminals which allows replacement on an active application.

CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.

CP10.242-R2 version feature an enhanced DC input voltage range.

With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.

  • AC 100-240V Wide-range Input
  • Width only 39 or 48 mm
  • Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
  • Efficiency up to 94.7%
  • 20% Output Power Reserves
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking – 3 times nominal current for 12ms
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • DC-OK Relay Contact
  • Current Sharing Feature Included
  • 3 Year Warranty

Accessories

Related products

Related

Contaclip PRK terminal blocks
Product news

Terminal Blocks For Push In Connection Systems

This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations
Learning hub

Electrical Protection in the Solar Era: How to Choose Fuses for Modern Photovoltaic Installations

Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.

Fuse links semiconductor DF electric
Product news

Fuse links for semiconductor protection

Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Legrand MCB and PULS ECB - MCBs vs ECBs - which is best for securing a DC circuit?
Learning hub

MCBs vs ECBs: Which is best for securing DC circuits?

Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Parts Input voltage dc Input voltage dc max Inrush current at 120 V ac typical Inrush current at 230 V ac typical Power factor at 230 V ac, full load. Typical Output current Power Efficiency at 120 V ac, full load, typical Efficiency at 230 V ac, typical Efficiency at 230 V ac, full load, typical Lifetime at 120 V ac, full load and +40 ° C Lifetime at 230 V ac, full load and +40 ° C MTBF (IEC 61709) 230 V ac, max load, 40 ° C Width Depth Weight Approvals Hold time at 120 V ac, typical full load Hold time at 230 V ac, typical full load Clamp type Ripple max Power consumption 120 V ac Power consumption 230 V ac Power drop from +60 °C to + 70 °C Temperature min without derating Type Power Supply Conformal coated Price
Redundant PSU 100-240 V AC/24 V DC, 10 A
Art:
CP10.241-R1 Copied
110-150 V
180 V DC
6 A
9 A
0.97
10 A
240 W
93 %
93.9 %
94.7 %
78000 h
109000 h
641000 h
39 mm
117 mm
0.6 kg
ATEX, CE, CSA US, cULus, IECEx
37 ms
37 ms
Spring-clamp
50 mV pp
2.17 A
1.14 A
6 W/°C
-25 °C
Redundant PSU, 100-240 V AC/24 V DC, 10 A Hot Swap
Art:
CP10.241-R2 Copied
110-150 V
180 V DC
6 A
9 A
0.97
10 A
240 W
93 %
93.9 %
94.7 %
78000 h
109000 h
641000 h
39 mm
117 mm
0.6 kg
ATEX, CE, CSA US, cULus, IECEx
37 ms
37 ms
Hot-swap
50 mV pp
2.17 A
1.14 A
6 W/°C
-25 °C
Redundant
Redundant PSU 100-240 VAC/110-300 VDC, 24-28 VDC, 10A
Art:
CP10.242-R2 Copied
110-300 V
360 V DC
6 A
9 A
0.97
10 A
240 W
93 %
93.9 %
94.7 %
78000 h
109000 h
641000 h
39 mm
117 mm
0.6 kg
CB, CE, cULus
37 ms
37 ms
Hot-swap
50 mV pp
2.17 A
1.14 A
6 W/°C
-25 °C
Redundant PSU 100-240 V AC/24 V DC, 20 A
Art:
CP20.241-R1 Copied
110-150 V
180 V DC
10 A
4.5 A
0.98
20 A
480 W
93.8 %
94.6 %
95.2 %
53000 h
90000 h
543000 h
48 mm
127 mm
0.83 kg
ATEX, CB, CE, CSA US, cRUus, cULus, IECEx
32 ms
32 ms
Spring-clamp
100 mV pp
4.28 A
2.25 A
12 W/°C
-40 °C
Puls Power supply 1-Phase with built in redundancy, 24 V DC Dimension C series, Generation 2 CP20.241-R2
Redundant PSU 100-240V ac I/P 24V dc 20A 480W O/P
Art:
CP20.241-R2 Copied
110-150 V
180 V DC
10 A
4.5 A
0.98
20 A
480 W
93.8 %
94.6 %
95.2 %
53000 h
90000 h
543000 h
48 mm
127 mm
0.85 kg
ATEX, CB, CE, cRUus, cULus, IECEx
32 ms
32 ms
Hot-swap
100 mV pp
4.28 A
2.25 A
12 W/°C
-40 °C
Redundant
Redundant PSU, 100-240 V AC/24 V DC, 10 A Hot Swap Conf Coat
Art:
CP20.241-R2-C1 Copied
110-150 V
180 V DC
10 A
4.5 A
0.98
20 A
480 W
93.8 %
94.6 %
95.2 %
53000 h
90000 h
543000 h
48 mm
127 mm
0.85 kg
ATEX, CB, CE, cRUus, cULus, IECEx
32 ms
32 ms
Hot-swap
100 mV pp
4.28 A
2.25 A
12 W/°C
-40 °C
Yes
Redundant PSU 100-240 VAC/110-300 VDC, 24-28 VDC, 20A
Art:
CP20.242-R2 Copied
110-300 V
360 V DC
10 A
4.5 A
0.98
20 A
480 W
93.8 %
94.6 %
95.2 %
53000 h
90000 h
543000 h
48 mm
127 mm
0.85 kg
CB, CE, cULus
32 ms
32 ms
Hot-swap
100 mV pp
4.28 A
2.25 A
12 W/°C
-40 °C

Selected variant

Select a variant in the list
