PULS
Redundant module 40 A Dimension Series 24-56 VDC
24-56 V DC, 2x20 A

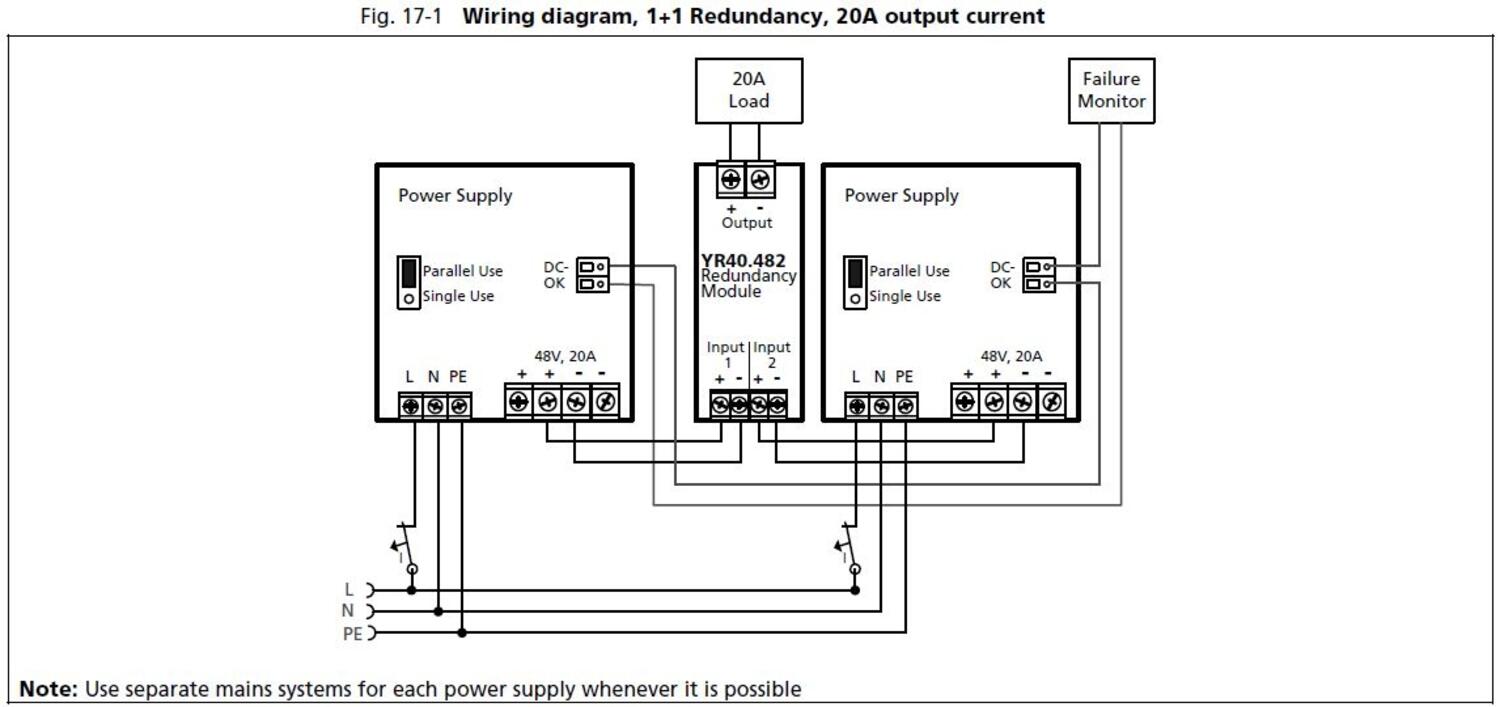

The YR40.482 is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is
equipped with two input channels, which can be connected to power supplies with up to 20A output
current and one output, which can carry nominal currents up to 40A.
The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The
redundancy module does not require an additional auxiliary voltage.
Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large
connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
- For N+1 and 1+1 Redundant Systems
- MOSFET transistors
- Minimum power loss
Selected variant
Technical data
Input data |
|
|---|---|
| Input voltage dc | 24-56 V |
| Input voltage dc min | 20.4 V DC |
| Input voltage dc max | 64.4 V DC |
| Input current per channel max | 20 A |
| Input current at continuous overload or short circuit max | 2x32,5 A |
Output data |
|
| Output voltage | 48 V DC |
| Output current | 40 A |
| Output current max | 45 A |
Efficiency / Lifetime / MTBF |
|
| Life span | 222000 h @ 2x 20 A, 48 V DC, 40 °C |
| MTBF (IEC 61709) | 4098000 h @ 2x 20 A, 48 V DC, 40 °C |

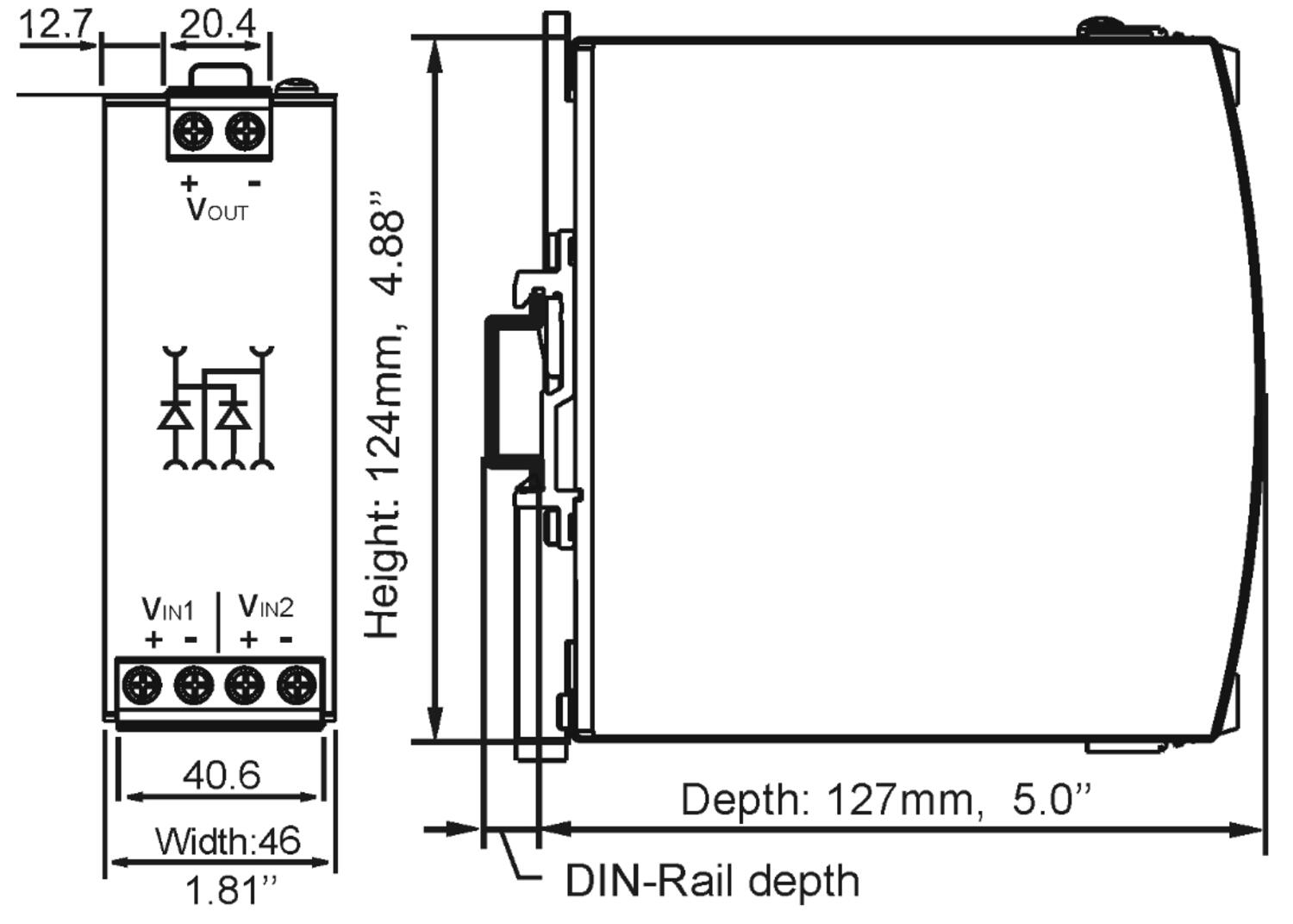

Dimensions |
|
| Width | 46 mm |
| Height | 124 mm |
*Invisible Heading* |
|
|---|---|
| Depth | 127 mm |
| Weight | 0.36 kg |
Other |
|
| Input / Output Separation | Mosfet |
| Approvals | ABS, ATEX, CB, CE, CSA, CSA US, GL, IECEx, UL |
| IP class | IP20 |
| Material protection | Aluminium |
| Series | Dimension Y |
| Voltage drop over semiconductor | 120 mV |

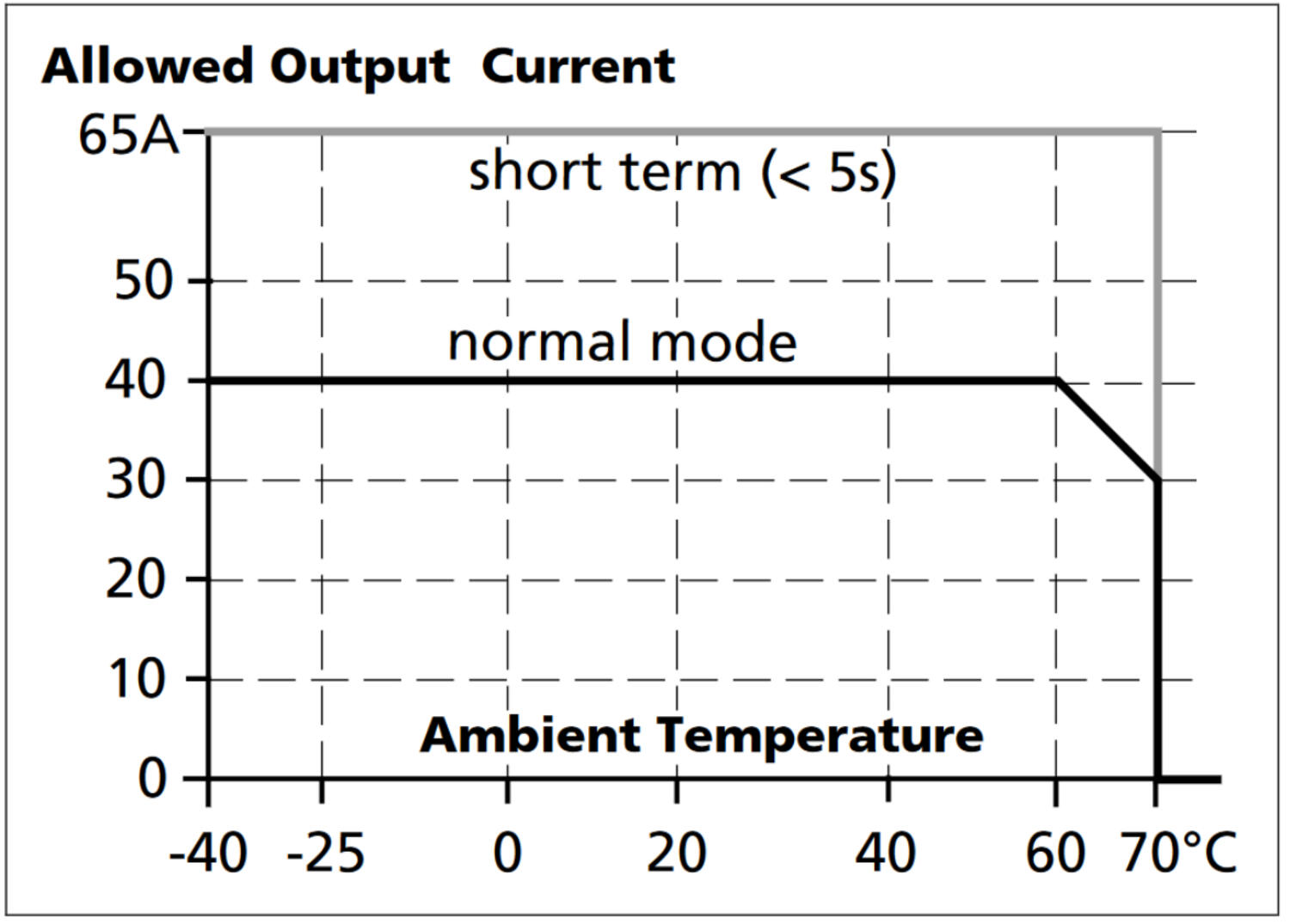

| Temperature min without derating | -40 °C |
| Temperature max without derating | 70 °C |
| Type Power Supply | Redundancy modules |
Product description
The YR40.482 is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is
equipped with two input channels, which can be connected to power supplies with up to 20A output
current and one output, which can carry nominal currents up to 40A.
The novelty of this redundancy module is the utilization of mosfets instead of diodes for the decoupling of the two input channels. This reduces the heat generation and the voltage drop between input and output. The
redundancy module does not require an additional auxiliary voltage.
Due to the low power losses, the unit is very slender and only requires 46mm width on the DIN-rail. Large
connection terminals allow for a safe and fast installation. The large international approval package makes this unit suitable for nearly every application.
