DELTA ELECTRONICS
Chrome II Modular Power Supply 12VDC DRC-12V100W1RZ
- Universal AC Input Range and DC Input Supported
- Mechanical dimension designs to meet DIN 43880 for building automation
- Class II, Double Isolation (No Earth connection is required)
- Low no load power consumption & meet with DOE VI
- NEC Class 2 / Limited Power Source (LPS) certified
Selected variant
Technical data
Input |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 85 V AC |
| Input voltage ac max | 264 V AC |
| Inrush current at 230 V ac typical | 70 A |
| Supply frequency | 50-60 Hz |
| Power consumption 120 V ac | 17 A |
| Power consumption 230 V ac | 11 A |
Output |
|
| Output voltage | 12 V DC |
| Output voltage min | 108 V DC |
| Output voltage max | 132 V DC |
| Output current | 71 A |
| Power | 852 W |
| Temperature min without derating | -30 °C |
*Invisible Heading* |
|
|---|---|
| Temperature max without derating | 70 °C |
Efficiency/Lifetime/MTBF |
|
| Efficiency | 885 % |

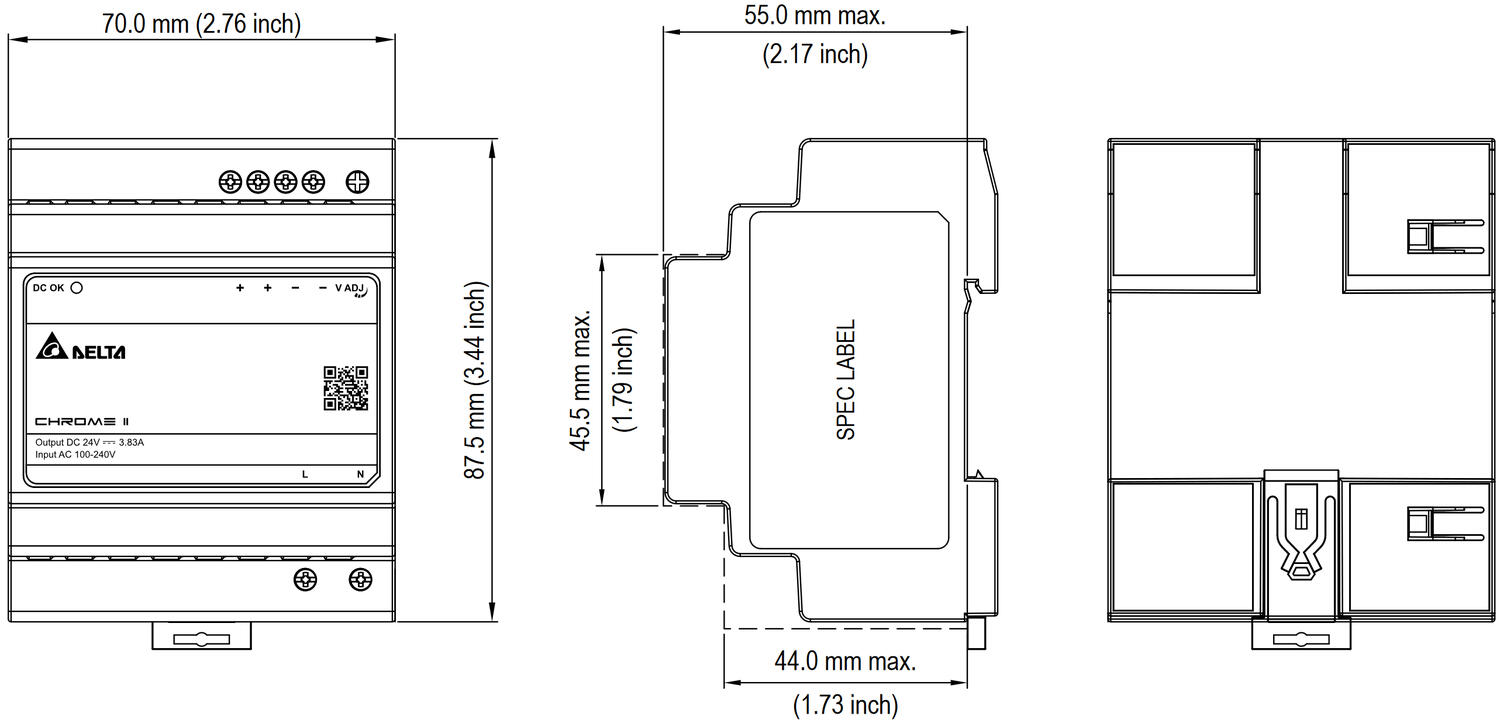

Dimensions |
|
| Width | 70 mm |
| Height | 875 mm |
| Depth | 55 mm |
| Weight | 23 kg |
Connection Terminals |
|
| Clamp type | Screw |
General |
|
| Approvals | BSMI, CB, CCC, CE, UKCA, NEC Class 2, REACH, RoHS, TÜV, UL |
| Material protection | Plastic |
| Hold time at 120 V ac, typical full load | 12 ms |
| Hold time at 230 V ac, typical full load | 60 ms |
| IP class | IP20 |
