Input data |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 90 V AC |
| Input voltage ac max | 264 V AC |
| Input voltage dc | 125-375 V |
| Input voltage dc min | 125 V DC |
| Input voltage dc max | 375 V DC |
| Inrush current at 120 V ac typical | 15 A |
| Inrush current at 230 V ac typical | 30 A |
Output data |
|
| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 24 V DC |
| Output current | 0.42 A |
| Power | 10 W |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 80 % |
Dimensions |
|
| Width | 18 mm |
*Invisible Heading* |
|
|---|---|
| Height | 91 mm |
| Depth | 55.6 mm |
| Weight | 0.065 kg |
Other |
|
| Approvals | CB, CE, NEC Class 2, TÜV, UL |
| Hold time at 120 V ac, typical full load | 10 ms |
| Hold time at 230 V ac, typical full load | 60 ms |
| IP class | IP20 |
| Clamp type | Screw |
| Material protection | Plastic |
| Supply frequency | 50-60 Hz |
| Power consumption 120 V ac | 0.3 A |
| Power consumption 230 V ac | 0.2 A |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 55 °C |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Inrush current at 120 V ac typical | Inrush current at 230 V ac typical | Output voltage min | Output voltage max | Output current | Power | Efficiency | Width | Weight | Hold time at 120 V ac, typical full load | Power consumption 120 V ac | Power consumption 230 V ac | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Power Supply Chrome 24VDC 10W 0.42A
Art:
DRC-24V10W1AZ
Copied
|
15 A
|
30 A
|
24 V DC
|
24 V DC
|
0.42 A
|
10 W
|
80 %
|
18 mm
|
0.065 kg
|
10 ms
|
0.3 A
|
0.2 A
|
|
||

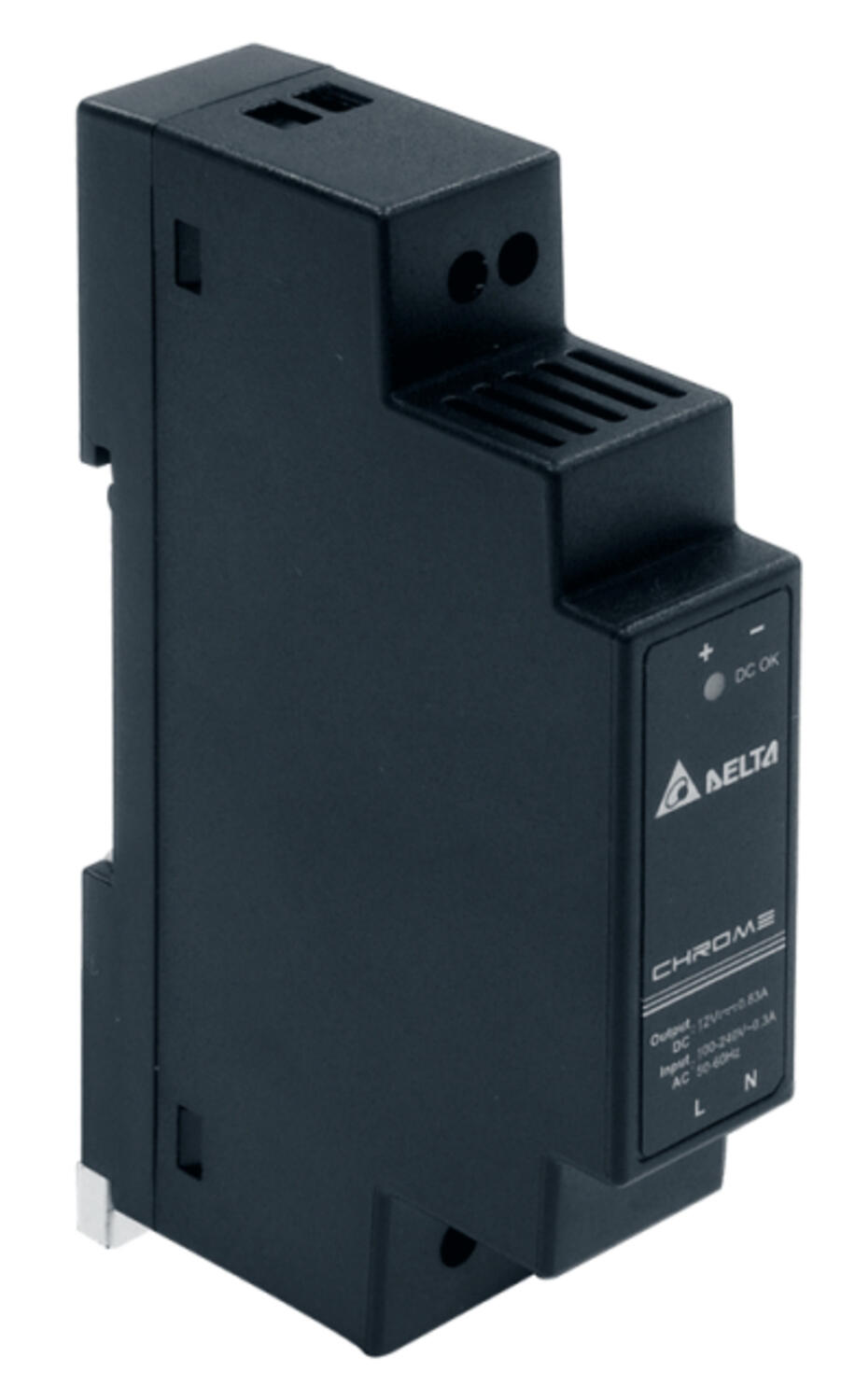

Power Supply Chrome 24VDC 10W 0.42A Hous
Art:
DRC-24V10W1HZ
Copied
|
15 A
|
30 A
|
24 V DC
|
24 V DC
|
0.42 A
|
10 W
|
80 %
|
18 mm
|
0.065 kg
|
10 ms
|
0.3 A
|
0.2 A
|
|
||

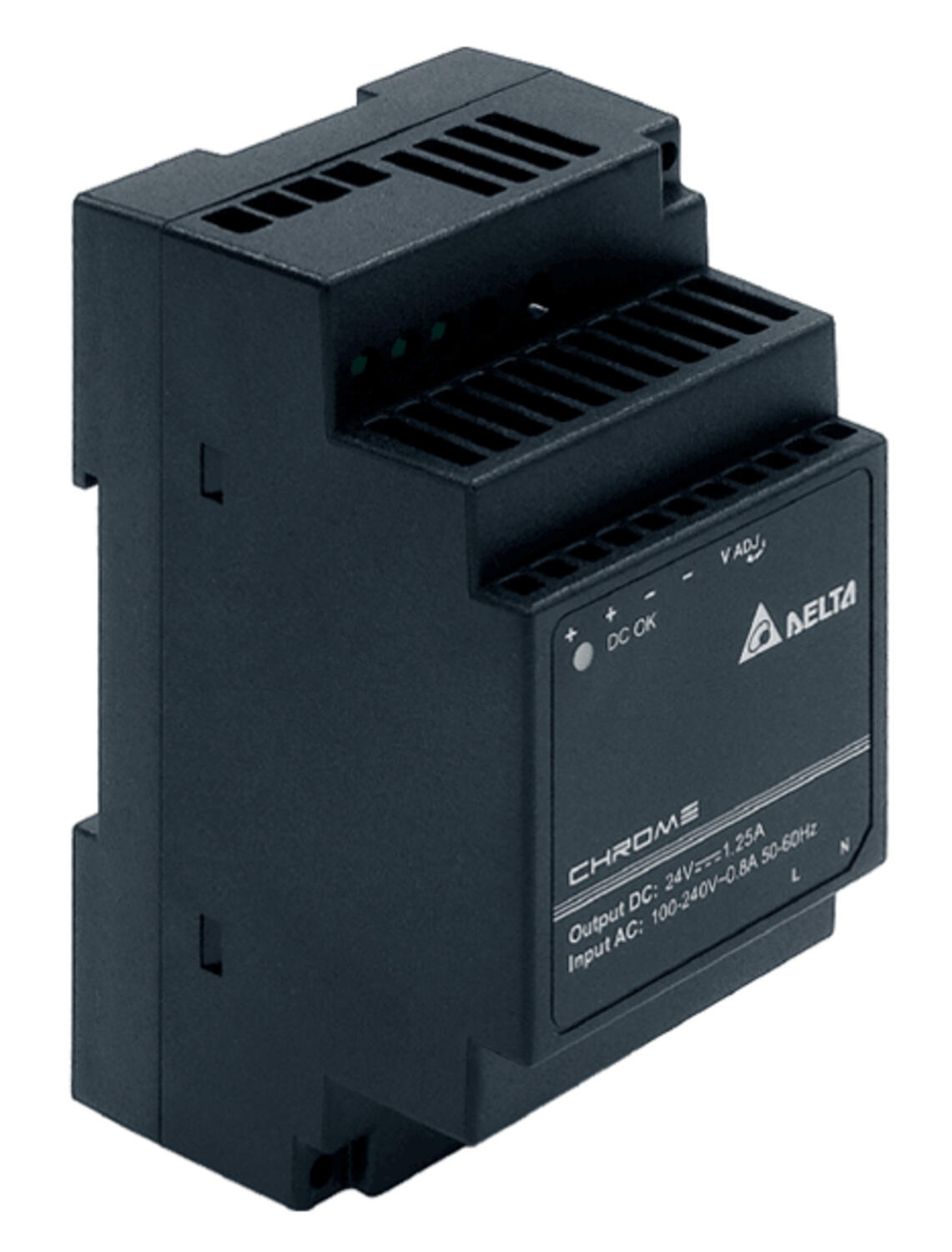

Art:
DRC-24V30W1AZ
Copied
|
25 A
|
50 A
|
23.52 V DC
|
24.48 V DC
|
1.25 A
|
30 W
|
87 %
|
53 mm
|
0.14 kg
|
25 ms
|
0.8 A
|
0.6 A
|
|
||
Power Supply Chrome 24VDC 60W 2.5A
Art:
DRC-24V60W1AZ
Copied
|
30 A
|
60 A
|
24 V DC
|
28 V DC
|
2.5 A
|
60 W
|
88 %
|
71 mm
|
0.22 kg
|
16 ms
|
1.5 A
|
1 A
|
|
||

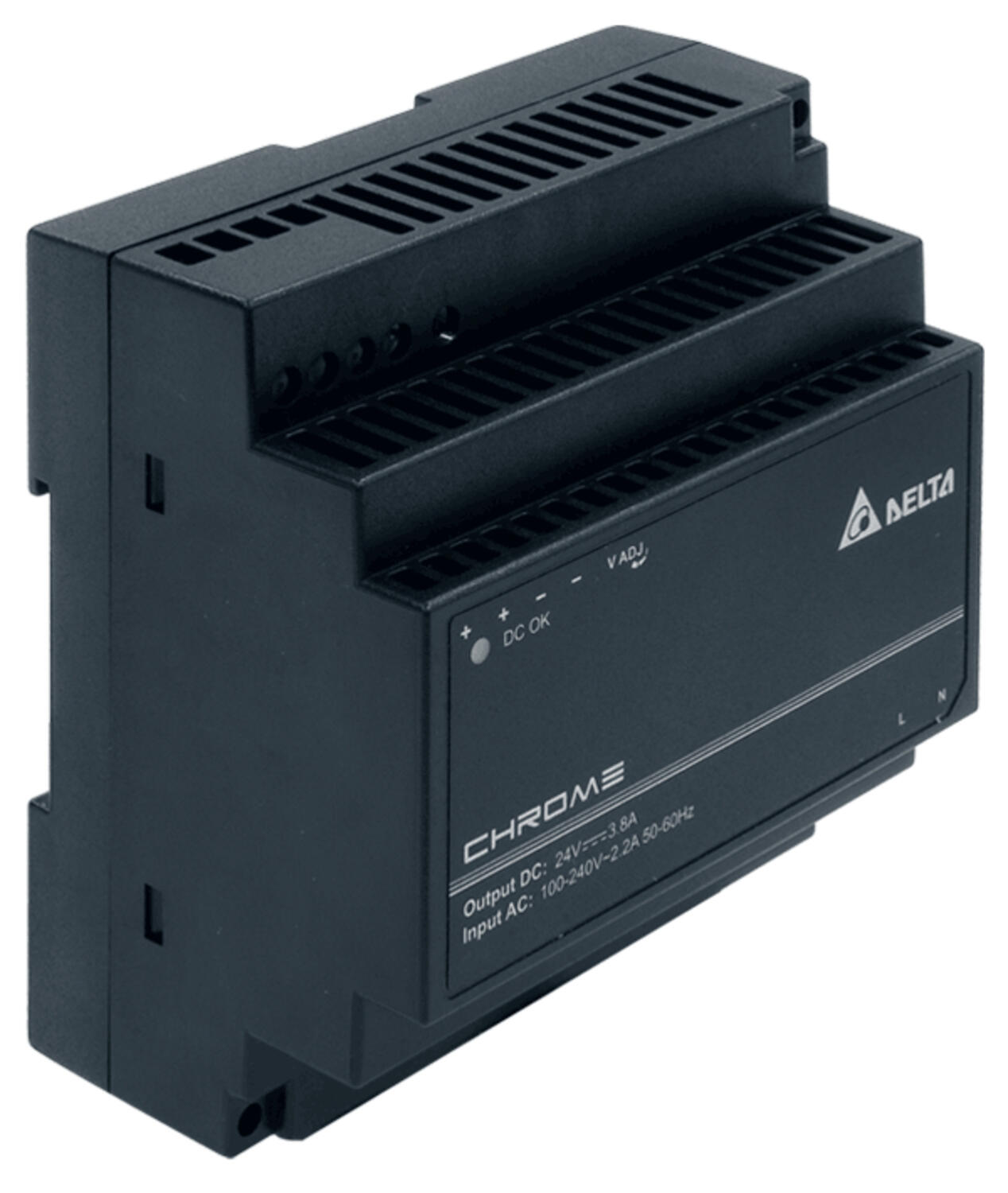

Art:
DRC-24V100W1AZ
Copied
|
30 A
|
60 A
|
22 V DC
|
24 V DC
|
3.8 A
|
91.2 W
|
89 %
|
89.9 mm
|
0.35 kg
|
10 ms
|
2.2 A
|
1 A
|
|
Select a variant in the list
