PULS
DC-DC converter 48/48 V dc CD10.482
48/48 V DC, 5 A
The CD10.482 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage.
The CD-Series is part of the DIMENSION power supply family. The most outstanding features of CD10.482 are the high efficiency, the small size and the wide operational temperature range.
The CD-Series includes all the essential basic functions. The devices have a power reserve of 20% included,
which may even be used continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
- Width 42 mm
- 95,1% efficiency
- 20% power reserve
- Galvanically separated SELV/PELV output
Selected variant
Technical data
Input |
|
|---|---|
| Input voltage dc | 48 V |
| Input voltage dc min | 36 V DC |
| Input voltage dc max | 60 V DC |
| Input capacitance | 1650 µF |
| Inrush current | Typ. 7 A @ 48 V DC |
| Max entrance tripple | 10 V pp |
| Type Power Supply | DC-DC |
| Startup delay | 350 ms |
Output |
|
| Output voltage | 48 V DC |
| Output voltage min | 48 V DC |
| Output voltage max | 56 V DC |
| Output current | 5 A |
| Power | 240 W |

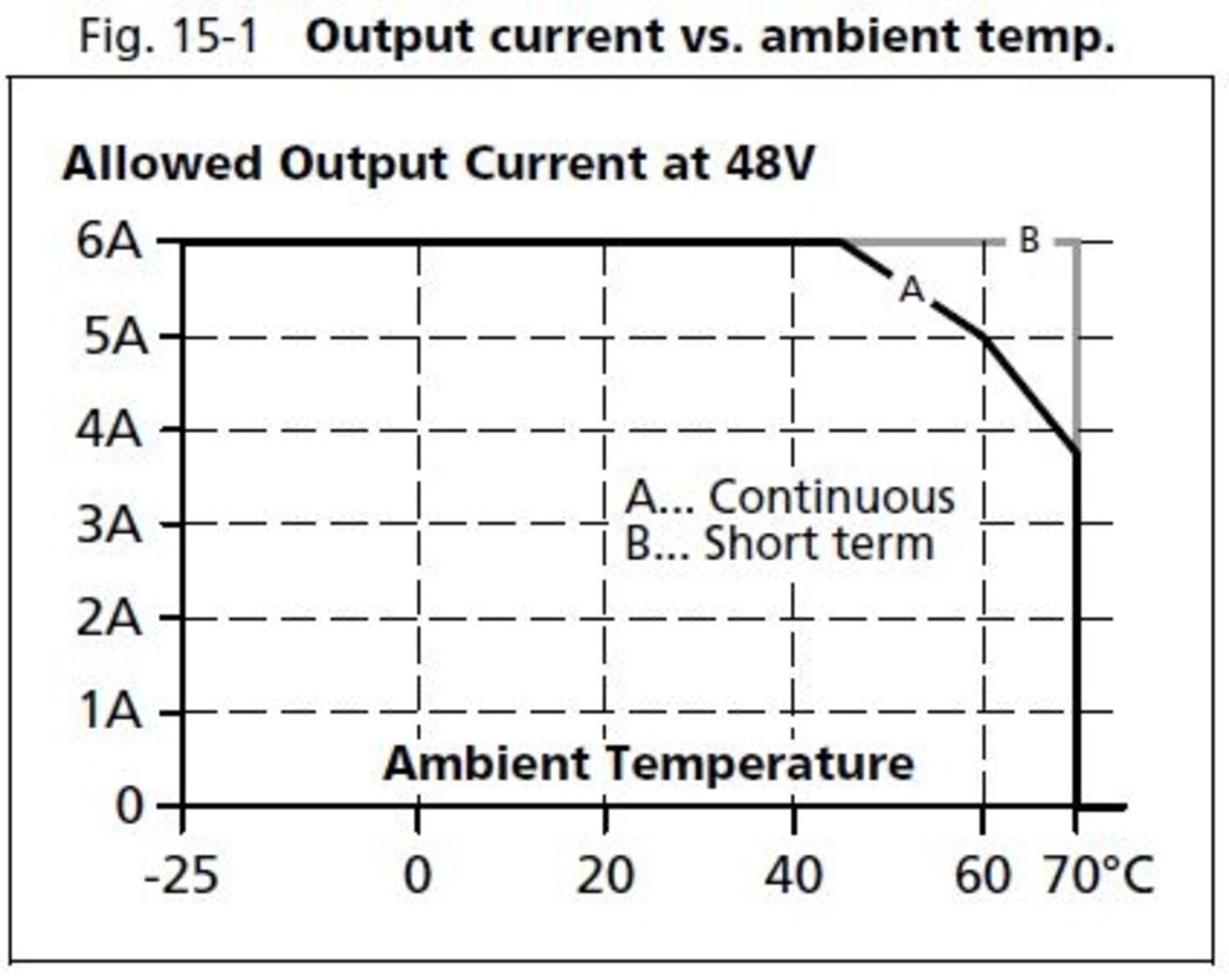

| Power drop from +60 °C to + 70 °C | 6 W/°C |
| Ripple max | 50 mV pp |
| Temperature min without derating | -25 °C |
*Invisible Heading* |
|
|---|---|
| Temperature max without derating | 60 °C |
Efficiency/Lifetime/MTBF |
|

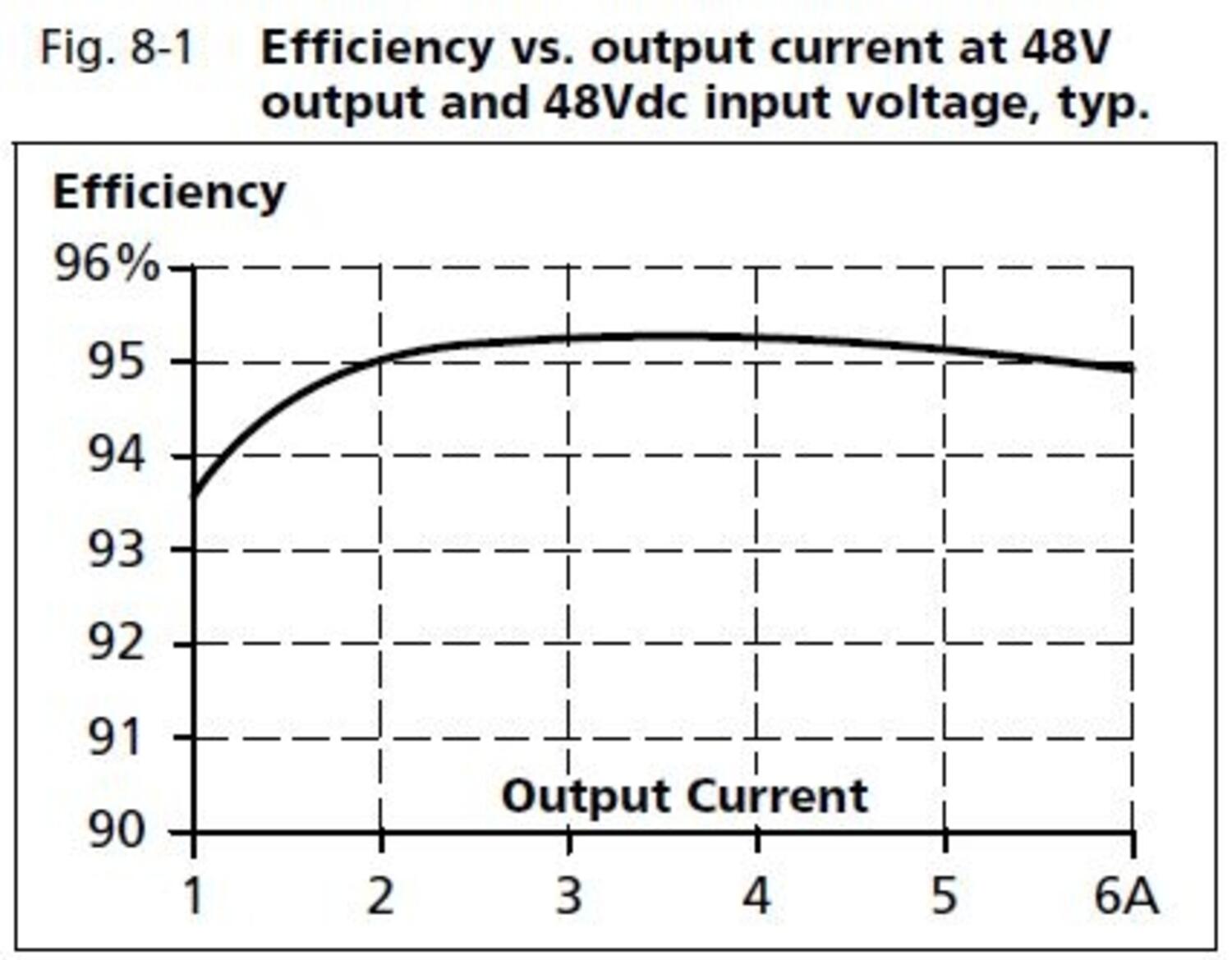

| Efficiency | 95.1 % |
| Life span | 160 000 h @ 48 V DC, 5 A, 40 °C |
| MTBF (IEC 61709) | tbd |

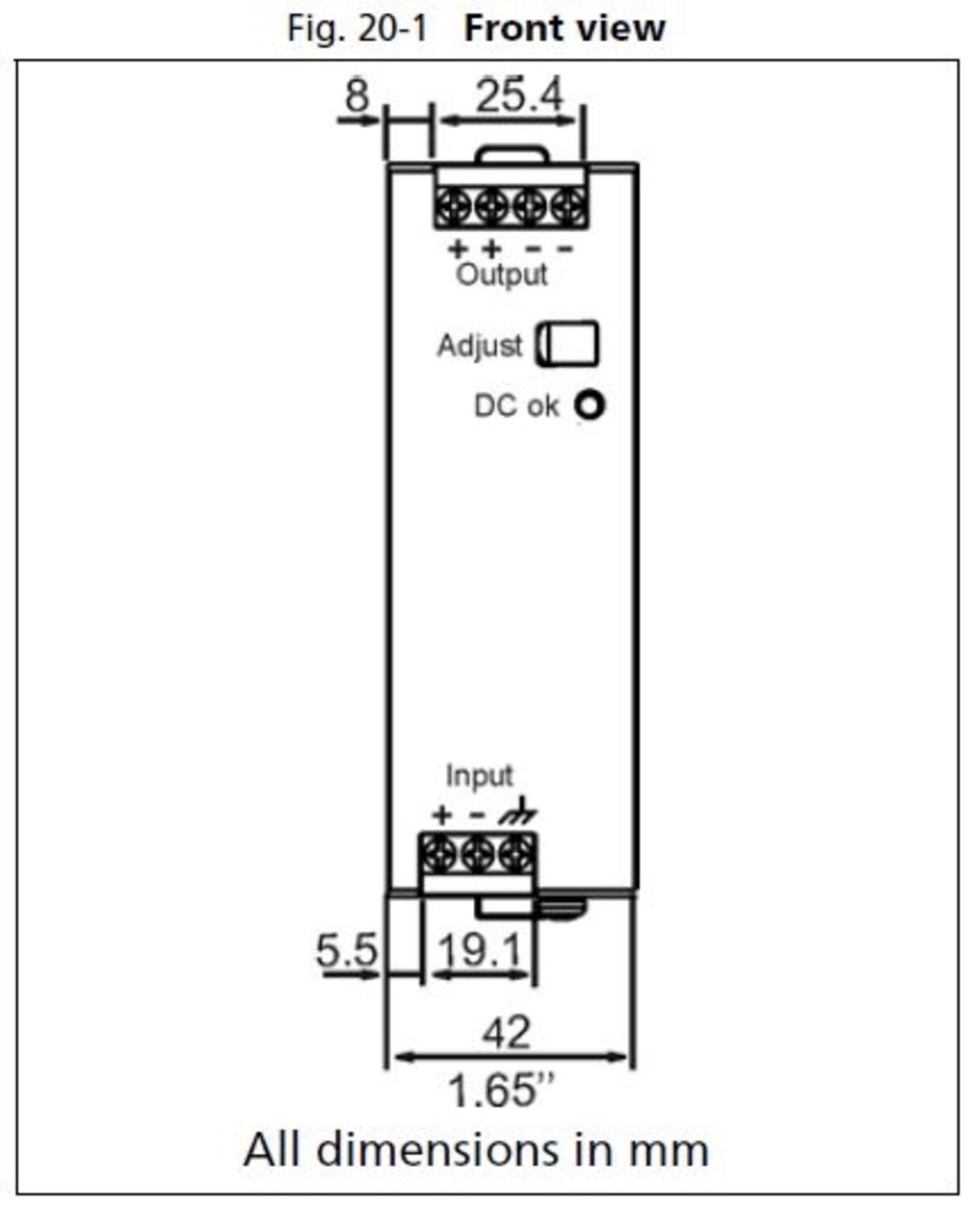

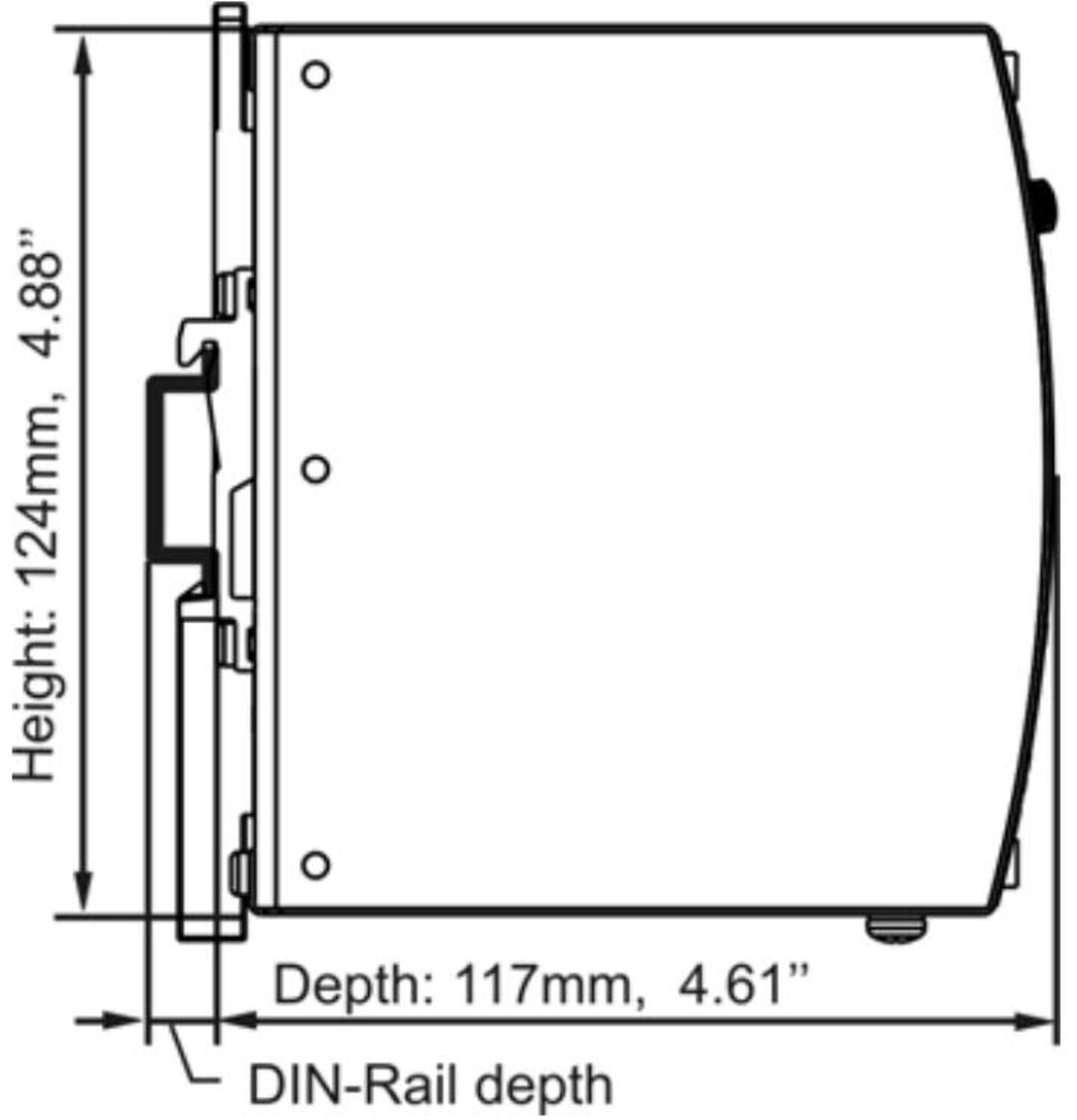

Dimensions |
|
| Width | 42 mm |
| Height | 124 mm |
| Depth | 117 mm |
| Weight | 0.5 kg |
Connection Terminals |
|
| Clamp type | Screw |
General |
|
| Series | Dimension C |
| Approvals | CE, UL |
| Material protection | Aluminium |
| Keep time | Typ. 7,7 ms @ 48 V DC |
| IP class | IP20 |
Product description
The CD10.482 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage.
The CD-Series is part of the DIMENSION power supply family. The most outstanding features of CD10.482 are the high efficiency, the small size and the wide operational temperature range.
The CD-Series includes all the essential basic functions. The devices have a power reserve of 20% included,
which may even be used continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
