The DC/DC converter CP10.241-60 is designed specifically for railway & transportation applications. It is approved according to the EN 50155 standard, which is an international standard covering electronic equipment used on rolling stock for railway applications. The standard covers aspects such as temperature, humidity, shock, vibration, EMI and other parameters. Because of these requirements, the unit is equipped with conformal coated pc-boards.

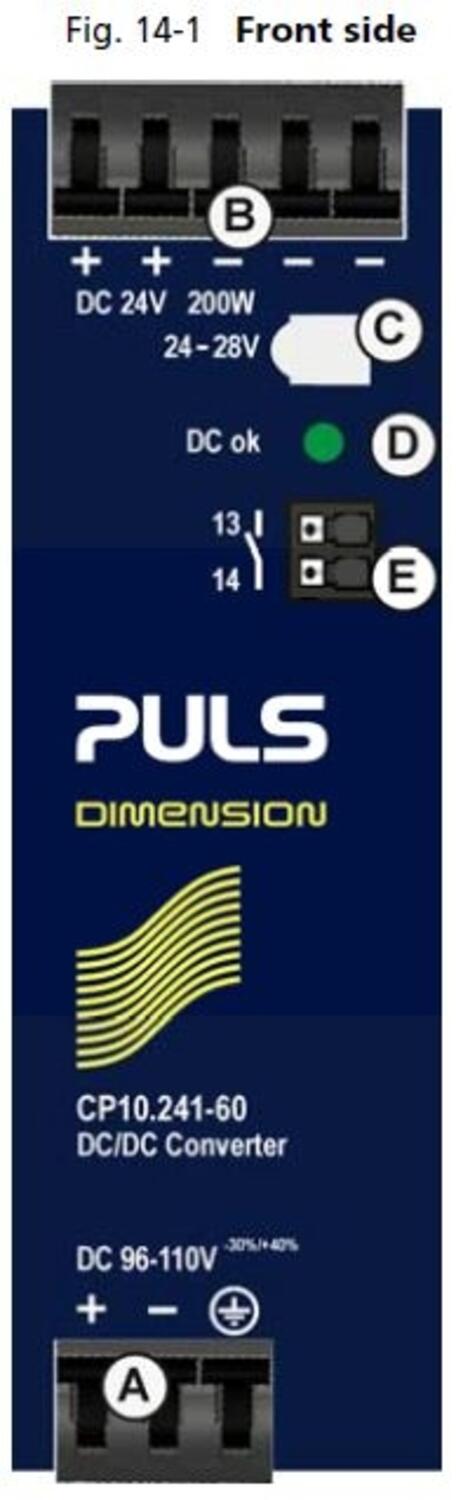

The unit features a DC-OK signal contact for remote monitoring, and quick-connect spring-clamp terminals
for a reliable connection even when mechanical vibration and shock are involved. The unit also covers an
extreme wide temperature range from -40°C up to +70°C with full output current.
This DC/DC converter comes in a very compact housing and requires only 39mm space on the DIN-rail due to the high efficiency and low power losses. The high efficiency is achieved by utilizing cutting edge technology and other unique design techniques.
Input data |
|
|---|---|
| Input voltage dc | 110 V |
| Input voltage dc min | 67 V DC |
| Input voltage dc max | 154 V DC |
| Inrush current | Typ. 2,5 A @ 110 V DC |
| Max entrance tripple | 15 V pp |
Output data |
|

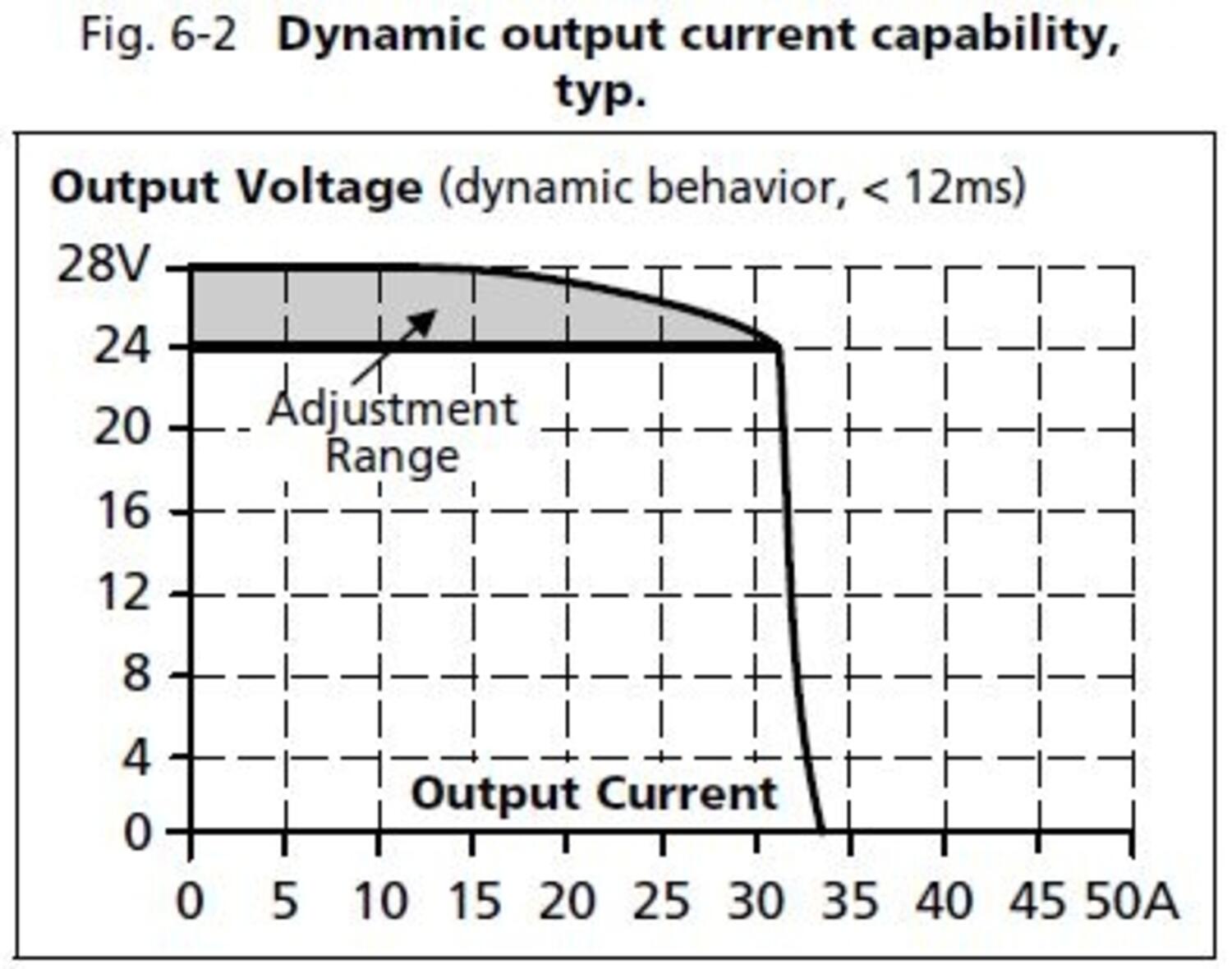

| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 28 V DC |
| Output current | 8.3 A |
| Power | 200 W |
Efficiency / Lifetime / MTBF |
|

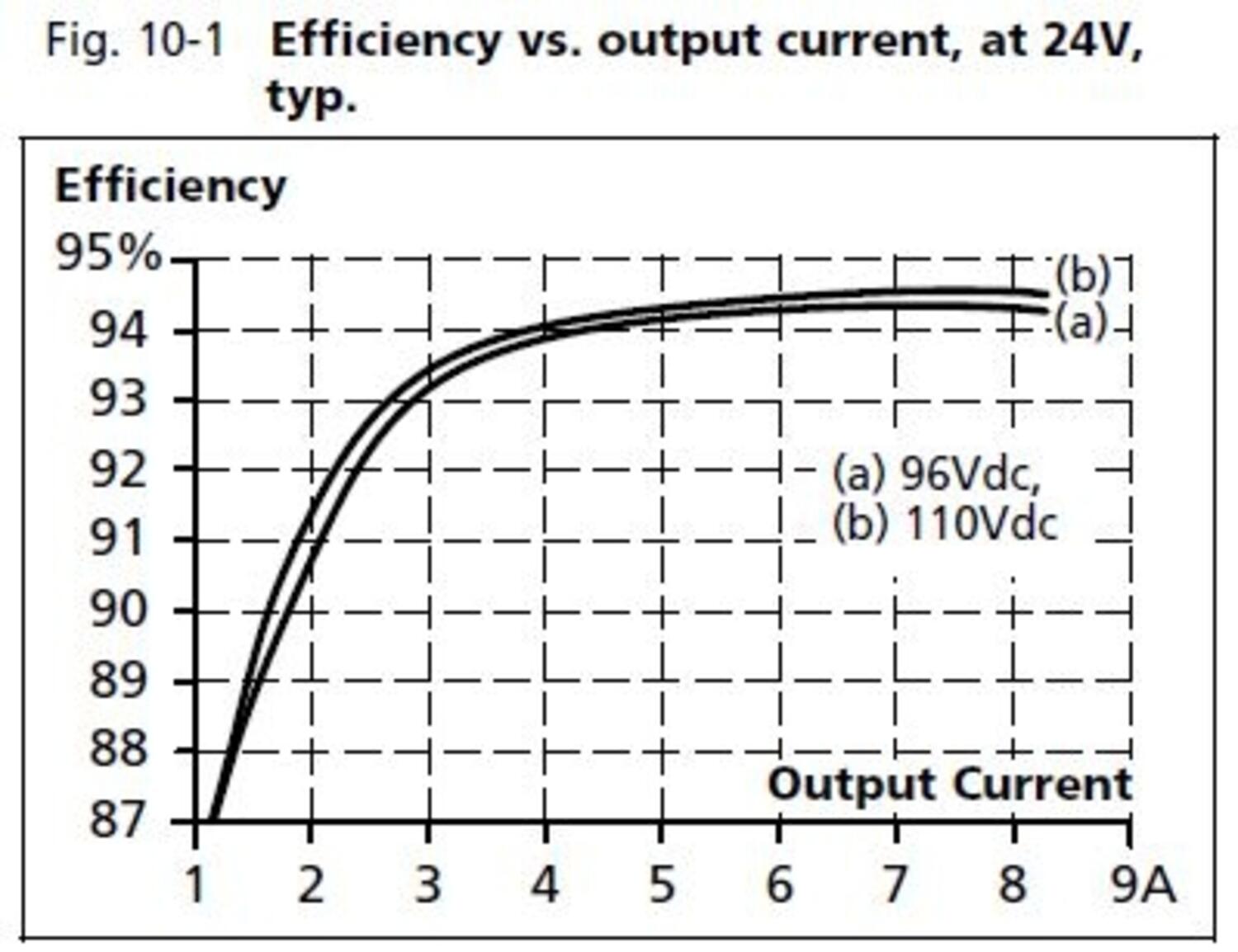

| Efficiency | 94.5 % |
| Life span | 119000 h @ 110 V DC, 8,3 A, 40 °C |
| MTBF (IEC 61709) | tbd |

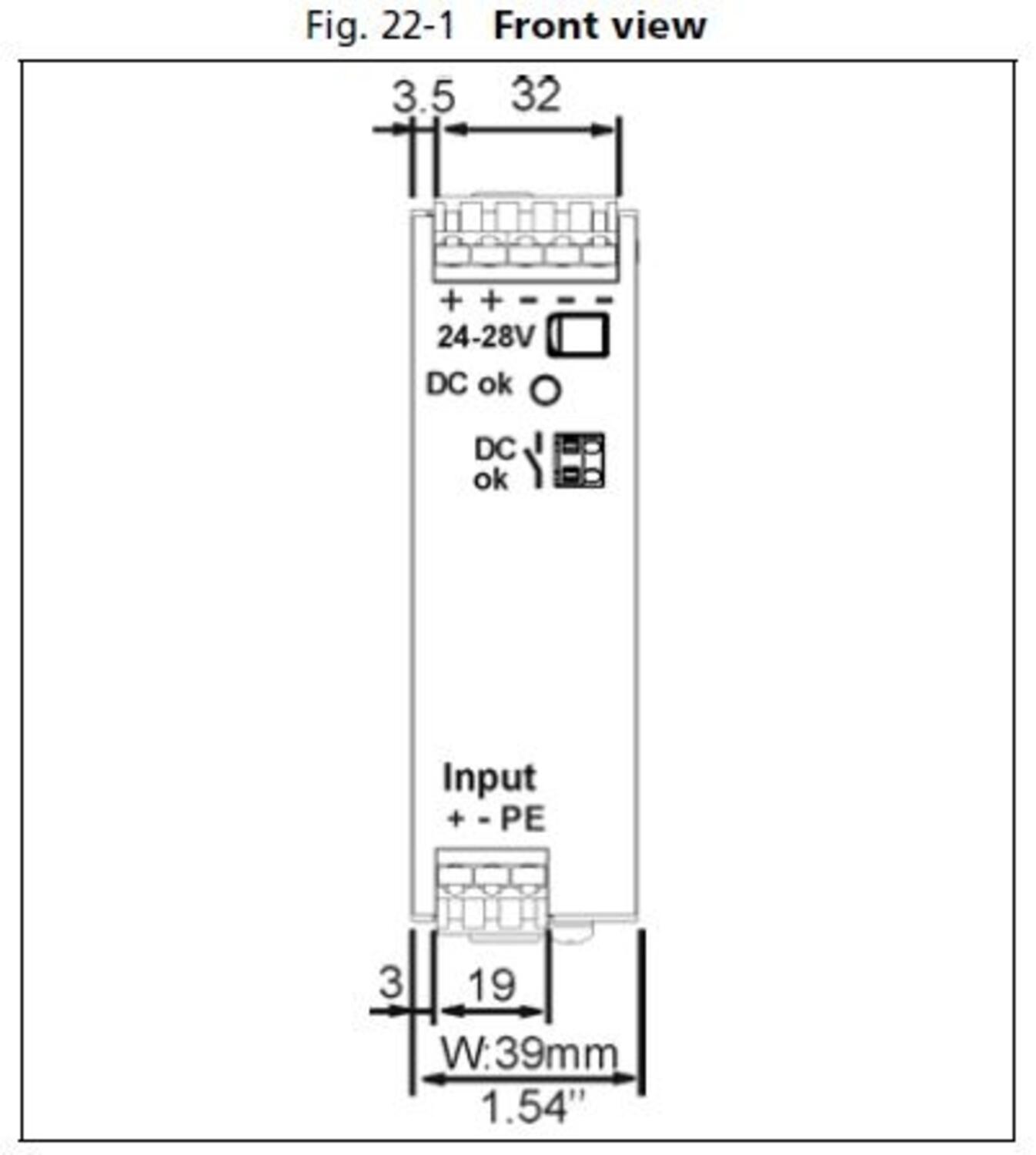

Dimensions |
|
| Width | 39 mm |
| Height | 124 mm |
| Depth | 117 mm |
*Invisible Heading* |
|
|---|---|
| Weight | 0.62 kg |
Other |
|
| Approvals | CE, EN 50155 |
| Keep time | Typ. 45 ms @ 110 V DC, 8,3 A |
| IP class | IP20 |
| Clamp type | Spring-clamp |
| Material protection | Aluminium |
| Ripple max | 50 mV pp |
| Series | Dimension C |
| Temperature min without derating | -40 °C |
| Temperature max without derating | 70 °C |
| Startup delay | 600 ms |
| Type Power Supply | DC-DC |
| Conformal coated | Yes |
| DC relay output | Yes |
The DC/DC converter CP10.241-60 is designed specifically for railway & transportation applications. It is approved according to the EN 50155 standard, which is an international standard covering electronic equipment used on rolling stock for railway applications. The standard covers aspects such as temperature, humidity, shock, vibration, EMI and other parameters. Because of these requirements, the unit is equipped with conformal coated pc-boards.
The unit features a DC-OK signal contact for remote monitoring, and quick-connect spring-clamp terminals
for a reliable connection even when mechanical vibration and shock are involved. The unit also covers an
extreme wide temperature range from -40°C up to +70°C with full output current.
This DC/DC converter comes in a very compact housing and requires only 39mm space on the DIN-rail due to the high efficiency and low power losses. The high efficiency is achieved by utilizing cutting edge technology and other unique design techniques.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Input voltage dc min | Inrush current | Output voltage | Output voltage min | Output voltage max | Output current | Power | Efficiency | Life span | MTBF (IEC 61709) | Width | Depth | Weight | Keep time | Ripple max | Series | Temperature min without derating | Temperature max without derating | Startup delay | Type Power Supply | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PSU 96-110 V DC/24-28 V DC, 8.3 A, Railway EN50155
Art:
CP10.241-60
Copied
|
67 V DC
|
Typ. 2,5 A @ 110 V DC
|
24 V DC
|
24 V DC
|
28 V DC
|
8.3 A
|
200 W
|
94.5 %
|
119000 h @ 110 V DC, 8,3 A, 40 °C
|
tbd
|
39 mm
|
117 mm
|
0.62 kg
|
Typ. 45 ms @ 110 V DC, 8,3 A
|
50 mV pp
|
Dimension C
|
-40 °C
|
70 °C
|
600 ms
|
DC-DC
|
|
||

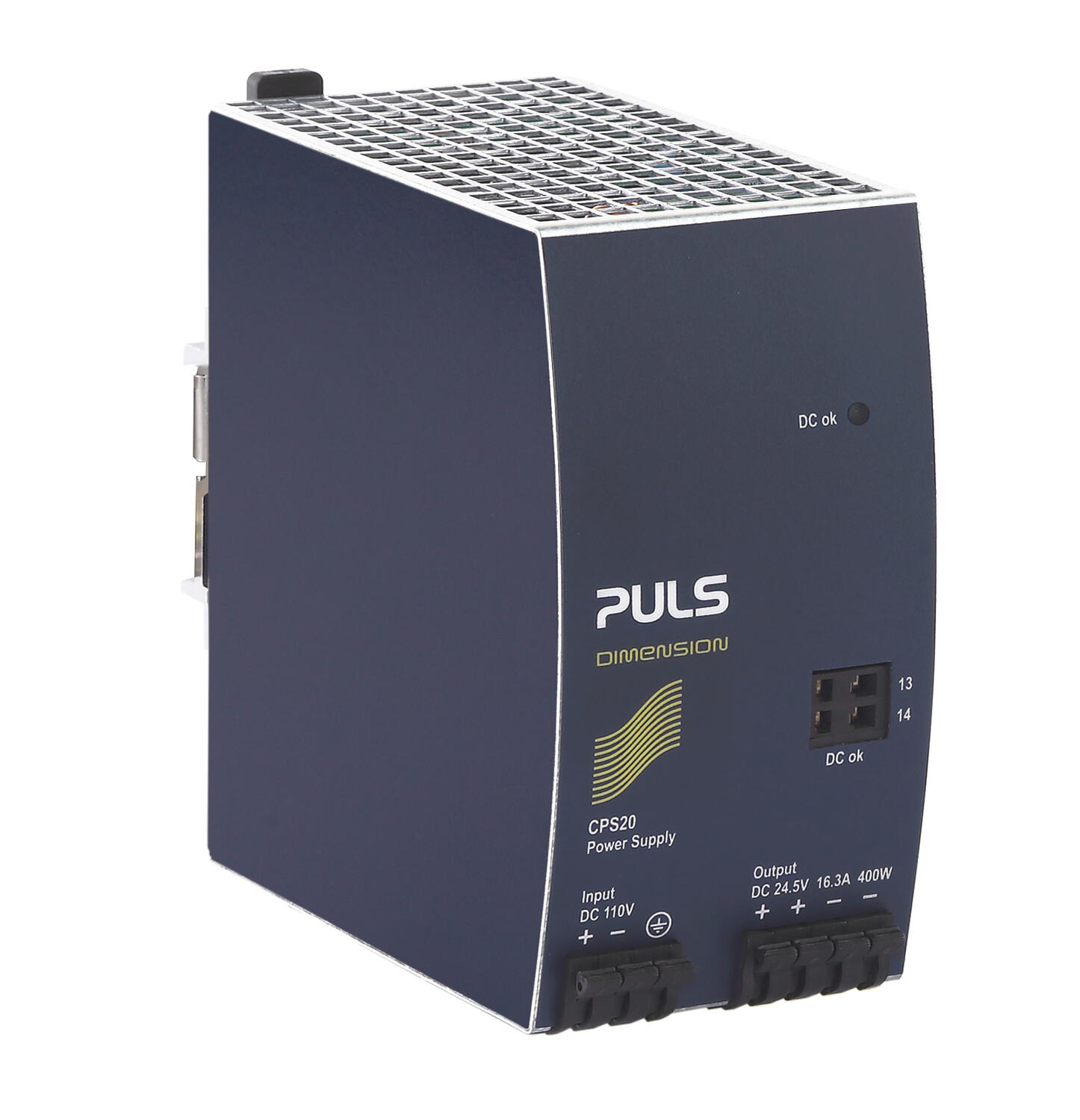

PSU 110V dc I/P 24.5V dc 16.3A 400W O/P Railway Compliant
Art:
CPS20.241-60
Copied
|
77 V DC
|
Typ. 6 A @ 110 V DC
|
24.5 V DC
|
24.5 V DC
|
24.5 V DC
|
16.3 A
|
400 W
|
93.7 %
|
151000 h @ 16,3 A, 40 °C
|
571000 h @ 16,3 A, 40 °C
|
65 mm
|
127 mm
|
0.98 kg
|
Typ. 35 ms @ 16,3 A
|
70 mV pp
|
Dimension C
|
-40 °C
|
70 °C
|
900 ms
|
|
|
||

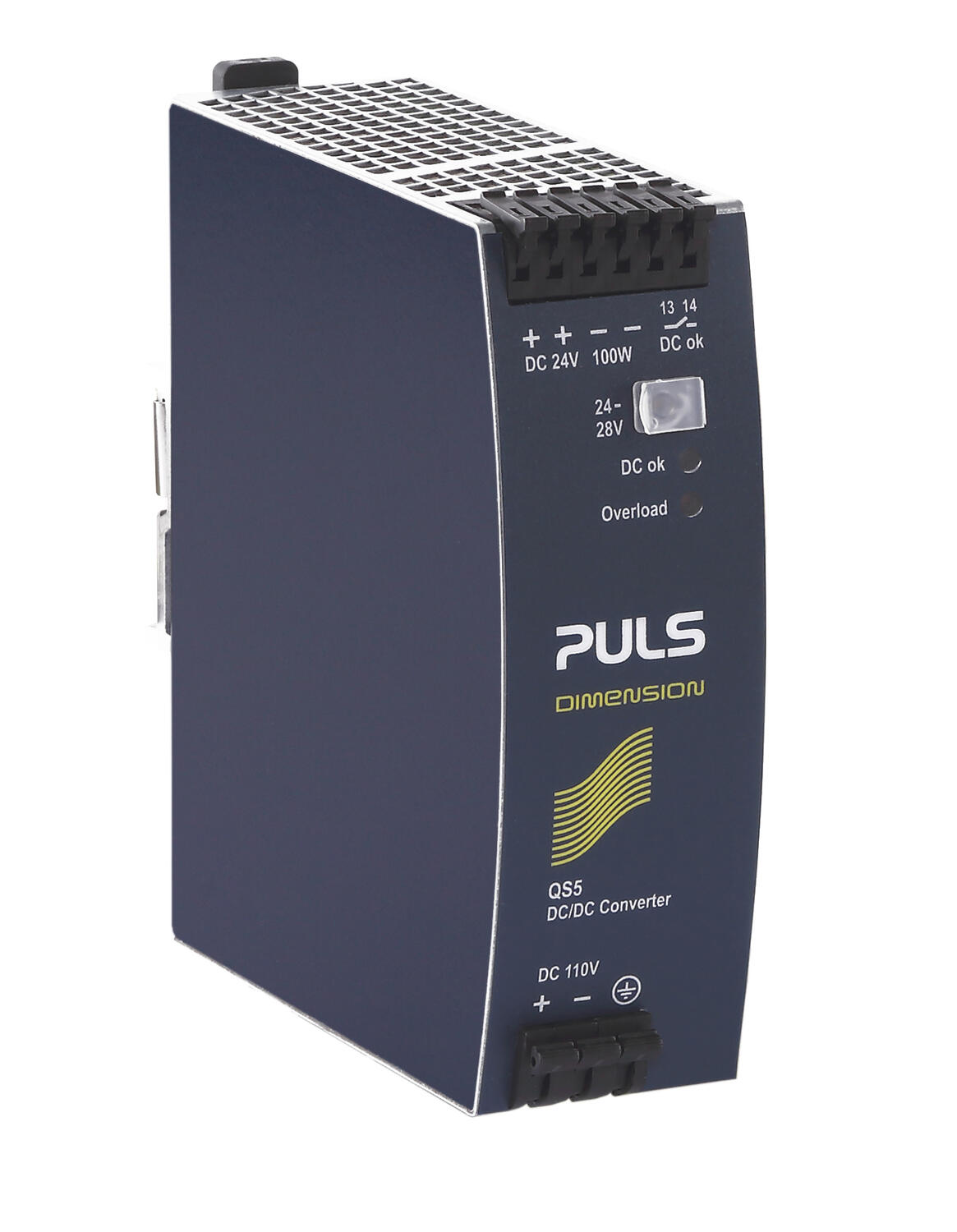

PSU 110V dc I/P 24V dc 4.2A 100W O/P Railway Compliant
