PULS

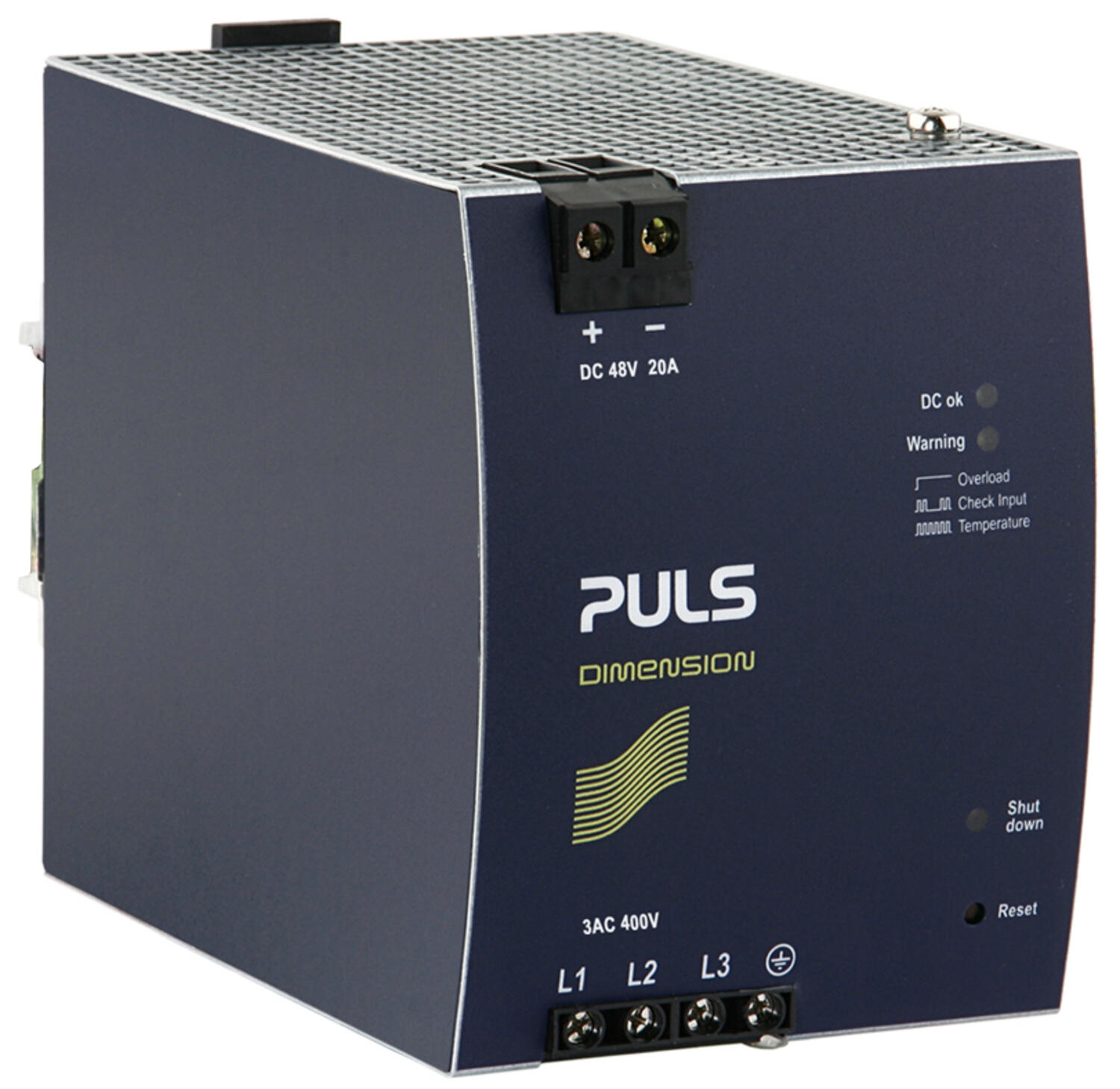

Power supply 3-phase, 48 V dc Dimension X Series 20A
Dimension X series is a series of semi-regulated power supplies. A so-called semi-controlled unit means that the output voltage is regulated within the specified input voltage range. Outside this range decreases / increases the output voltage compared to the input voltage.
The unit has a bonus effect of 25% (25 A) to cope with high starting currents, as well as a very high short-circuit current enables safe trips for eg MCB. The unit leaves up to 90 A at 100 ms. Lasts short circuit longer than 100 ms, the unit shuts off automatically. See chart below for details. Recovery occurs in the front, or by disconnecting the primary voltage.

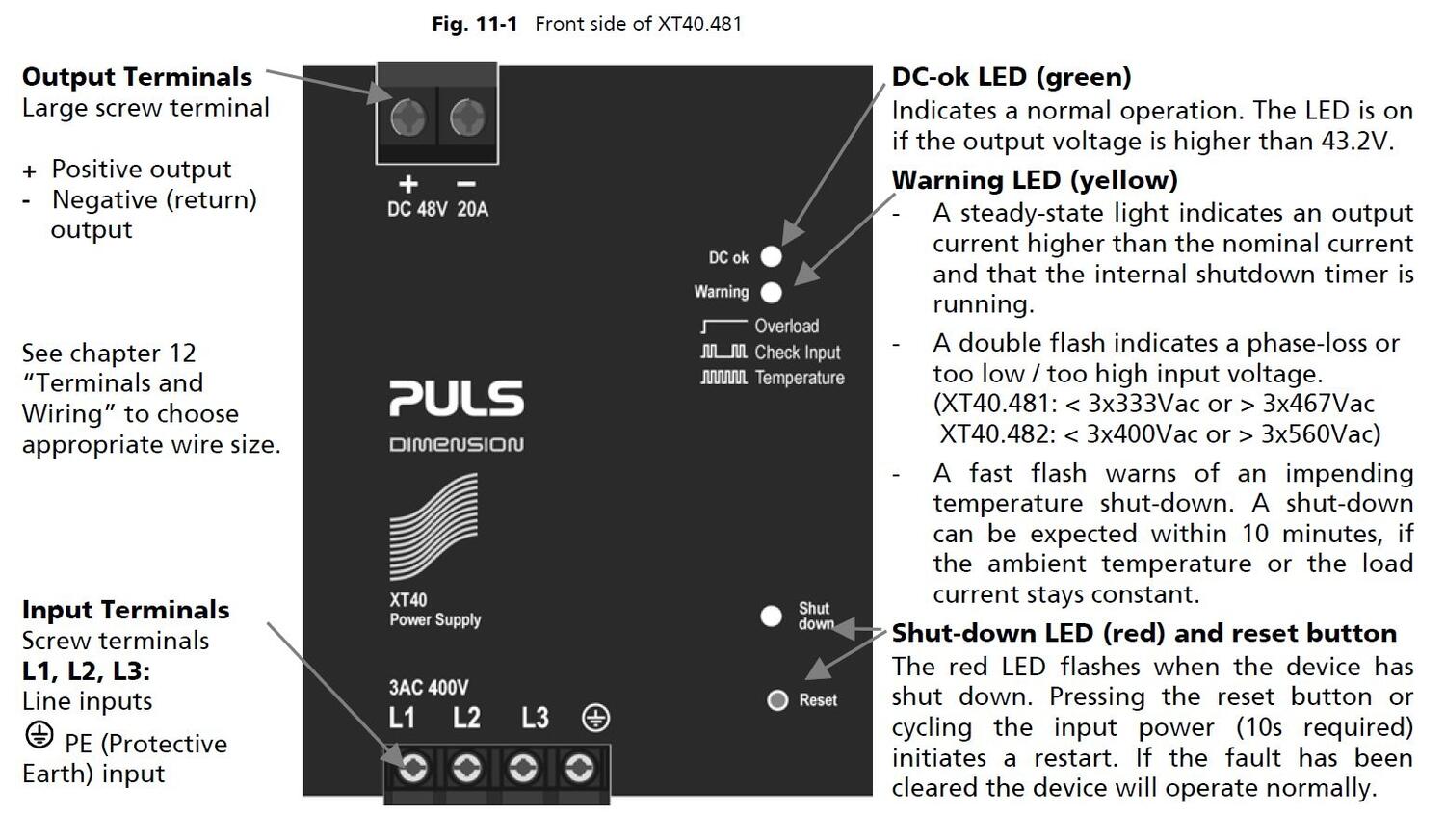

A yellow LED indicates the status and warns of the following errors; phase failure, over-temperature and high load current.
The unit has a low weight (1.4 kg), no inrush current and active transient filter that protects the secondary side from transients on the primary side.
Typical applications include motors, solenoids or other "power hungry" loads that do not have requirements for accurate voltage regulation. X series are a great alternative to traditional transformers. With lower energy costs and easier installation, along with an attractive price concept means a low total cost.
We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides. (if neighbouring products are counted as a heat source spacing of 15 mm is recommended).

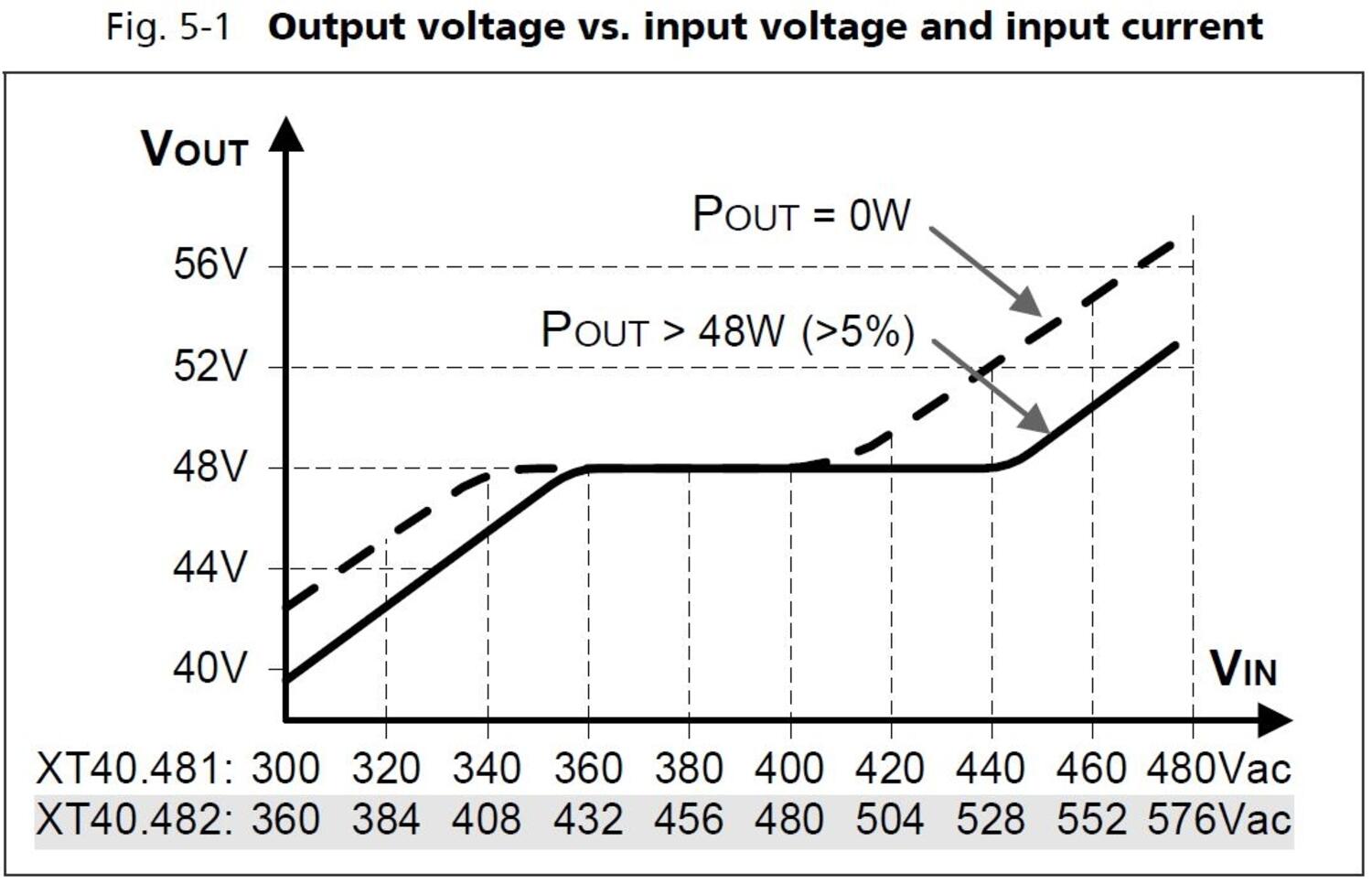

Input voltage range/regulation |
|

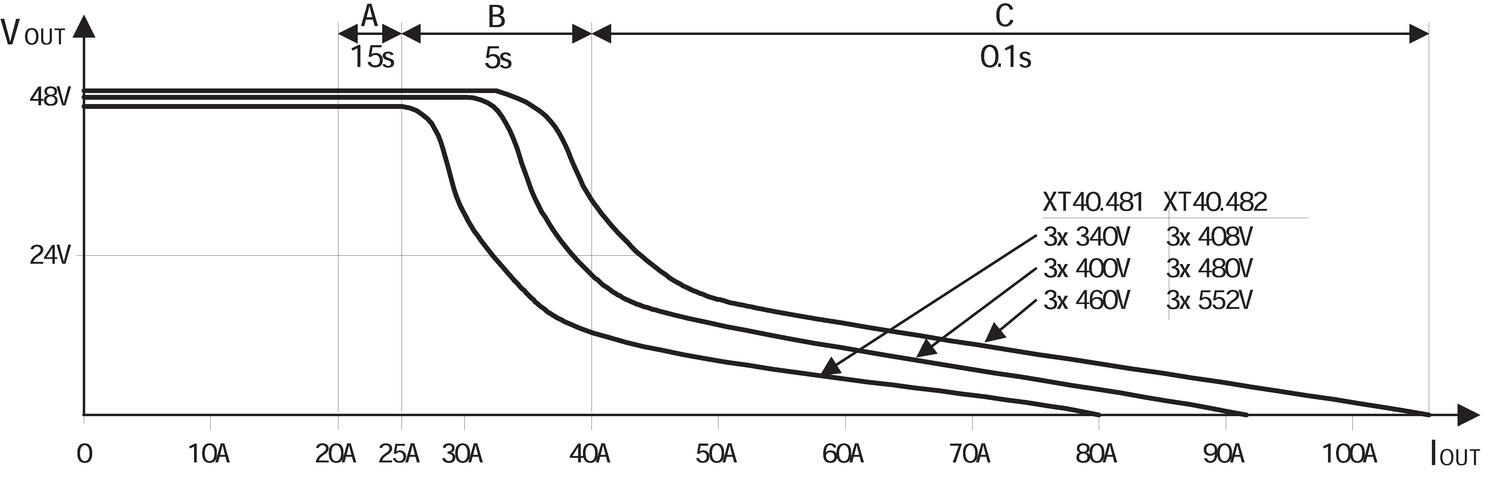

Output characteristics |
|
- Output current of 20 A
- Up to 96% efficiency
- Semi Regulated
- Replaces linear transformers
- Very high short-circuit current
Selected variant
Technical data
Input data |
|
|---|---|
| Input voltage ac | 400 V |
| Input voltage ac min | 360 V AC |
| Input voltage ac max | 440 V AC |
| Inrush current at 400 V ac typical | 4 A |
| Power factor at 400 V ac, full load. Typical | 0.93 |
| Number of phases | 3 |
Output data |
|
| Output voltage | 48 V DC |
| Output voltage min | 48 V DC |
| Output voltage max | 48 V DC |
| Output current | 20 A |
| Power | 960 W |

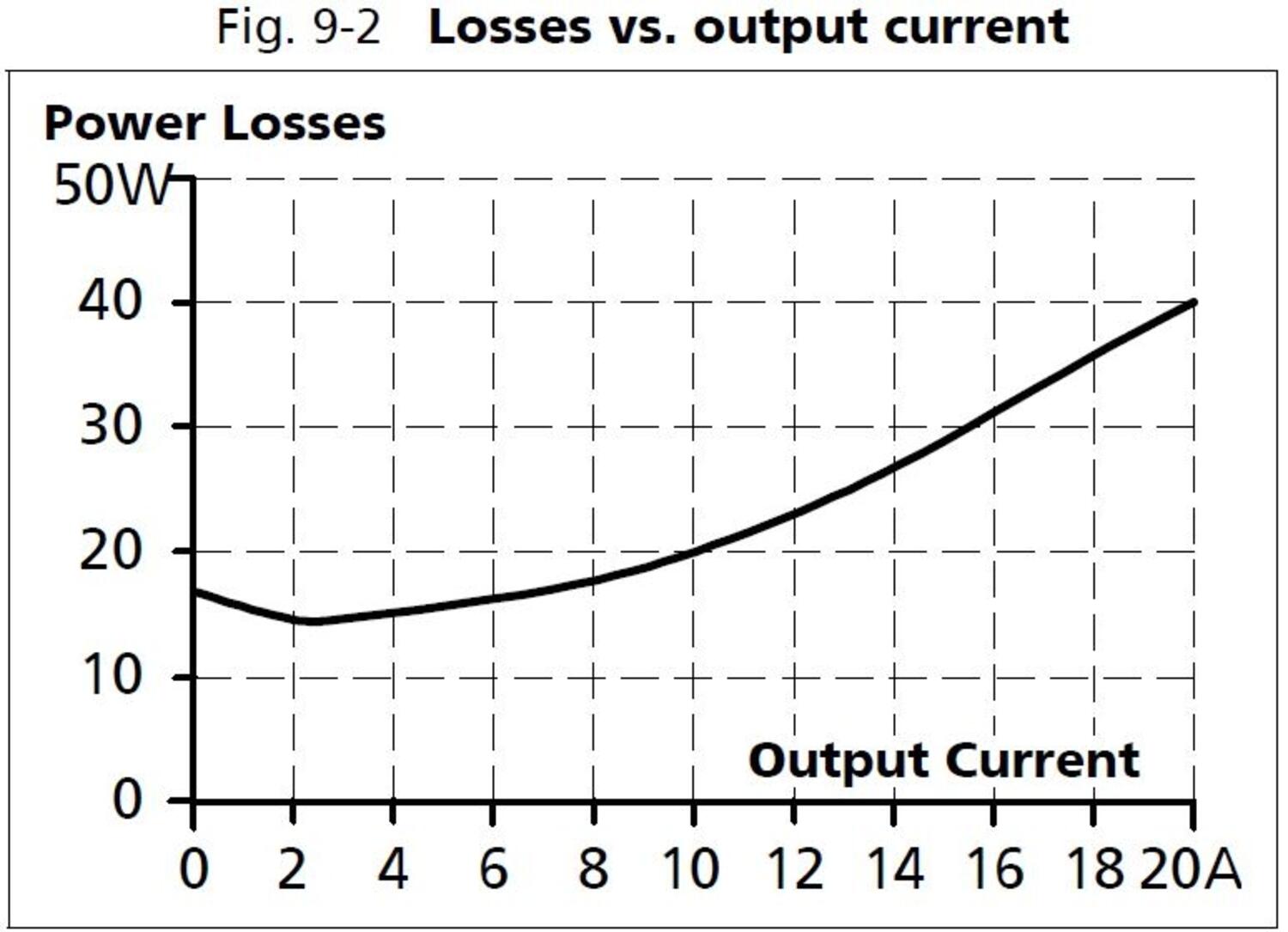

Efficiency / Lifetime / MTBF |
|

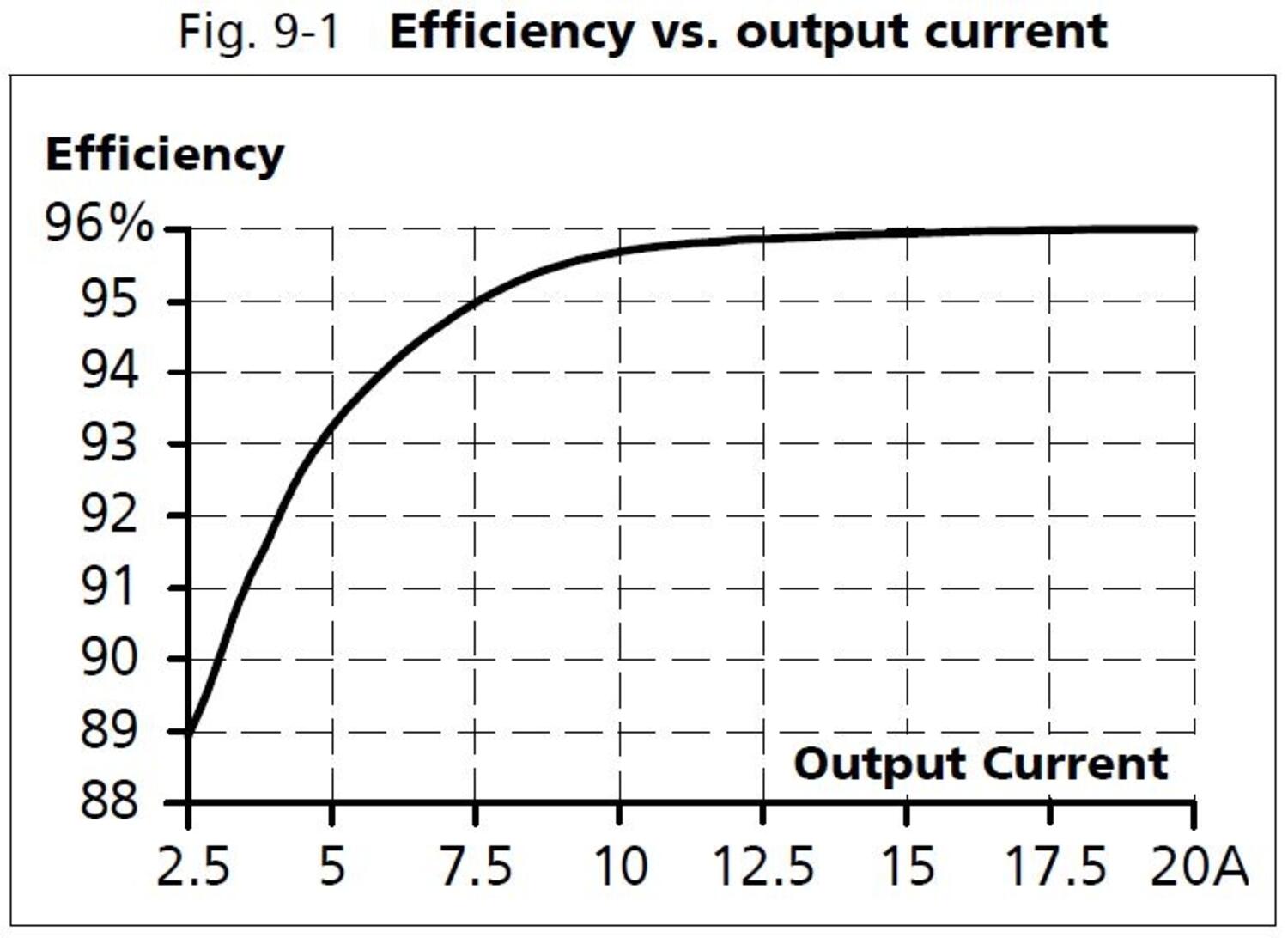

| Efficiency at 400 V ac, full load, typical | 96 % |
| Lifetime at 400 V ac, full load and +40 ° C | 77000 h |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 541000 h |
Dimensions |
|
| Width | 96 mm |
| Height | 124 mm |
*Invisible Heading* |
|
|---|---|
| Depth | 159 mm |
| Weight | 1.4 kg |
Other |
|
| Approvals | CB, CE, CSA, UL |
| Hold time at 400 V ac, typical full load | 3 ms |
| IP class | IP20 |
| Material protection | Aluminium |
| Supply frequency | 50-60 ±6 % |
| Ripple max | 300 mV pp |
| Series | Dimension X |
| Power consumption at 400 V ac | 1.65 A |

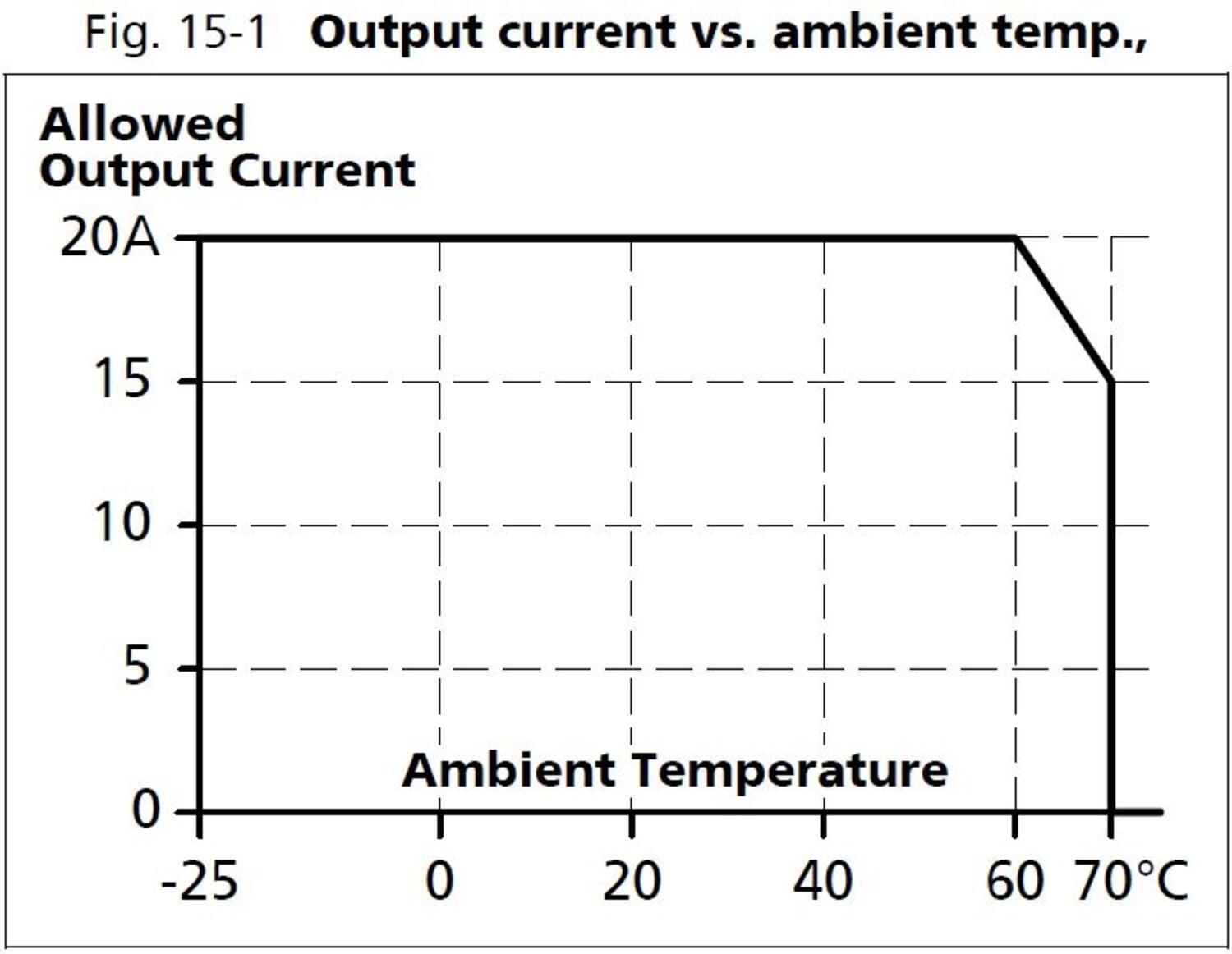

| Power drop from +60 °C to + 70 °C | 24 W/°C |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 60 °C |
| Type Power Supply | AC-DC |
| Active Transient | Yes |
Product description
Dimension X series is a series of semi-regulated power supplies. A so-called semi-controlled unit means that the output voltage is regulated within the specified input voltage range. Outside this range decreases / increases the output voltage compared to the input voltage.
The unit has a bonus effect of 25% (25 A) to cope with high starting currents, as well as a very high short-circuit current enables safe trips for eg MCB. The unit leaves up to 90 A at 100 ms. Lasts short circuit longer than 100 ms, the unit shuts off automatically. See chart below for details. Recovery occurs in the front, or by disconnecting the primary voltage.
A yellow LED indicates the status and warns of the following errors; phase failure, over-temperature and high load current.
The unit has a low weight (1.4 kg), no inrush current and active transient filter that protects the secondary side from transients on the primary side.
Typical applications include motors, solenoids or other "power hungry" loads that do not have requirements for accurate voltage regulation. X series are a great alternative to traditional transformers. With lower energy costs and easier installation, along with an attractive price concept means a low total cost.
We recommend free space of 40 mm above and 20 mm under the power supply, and 5 mm at the sides. (if neighbouring products are counted as a heat source spacing of 15 mm is recommended).
Input voltage range/regulation |
|
Output characteristics |
|
