PULS
The power supplies in the Dimension X-Series include a new and innovative concept for generating an
isolated DC voltage from a three-phase mains system.

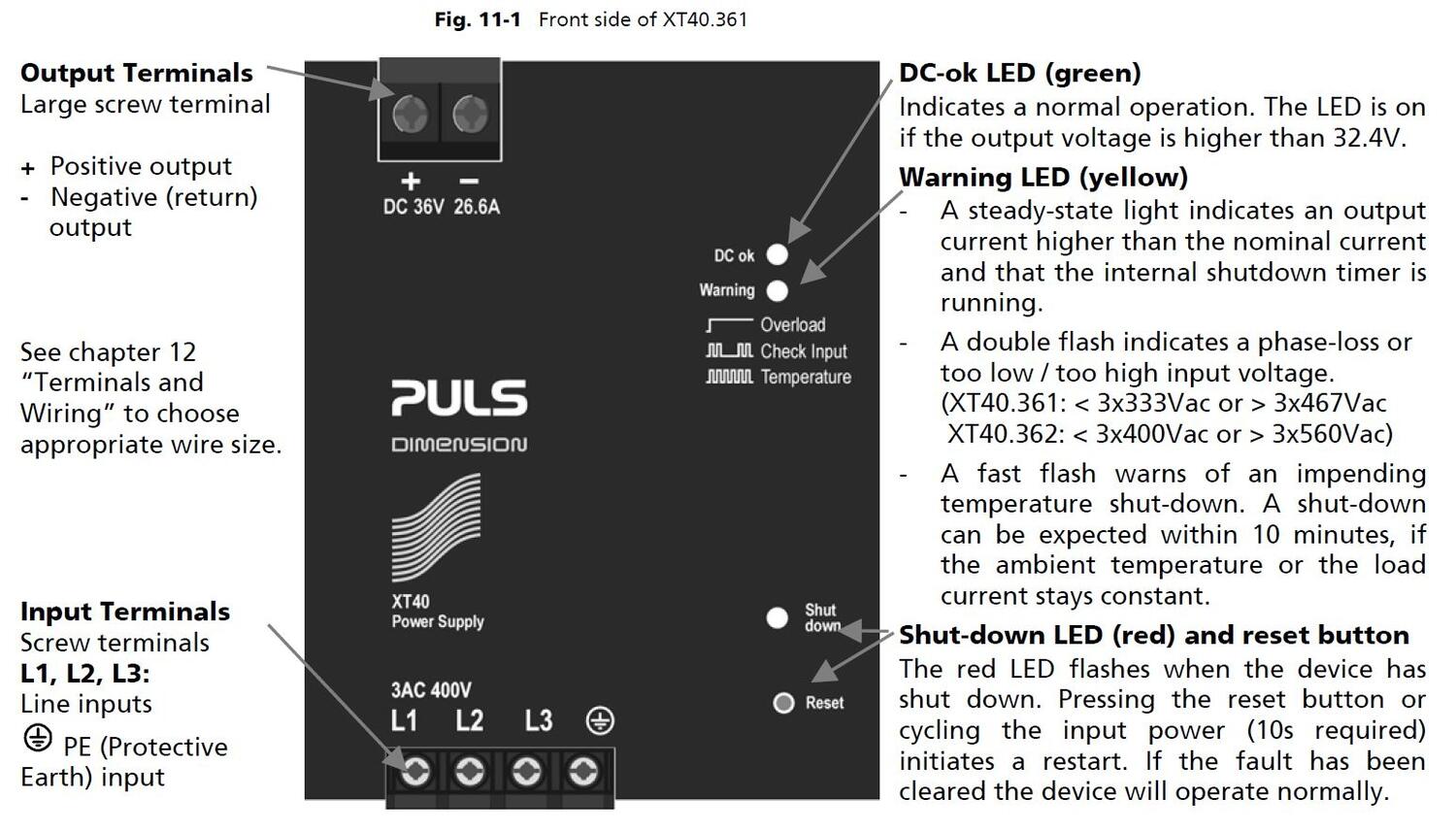

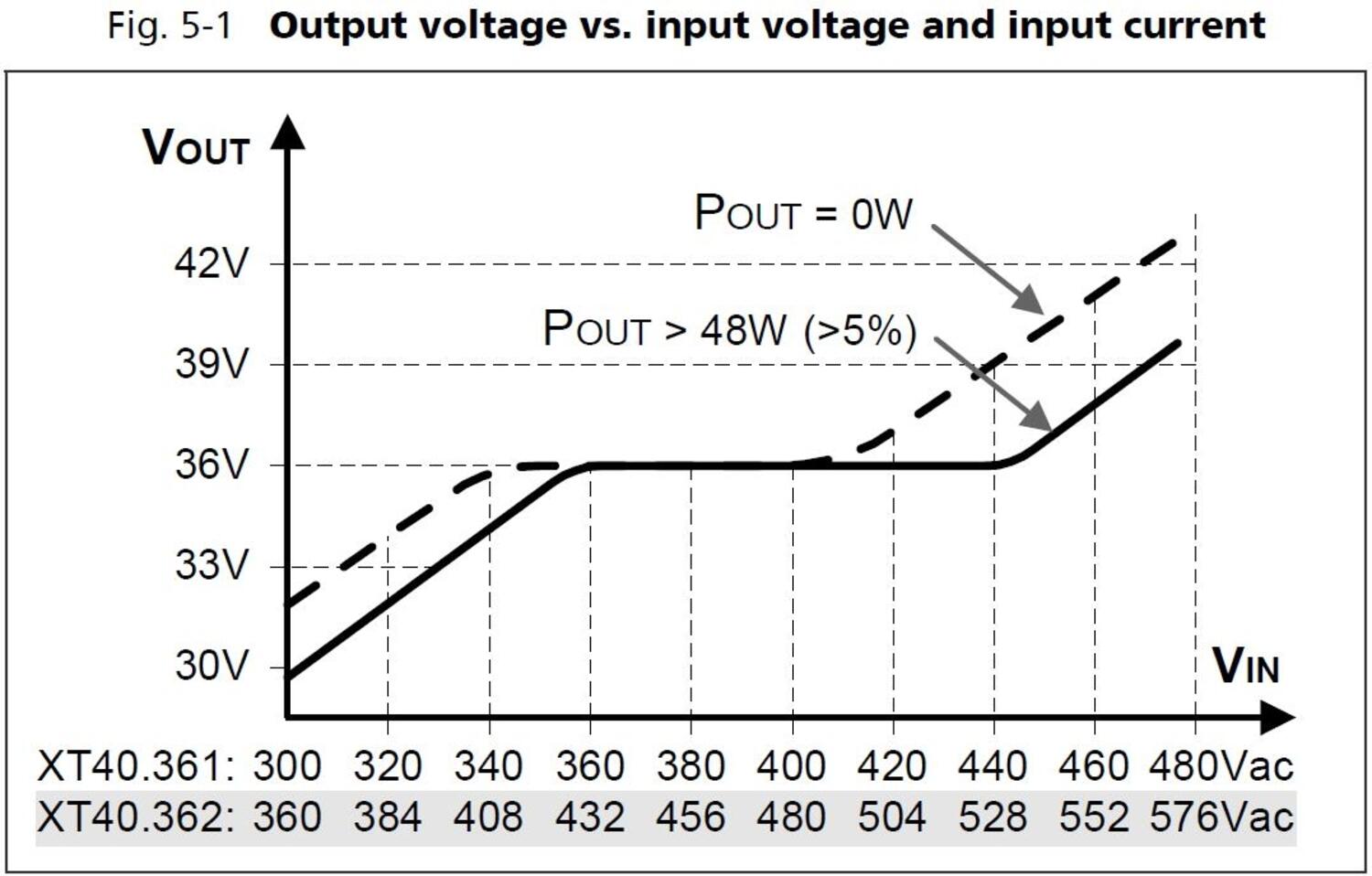

A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required. Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
Input data |
|
|---|---|
| Input voltage ac | 400 V |
| Input voltage ac min | 360 V AC |
| Input voltage ac max | 440 V AC |
| Inrush current at 400 V ac typical | 4 A |
| Power factor at 400 V ac, full load. Typical | 0.93 |

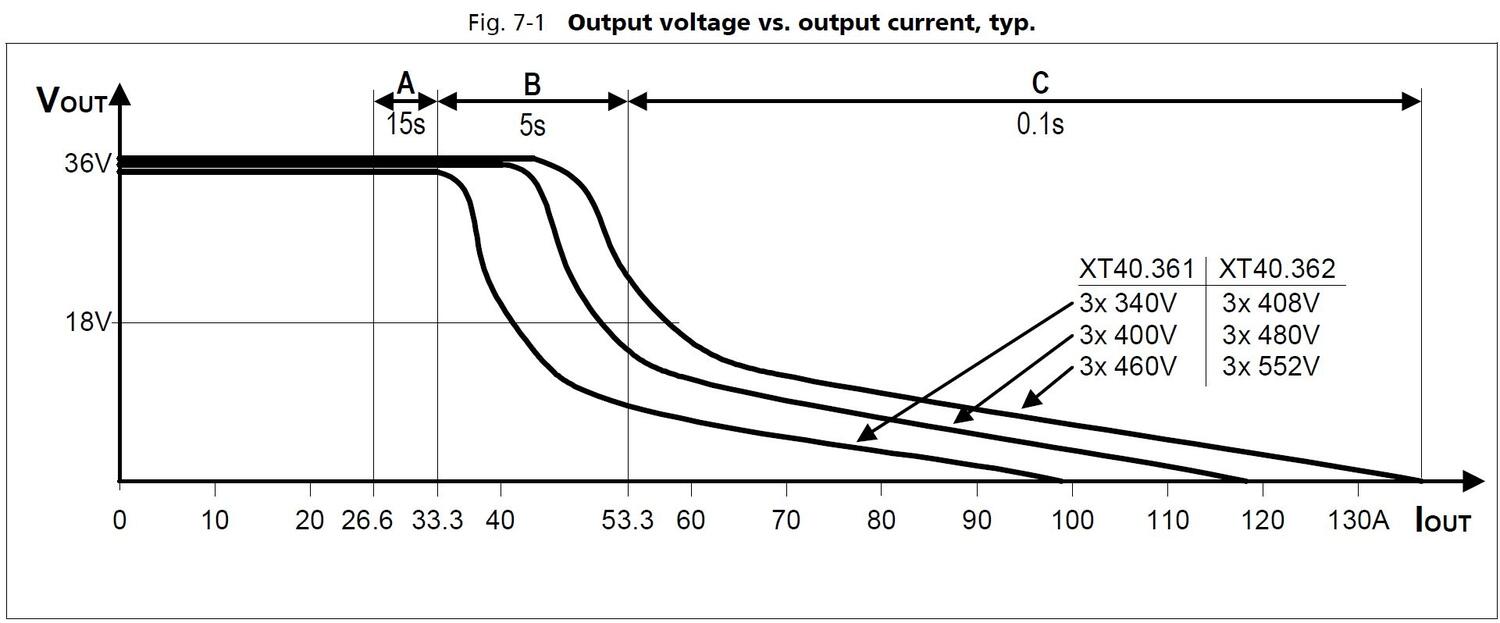

Output data |
|
| Output voltage | 36 V DC |
| Output voltage min | 36 V DC |
| Output voltage max | 36 V DC |
| Output current | 26.6 A |
| Power | 960 W |
Efficiency / Lifetime / MTBF |
|

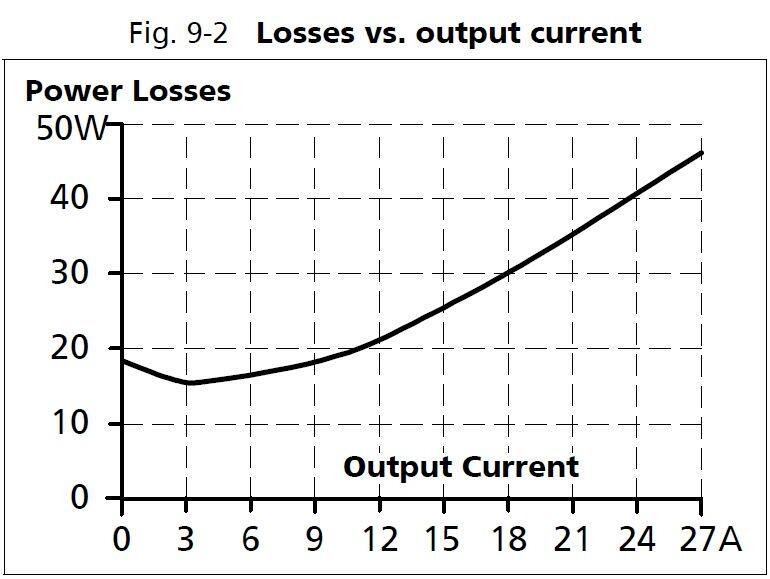

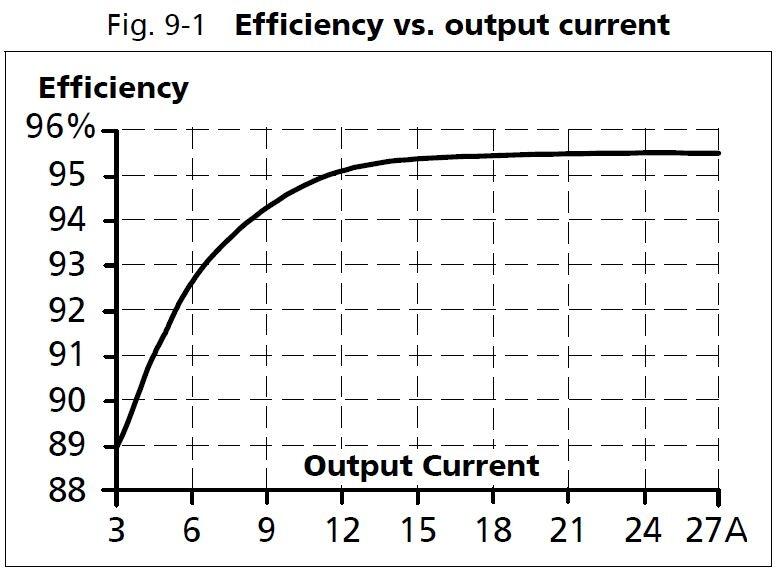

| Efficiency at 400 V ac, full load, typical | 95.5 % |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 529000 h |
Dimensions |
|
| Width | 96 mm |
| Height | 124 mm |
| Depth | 159 mm |
*Invisible Heading* |
|
|---|---|
| Weight | 1.4 kg |
Other |
|
| Approvals | CB, CE, CSA, UL |
| Hold time at 400 V ac, typical full load | 3 ms |
| IP class | IP20 |
| Material protection | Aluminium |
| Supply frequency | 50-60 ±6 % |
| Ripple max | 250 mV pp |
| Series | Dimension X |
| Power consumption at 400 V ac | 1.65 A |

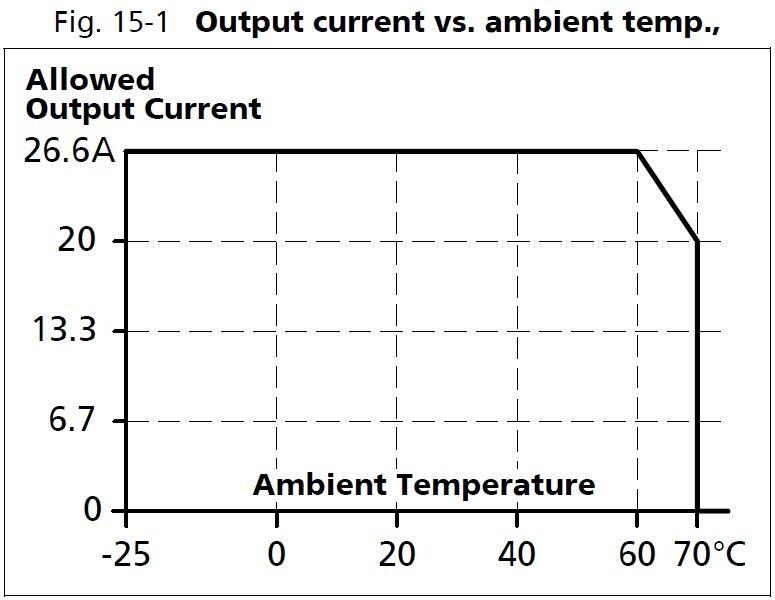

| Power drop from +60 °C to + 70 °C | 24 W/°C |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 60 °C |
| Active Transient | Yes |
The power supplies in the Dimension X-Series include a new and innovative concept for generating an
isolated DC voltage from a three-phase mains system.
A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required. Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Input voltage ac | Input voltage ac min | Input voltage ac max | Power consumption at 400 V ac | Price | ||
|---|---|---|---|---|---|---|---|
PSU 3PH 400V ac I/P 36V dc 26.6A 960W O/P
Art:
XT40.361
Copied
|
400 V
|
360 V AC
|
440 V AC
|
1.65 A
|
|
||
|
PSU 3PH 480V ac I/P 36V dc 26.6A 960W O/P
Art:
XT40.362
Copied
|
480 V
|
432 V AC
|
528 V AC
|
1.4 A
|
|
Select a variant in the list
