PULS
Power supply 3-phase, 24 V dc Dimension X Series
The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated DC voltage from a three-phase mains system.
A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.
Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
We recommend free space of 40 mm above and 20 mm under the unit, and 5 mm at the sides. (If adjacent components are considered as heat sources, a distance of 15 mm is recommended.)

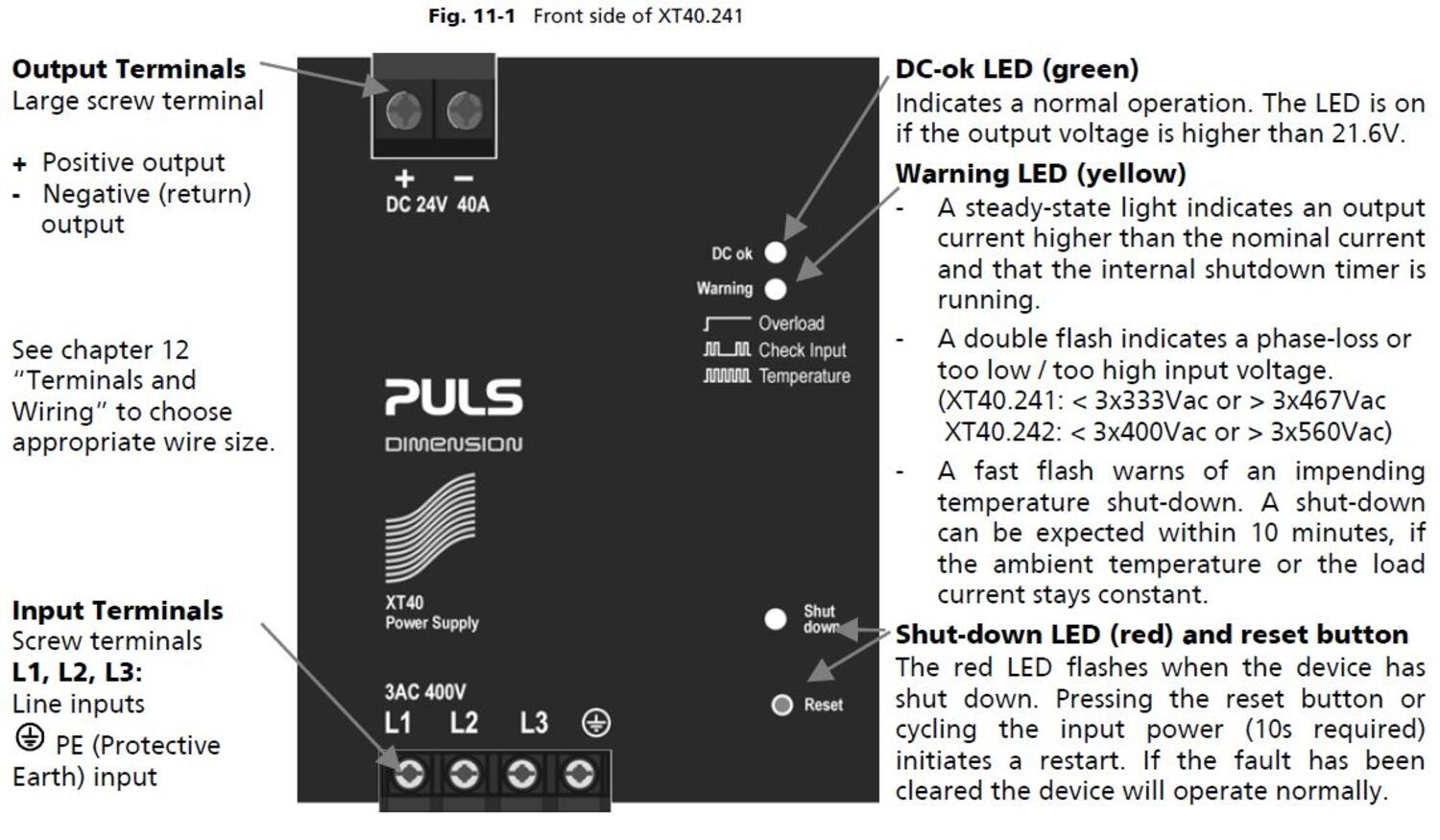

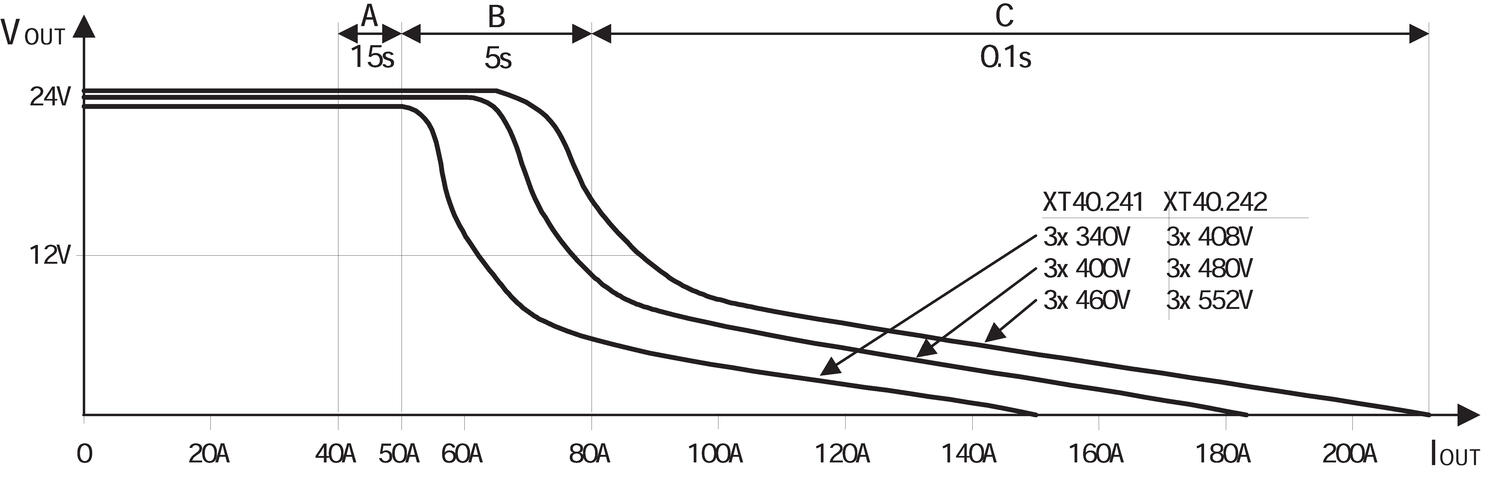

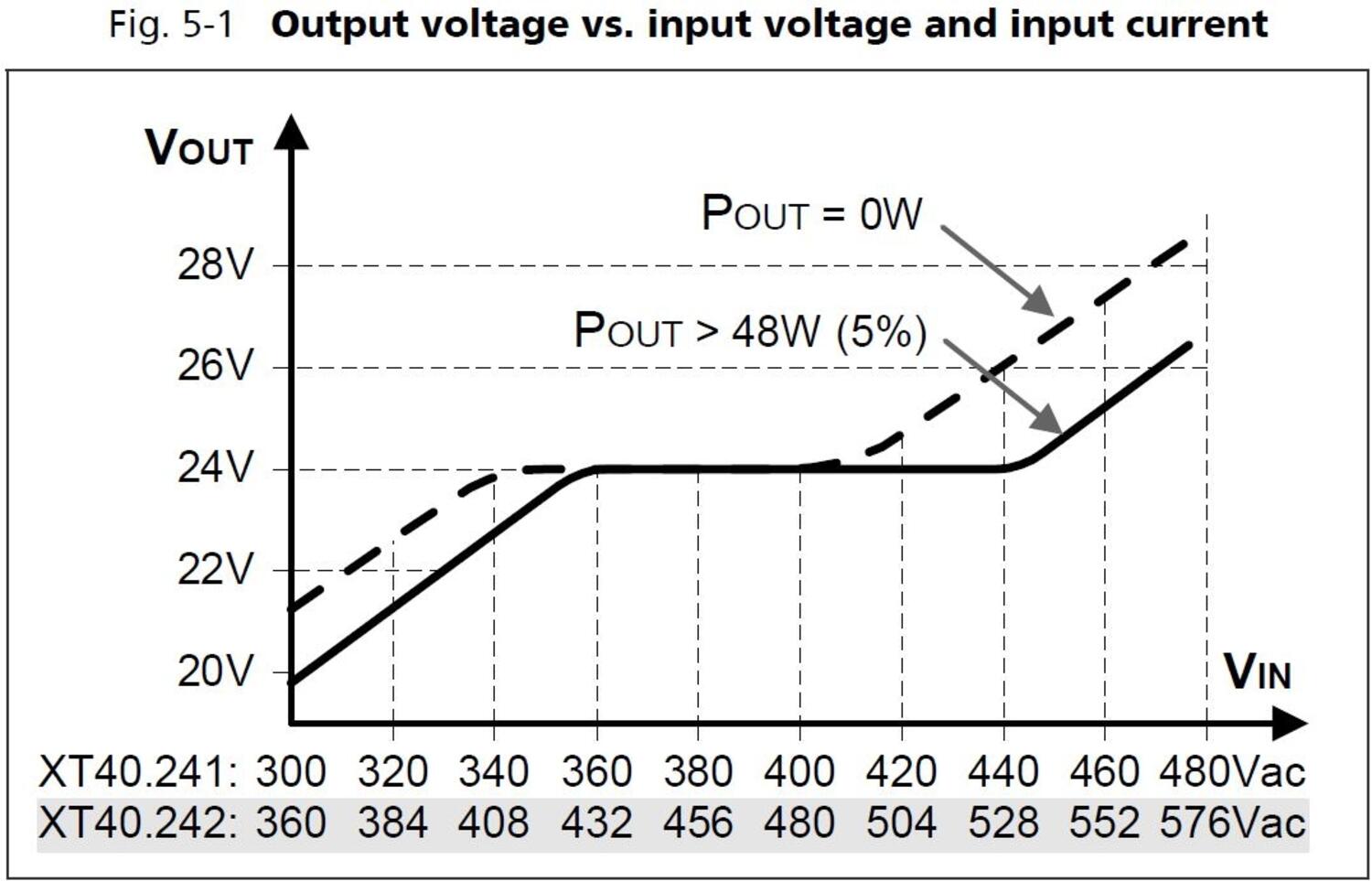

Input voltage range/regulation | Output characteristics |
|
|
- Output current of 40 A
- 95.5 % efficiency
- 96 mm wide
- 25 % power boost
- Very high short-circuit current
Selected variant
Technical data
Input data |
|
|---|---|
| Input voltage ac | 400 V |
| Input voltage ac min | 360 V AC |
| Input voltage ac max | 440 V AC |
| Inrush current at 400 V ac typical | 4 A |
| Power factor at 400 V ac, full load. Typical | 0.93 |
| Number of phases | 3 |
Output data |
|
| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 24 V DC |
| Output current | 40 A |
| Power | 960 W |
Efficiency / Lifetime / MTBF |
|

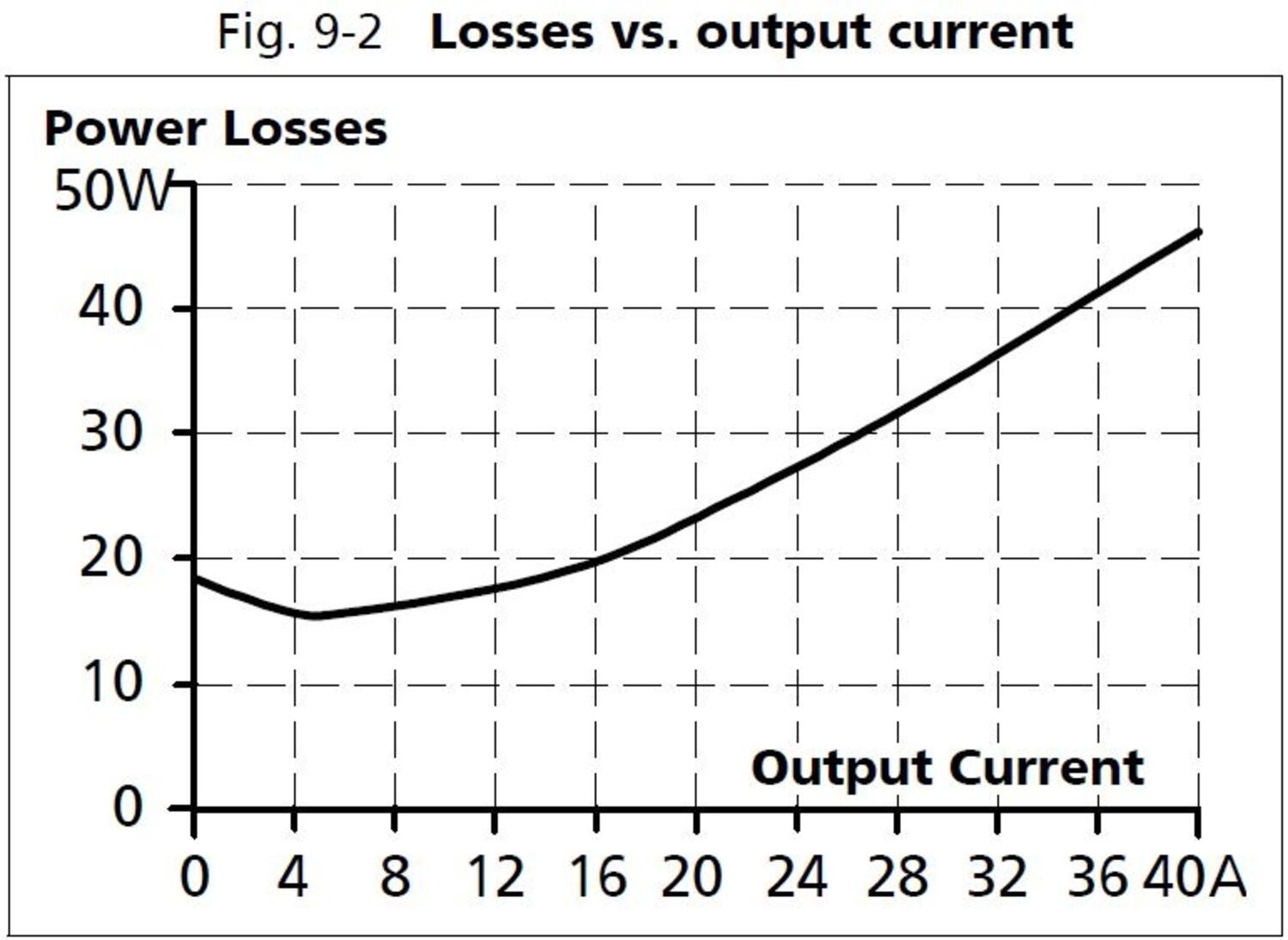

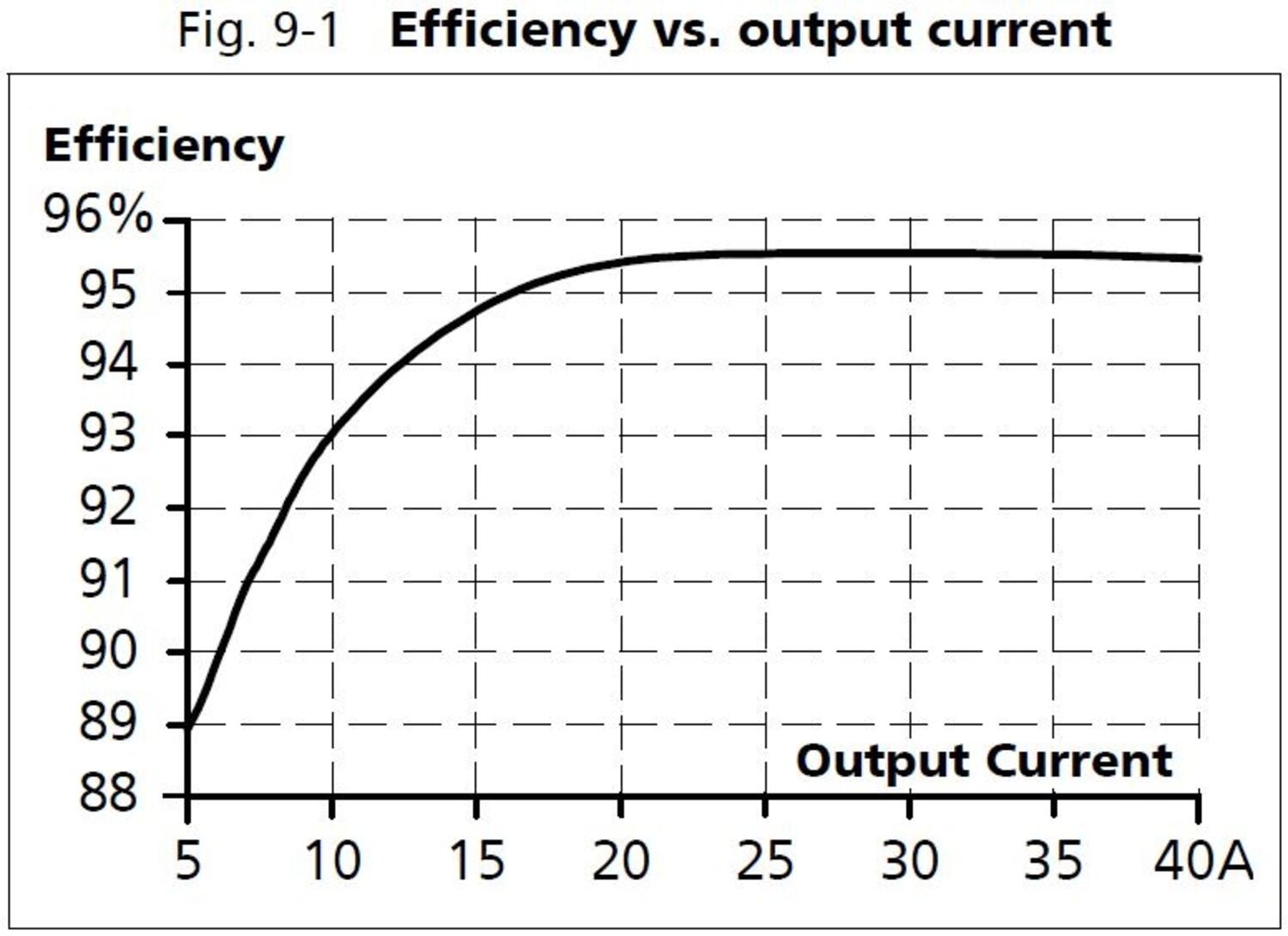

| Efficiency at 400 V ac, full load, typical | 95.5 % |
| Lifetime at 400 V ac, full load and +40 ° C | 51000 h |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 529000 h |
Dimensions |
|
| Width | 96 mm |
| Height | 124 mm |
*Invisible Heading* |
|
|---|---|
| Depth | 159 mm |
| Weight | 1.4 kg |
Other |
|
| Approvals | CB, CE, CSA, UL |
| Hold time at 400 V ac, typical full load | 2 ms |
| IP class | IP20 |
| Material protection | Aluminium |
| Supply frequency | 50-60 ±6 % |
| Ripple max | 200 mV pp |
| Series | Dimension X |
| Power consumption at 400 V ac | 1.65 A |

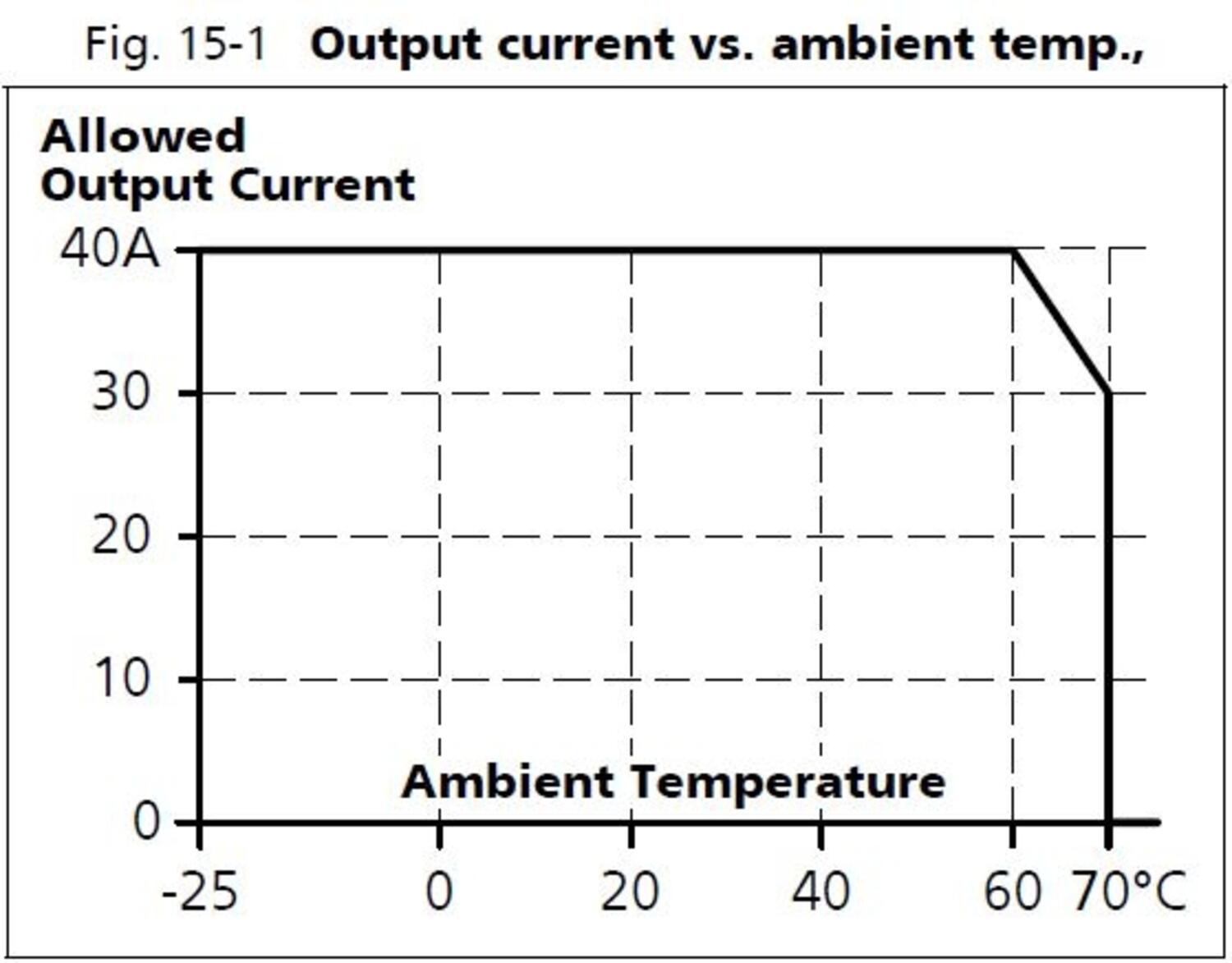

| Power drop from +60 °C to + 70 °C | 24 W/°C |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 60 °C |
| Type Power Supply | AC-DC |
| Active Transient | Yes |
Product description
The power supplies in the Dimension X-Series include a new and innovative concept for generating an isolated DC voltage from a three-phase mains system.
A semi-regulated resonant converter enables a very compact design, maximum efficiency and extremely competitive pricing with only a small compromise in the output voltage regulation, output ripple and hold-up time.
Weighing just 1.4 kg, the device provides 960 watts of continuous output power and an additional 25% power reserve for dynamic loads. The light-weight design along with compact dimensions facilitate straightforward mounting on DIN-rail.
Primary use are applications involving supplies to motors, valves and other load circuits with a high power consumption, where an accurate output voltage regulation which is standard on traditional switched-mode power supplies is not required.
Furthermore, these switched-mode power supplies can often replace mains transformers with rectifiers.
We recommend free space of 40 mm above and 20 mm under the unit, and 5 mm at the sides. (If adjacent components are considered as heat sources, a distance of 15 mm is recommended.)
Input voltage range/regulation | Output characteristics |
|
|
