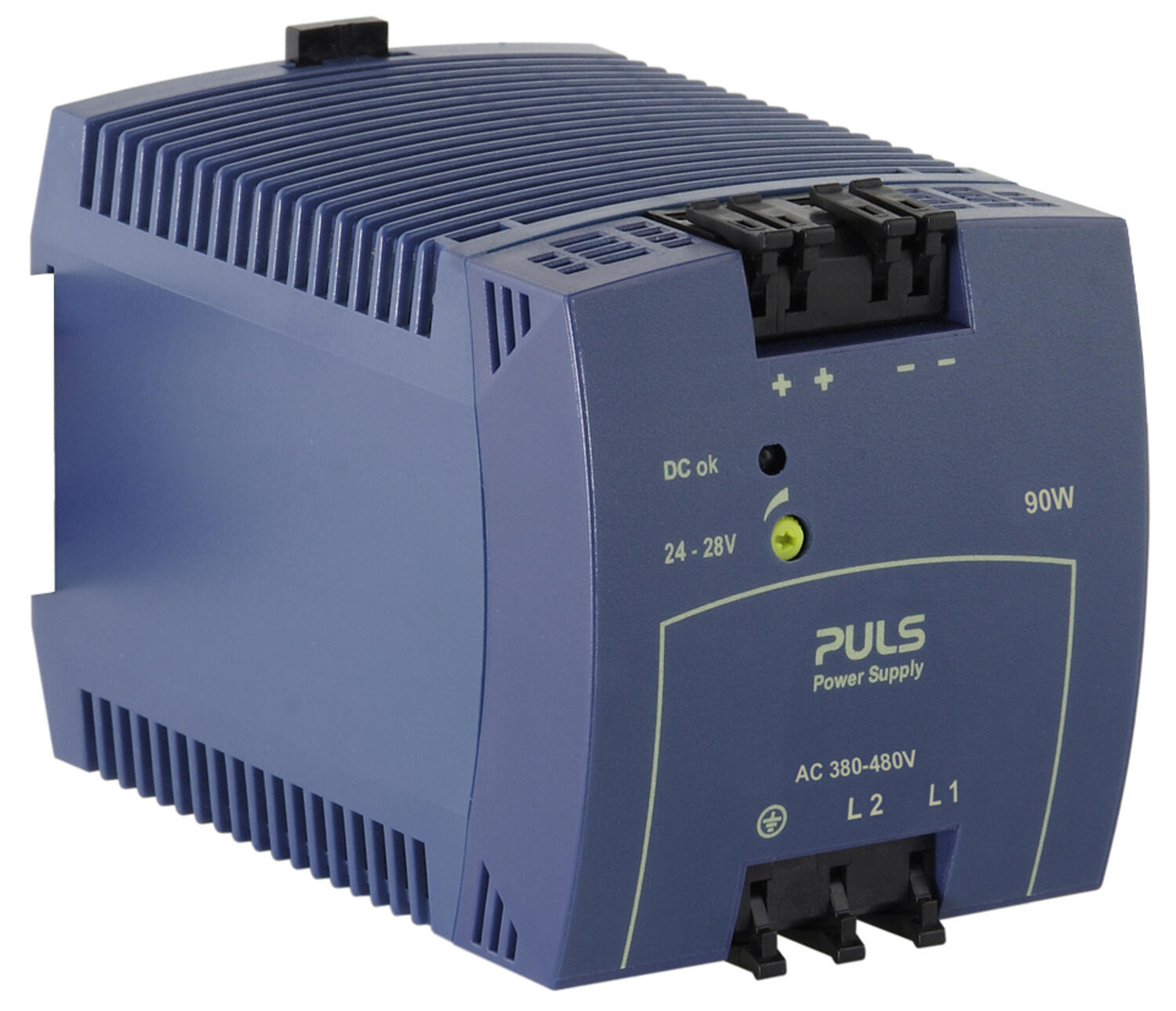

PULS

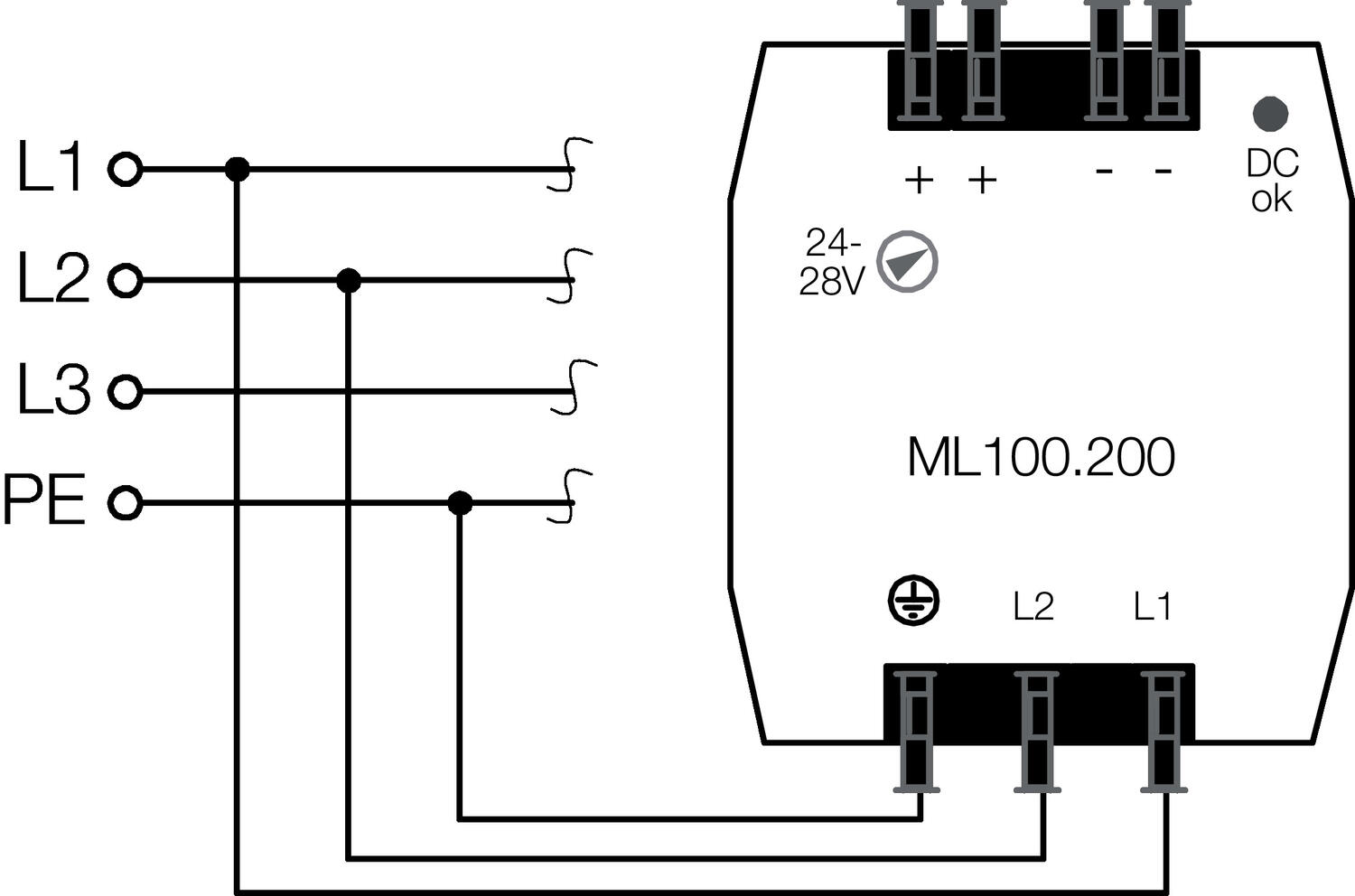

The ML100.200 is a simple and cost effective approach to convert the ac voltage of a typical three phase system into a regulated dc voltage. It only requires two phases and thereby saves terminal space, terminal cost, wires, fuses and installation time.
The ML100.200 is very compact, high efficient and easy to use. The input is internally protected, which makes external fuses unnecessary in many cases.
Weighing only 360g, it is a lightweight compared to the 50/60Hz control transformers, which are commonly used for low-power control voltages where a neutral wire is not available.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
For approved cooling, free space of 40 mm above and 20 mm under is recommended.
If adjacent components on the rail radiate heat, free space of 15 mm is recommended at all sides.
Input data |
|
---|---|
Input voltage ac | 380-480 V |
Input voltage ac min | 323 V AC |
Input voltage ac max | 552 V AC |
Inrush current at 400 V ac typical | 36 A |
Input voltage range | Wide-range |
Power factor at 400 V ac, full load. Typical | 0.6 |
Number of phases | 2 |

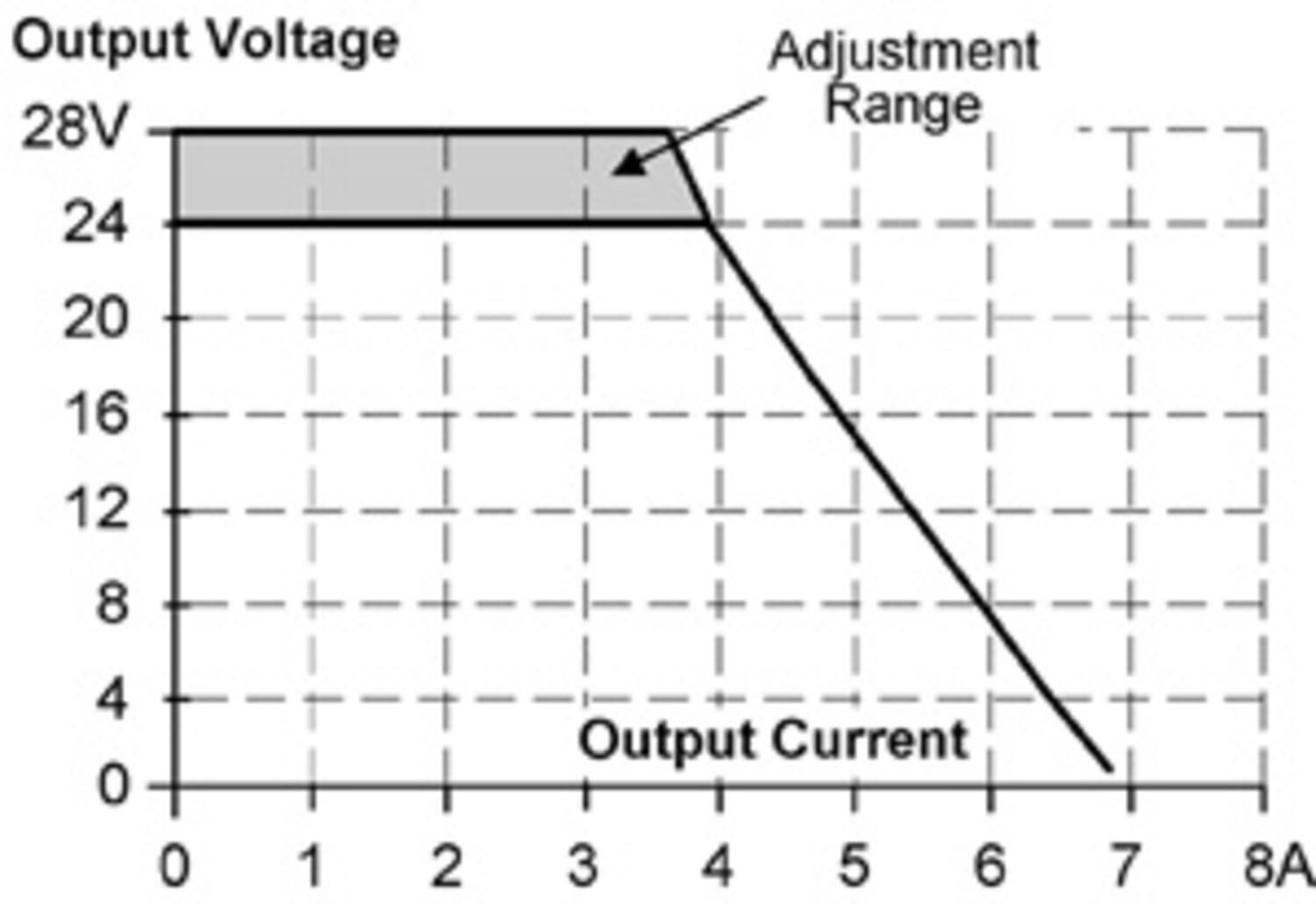

Output data |
|
Output voltage | 24 V DC |
Output voltage min | 24 V DC |
Output voltage max | 28 V DC |
Output current | 3.75 A |
Power | 90 W |
Efficiency / Lifetime / MTBF |
|
Efficiency at 400 V ac, full load, typical | 89.5 % |
MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 1594000 h |

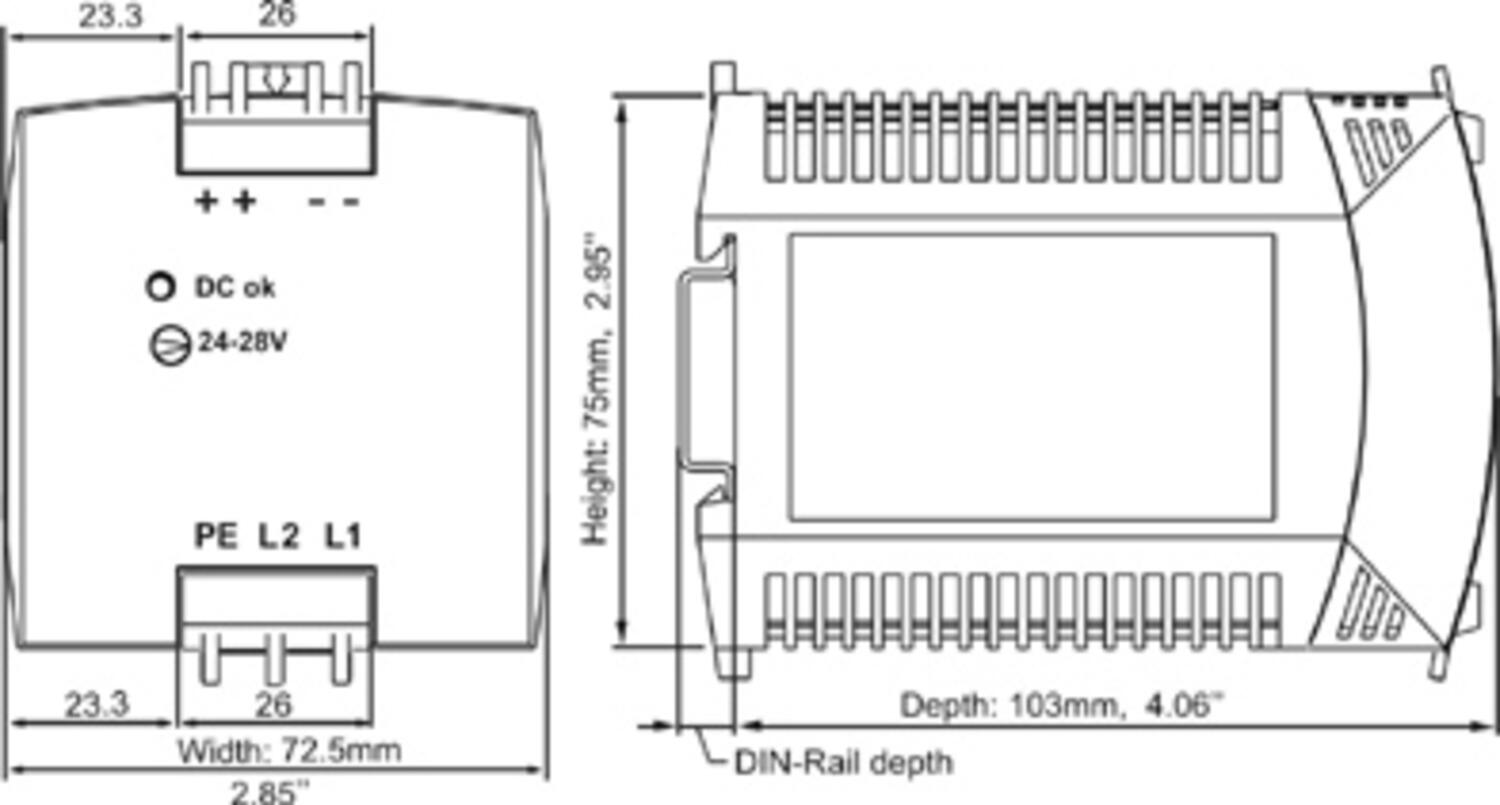

Dimensions |
|
Width | 72.5 mm |
Height | 75 mm |
*Invisible Heading* |
|
---|---|
Depth | 103 mm |
Weight | 0.36 kg |
Other |
|
Approvals | CB, CE, CSA, GL, NEC Class 2, UL |
Hold time at 400 V ac, typical full load | 52 ms |
IP class | IP20 |
Clamp type | Spring-clamp |
Material protection | ABS plastic |
Supply frequency | 50-60 ±6 % |
Ripple max | 50 mV pp |
Series | Miniline |
Power consumption at 400 V ac | 0.42 A |
Power drop from +60 °C to + 70 °C | 2 W/°C |
Temperature min without derating | -10 °C |
Temperature max without derating | 60 °C |
Type Power Supply | AC-DC |
The ML100.200 is a simple and cost effective approach to convert the ac voltage of a typical three phase system into a regulated dc voltage. It only requires two phases and thereby saves terminal space, terminal cost, wires, fuses and installation time.
The ML100.200 is very compact, high efficient and easy to use. The input is internally protected, which makes external fuses unnecessary in many cases.
Weighing only 360g, it is a lightweight compared to the 50/60Hz control transformers, which are commonly used for low-power control voltages where a neutral wire is not available.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
For approved cooling, free space of 40 mm above and 20 mm under is recommended.
If adjacent components on the rail radiate heat, free space of 15 mm is recommended at all sides.
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
Optimise your production line with encoders, inclinometers, displays and slip rings
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Output current | Power | Approvals | Hold time at 400 V ac, typical full load | Power consumption at 400 V ac | Power drop from +60 °C to + 70 °C | Price | ||
---|---|---|---|---|---|---|---|---|---|
![]()
PSU 3PH 380-480V ac I/P 24V dc 3.75A 90W O/P
Art:
ML90.200
Copied
|
3.75 A
|
90 W
|
CB, CE, CSA, GL, NEC Class 2, UL
|
52 ms
|
0.42 A
|
2 W/°C
|
| ||
![]()
PSU 3PH 380-480V ac I/P 24V dc 4A 100W O/P
Art:
ML100.200
Copied
|
4.2 A
|
100 W
|
CB, CE, CSA, GL, UL
|
48 ms
|
0.46 A
|
2.5 W/°C
|
|
Select a variant in the list
