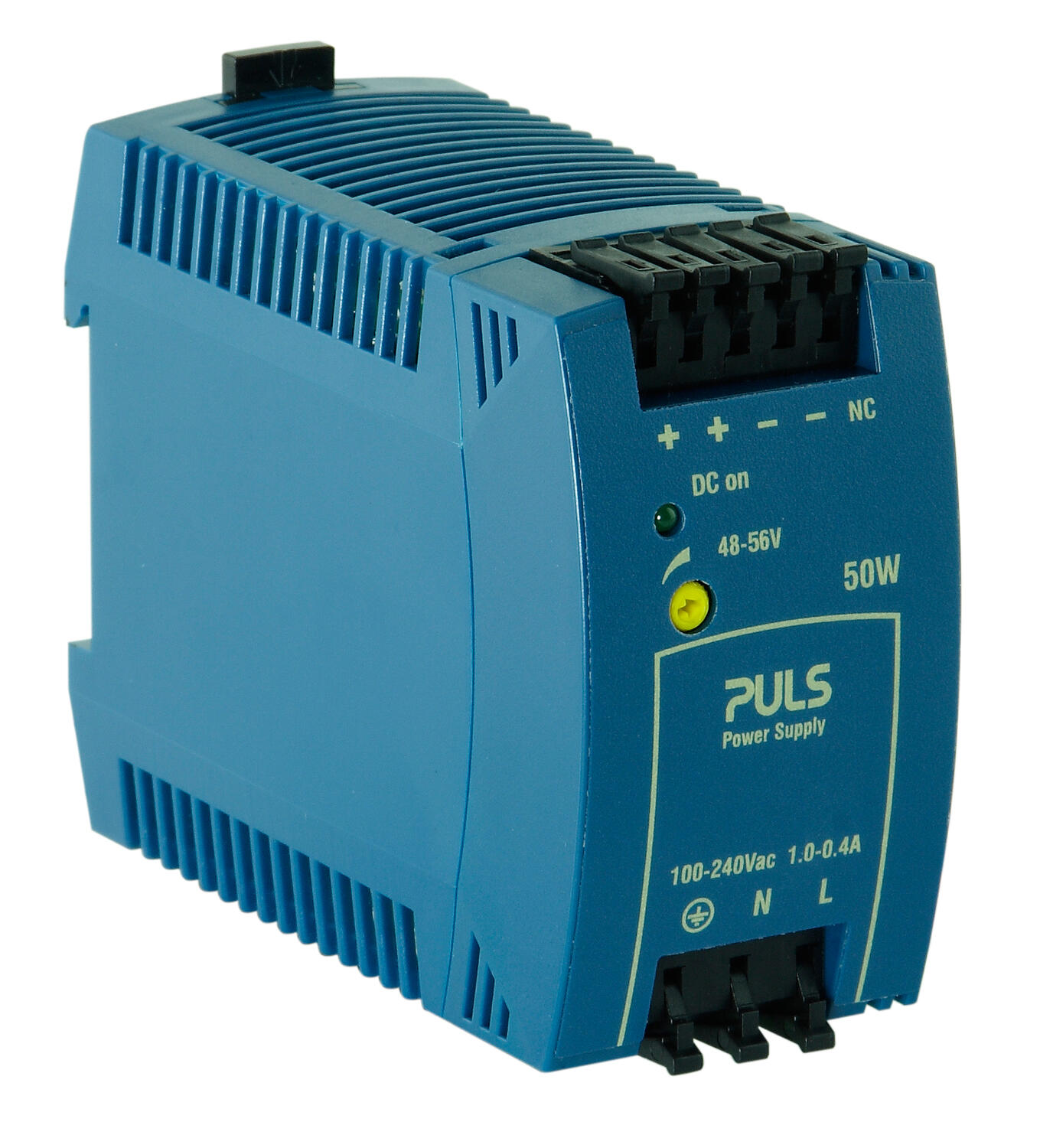

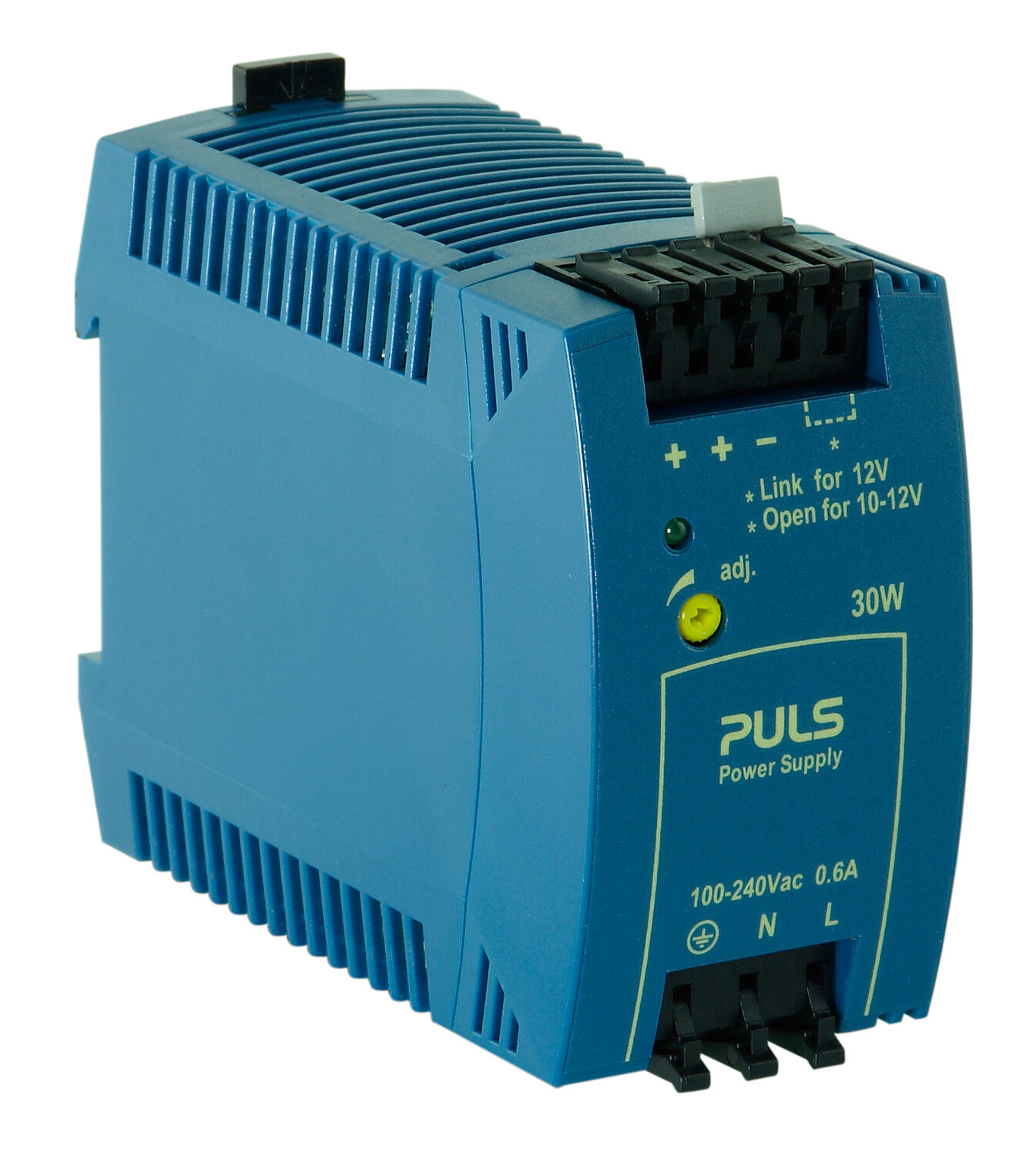

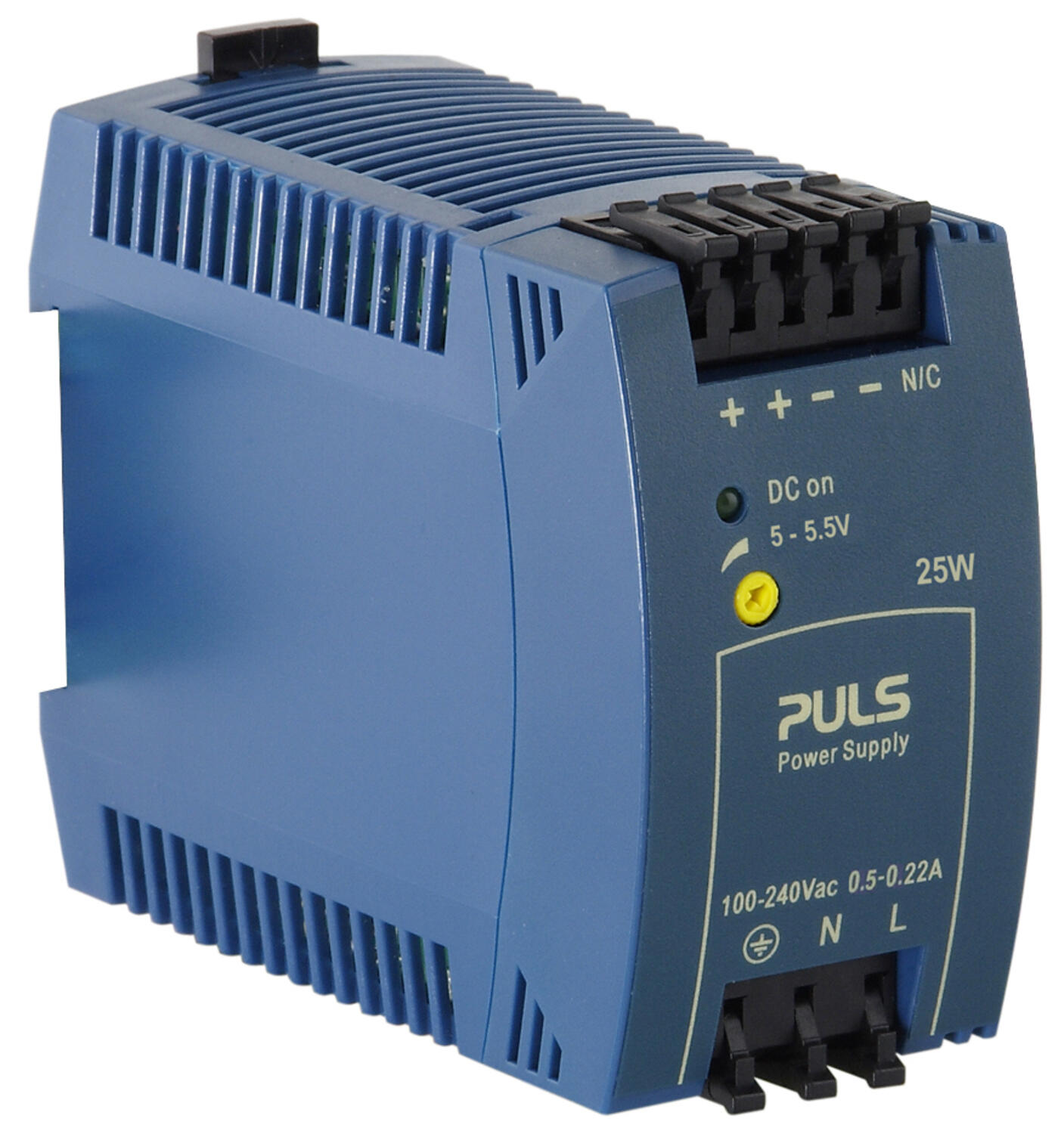

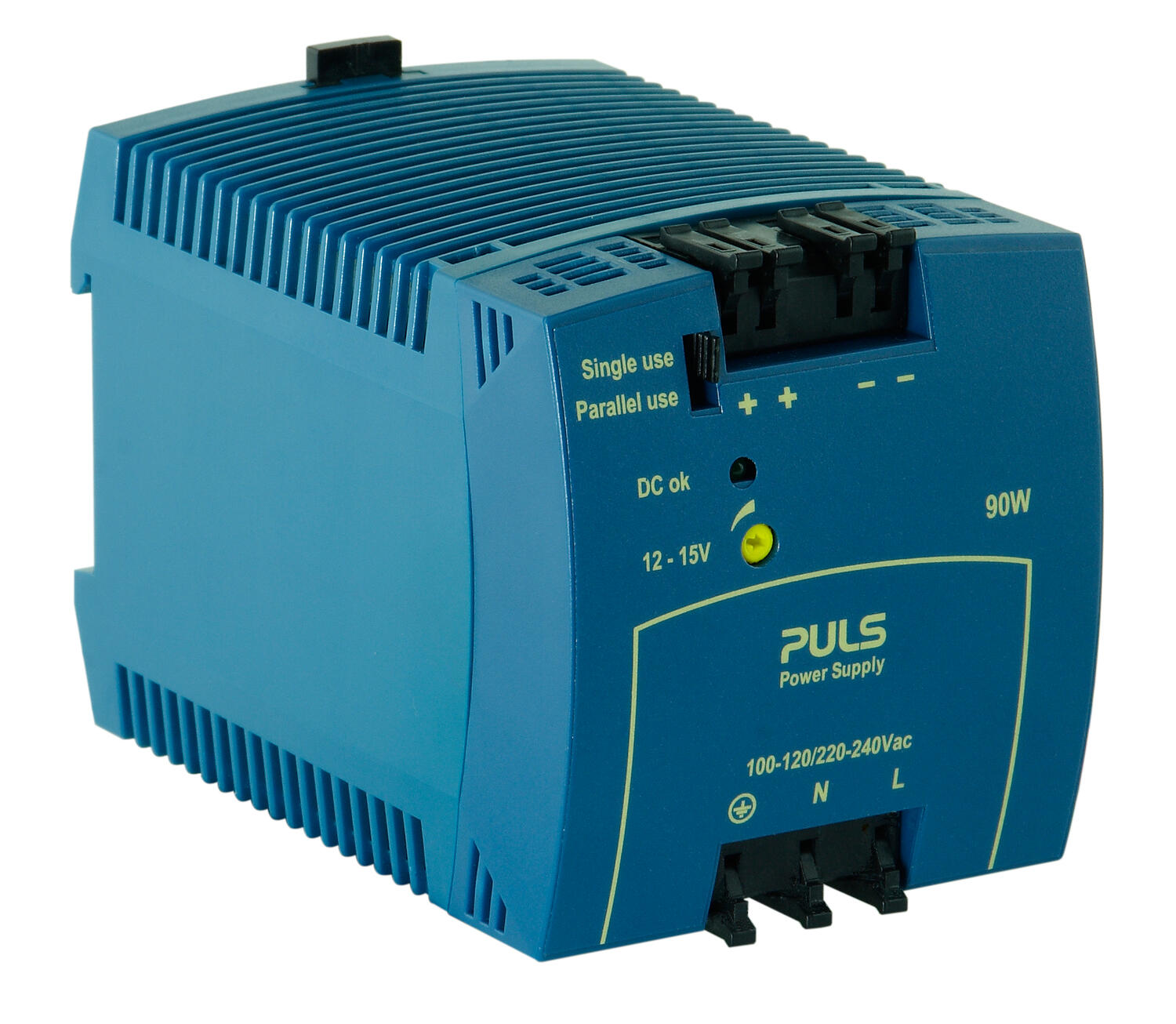

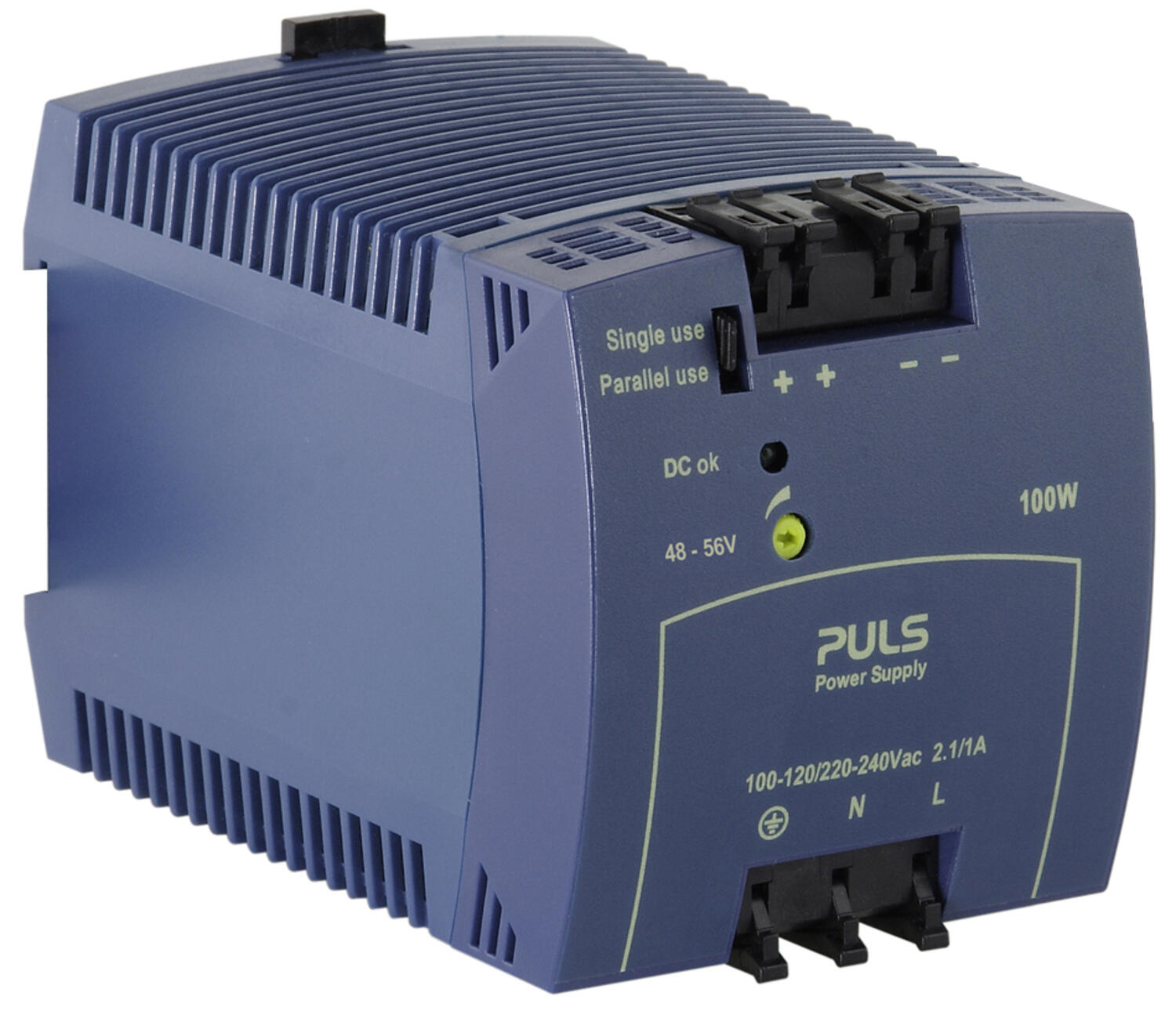

Power supply 1-Phase, Miniline Series 1

Puls series Miniline is characterised by compact dimensions, reliability and long lifetime with high efficiency, which entails low energy loss and low temperatures in the switch cabinet. The power supply units are just 45 mm wide and feature spring connection, which means faster installation. For more technical information, consult the general information at the beginning of the power supply section.



Read more
  • Output current of 1 A or 7.5 A
  • High efficiency
  • Space-saving
  • Manages high starting/overload currents
  • 5 V - 48 V DC

Selected variant

Available in several variants
PULS_2016.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Input data
Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 264 V AC
Input voltage dc 110-300 V
Input voltage dc min 85 V DC
Input voltage dc max 370 V DC
Inrush current at 120 V ac typical 17 A
Inrush current at 230 V ac typical 35 A
Input voltage range Wide-range
Power factor at 120 V ac, full load. Typical 0.51
Power factor at 230 V ac, full load. Typical 0.44
Number of phases 1

Output data
Output voltage 5 V DC
Output voltage min 5 V DC
Output voltage max 5.5 V DC
Output current 5 A
Power 25 W

Efficiency / Lifetime / MTBF
Efficiency at 230 V ac, full load, typical 80 %
MTBF (IEC 61709) 230 V ac, max load, 40 ° C 1963000 h

Dimensions
Width 45 mm

*Invisible Heading*
Height 75 mm
Depth 91 mm
Weight 0.24 kg

Other
Approvals CB, CE, CSA, GL, NEC Class 2, UL
Hold time at 120 V ac, typical full load 22 ms
Hold time at 230 V ac, typical full load 170 ms
IP class IP20
Clamp type Spring-clamp
Material protection ABS plastic
Supply frequency 50-60 ±6 %
Ripple max 50 mV pp
Series Miniline
Power consumption 120 V ac 0.6 A
Power consumption 230 V ac 0.35 A
Power drop from +60 °C to + 70 °C 0.5 W/°C
Temperature min without derating -10 °C
Temperature max without derating 60 °C
Type Power Supply AC-DC

Downloads

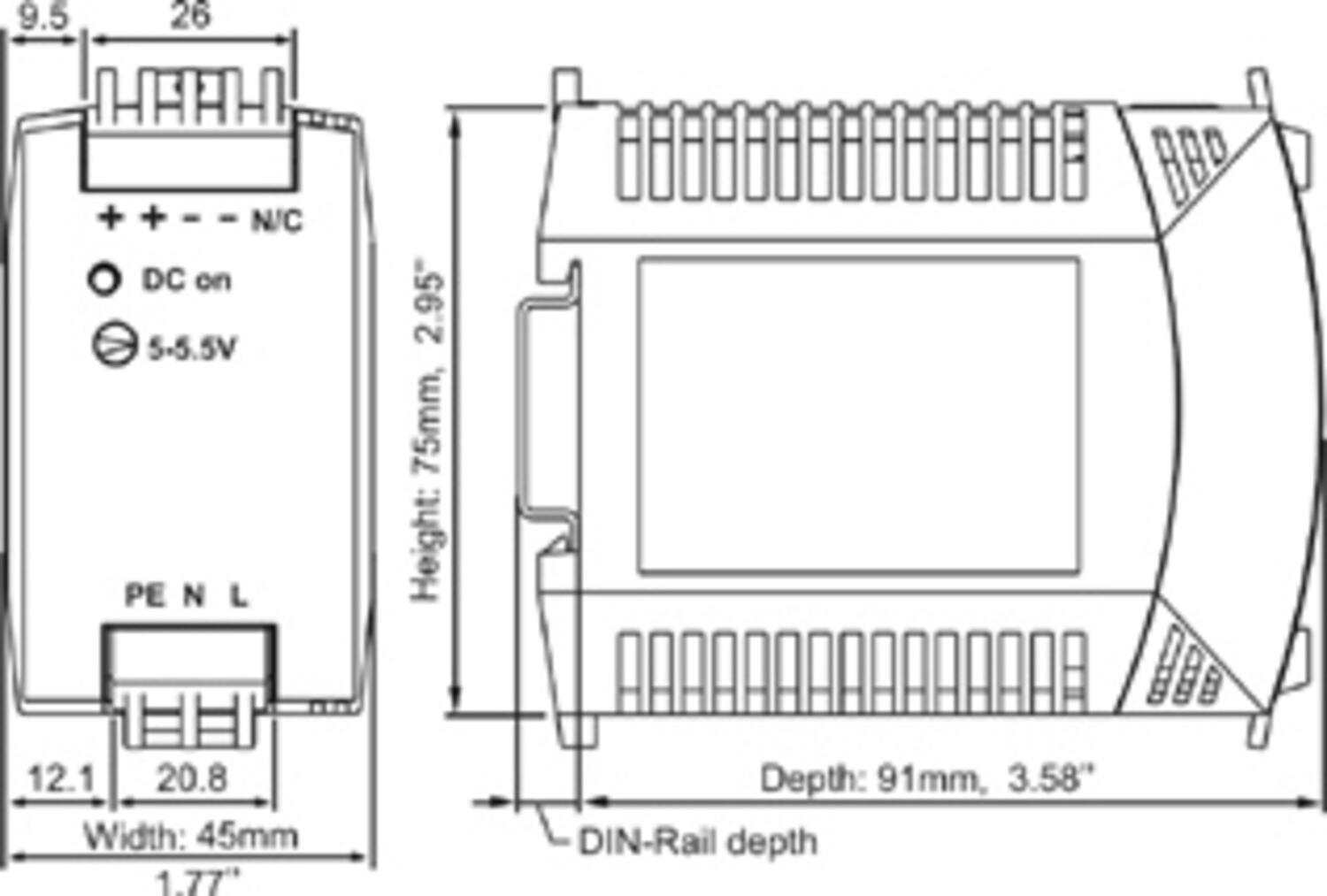

Measurements and connections

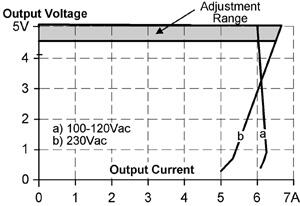

Technical illustrations

Product description

Puls series Miniline is characterised by compact dimensions, reliability and long lifetime with high efficiency, which entails low energy loss and low temperatures in the switch cabinet. The power supply units are just 45 mm wide and feature spring connection, which means faster installation. For more technical information, consult the general information at the beginning of the power supply section.



Accessories

Related products

Related

Contaclip PRK terminal blocks
