The most outstanding features of this Dimension Q Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details.

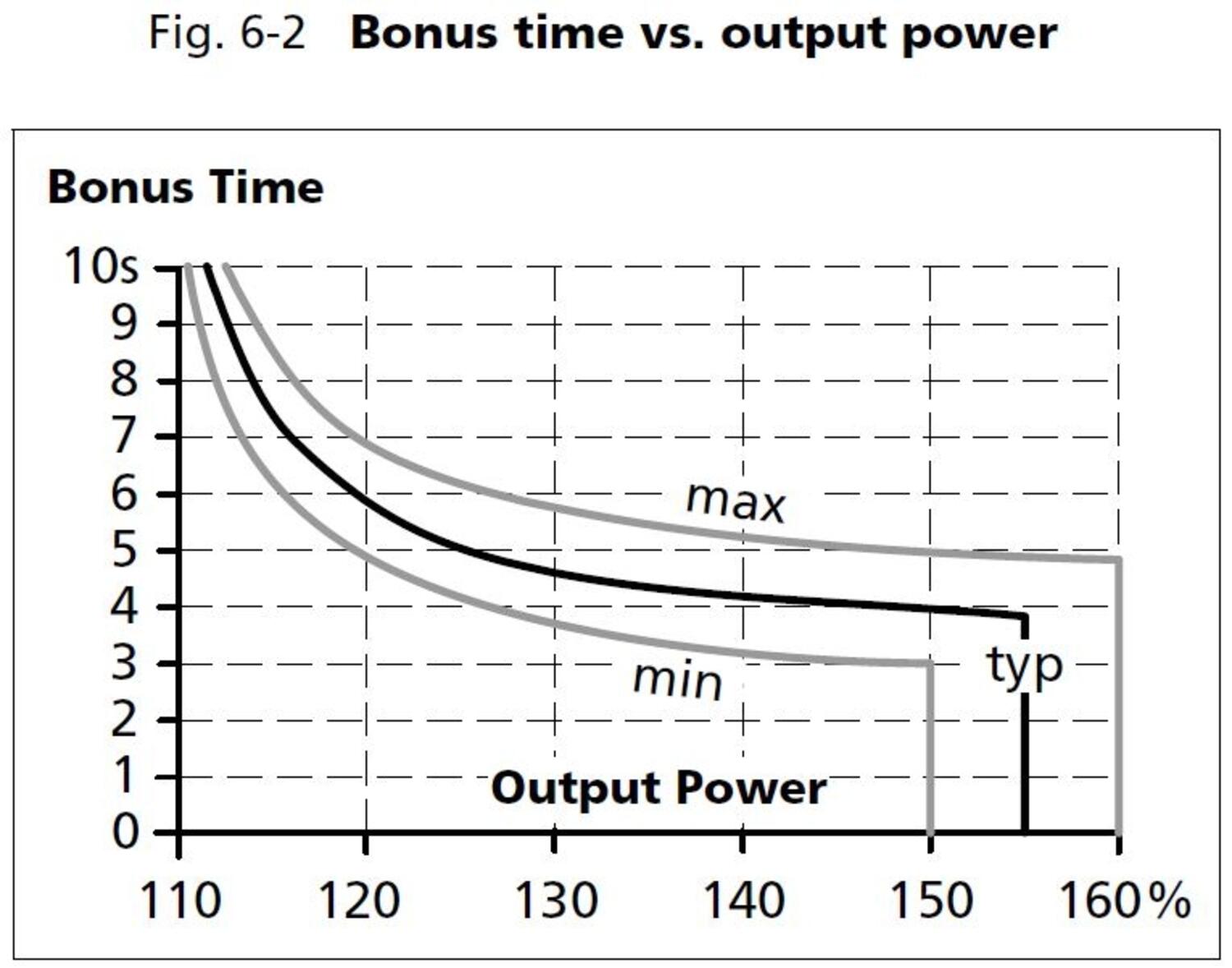

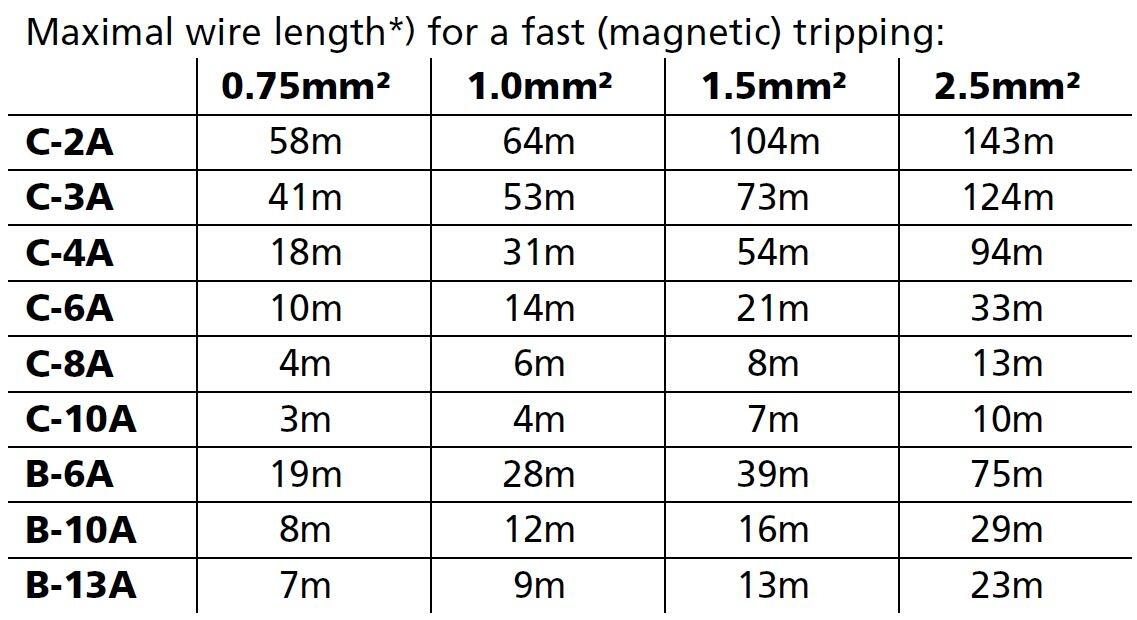

With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.

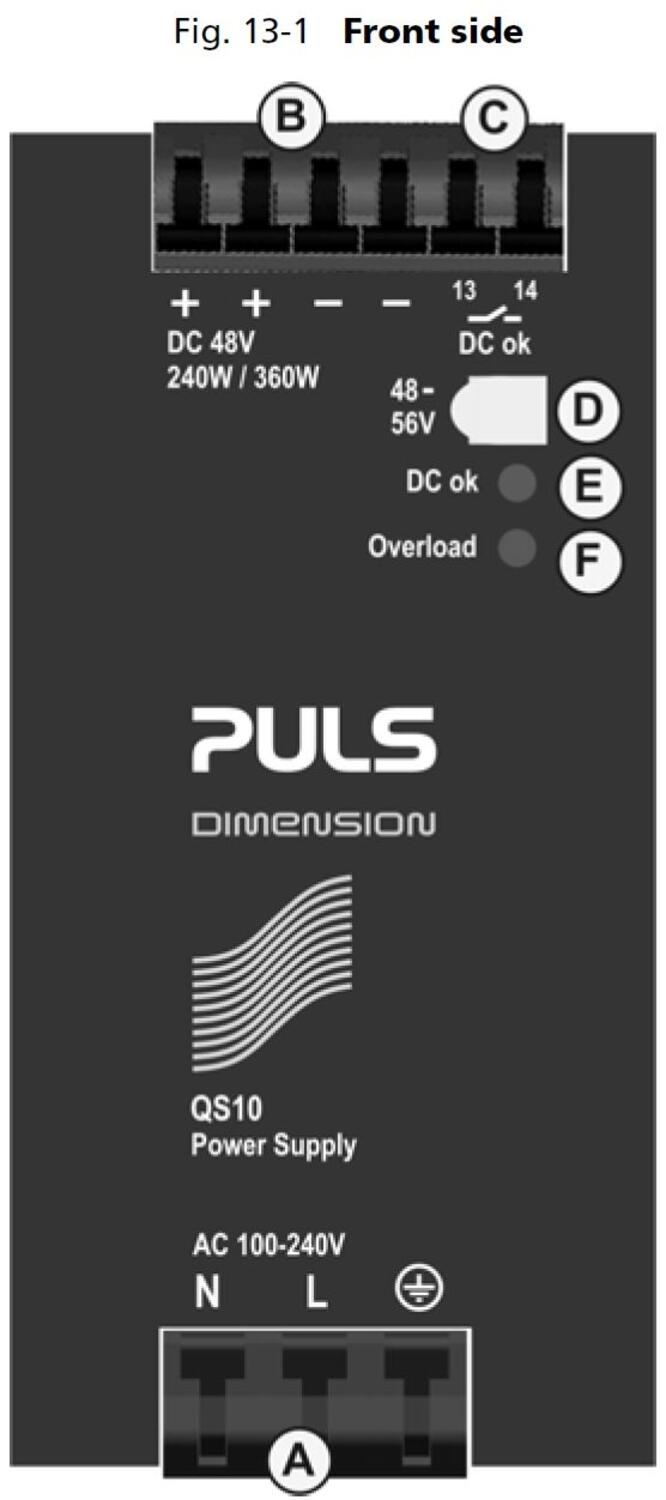

The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED.
Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
 Â
Input data |
|
---|---|
Input voltage ac | 100-240 V |
Input voltage ac min | 90 V AC |
Input voltage ac max | 276 V AC |
Input voltage dc | 110-150 V |
Input voltage dc min | 88 V DC |
Input voltage dc max | 187 V DC |
Inrush current at 120 V ac typical | 4 A |
Inrush current at 230 V ac typical | 7 A |
Input voltage range | Wide-range |
Power factor at 120 V ac, full load. Typical | 0,98 |
Power factor at 230 V ac, full load. Typical | 0,92 |
Number of phases | 1 |
Output data |
|

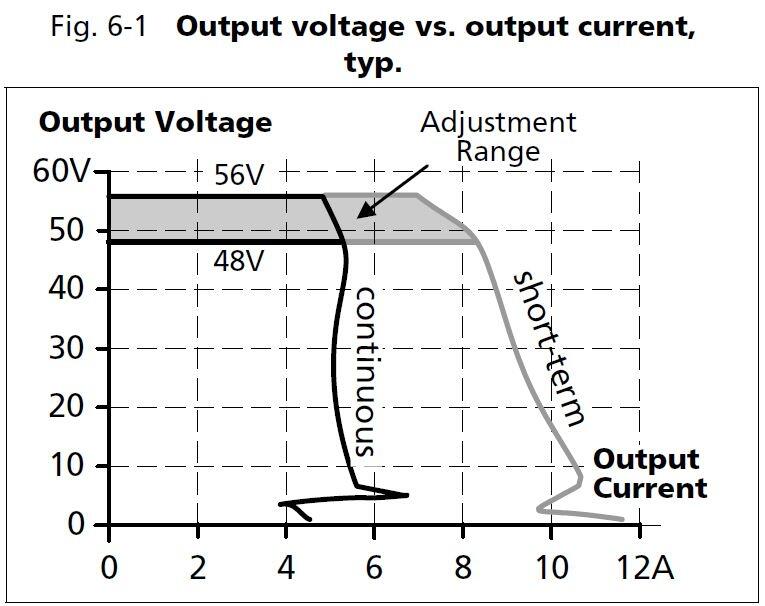

Output voltage | 48 V DC |
Output voltage min | 48 V DC |
Output voltage max | 56 V DC |
Output current | 5 A |
Power | 240 W |

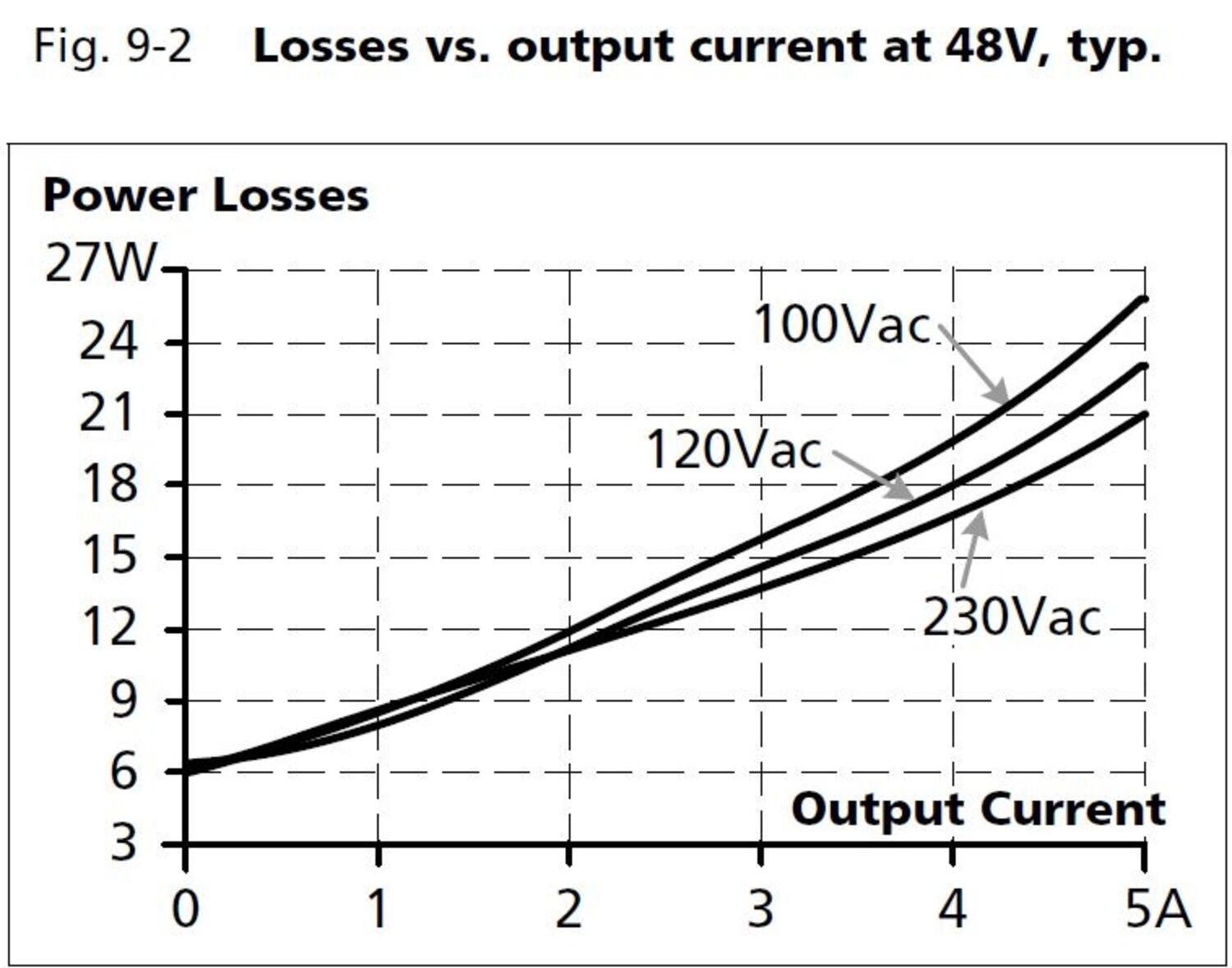

Efficiency / Lifetime / MTBF |
|

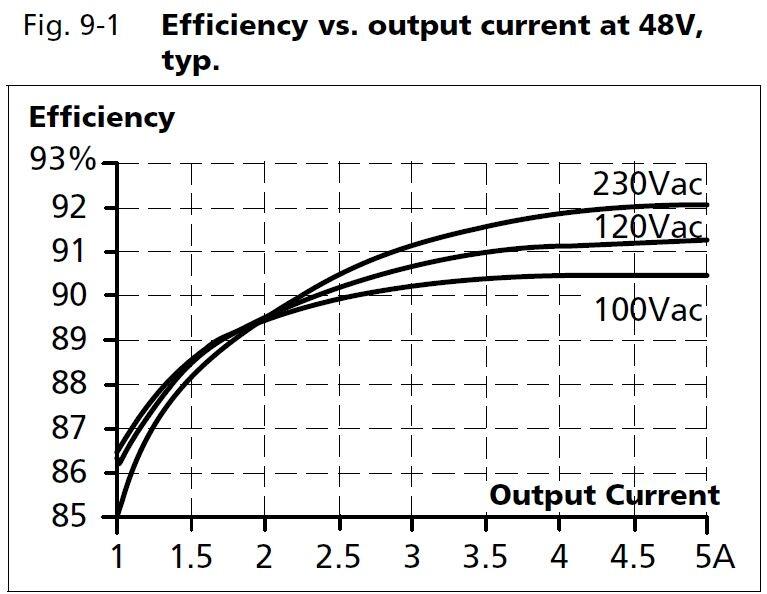

Efficiency at 120 V ac, full load, typical | 91,2 % |
Efficiency at 230 V ac, typical | 90,3 % |
Efficiency at 230 V ac, full load, typical | 92 % |
Lifetime at 120 V ac, full load and +40 ° C | 67000 h |
Lifetime at 230 V ac, full load and +40 ° C | 81000 h |
MTBF (IEC 61709) 230 V ac, max load, 40 ° C | 606000 h |
Dimensions |
|
---|---|

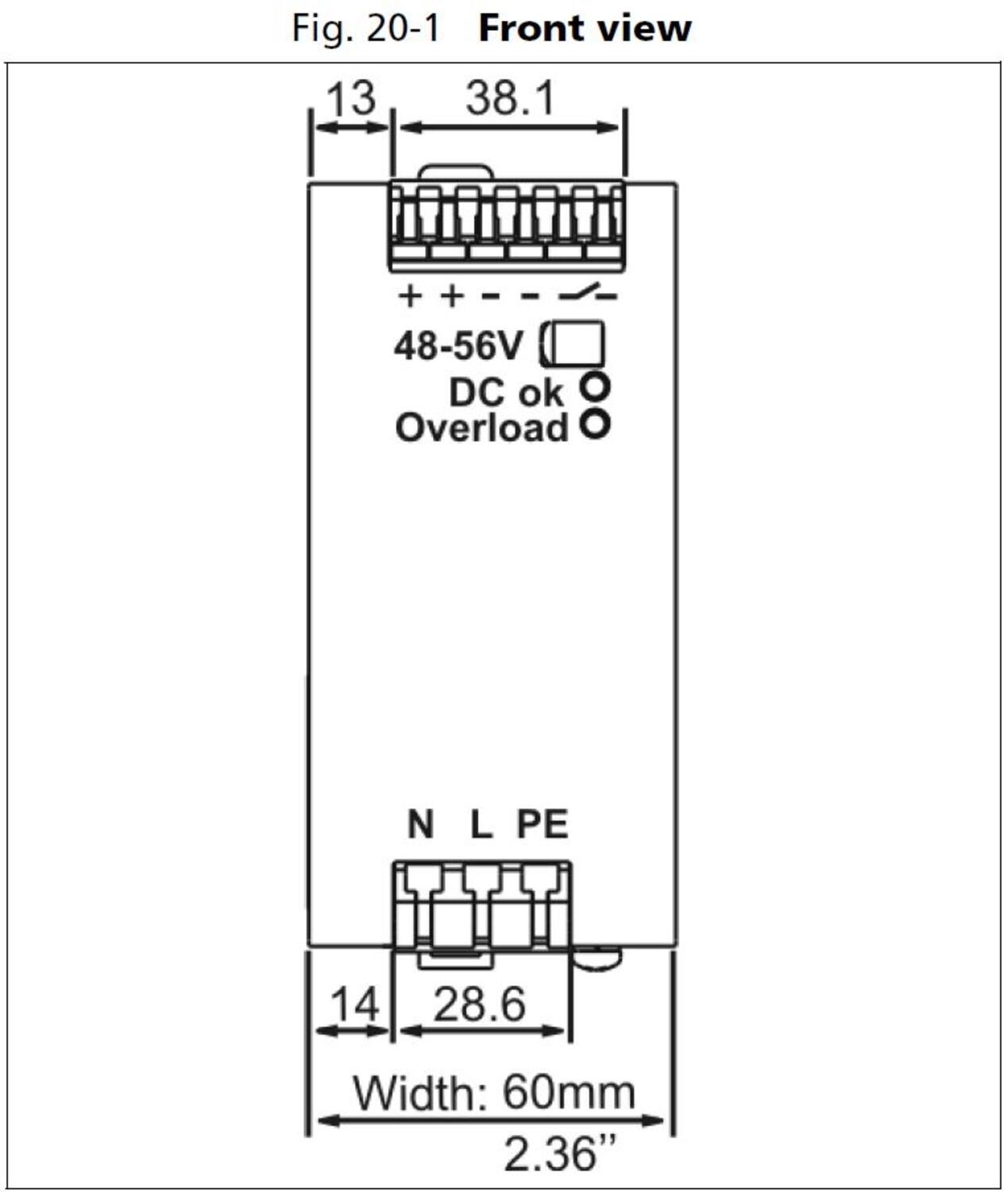

Width | 60 mm |
Height | 124 mm |
Depth | 117 mm |
Weight | 0,9 kg |
Other |
|
Approvals | ABS, CB, CE, CSA, GL, UL |
Hold time at 120 V ac, typical full load | 27 ms |
Hold time at 230 V ac, typical full load | 28 ms |
IP class | IP20 |
Clamp type | Spring-clamp |
Material protection | Aluminium |
Supply frequency | 50-60 ±6 % |
Ripple max | 100 mV pp |
Series | Dimension Q |
Power consumption 120 V ac | 2,22 A |
Power consumption 230 V ac | 1,22 A |

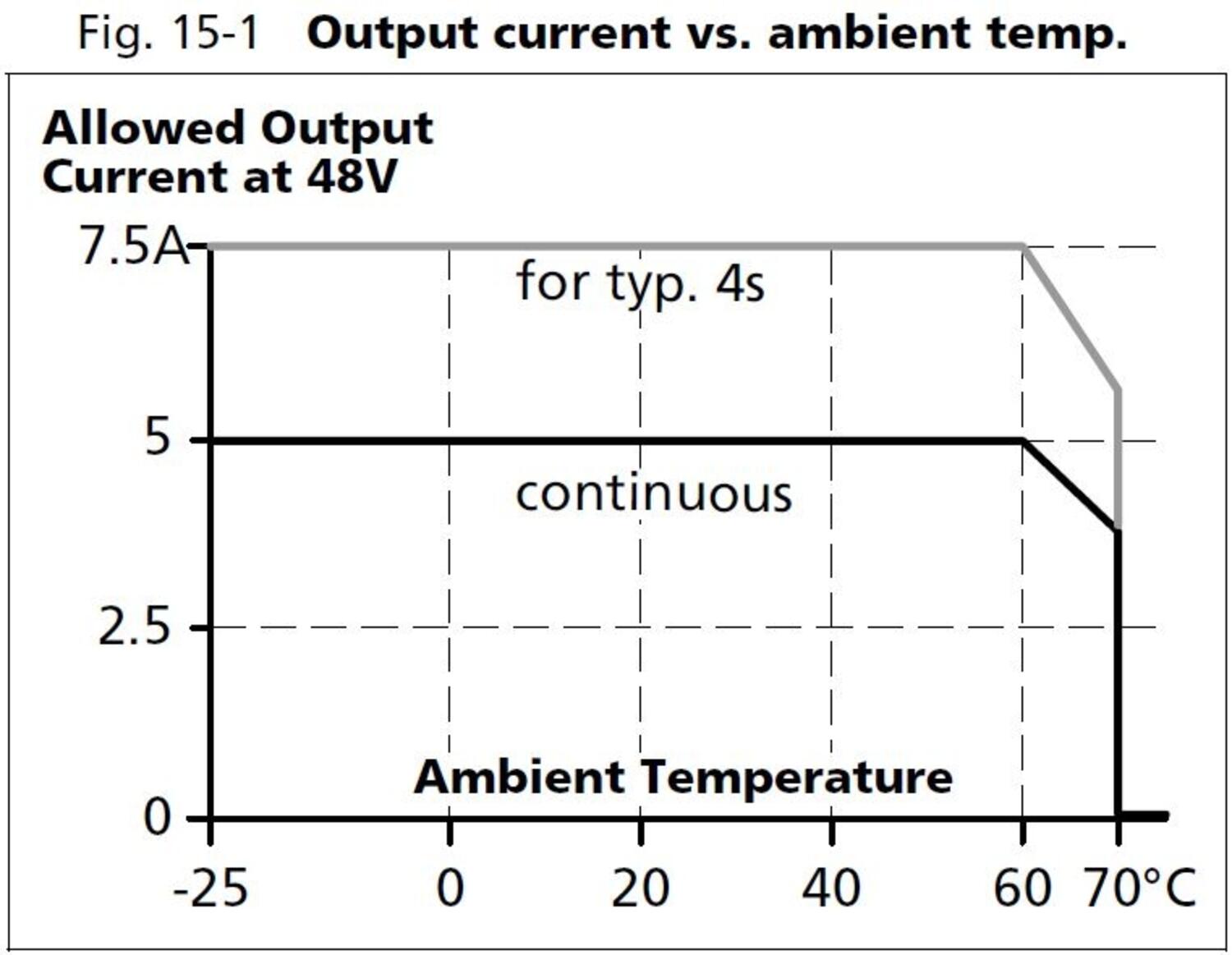

Power drop from +60 °C to + 70 °C | 6 W/°C |
Temperature min without derating | -25 °C |
Temperature max without derating | 60 °C |
Type Power Supply | AC-DC |
Active Transient | Yes |
DC relay output | Yes |
The most outstanding features of this Dimension Q Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details.
With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used.
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.
The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. Diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED.
Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
 Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Input voltage ac min | Input voltage dc | Input voltage dc max | Inrush current at 120 V ac typical | Power factor at 120 V ac, full load. Typical | Power factor at 230 V ac, full load. Typical | Output current | Power | Efficiency at 120 V ac, full load, typical | Efficiency at 230 V ac, typical | Efficiency at 230 V ac, full load, typical | Lifetime at 120 V ac, full load and +40 ° C | Lifetime at 230 V ac, full load and +40 ° C | MTBF (IEC 61709) 230 V ac, max load, 40 ° C | Width | Depth | Weight | Approvals | Hold time at 120 V ac, typical full load | Hold time at 230 V ac, typical full load | Power consumption 120 V ac | Power consumption 230 V ac | Power drop from +60 °C to + 70 °C | Active Transient | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
PSU 100-240V ac I/P 48V dc 5A 240W O/P
Art:
QS10.481
Copied
|
90 V AC
|
110-150 V
|
187 V DC
|
4 A
|
0,98
|
0,92
|
5 A
|
240 W
|
91,2 %
|
90,3 %
|
92 %
|
67000 h
|
81000 h
|
606000 h
|
60 mm
|
117 mm
|
0,9 kg
|
ABS, CB, CE, CSA, GL, UL
|
27 ms
|
28 ms
|
2,22 A
|
1,22 A
|
6 W/°C
|
Yes
|
| ||
![]()

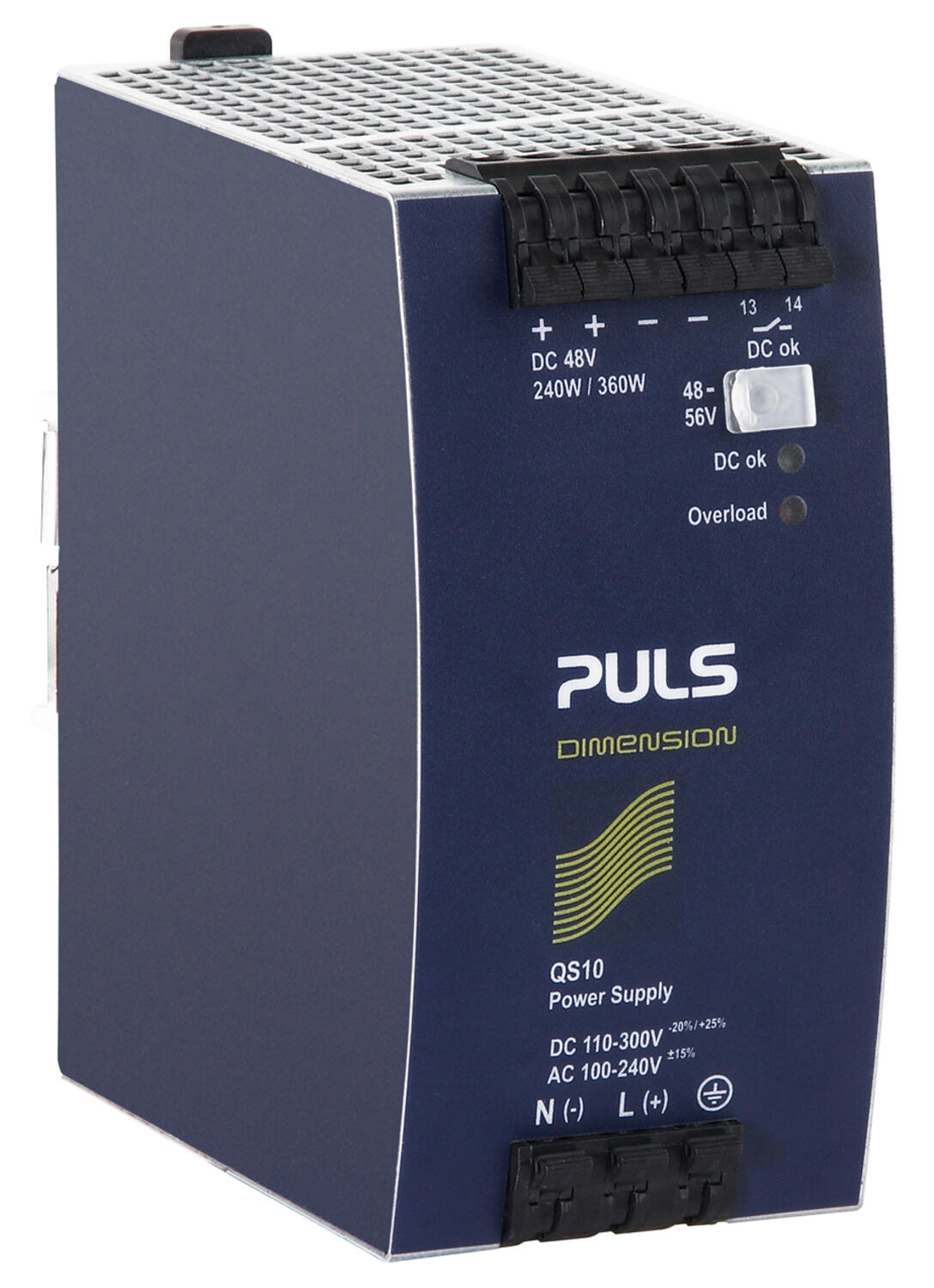

PSU 100-240V ac I/P 48V dc 5A 240W O/P Extended dc I/P
Art:
QS10.481-D1
Copied
|
90 V AC
|
110-300 V
|
375 V DC
|
4 A
|
0,98
|
0,92
|
5 A
|
240 W
|
91,2 %
|
90,3 %
|
92 %
|
67000 h
|
81000 h
|
606000 h
|
60 mm
|
117 mm
|
0,9 kg
|
CB, CE, CSA, UL
|
27 ms
|
28 ms
|
2,22 A
|
1,22 A
|
6 W/°C
|
Yes
|
| ||
![]()

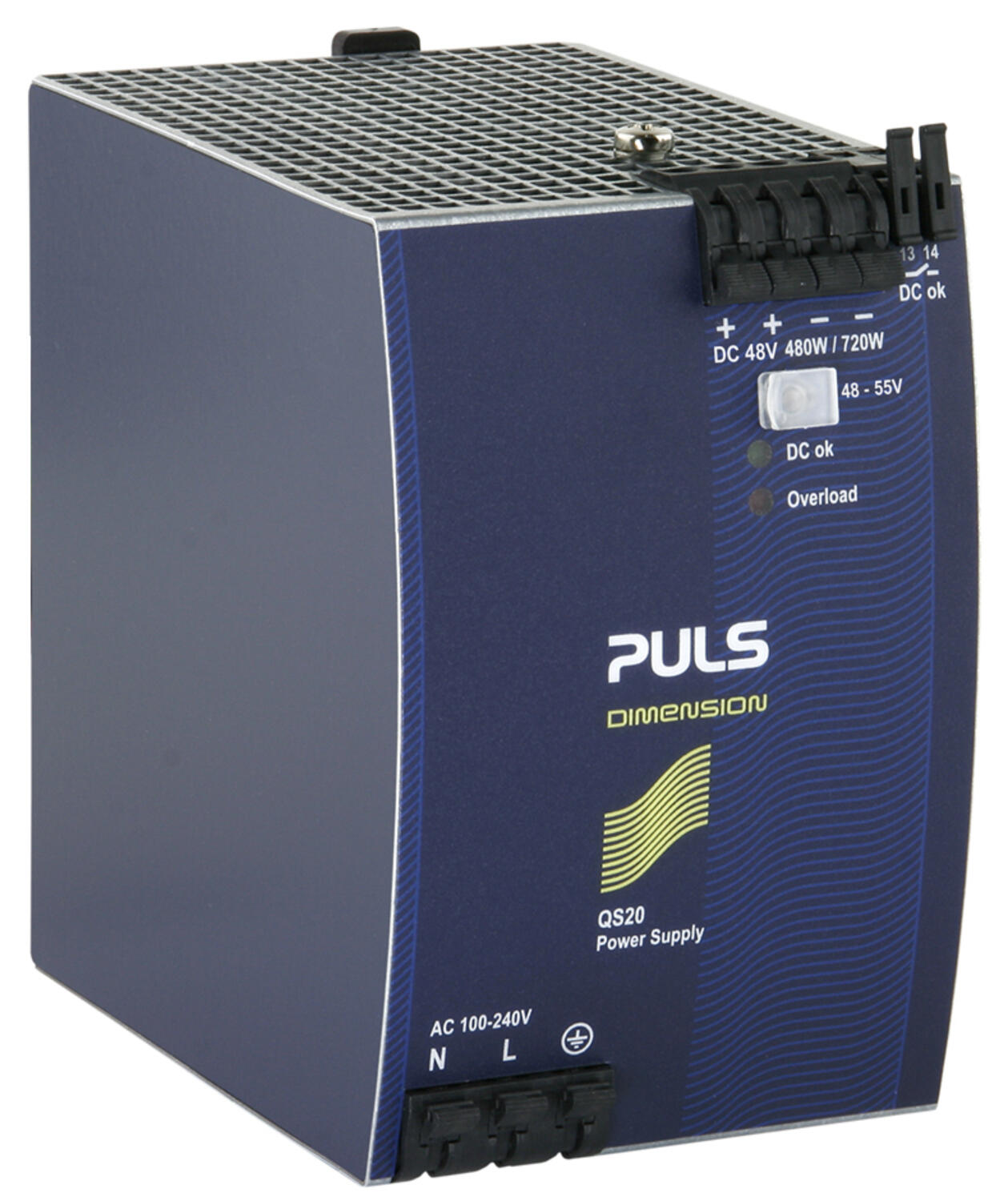

PSU 100-240V ac I/P 48V dc 10A 480W O/P
Art:
QS20.481
Copied
|
85 V AC
|
110-150 V
|
187 V DC
|
9 A
|
0,95
|
0,9
|
10 A
|
480 W
|
92,8 %
|
93,4 %
|
94,3 %
|
63000 h
|
92000 h
|
469000 h
|
82 mm
|
127 mm
|
1,2 kg
|
ABS, CB, CE, CSA, GL, UL
|
32 ms
|
51 ms
|
4,56 A
|
2,48 A
|
12 W/°C
|
|
|
Select a variant in the list
