PULS

POWER SUPPLY 1-PHASE, 48 V DC DIMENSION C SERIES, 10A, GENERATION 2

  • AC 100-240 V wide-range input
  • Width only 48 mm
  • Efficiency up to 96.3 %
  • Excellent partial load efficiency
  • 20 % Output power reserves

Selected variant

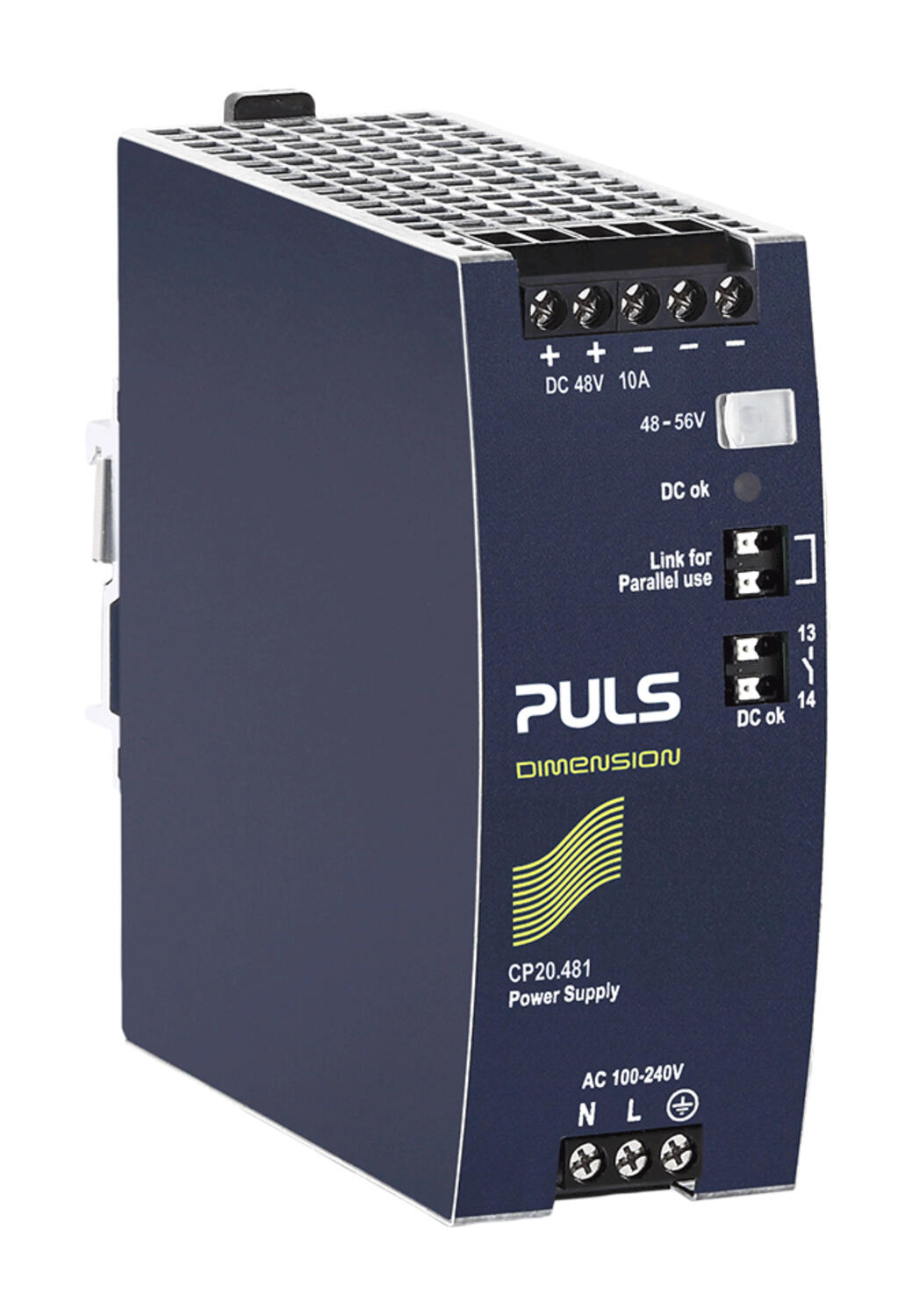

CP20.481

Art:

Selected variant

Technical data

Input data

Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 264 V AC
Input voltage dc 110-150 V
Input voltage dc min 88 V DC
Input voltage dc max 180 V DC
Inrush current at 120 V ac typical 10 A
Inrush current at 230 V ac typical 4,5 A
Input voltage range Wide-range
Power factor at 120 V ac, full load. Typical 0,99
Power factor at 230 V ac, full load. Typical 0,98
Number of phases 1

Output data

Output voltage 48 V DC
Output voltage min 48 V DC
Output voltage max 56 V DC
Output current 10 A
Power 480 W

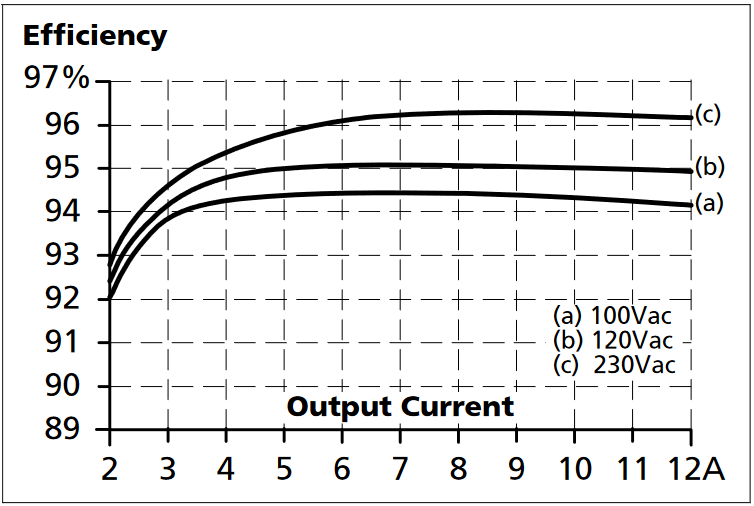

Efficiency / Lifetime / MTBF

Efficiency at 120 V ac, full load, typical 95 %
Efficiency at 230 V ac, typical 95,5 %
Efficiency at 230 V ac, full load, typical 96,3 %
Lifetime at 120 V ac, full load and +40 ° C 66000 h
Lifetime at 230 V ac, full load and +40 ° C 110000 h

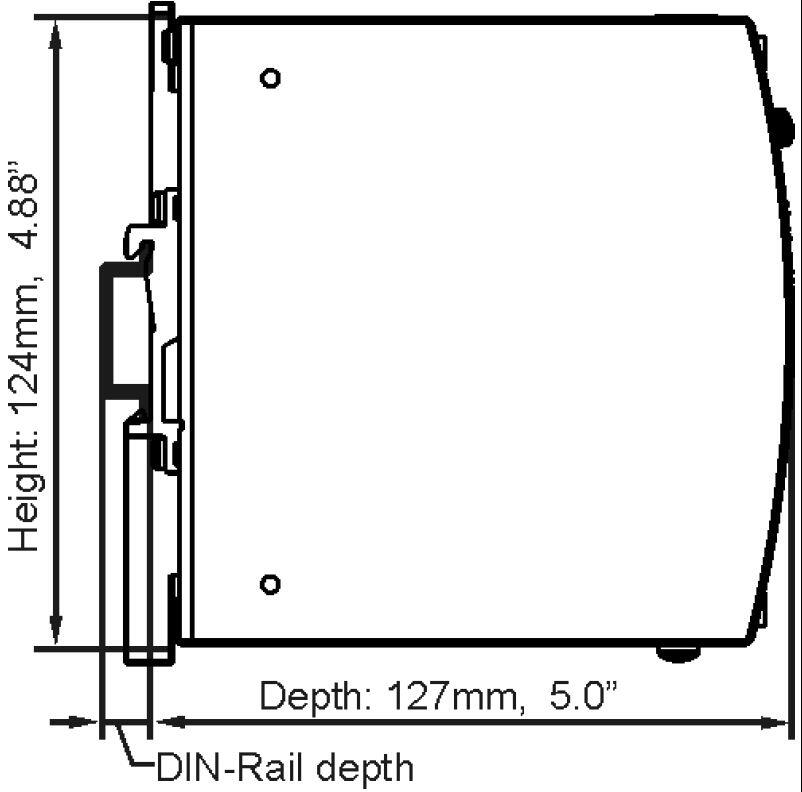

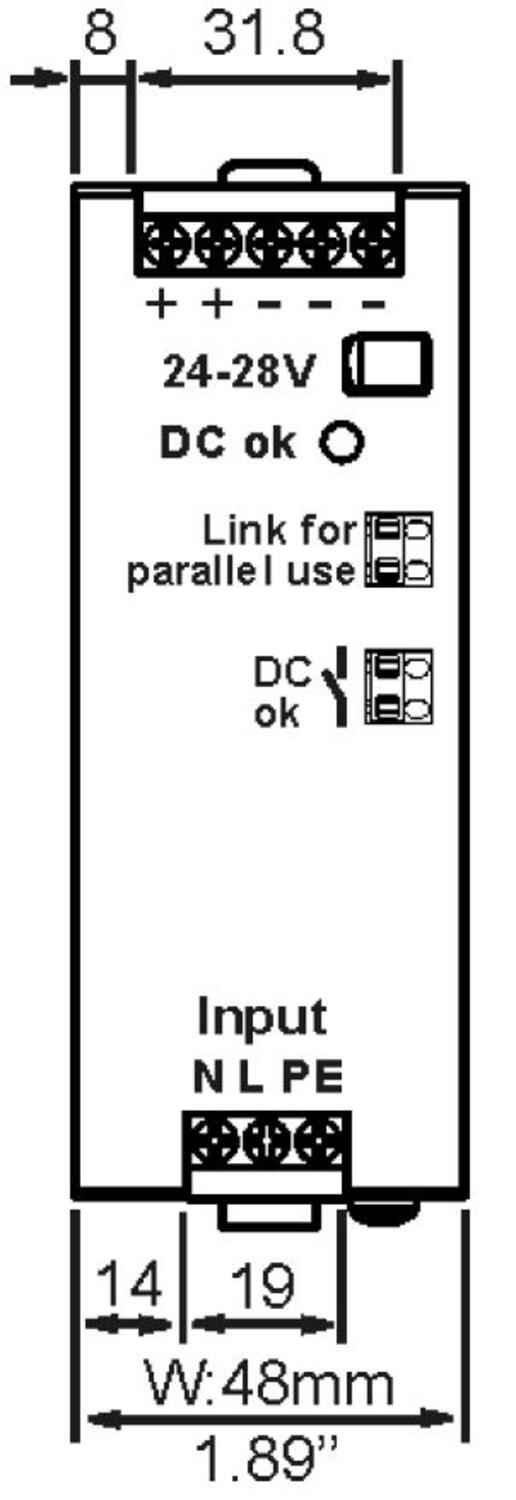

Dimensions

Width 48 mm
Height 124 mm
Depth 127 mm
Weight 0,83 kg

Other

Approvals ATEX, CB, CE, cULus, IECEx
Hold time at 120 V ac, typical full load 32 ms
Hold time at 230 V ac, typical full load 32 ms
IP class IP20
Clamp type Screw
Material protection Aluminium
Supply frequency 50-60 ±6 %
Ripple max 50 mV pp
Series Dimension C
Power consumption 120 V ac 4,26 A
Power consumption 230 V ac 2,23 A
Power drop from +60 °C to + 70 °C 12 W/°C
Temperature min without derating -25 °C
Temperature max without derating 60 °C
Type Power Supply AC-DC
Active Transient Yes
DC relay output Yes
