PULS

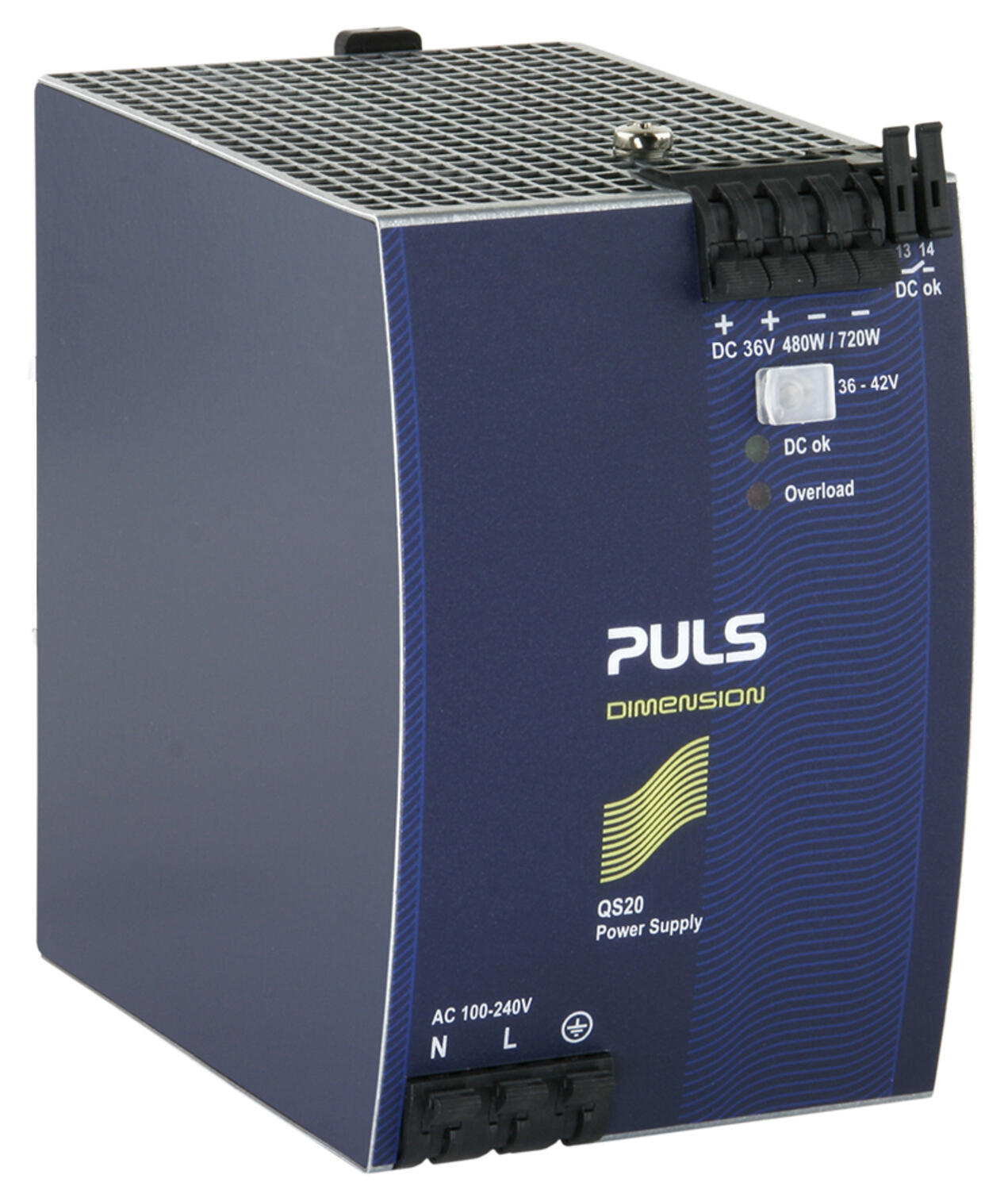

Power supply 1-phase, 36 V dc Dimension Q series

36-42 V DC, 13,3 A

  • Width 82mm
  • 94% efficiency

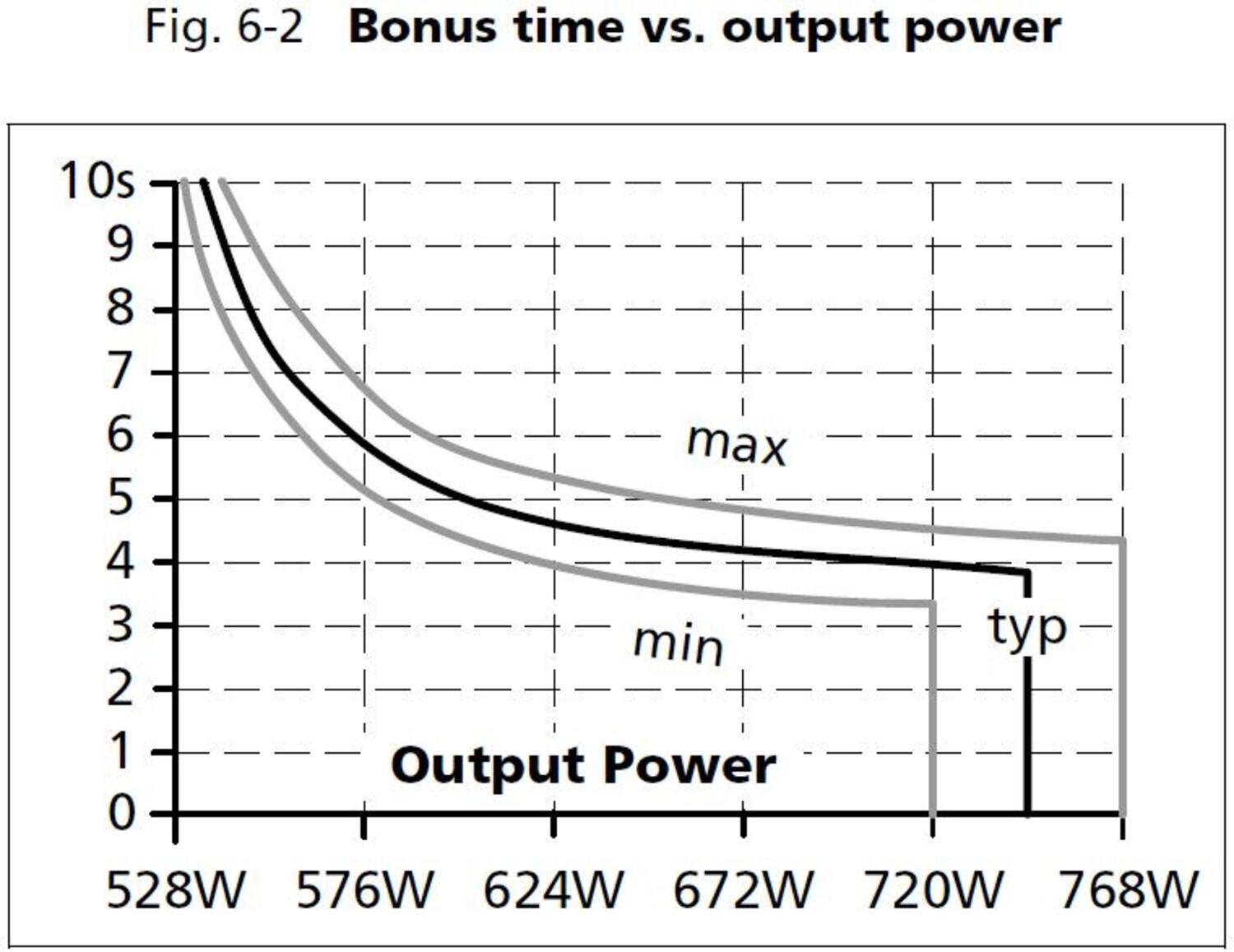

  • 50 % Bonuspower 4s
  • DC-OK relay and active PFC

Selected variant


PSU 100-240V ac I/P 36V dc 13.3A 480W O/P

Art:

Selected variant

Technical data

Input data

Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 276 V AC
Input voltage dc 110-150 V
Input voltage dc min 88 V DC
Input voltage dc max 187 V DC
Inrush current at 120 V ac typical 4 A
Inrush current at 230 V ac typical 7 A
Input voltage range Wide-range
Power factor at 120 V ac, full load. Typical 0,95
Power factor at 230 V ac, full load. Typical 0,9
Number of phases 1

Output data

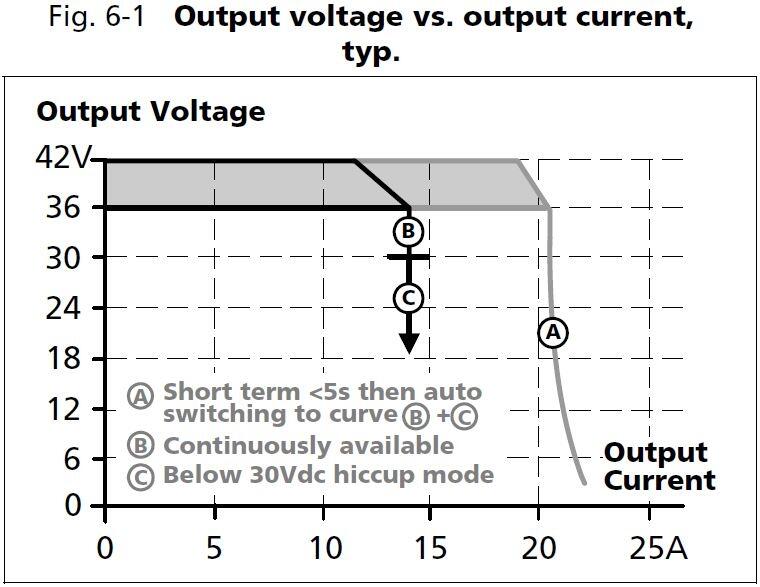

Output voltage 36 V DC
Output voltage min 36 V DC
Output voltage max 42 V DC
Output current 13,3 A
Power 480 W

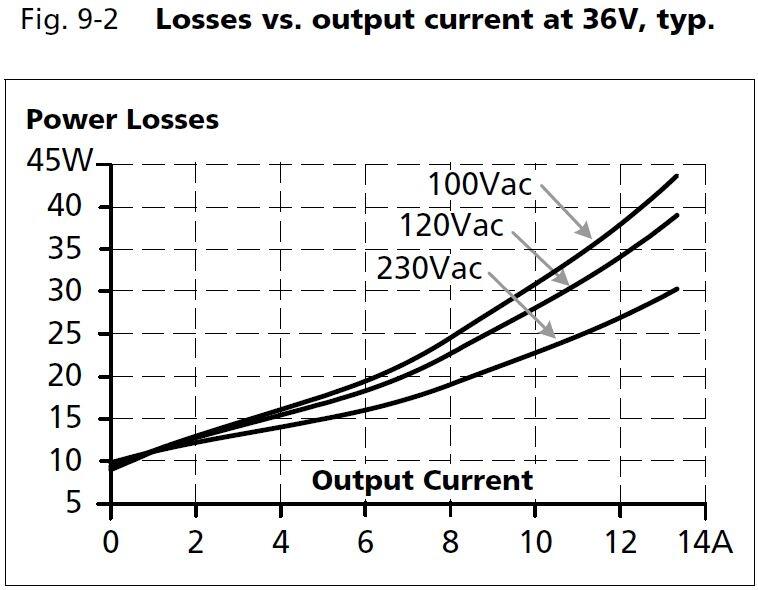

Efficiency / Lifetime / MTBF

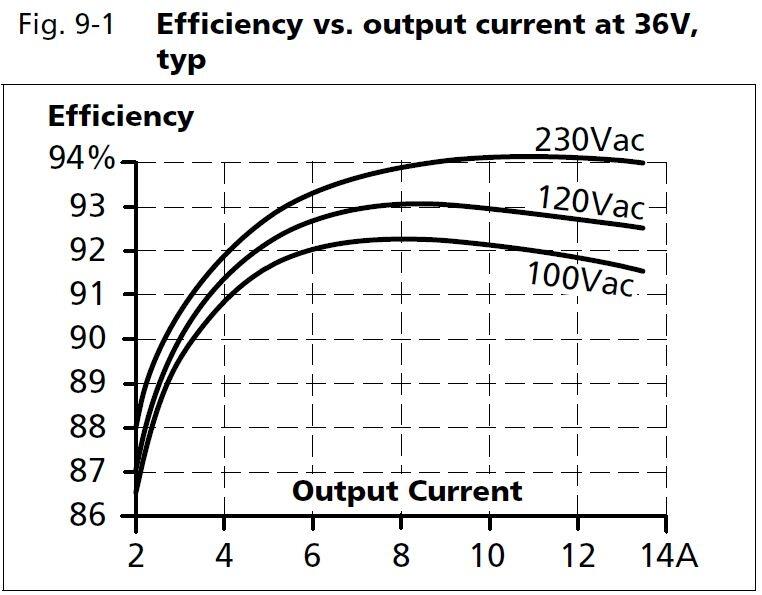

Efficiency at 120 V ac, full load, typical 92,5 %
Efficiency at 230 V ac, typical 93,3 %
Efficiency at 230 V ac, full load, typical 94 %
Lifetime at 120 V ac, full load and +40 ° C 61000 h
Lifetime at 230 V ac, full load and +40 ° C 84000 h

*Invisible Heading*

MTBF (IEC 61709) 230 V ac, max load, 40 ° C 469000 h

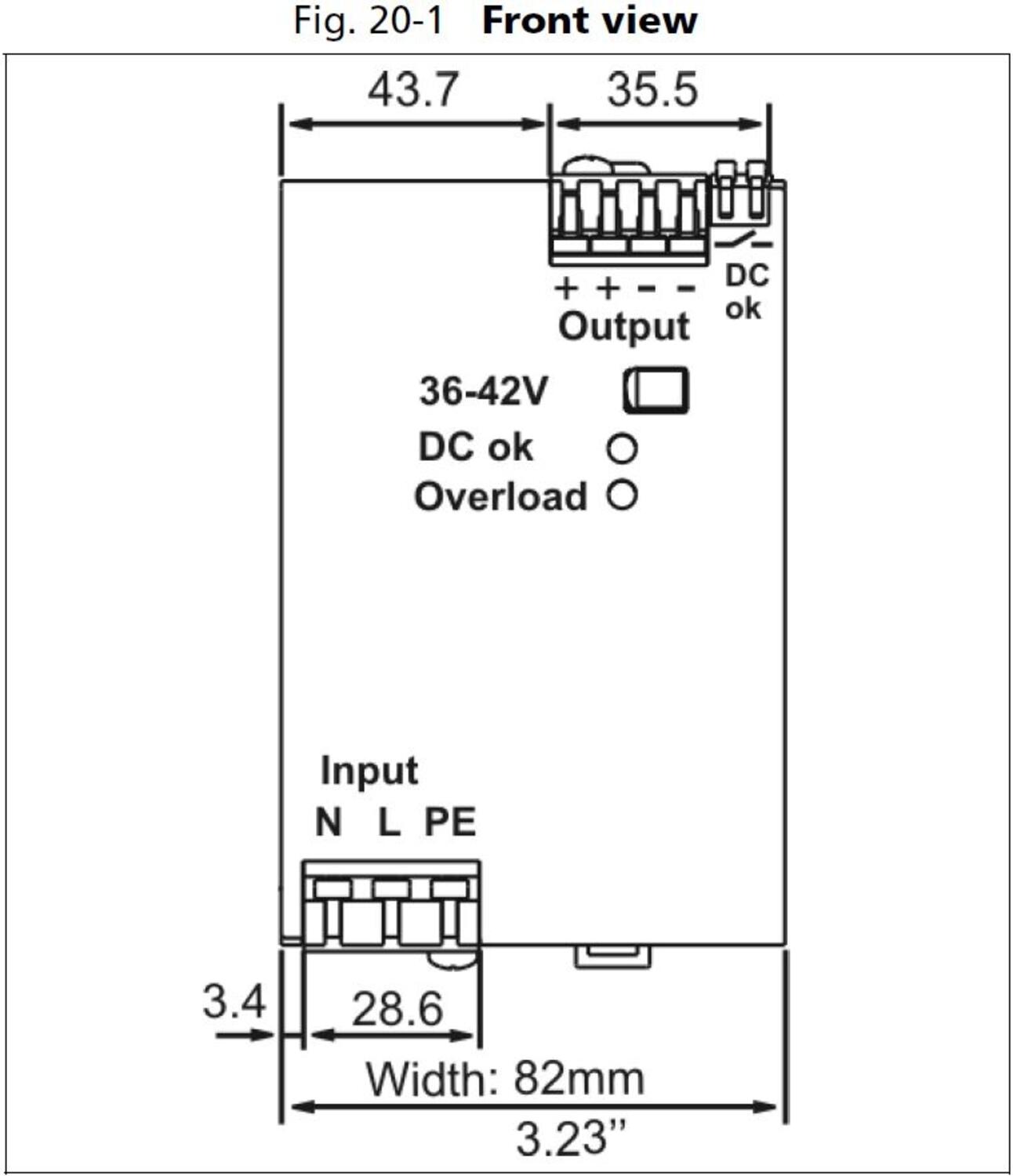

Dimensions

Width 82 mm
Height 124 mm
Depth 127 mm
Weight 1,2 kg

Other

Approvals ABS, CB, CE, CSA, GL, UL
Hold time at 120 V ac, typical full load 32 ms
Hold time at 230 V ac, typical full load 51 ms
IP class IP20
Clamp type Spring-clamp
Material protection Aluminium
Supply frequency 50-60 ±6 %
Ripple max 100 mV pp
Series Dimension Q
Power consumption 120 V ac 4,56 A
Power consumption 230 V ac 2,48 A

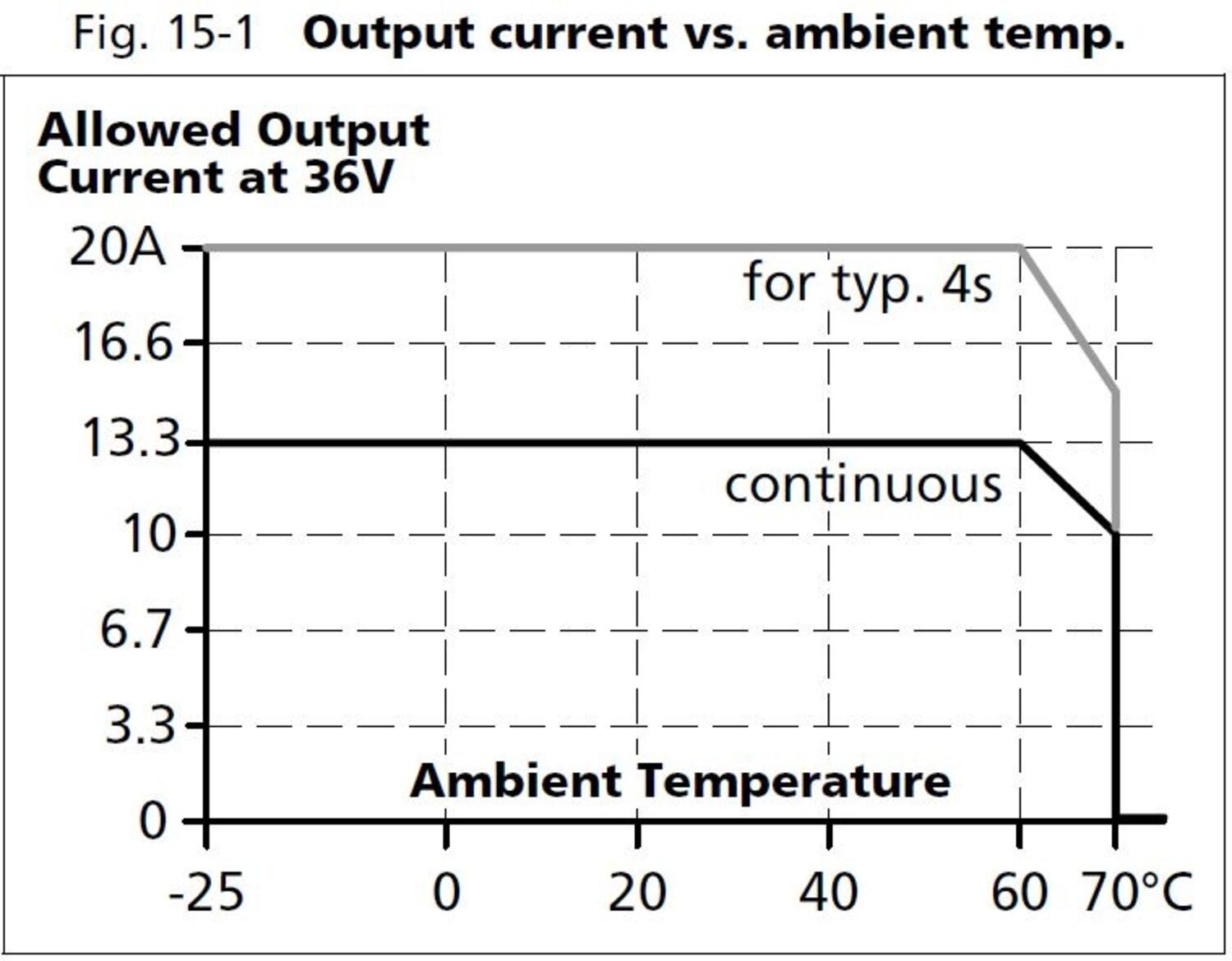

Power drop from +60 °C to + 70 °C 12 W/°C
Temperature min without derating -25 °C
Temperature max without derating 60 °C
Type Power Supply AC-DC
DC relay output Yes
