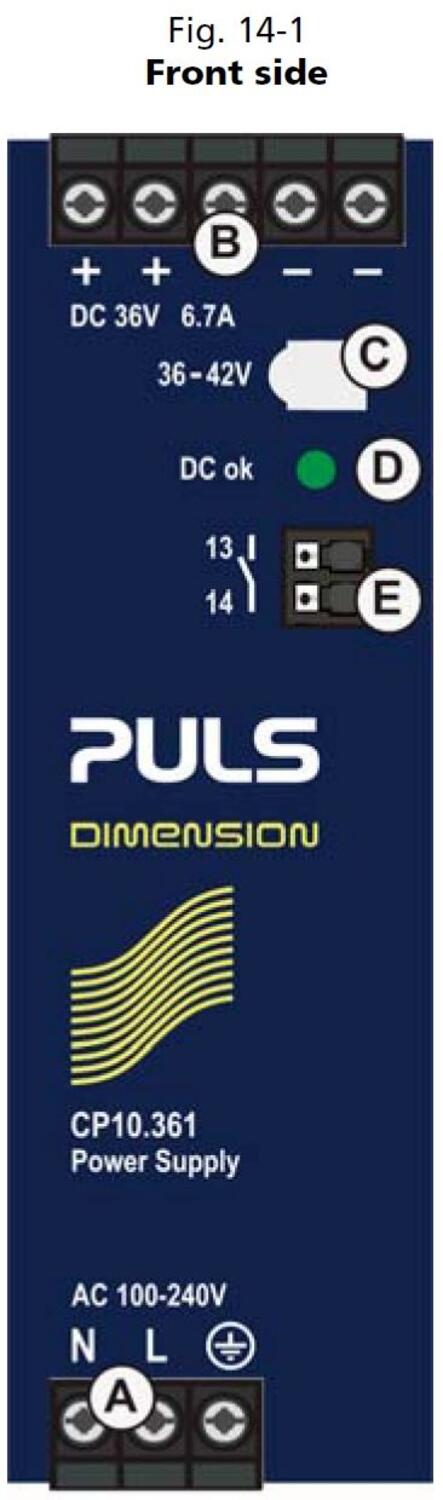

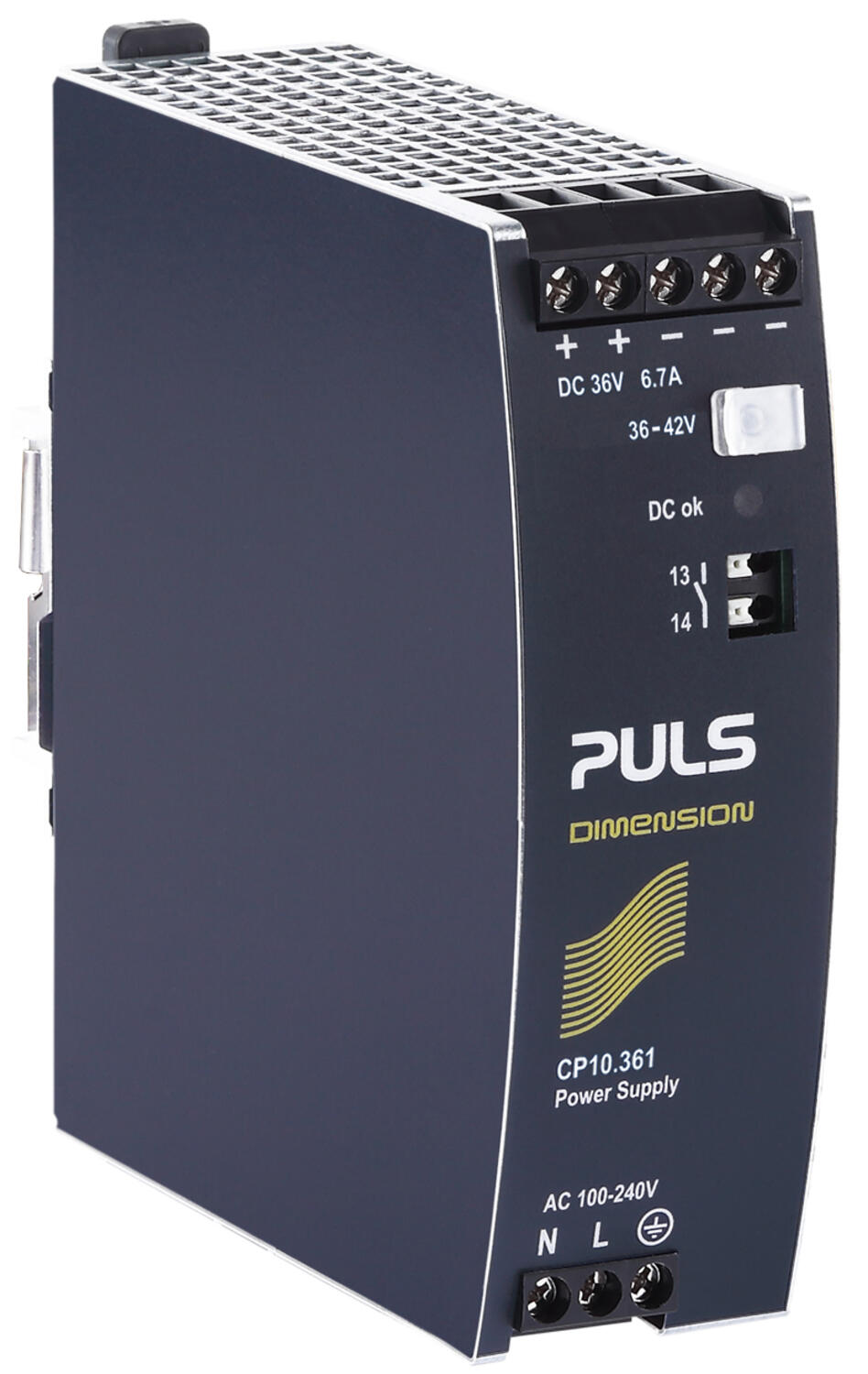

PULS

Power supply 1-phase, 36 V DC Dimension C series, Generation 2

36-42V, 6,7A

  • Width 39mm
  • 95,4% efficiency

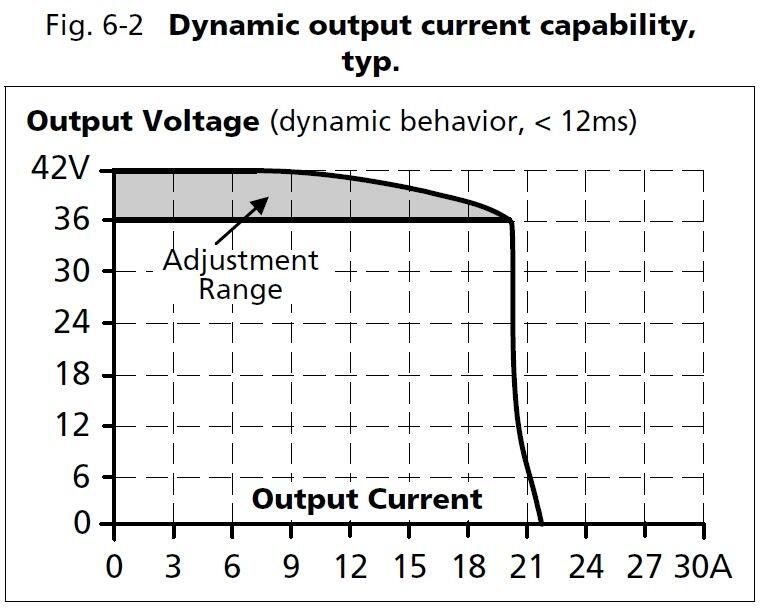

  • 20% power reserve

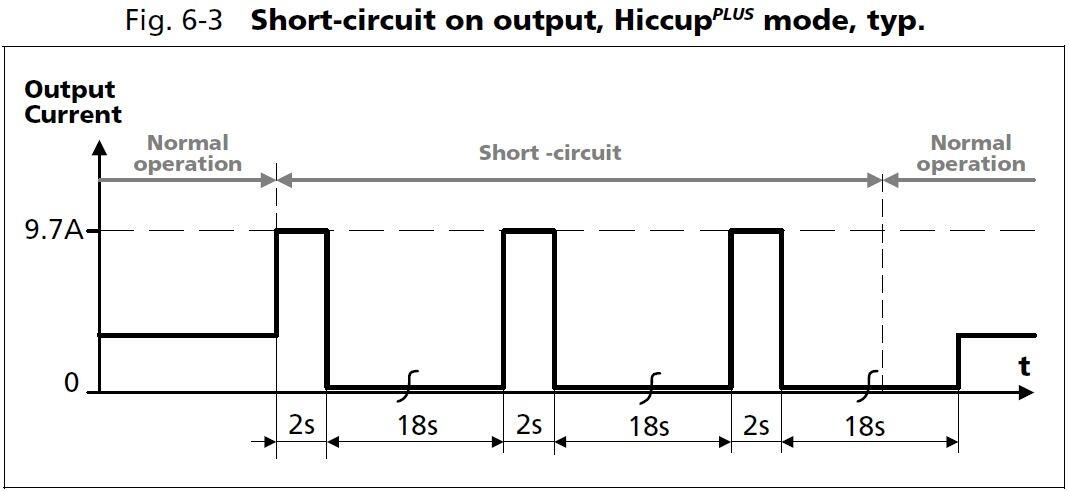

  • Active PFC, DC-OK Relay Contact, Hiccup Plus

Selected variant


PSU 100-240V ac I/P 36V dc 6.7A 240W O/P

Art:

Selected variant

Technical data

Input data

Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 264 V AC
Input voltage dc 110-150 V
Input voltage dc min 88 V DC
Input voltage dc max 180 V DC
Inrush current at 120 V ac typical 6 A
Inrush current at 230 V ac typical 6 A
Input voltage range Wide-range
Power factor at 120 V ac, full load. Typical 0,99
Power factor at 230 V ac, full load. Typical 0,97
Number of phases 1

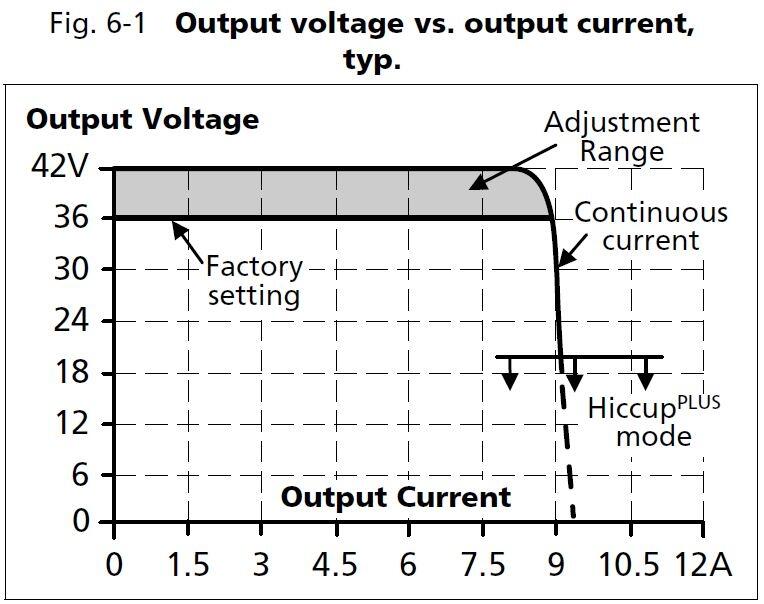

Output data

Output voltage 36 V DC
Output voltage min 36 V DC
Output voltage max 42 V DC
Output current 6,7 A
Power 240 W

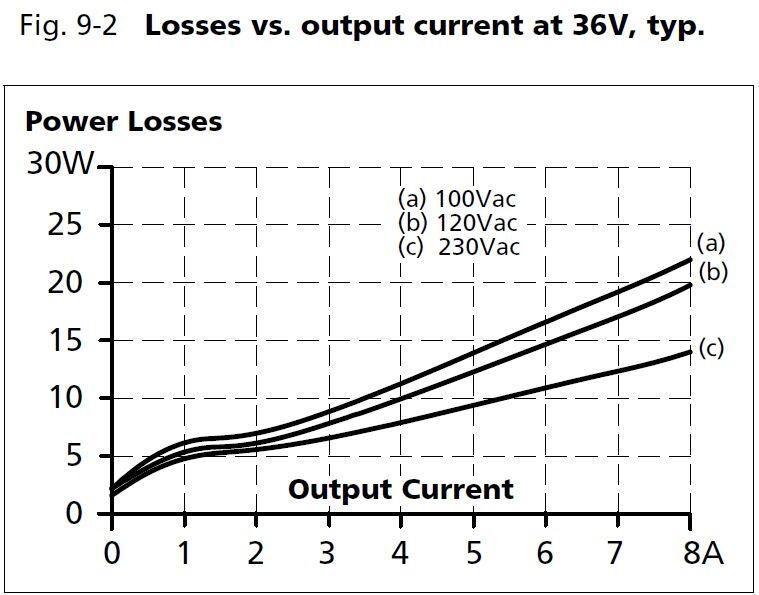

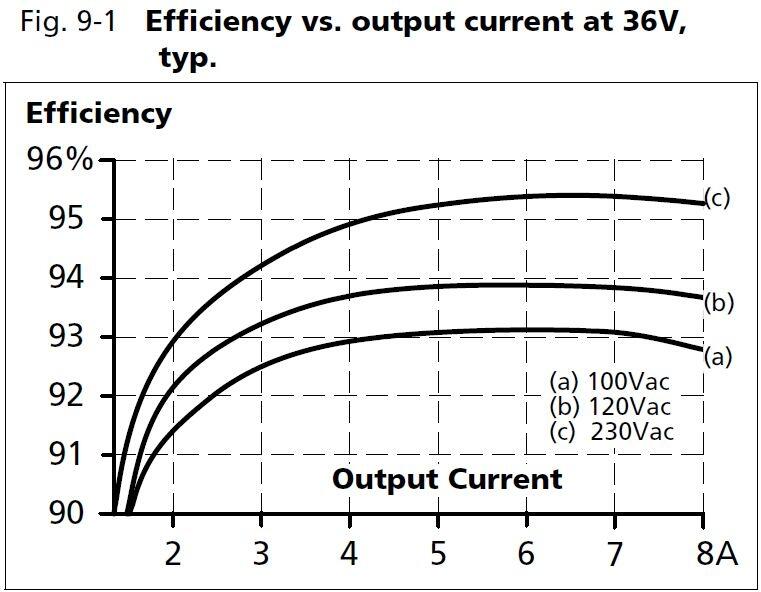

Efficiency / Lifetime / MTBF

Efficiency at 120 V ac, full load, typical 93,8 %
Efficiency at 230 V ac, typical 94,3 %
Efficiency at 230 V ac, full load, typical 95,4 %
Lifetime at 120 V ac, full load and +40 ° C 87000 h
Lifetime at 230 V ac, full load and +40 ° C 130000 h

*Invisible Heading*

MTBF (IEC 61709) 230 V ac, max load, 40 ° C 661000 h

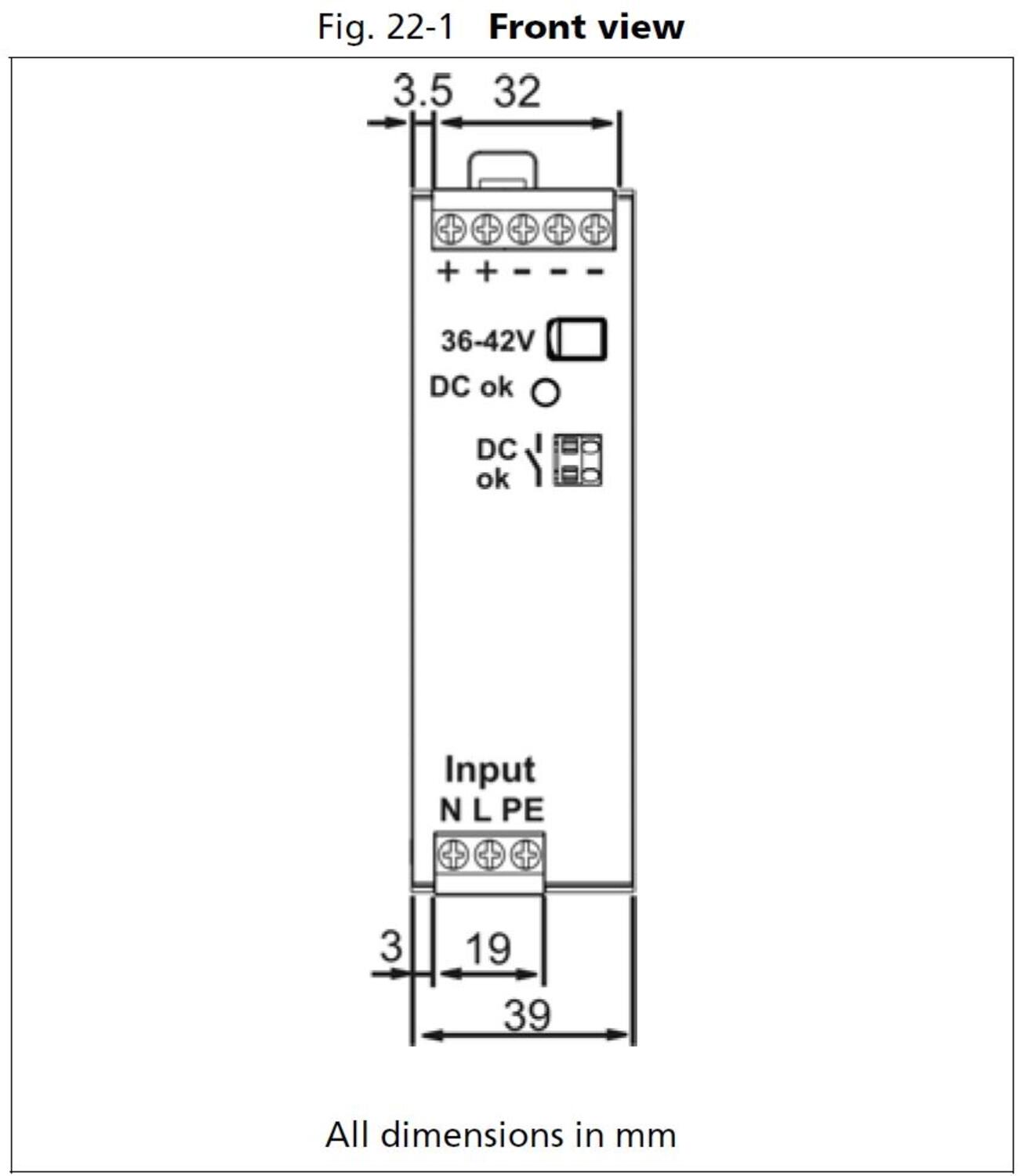

Dimensions

Width 39 mm
Height 124 mm
Depth 117 mm
Weight 0,6 kg

Other

Approvals ABS, CB, CE, CSA, EX, GL, IECEx, UL
Hold time at 120 V ac, typical full load 38 ms
Hold time at 230 V ac, typical full load 38 ms
IP class IP20
Clamp type Screw
Material protection Aluminium
Supply frequency 50-60 ±6 %
Ripple max 50 mV pp
Series Dimension C
Power consumption 120 V ac 2,16 A
Power consumption 230 V ac 1,13 A

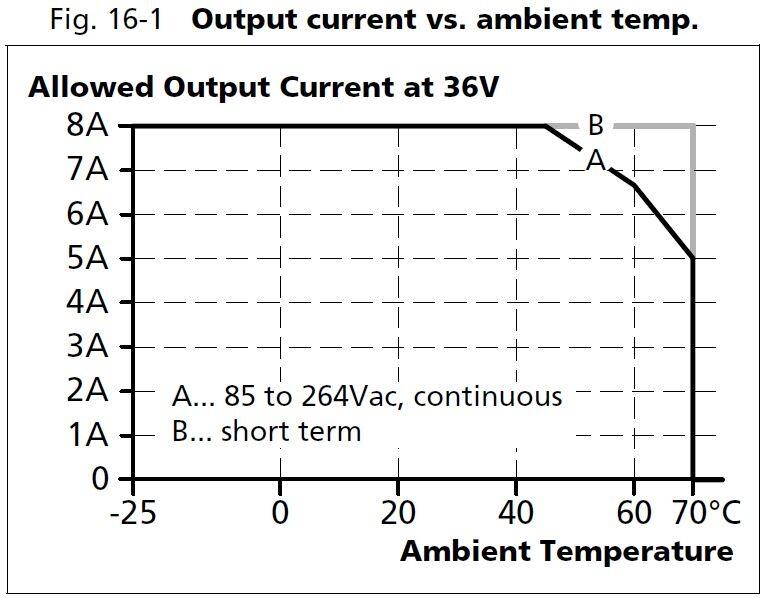

Power drop from +60 °C to + 70 °C 6 W/°C
Temperature min without derating -25 °C
Temperature max without derating 60 °C
Active Transient Yes
DC relay output Yes
