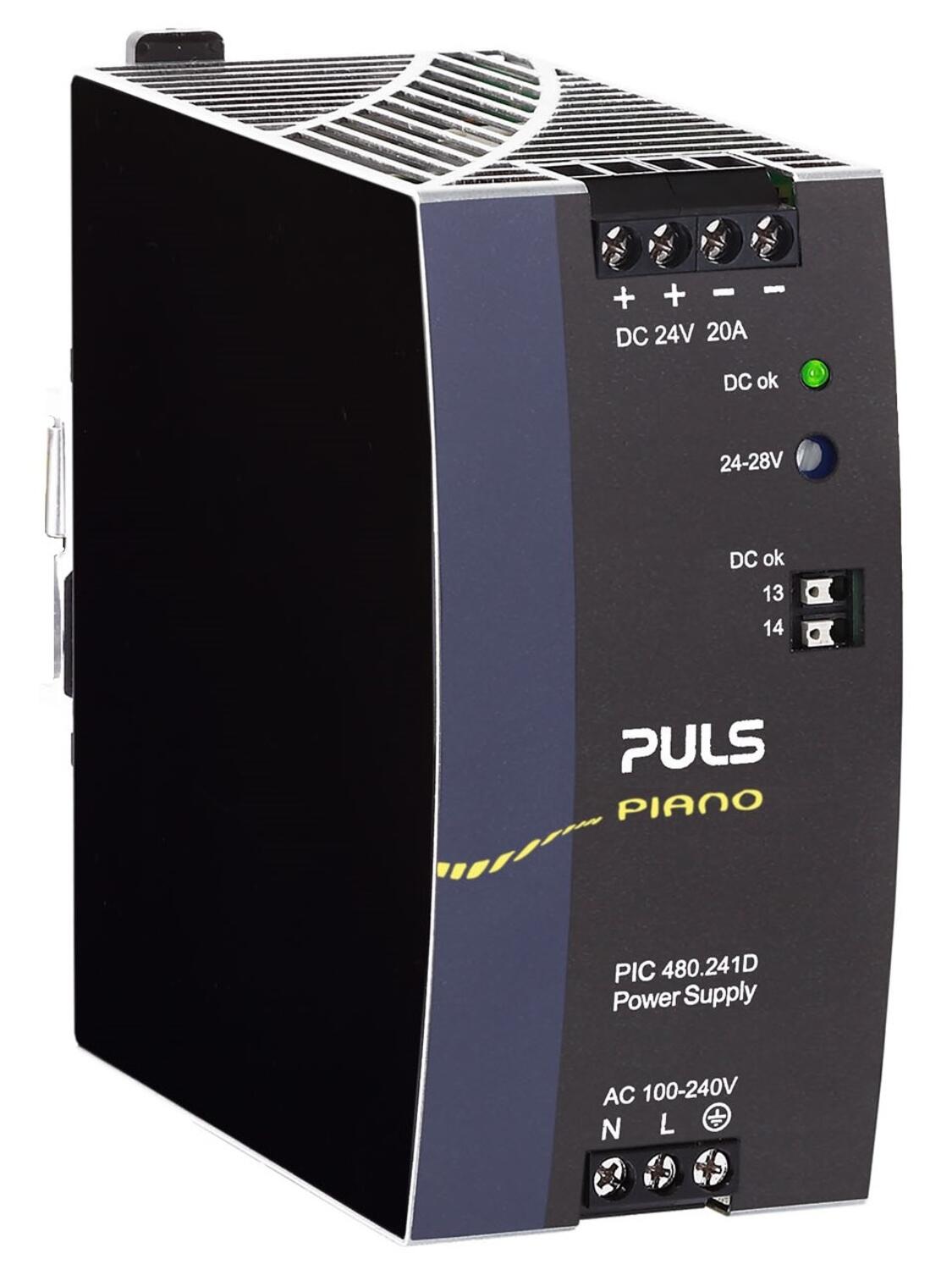

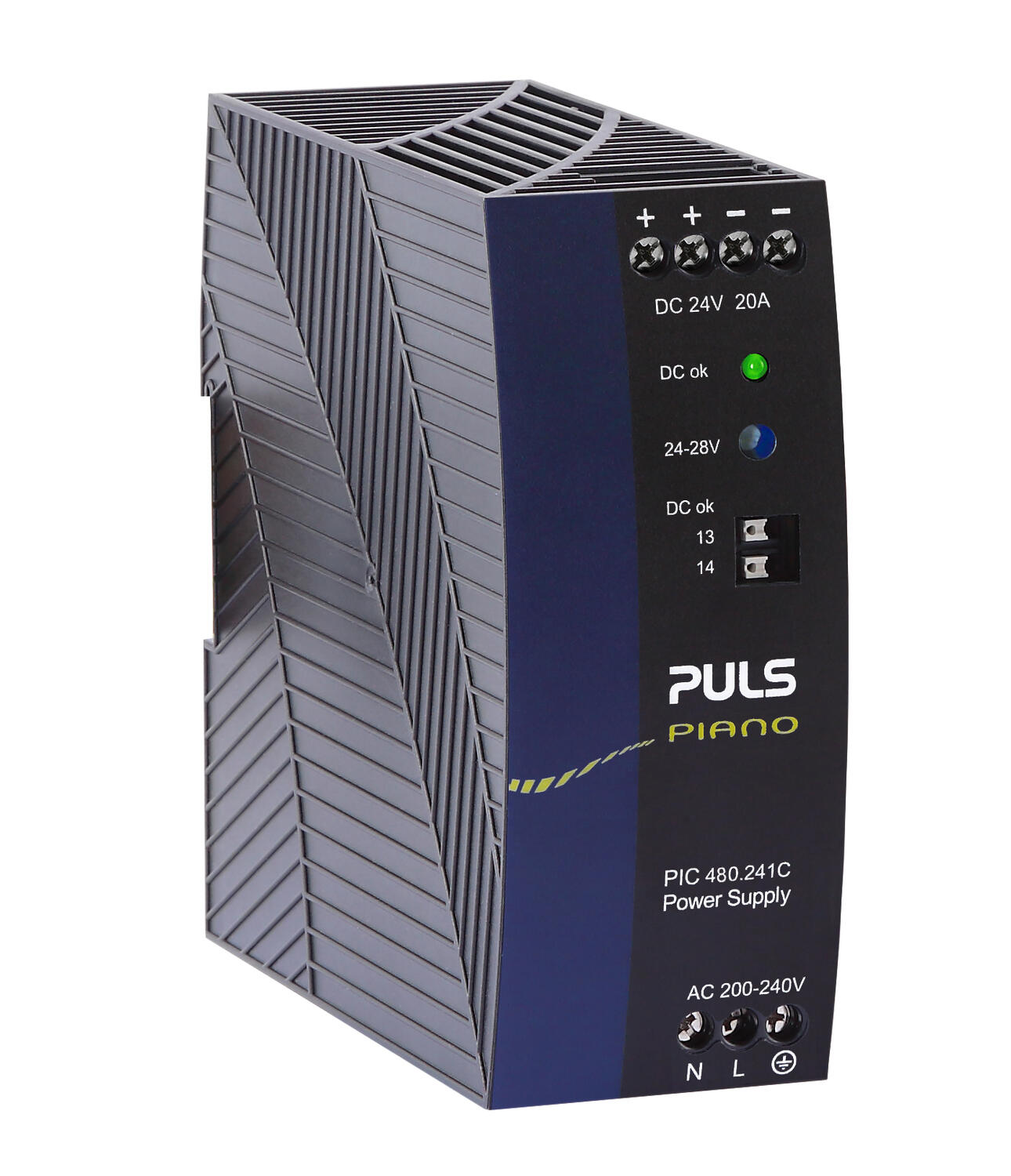

Selected variant
Technical data
Input data |
|
|---|---|
| Input voltage ac | 200-240 V |
| Input voltage ac min | 180 V AC |
| Input voltage ac max | 264 V AC |
| Inrush current at 230 V ac typical | 26 A |
| Power factor at 230 V ac, full load. Typical | 0.99 |
| Number of phases | 1 |
Output data |
|

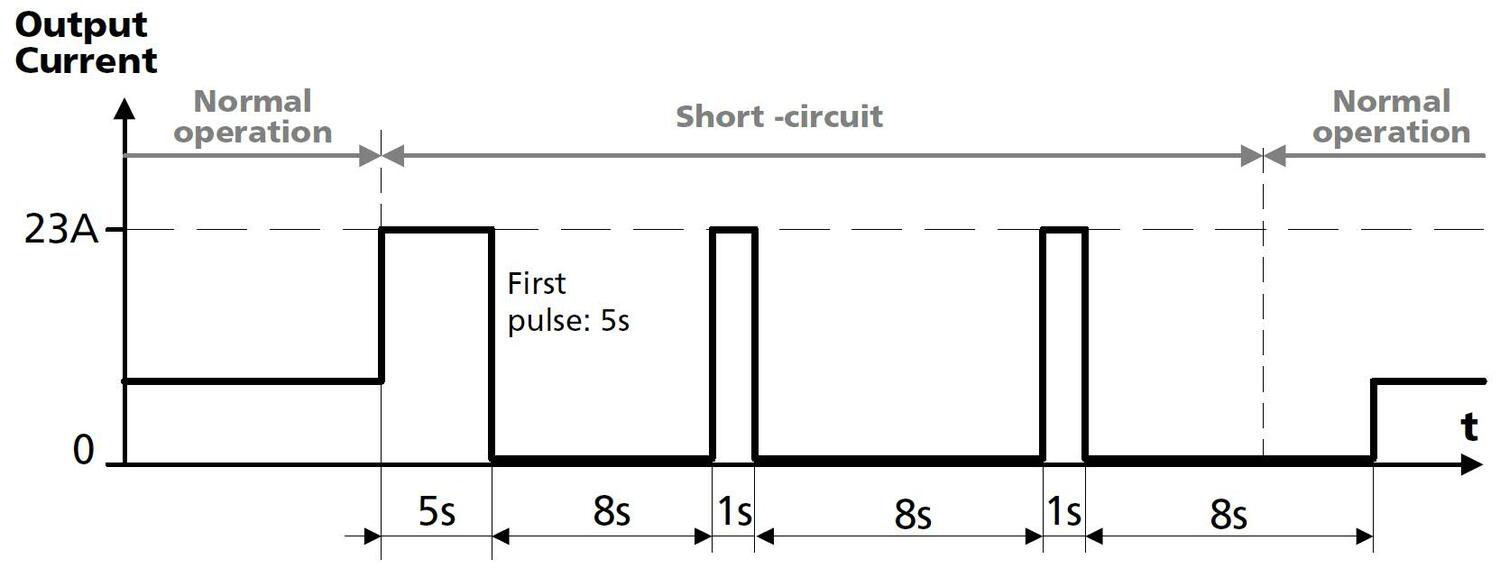

| Output voltage | 24 V DC |
| Output voltage min | 24 V DC |
| Output voltage max | 28 V DC |
| Output current | 20 A |
| Power | 480 W |
Efficiency / Lifetime / MTBF |
|

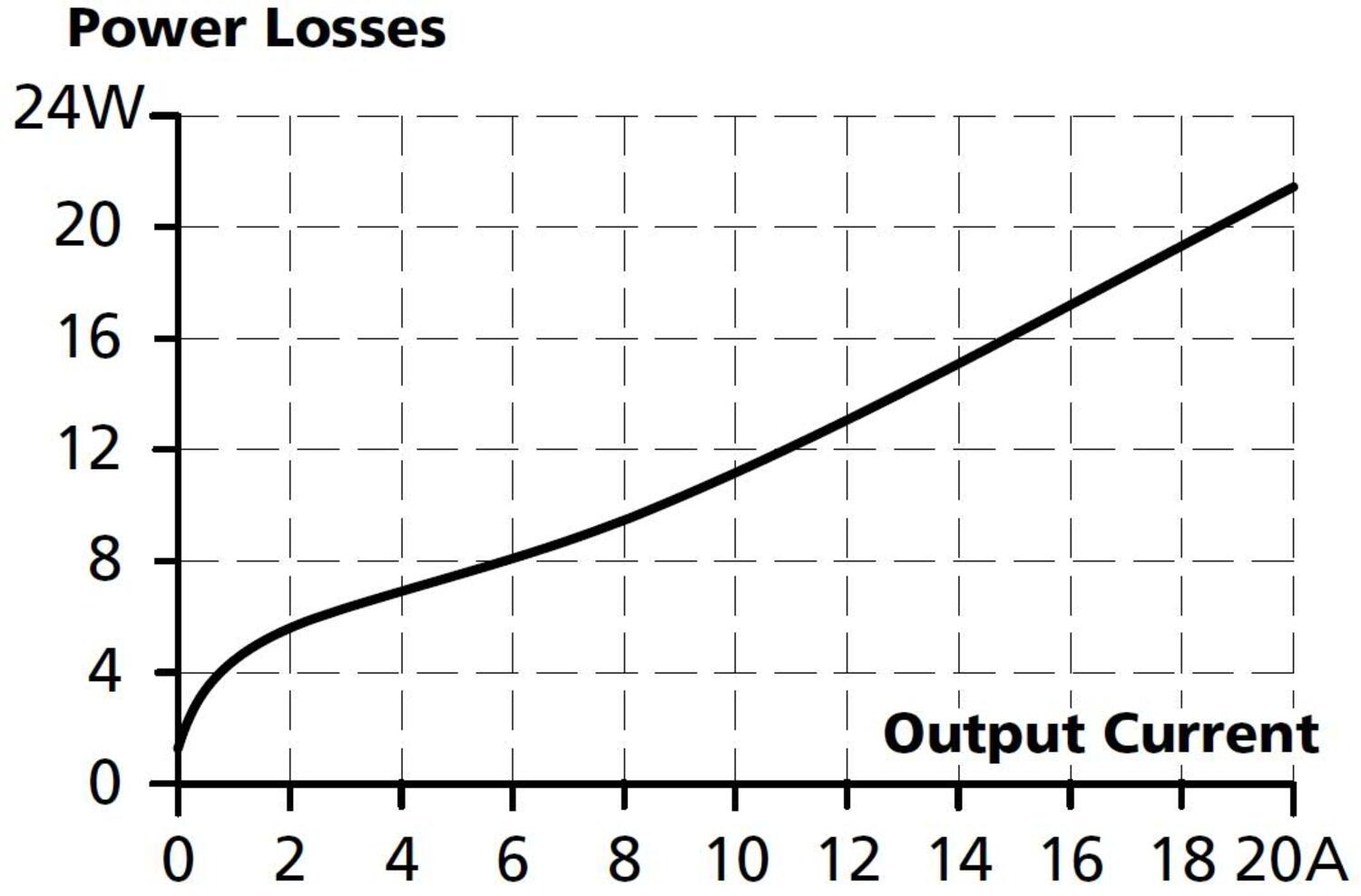

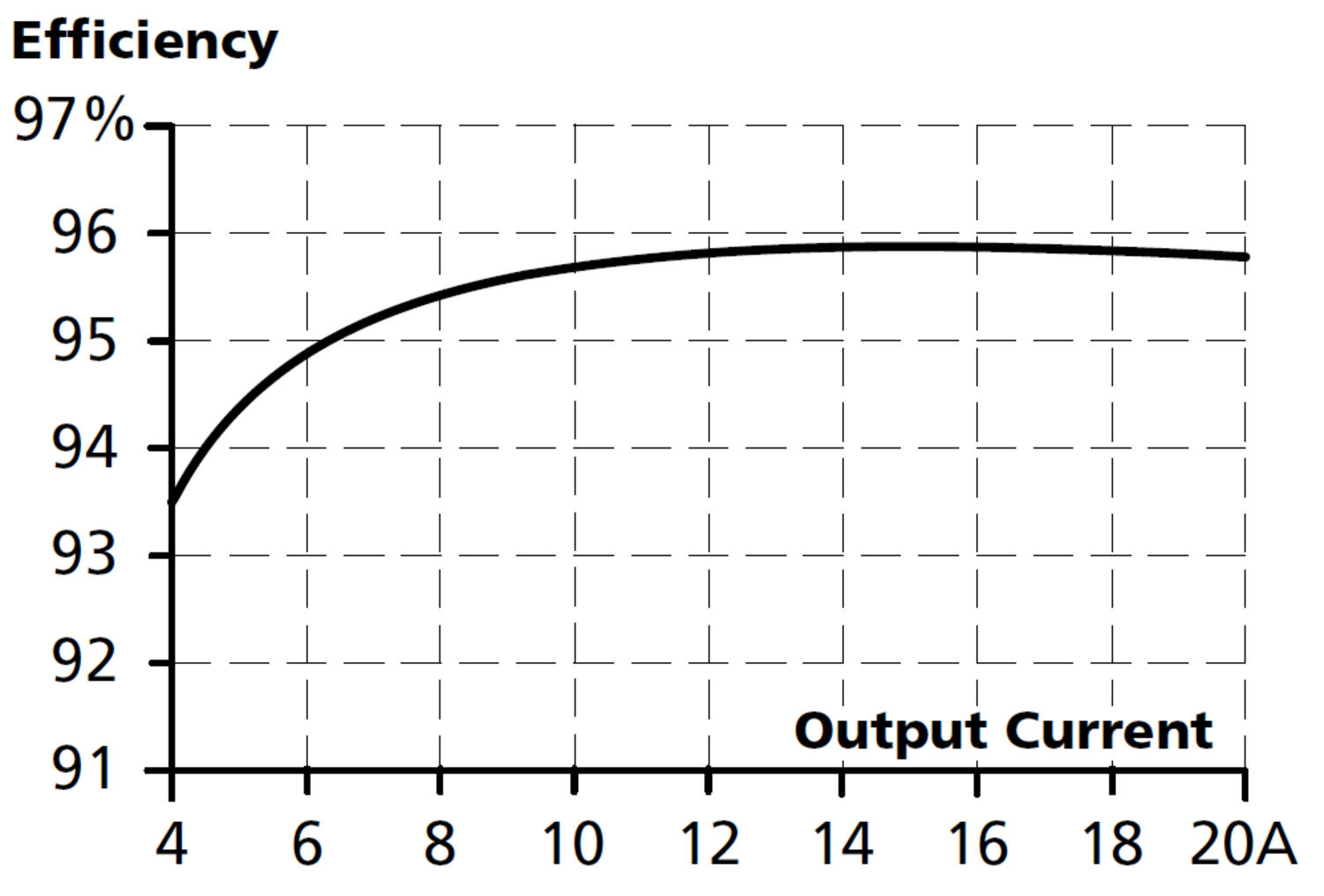

| Efficiency at 230 V ac, typical | 95.2 % |
| Efficiency at 230 V ac, full load, typical | 95.7 % |
| Lifetime at 230 V ac, full load and +40 ° C | 51000 h |
| MTBF (IEC 61709) 230 V ac, max load, 40 ° C | 482000 h |
Dimensions |
|

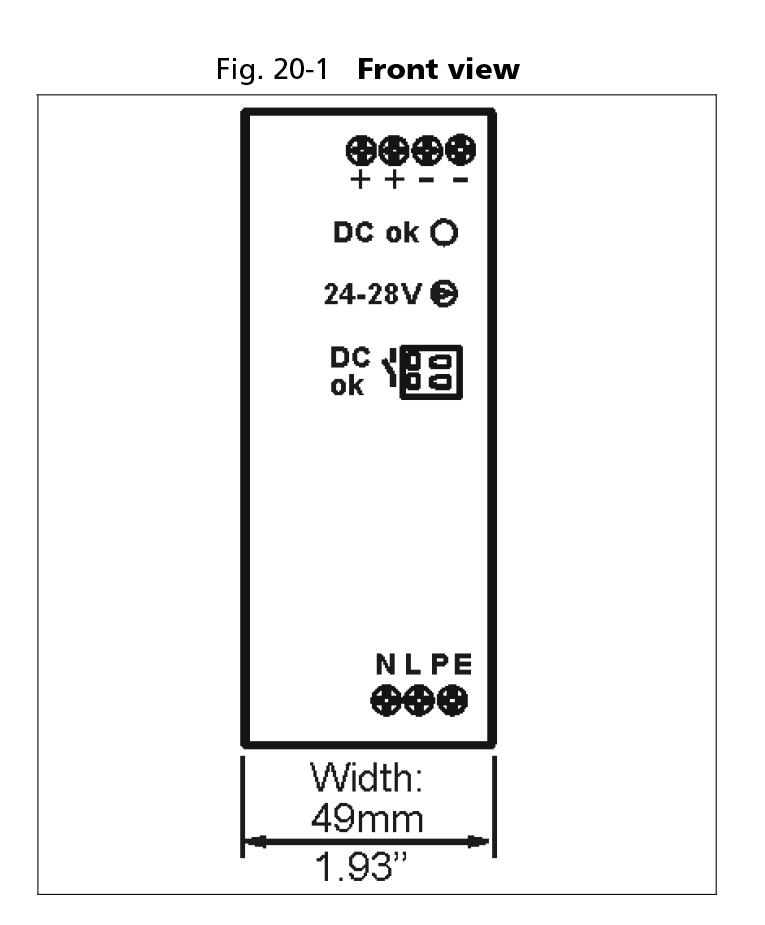

| Width | 49 mm |

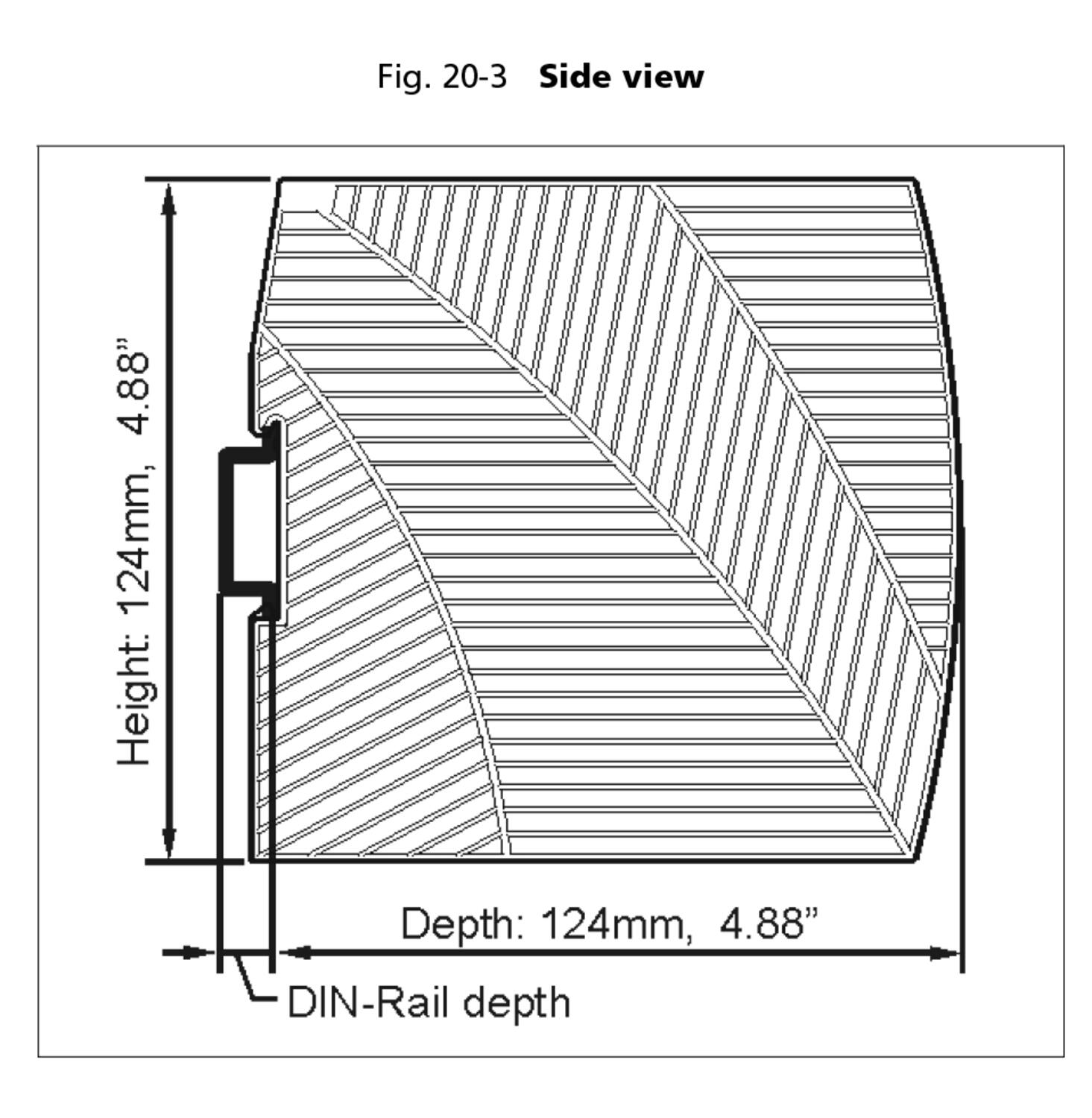

| Height | 124 mm |
| Depth | 124 mm |
| Weight | 0.62 kg |
Other |
|
|---|---|
| Approvals | CB, CE, cRUus, cULus |
| Hold time at 230 V ac, typical full load | 30 ms |
| IP class | IP20 |
| Clamp type | Screw |
| Cable connection | Screw max 6 mm² solid, 4 mm² stranded |
| Load regulation | <150 mV (0-20 A) |
| Material protection | Polycarbonate |
| Supply frequency | 50-60 ±6 % |
| Parallel connection for increased current | Not allowed |
| PFA (EN61000-3-2) | Fulfilled (Class A) |
| Primary fuse | Min 10A B type or 6A C type |
| Ripple max | 100 mV pp |
| Series | Piano |
| Series connection for increased voltage | Yes |
| Power consumption 230 V ac | 2.2 A |

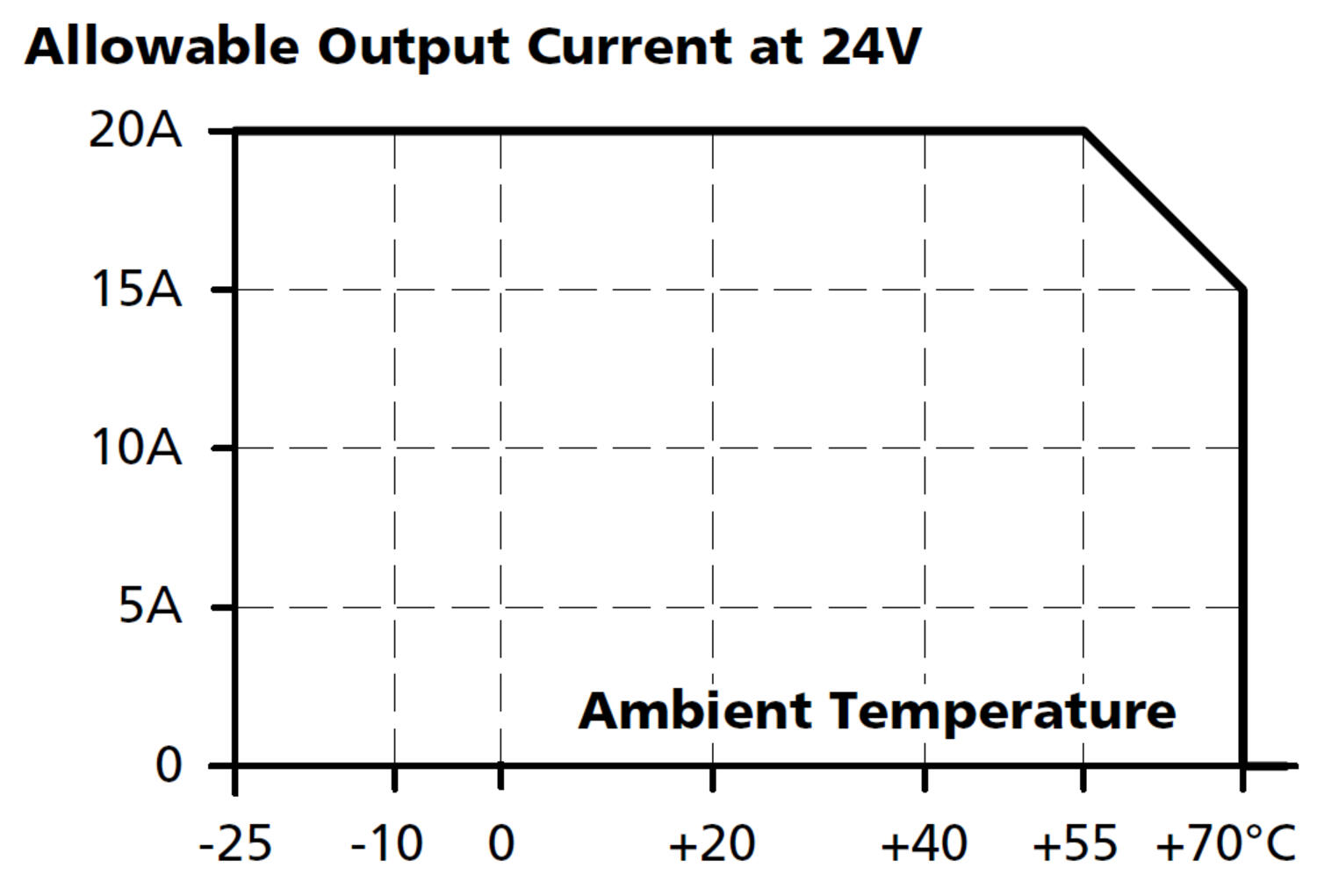

| Power drop from +60 °C to + 70 °C | 8 W/°C |
| Temperature min without derating | -25 °C |
| Temperature max without derating | 55 °C |
| Transient | VDE 0160 (750 V, 0,3 ms) |
| Type Power Supply | AC-DC |
| DC relay output | Yes |
