Power supply 1-phase, 24 V dc Dimension Q Series

Puls Dimension Q is a new generation of power supply unit with very small construction dimensions and many technical benefits. The power supply unit has low inrush current (even with warm starts), active PFC, which provides a power factor close to one, expanded temperature range and active protection against line transients. (Not QS20) The power supply unit has high efficiency, which provides long lifetime both for the unit and adjacent products. Temperature increases in the cabinet are also kept at a low level. Furthermore, there is a relay output (DC OK) that is deactivated when the output voltage deviates more than 10 % from the set value. The bonus power provides an extra 50 % reserve with retained 24 V, which is an advantage when connected loads have high starting currents. The power supply unit has a high short-circuit current that simplifies tripping of secondary fuses. Both the bonus power and short-circuit current are time-limited to 4 seconds to avoid constant overloading of the power supply unit and wiring. QS20.241 If a short circuit lasts longer than 4 seconds, the power supply unit will continue in so-called hick-up mode. The output power is reduced to nearly zero for about 17 seconds. The power supply unit then makes a new start-up attempt for 2-4 seconds. If the short circuit remains, a new pause of 17 seconds is taken. Once the short circuit is remedied, the power supply unit automatically returns to service.For more technical information, consult the general information at the beginning of the power supply section.



Bonus power

The power supply unit has bonus power that enables high power extraction with retained 24 V DC for 4 seconds, which is a major advantage when connected loads have high starting currents, such as the case with motors. How often bonus power can be utilised depends on the application. With the following diagram and formula, the repeat time can be calculated for each application. The bonus power is available as soon as the power supply unit is started and directly after a short circuit.



Bonus power

Operating cycle

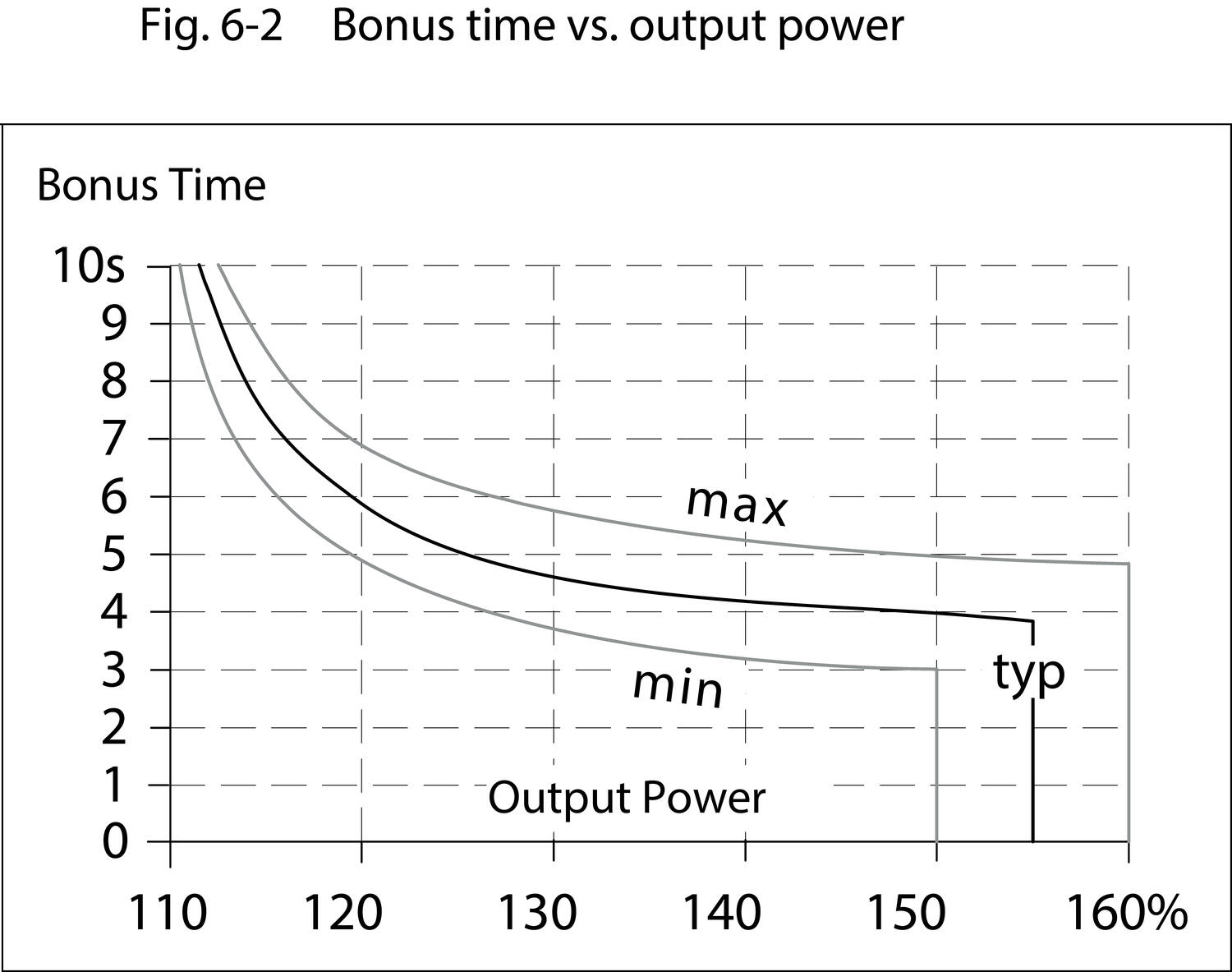

 Bonus effect diagram Power supply QS10.241

Duty cycle diagram power supply QS10.241

Po

Nominal load current

Ppeak

Peak current

To

Time between bonus power

Tpeak

Peak current I time

Operating cycle

Tpeak / (Tpeak + To)

To

Tpeak - (operating cycle * Tpeak) / operating cycle

Example: Nominal load current (Po) is 7.5 A. Peak current (Ppeak) is 12 A
20 % of Inom. The peak time is 3 seconds. 7.5 A = 75 % of Inom. According to the diagram, the operating cycle is about 50 %. To = 3- (0.5 * 3) / 0.5 = 3 Maximum repeat time of the power boost is 3 seconds



.

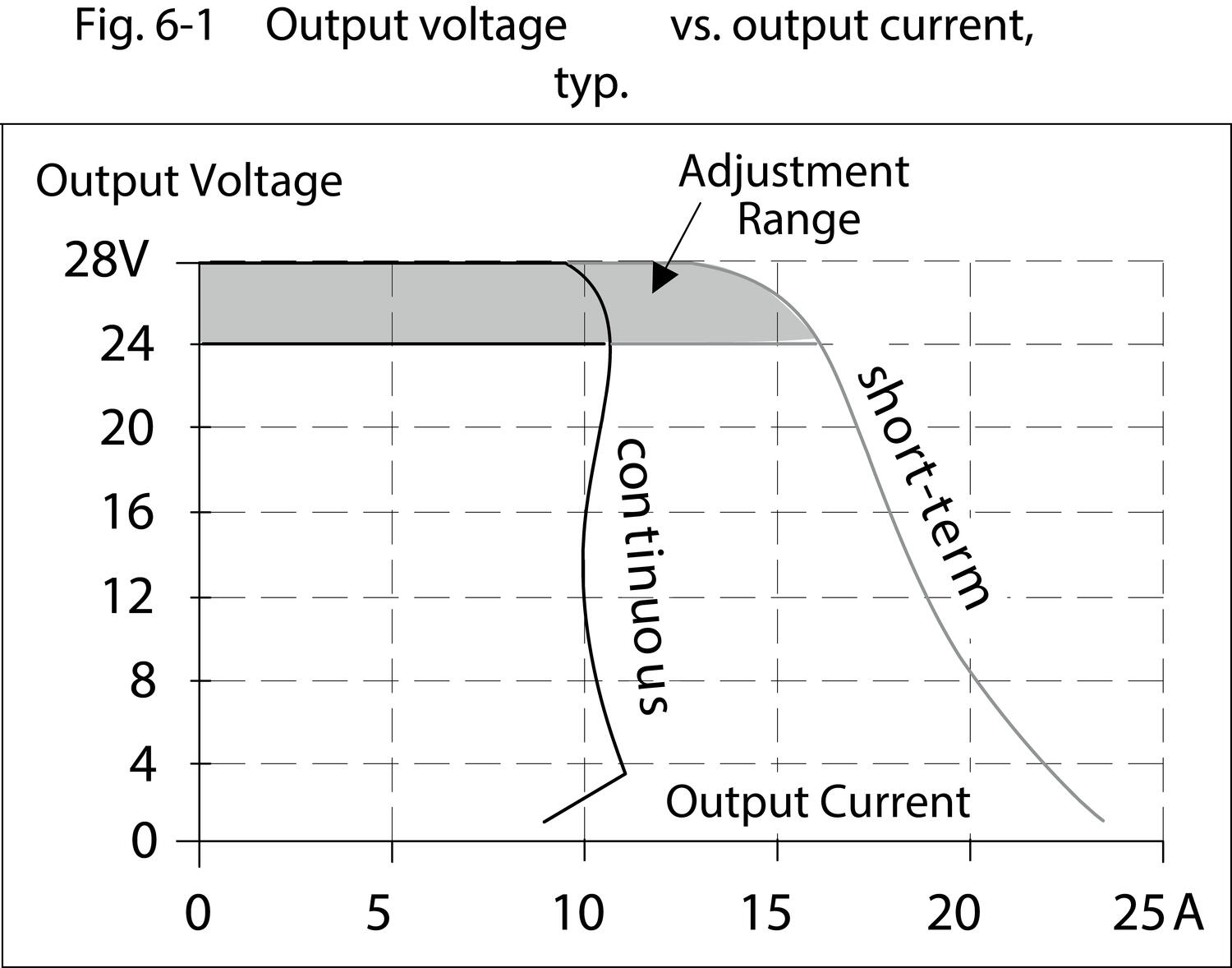

Output characteristics



QS10.241

QS20.241









Read more
  • Power supply unit for DIN rail. 100-240 V ac/110 V dc
  • 60/82 mm wide
  • Up to 93.9% efficiency
  • 50% bonus power
  • Maximum performance

Selected variant

Available in several variants
PULS_2016.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Input data
Input voltage ac 100-240 V
Input voltage ac min 85 V AC
Input voltage ac max 276 V AC
Input voltage dc 110-150 V
Input voltage dc min 88 V DC
Input voltage dc max 187 V DC
Inrush current at 120 V ac typical 4 A
Inrush current at 230 V ac typical 7 A
Input voltage range Wide-range
Power factor at 120 V ac, full load. Typical 0.98
Power factor at 230 V ac, full load. Typical 0.92
Number of phases 1

Output data
Output voltage 24 V DC
Output voltage min 24 V DC
Output voltage max 28 V DC
Output current 10 A
Power 240 W

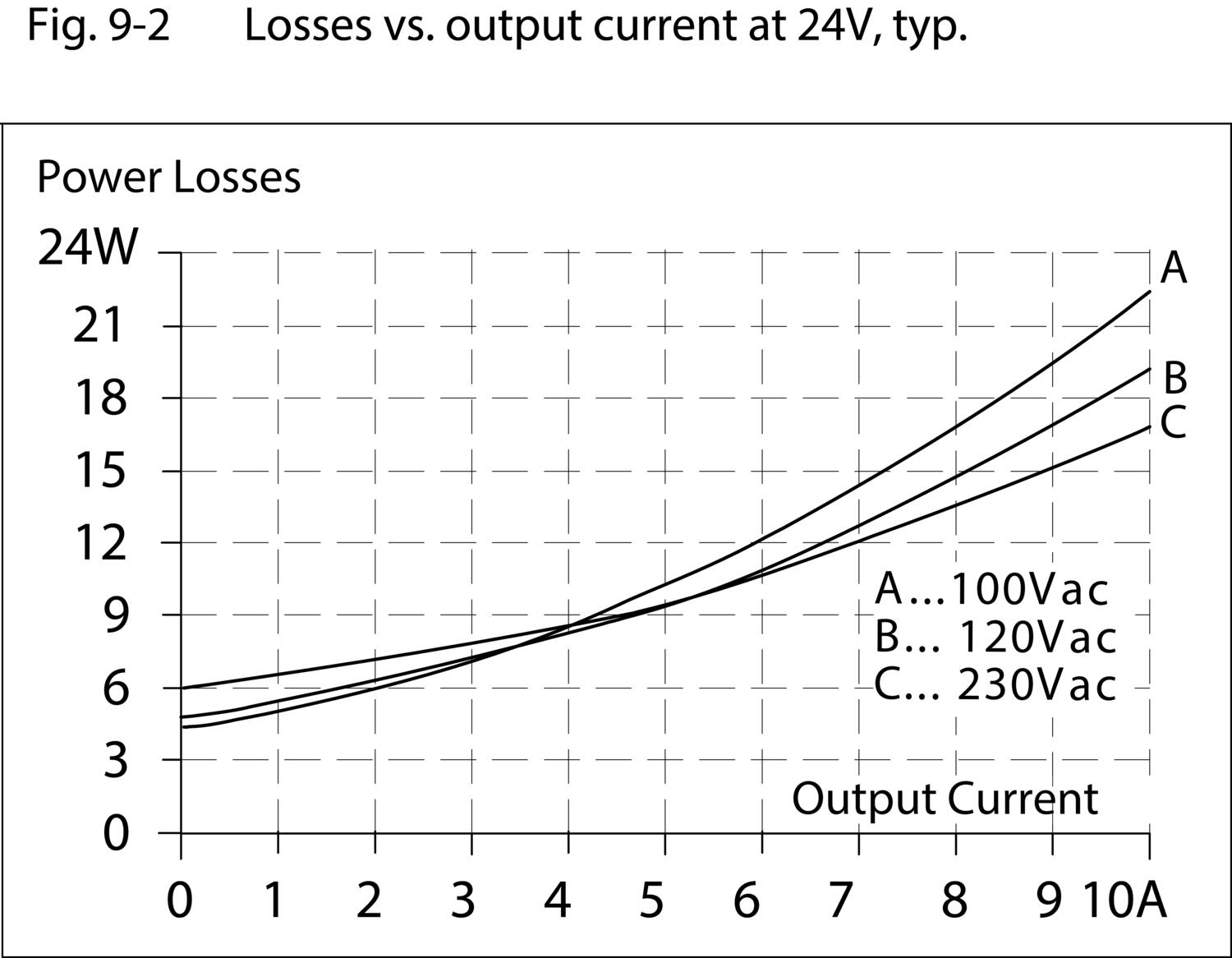

Efficiency / Lifetime / MTBF

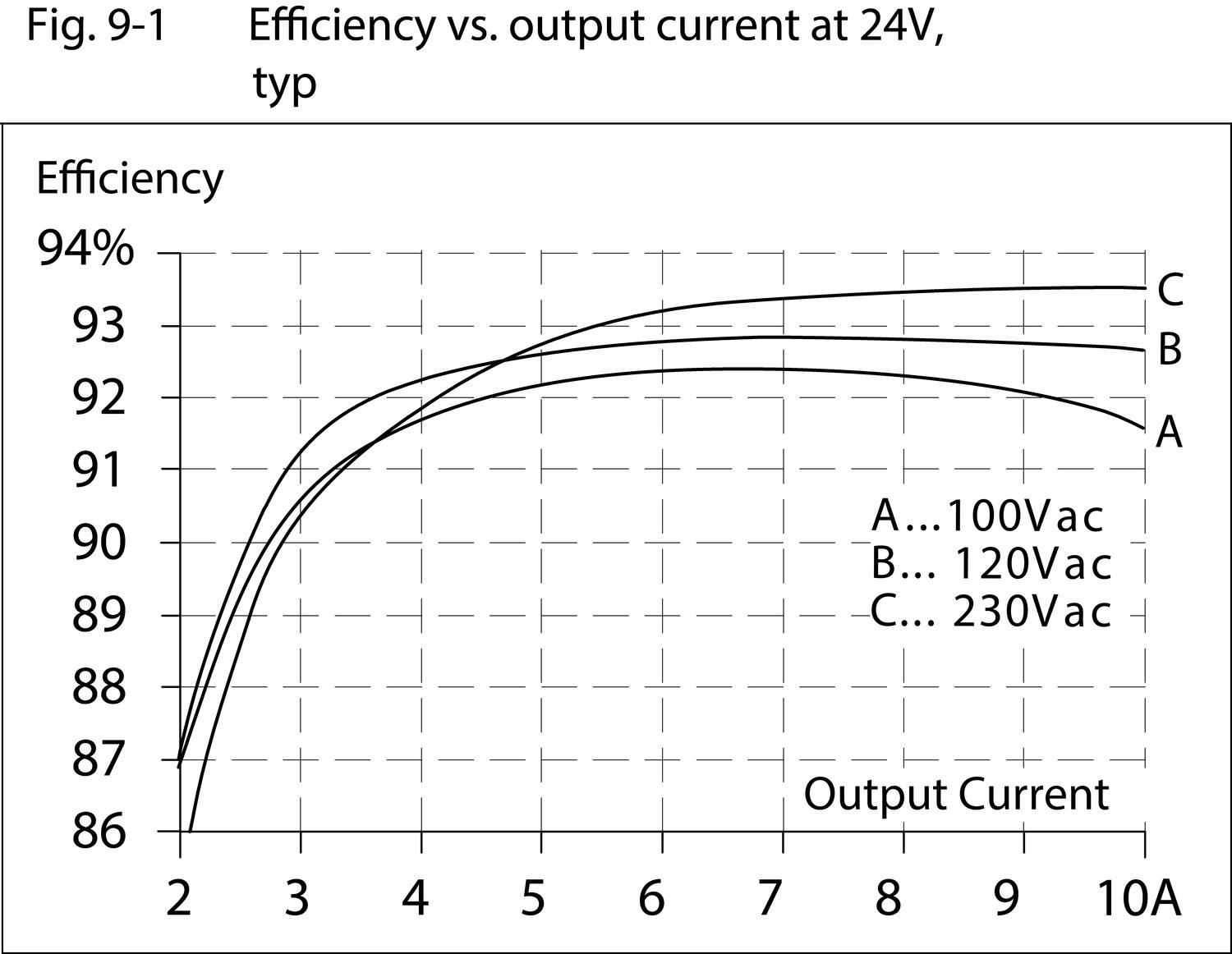

Efficiency at 120 V ac, full load, typical 92.6 %
Efficiency at 230 V ac, typical 92.4 %
Efficiency at 230 V ac, full load, typical 93.5 %
Lifetime at 120 V ac, full load and +40 ° C 68000 h
Lifetime at 230 V ac, full load and +40 ° C 71000 h
MTBF (IEC 61709) 230 V ac, max load, 40 ° C 581000 h

Dimensions
Width 60 mm
Height 124 mm
Depth 117 mm
Weight 0.9 kg

Other
Approvals ABS, CB, CE, CSA, GL, UL
Hold time at 120 V ac, typical full load 27 ms
Hold time at 230 V ac, typical full load 28 ms
IP class IP20
Clamp type Spring-clamp
Material protection Aluminium
Supply frequency 50-60 ±6 %
Ripple max 50 mV pp
Series Dimension Q
Power consumption 120 V ac 2.22 A
Power consumption 230 V ac 1.22 A

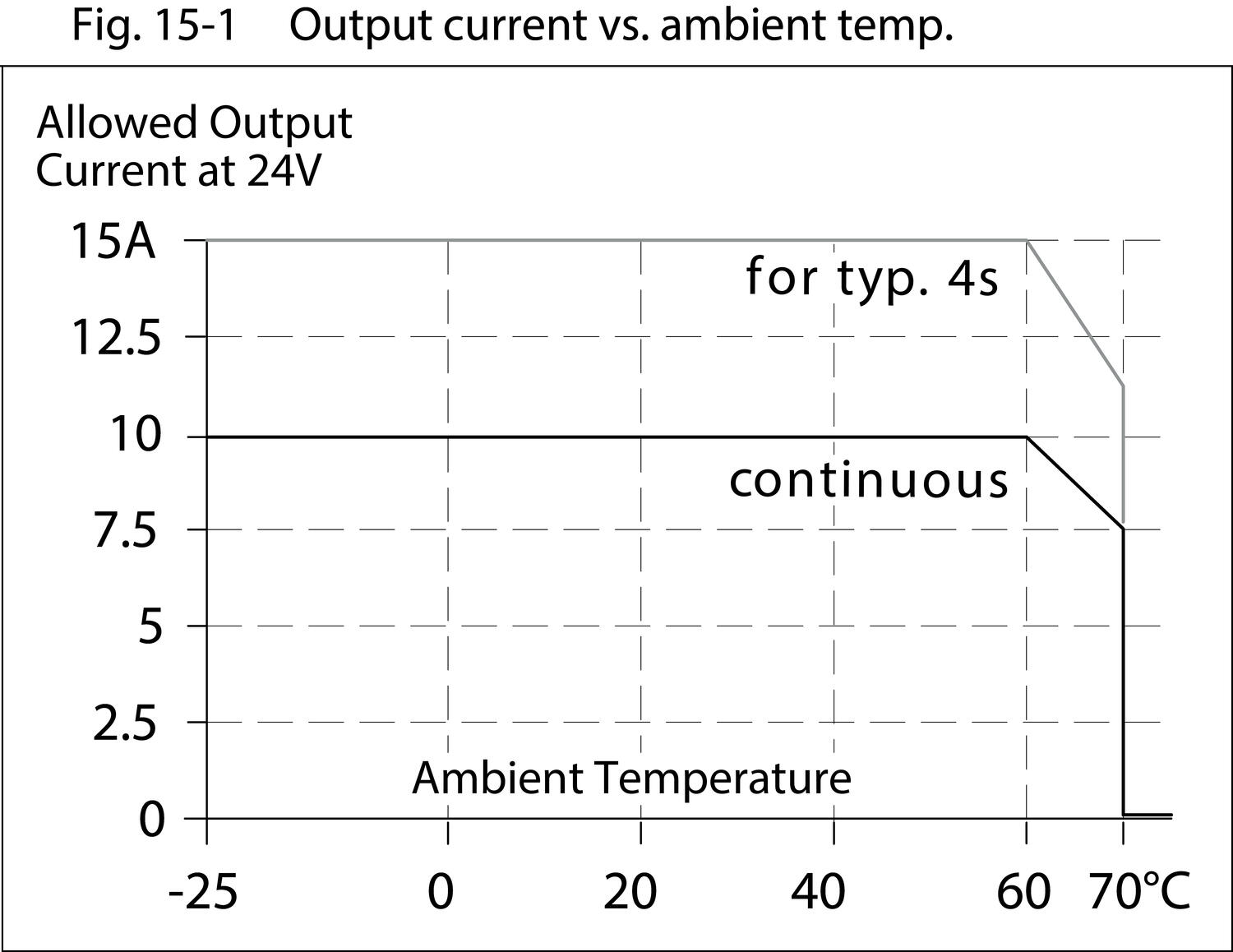

Power drop from +60 °C to + 70 °C 6 W/°C
Temperature min without derating -25 °C
Temperature max without derating 60 °C
Type Power Supply AC-DC
Active Transient Yes
DC relay output Yes

Downloads

Measurements and connections

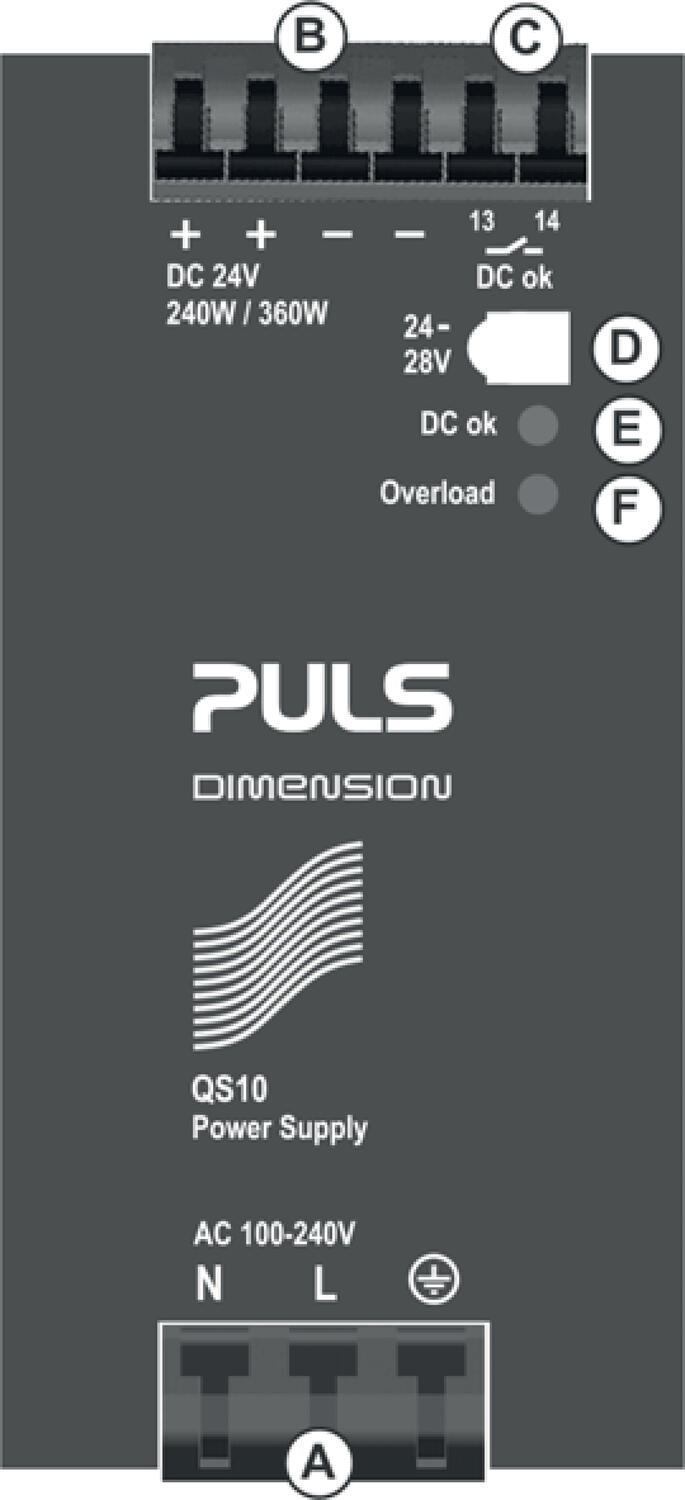

qs10e241_front.eps

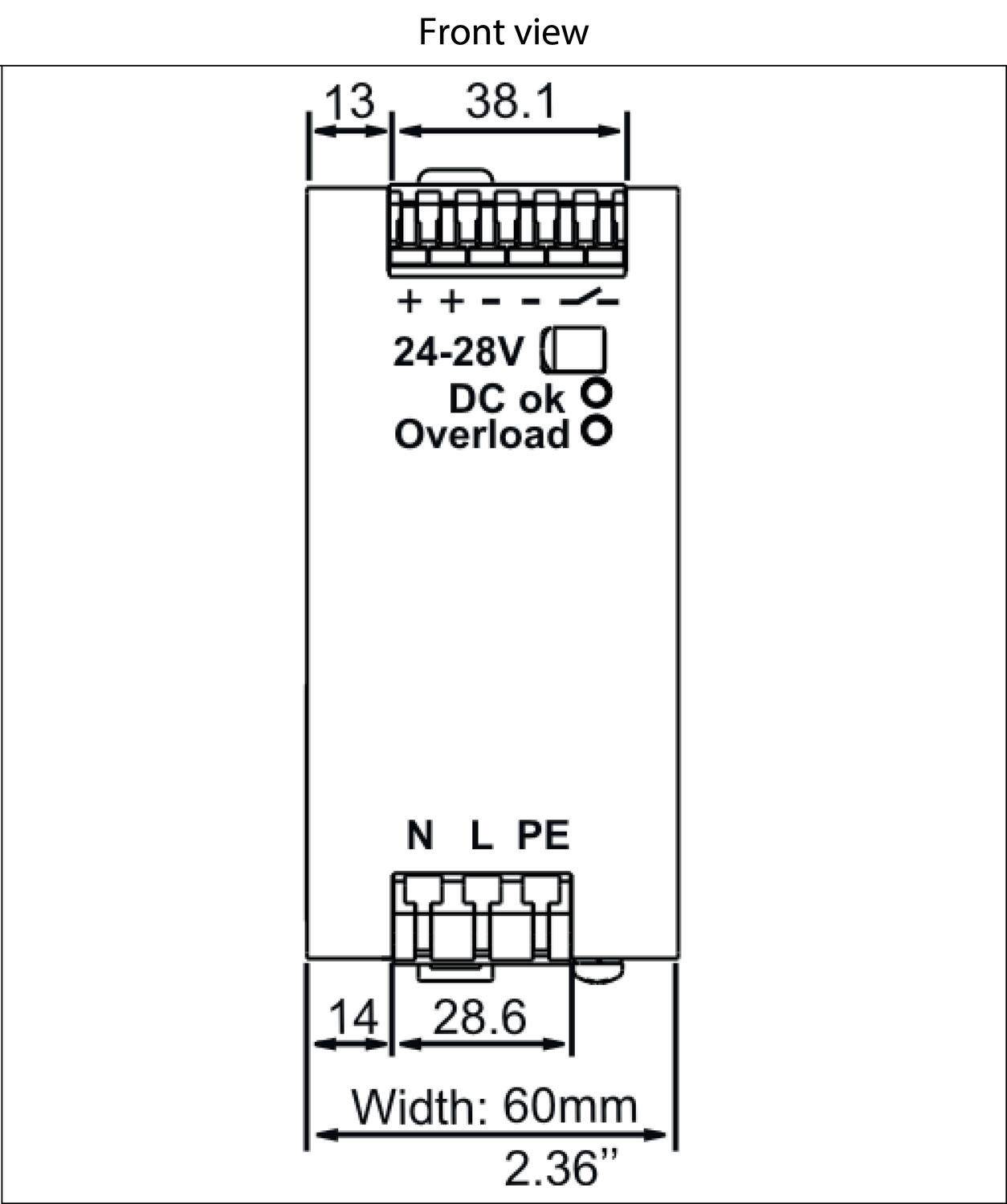

qs10e241_frontview.eps

qs10e241_sideview.eps

We recommend free space of 60 mm above/under the power supply unit and 15 mm at the sides.

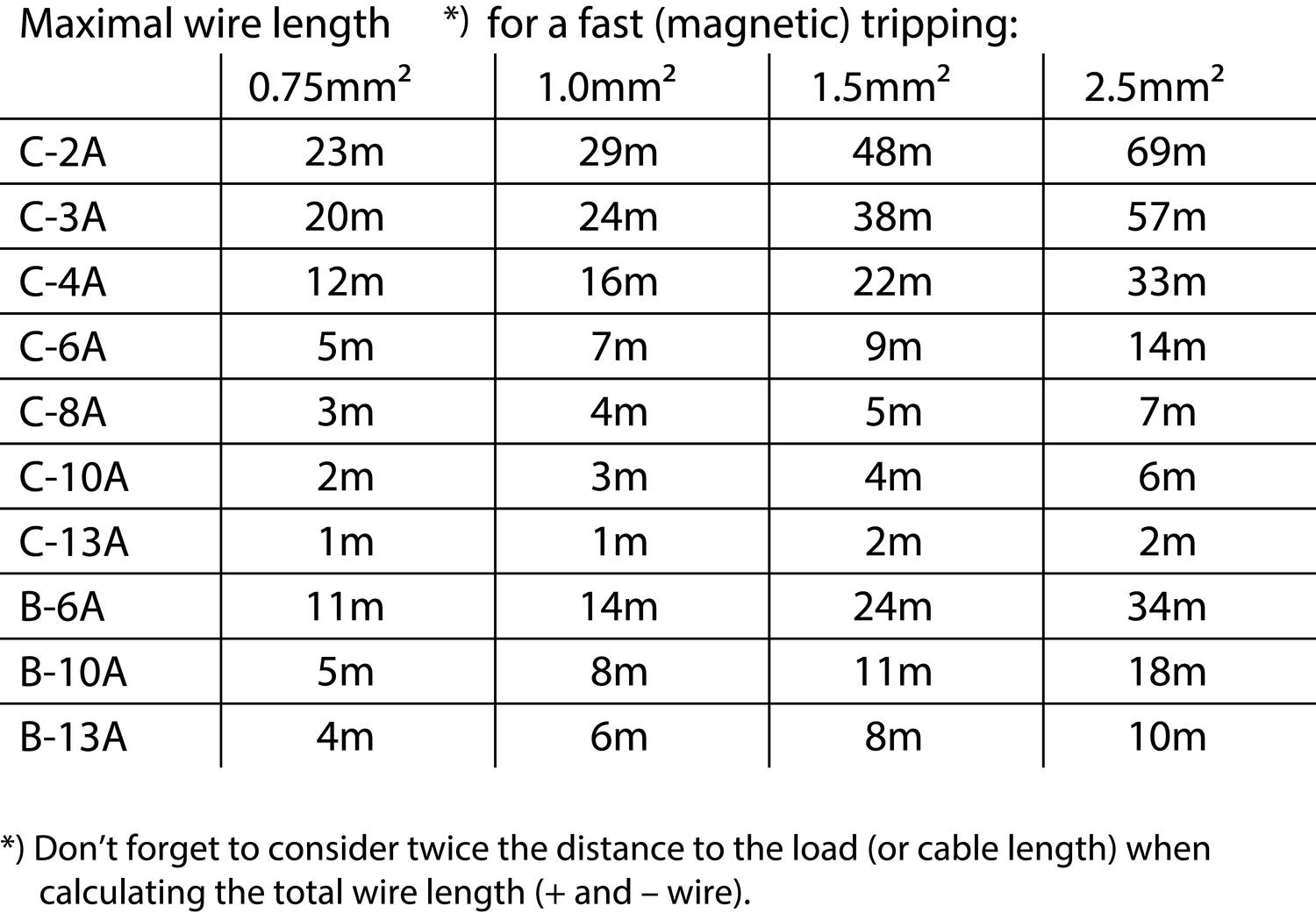

Technical illustrations

Product description

Puls Dimension Q is a new generation of power supply unit with very small construction dimensions and many technical benefits. The power supply unit has low inrush current (even with warm starts), active PFC, which provides a power factor close to one, expanded temperature range and active protection against line transients. (Not QS20) The power supply unit has high efficiency, which provides long lifetime both for the unit and adjacent products. Temperature increases in the cabinet are also kept at a low level. Furthermore, there is a relay output (DC OK) that is deactivated when the output voltage deviates more than 10 % from the set value. The bonus power provides an extra 50 % reserve with retained 24 V, which is an advantage when connected loads have high starting currents. The power supply unit has a high short-circuit current that simplifies tripping of secondary fuses. Both the bonus power and short-circuit current are time-limited to 4 seconds to avoid constant overloading of the power supply unit and wiring. QS20.241 If a short circuit lasts longer than 4 seconds, the power supply unit will continue in so-called hick-up mode. The output power is reduced to nearly zero for about 17 seconds. The power supply unit then makes a new start-up attempt for 2-4 seconds. If the short circuit remains, a new pause of 17 seconds is taken. Once the short circuit is remedied, the power supply unit automatically returns to service.For more technical information, consult the general information at the beginning of the power supply section.



Bonus power

The power supply unit has bonus power that enables high power extraction with retained 24 V DC for 4 seconds, which is a major advantage when connected loads have high starting currents, such as the case with motors. How often bonus power can be utilised depends on the application. With the following diagram and formula, the repeat time can be calculated for each application. The bonus power is available as soon as the power supply unit is started and directly after a short circuit.



Bonus power

Operating cycle

 Bonus effect diagram Power supply QS10.241

Duty cycle diagram power supply QS10.241

Po

Nominal load current

Ppeak

Peak current

To

Time between bonus power

Tpeak

Peak current I time

Operating cycle

Tpeak / (Tpeak + To)

To

Tpeak - (operating cycle * Tpeak) / operating cycle

Example: Nominal load current (Po) is 7.5 A. Peak current (Ppeak) is 12 A
20 % of Inom. The peak time is 3 seconds. 7.5 A = 75 % of Inom. According to the diagram, the operating cycle is about 50 %. To = 3- (0.5 * 3) / 0.5 = 3 Maximum repeat time of the power boost is 3 seconds



.



Output characteristics



QS10.241

QS20.241









Accessories

Related products

Related

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

bespoke solutions electricity meter control boxes
Case studies

Control Box Assembly for Industrial Electricity Metering - A case study

Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.

DC circuit protection PISA M and circuit breakers
Blog

Safeguard systems with DC circuit protection

This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.

Parts Input voltage dc Input voltage dc max Inrush current at 120 V ac typical Power factor at 120 V ac, full load. Typical Power factor at 230 V ac, full load. Typical Output current Power Efficiency at 120 V ac, full load, typical Efficiency at 230 V ac, typical Efficiency at 230 V ac, full load, typical Lifetime at 120 V ac, full load and +40 ° C MTBF (IEC 61709) 230 V ac, max load, 40 ° C Width Depth Weight Approvals Hold time at 120 V ac, typical full load Hold time at 230 V ac, typical full load Ripple max Power consumption 120 V ac Power consumption 230 V ac Power drop from +60 °C to + 70 °C Active Transient Conformal coated Price
QS10.241 Product photo.
PSU 100-240V ac I/P 24V dc 10A 240W O/P
Art:
QS10.241 Copied
110-150 V
187 V DC
4 A
0.98
0.92
10 A
240 W
92.6 %
92.4 %
93.5 %
68000 h
581000 h
60 mm
117 mm
0.9 kg
ABS, CB, CE, CSA, GL, UL
27 ms
28 ms
50 mV pp
2.22 A
1.22 A
6 W/°C
Yes
QS10.241 Product photo.
PSU 100-240V ac I/P 24V dc 10A 240W O/P Conf. Coated
Art:
QS10.241-C1 Copied
110-150 V
187 V DC
4 A
0.98
0.92
10 A
240 W
92.6 %
92.4 %
93.5 %
68000 h
581000 h
60 mm
117 mm
0.9 kg
ABS, CB, CE, CSA, EN 50155, GL, UL
27 ms
28 ms
50 mV pp
2.22 A
1.22 A
6 W/°C
Yes
Yes
QS10.241 Product photo.
PSU 100-240V ac I/P 24V dc 10A 240W O/P ATEX
Art:
QS10.241-A1 Copied
110-150 V
187 V DC
4 A
0.98
0.92
10 A
240 W
92.6 %
92.4 %
93.5 %
68000 h
581000 h
60 mm
117 mm
0.9 kg
ABS, ATEX, CB, CE, CSA, GL, IECEx, UL
27 ms
28 ms
50 mV pp
2.22 A
1.22 A
6 W/°C
Yes
Yes

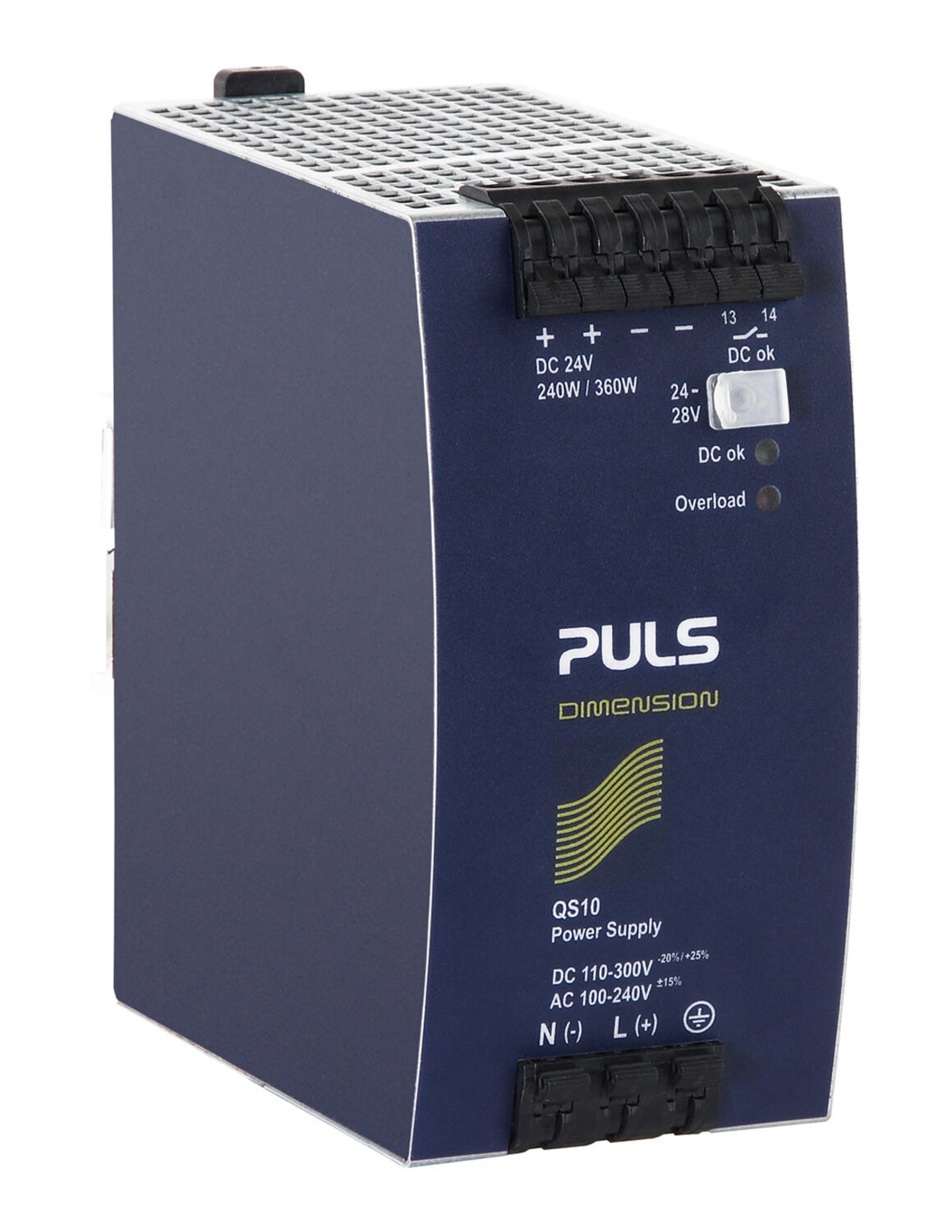

PULS_qs10_241-d1_R.tif
PSU 100-240V ac I/P 24V dc 10A 240W O/P Extended dc I/P
Art:
QS10.241-D1 Copied
110-300 V
375 V DC
4 A
0.98
0.92
10 A
240 W
92.6 %
92.4 %
93.5 %
68000 h
581000 h
60 mm
117 mm
0.9 kg
ABS, CB, CE, CSA, GL, UL
27 ms
28 ms
50 mV pp
2.22 A
1.22 A
6 W/°C
Yes

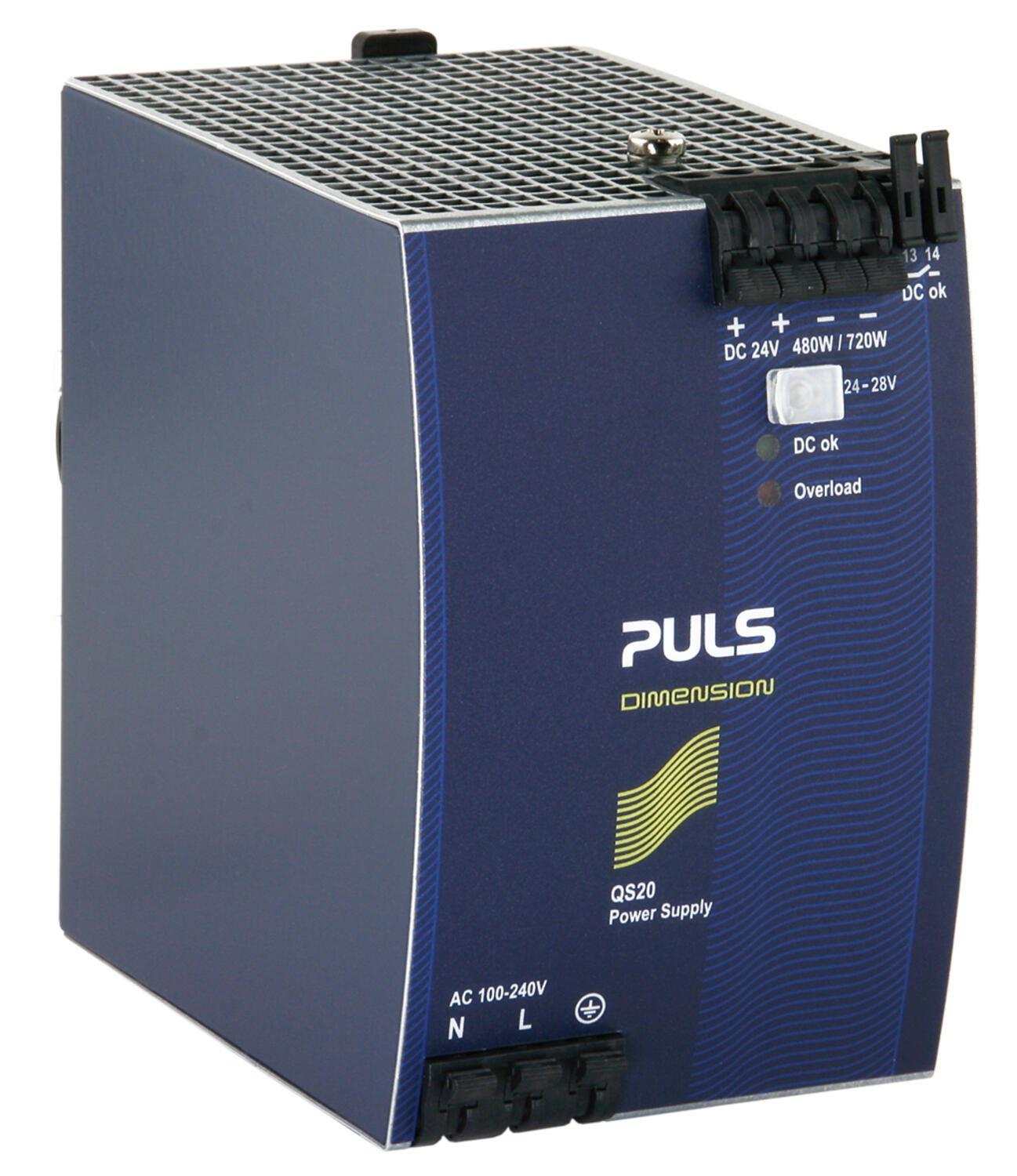

261066_566.tif
PSU 100-240V ac I/P 24V dc 20A 480W O/P
Art:
QS20.241 Copied
110-150 V
187 V DC
9 A
0.95
0.9
20 A
480 W
92.4 %
92.9 %
93.9 %
59000 h
469000 h
82 mm
127 mm
1.2 kg
ABS, CB, CE, CSA, GL, UL
32 ms
51 ms
100 mV pp
4.56 A
2.48 A
12 W/°C
261066_566.tif
PSU 100-240V ac I/P 24V dc 20A 480W O/P Conf. Coated
Art:
QS20.241-C1 Copied
110-150 V
187 V DC
9 A
0.95
0.9
20 A
480 W
92.4 %
92.9 %
93.9 %
59000 h
469000 h
82 mm
127 mm
1.2 kg
ABS, CB, CE, CSA, GL, UL
32 ms
51 ms
100 mV pp
4.56 A
2.48 A
12 W/°C
Yes
261066_566.tif
PSU 100-240V ac I/P 24V dc 20A 480W O/P ATEX
Art:
QS20.241-A1 Copied
110-150 V
187 V DC
9 A
0.95
0.9
20 A
480 W
92.4 %
92.9 %
93.9 %
59000 h
469000 h
82 mm
127 mm
1.2 kg
ABS, ATEX, CB, CE, CSA, GL, IECEx, UL
32 ms
51 ms
100 mV pp
4.56 A
2.48 A
12 W/°C
Yes
Yes
