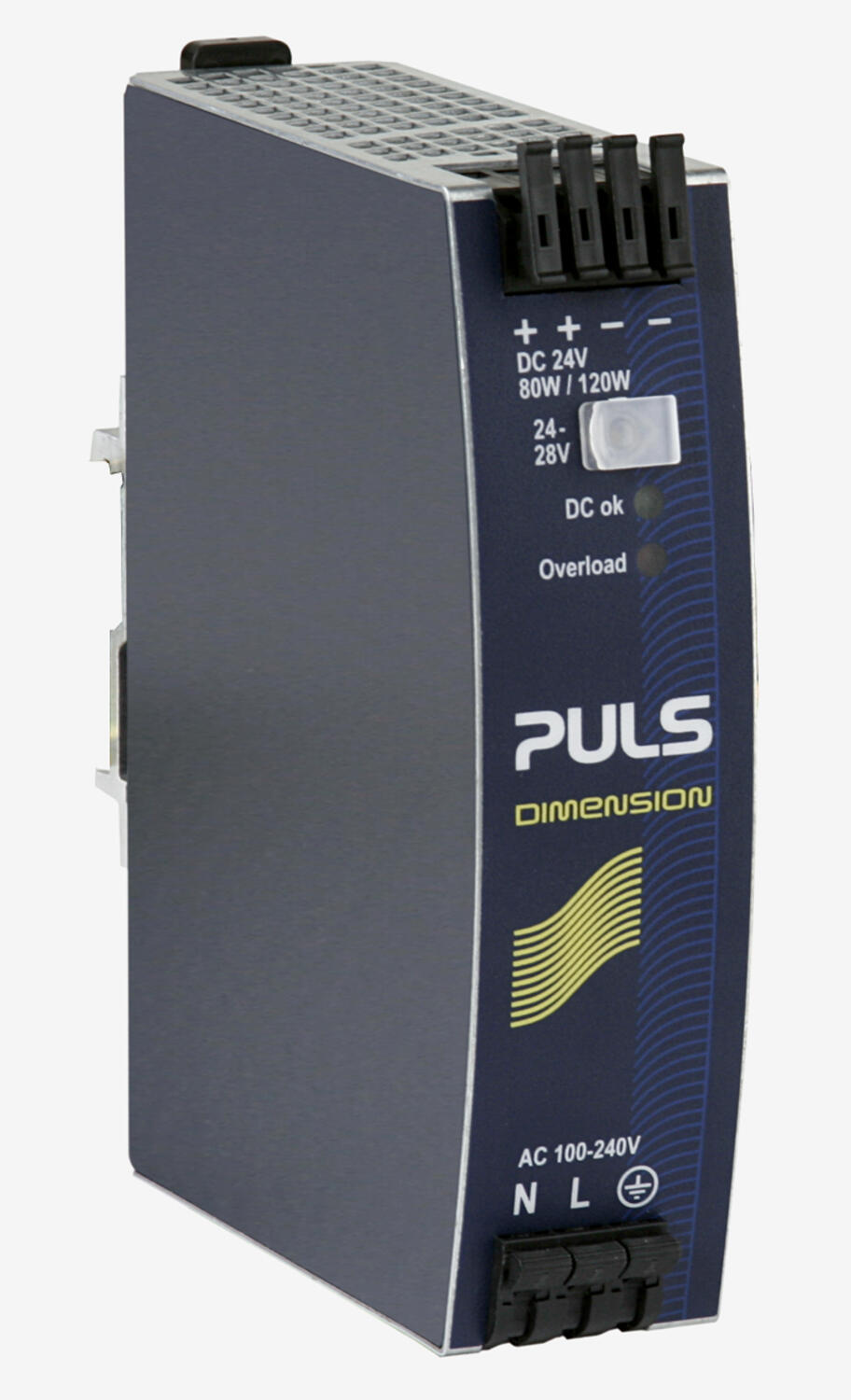

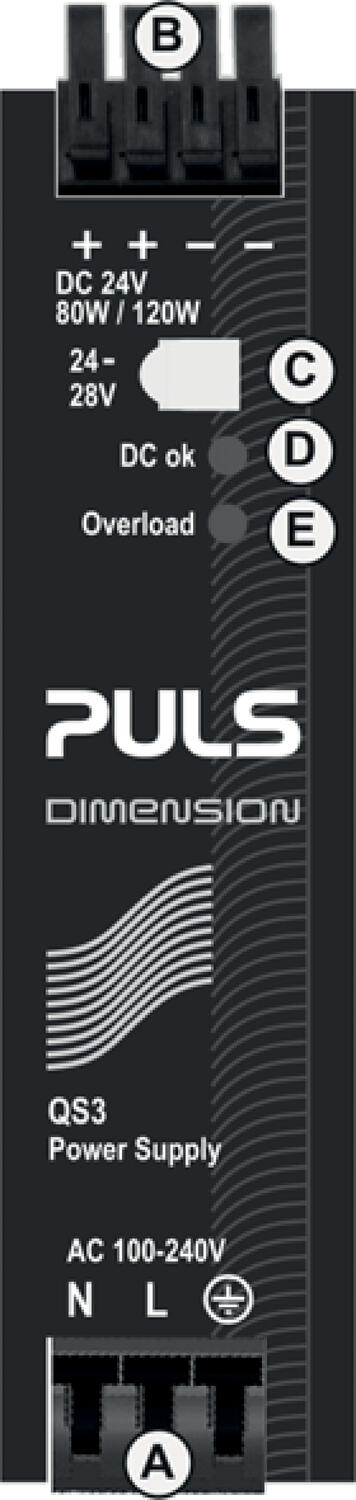

The most outstanding features of this Dimension Q-Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q-Series is part of the Dimension family, existing alongside the lower featured C-Series.

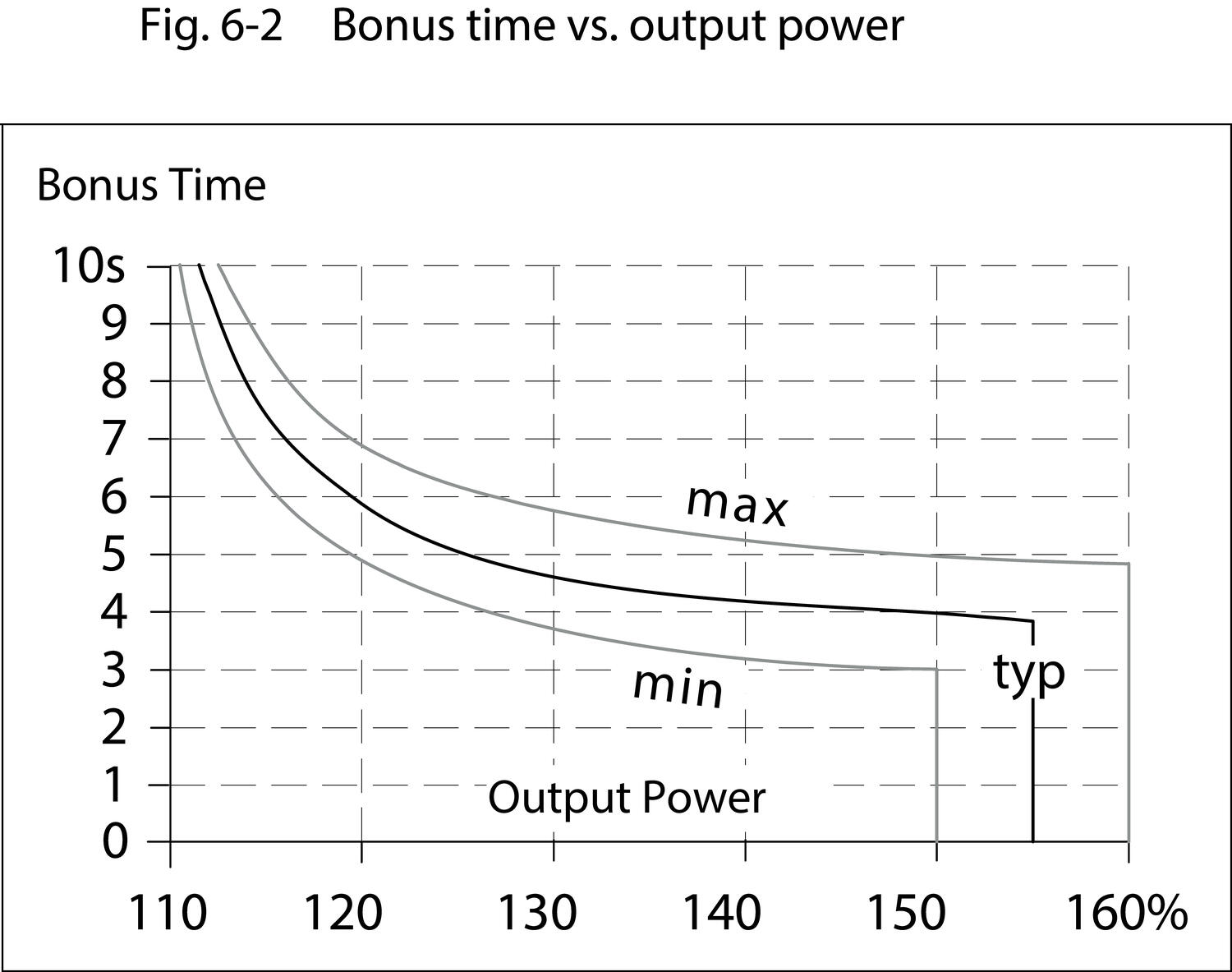

With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be usedÂ
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.Â
Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Input data |
|
---|---|
Input voltage ac | 100-240 V |
Input voltage ac min | 85 V AC |
Input voltage ac max | 276 V AC |
Input voltage dc | 110-150 V |
Input voltage dc min | 88 V DC |
Input voltage dc max | 150 V DC |
Inrush current at 120 V ac typical | 5 A |
Inrush current at 230 V ac typical | 10 A |
Input voltage range | Wide-range |
Power factor at 120 V ac, full load. Typical | 0.53 |
Power factor at 230 V ac, full load. Typical | 0.47 |
Number of phases | 1 |
Output data |
|

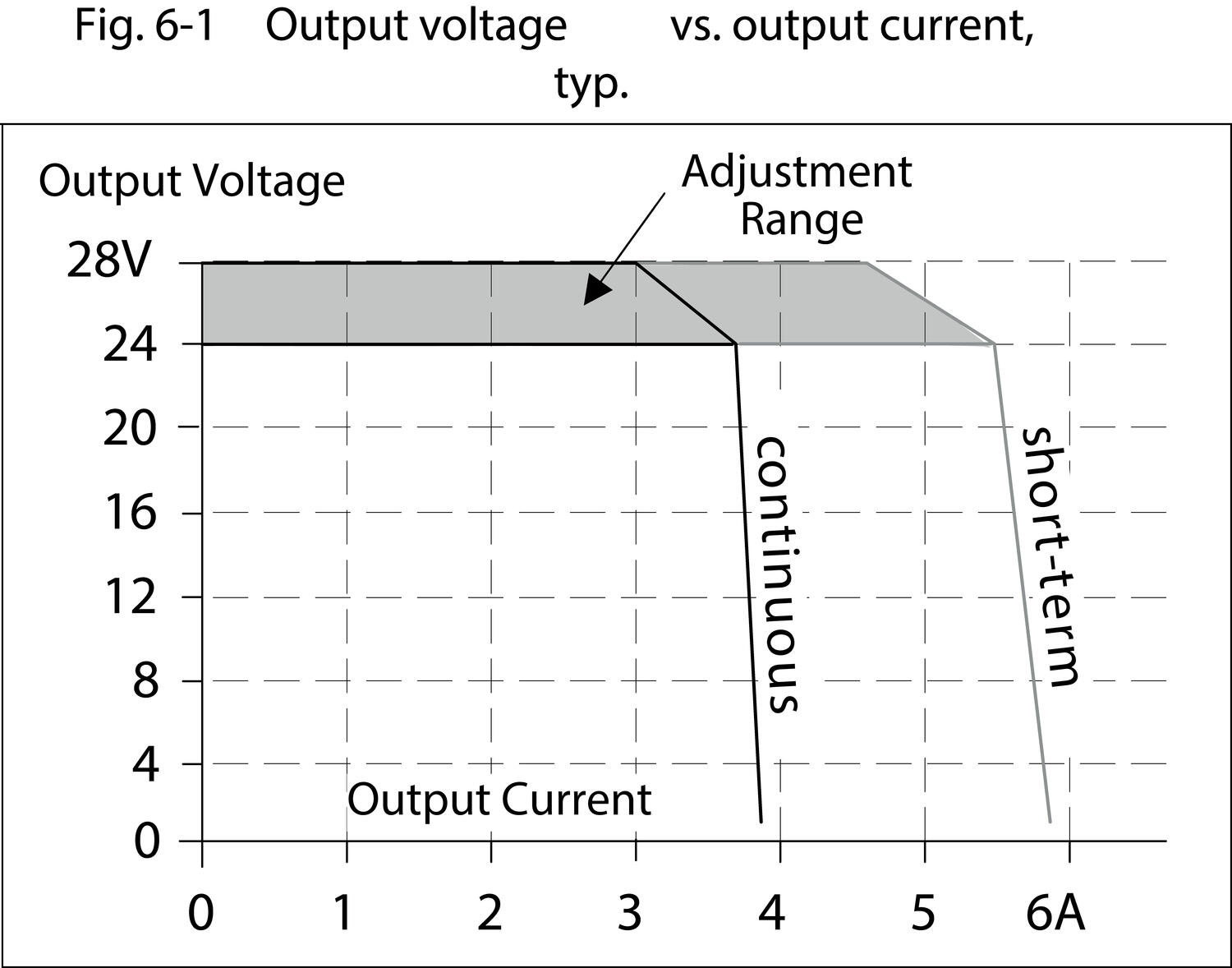

Output voltage | 24 V DC |
Output voltage min | 24 V DC |
Output voltage max | 28 V DC |
Output current | 3.4 A |
Power | 80 W |

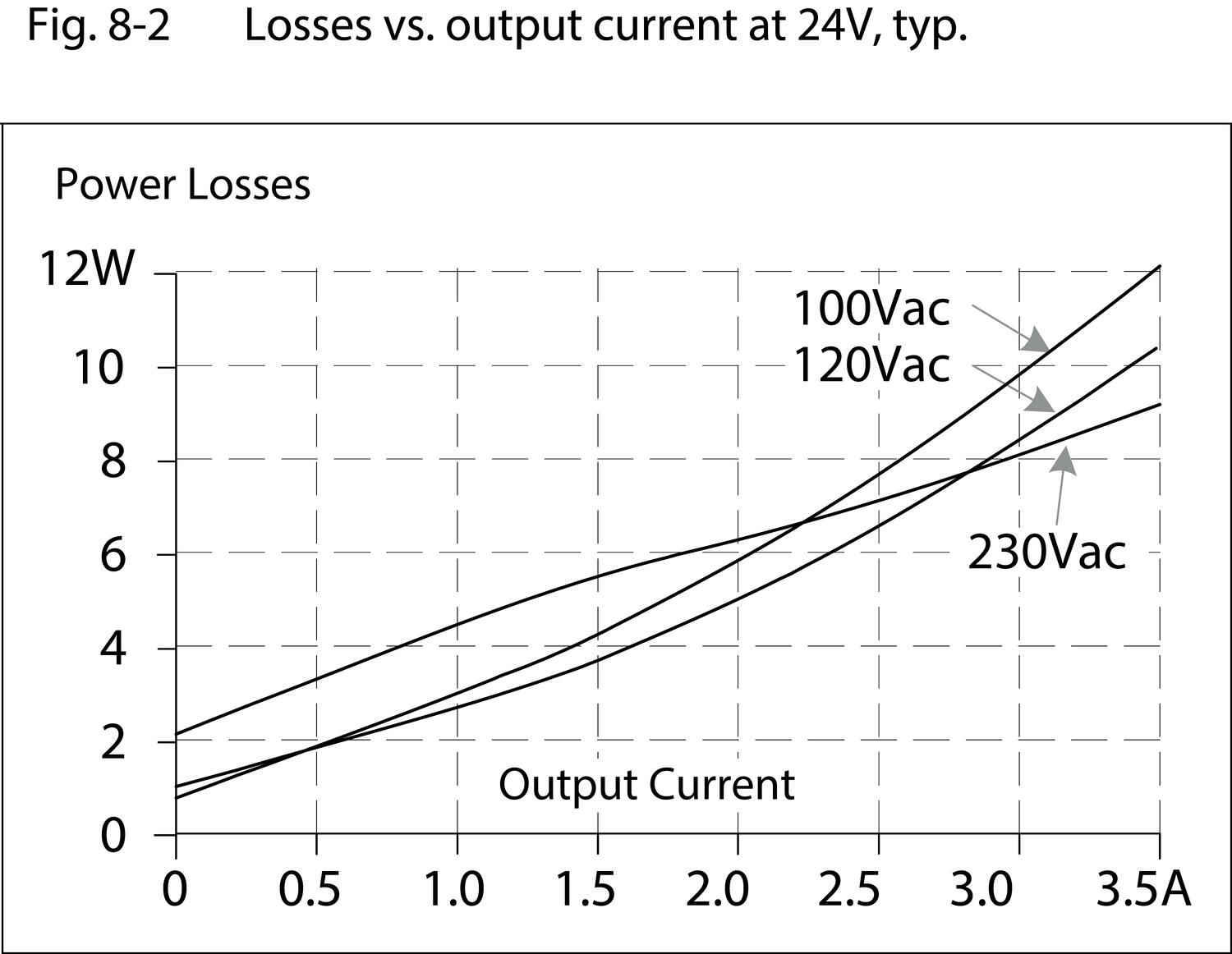

Efficiency / Lifetime / MTBF |
|

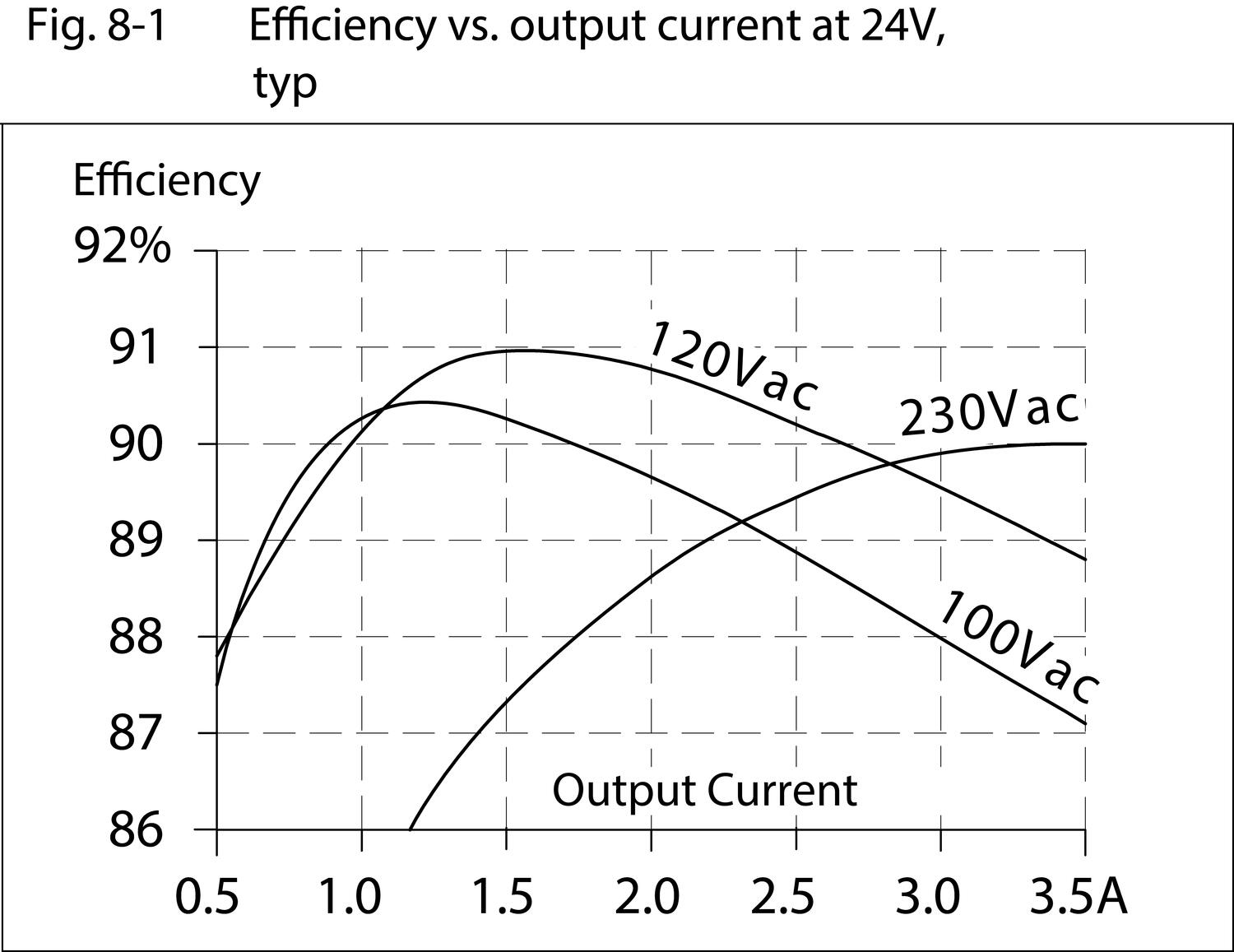

Efficiency at 120 V ac, full load, typical | 88.7 % |
Efficiency at 230 V ac, typical | 88.3 % |
Efficiency at 230 V ac, full load, typical | 90 % |
Lifetime at 120 V ac, full load and +40 ° C | 62000 h |
Lifetime at 230 V ac, full load and +40 ° C | 79000 h |
*Invisible Heading* |
|
---|---|
MTBF (IEC 61709) 230 V ac, max load, 40 ° C | 1451000 h |

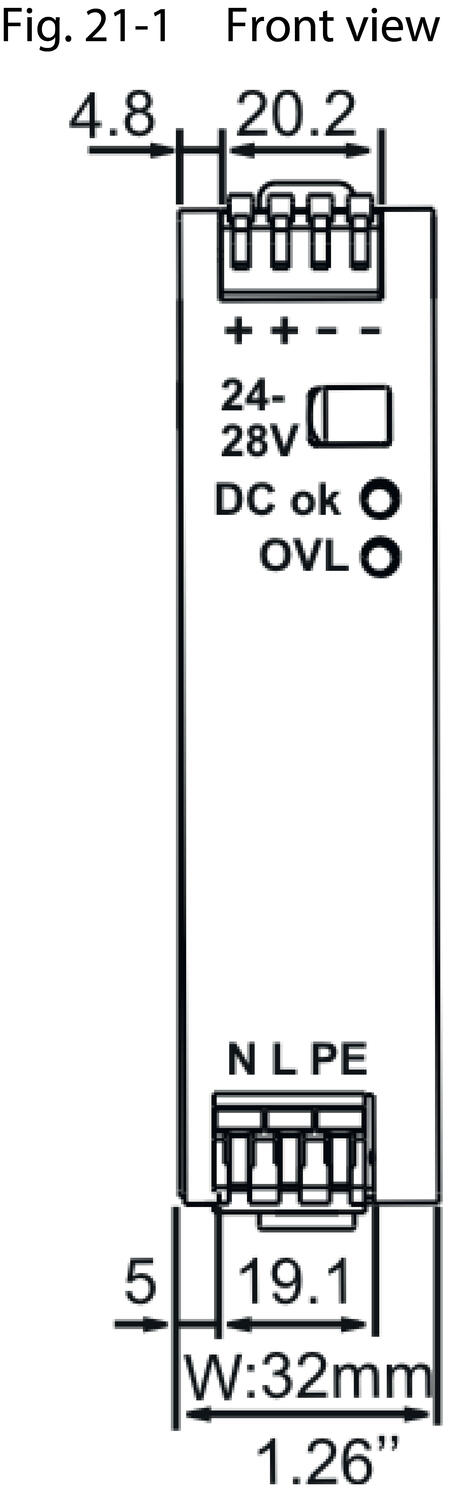

Dimensions |
|
Width | 32 mm |
Height | 124 mm |
Depth | 102 mm |
Weight | 0.44 kg |
Other |
|
Approvals | ABS, CB, CE, CSA, GL, UL |
Hold time at 120 V ac, typical full load | 41 ms |
Hold time at 230 V ac, typical full load | 174 ms |
IP class | IP20 |
Clamp type | Spring-clamp |
Material protection | Aluminium |
Supply frequency | 50-60 ±6 % |
Ripple max | 50 mV pp |
Series | Dimension Q |
Power consumption 120 V ac | 1.42 A |
Power consumption 230 V ac | 0.82 A |

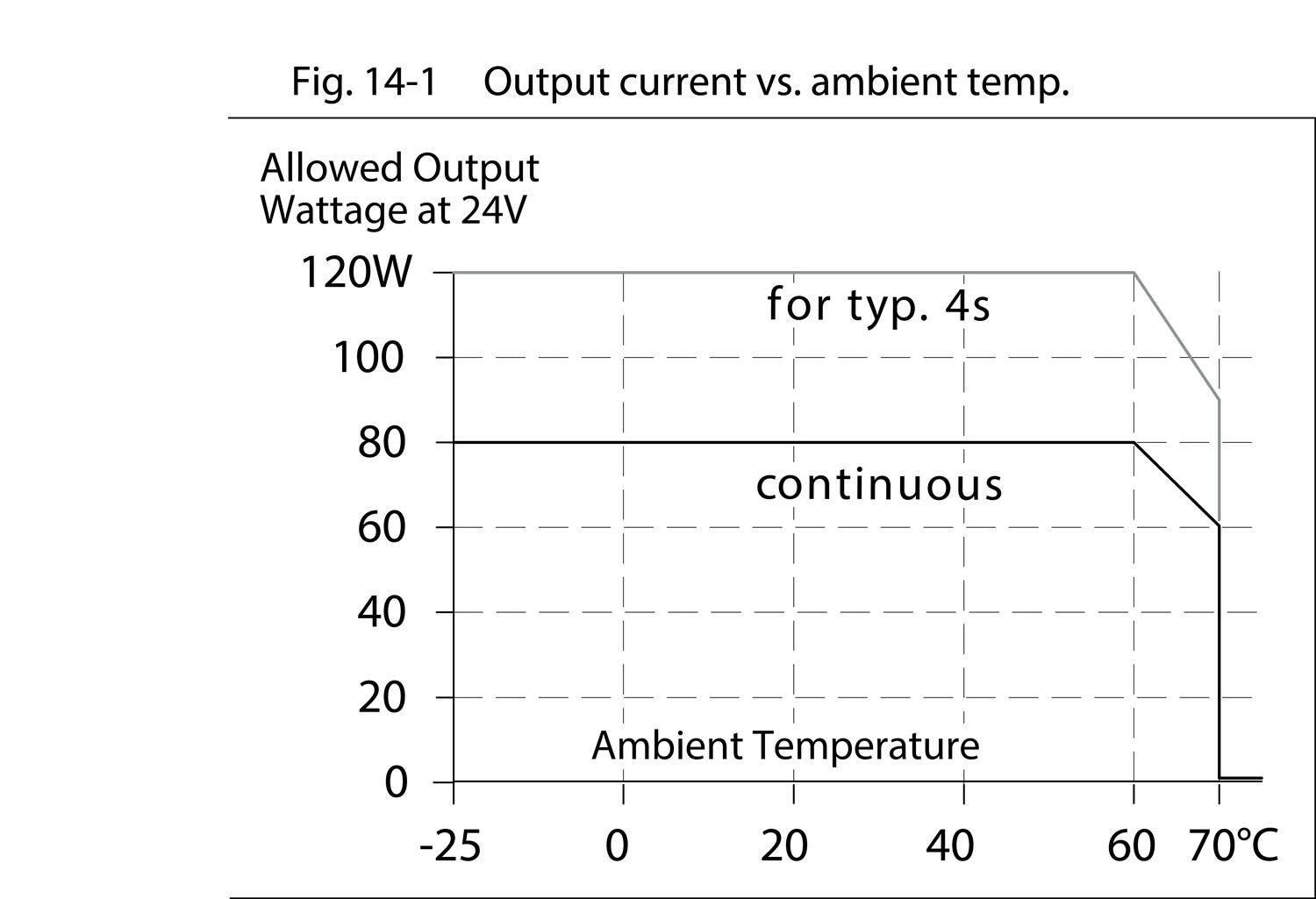

Power drop from +60 °C to + 70 °C | 2 W/°C |
Temperature min without derating | -25 °C |
Temperature max without derating | 60 °C |
Type Power Supply | AC-DC |
The most outstanding features of this Dimension Q-Series DIN-rail power supply are the high efficiency and the small size, which are achieved by a synchronous rectification and further novel design details. The Q-Series is part of the Dimension family, existing alongside the lower featured C-Series.
With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be usedÂ
High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.Â
Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
