TEKNOMEGA
Teknomegas new Power Terminal Block (PTB) range boasts an openable and removable frontal protection cover. The body structure has high dielectric features and has a milled clamp for input connections by indirect tightening.
Â
It has a highly reliable connection, with direct connections to COFLEX and COFLEX PLUS. There is also a possibility of connections with J-Link and J-Link Plus with the RPC adapter. It has an easy installation on DIN rails or on panels with screws.
Â
The new PTB range includes a self-extinguishing insulating body: PA 6 UL 94-V0 rated. The conduction block is tinned copper and suitable for aluminium and copper cable connections. The clamps are tined steel and AI alloy with the screws being tinned steel. It has an IP rating of IP20 and is compliant with standard EN 60947-7-1.
Â
General Data |
|
---|---|
IP class | IP20 |
Nominal insulation voltage | 600 V |
Short-circuit current resistance IPK (peak value) | 30 kA |
Short-circuit current resistance ICW over 1s | 4.4 kA |
Connection Data |
|
Connections | 10 |
Number of inputs A | 1 |
Input A: wire cross-section stranded, min. | 10 mm² |
Input A: wire cross-section stranded, max. | 35 mm² |
Input A: wire cross-section with wire-end ferrules, min. | 10 mm² |
Input A: wire cross-section with wire-end ferrules, max. | 35 mm² |
Number of inputs B | 1 |
Input B: wire cross-section stranded, min. | 6 mm² |
Input B: wire cross-section stranded, max. | 16 mm² |
*Invisible Heading* |
|
---|---|
Input B: wire cross-section, stranded with wire-end ferrules, min. | 6 mm² |
Input B: wire cross-section stranded with wire-end ferrules, max. | 16 mm² |
Number of outputs A | 8 |
Output A: wire cross-section stranded, min. | 2.5 mm² |
Output A: wire cross-section stranded, max. | 16 mm² |
Output A: wire cross-section stranded with wire-end ferrules, min. | 2.5 mm² |
Output A: wire cross-section stranded with wire-end ferrules, max. | 16 mm² |
Screw type | Galvanized steel screws |

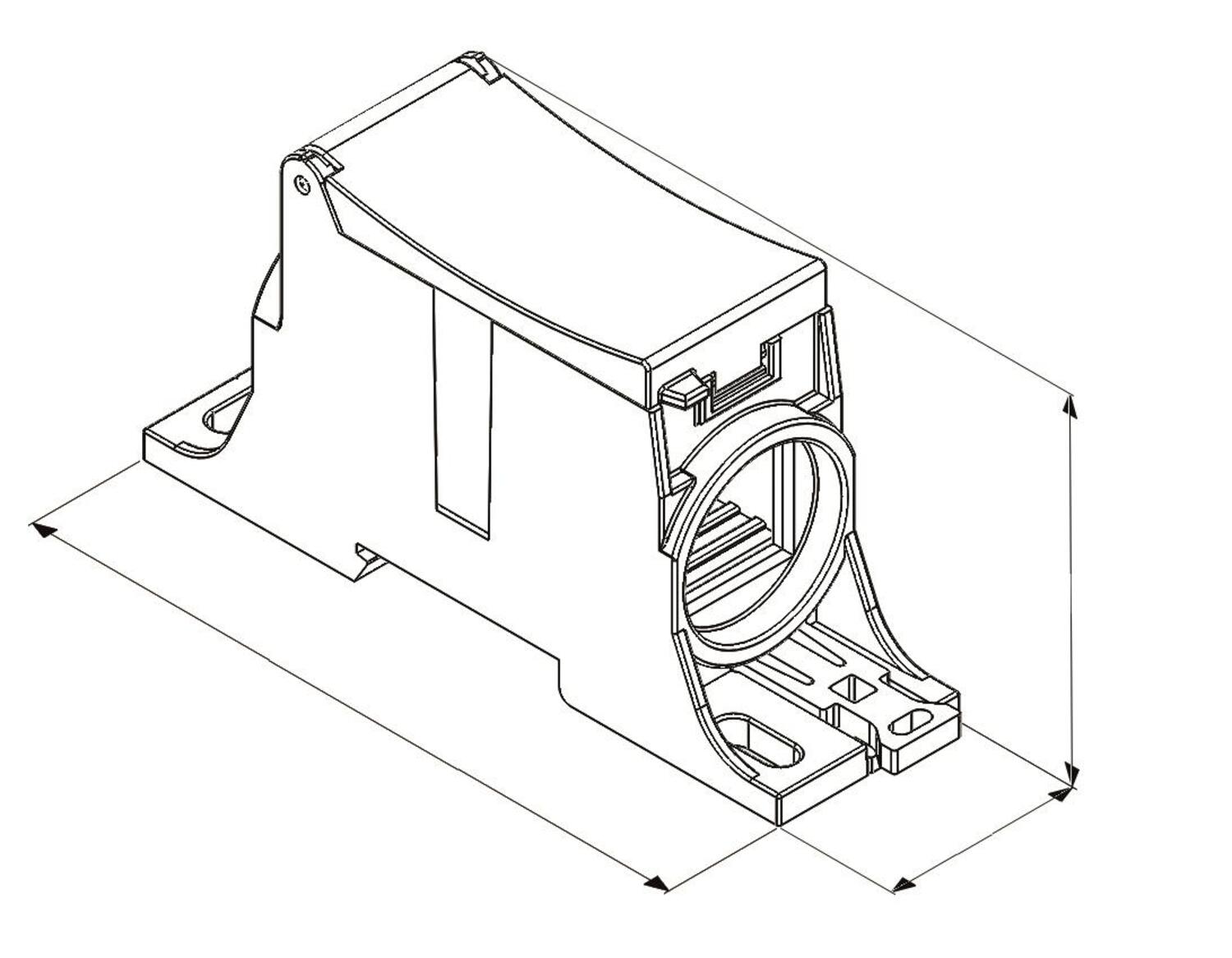

Dimensions |
|
Length (B) | 40 mm |
Height (A) | 75 mm |
Width (C) | 48 mm |
Additional Data |
|
Pack size | 1 |
Teknomegas new Power Terminal Block (PTB) range boasts an openable and removable frontal protection cover. The body structure has high dielectric features and has a milled clamp for input connections by indirect tightening.
Â
It has a highly reliable connection, with direct connections to COFLEX and COFLEX PLUS. There is also a possibility of connections with J-Link and J-Link Plus with the RPC adapter. It has an easy installation on DIN rails or on panels with screws.
Â
The new PTB range includes a self-extinguishing insulating body: PA 6 UL 94-V0 rated. The conduction block is tinned copper and suitable for aluminium and copper cable connections. The clamps are tined steel and AI alloy with the screws being tinned steel. It has an IP rating of IP20 and is compliant with standard EN 60947-7-1.
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | IP class | Nominal insulation voltage | Short-circuit current resistance IPK (peak value) | Short-circuit current resistance ICW over 1s | Connections | Number of inputs A | Input A: wire cross-section stranded, min. | Input A: wire cross-section stranded, max. | Input A: wire cross-section with wire-end ferrules, min. | Input A: wire cross-section with wire-end ferrules, max. | Number of inputs B | Input B: wire cross-section stranded, min. | Input B: wire cross-section stranded, max. | Input B: wire cross-section, stranded with wire-end ferrules, min. | Input B: wire cross-section stranded with wire-end ferrules, max. | Number of outputs A | Output A: wire cross-section stranded, min. | Output A: wire cross-section stranded, max. | Output A: wire cross-section stranded with wire-end ferrules, min. | Output A: wire cross-section stranded with wire-end ferrules, max. | Screw type | Length (B) | Height (A) | Width (C) | Pack size | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Art:
PTB6015
Copied
|
IP20
|
600 V
|
30 kA
|
4.4 kA
|
10
|
1
|
10 mm²
|
35 mm²
|
10 mm²
|
35 mm²
|
1
|
6 mm²
|
16 mm²
|
6 mm²
|
16 mm²
|
8
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
Galvanized steel screws
|
40 mm
|
75 mm
|
48 mm
|
1
|
| ||
![]()
Art:
PTB6020
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Art:
PTB6030
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
![]()
Art:
PTB6025
Copied
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select a variant in the list
