The SVB screw-type distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery.
Â
The SVB blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
Â
General Data |
|
---|---|
Rated current copper | 80 A |
Rated voltage V AC | 1000 V AC |
Rated voltage V DC | 1500 V DC |
Mounting | TS 35 and direct mount |
Approvals | UL, cUL, EAC |
Overvoltage category | III |
Rated impulse voltage | 2.5 kV |
Contamination degree | 3 |
Colour | Light grey |
Short-circuit current resistance IPK (peak value) | 2.7 kA |
Short-circuit current resistance ICW over 1s | 1.9 kA |
Connection Data |
|
Connections | 7 |
Number of inputs A | 1 |
Input A: rated cross-section | 16 mm² |
Input A: diameter | 7 mm |
Input A: wire cross-section rigid, min. | 2.5 mm² |
Input A: wire cross-section rigid, max. | 16 mm² |
Input A: wire cross-section stranded, min. | 2.5 mm² |
Input A: wire cross-section stranded, max. | 16 mm² |
Input A: wire cross-section with wire-end ferrules, min. | 2.5 mm² |
Input A: wire cross-section with wire-end ferrules, max. | 16 mm² |
Input A: stripping length | 12 mm |
Input A: screw thread | M 5 |
Input A: screw head | Slotted / Phillips |
Input A: torque, min. | 1.5 |
Input A: torque, max. | 3 |
Number of outputs A | 2 |
Output A: rated cross-section | 16 mm² |
Output A: diameter | 7 mm |
Output A: wire cross-section rigid, min. | 2.5 mm² |
Output A: wire cross-section rigid, max. | 16 mm² |
Output A: wire cross-section stranded, min. | 2.5 mm² |
Output A: wire cross-section stranded, max. | 16 mm² |
Output A: wire cross-section stranded with wire-end ferrules, min. | 2.5 mm² |
Output A: wire cross-section stranded with wire-end ferrules, max. | 16 mm² |
Output A: stripping length | 12 mm |
Output A: screw thread | M 5 |
Output A: screw head | Slotted / Phillips |
Output A: torque, min. | 1.5 |
*Invisible Heading* |
|
---|---|
Output A: torque, max. | 3 |
Number of outputs B | 4 |
Output B: rated cross-section | 6 mm² |
Output B: diameter | 4.5 mm |
Output B: wire cross-section rigid, min. | 2.5 mm² |
Output B: wire cross-section rigid, max. | 6 mm² |
Output B: wire cross-section stranded, min. | 2.5 mm² |
Output B: wire cross-section stranded, max. | 6 |
Output B: wire cross-section stranded with wire-end ferrules, min. | 2.5 mm² |
Output B: wire cross-section stranded with wire-end ferrules, max. | 6 mm² |
Output B: stripping length | 12 mm |
Output B: screw threading | M 4 |
Output B: screw head | Slotted / Phillips |
Output B: torque, min. | 0.8 |
Output B: torque, max. | 1.5 |
Dimensions |
|
Length | 66 mm |
Height | 47 mm |
Height TS 35/7.5 | 50 mm |
Width | 27 mm |
Materials |
|
Insulation material | Polyamide 6.6 |
Flammability class | UL94-V0 |
Operating temperature to | 120 °C |
Operating temperature from | -40 °C |
Approvals |
|
UL overvoltage protection - req. Series fuse class J | 80 A |
UL test standard | UL 1059 |
cUL test standard | C22.2 No 158 |
UL SCCR rating | 100 kA |
EAC test standard | TR ZU 004/2011 |
Req. series fuse class J | 80 A |
Rated current cUL | 80 A |
Rated voltage cUL | 600 V |
SCCR rating | 100 kV |
Rated voltage UL | 600 V |
Rated current UL | 80 A |
Additional Data |
|
Tariff code | 85369010 |
Country of origin | FR |
Weight | 61.4 g |
Pack size | 1 Â |
The SVB screw-type distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. You can use the distributor block to establish an electromechanical connection between a wire with a large cross-section and one or more wires with small cross-sections. They can be used in installation and distribution board construction and also in controller construction for machinery.
Â
The SVB blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Rated current copper | Rated voltage V AC | Rated voltage V DC | Approvals | Colour | Short-circuit current resistance IPK (peak value) | Short-circuit current resistance ICW over 1s | Additional information | Connections | Number of inputs A | Input A: rated cross-section | Input A: diameter | Input A: wire cross-section rigid, min. | Input A: wire cross-section rigid, max. | Input A: wire cross-section stranded, min. | Input A: wire cross-section stranded, max. | Input A: wire cross-section with wire-end ferrules, min. | Input A: wire cross-section with wire-end ferrules, max. | Input A: stripping length | Input A: screw thread | Input A: screw head | Input A: torque, min. | Input A: torque, max. | Number of inputs B | Input B: rated cross-section | Input B: diameter | Input B: wire cross-section rigid, min. | Input B: wire cross-section rigid, max. | Input B: wire cross-section stranded, min. | Input B: wire cross-section stranded, max. | Input B: wire cross-section, stranded with wire-end ferrules, min. | Input B: wire cross-section stranded with wire-end ferrules, max. | Input B: stripping length | Input B: screw thread | Input B: screw head | Input B: torque, min. | Input B: torque, max. | Number of inputs C | Input C: rated cross-section | Input C: diameter | Input C: wire cross-section rigid, min. | Input C: wire cross-section rigid, max. | Input C: wire cross-section stranded, min. | Input C: wire cross-section stranded, max. | Input C: wire cross-section, stranded with wire-end ferrules, min. | Input C: wire cross-section, stranded with wire-end ferrules, max. | Input C: stripping length | Input C: screw threading | Input C: screw head | Input C: torque, min. | Input C: torque, max. | Number of outputs A | Output A: rated cross-section | Output A: diameter | Output A: wire cross-section rigid, min. | Output A: wire cross-section rigid, max. | Output A: wire cross-section stranded, min. | Output A: wire cross-section stranded, max. | Output A: wire cross-section stranded with wire-end ferrules, min. | Output A: wire cross-section stranded with wire-end ferrules, max. | Output A: stripping length | Output A: screw thread | Output A: screw head | Output A: torque, min. | Output A: torque, max. | Number of outputs B | Output B: rated cross-section | Output B: diameter | Output B: wire cross-section rigid, min. | Output B: wire cross-section rigid, max. | Output B: wire cross-section stranded, min. | Output B: wire cross-section stranded, max. | Output B: wire cross-section stranded with wire-end ferrules, min. | Output B: wire cross-section stranded with wire-end ferrules, max. | Output B: stripping length | Output B: screw threading | Output B: screw head | Output B: torque, min. | Output B: torque, max. | Number of outputs C | Output C: rated cross-section | Output C: diameter | Output C: wire cross-section rigid, min. | Output C: wire cross-section rigid, max. | Output C: wire cross-section stranded, min. | Output C: wire cross-section stranded, max. | Output C: wire cross-section stranded with wire-end ferrules, min. | Output C: wire cross-section stranded with wire-end ferrules, max. | Output C: stripping length | Output C: screw thread | Output C: screw head | Output C: torque, min. | Output C: torque, max. | Special connections | Length | Height | Height TS 35/7.5 | Width | UL overvoltage protection - req. Series fuse class J | UL test standard | cUL test standard | UL SCCR rating | EAC test standard | Req. series fuse class J | Rated current cUL | Rated voltage cUL | SCCR rating | Rated voltage UL | Rated current UL | Country of origin | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

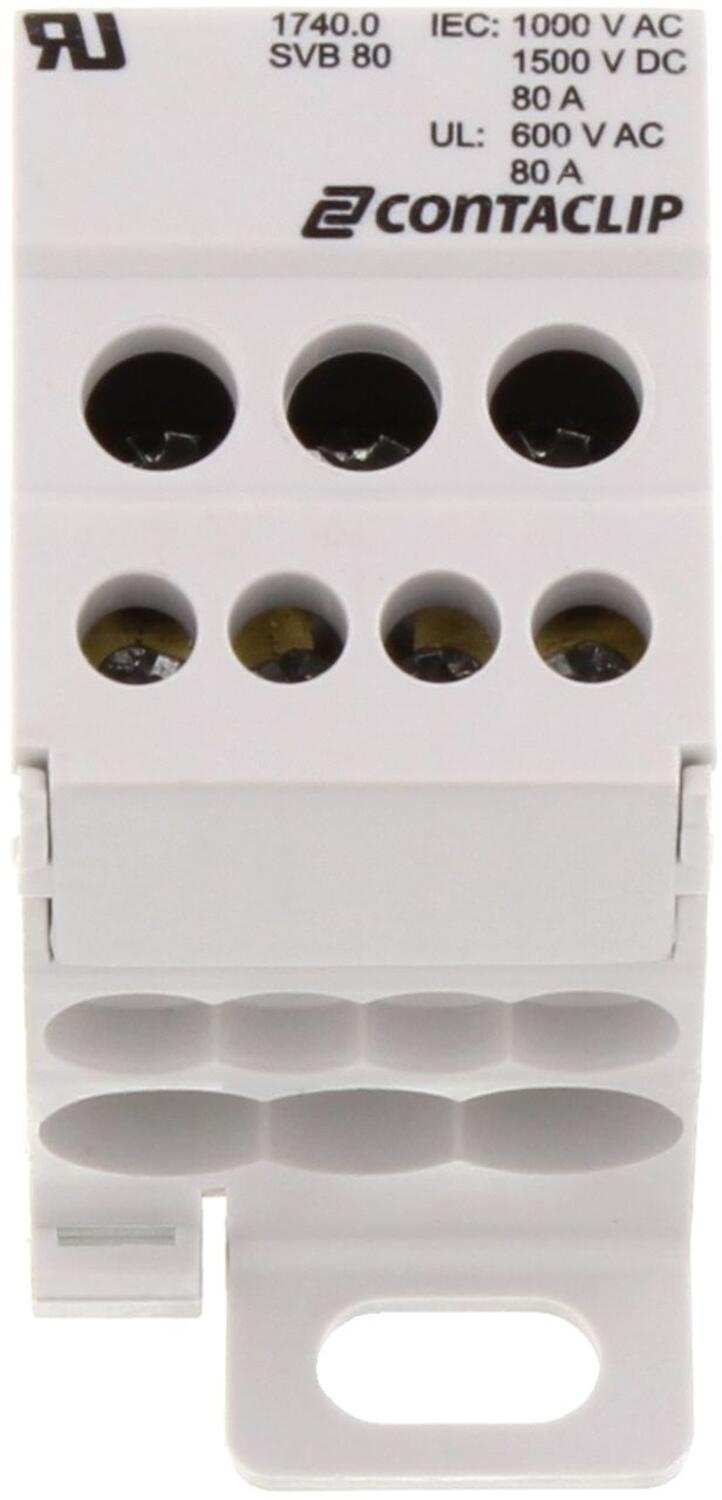

SVB 80, Distribution block 80A
Art:
1740.0
Copied
|
80 A
|
1000 V AC
|
1500 V DC
|
UL, cUL, EAC
|
Light grey
|
2.7 kA
|
1.9 kA
|
|
7
|
1
|
16 mm²
|
7 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2
|
16 mm²
|
7 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
4
|
6 mm²
|
4.5 mm
|
2.5 mm²
|
6 mm²
|
2.5 mm²
|
6
|
2.5 mm²
|
6 mm²
|
12 mm
|
M 4
|
Slotted / Phillips
|
0.8
|
1.5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
66 mm
|
47 mm
|
50 mm
|
27 mm
|
80 A
|
UL 1059
|
C22.2 No 158
|
100 kA
|
TR ZU 004/2011
|
80 A
|
80 A
|
600 V
|
100 kV
|
600 V
|
80 A
|
FR
|
61.4 g
|
| ||
![]()
SVB 80, Blue Distribution block 80A
Art:
1740.5
Copied
|
80 A
|
1000 V AC
|
1000 V DC
|
UL, cUL, EAC
|
Blue
|
2.7 kA
|
1.9 kA
|
lid printed blue
|
7
|
1
|
16 mm²
|
7 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2
|
16 mm²
|
7 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
4
|
6 mm²
|
4.5 mm
|
2.5 mm²
|
6 mm²
|
2.5 mm²
|
6
|
2.5 mm²
|
6 mm²
|
12 mm
|
M 4
|
Slotted / Phillips
|
0.8
|
1.5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
66 mm
|
47 mm
|
50 mm
|
27 mm
|
80 A
|
UL 1059
|
C22.2 No 158
|
100 kA
|
TR ZU 004/2011
|
80 A
|
80 A
|
600 V
|
100 kV
|
600 V
|
80 A
|
FR
|
61.4 g
|
| ||
![]()

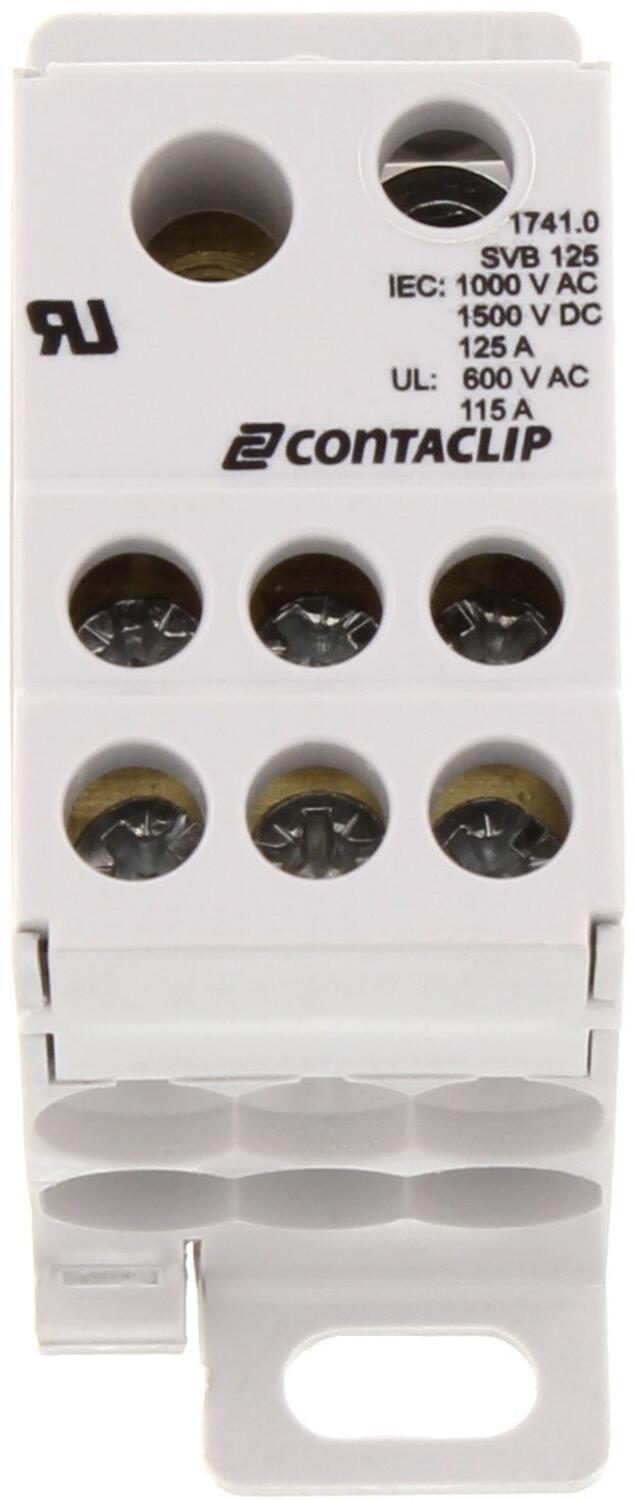

SVB 125, Distribution block 125A
Art:
1741.0
Copied
|
125 A
|
1000 V AC
|
1500 V DC
|
UL, cUL, EAC
|
Light grey
|
30 kA
|
4.2 kA
|
|
8
|
1
|
35 mm²
|
10 mm
|
10 mm²
|
35 mm²
|
10 mm²
|
35 mm²
|
10 mm²
|
35 mm²
|
16 mm
|
M 8
|
Allen key
|
3.5
|
5
|
1
|
16 mm²
|
7 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
15
|
M 6
|
Allen key
|
3.5
|
5
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
|
16 mm²
|
6.5 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 5
|
Slotted / Phillips
|
2
|
3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
75 mm
|
47 mm
|
50 mm
|
27 mm
|
125 A
|
UL 1059
|
C22.2 No 158
|
100 kA
|
TR ZU 004/2011
|
125 A
|
115 A
|
600 V
|
100 kV
|
600 V
|
115 A
|
FR
|
136.6 g
|
| ||
![]()

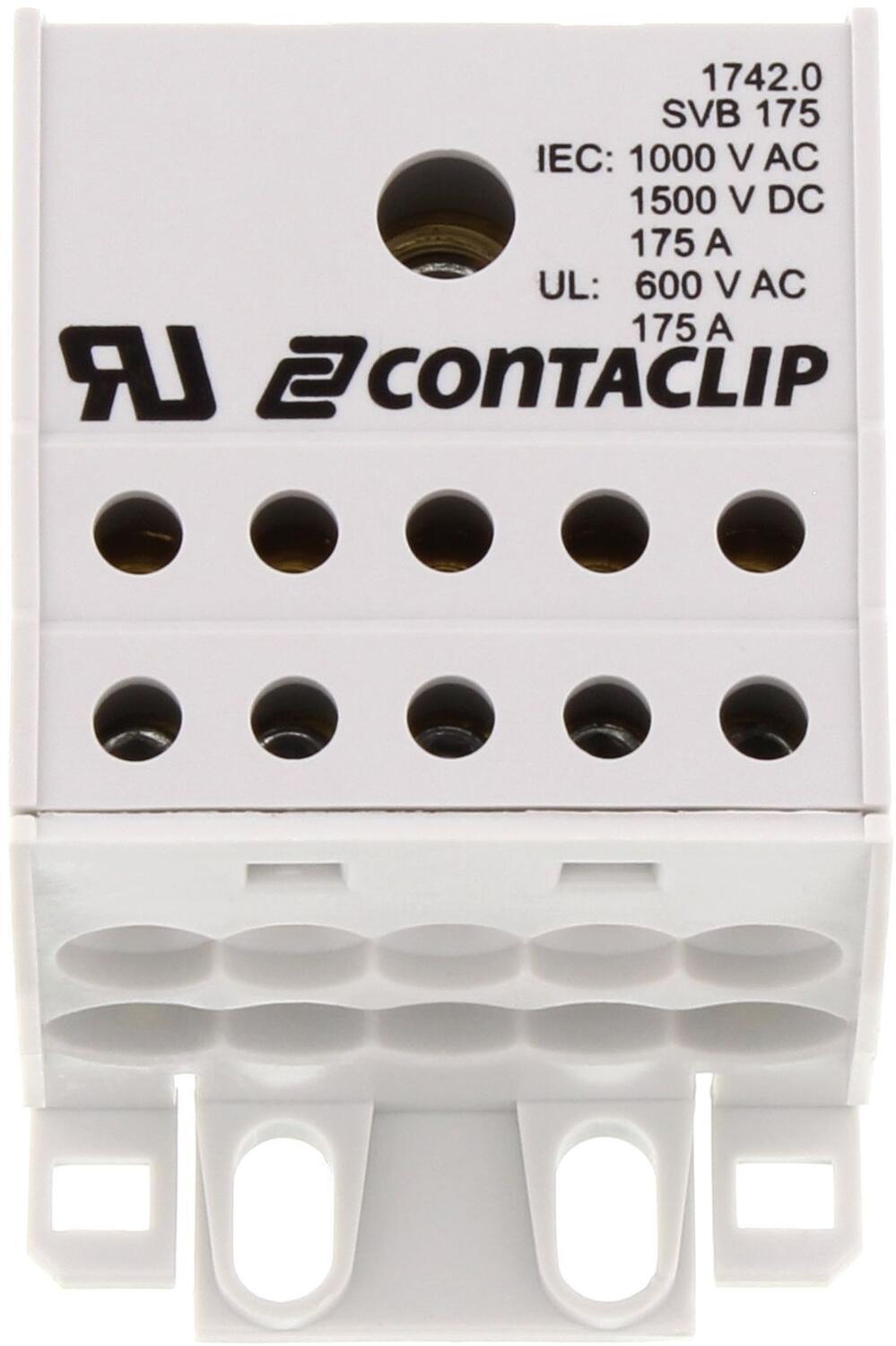

SVB 175, Distribution block 175A
Art:
1742.0
Copied
|
175 A
|
1000 V AC
|
1500 V DC
|
UL, cUL, EAC
|
Light grey
|
30 kA
|
11 kA
|
|
11
|
1
|
70 mm²
|
12 mm
|
16 mm²
|
70 mm²
|
16 mm²
|
70 mm²
|
16 mm²
|
70 mm²
|
16 mm
|
M 10
|
Allen key
|
6
|
10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10
|
16 mm²
|
6.5 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 6
|
Allen key
|
3
|
4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
71 mm
|
43 mm
|
46 mm
|
45 mm
|
|
UL 1059
|
C22.2 No 158
|
|
TR ZU 004/2011
|
125 A
|
175 A
|
600 V
|
100 kV
|
600 V
|
175 A
|
FR
|
221 g
|
| ||
![]()

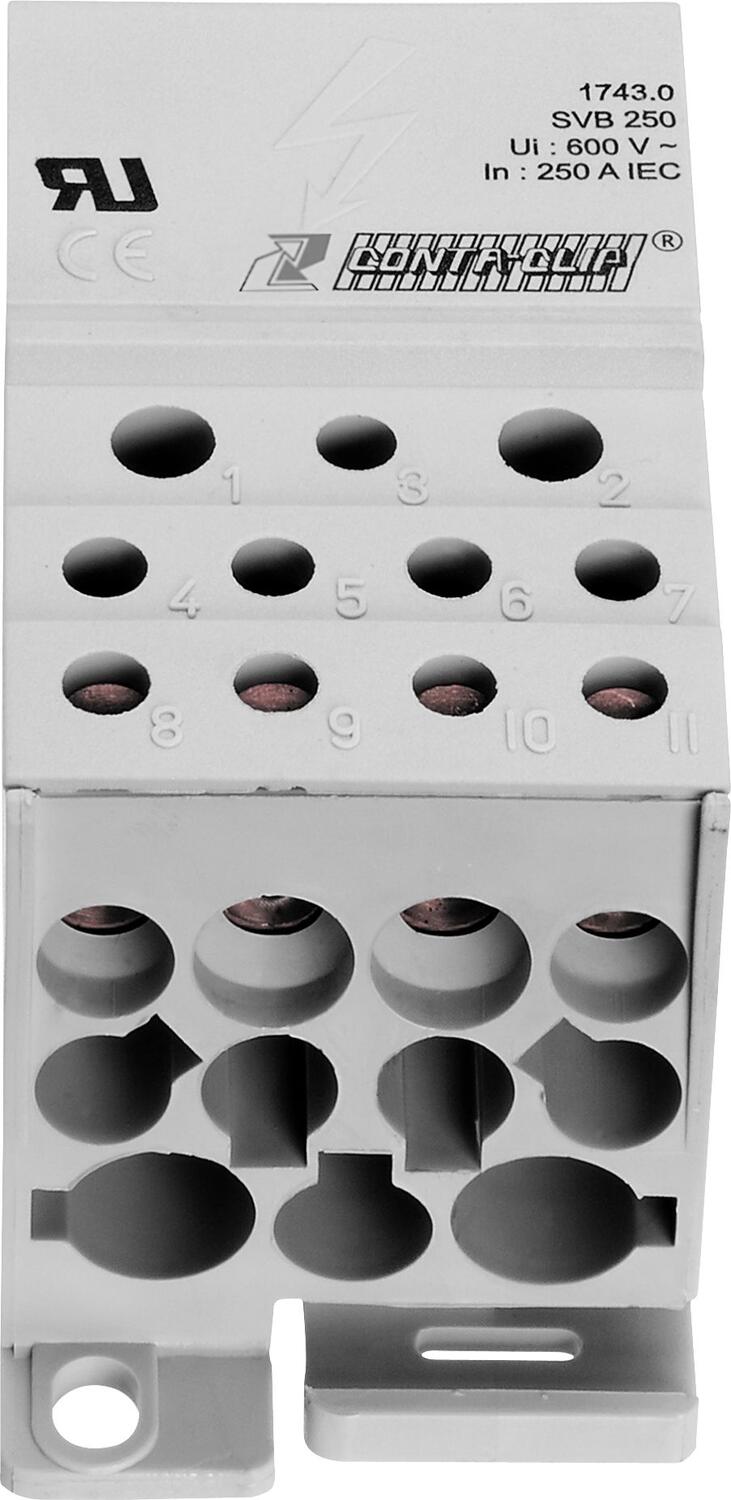

SVB 250, Distribution block 250A
Art:
1743.0
Copied
|
230 A
|
1000 V AC
|
1500 V DC
|
UL, EAC
|
Light grey
|
51 kA
|
24.5 kA
|
|
12
|
1
|
120 mm²
|
15 mm
|
35 mm²
|
120 mm²
|
35 mm²
|
95 mm²
|
35 mm²
|
95 mm²
|
29 mm
|
M 14
|
Allen key
|
19
|
21
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2
|
35 mm²
|
9 mm
|
6 mm²
|
35 mm²
|
6 mm²
|
25 mm²
|
6 mm²
|
25 mm²
|
12 mm
|
M 8
|
Slotted
|
3.5
|
7
|
5
|
16 mm²
|
6.5 mm
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
16
|
1.5 mm²
|
16 mm²
|
12 mm
|
M 6
|
Slotted
|
2
|
3
|
4
|
10 mm²
|
6 mm
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
12 mm
|
M 6
|
Slotted
|
2
|
3
|
|
96 mm
|
50 mm
|
53 mm
|
44 mm
|
250 A
|
UL 1059
|
|
100 kA
|
TR ZU 004/2011
|
250 A
|
|
|
100 kV
|
600 V
|
230 A
|
FR
|
435.2 g
|
| ||
![]()

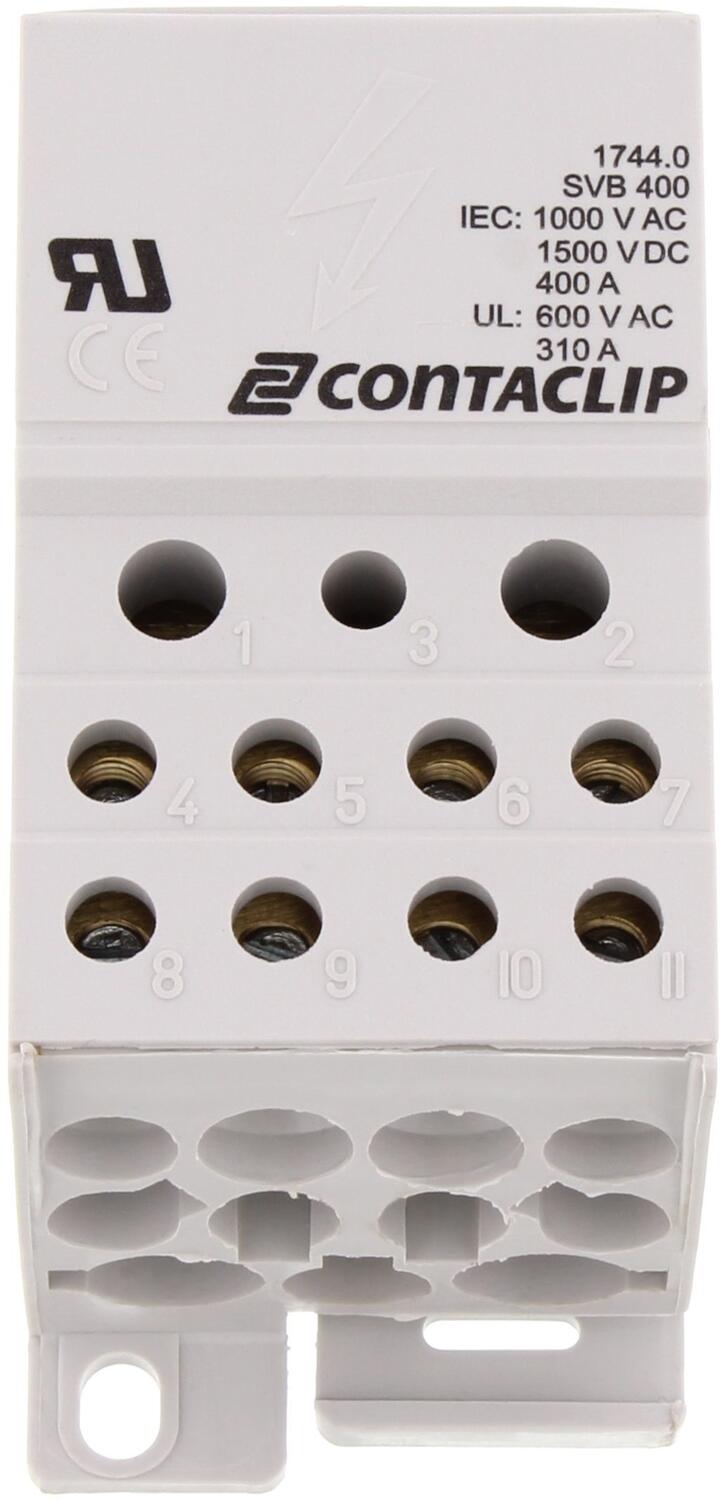

SVB 400, Distribution block 400A
Art:
1744.0
Copied
|
400 A
|
1000 V AC
|
1500 V DC
|
UL, EAC
|
Light grey
|
51 kA
|
21 kA
|
|
12
|
1
|
185 mm²
|
19 mm
|
95 mm²
|
185 mm²
|
95 mm²
|
150 mm²
|
95 mm²
|
150 mm²
|
29 mm
|
M 16
|
Allen key
|
25
|
27
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2
|
35 mm²
|
9 mm
|
6 mm²
|
35 mm²
|
6 mm²
|
25 mm²
|
6 mm²
|
25 mm²
|
12 mm
|
M 8
|
Slotted
|
3.5
|
7
|
5
|
16 mm²
|
6.5 mm
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
16
|
1.5 mm²
|
16 mm²
|
12 mm
|
M 6
|
Slotted
|
2
|
3
|
4
|
10 mm²
|
6 mm
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
12 mm
|
M 6
|
Slotted
|
2
|
3
|
|
96 mm
|
50 mm
|
53 mm
|
44 mm
|
350 A
|
UL 1059
|
|
100 kA
|
TR ZU 004/2011
|
350 A
|
|
|
100 kV
|
600 V
|
310 A
|
FR
|
405 g
|
| ||
![]()

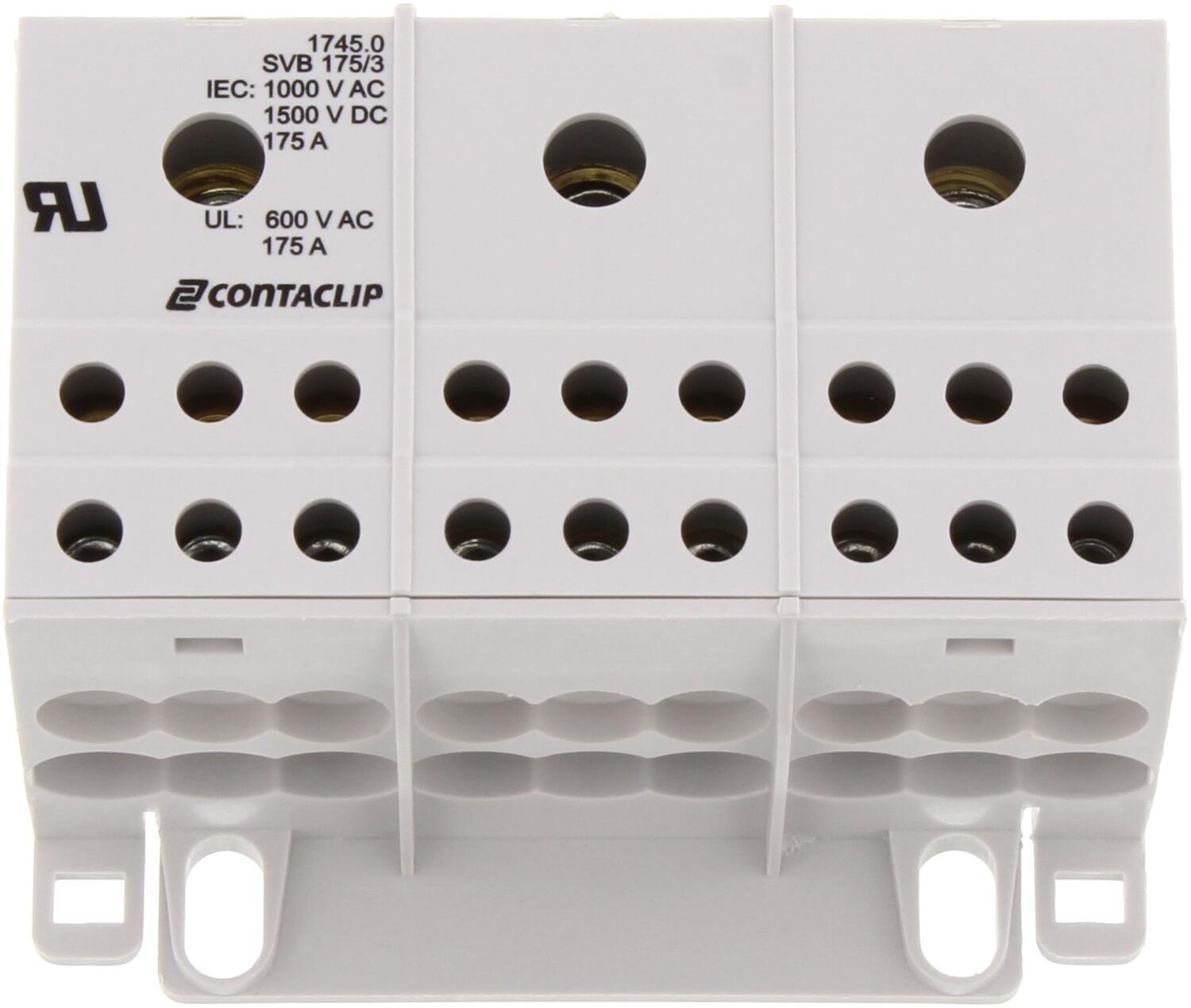

SVB 175/3, 3-Phase distribution block 250A
Art:
1745.0
Copied
|
160 A
|
1000 V AC
|
1500 V DC
|
UL, cUL, EAC
|
Light grey
|
30 kA
|
11 kA
|
|
3 x 7
|
3 x 1
|
70 mm²
|
12 mm
|
16 mm²
|
70 mm²
|
16 mm²
|
50 mm²
|
16 mm²
|
50 mm²
|
16 mm
|
M 10
|
Allen key
|
6
|
10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 x 6
|
16 mm²
|
6.5 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
10 mm²
|
2.5 mm²
|
10 mm²
|
12 mm
|
M 6
|
Allen key
|
3
|
4
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
71 mm
|
43 mm
|
46 mm
|
80 mm
|
|
UL 1059
|
C22.2 No 158
|
|
TR ZU 004/2011
|
175 A
|
175 A
|
600 V
|
100 kV
|
600 V
|
175 A
|
FR
|
389.4 g
|
| ||
![]()

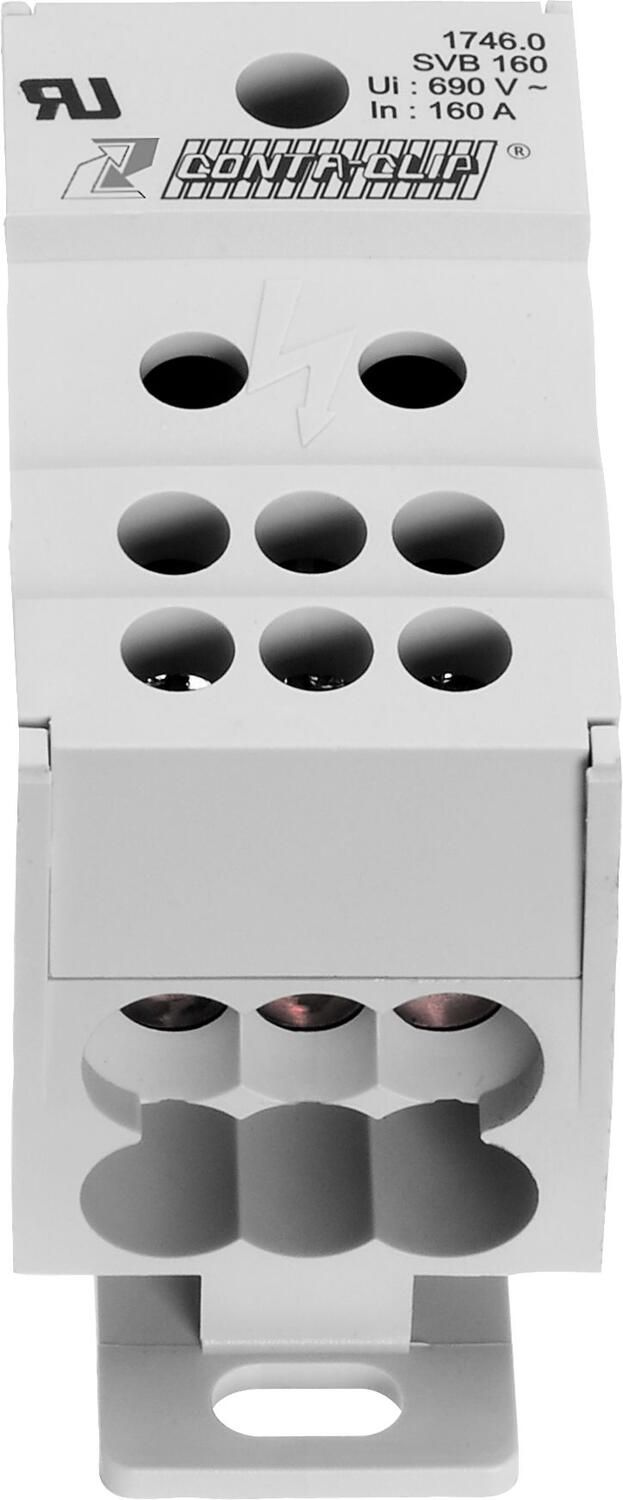

SVB 160, Distribution block 160A
Art:
1746.0
Copied
|
175 A
|
1000 V AC
|
1500 V DC
|
UL, cUL, EAC
|
Light grey
|
30 kA
|
11 kA
|
|
7
|
1
|
70 mm²
|
13 mm
|
10 mm²
|
70 mm²
|
10 mm²
|
70 mm²
|
10 mm²
|
70 mm²
|
18 mm
|
M 10
|
Allen key
|
5
|
6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6
|
16 mm²
|
7 mm
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
2.5 mm²
|
16 mm²
|
12 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Busbar 16 x 5mm
|
92 mm
|
50 mm
|
54 mm
|
35 mm
|
|
UL 1059
|
C22.2 No 158
|
|
TR ZU 004/2011
|
175 A
|
160 A
|
600 V
|
100 kV
|
600 V
|
160 A
|
FR
|
243.8 g
|
| ||
![]()

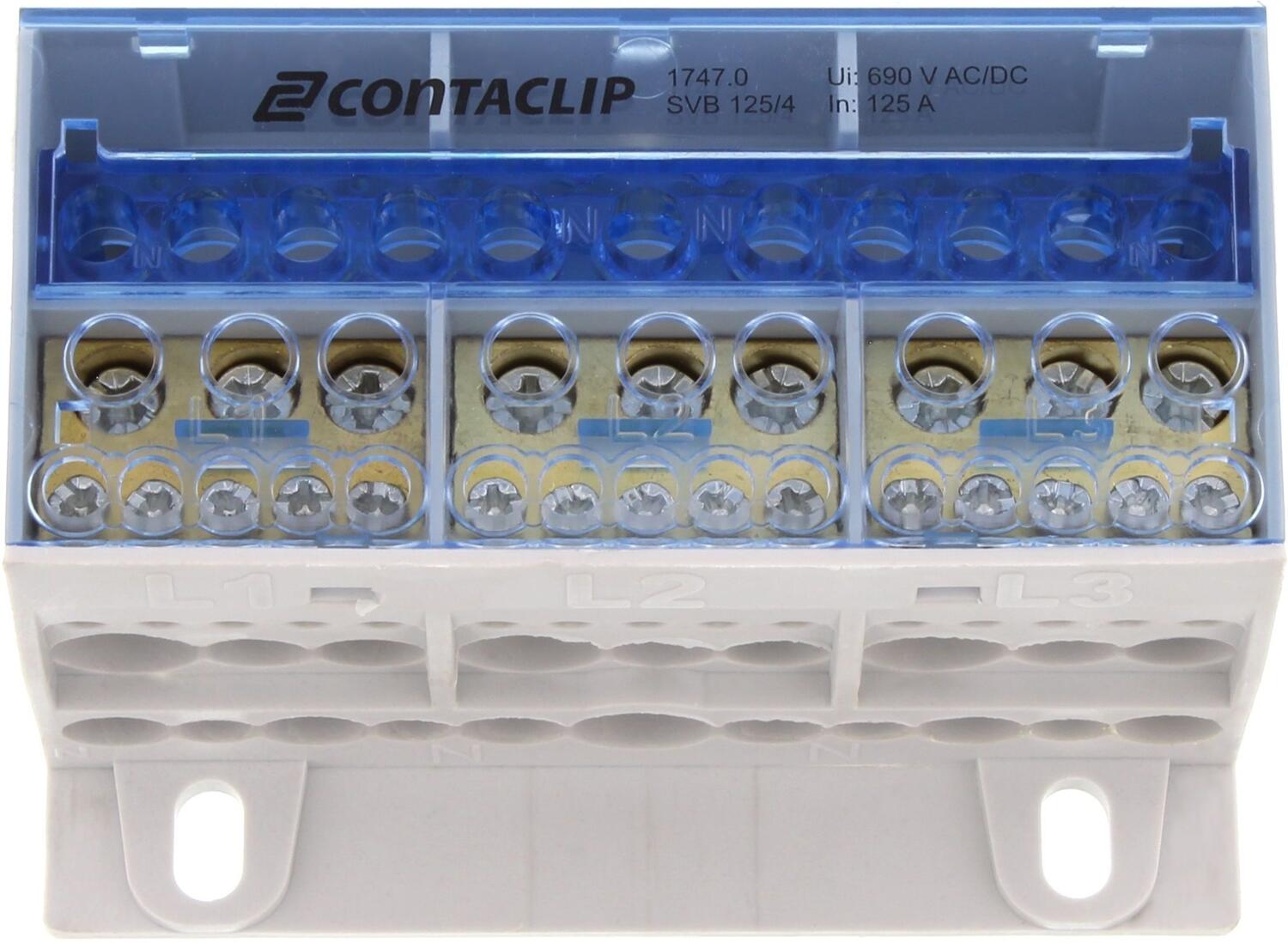

SVB 125/4, 3-Phase distribution block 125A
Art:
1747.0
Copied
|
160 A
|
690 V AC
|
690 V DC
|
|
Light grey
|
30 kA
|
11.8 kA
|
|
3 x 8
|
3 x 1
|
35 mm²
|
9 mm
|
6 mm²
|
35 mm²
|
6 mm²
|
25 mm²
|
6 mm²
|
25 mm²
|
18 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
3 x 5
|
6 mm²
|
5 mm
|
1.5 mm²
|
6 mm²
|
1.5 mm²
|
6 mm²
|
1.5 mm²
|
6 mm²
|
12
|
M 4
|
Slotted / Phillips
|
0.8
|
1.5
|
3 x 2
|
16 mm²
|
7 mm
|
4 mm²
|
16 mm²
|
4 mm²
|
10 mm²
|
4 mm²
|
10 mm²
|
18 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
1
|
35 mm²
|
9 mm
|
6 mm²
|
35 mm²
|
6 mm²
|
25 mm²
|
6 mm²
|
25 mm²
|
18 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
4
|
6 mm²
|
5 mm
|
1.5 mm²
|
6 mm²
|
1.5 mm²
|
6
|
1.5 mm²
|
6 mm²
|
12 mm
|
M 4
|
Slotted / Phillips
|
0.8
|
1.5
|
6
|
16 mm²
|
7 mm
|
4 mm²
|
16 mm²
|
4 mm²
|
10 mm²
|
4 mm²
|
10 mm²
|
18 mm
|
M 5
|
Slotted / Phillips
|
1.5
|
3
|
Neutral conductor busbar
|
74 mm
|
50 mm
|
53 mm
|
98 mm
|
|
|
|
|
|
|
|
|
|
|
|
EEC
|
315.4 g
|
|
