CONTA-CLIP

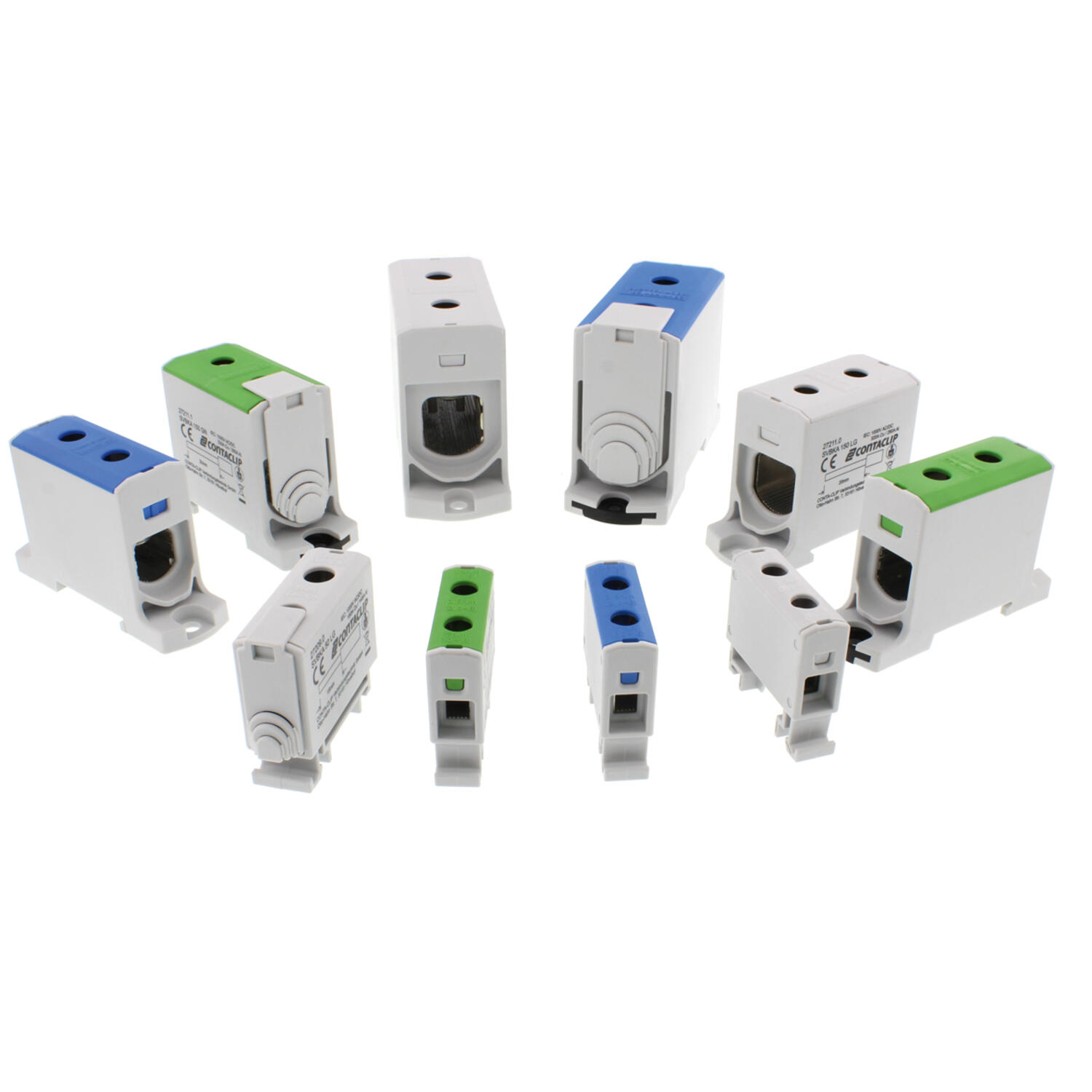

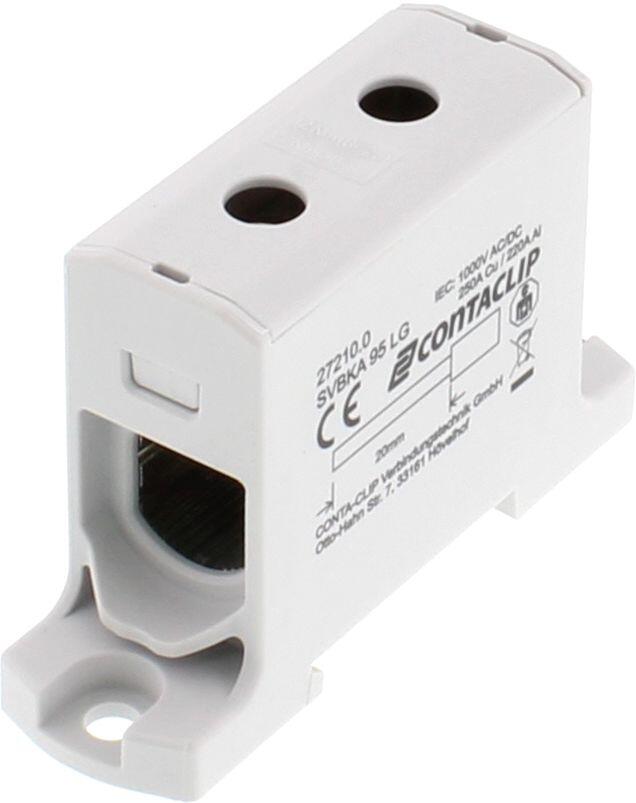

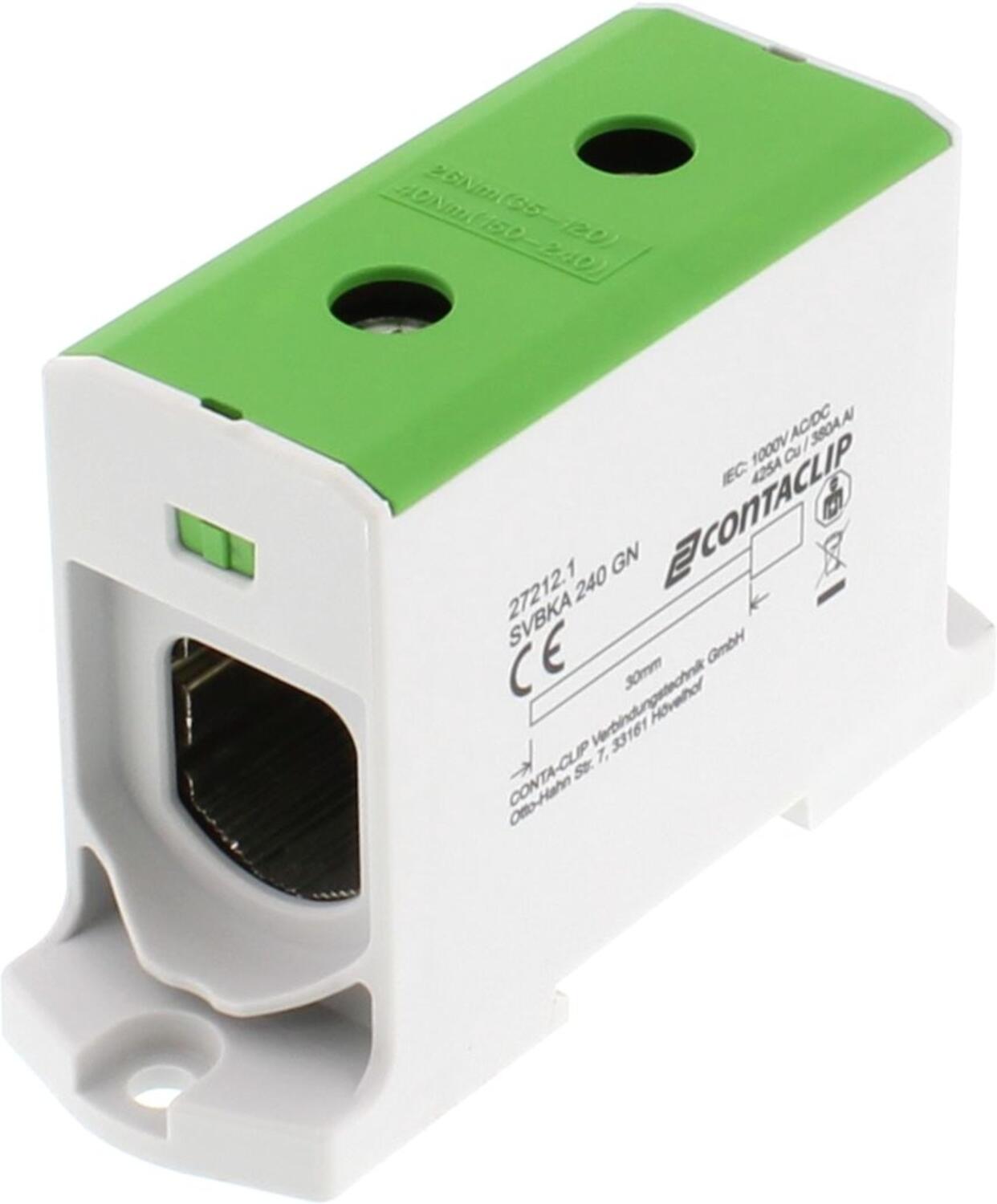

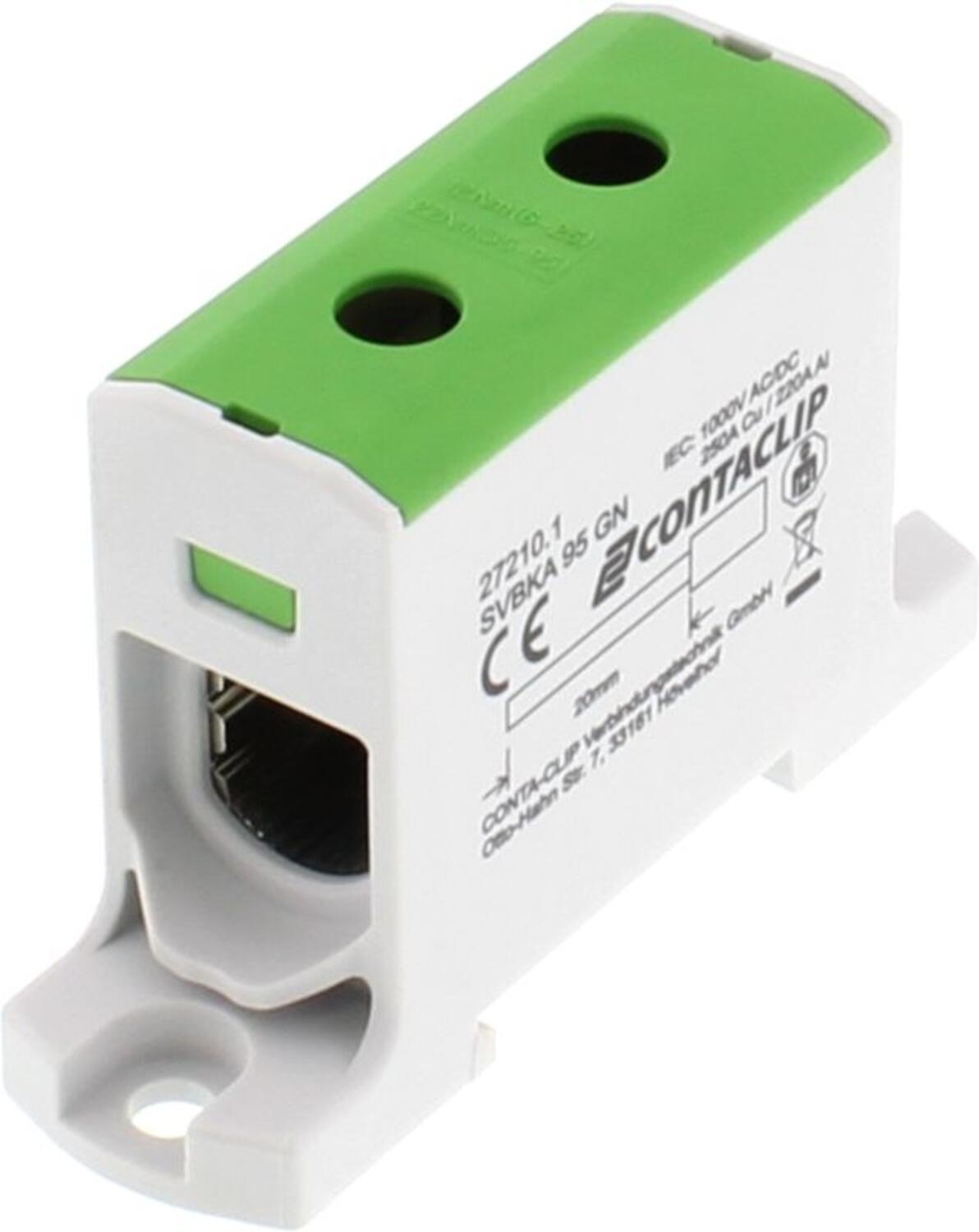

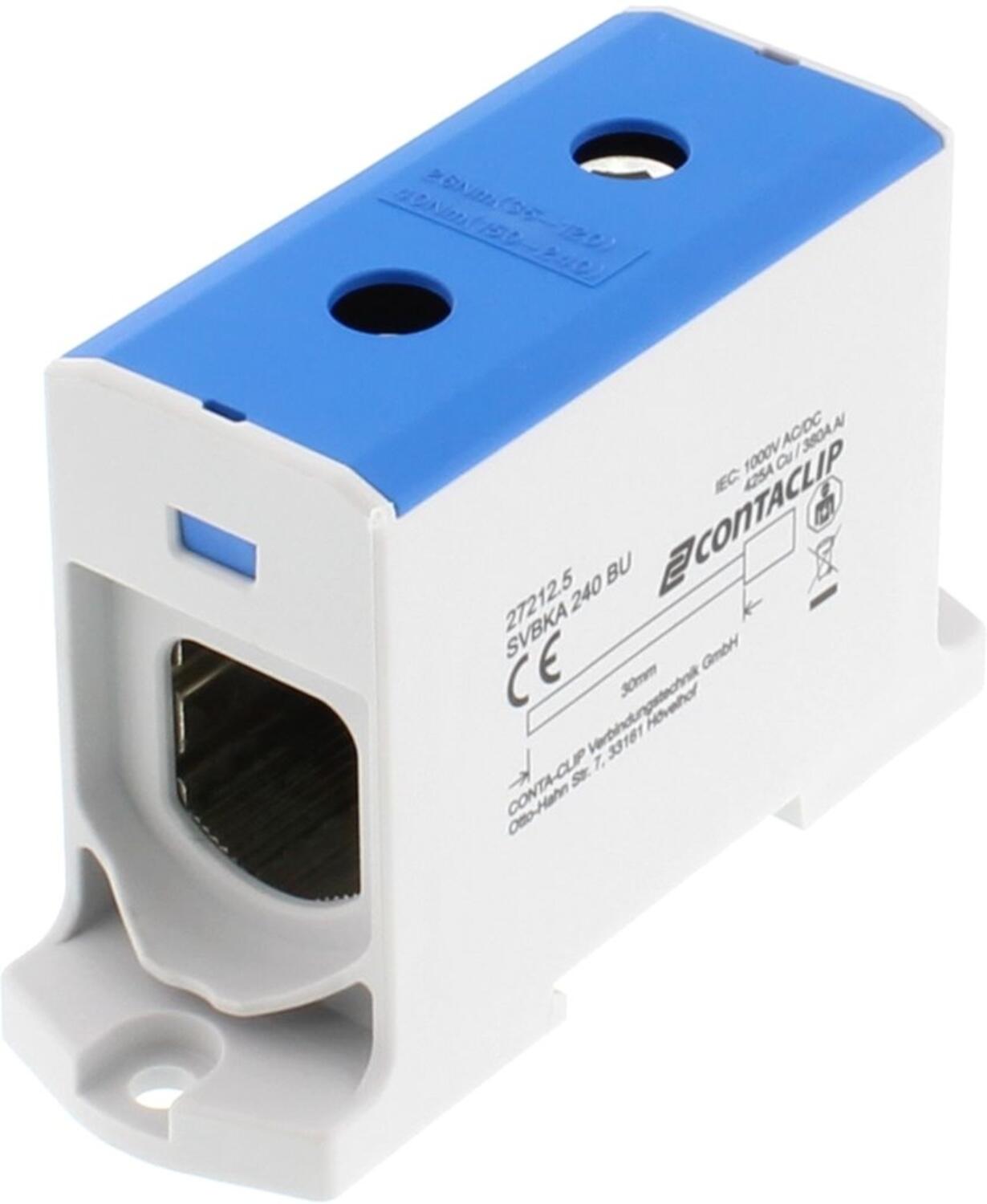

The SVBKA screw-distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. The SVBKA blocks can be used with aluminum and copper cables from 1.5 to 240 mm². They can be used in installation and distribution board construction and also in controller construction for machinery. The SVBKA blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
The SVBKA screw-distributor blocks guarantee IP20 protection, even when you are connecting larger conductor cross-sections. For smaller cable cross-sections, finger safety is ensured by the BS-SVBKA covers (available as accessory).
Â
General Data |
|
---|---|
Rated current copper | 82 A |
Rated current aluminium | 75 A |
Rated voltage V AC | 1000 V AC |
Rated voltage V DC | 1000 V DC |
Mounting | TS 35 and direct mount |
Overvoltage category | III |
Contamination degree | 3 |
Colour | Light grey |
IP class | IP20 |
Connection Data |
|
Connections | 2 |
Number of inputs A | 1 |
Input A: rated cross-section | 16 mm² |
Input A: wire cross-section rigid, min. | 1.5 mm² |
Input A: wire cross-section rigid, max. | 16 mm² |
Input A: wire cross-section stranded, min. | 1.5 mm² |
Input A: wire cross-section stranded, max. | 10 mm² |
Input A: wire cross-section with wire-end ferrules, min. | 1.5 mm² |
Input A: wire cross-section with wire-end ferrules, max. | 10 mm² |
Input A: stripping length | 13 mm |
Input A: screw head | Allen key |
Input A: torque, min. | 1.5 |
Input A: torque, max. | 7 |
Number of outputs A | 1 |
*Invisible Heading* |
|
---|---|
Output A: rated cross-section | 16 mm² |
Output A: wire cross-section rigid, min. | 1.5 mm² |
Output A: wire cross-section rigid, max. | 16 mm² |
Output A: wire cross-section stranded, min. | 1.5 mm² |
Output A: wire cross-section stranded, max. | 10 mm² |
Output A: wire cross-section stranded with wire-end ferrules, min. | 1.5 mm² |
Output A: wire cross-section stranded with wire-end ferrules, max. | 10 mm² |
Output A: stripping length | 13 mm |
Output A: screw head | Allen key |
Output A: torque, min. | 1.5 |
Output A: torque, max. | 7 |
Dimensions |
|
Length | 44.6 mm |
Height TS 35/7.5 | 42.5 mm |
Width | 13.5 mm |
Materials |
|
Insulation material | Polyamide 6.6 |
Flammability class | UL94-V0 |
Operating temperature to | 120 °C |
Operating temperature from | -40 °C |
Additional Data |
|
Tariff code | 85369010 |
Country of origin | EEC |
Weight | 15 g |
Pack size | 10 Â |
The SVBKA screw-distributor block makes it possible to distribute potential and power in a compact space without any additional accessories. The SVBKA blocks can be used with aluminum and copper cables from 1.5 to 240 mm². They can be used in installation and distribution board construction and also in controller construction for machinery. The SVBKA blocks are mounted by snapping them on to TS 35 DIN rails. They can also be attached directly to a mounting plate using the screw flange located on the side of the housing.
The SVBKA screw-distributor blocks guarantee IP20 protection, even when you are connecting larger conductor cross-sections. For smaller cable cross-sections, finger safety is ensured by the BS-SVBKA covers (available as accessory).
Â
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Rated current copper | Rated current aluminium | Colour | Input A: rated cross-section | Input A: wire cross-section rigid, min. | Input A: wire cross-section rigid, max. | Input A: wire cross-section stranded, min. | Input A: wire cross-section stranded, max. | Input A: wire cross-section with wire-end ferrules, min. | Input A: wire cross-section with wire-end ferrules, max. | Input A: stripping length | Input A: torque, min. | Input A: torque, max. | Output A: rated cross-section | Output A: wire cross-section rigid, min. | Output A: wire cross-section rigid, max. | Output A: wire cross-section stranded, min. | Output A: wire cross-section stranded, max. | Output A: wire cross-section stranded with wire-end ferrules, min. | Output A: wire cross-section stranded with wire-end ferrules, max. | Output A: stripping length | Output A: torque, min. | Output A: torque, max. | Length | Height | Height TS 35/7.5 | Width | Weight | Pack size | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

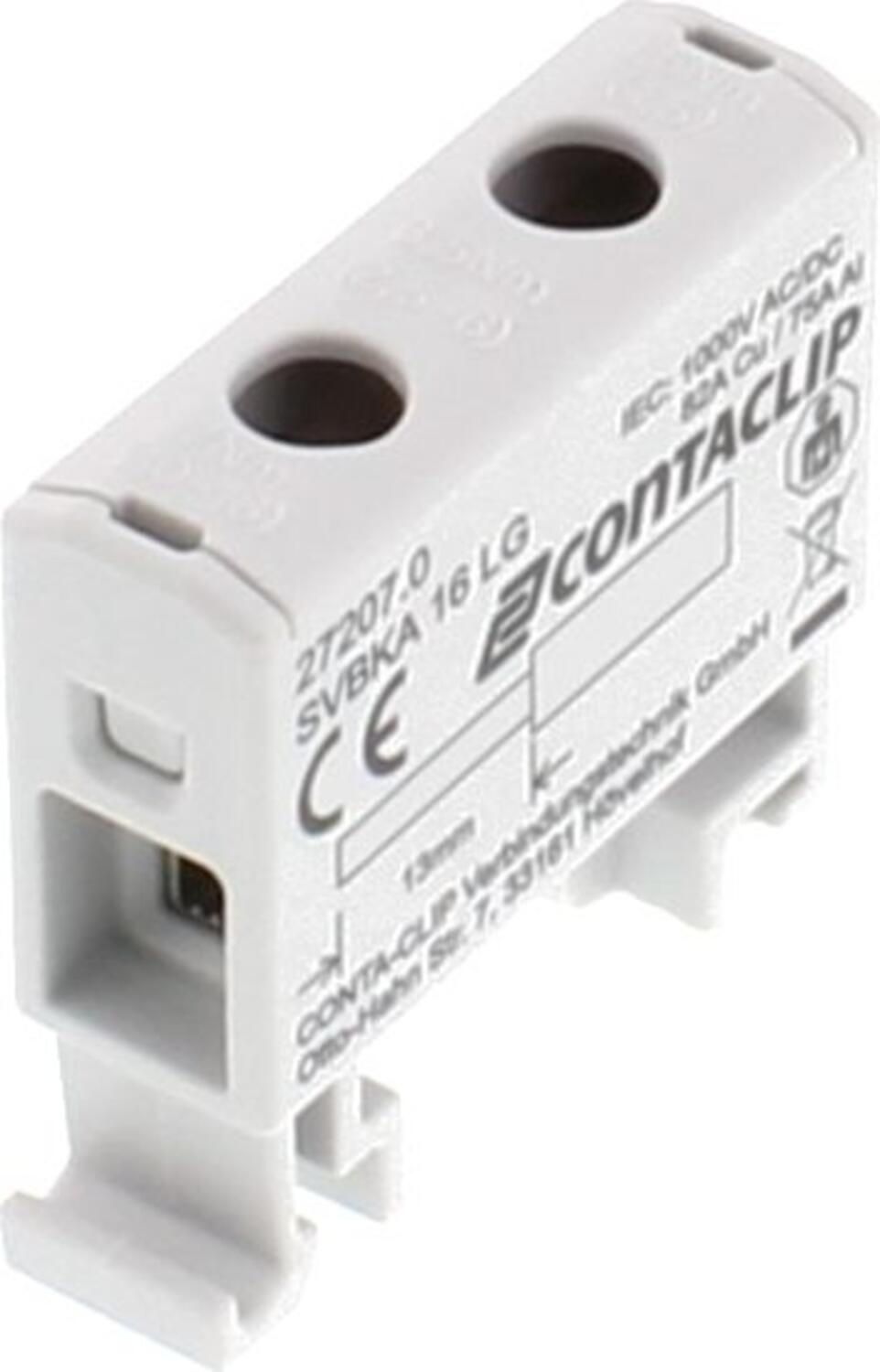

SVBKA 16 LG
Art:
27207.0
Copied
|
82 A
|
75 A
|
Light grey
|
16 mm²
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
13 mm
|
1.5
|
7
|
16 mm²
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
13 mm
|
1.5
|
7
|
44.6 mm
|
|
42.5 mm
|
13.5 mm
|
15 g
|
10
|
| ||
![]()

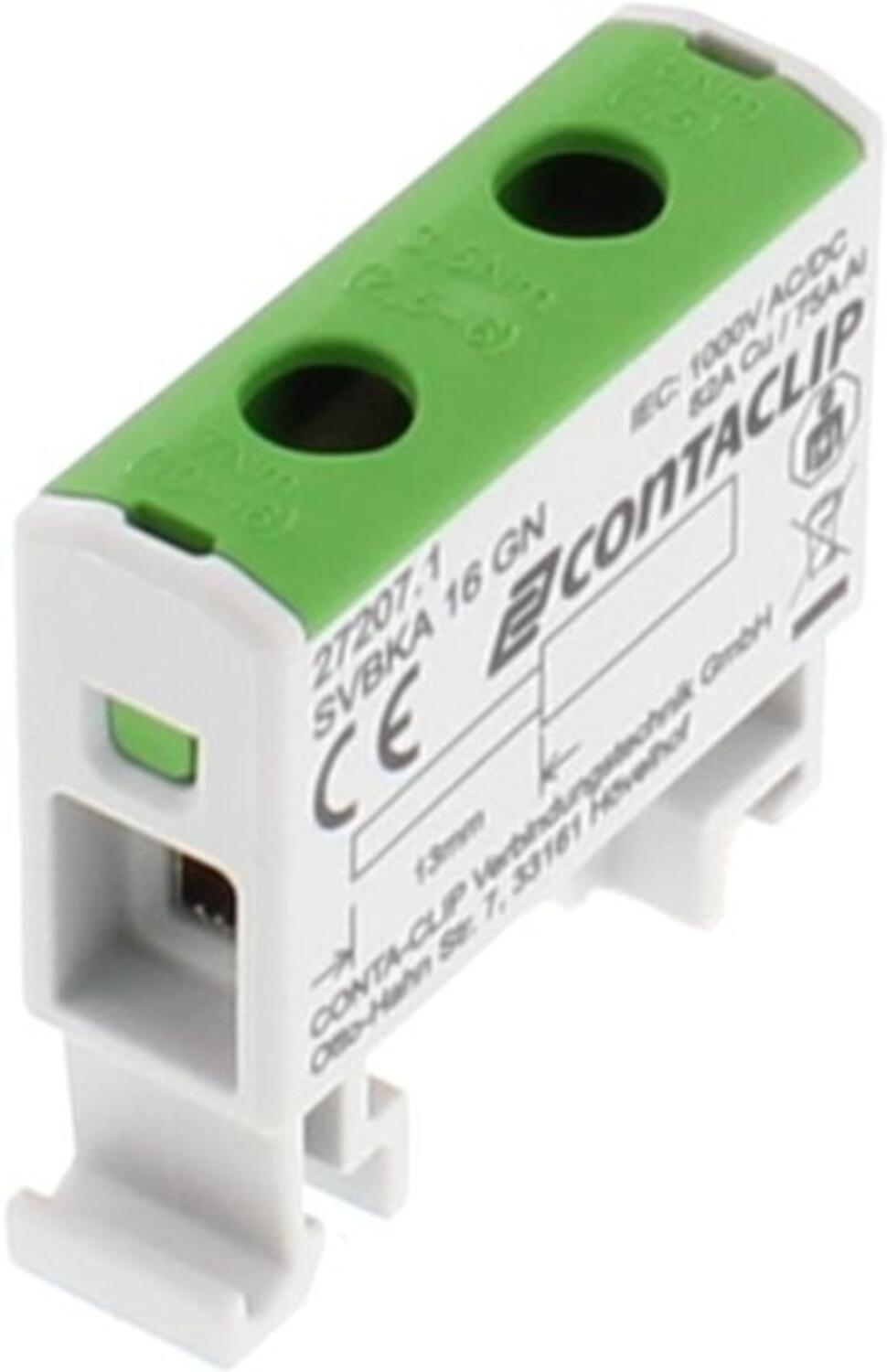

SVBKA 16 GN
Art:
27207.1
Copied
|
82 A
|
75 A
|
Green
|
16 mm²
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
13 mm
|
1.5
|
7
|
16 mm²
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
13 mm
|
1.5
|
7
|
44.6 mm
|
|
42.5 mm
|
13.5 mm
|
15 g
|
10
|
| ||
![]()

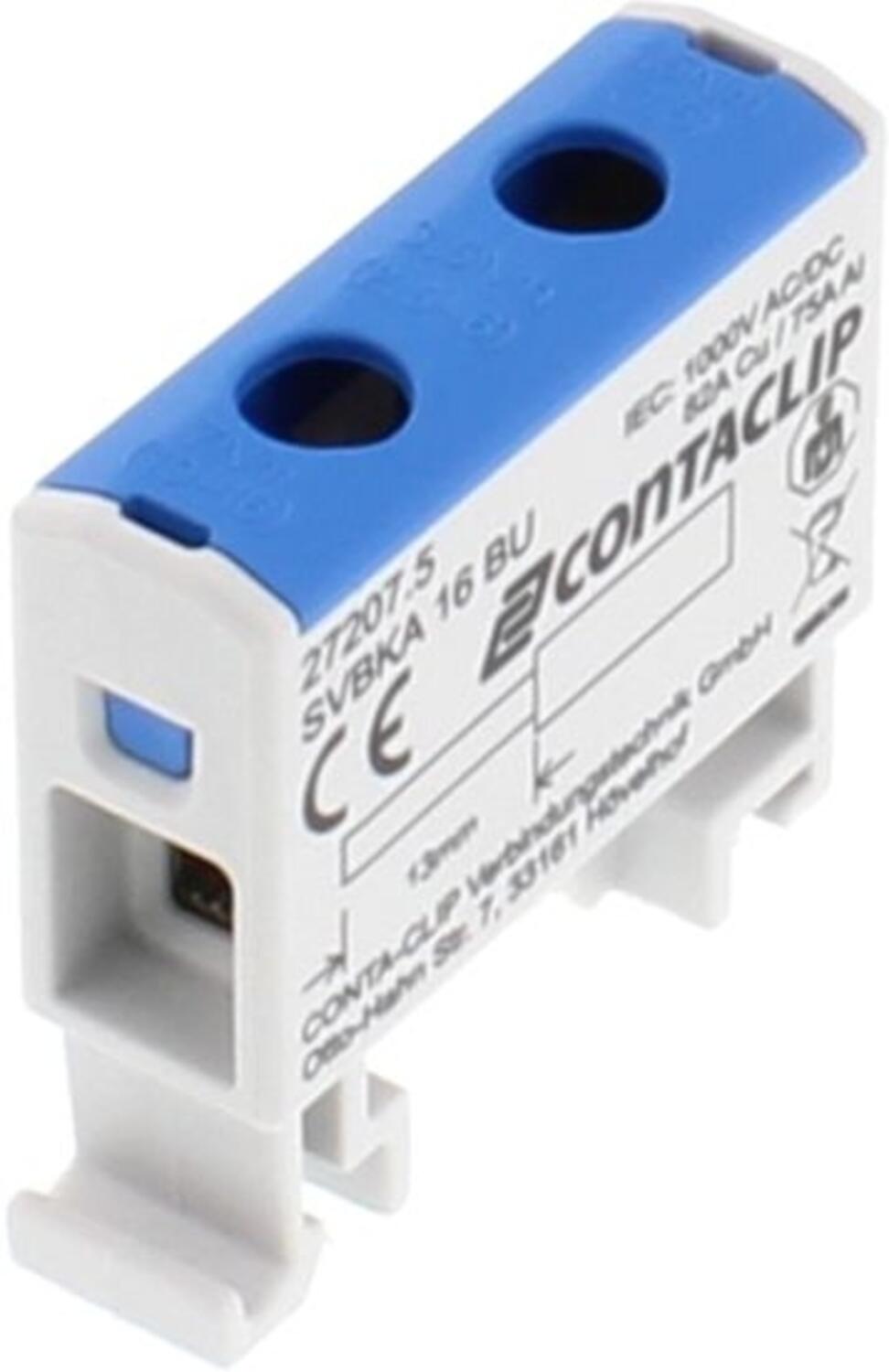

SVBKA 16 BU
Art:
27207.5
Copied
|
82 A
|
75 A
|
Blue
|
16 mm²
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
13 mm
|
1.5
|
7
|
16 mm²
|
1.5 mm²
|
16 mm²
|
1.5 mm²
|
10 mm²
|
1.5 mm²
|
10 mm²
|
13 mm
|
1.5
|
7
|
44.6 mm
|
|
42.5 mm
|
13.5 mm
|
15 g
|
10
|
| ||
![]()

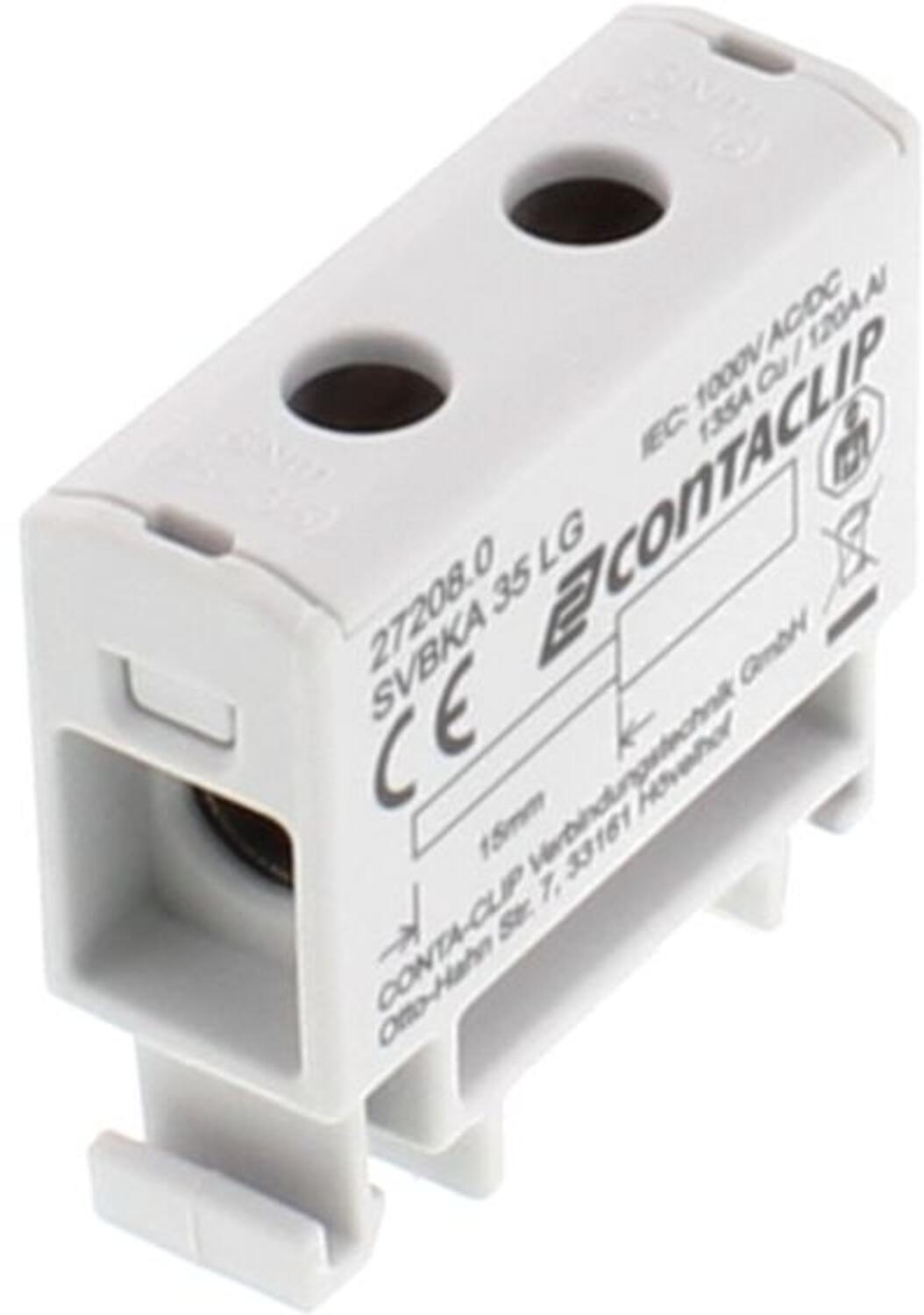

SVBKA 35 LG
Art:
27208.0
Copied
|
135 A
|
120 A
|
Light grey
|
35 mm²
|
2.5 mm²
|
35 mm²
|
2.5 mm²
|
25 mm²
|
2.5 mm²
|
25 mm²
|
15 mm
|
3
|
6
|
35 mm²
|
2.5 mm²
|
35 mm²
|
2.5 mm²
|
25 mm²
|
2.5 mm²
|
25 mm²
|
15 mm
|
3
|
6
|
46 mm
|
|
43 mm
|
16 mm
|
27 g
|
10
|
| ||
![]()

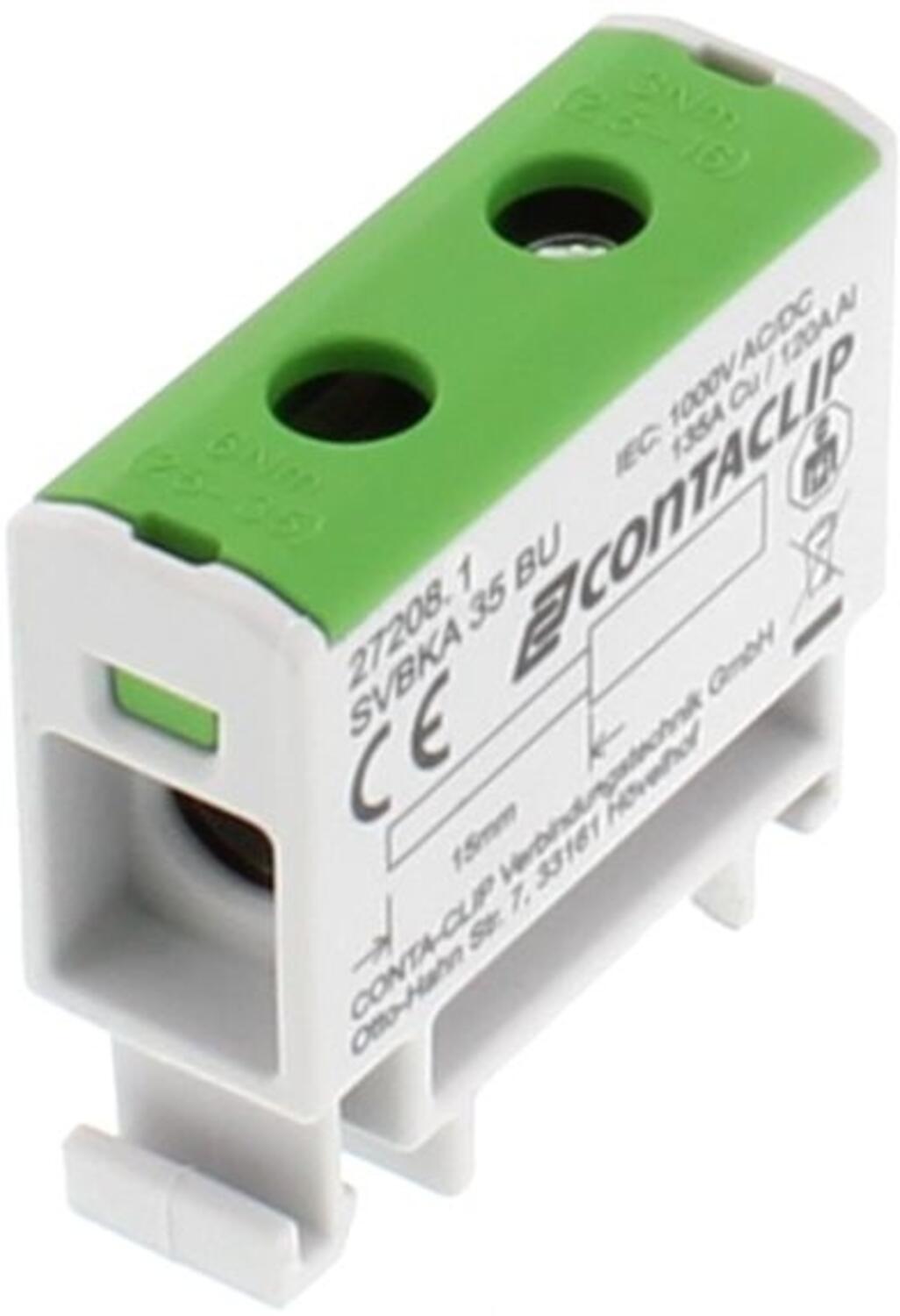

SVBKA 35 LG
Art:
27208.1
Copied
|
135 A
|
120 A
|
Green
|
35 mm²
|
2.5 mm²
|
35 mm²
|
2.5 mm²
|
25 mm²
|
2.5 mm²
|
25 mm²
|
15 mm
|
3
|
6
|
35 mm²
|
2.5 mm²
|
35 mm²
|
2.5 mm²
|
25 mm²
|
2.5 mm²
|
25 mm²
|
15 mm
|
3
|
6
|
46 mm
|
|
43 mm
|
16 mm
|
27 g
|
10
|
| ||
![]()

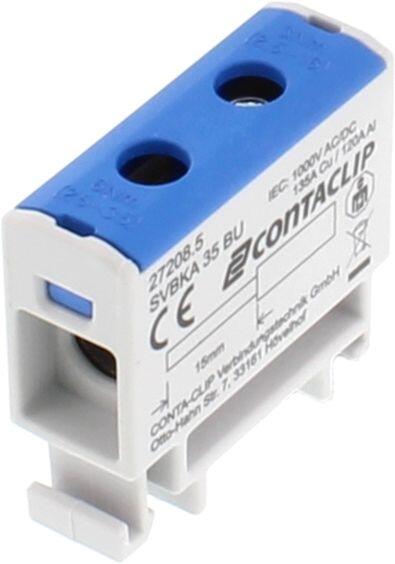

SVBKA 35 BU
Art:
27208.5
Copied
|
135 A
|
120 A
|
Blue
|
35 mm²
|
2.5 mm²
|
35 mm²
|
2.5 mm²
|
25 mm²
|
2.5 mm²
|
25 mm²
|
15 mm
|
3
|
6
|
35 mm²
|
2.5 mm²
|
35 mm²
|
2.5 mm²
|
25 mm²
|
2.5 mm²
|
25 mm²
|
15 mm
|
3
|
6
|
46 mm
|
|
43 mm
|
16 mm
|
27 g
|
10
|
| ||
![]()

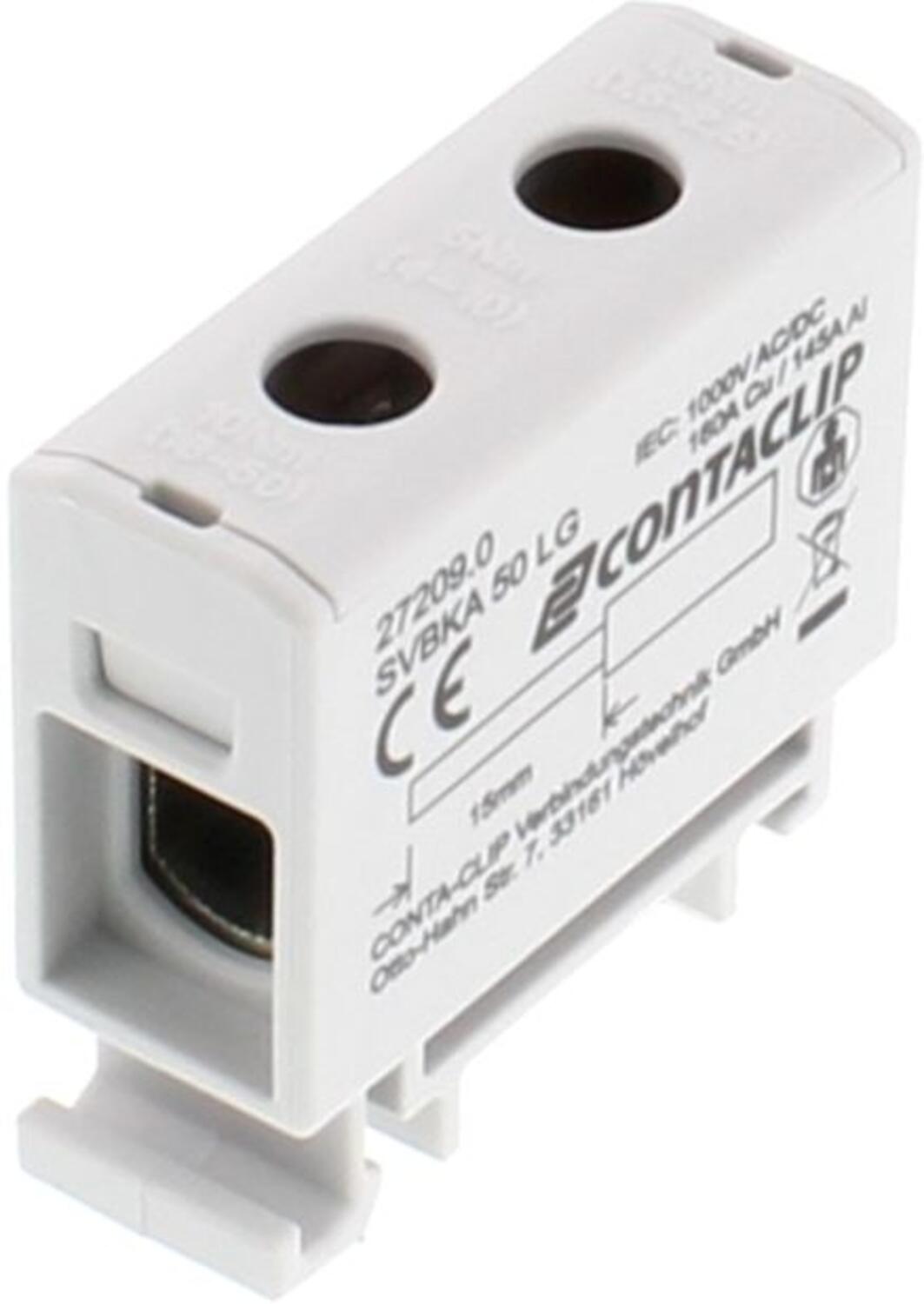

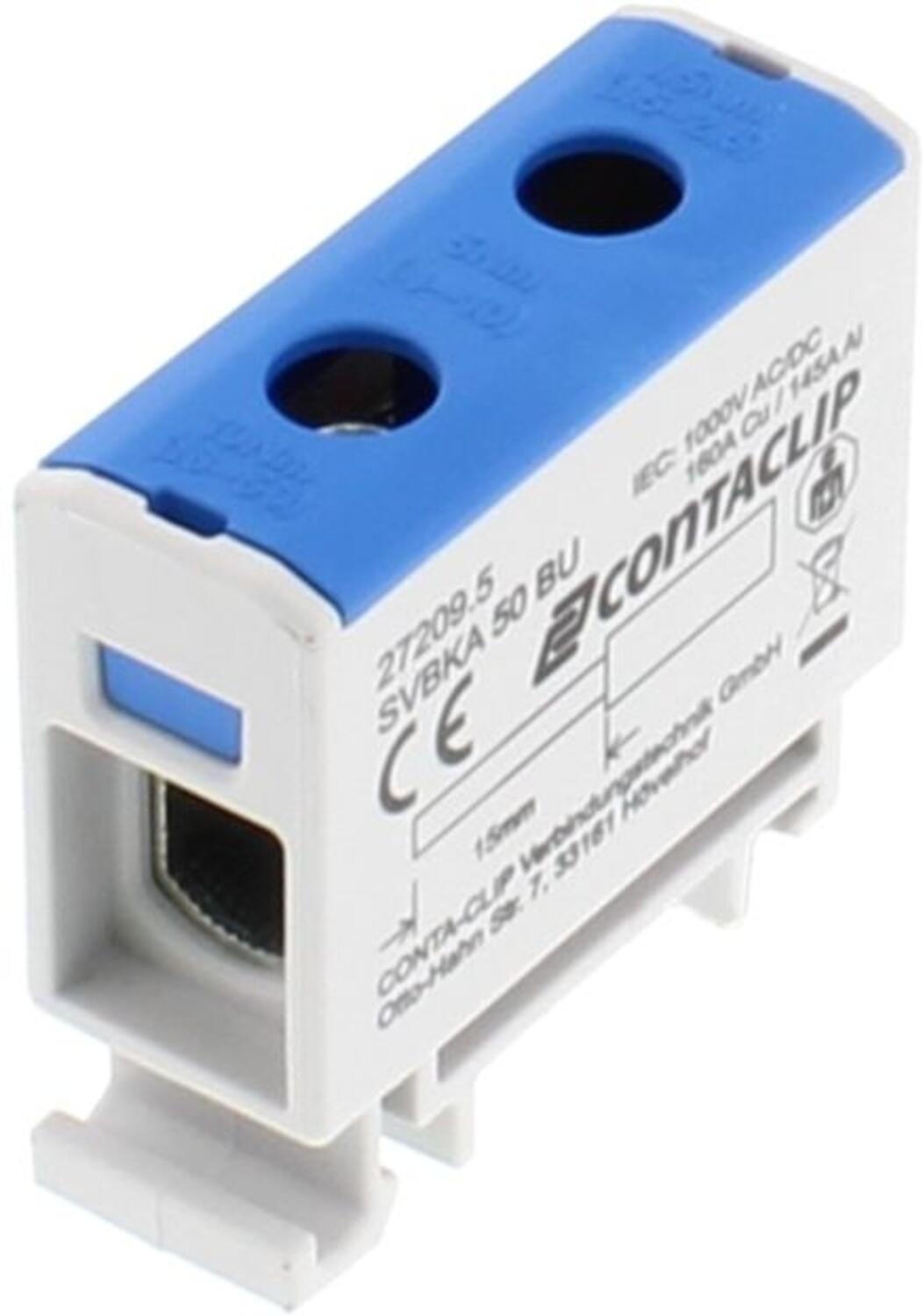

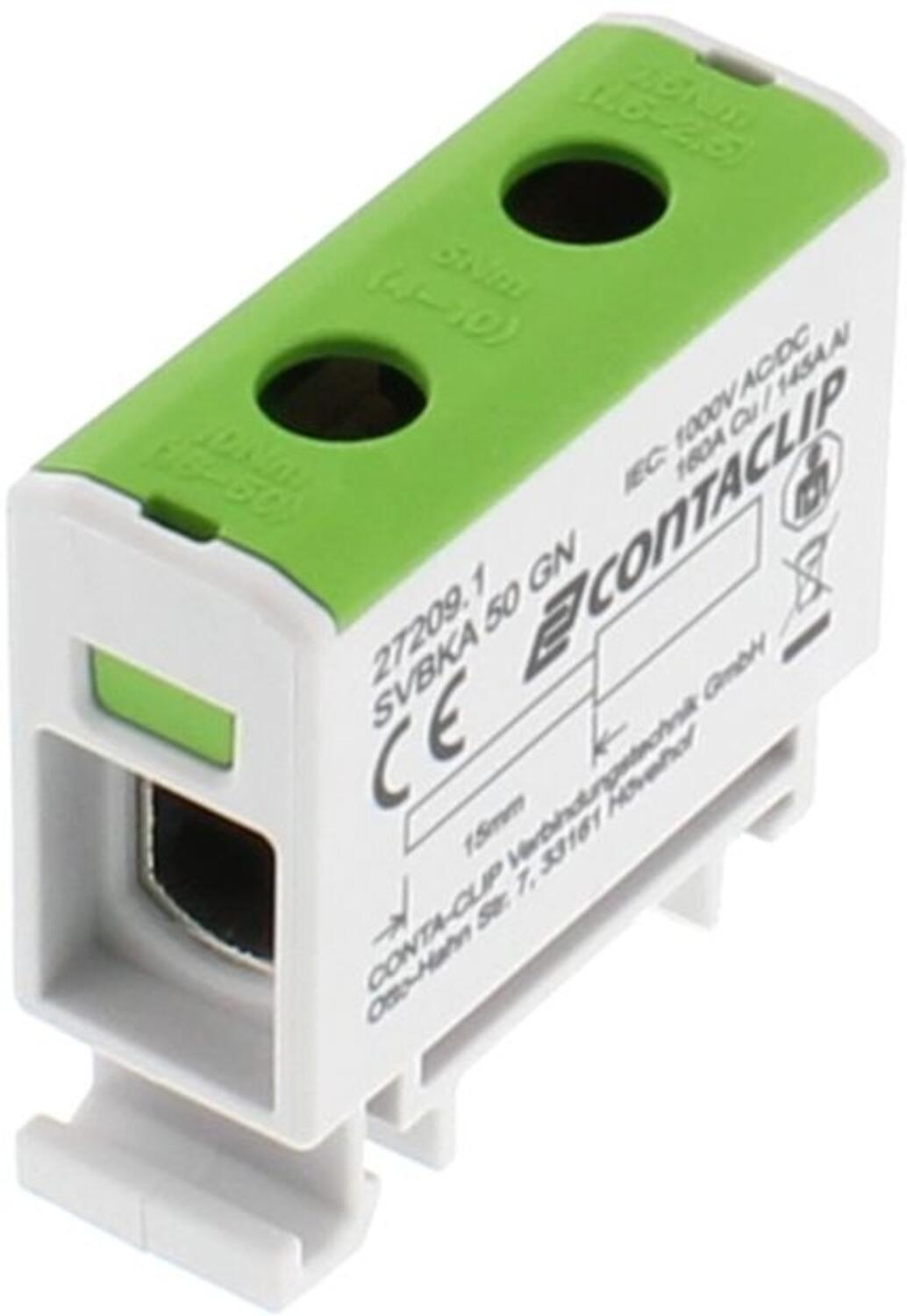

SVBKA 50 LG
