The 4 pole disttribution blocks are brass conductors which have galvanized steel screws included this enables insulation between phases.
Â
Each block has a front removable protection screen. Wtih self-extinguishing insulating structure :
Â
 UL 94-V0 approved
Â
Quick hook-up on DIN rails.
Â
Compliant with standards IEC 947-7-1.
Â
Advantages
General Data |
|
|---|---|
| Rated current | 160 A |
| IP class | IP20 |
| Nominal insulation voltage | 600 V |
| Short-circuit current resistance IPK (peak value) | 22 kA |
| Short-circuit current resistance ICW over 1s | 9 kA |
Connection Data |
|
| Connections | 12 |
| Number of inputs A | 1 |
| Input A: diameter | 11.5 mm |
| Input A: wire cross-section stranded, min. | 10 mm² |
| Input A: wire cross-section stranded, max. | 50 mm² |
| Input A: wire cross-section with wire-end ferrules, min. | 10 mm² |
| Input A: wire cross-section with wire-end ferrules, max. | 50 mm² |
| Input A: torque, min. | 8 |
| Input A: torque, max. | 10 |
| Number of outputs A | 3 |
| Output A: diameter | 8.5 mm |
| Output A: wire cross-section stranded, min. | 10 mm² |
| Output A: wire cross-section stranded, max. | 35 mm² |
| Output A: wire cross-section stranded with wire-end ferrules, min. | 10 mm² |
*Invisible Heading* |
|
|---|---|
| Output A: wire cross-section stranded with wire-end ferrules, max. | 25 mm² |
| Output A: torque, min. | 2 |
| Output A: torque, max. | 3 |
| Number of outputs B | 8 |
| Output B: diameter | 7 mm |
| Output B: wire cross-section stranded, min. | 2.5 mm² |
| 3139_Output B: wire cross-section stranded, max. (mm²) | 16 |
| Output B: wire cross-section stranded with wire-end ferrules, min. | 1.5 mm² |
| Output B: wire cross-section stranded with wire-end ferrules, max. | 16 mm² |
| Output B: torque, min. | 2 |
| Output B: torque, max. | 3 |
| Screw type | Galvanized steel screws |

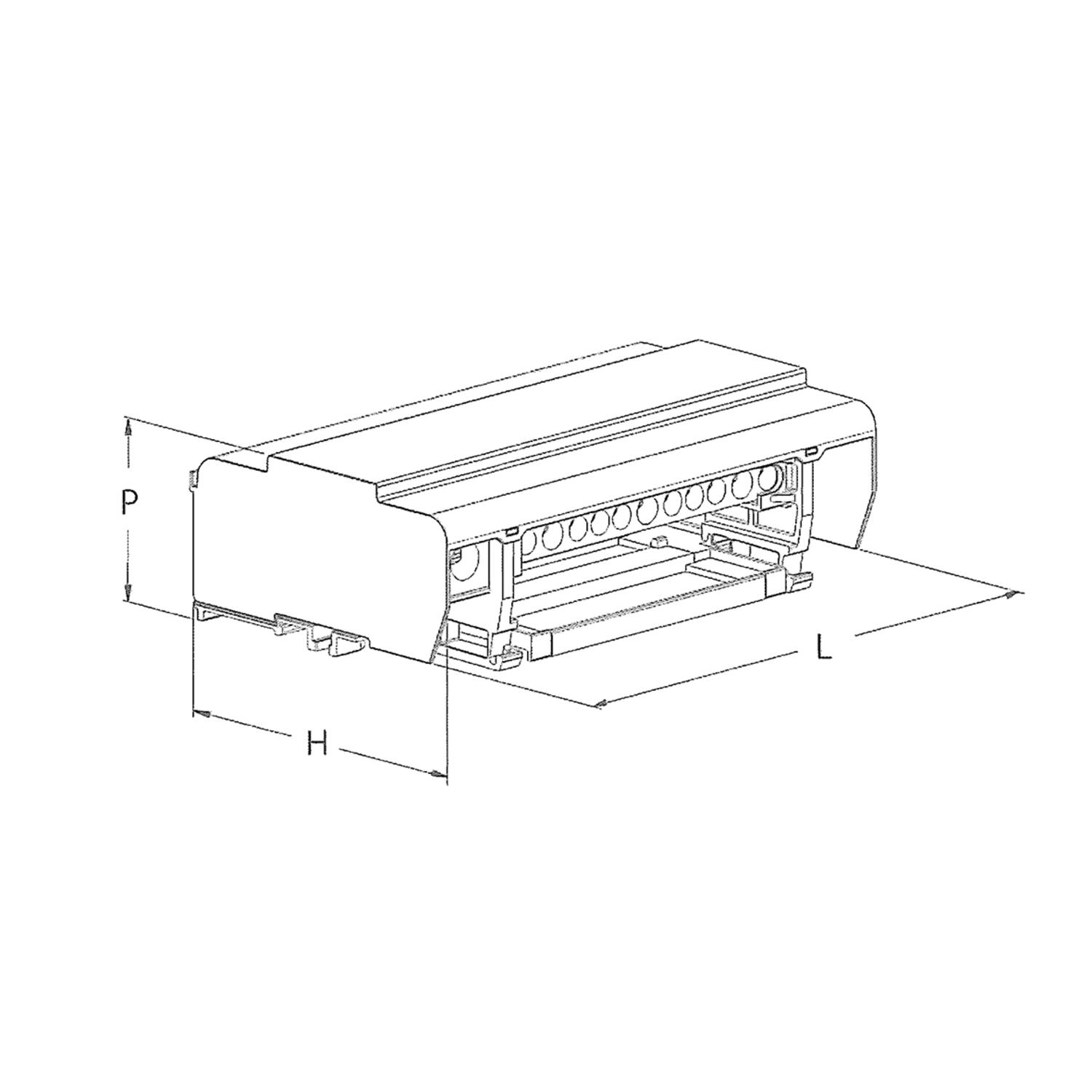

Dimensions |
|
| Fix. Hole space | 150 mm |
| Length (L) | 168 mm |
| Height (H) | 85 mm |
| Width (P) | 70 mm |
Additional Data |
|
| Pack size | 1 |
The 4 pole disttribution blocks are brass conductors which have galvanized steel screws included this enables insulation between phases.
Â
Each block has a front removable protection screen. Wtih self-extinguishing insulating structure :
Â
 UL 94-V0 approved
Â
Quick hook-up on DIN rails.
Â
Compliant with standards IEC 947-7-1.
Â
Advantages
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connections | Number of inputs A | Input A: diameter | Input A: wire cross-section stranded, min. | Input A: wire cross-section stranded, max. | Input A: wire cross-section with wire-end ferrules, min. | Input A: wire cross-section with wire-end ferrules, max. | Input A: torque, min. | Input A: torque, max. | Number of outputs A | Output A: wire cross-section stranded with wire-end ferrules, max. | Number of outputs B | Fix. Hole space | Length (L) | Height (H) | Width (P) | Width (I) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

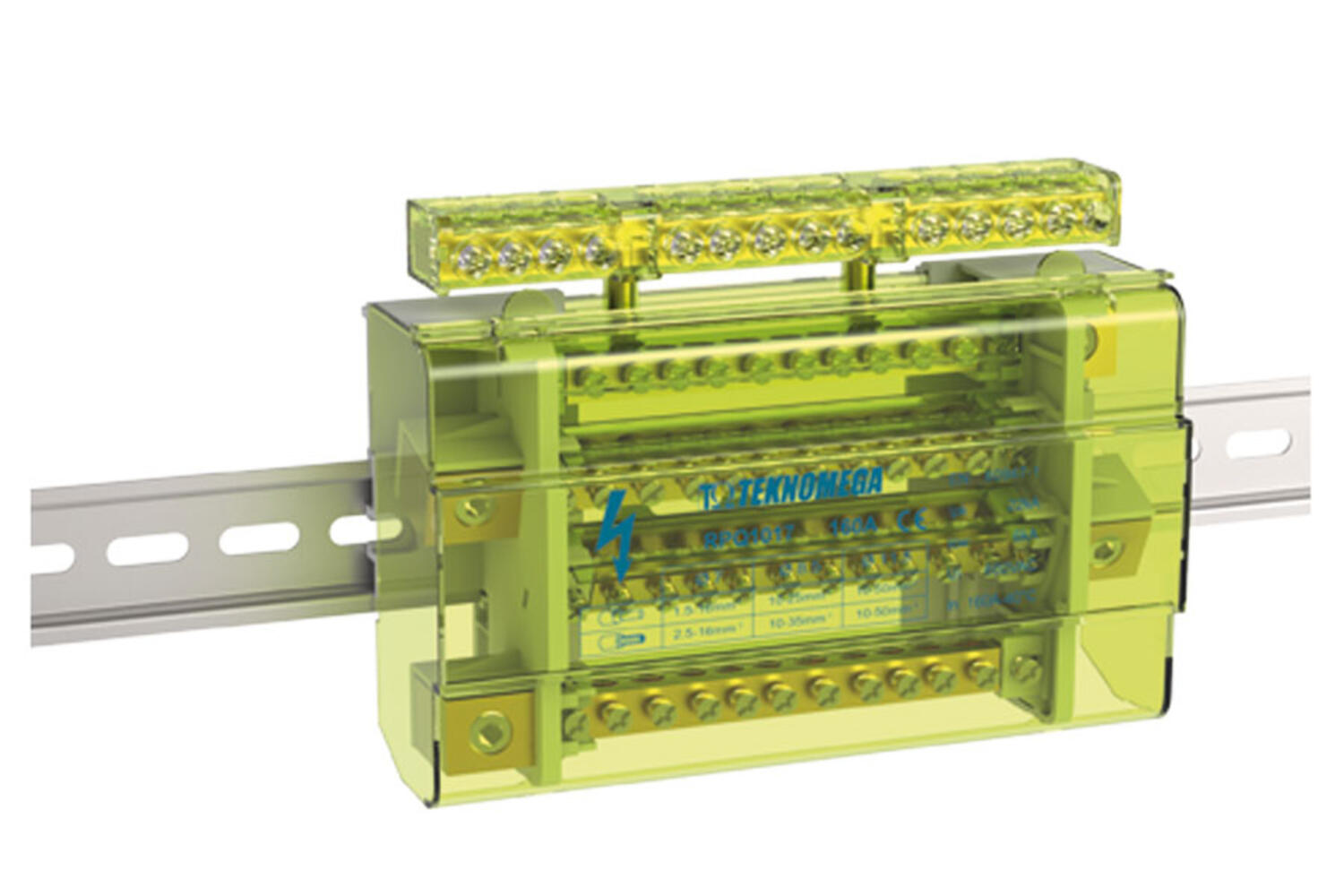

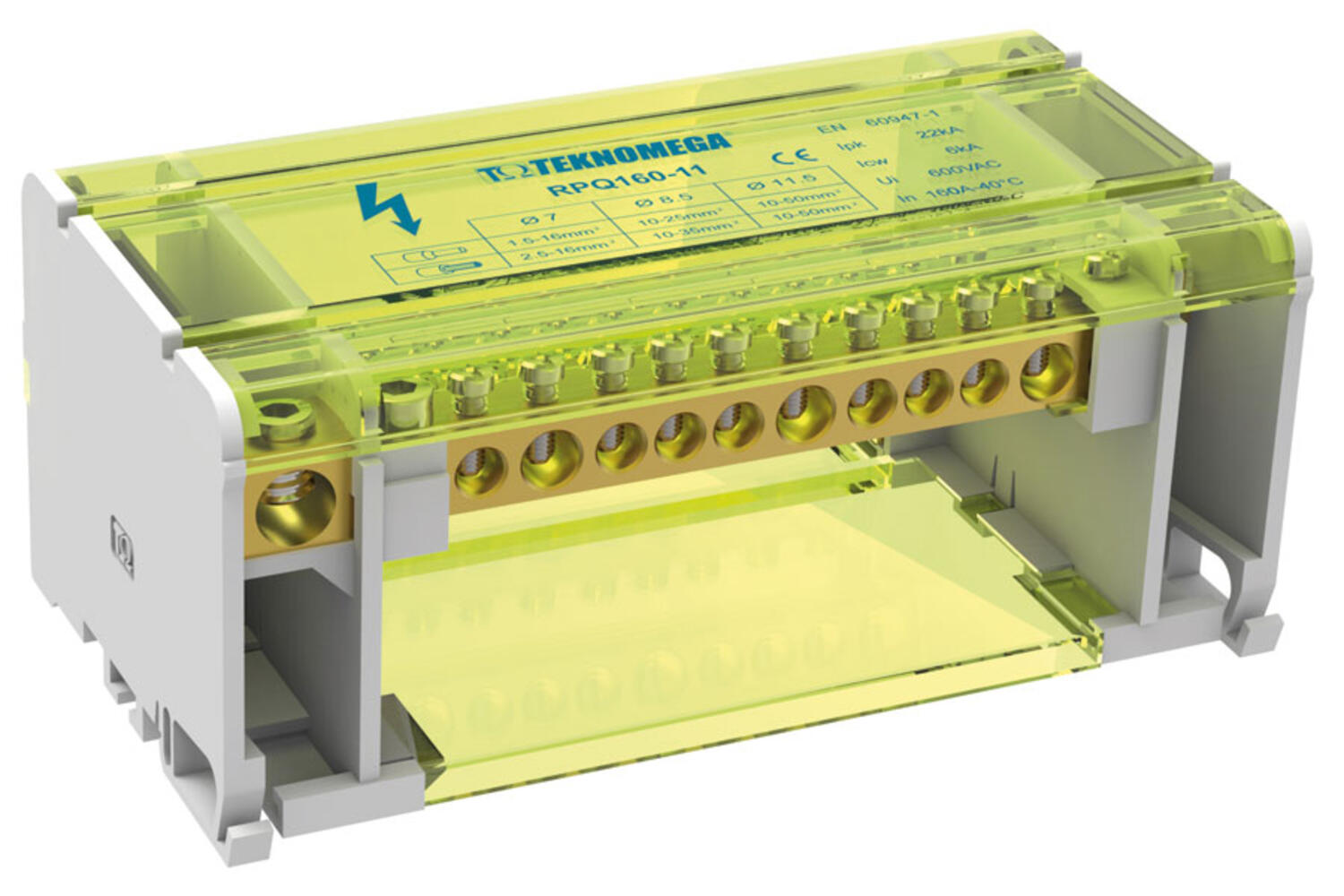

4 pole Distribution Block 160 A - RPQ 160-11
Art:
RPQ1015
Copied
|
12
|
1
|
11.5 mm
|
10 mm²
|
50 mm²
|
10 mm²
|
50 mm²
|
8
|
10
|
3
|
25 mm²
|
8
|
150 mm
|
168 mm
|
85 mm
|
70 mm
|
|
|
||

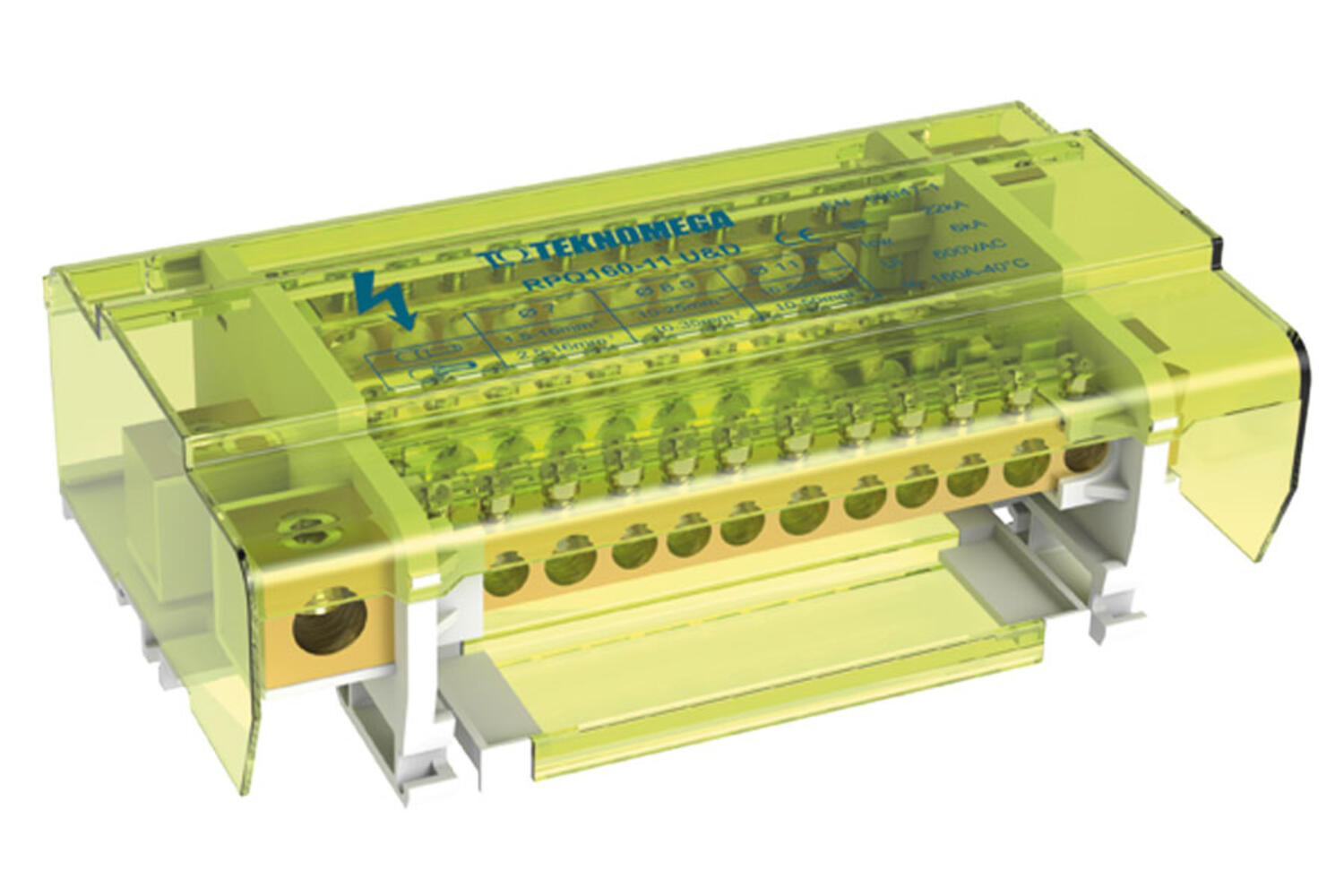

Up & Down: connection of 2 phases on each side - RPQ 160-11-U&D
