LÜTZE
USB connectors
Lutze panel mount sockets are great for adding a USB A connection to an electrical cabinet, control panel or distribution board. Rated at IP65, these sockets are robust and perfect for an industrial environment. The sockets include a protective cap, have a wide operating temperature range between -5°C and +70°C and are available in various cable lengths.
Â
- IP65 rating, protection from dust and water jets
- Various cable lengths
- Wide operating temperature range of -5°C and +70°C
Selected variant
Technical data
| Approvals | cULus |
|---|---|
| Colour | Black |
| Contact material | Gold plated |

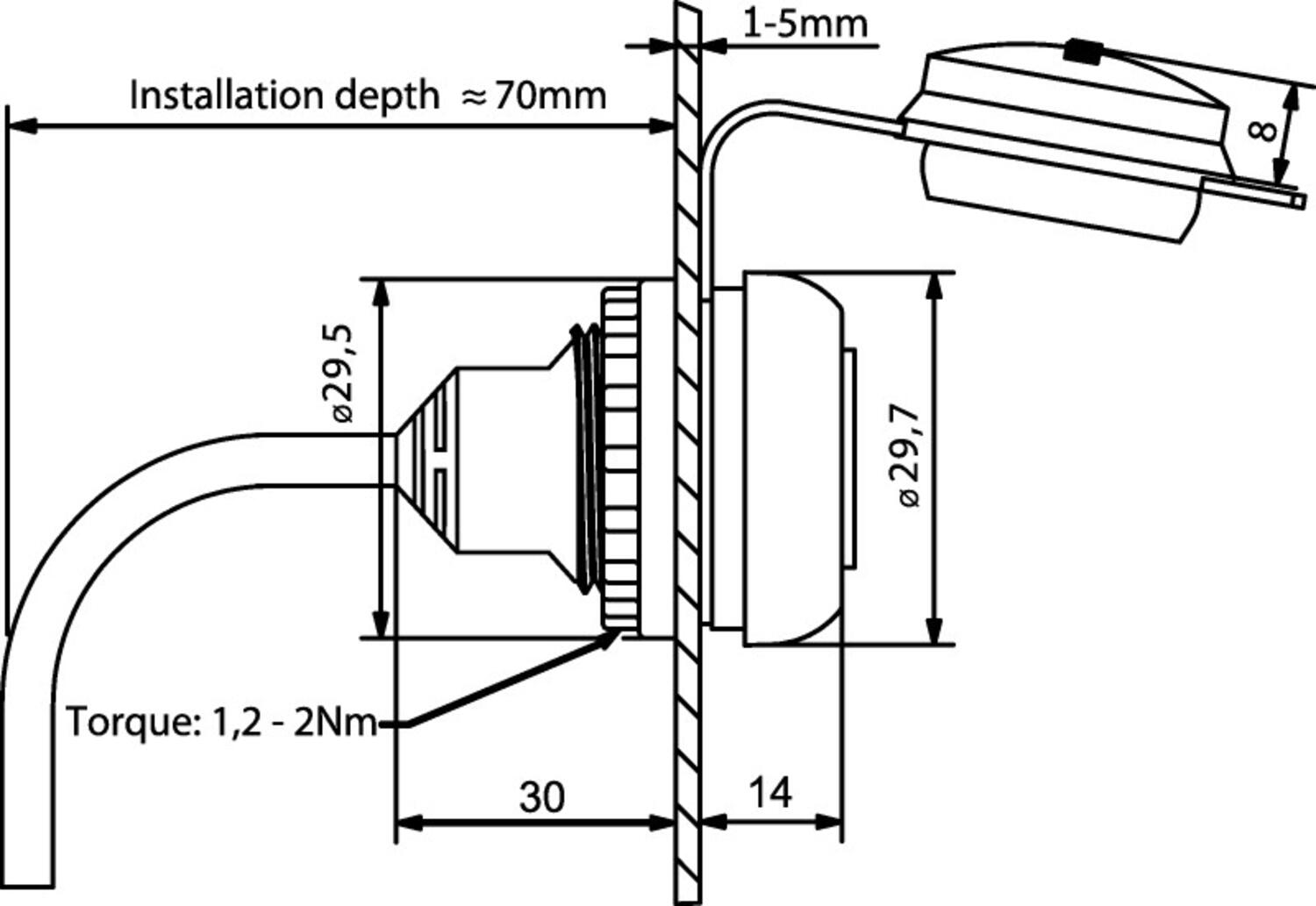

| Depth | 70 mm |
| IP class | IP20, IP65 |
| Material | PA, PVC |

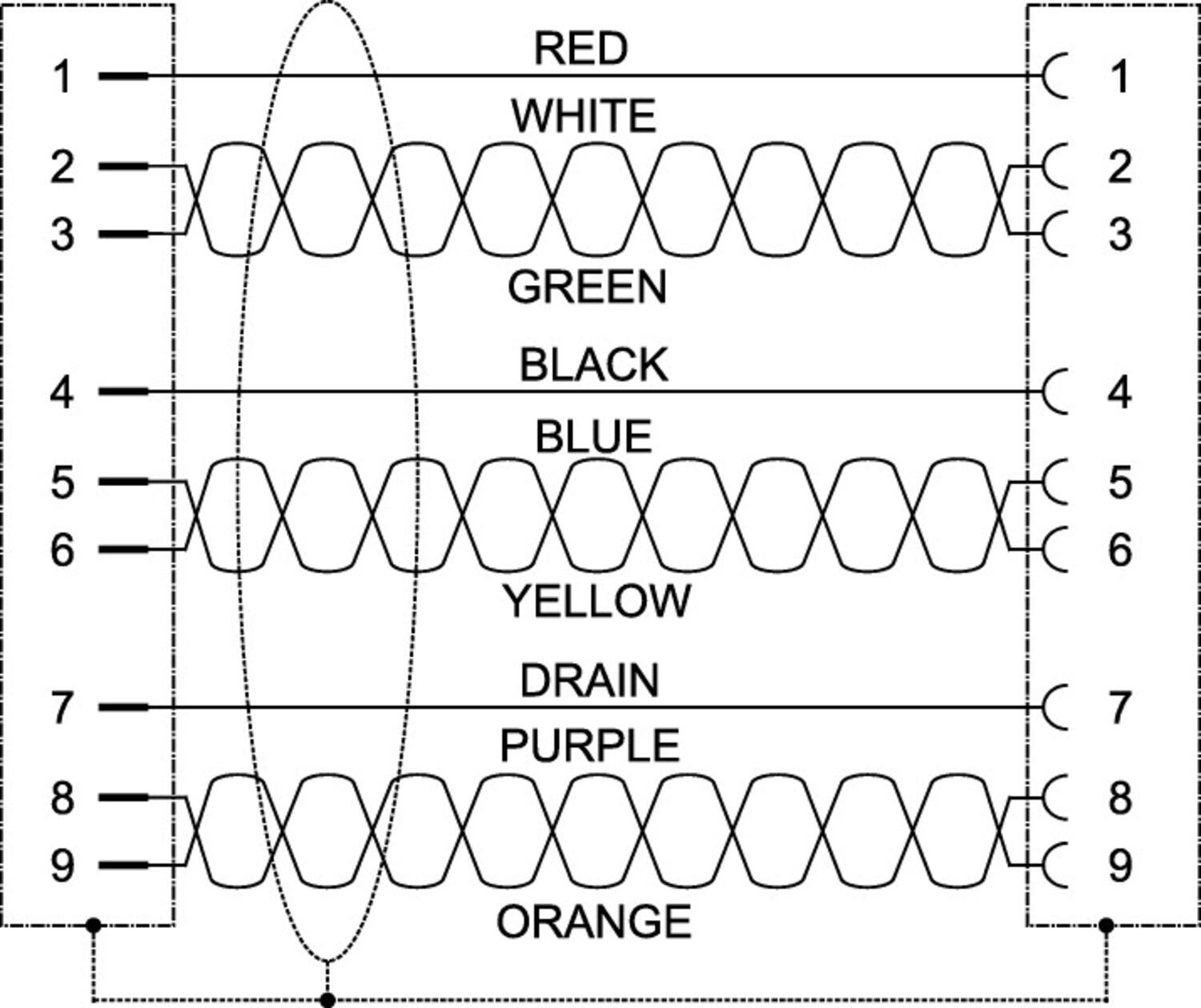

| Number of contacts | 9 |
| Rated current | 0.9 A |
|---|---|
| Storage temperature max | 80 °C |
| Storage temperature min | -25 °C |
| Temperature operational max | 70 °C |
| Temperature operational min | -5 °C |
| Voltage max | 30 V |
Product description
Lutze panel mount sockets are great for adding a USB A connection to an electrical cabinet, control panel or distribution board. Rated at IP65, these sockets are robust and perfect for an industrial environment. The sockets include a protective cap, have a wide operating temperature range between -5°C and +70°C and are available in various cable lengths.
